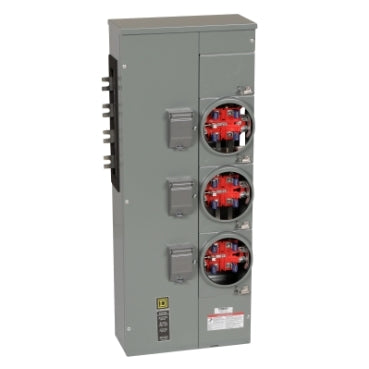

Schneider Electric EZMR313225 EZ Meter-Pak 225A 3-Position Branch Unit
Schneider Electric EZMR313225 EZ Meter-Pak 225A 3-Position Branch Unit

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Schneider Electric EZMR313225 EZ Meter-Pak 225A 3-Position Branch Unit

Only 1 left
SKU: EZMR313225 UPC: 785901402237
(0)
$1,200.00
-20% $1,500.00 $1,200.00
Only 1 left
Low inventory - Hurry up!
Condition

EZMR313225 layout: Square D uses EZMR313225 for a three-position branch section in the EZ Meter-Pak system, with each ringless socket rated up to 225 amps. Its five-jaw arrangement is for a 208Y/120-volt service configuration.

EZMR313225 specifications

  • Catalog number: EZMR313225
  • Meter sockets: Three, 5-jaw
  • Rating per position: 225A
  • Voltage: 208Y/120VAC
  • Meter style: Ringless, no bypass
  • Horizontal bus: 800A aluminum

Branch section—not a complete service by itself

The unit provides tenant metering positions and breaker provisions within the modular EZ Meter-Pak system. Main service equipment, adjacent sections, tenant breakers, and accessories are separate design decisions unless explicitly included.

Utility compatibility

Confirm the local utility's approved equipment list, meter form, jaw count, voltage and phase, bus rating, mating sections, and enclosure requirements. Final system design and installation should be reviewed by the utility, engineer, and qualified contractor.
