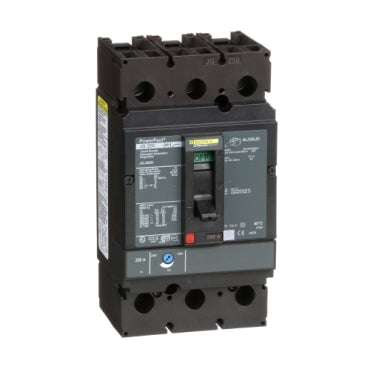

Square D JGL36200 200A 600V 3-Pole J-Frame Circuit Breaker
Square D JGL36200 200A 600V 3-Pole J-Frame Circuit Breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D JGL36200 200A 600V 3-Pole J-Frame Circuit Breaker

Only 1 left
SKU: JGL36200 UPC: 785901683216
(0)
$1,900.00
Only 1 left
Low inventory - Hurry up!
Condition

JGL36200 rating correction: Catalog JGL36200 identifies Square D's 200-amp, three-pole PowerPacT J-frame breaker equipped with lug terminals. Schneider documents an 18kA interrupting rating at 600 volts, not the 35kA bolt-on description previously shown.

JGL36200 specifications

  • Catalog number: JGL36200
  • Current and poles: 200A, 3-pole
  • Maximum AC voltage: 600VAC
  • Interrupting capacity: 18kA at 600VAC
  • Trip: Thermal-magnetic
  • Terminations: Lugs; 80% continuous rating

JGL is not JGA

Suffix letters identify interrupting class and mounting/termination details within the J-frame family. Matching “J-frame, 200A” alone can produce the wrong breaker for the equipment or fault-current study.

Equipment checkpoint

Compare the complete catalog number, mounting arrangement, line and load lugs, system voltage, available fault current, accessories, and enclosure listing. A qualified professional should confirm coordination and install the breaker using Schneider's torque and safety instructions.
