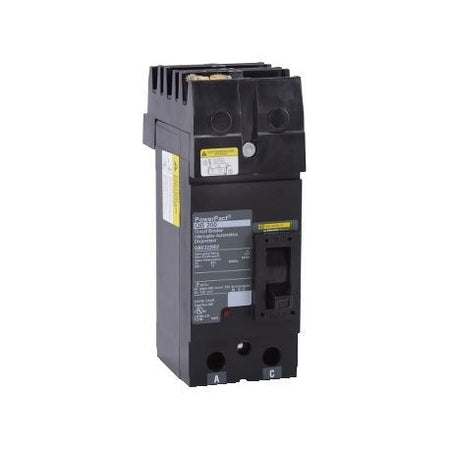

Square D QBE222002 200A 2-Pole 240V Circuit Breaker
Square D QBE222002 200A 2-Pole 240V Circuit Breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QBE222002 200A 2-Pole 240V Circuit Breaker

Only 1 left
SKU: QBE222002 UPC: 78590167255
(0)
$600.00
-20% $750.00 $600.00
Only 1 left
Low inventory - Hurry up!
Condition

QBE222002 I-Line profile: Square D QBE222002 is a 200-amp, two-pole PowerPacT Q breaker that connects to an approved I-Line bus. It is not a generic plug-in load-center breaker.

QBE222002 specifications

  • Catalog number: QBE222002
  • Current and poles: 200A, 2-pole
  • Voltage: 240VAC
  • Interrupting capacity: 10kA
  • Trip: Thermal-magnetic
  • Mounting: I-Line; 80% continuous rating

I-Line fit is not visual interchangeability

The bus jaw, support, pole position, frame dimensions, and panelboard listing determine fit. A two-pole Q-frame with unit-mount lugs or another interrupting class is a different catalog configuration.

Before installation

Confirm the panel label accepts QBE222002, then verify system voltage, available fault current, conductor terminals, required accessories, and terminal torque. Selection and installation on energized distribution equipment should be handled only by qualified electrical personnel following Schneider instructions.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
