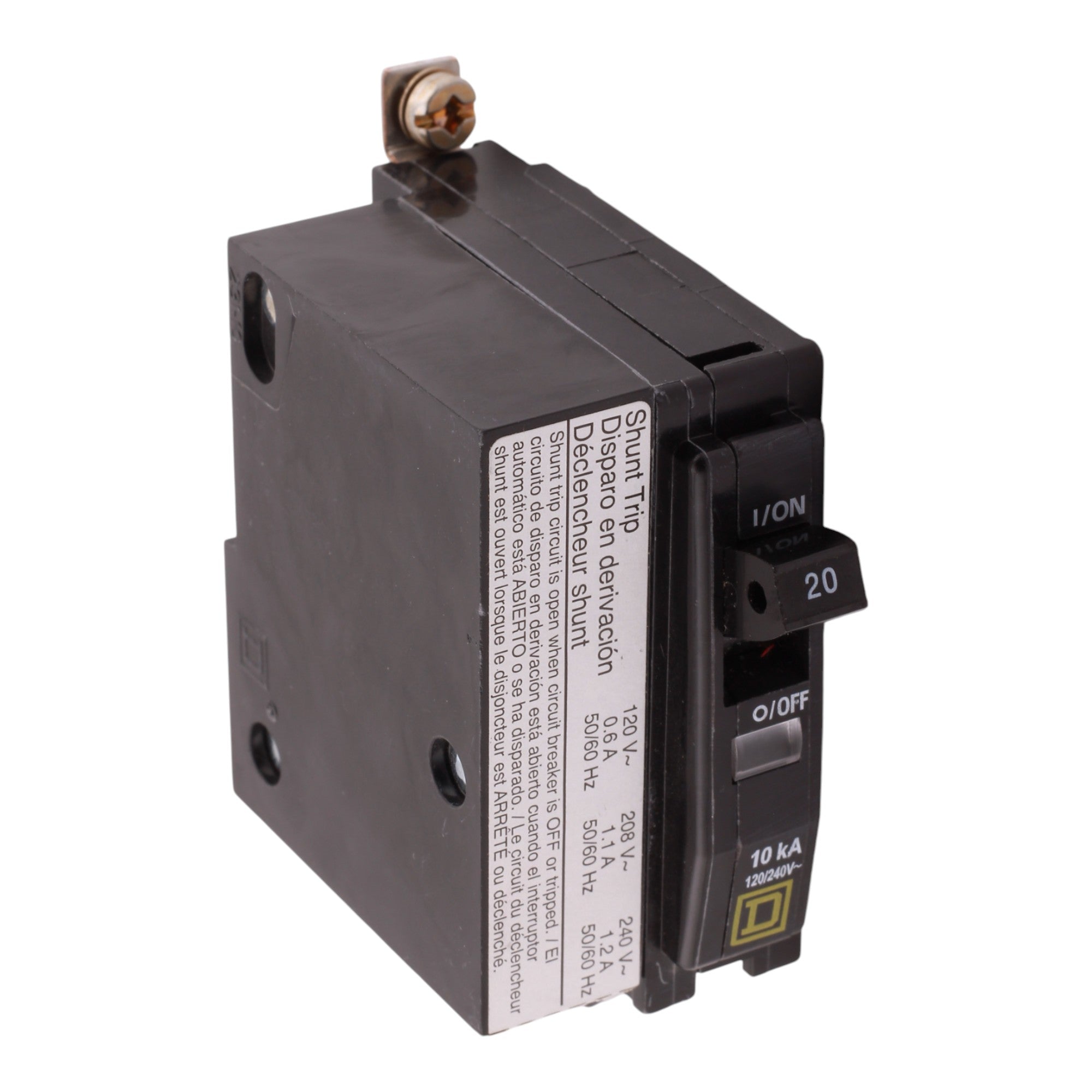

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker

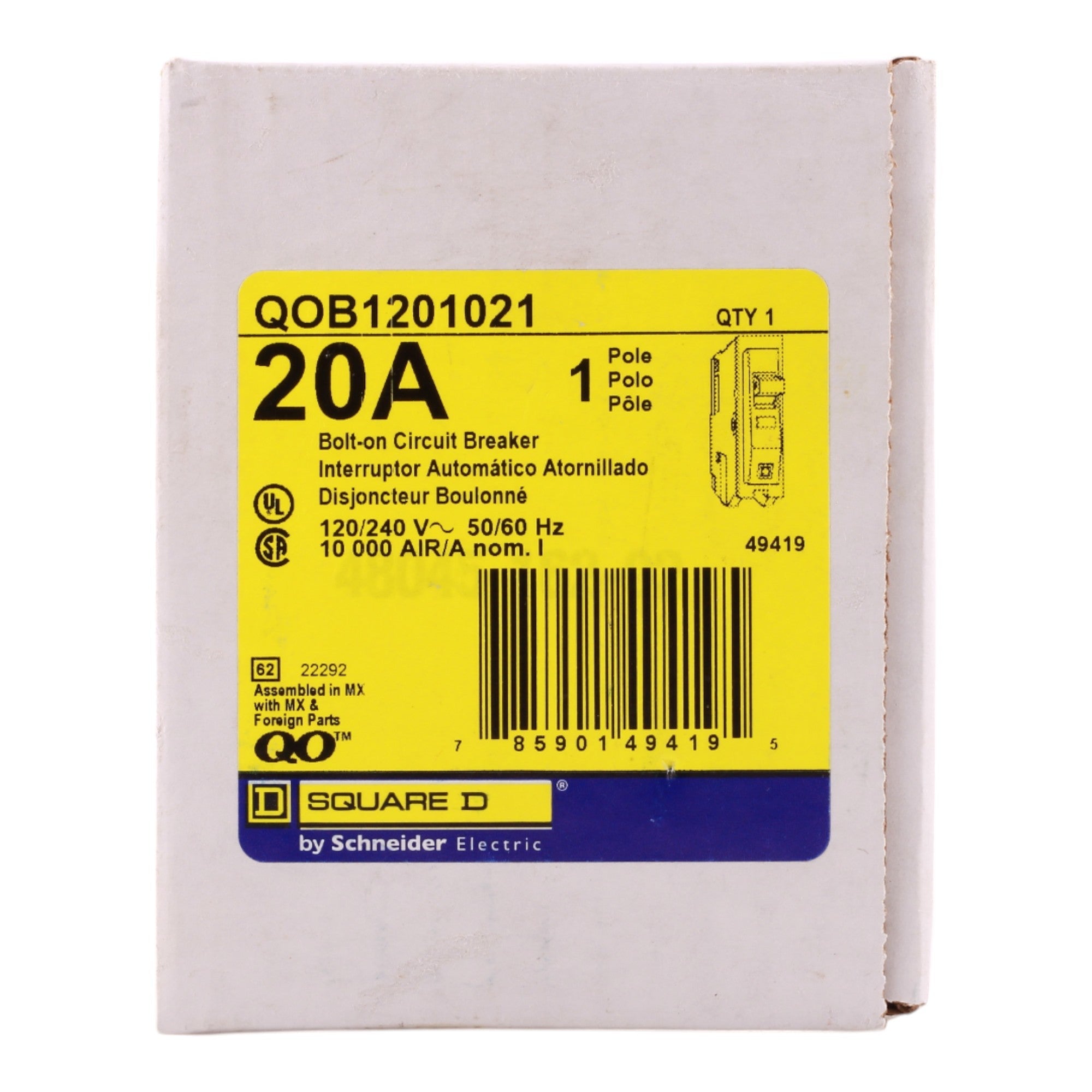

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 2

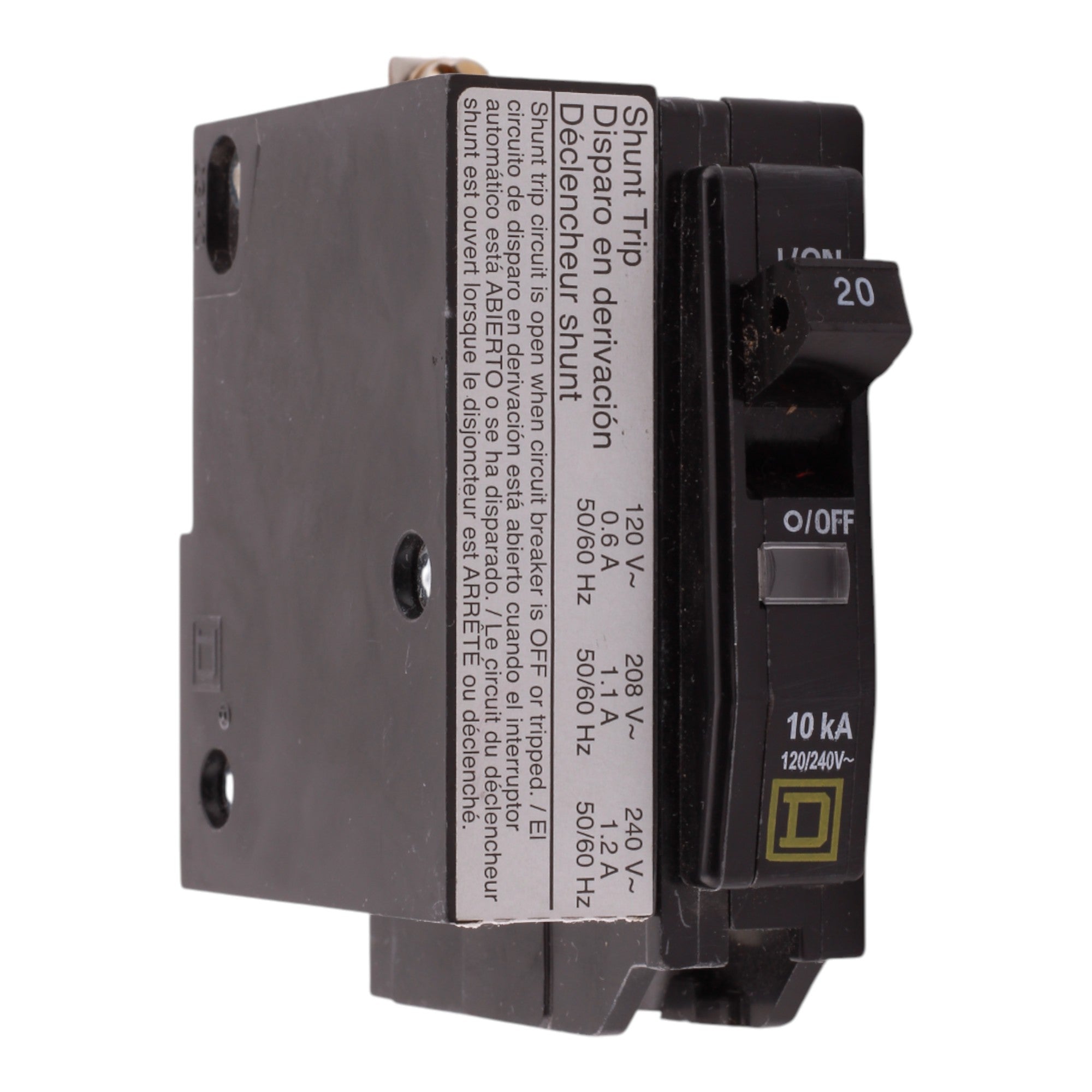

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 3

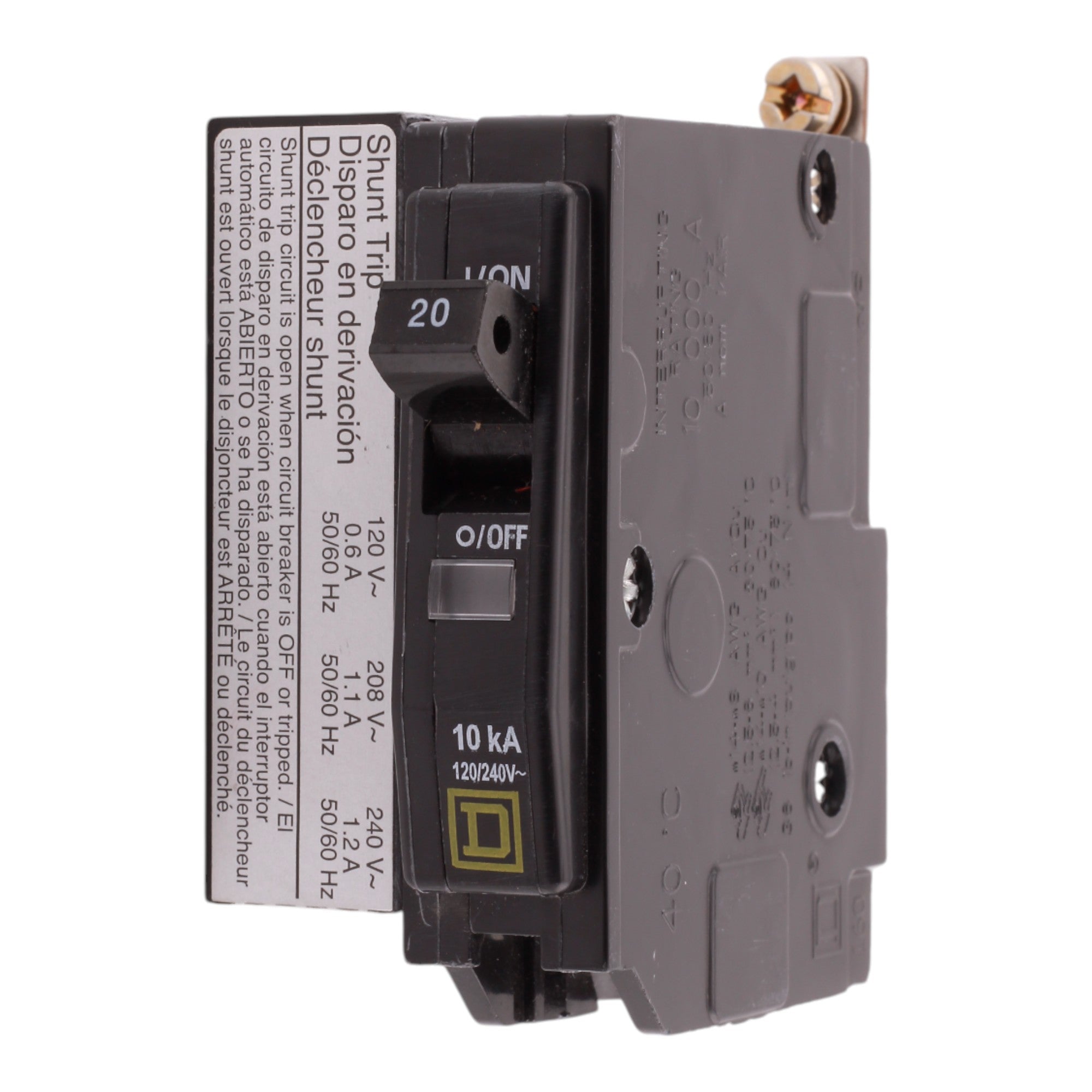

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 4

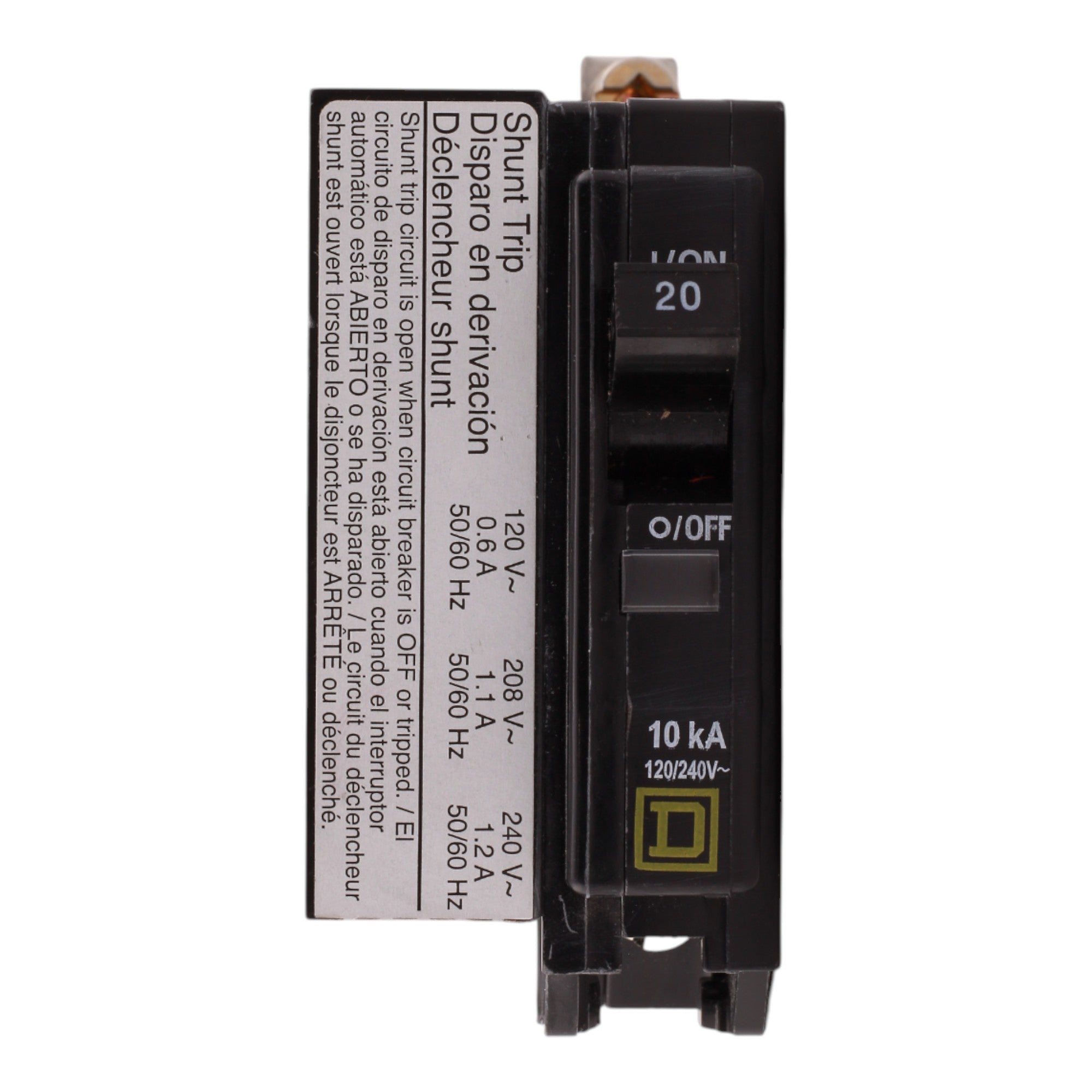

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 5

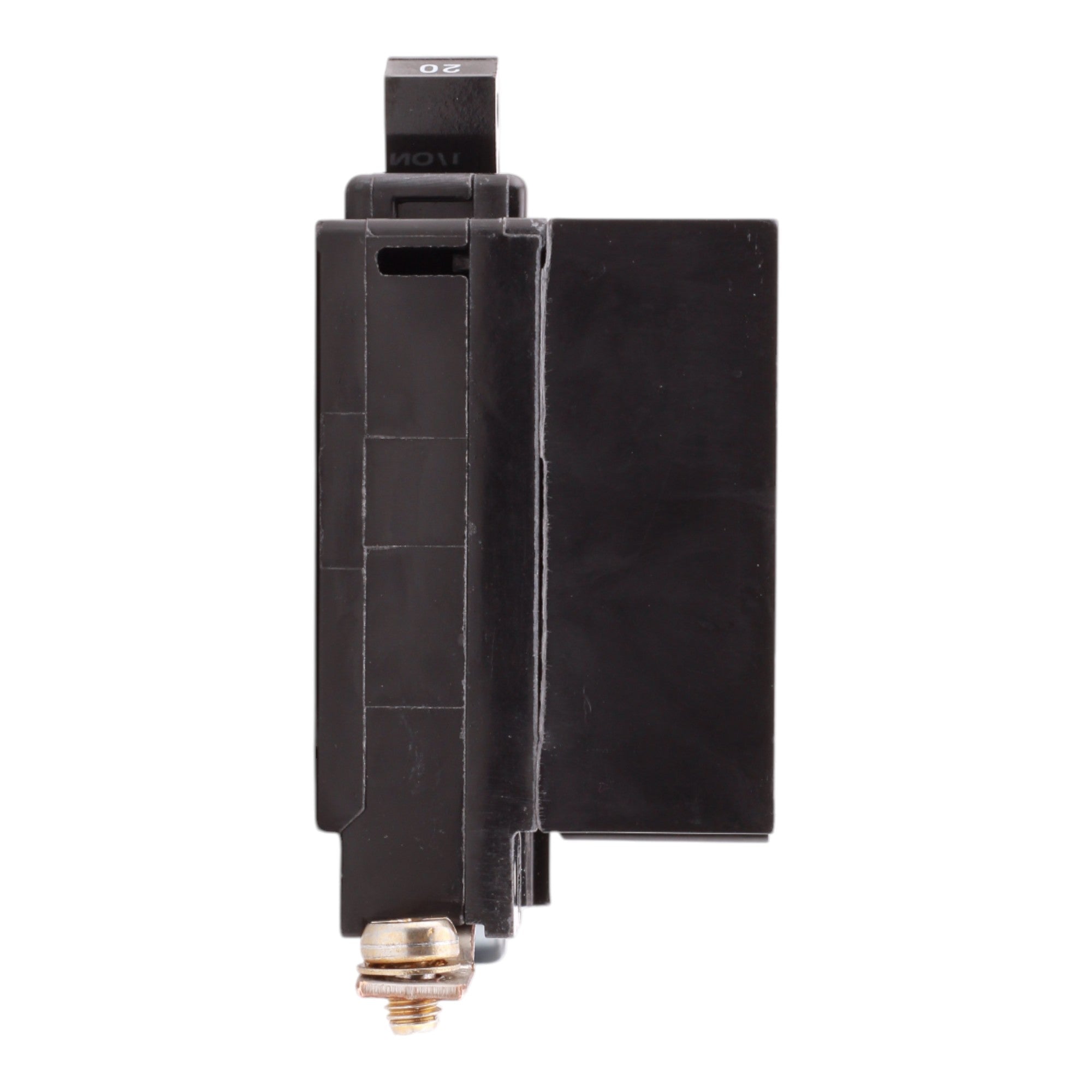

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 6

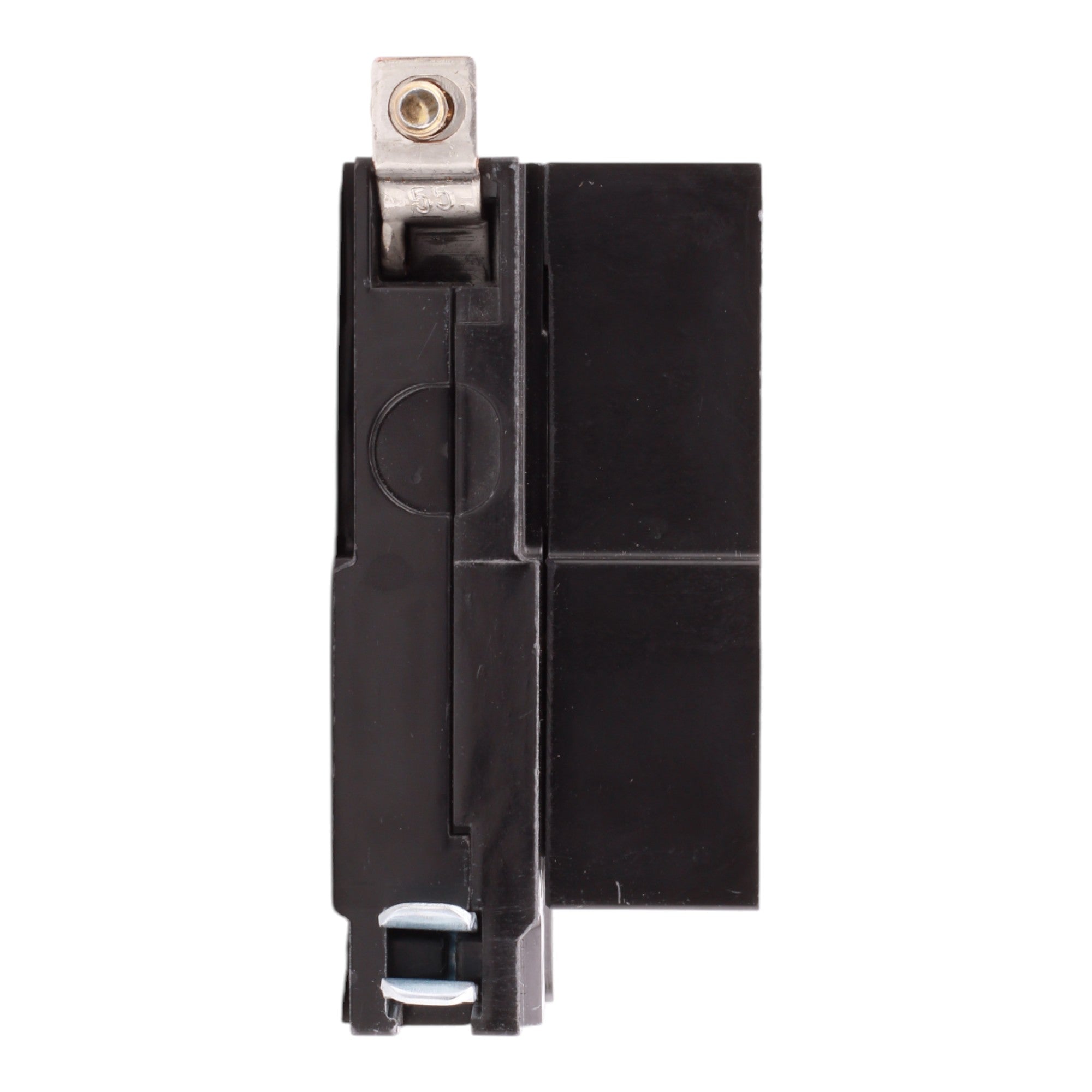

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 7

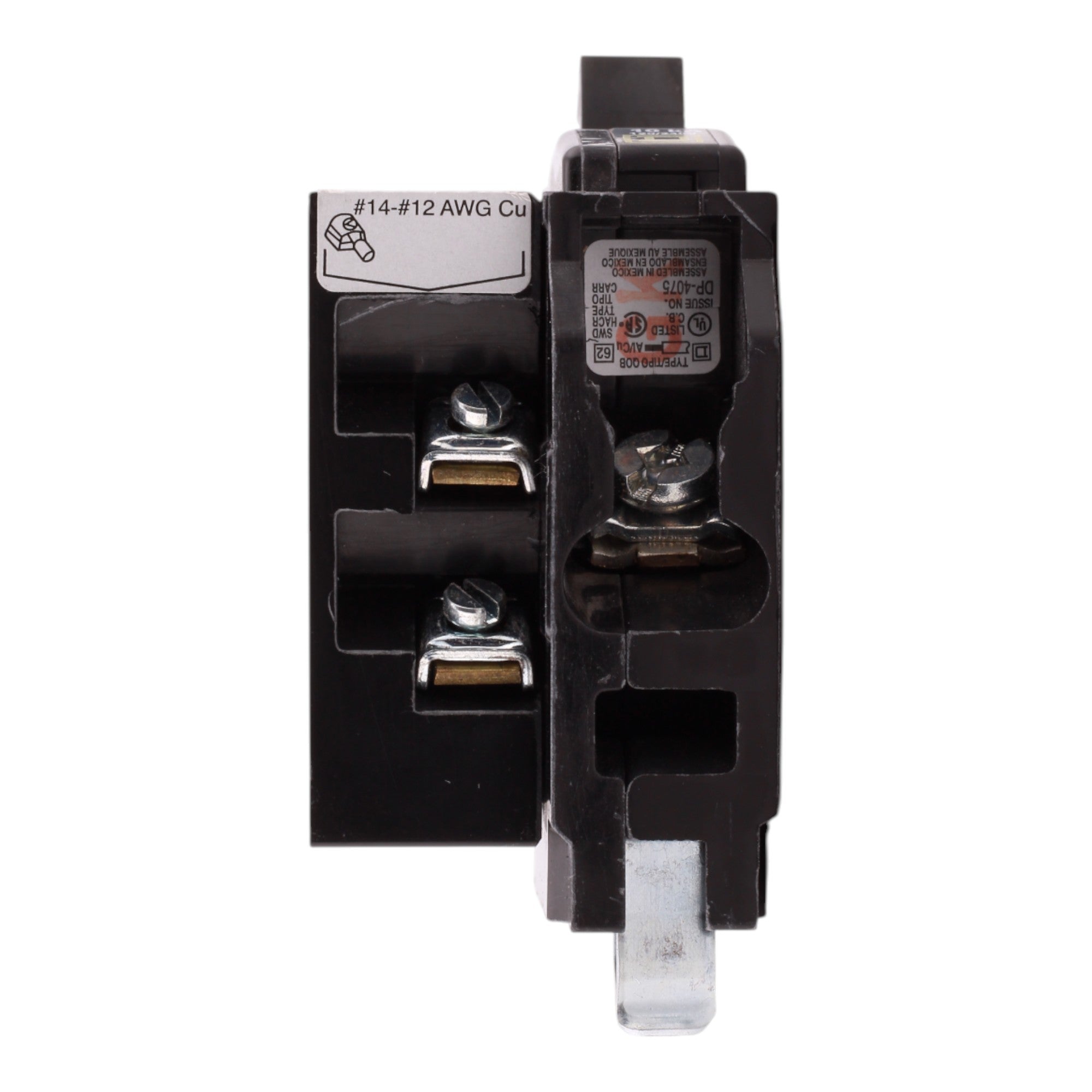

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 8

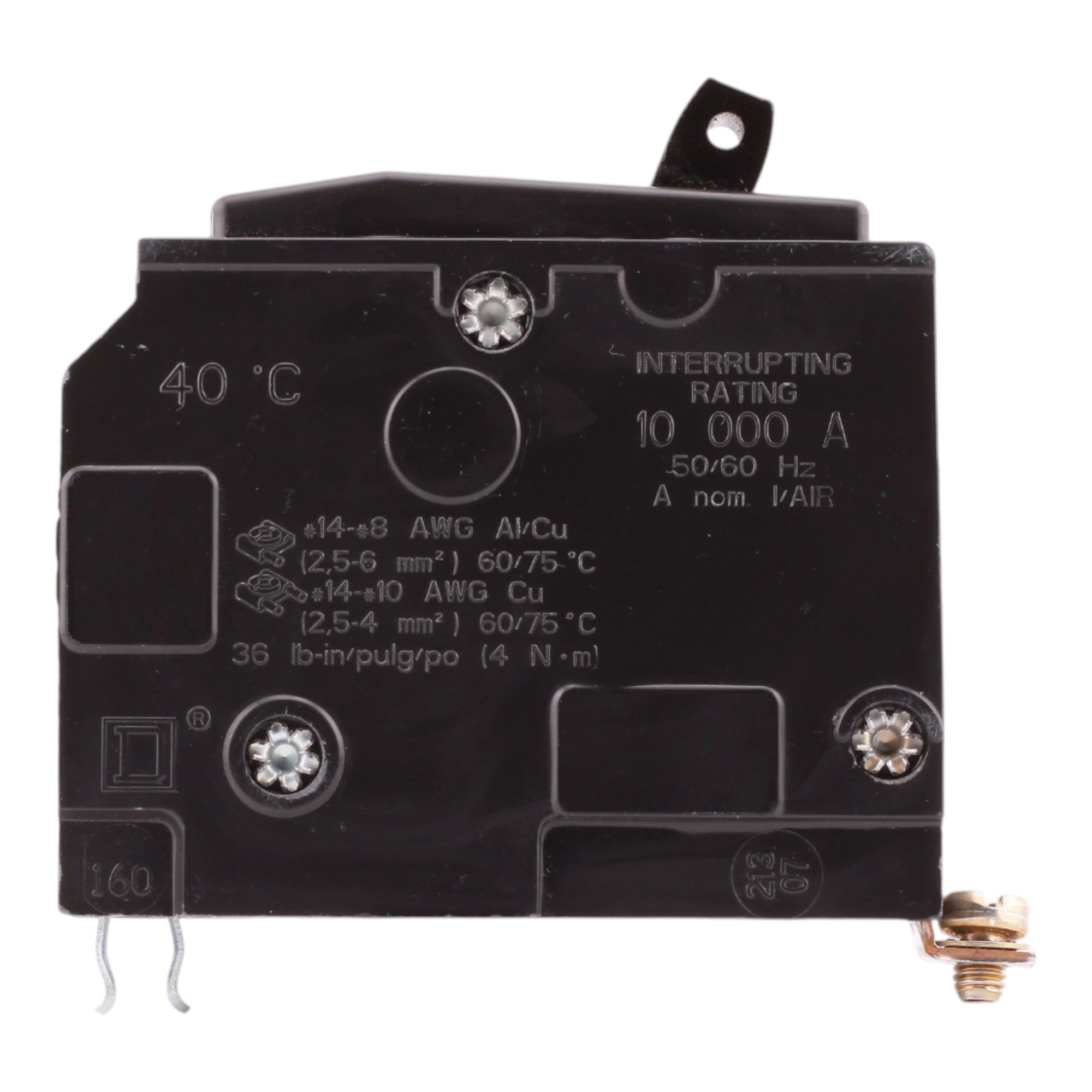

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 9

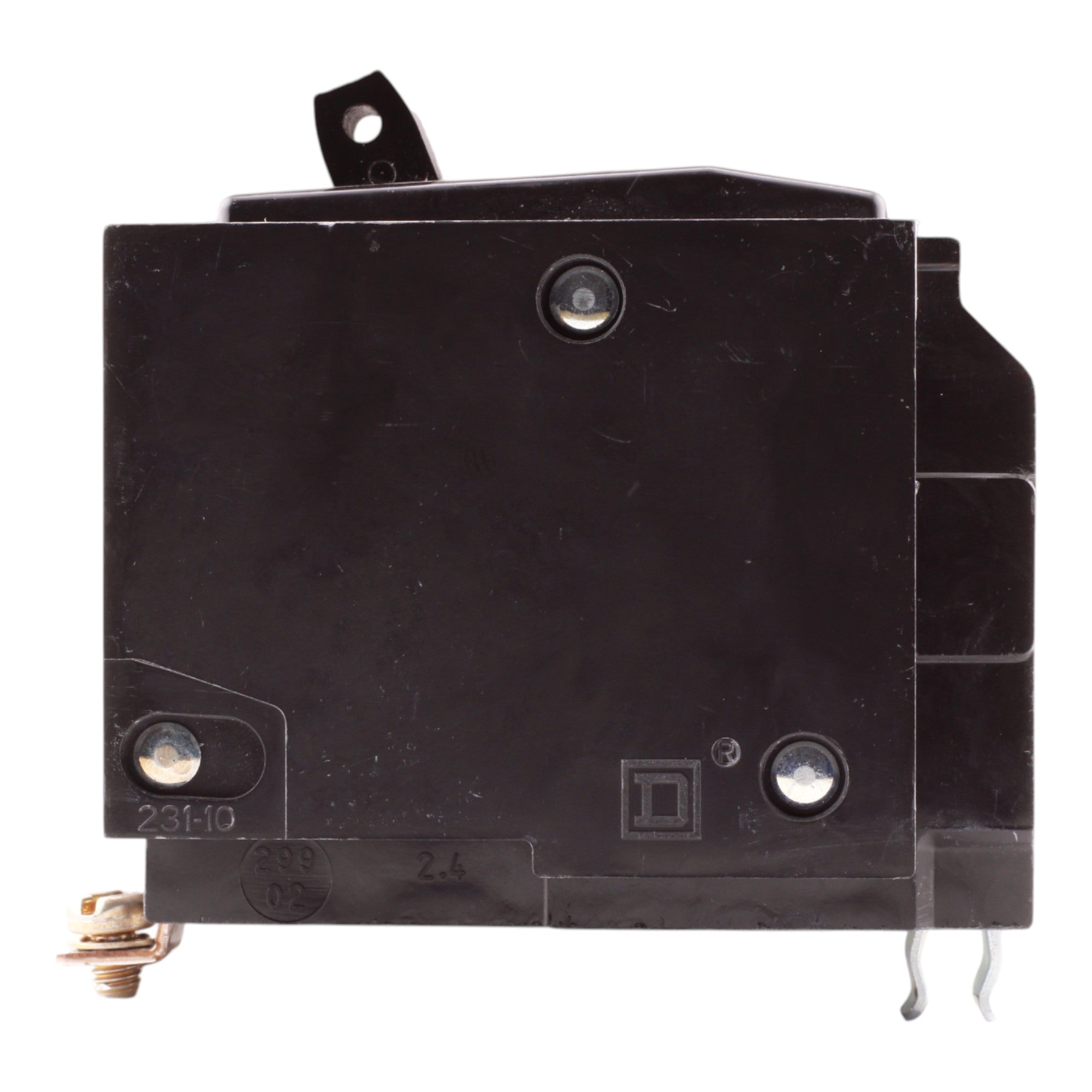

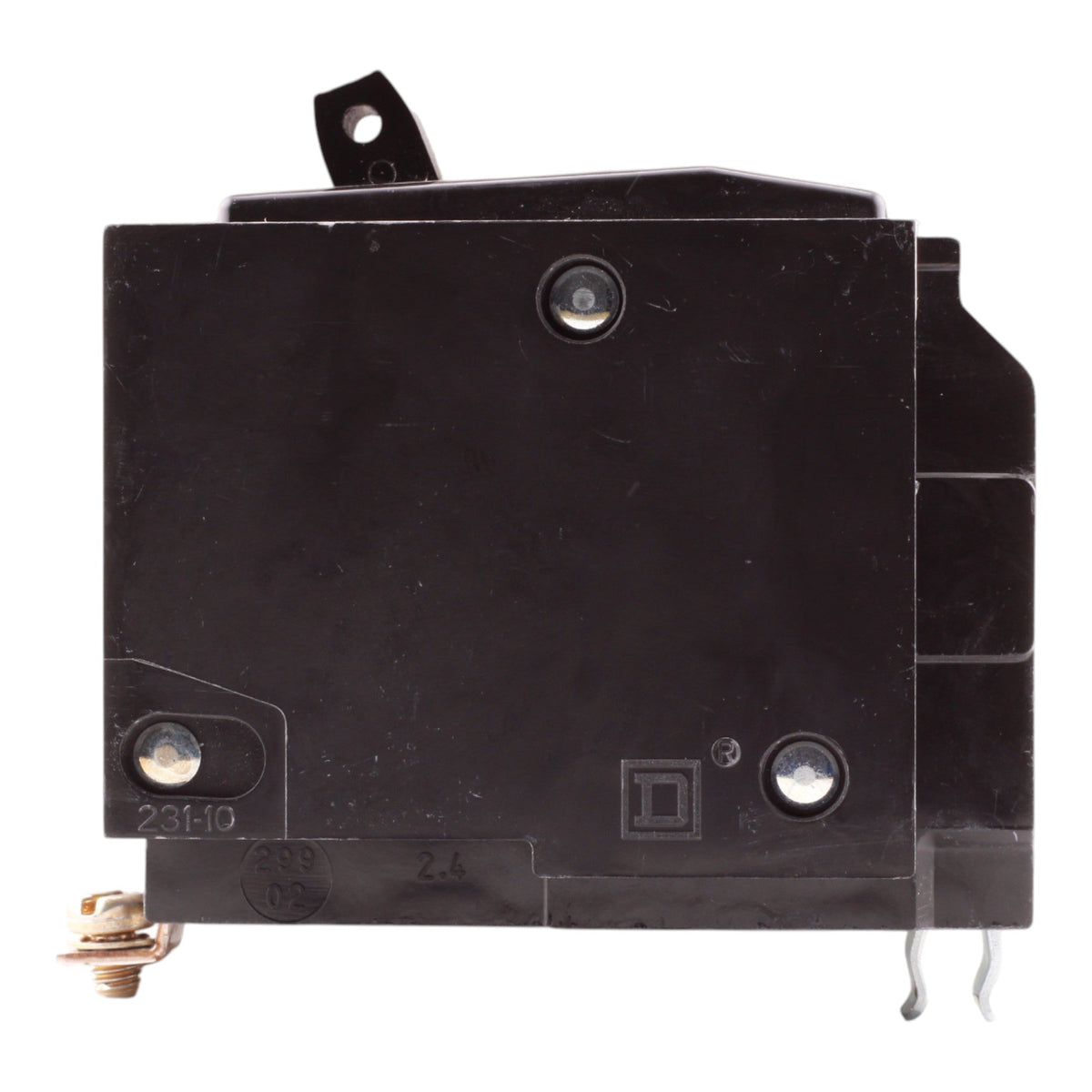

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Schneider Electric QO QOB1201021 20A 1P 120/240V Standard Bolt-On Circuit Breaker

SKU: QOB1201021
(0)
$119.00
-18% $145.00 $119.00
Out of stock
Condition

Schneider Electric QOB1201021: 20 Amp 1-Pole Standard Circuit Breaker, 120/240V, 10kA, bolt-on, shunt trip 120/208/240V AC, UL listed, CSA certified.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D QO loadcenters and equipment)
  • UPC: 785901494195
  • Model Number: QOB1201021
  • Breaker Type: Standard
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Bolt-on
  • Connections Terminals: Pressure plate
  • Wire Size: AWG 14...AWG 8 Cu/Al
  • Tightening Torque: 35.4 lb-in
  • Dimensions: Height: 3.0 in; Width: 1.5 in; Depth: 2.9 in
  • Weight: 0.280 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated
  • Options: Shunt trip 120/208/240V AC

This Schneider Electric QOB1201021 bolt-on circuit breaker provides reliable 20A, 1-pole standard protection for 120/240V circuits in QO loadcenters. Equipped with a shunt trip for remote tripping, it ensures enhanced functionality and safety for residential and commercial applications.
