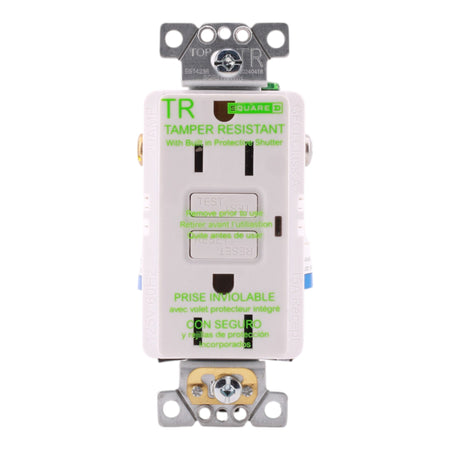

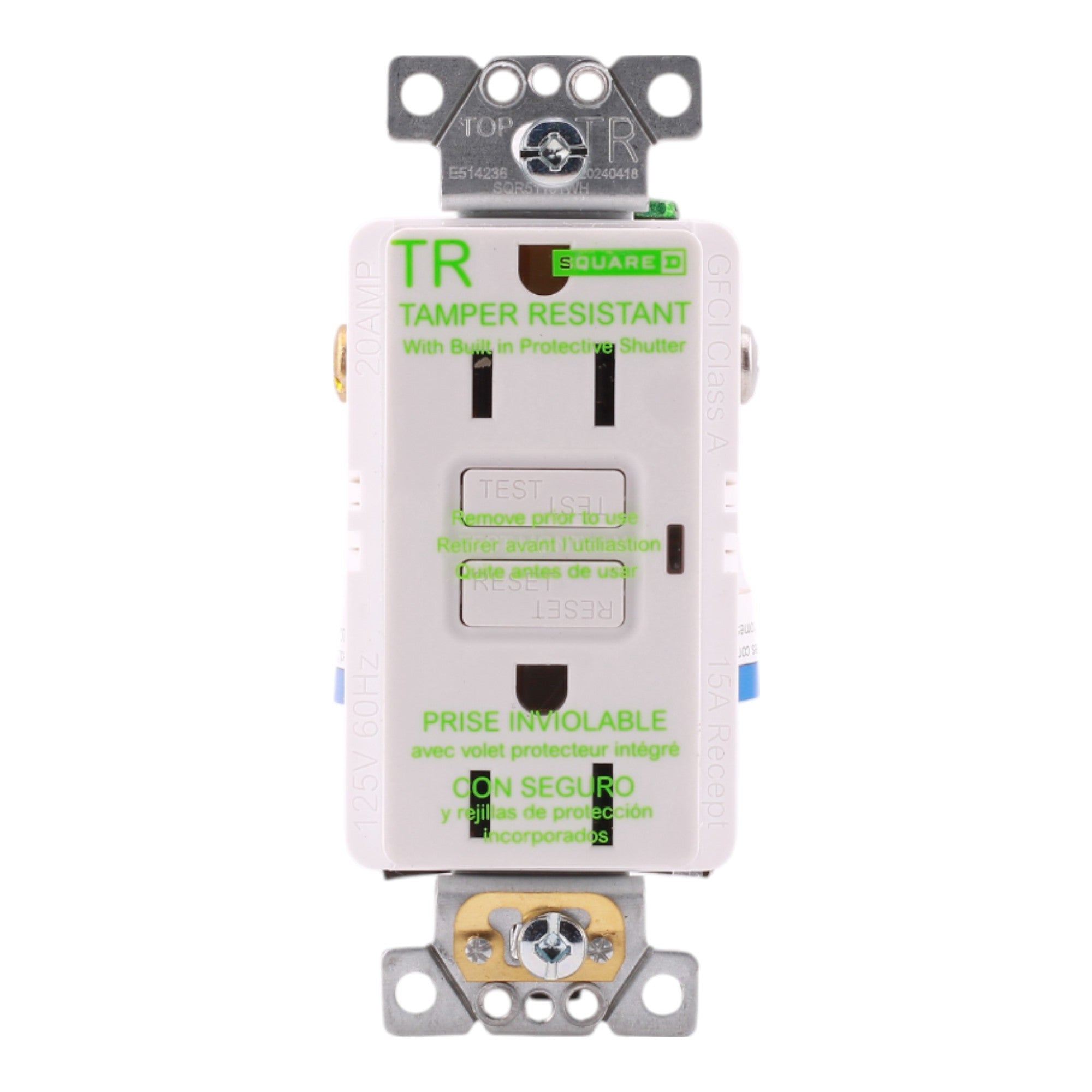

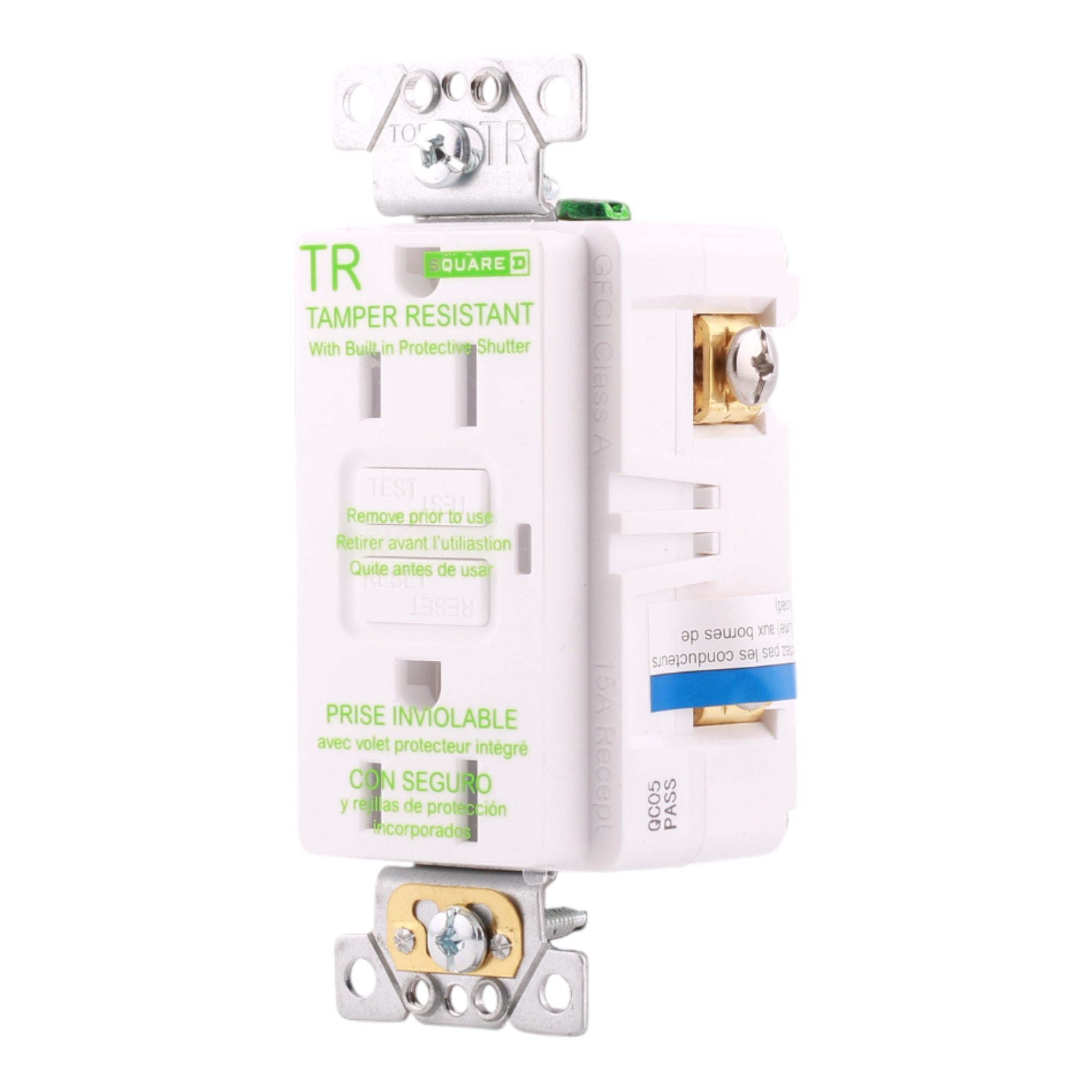

Schneider Electric X Series SQR51101WH 15A 125V GFCI Tamper Resistant Outlet White

SQR51101WH specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: X Series (for residential wiring applications)
• UPC: 785901544562
• Model Number: SQR51101WH
• Product Type: Socket-Outlet
• Amperage: 15 Amps
• Poles: 2-Pole + Earth
• Voltage: 125 Volts AC
• Mounting Mode: Flush, by screws

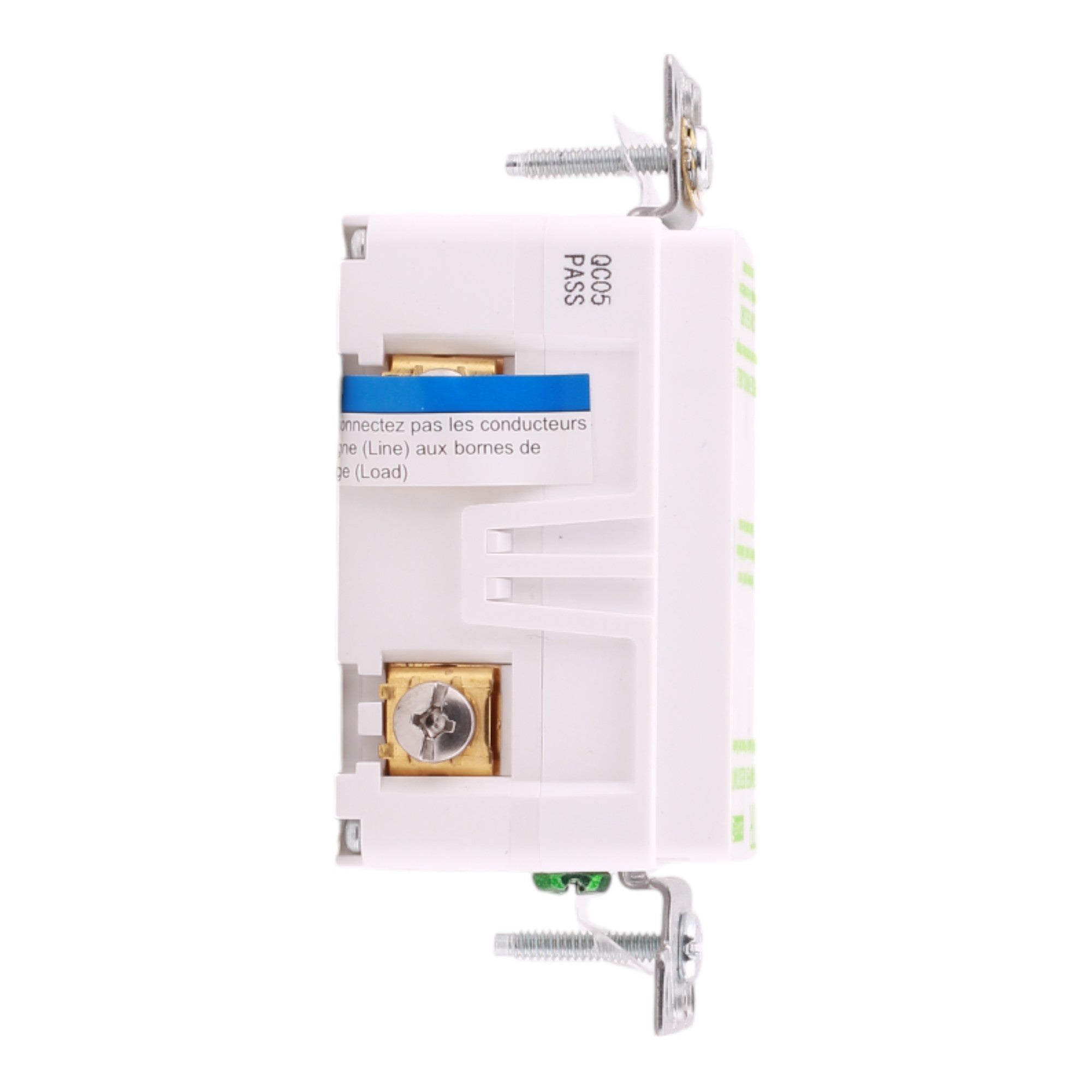

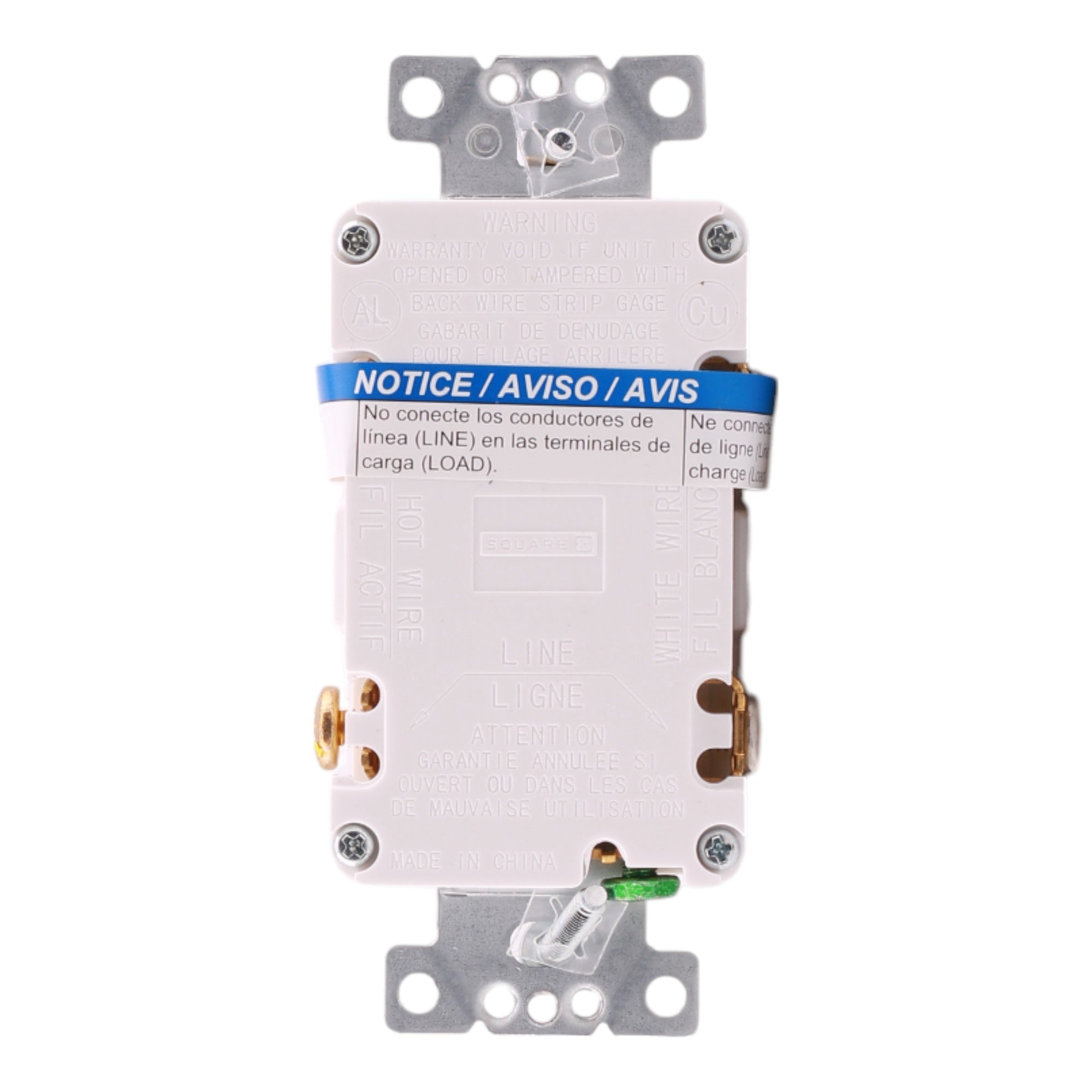

• Connections Terminals: 4 screw terminals (phase and neutral), 1 screw terminal (earth)
• Wire Size: Not specified
• Tightening Torque: Not specified
• Dimensions: Height: 4.06 in; Width: 1.65 in; Depth: 1.61 in
• Weight: 0.361 lbs
• Certifications: cULus Certified, ICES-003, UL 498, UL 943
• Protection Type: Ground-Fault Circuit Interrupter (GFCI)
• Socket Additional Information: Tamper resistant
• Color: White
• Surface Finish: Matte

This Schneider Electric SQR51101WH X Series socket-outlet provides reliable 15A, 125V GFCI protection for residential kitchens, bathrooms, and other high-risk areas. With tamper-resistant shutters and auto-monitoring testing, it ensures enhanced safety and compliance with UL 943 standards. Designed for flush mounting, this white matte-finish outlet integrates seamlessly with X Series cover plates for a modern look in residential applications.
