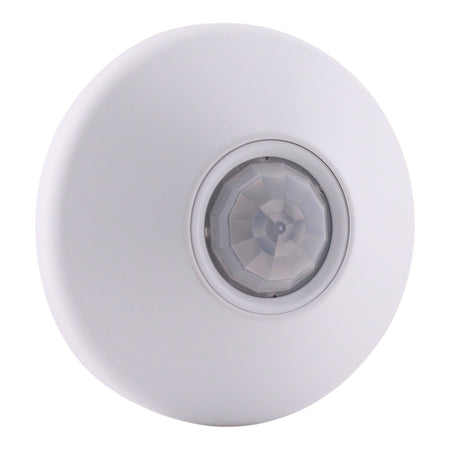

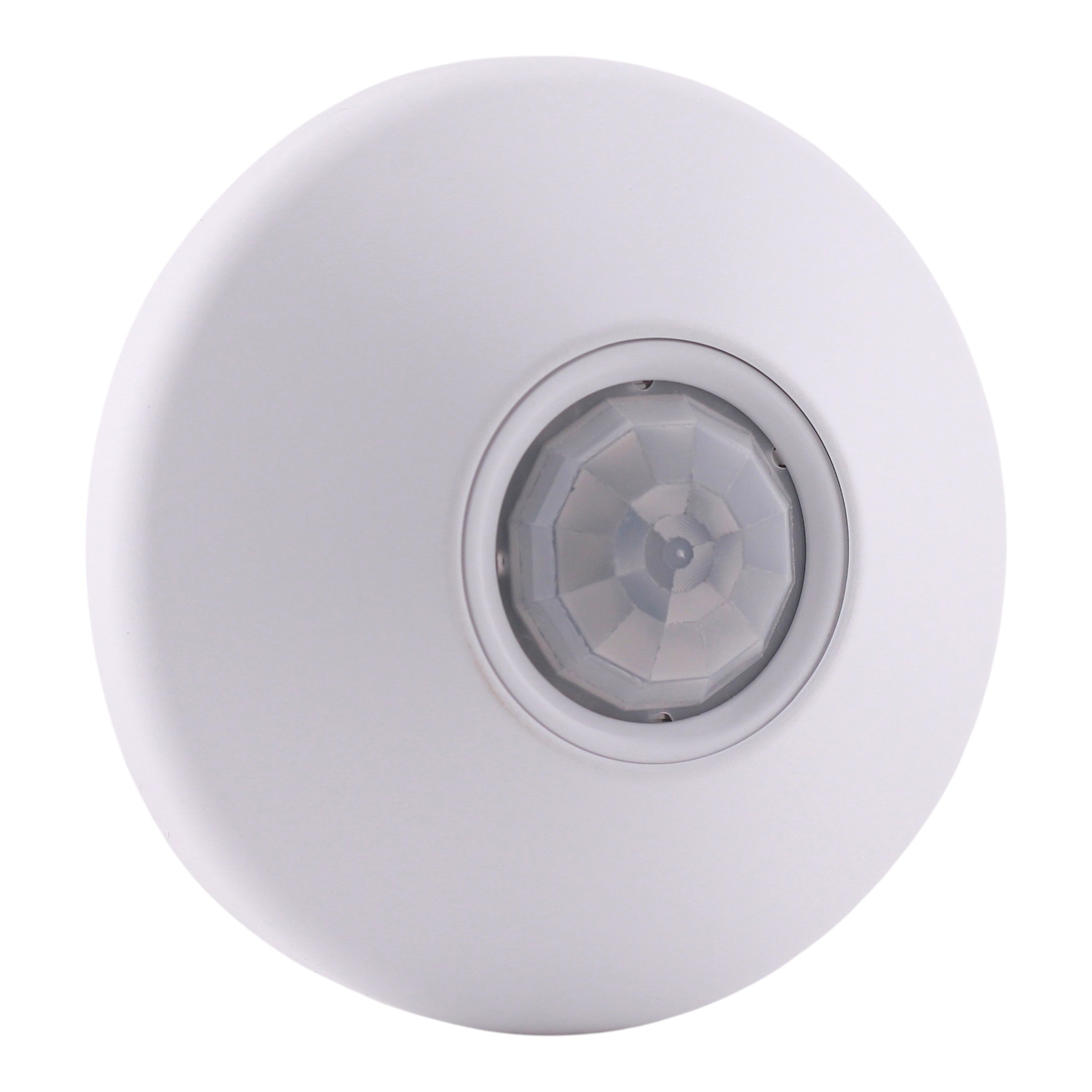

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White

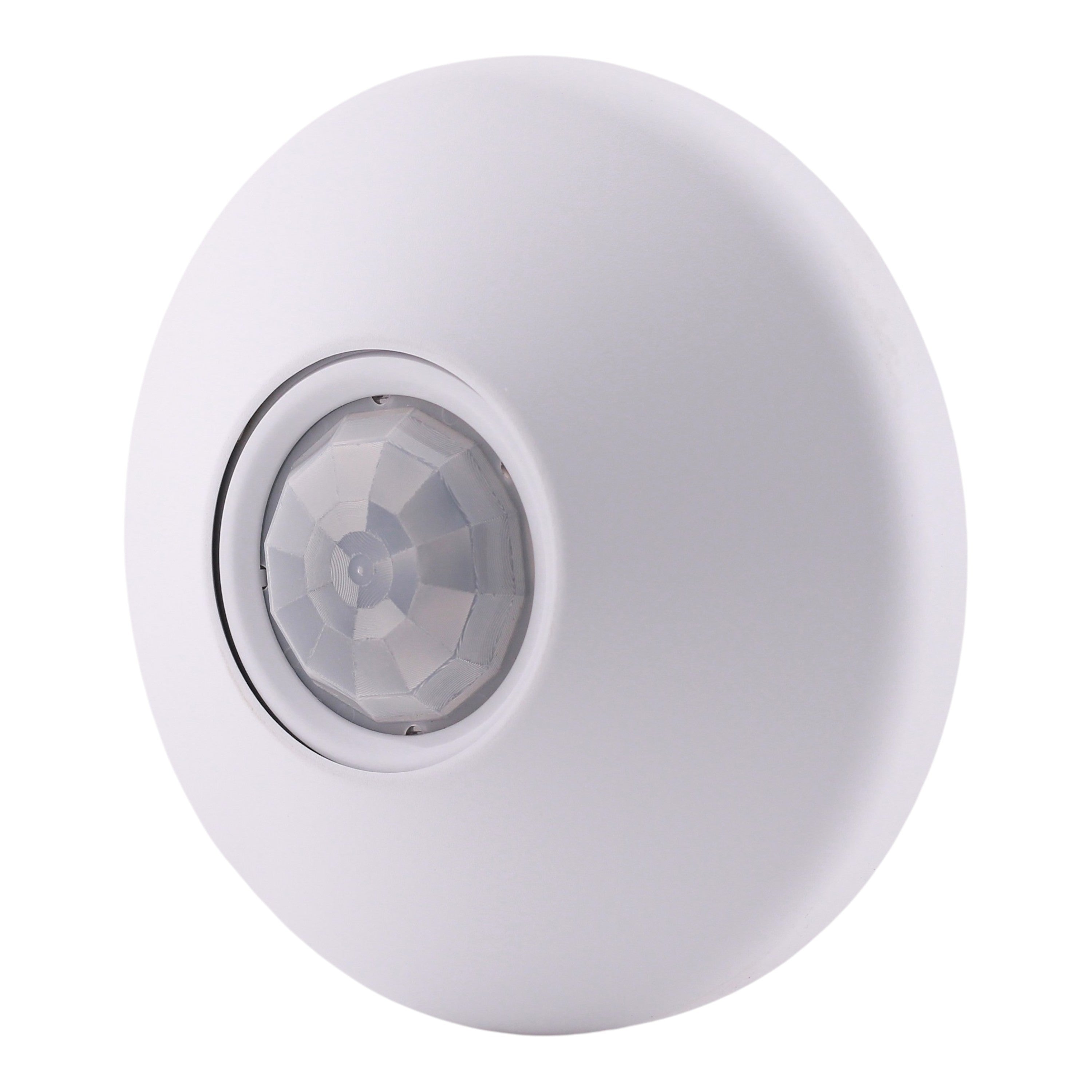

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White - Image 2

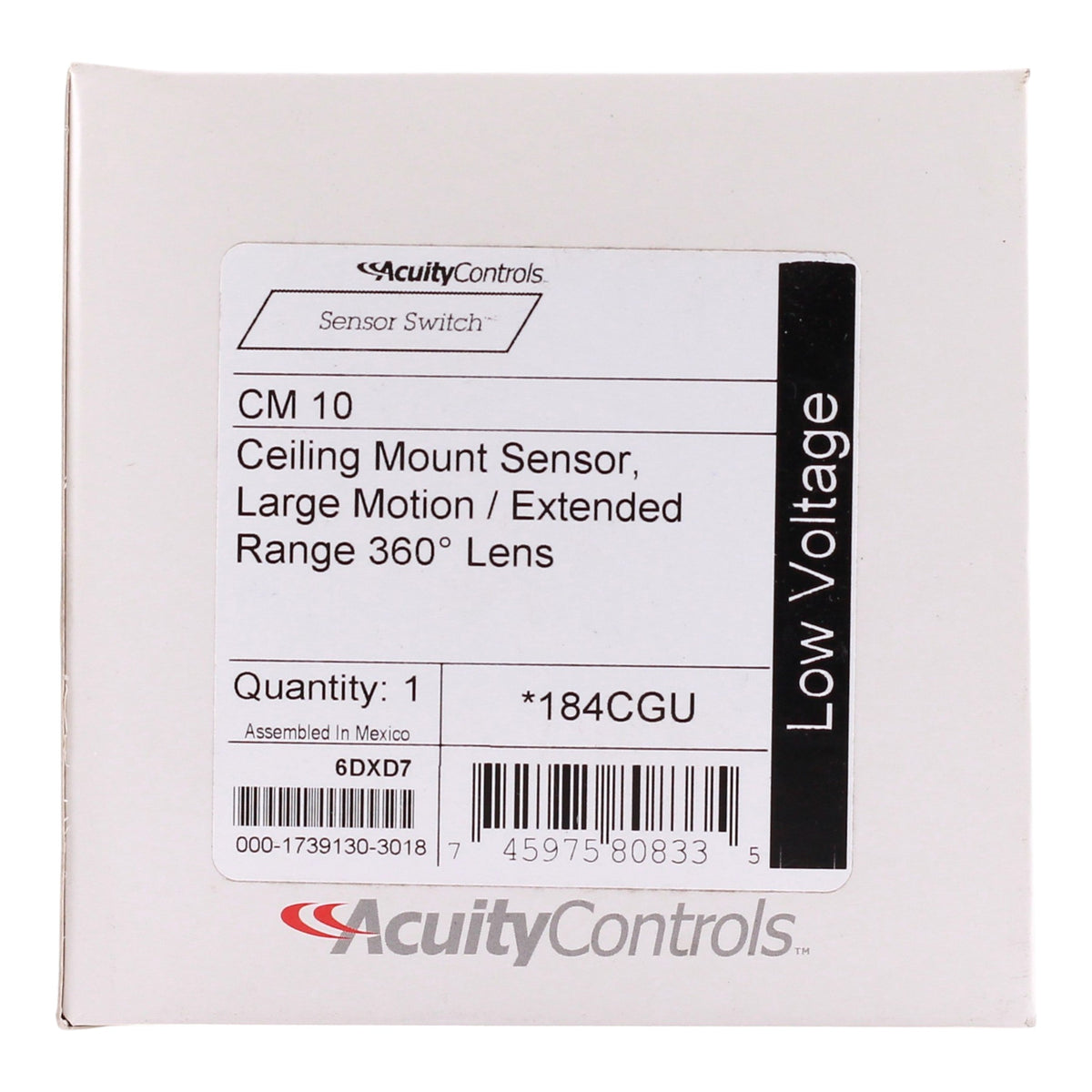

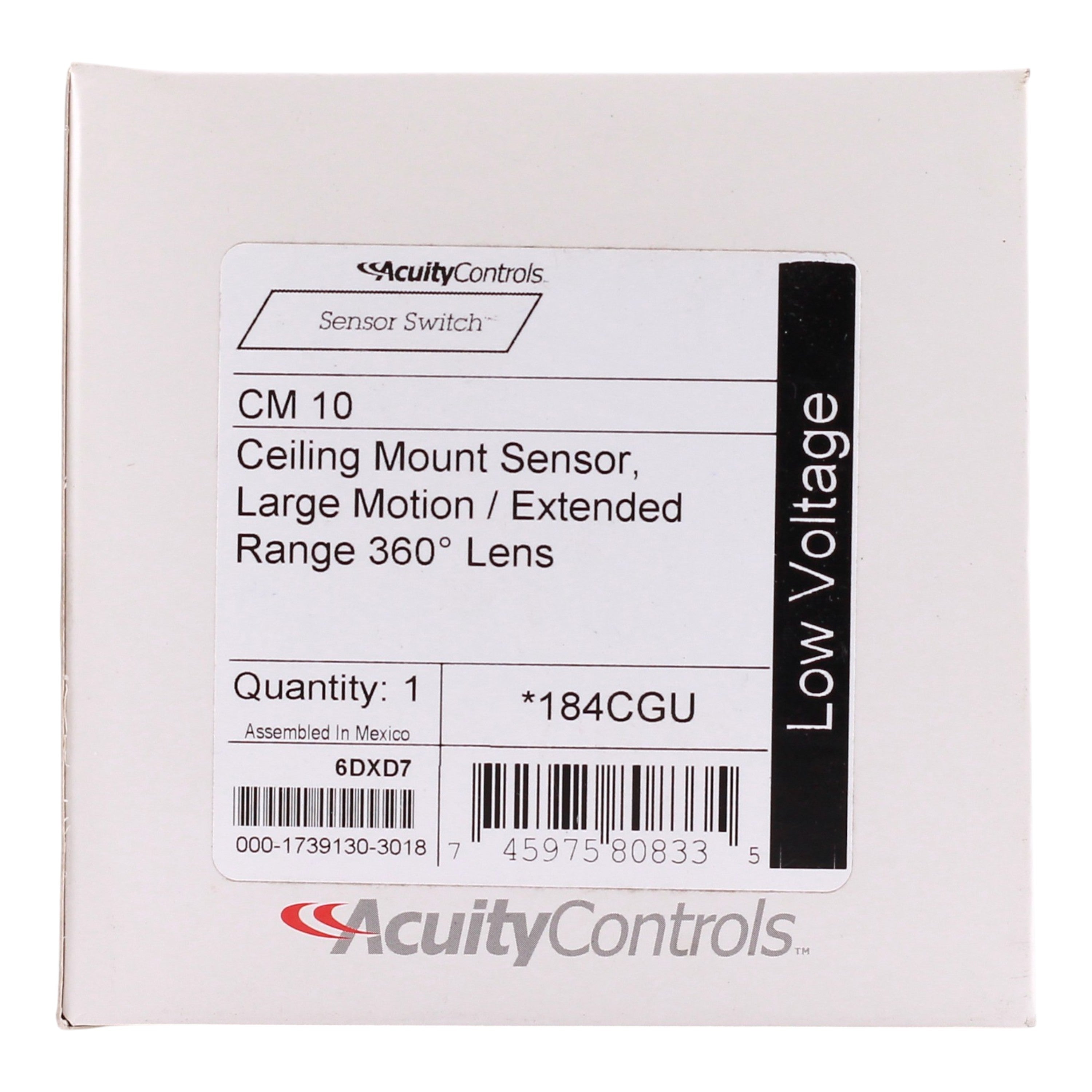

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White - Image 3

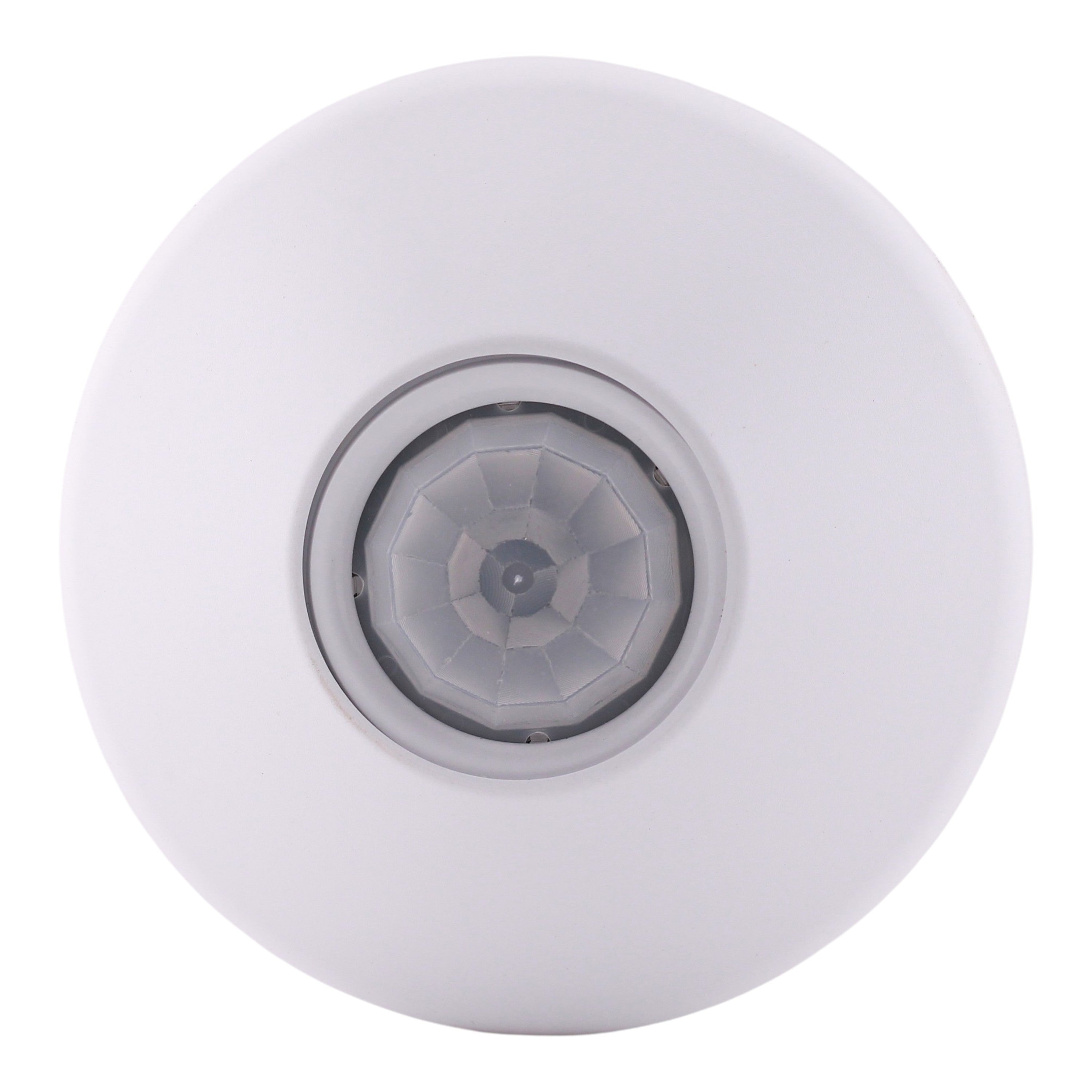

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White - Image 4

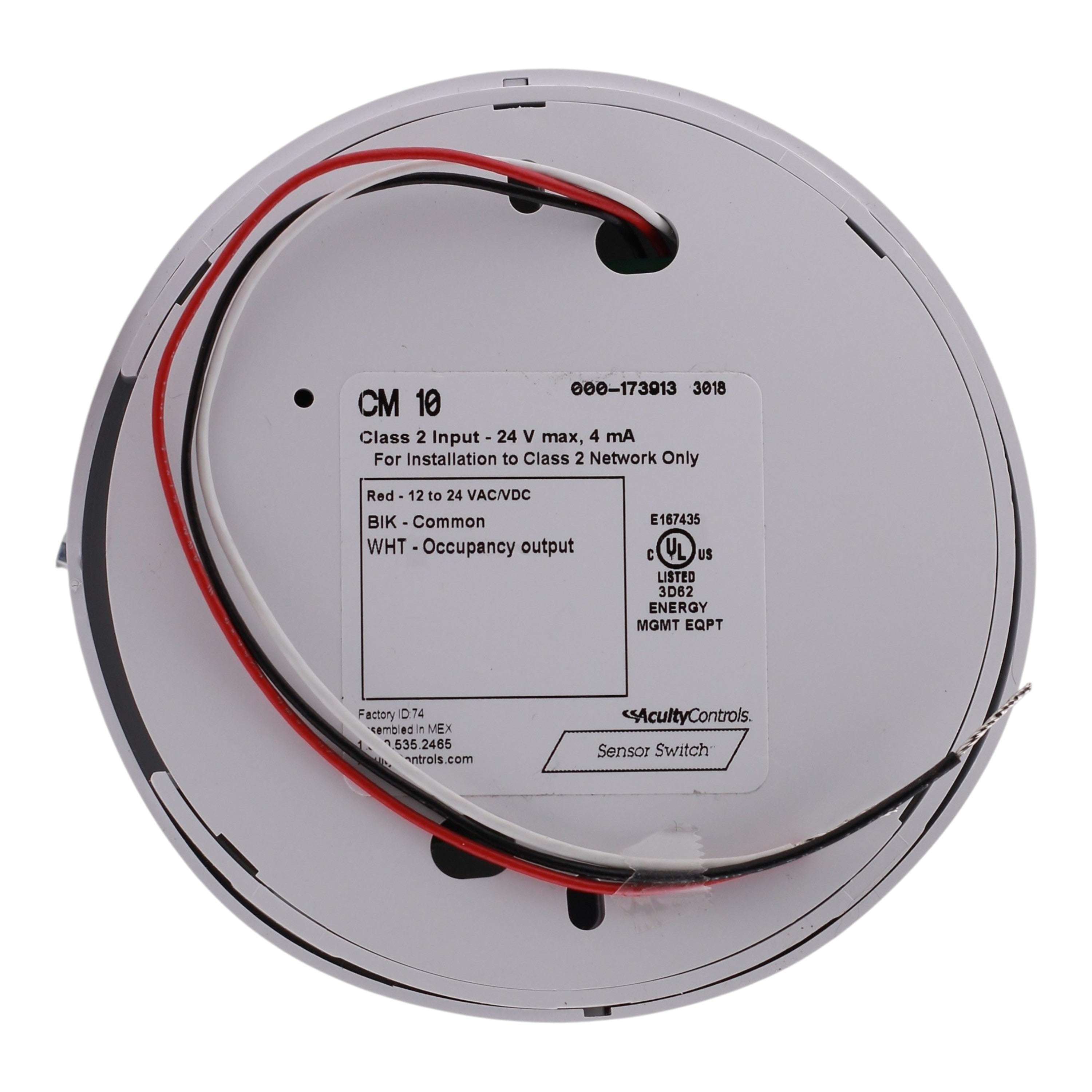

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White - Image 5

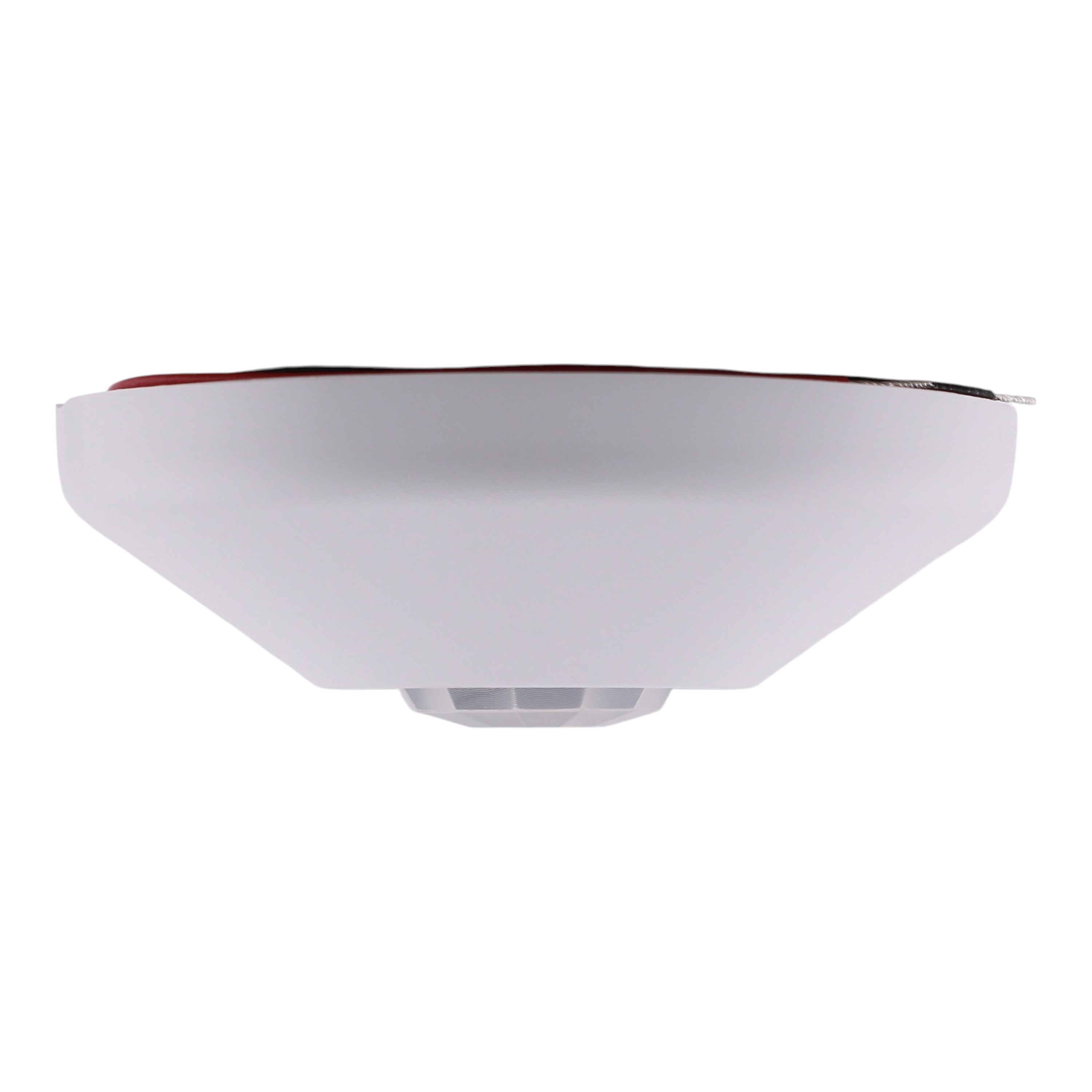

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White - Image 6

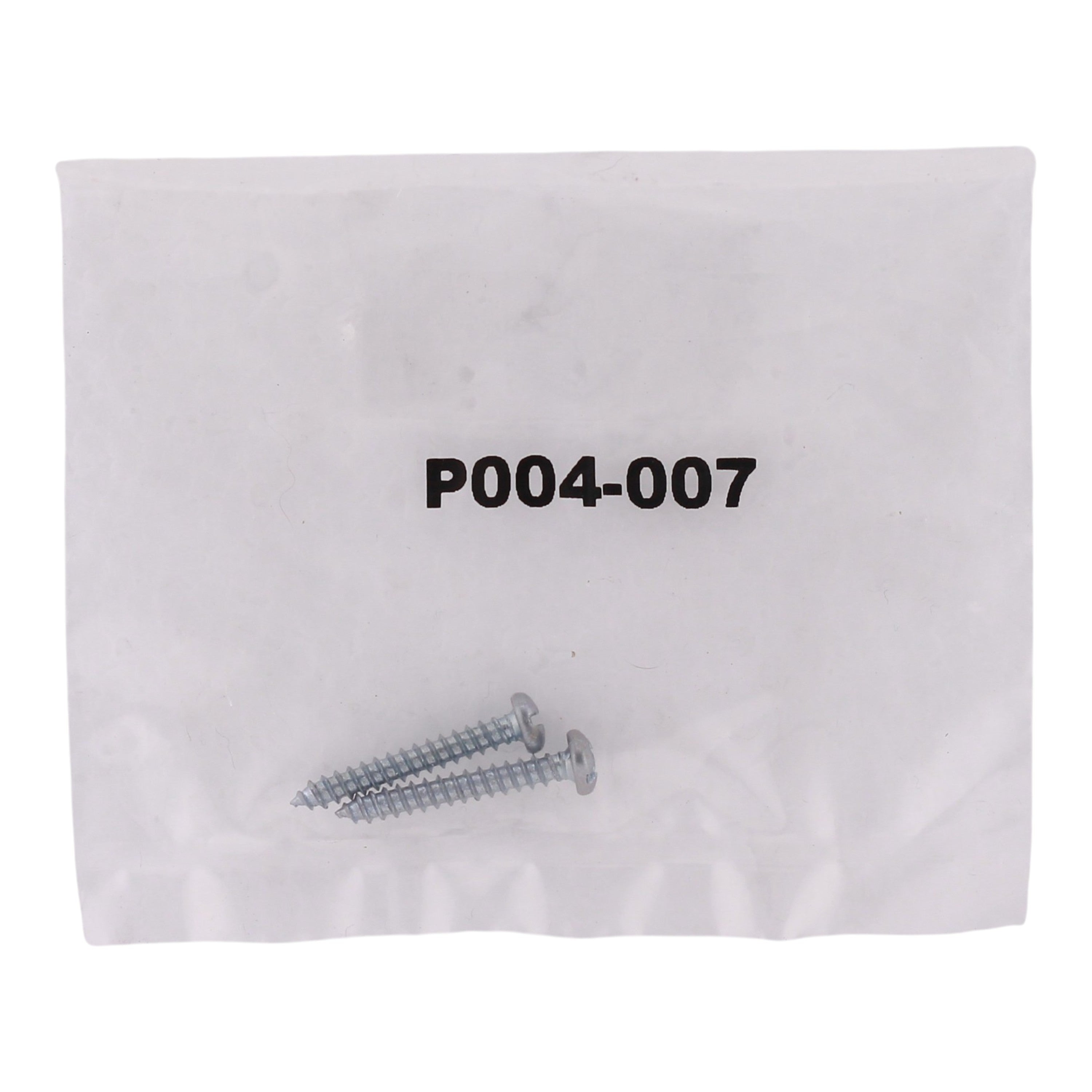

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Acuity SensorSwitch

Sensor Switch CM-10, Ceiling Mount, 360°, PIR Occupancy Sensor, 12-24V, Low Voltage, White

Out of stock
SKU: CM-10 UPC: 745975808335
(0)
$45.00
-68% $139.99 $45.00
Out of stock
Condition

CM-10 specifications

  • Manufacturer: Acuity Brands Lighting (Lithonia Lighting / SensorSwitch)
  • Brand: SensorSwitch (Lithonia Lighting)
  • Product Range: CM Series (Ceiling Mount Low Voltage Sensors)
  • UPC: 745975808335
  • Model Number: CM-10
  • Sensor Type: Passive Infrared (PIR) Occupancy Sensor — Large Motion, Extended Range
  • Sensing Pattern: 360°, conical coverage
  • Coverage Area: Approximately 2,000 sq ft (24 ft radial coverage at 9 ft mounting height)
  • Mounting Height Range: 7 to 15 ft
  • Voltage Rating: 12 to 24 Volts AC/DC
  • Load Rating: 4 to 16 mA (Class 2 input)
  • Time Delay: 30 seconds to 20 minutes (adjustable)
  • Mounting: Ceiling — surface mount to ceiling tile or metallic grid; aligns with single-gang or octagonal box
  • Wire Terminals: Low voltage wire leads
  • Dimensions: Diameter: 4.55 in; Depth: 1.55 in
  • Weight: 0.25 lbs
  • Finish: Matte White
  • Material: Plastic
  • Operating Temperature: 14°F to 160°F (-10°C to 71°C)
  • Relative Humidity: Up to 90%, Non-Condensing
  • Application: Indoor
  • Certifications: UL Listed (cUL, US)

This SensorSwitch CM-10 ceiling mount PIR occupancy sensor provides large motion, extended range 360° detection for low-voltage lighting control in CM Series loadcenters. Compatible with PP20 power pack for 12–24V AC/DC systems across commercial, industrial, and institutional applications.
