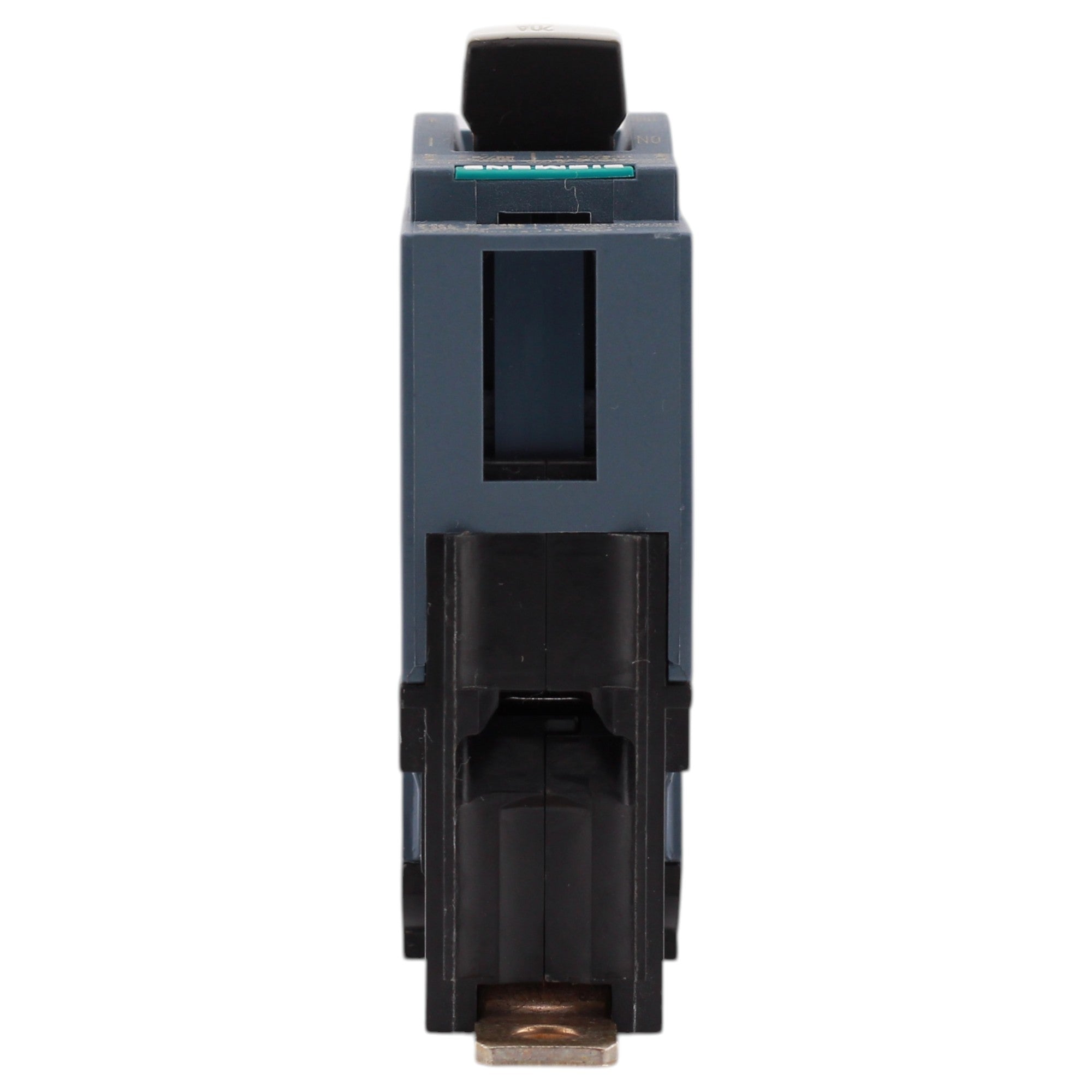

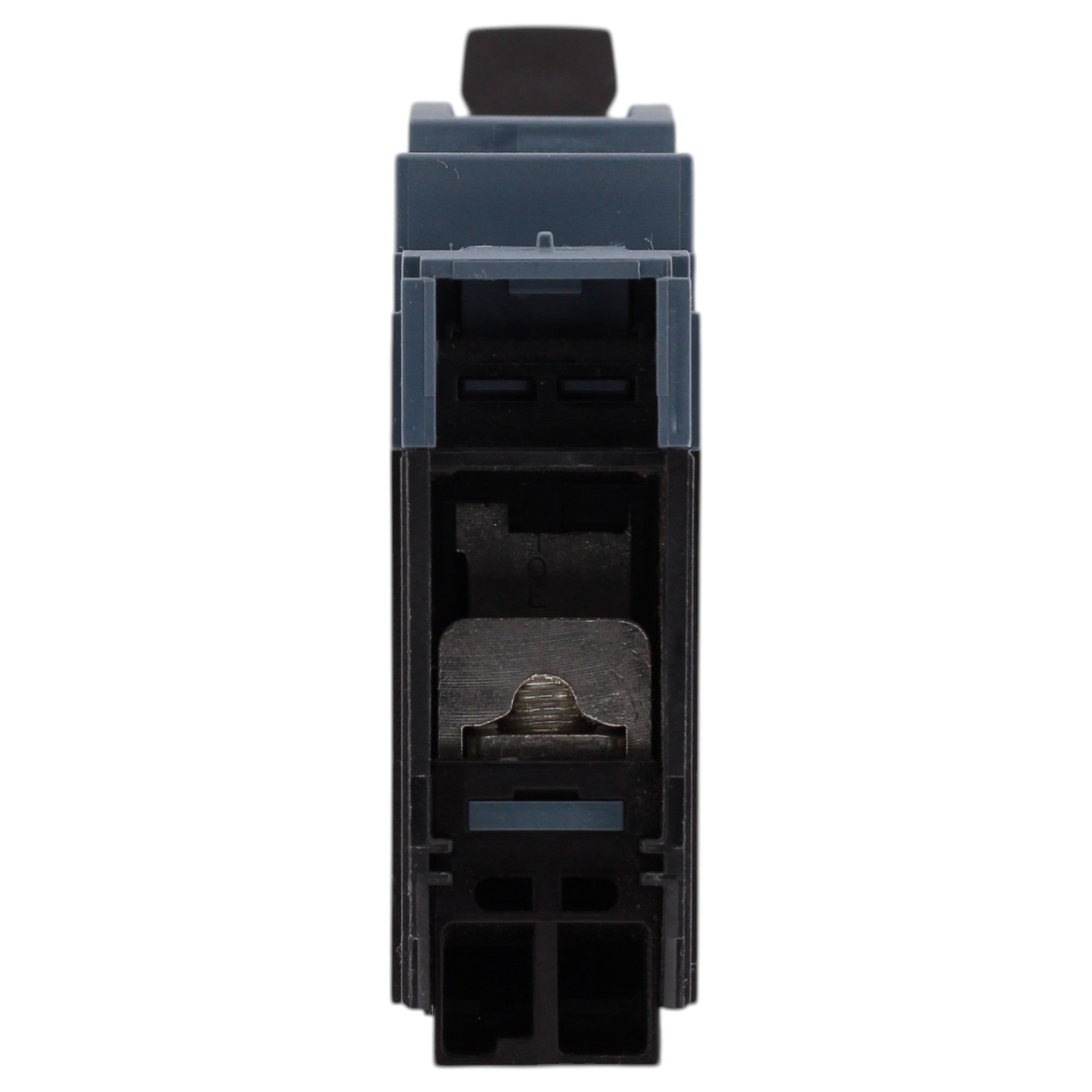

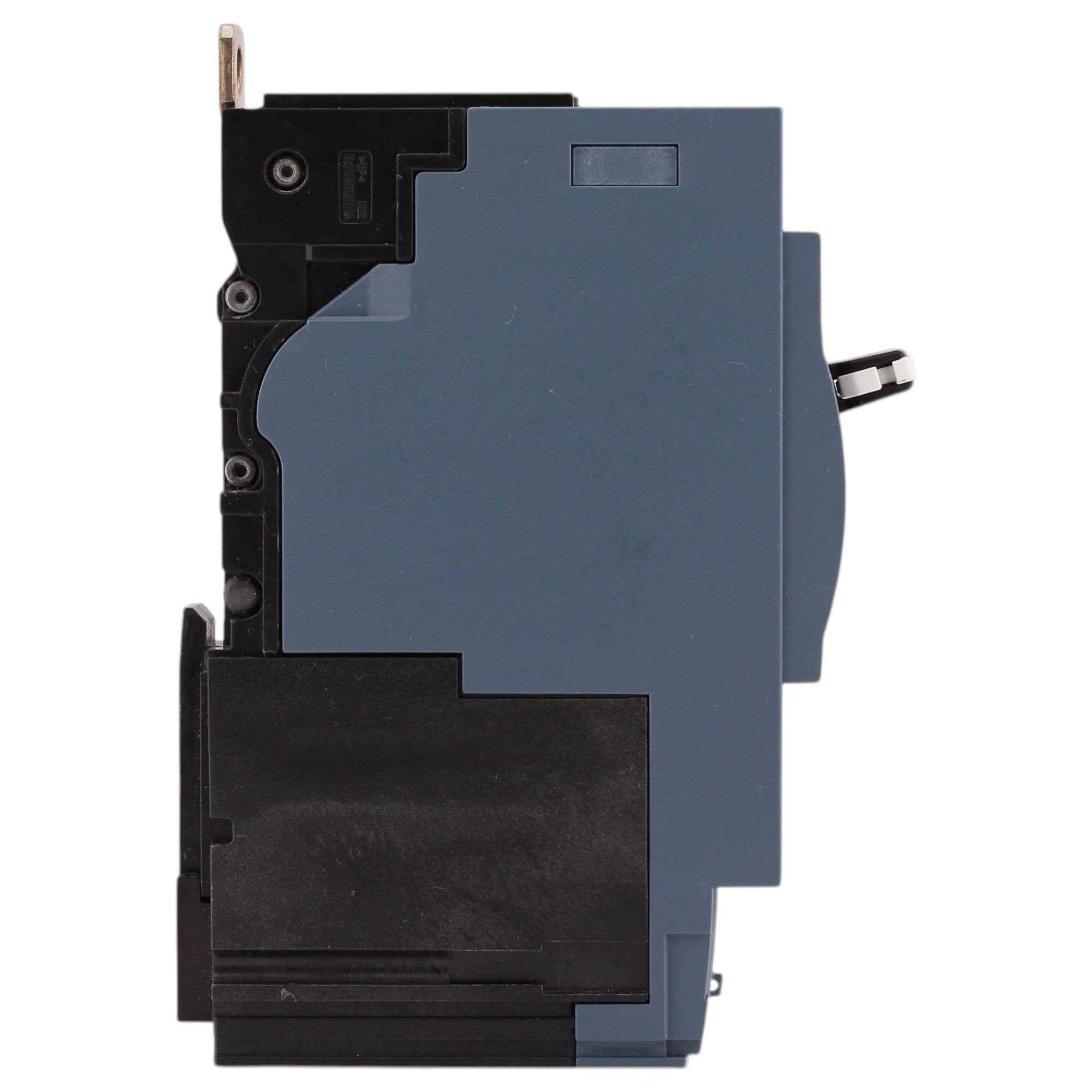

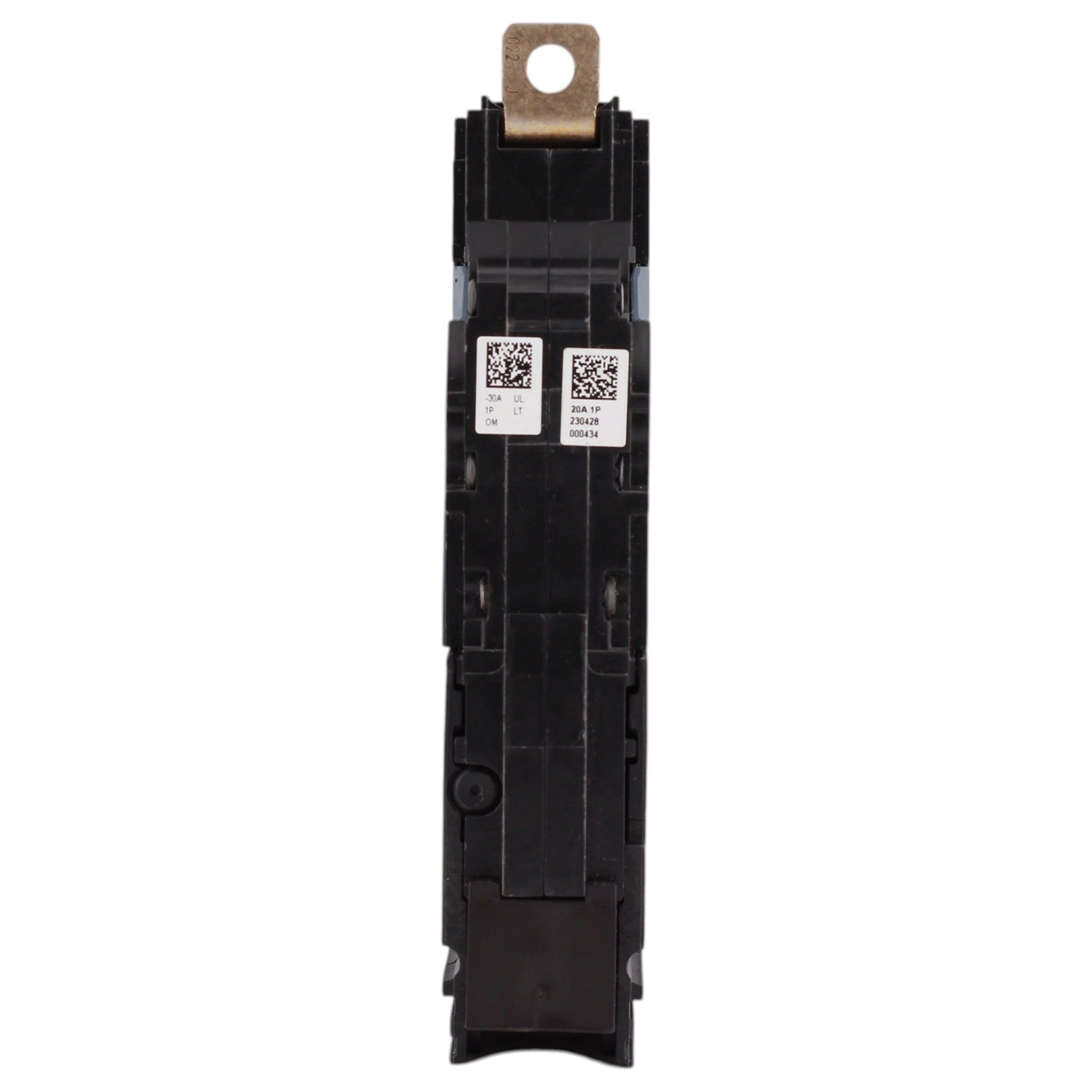

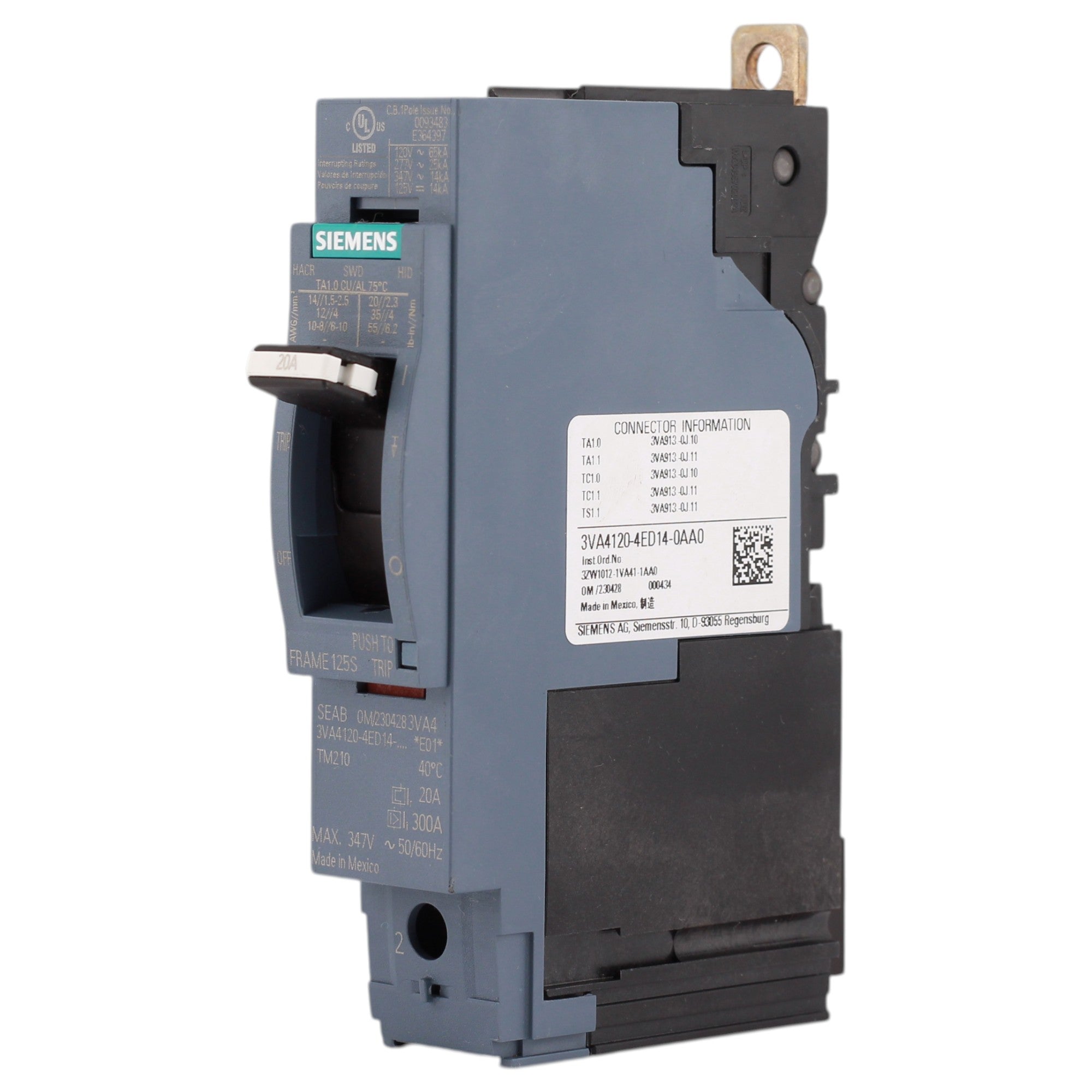

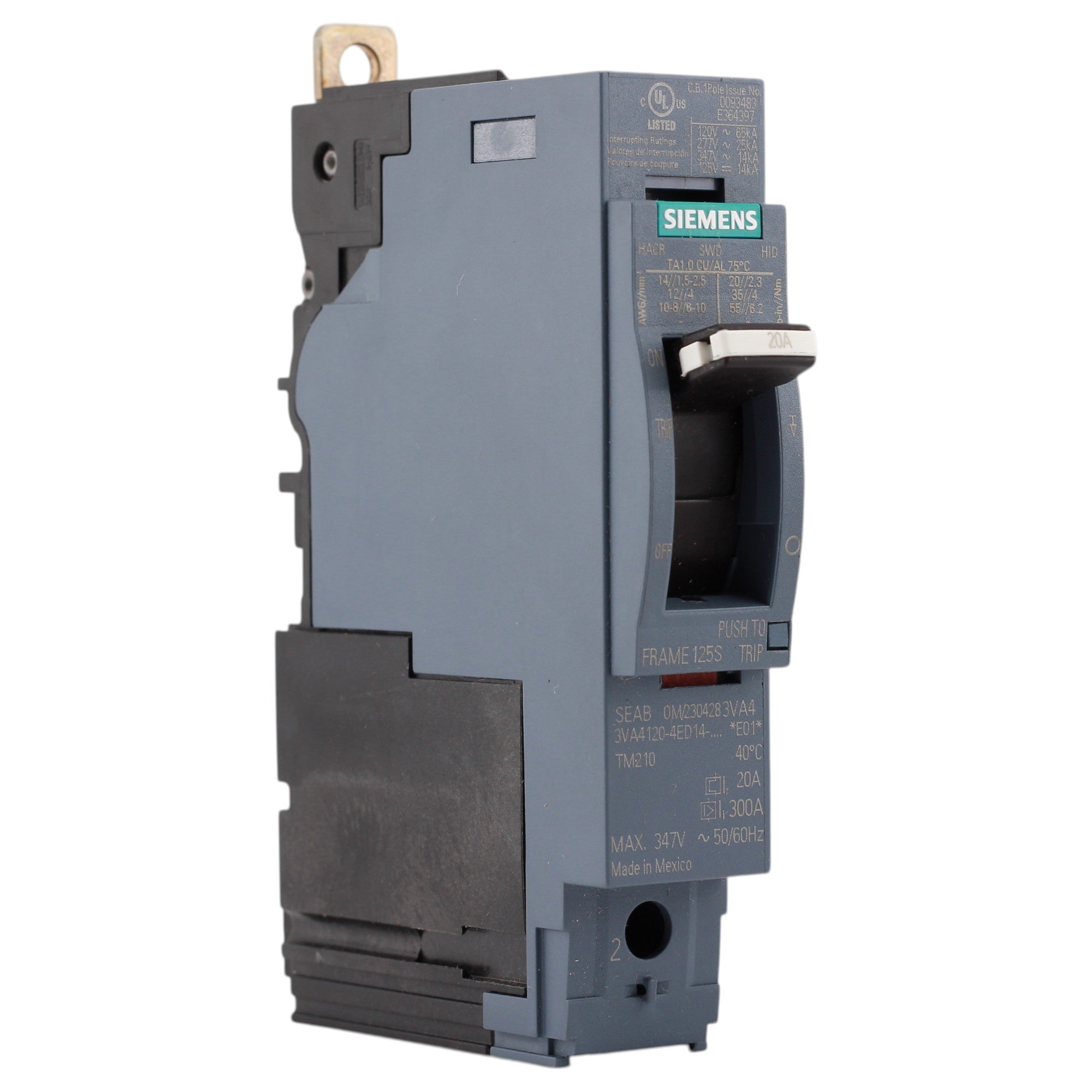

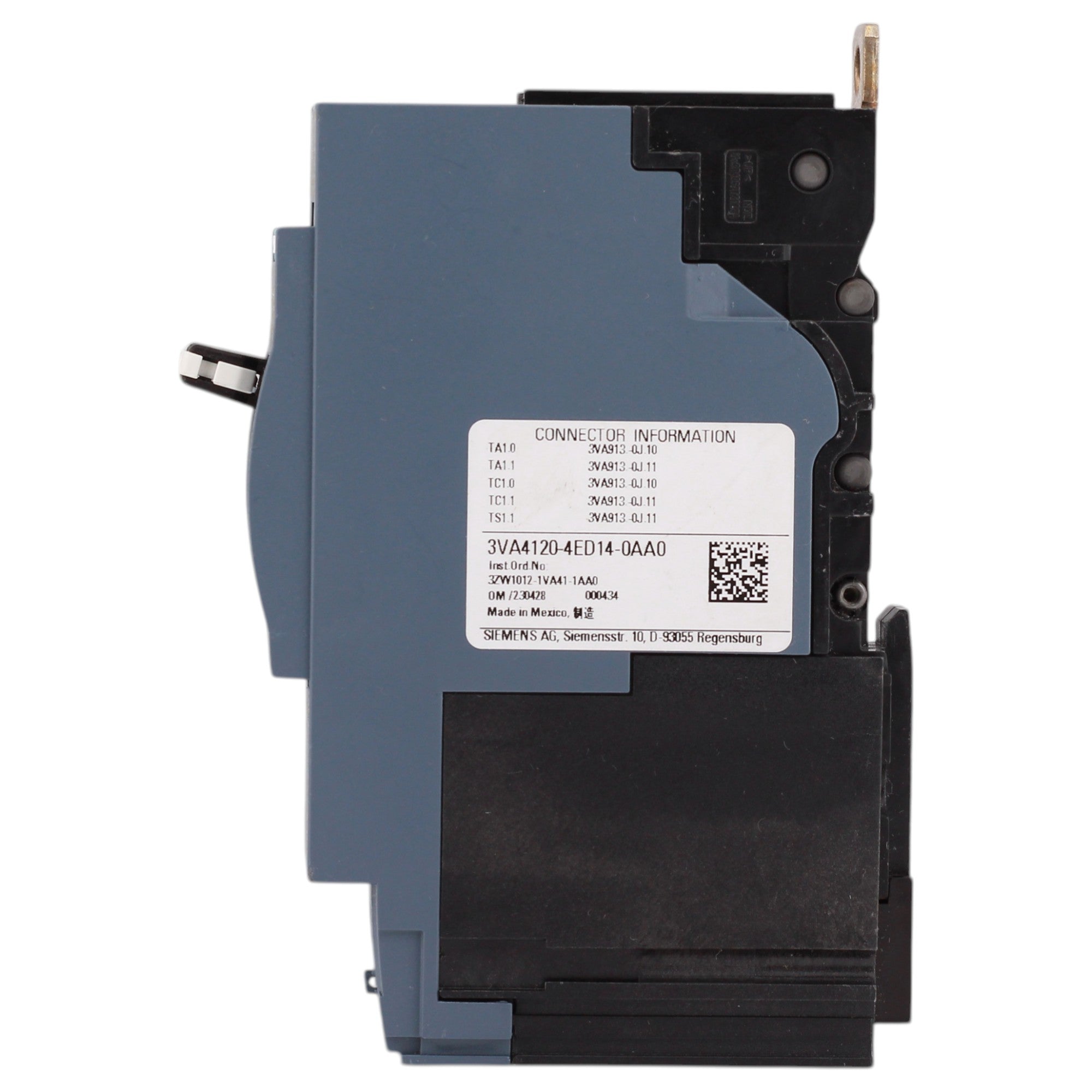

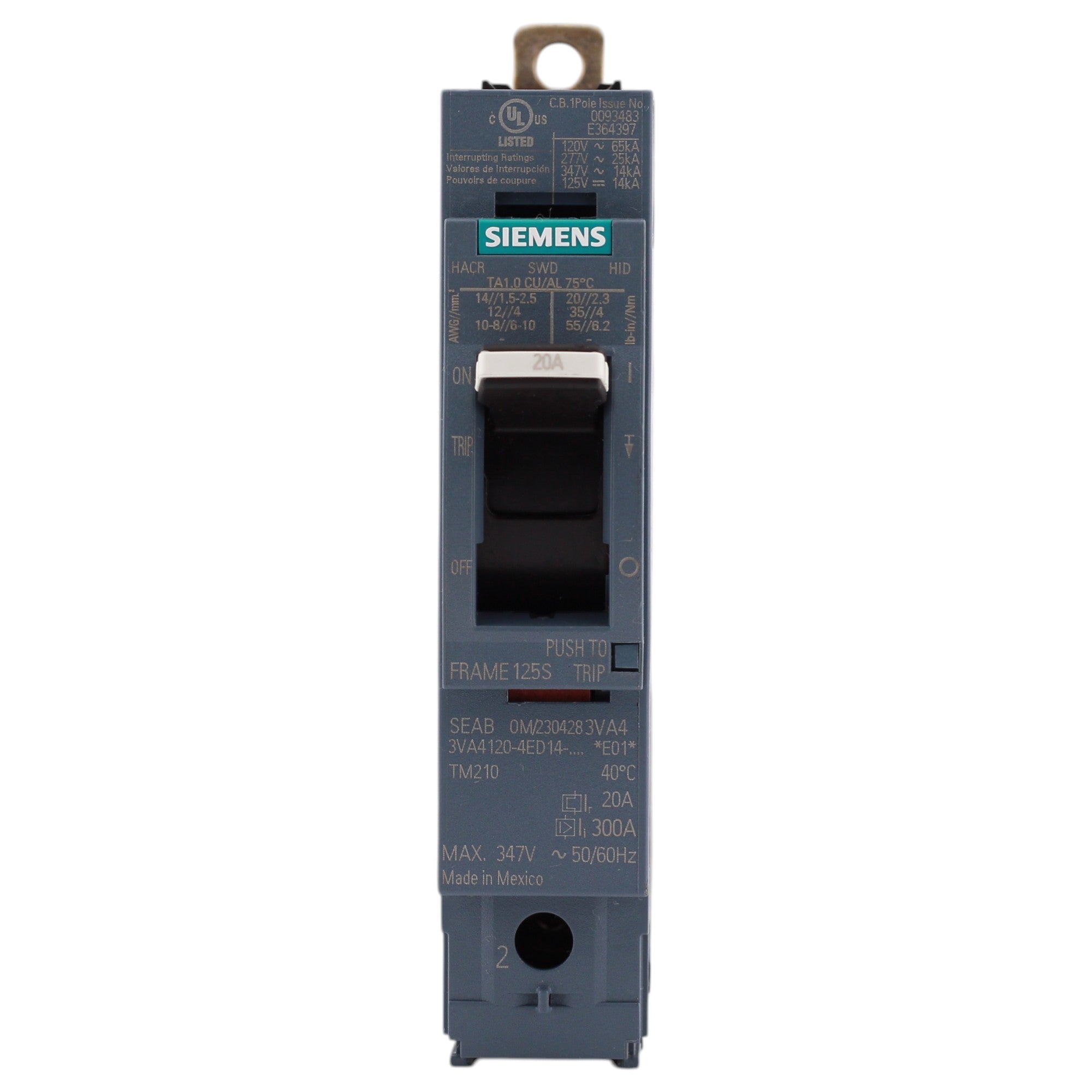

Siemens 3VA4120-4ED14-0AA0: 20 Amp, 1-Pole, Thermal Magnetic Molded Case Circuit Breaker, 600Y/347V, 25kA @ 277V, 14kA @ 600Y/347V, load-side lug, UL listed, CSA certified.
-
Manufacturer: Siemens
-
Brand: Siemens
-
Product Range: 3VA41 (125A frame, for panelboard and industrial applications)
-
UPC: 804766941764
-
Model Number: 3VA4120-4ED14-0AA0
-
Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
-
Amperage: 20 Amps
-
Poles: 1-Pole
-
Voltage: 120/277/347 Volts AC; 125 Volts DC
-
Interrupt Rating: 65 kAIC @ 120V AC; 25 kAIC @ 277V AC; 14 kAIC @ 600Y/347V AC & 125V DC
-
Frame Size: 125 Amp (3VA41 frame)
-
Trip Unit: TM210 — Fixed overload (Ir), Fixed short-circuit (Ii)
-
Mounting Mode: Panelboard / front-face mount
-
Connections Terminals: Load-side lug only (aluminum lugs installed as standard); #14 AWG–3/0 AWG Cu/Al
-
Dimensions: Width: 1.0 in; Height: 5.5 in; Depth: 3.7 in
-
Weight: 0.617 lbs
-
Protection Class: IP40
-
Certifications: UL Listed (File E92074), CSA Certified (File LR18416)
This Siemens 3VA4120-4ED14-0AA0 thermal magnetic molded case circuit breaker delivers dependable 20 Amp, 1-Pole protection for 600Y/347V AC circuits in 3VA41 panelboard applications. With a 125A frame, TM210 fixed trip unit, and 25kA interrupt rating at 277V, it supports industrial, infrastructure, and commercial building applications.
