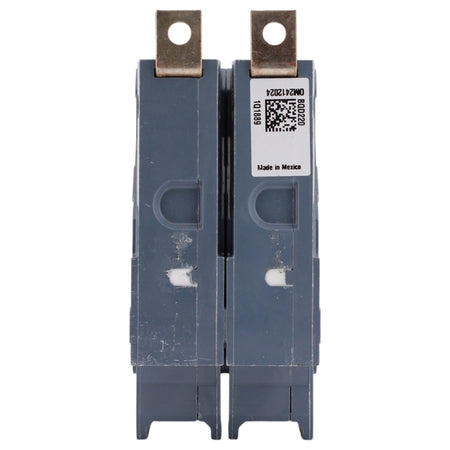

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8

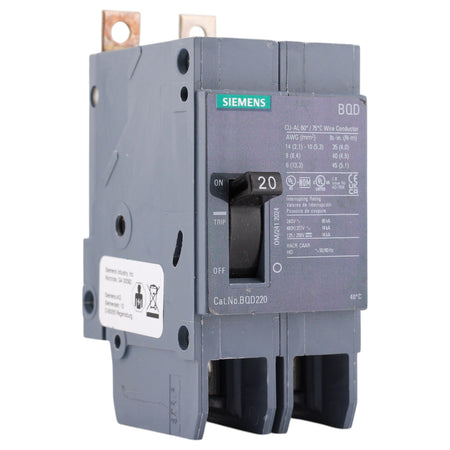

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker

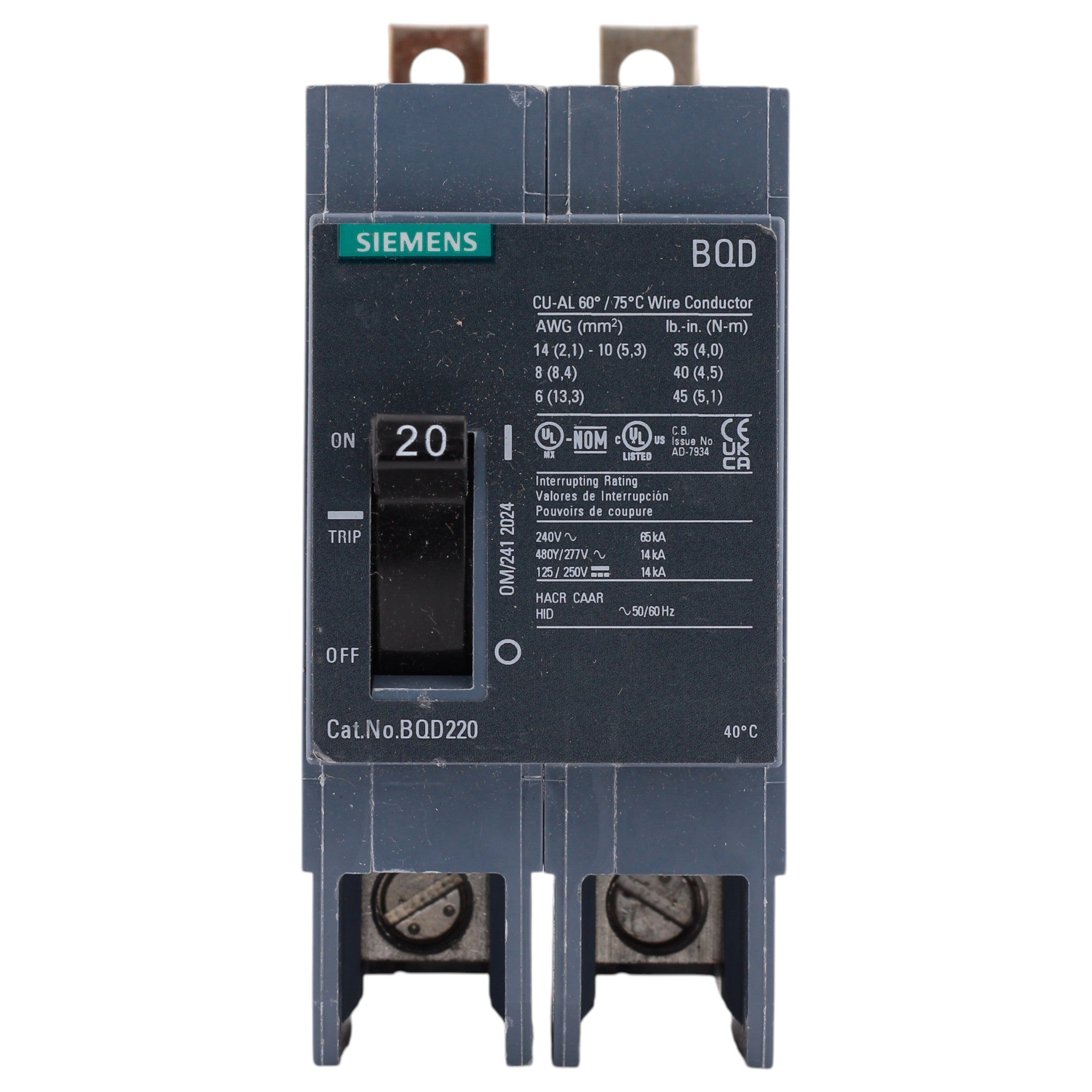

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2

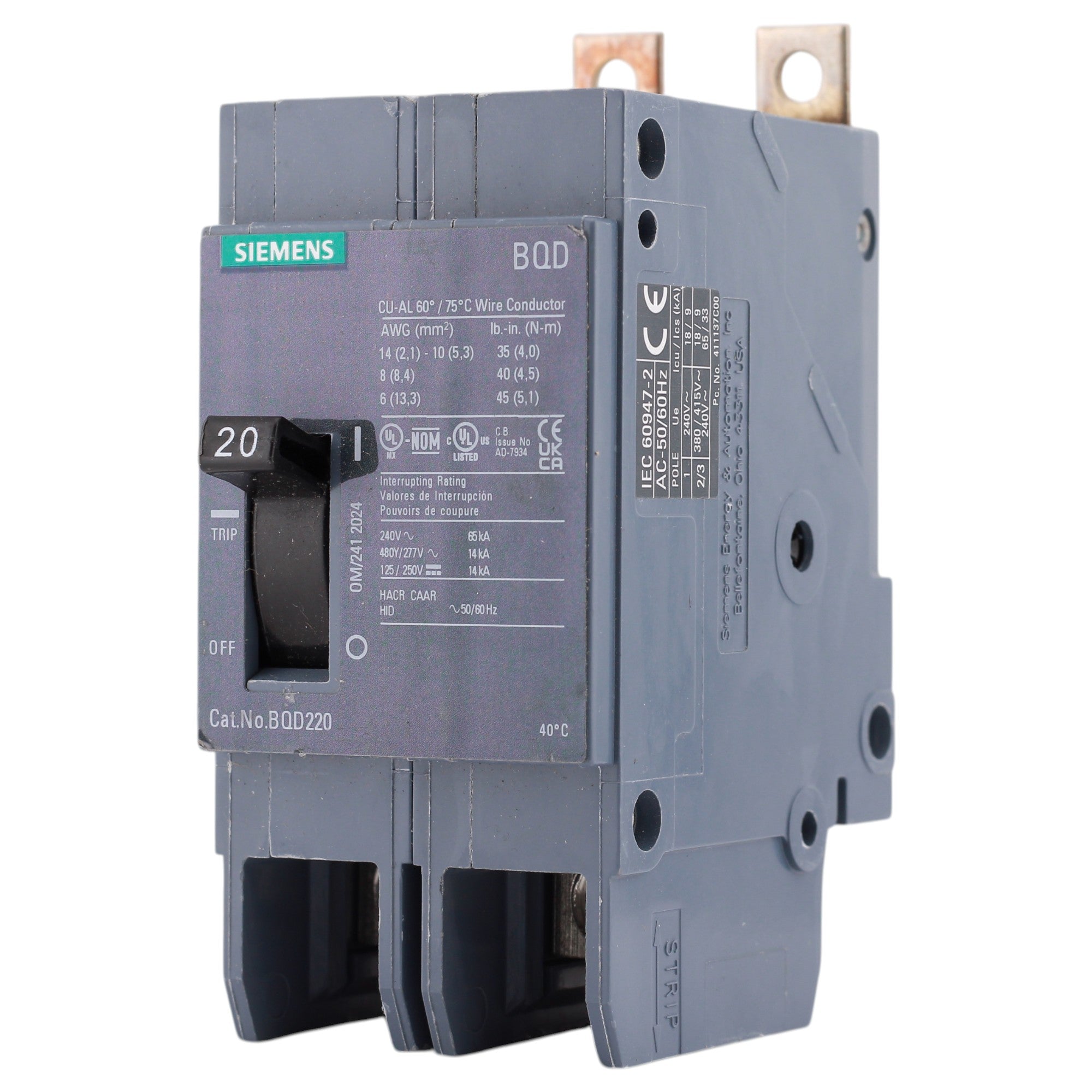

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3

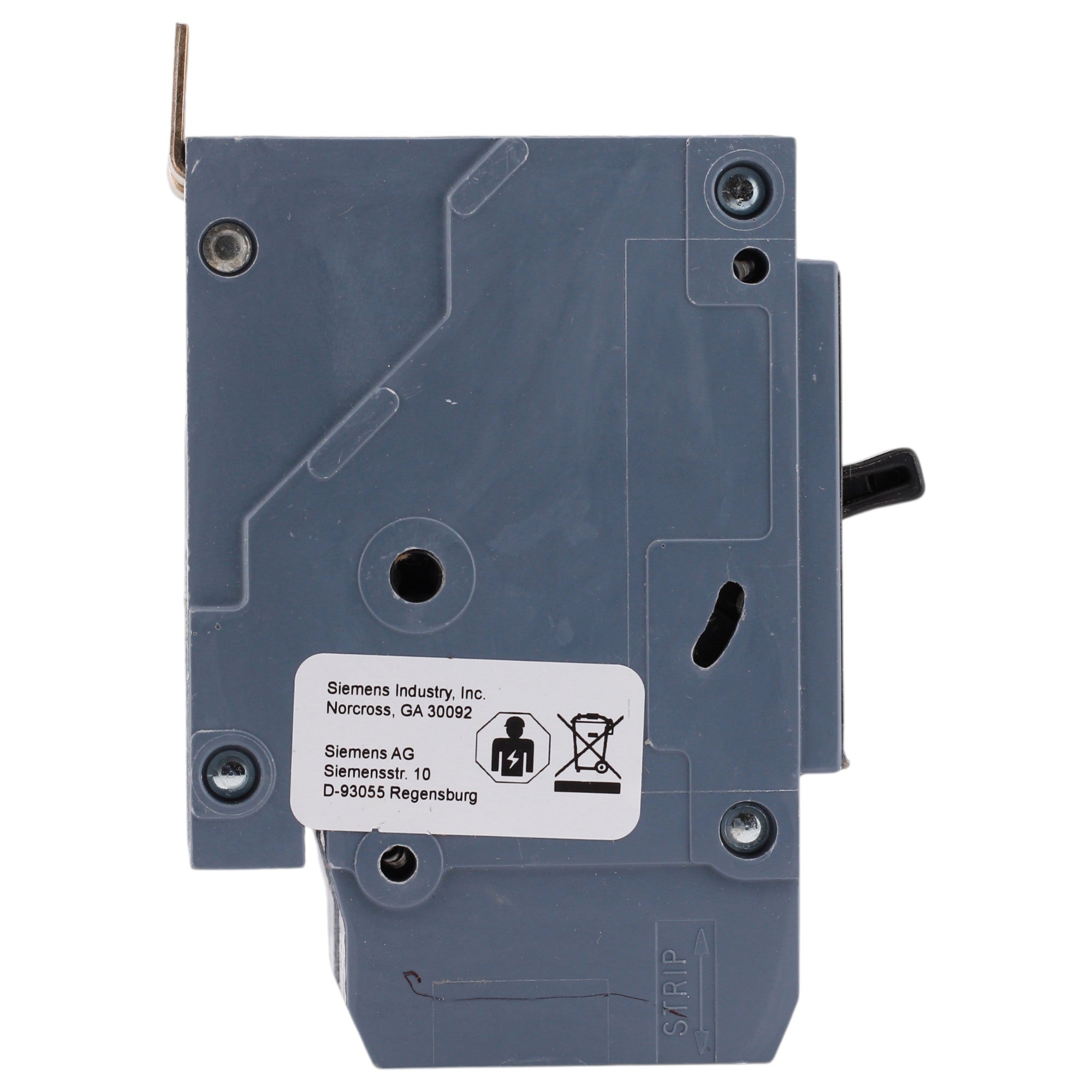

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4

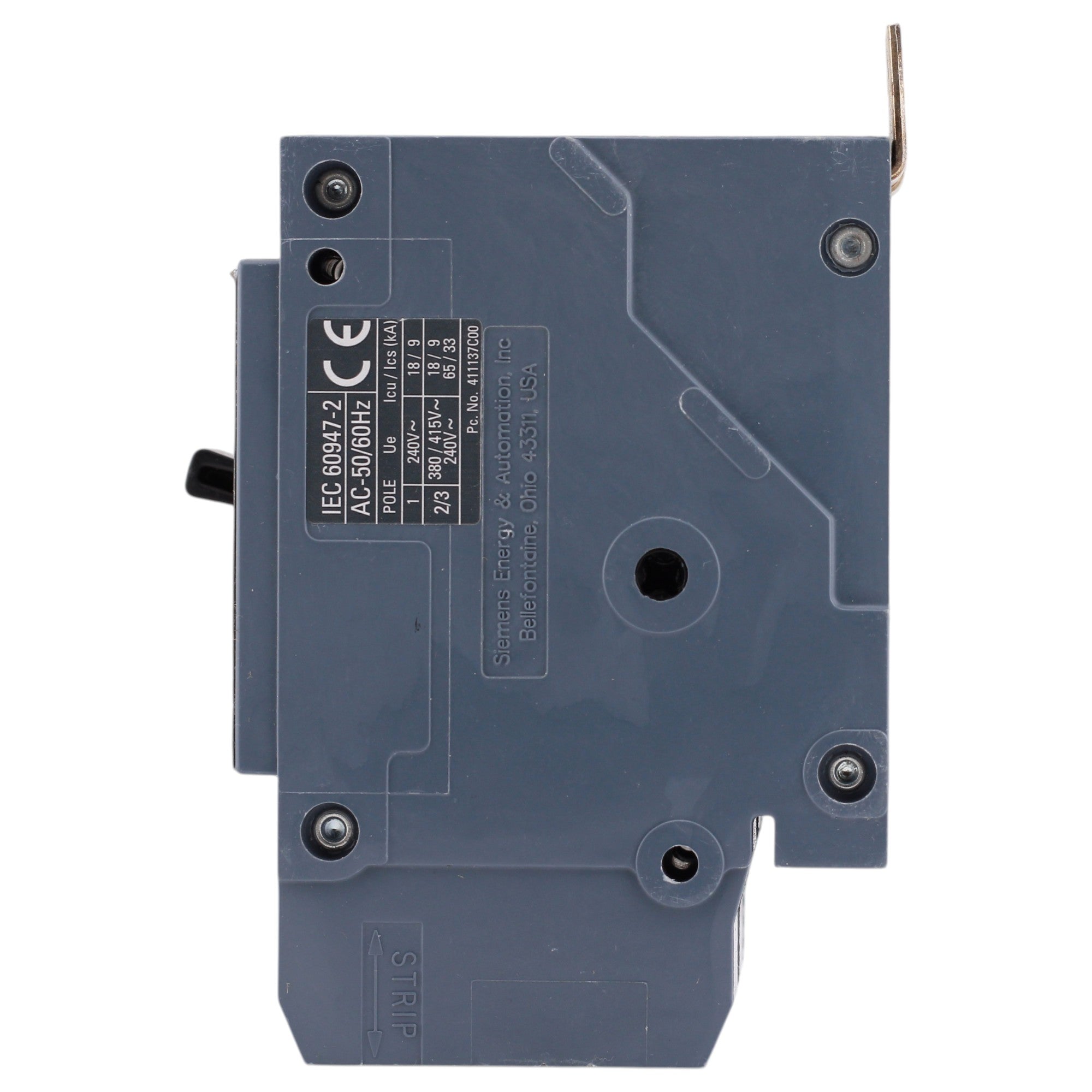

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5

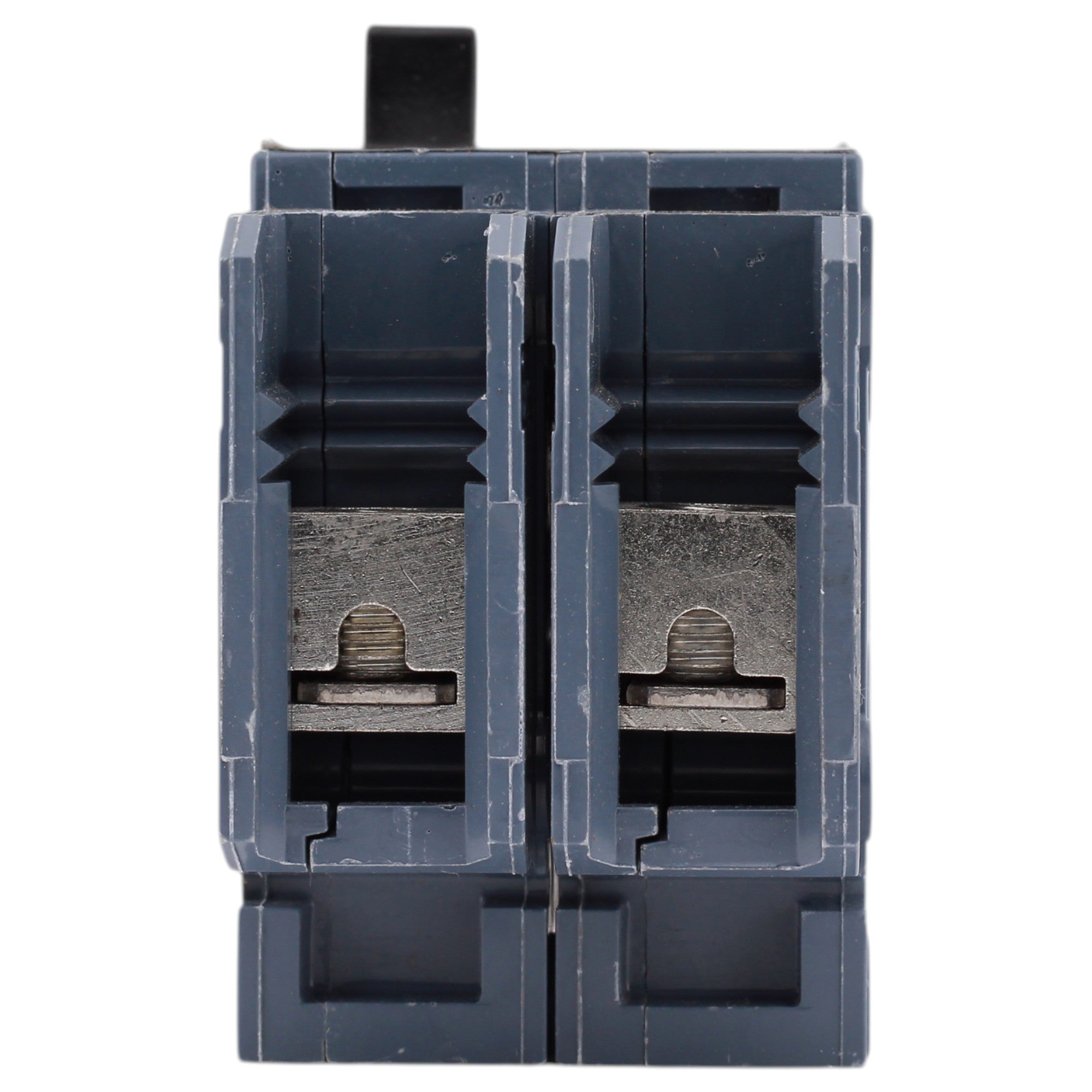

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6

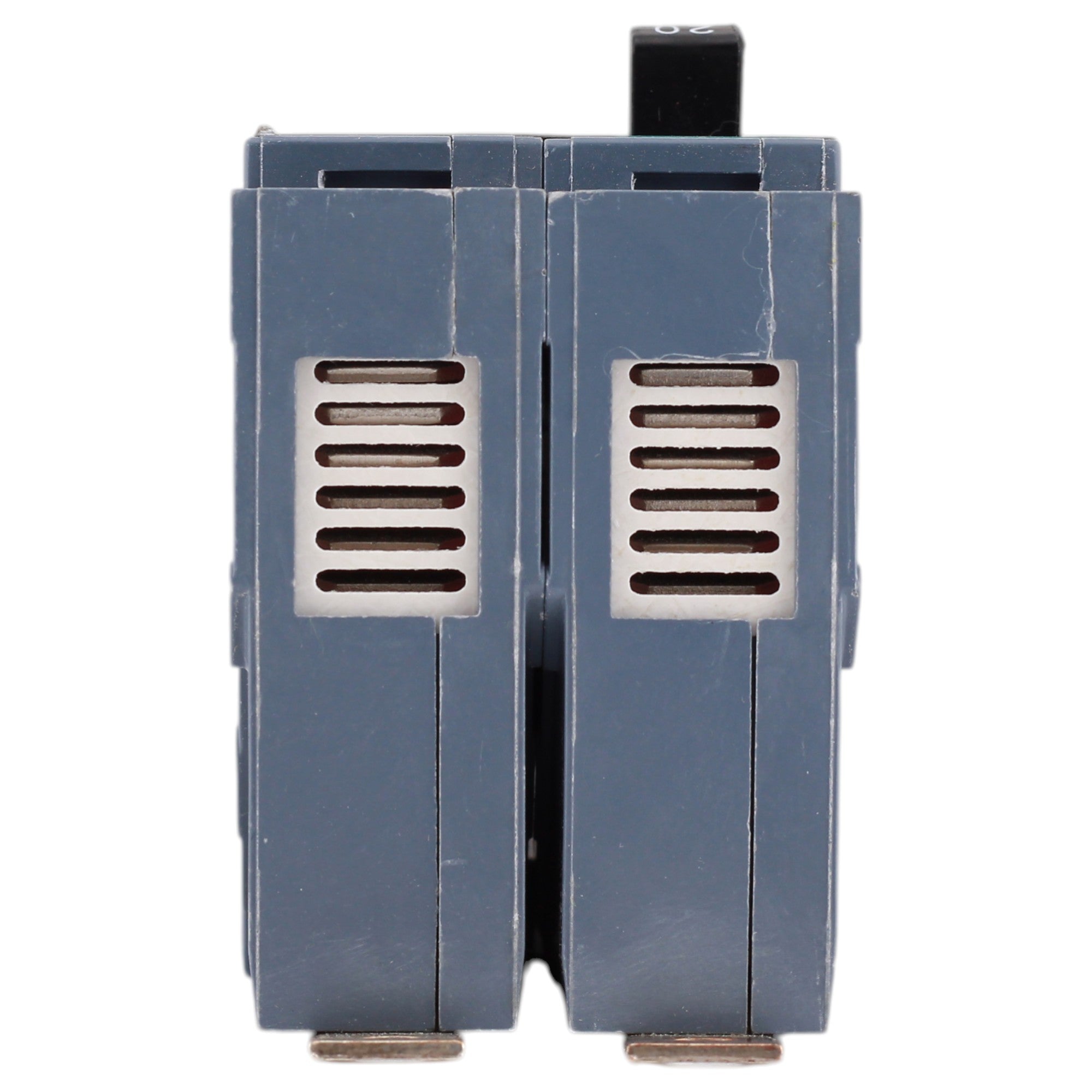

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7

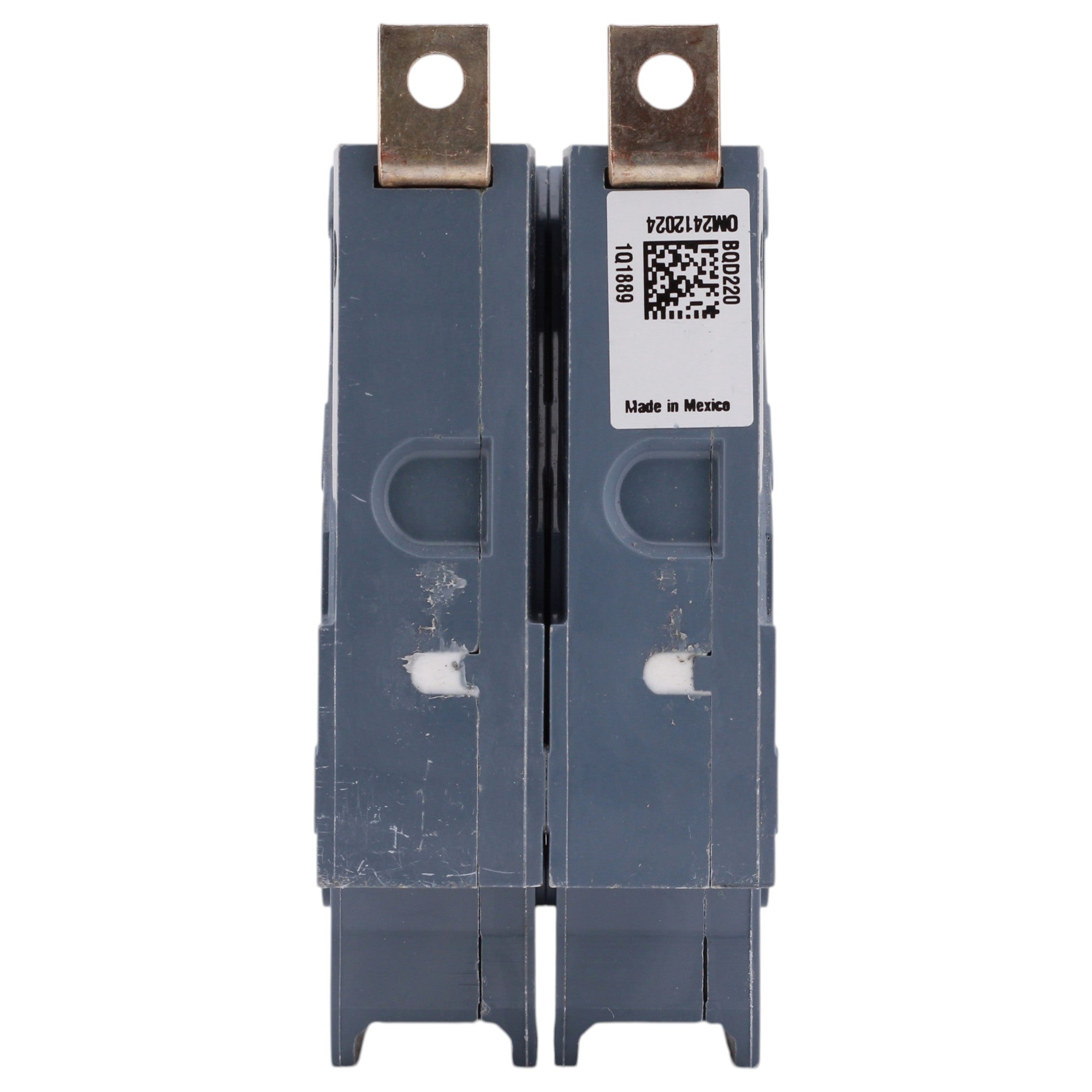

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

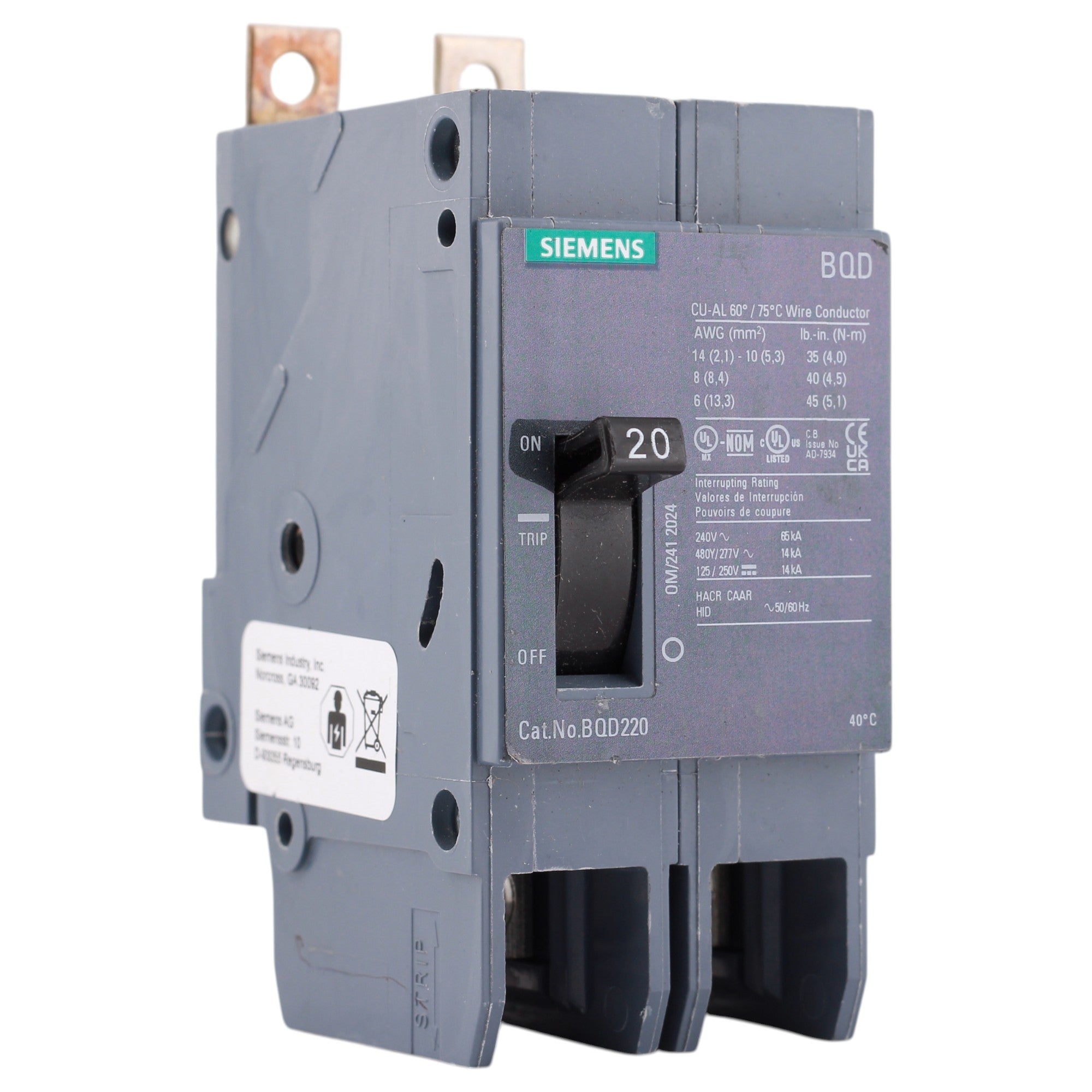

Siemens BQD, BQD220, 20A, 2P, 480V, Thermal Magnetic, Bolt-On, Circuit Breaker

Out of stock
SKU: BQD220 UPC: 783643277229
(0)
$85.00
Out of stock
Condition

Siemens BQD220: 20 Amp, 2-Pole, Thermal Magnetic circuit breaker, 480Y/277V AC, 14kAIC, bolt-on, UL listed, HACR rated.

  • Manufacturer: Siemens
  • Brand: Siemens
  • Product Range: BQD (for Siemens panelboards and switchboards)
  • UPC: 783643277229
  • Model Number: BQD220
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
  • Amperage: 20 Amps
  • Poles: 2-Pole
  • Voltage: 480Y/277 Volts AC / 125/250 Volts DC
  • Interrupt Rating: 14 kAIC @ 480V AC; 65 kAIC @ 240V AC
  • Mounting Mode: Bolt-on
  • Connections Terminals: Low Tab (Bolt-On)
  • Wire Size: #14–6 AWG Cu, #12–6 AWG Al
  • Dimensions: Height: 4.49 in; Width: 2.0 in; Depth: 2.7 in
  • Weight: 0.8 lbs
  • Certifications: UL Listed, HACR Rated

This Siemens BQD220 thermal magnetic circuit breaker delivers dependable 20 Amp, 2-Pole protection for 480Y/277V circuits in Siemens BQD panelboards and switchboards. Designed for bolt-on installation with 14kAIC interrupt rating, it supports commercial and industrial lighting panel applications.
