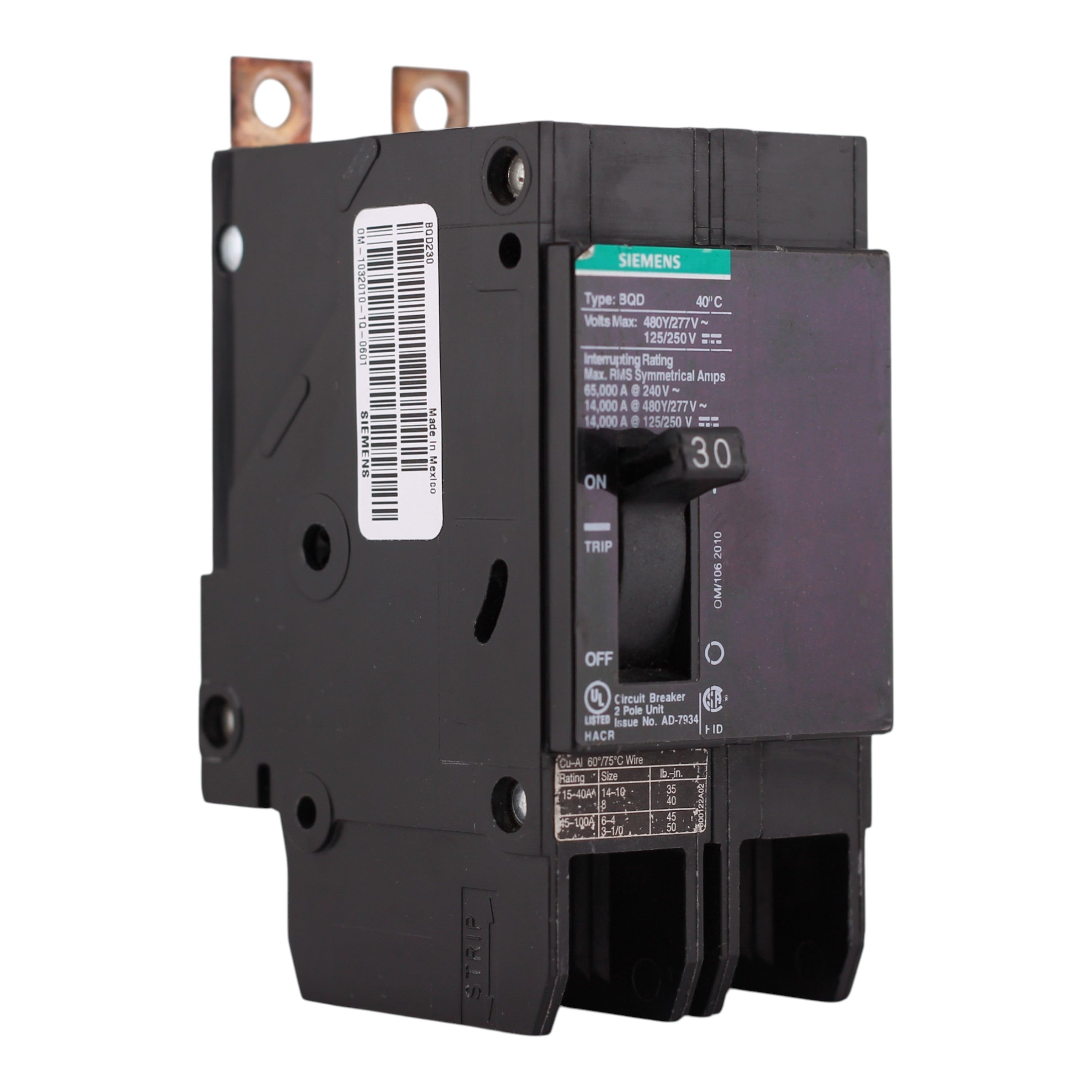

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 2

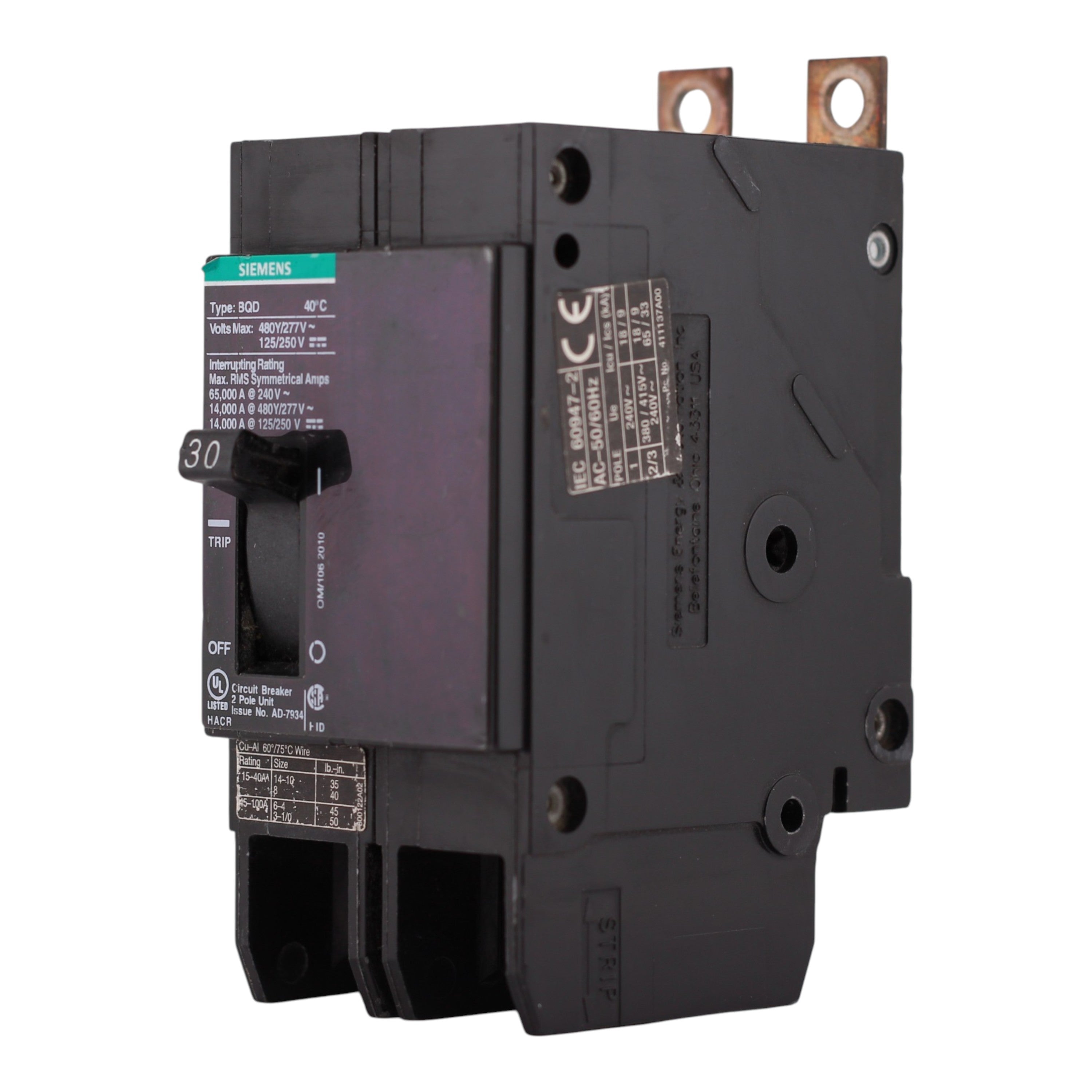

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 3

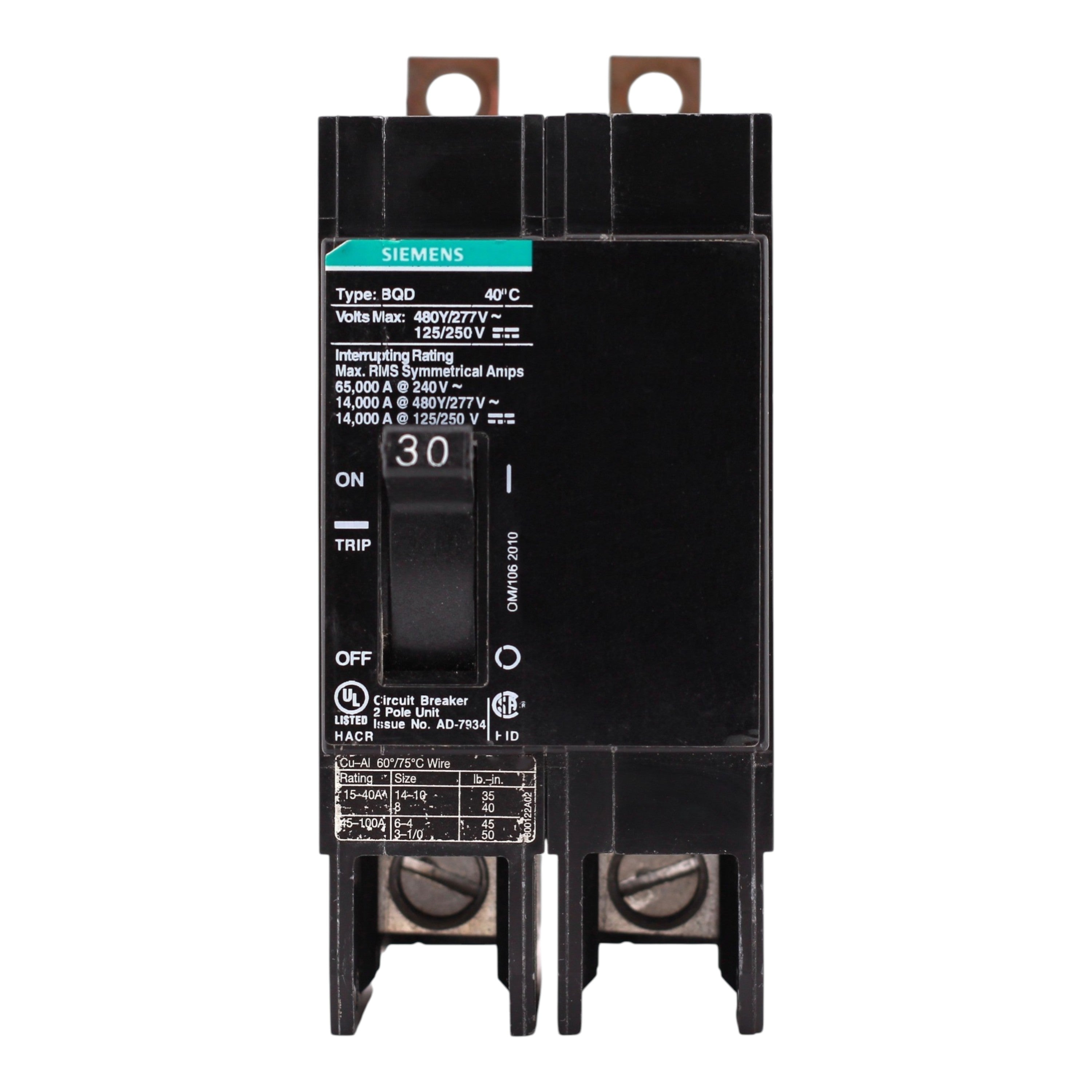

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 4

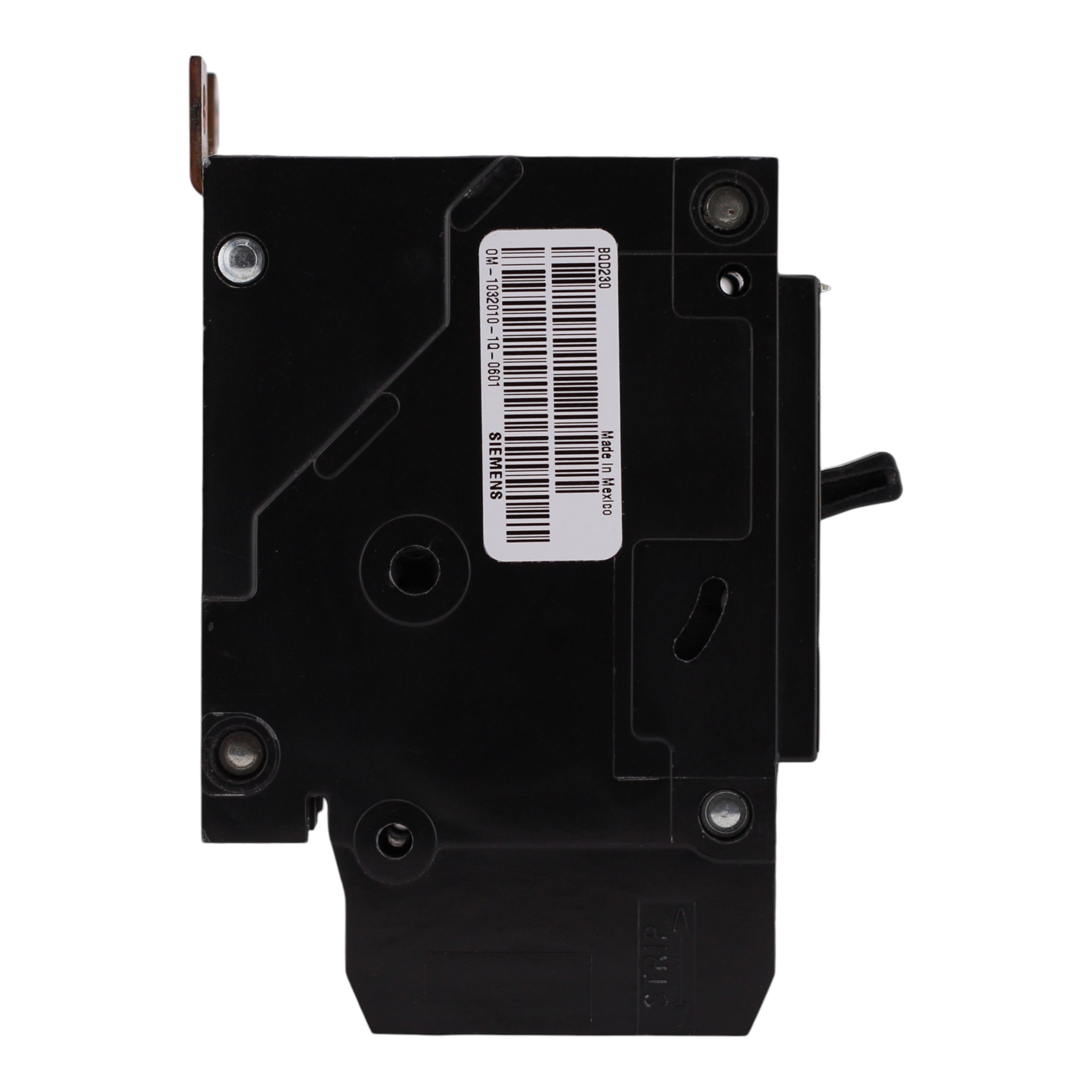

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 5

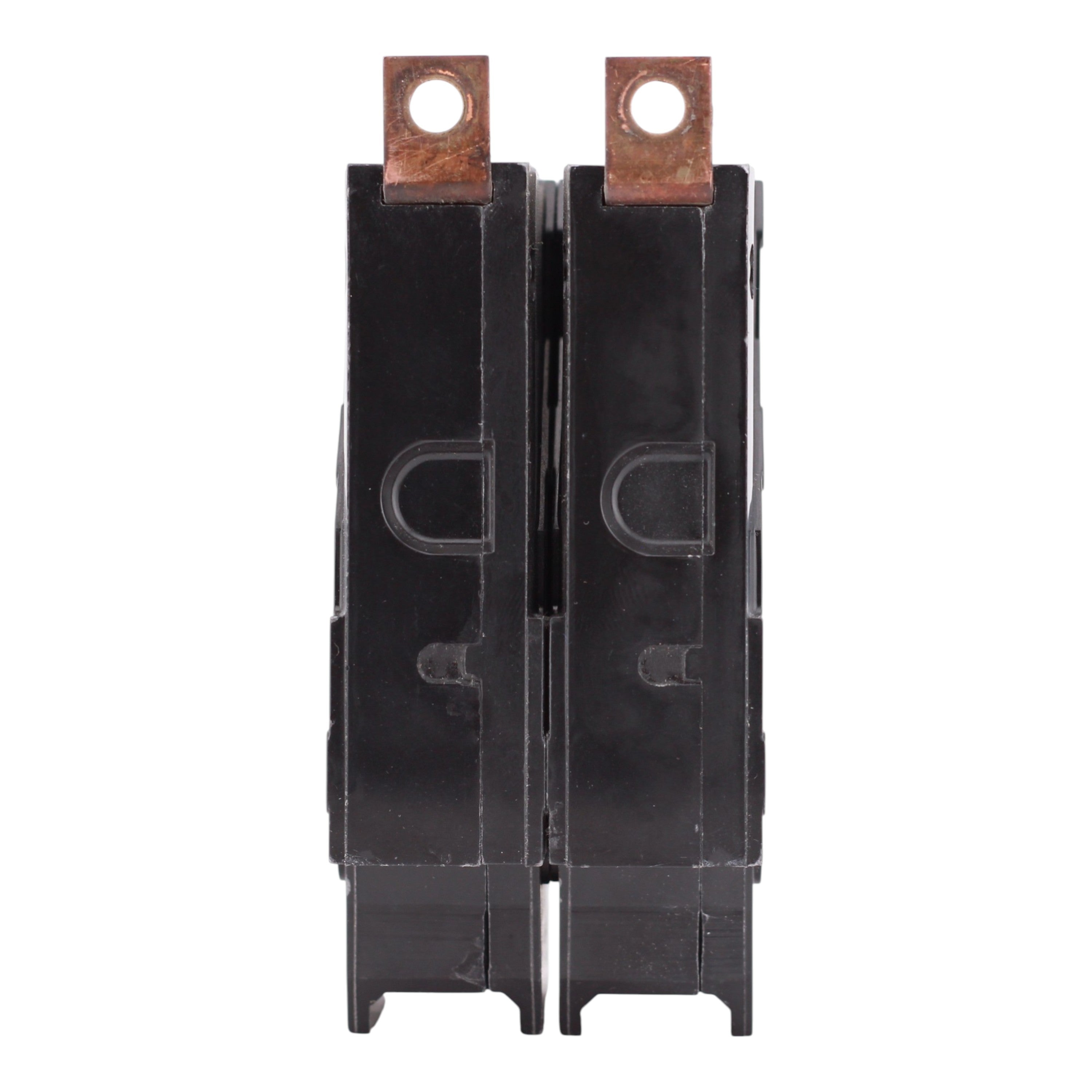

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 6

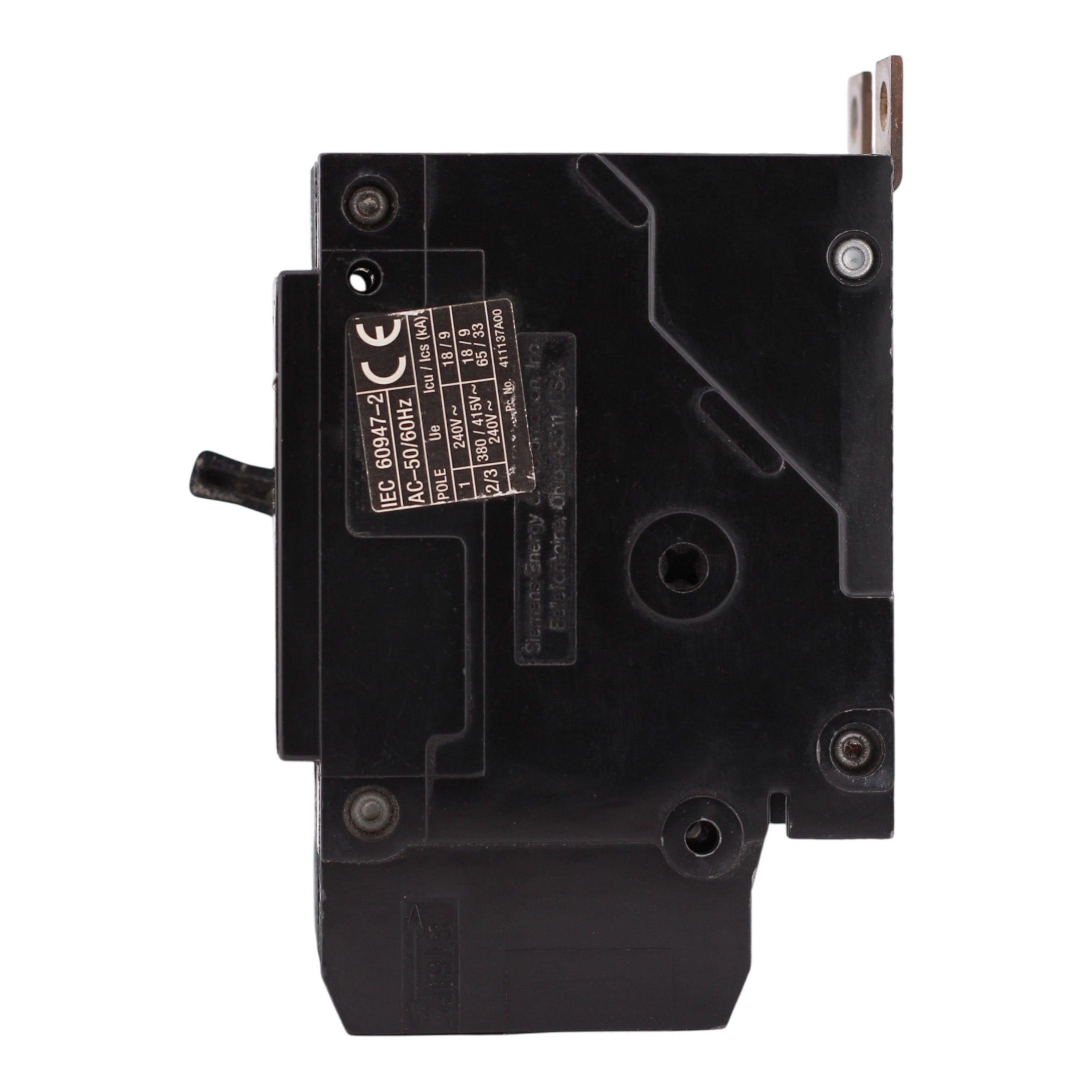

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 7

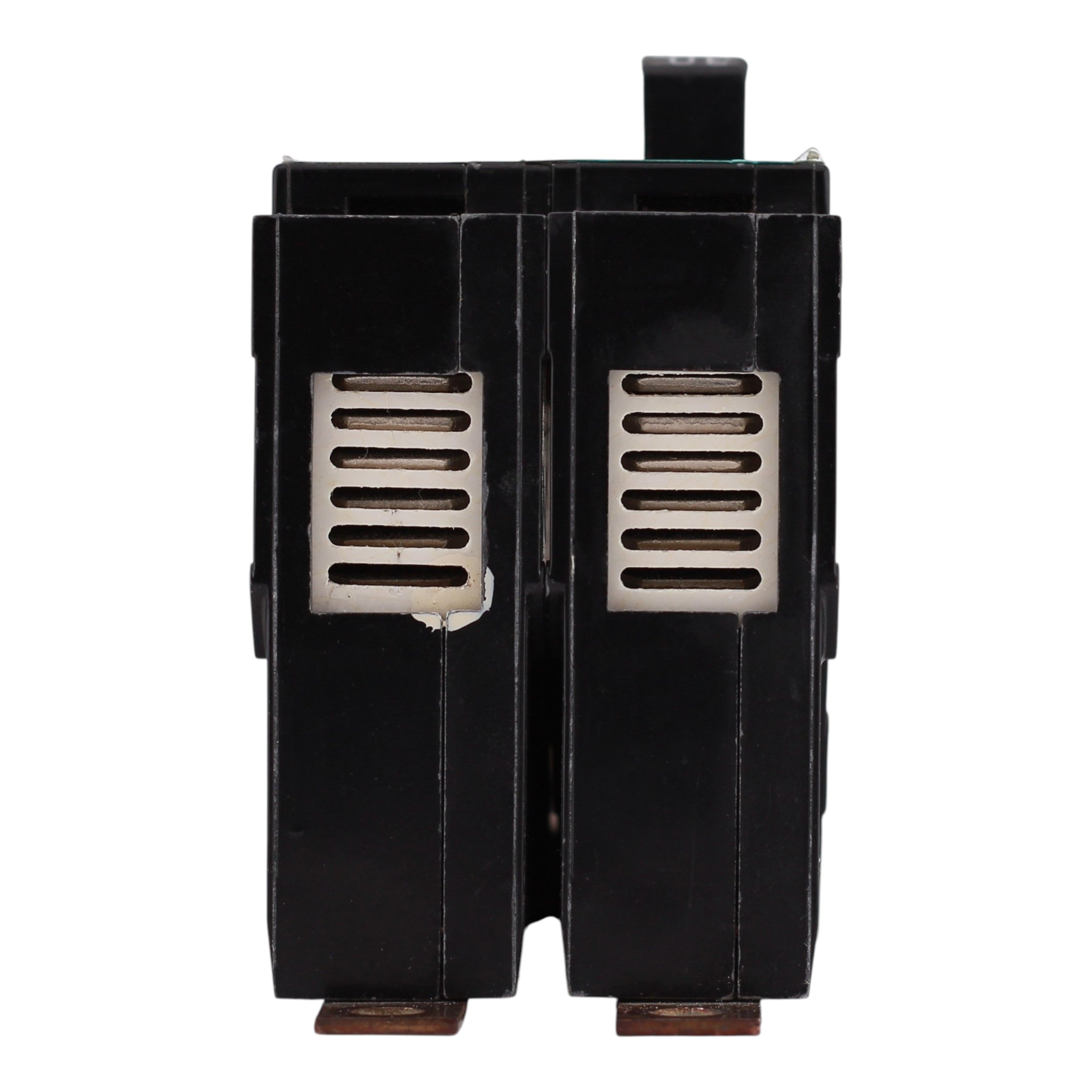

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 8

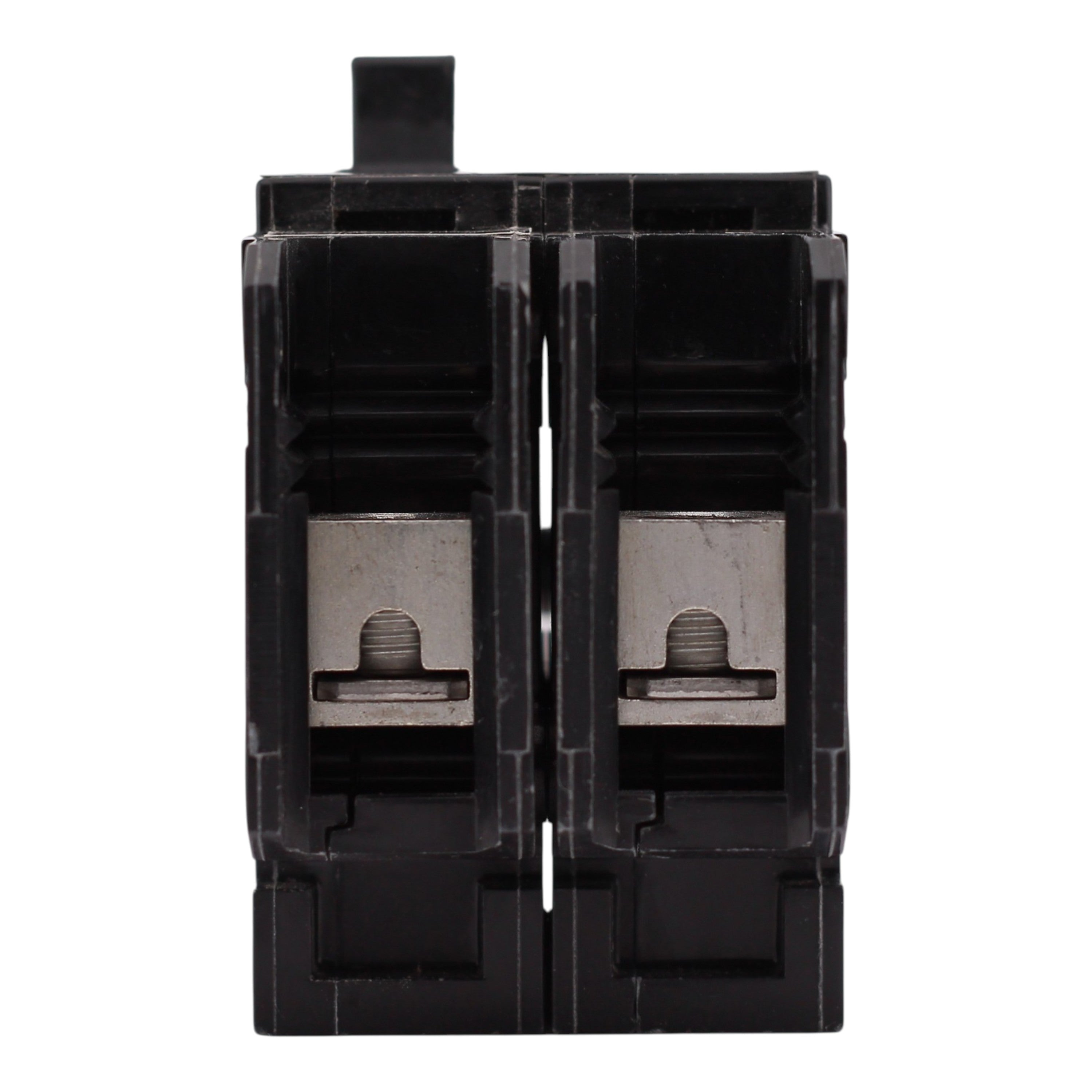

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 2
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 3
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 4
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 5
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 6
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 7
Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

Siemens BQD, BQD230, 30A, 2P, 480V, Bolt-On, Circuit Breaker

Out of stock
SKU: BQD230 UPC: 783643277243
(0)
$38.00
-56% $87.00 $38.00
Out of stock
Condition

Siemens BQD230: 30 Amp, 2-Pole, Thermal Magnetic Molded Case Circuit Breaker, 480Y/277V, 14kA, Bolt-On, UL Listed, CSA.

  • Manufacturer: Siemens
  • Brand: Siemens
  • Product Range: BQD (for Siemens panelboard mounting, commercial applications)
  • UPC: 783643277243
  • Model Number: BQD230
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Voltage: 480Y/277 Volts AC / 125/250 Volts DC
  • Interrupt Rating: 14 kAIC @ 480V; 65 kAIC @ 240V
  • Frame: 100A
  • Mounting Mode: Bolt-On
  • Connection Type: Low Tab
  • Wire Size: #14–6 AWG Cu, #12–6 AWG Al
  • Dimensions: Height: 4.49 in; Width: 2 in; Depth: 2.7 in
  • Weight: 1.1 lbs
  • Certifications: UL Listed, CSA

This Siemens BQD230 bolt-on thermal magnetic circuit breaker delivers dependable 30 Amp, 2-Pole protection for 480Y/277V circuits in Siemens BQD panelboards. With a 14kAIC interrupt rating, it supports commercial and light industrial applications.
