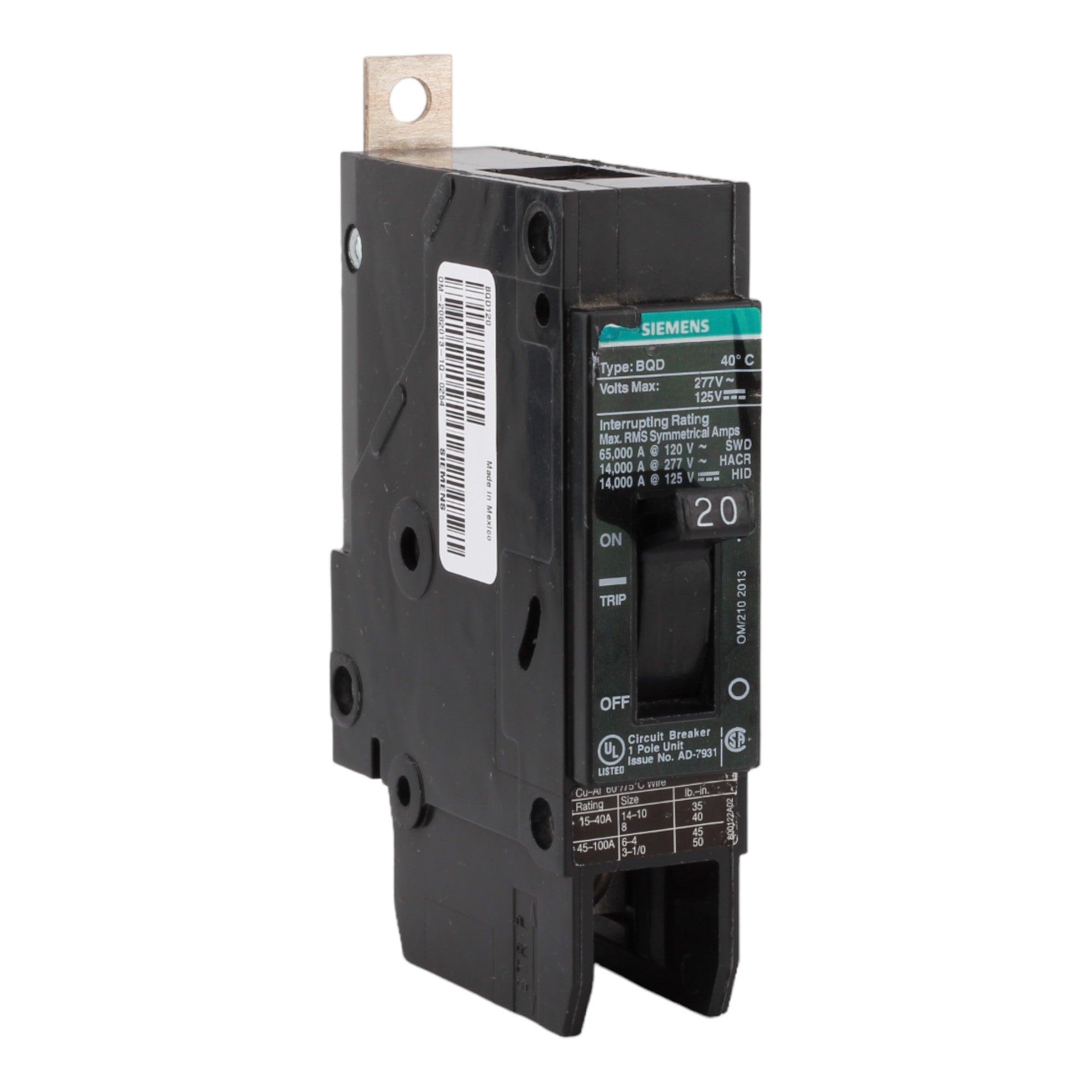

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed

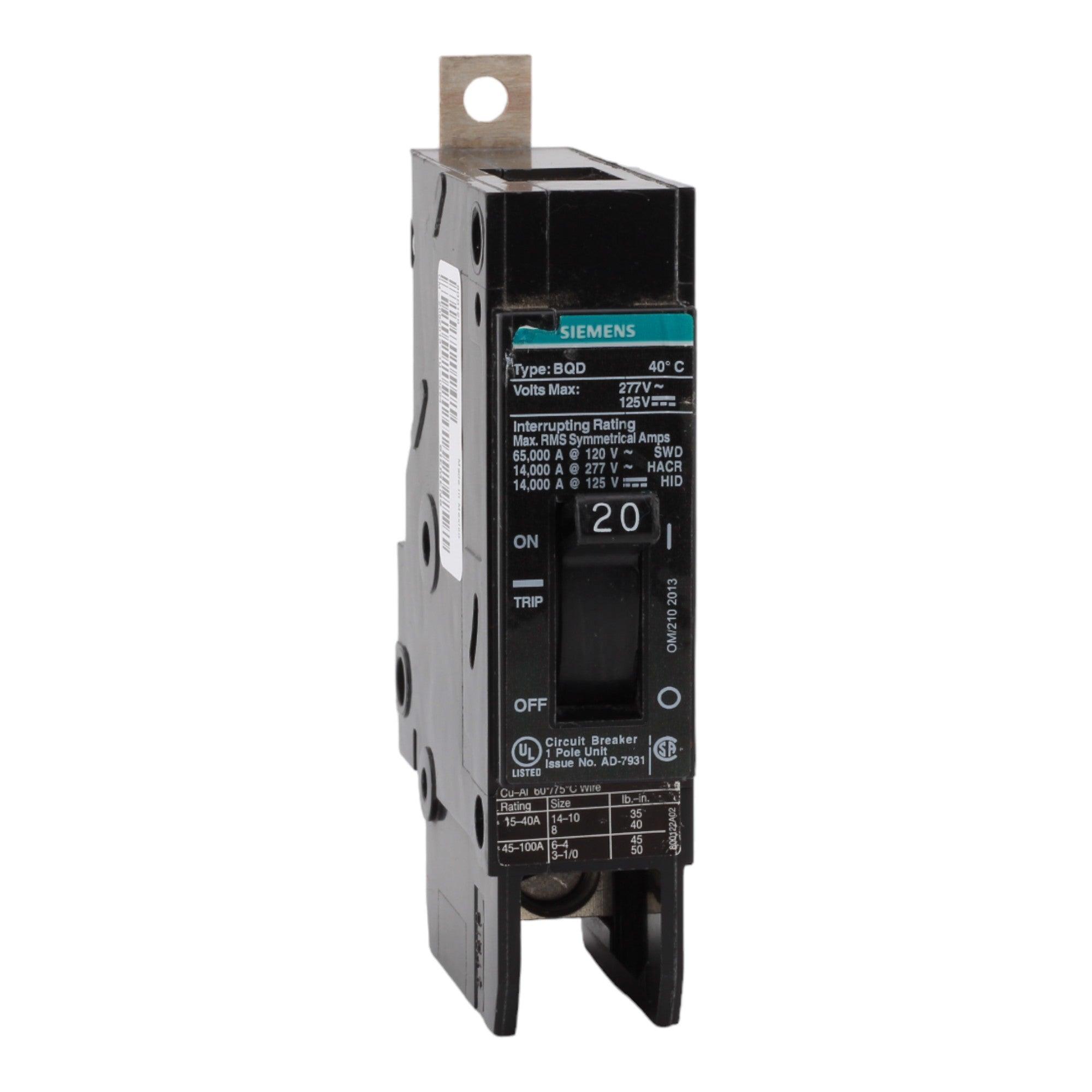

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 2

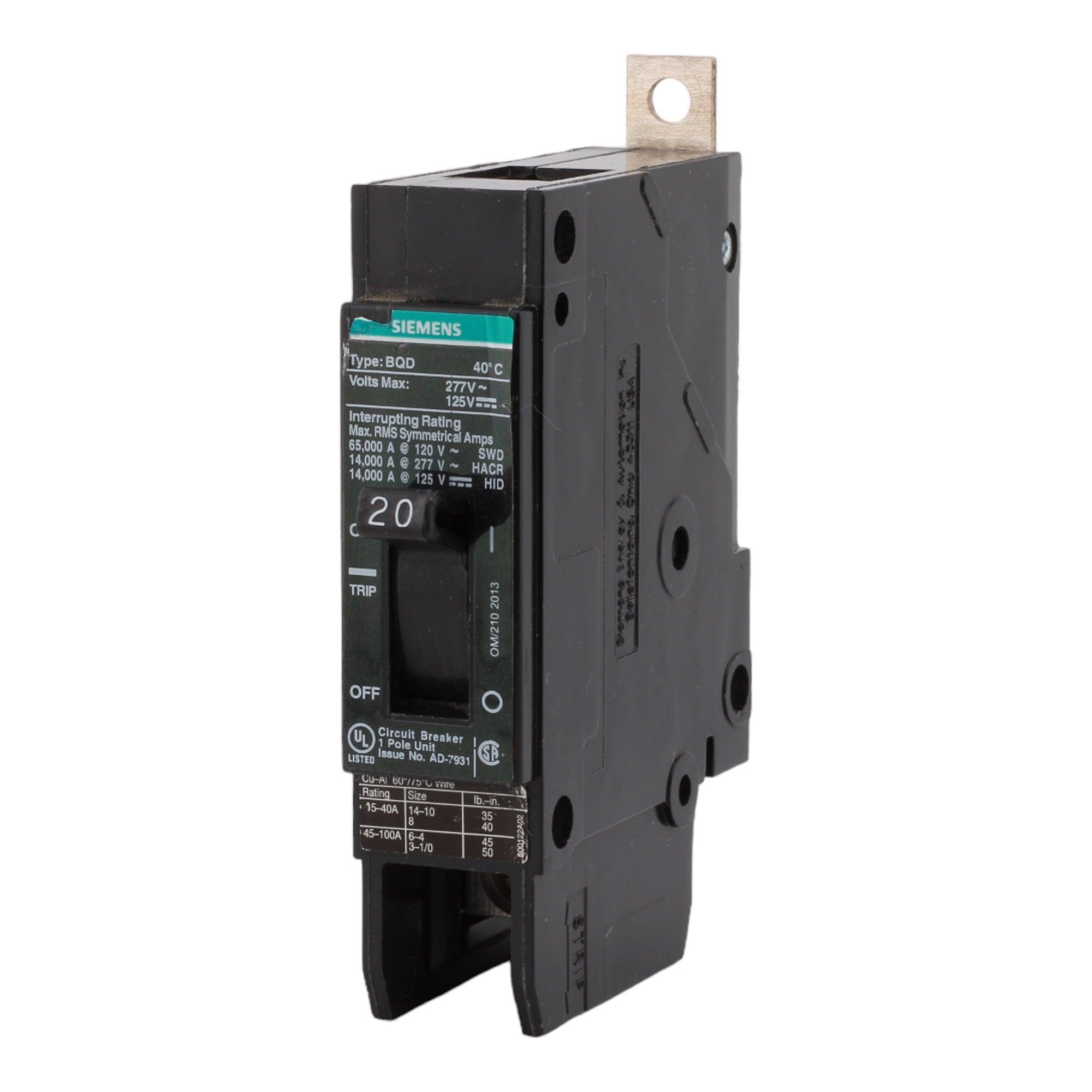

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 3

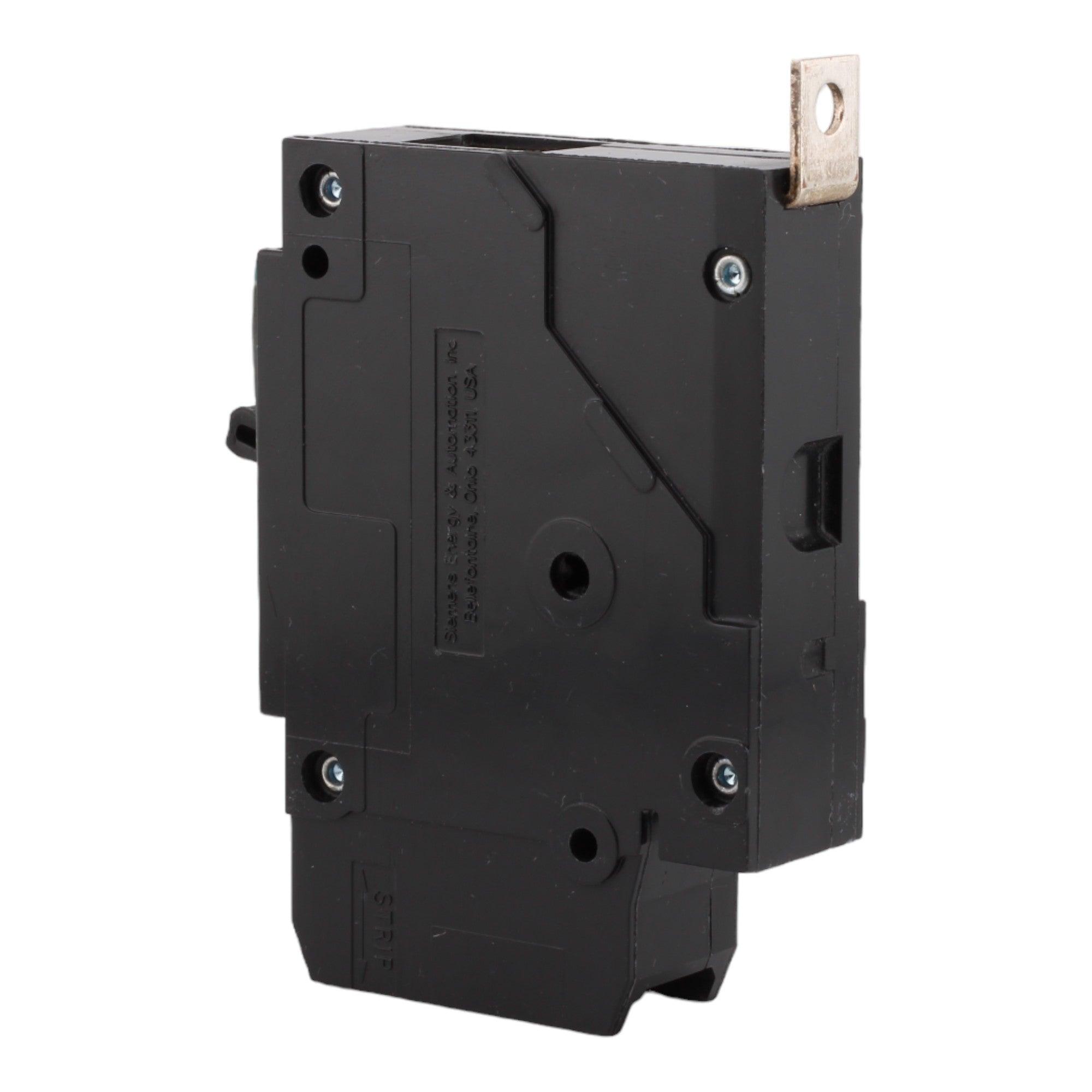

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 4

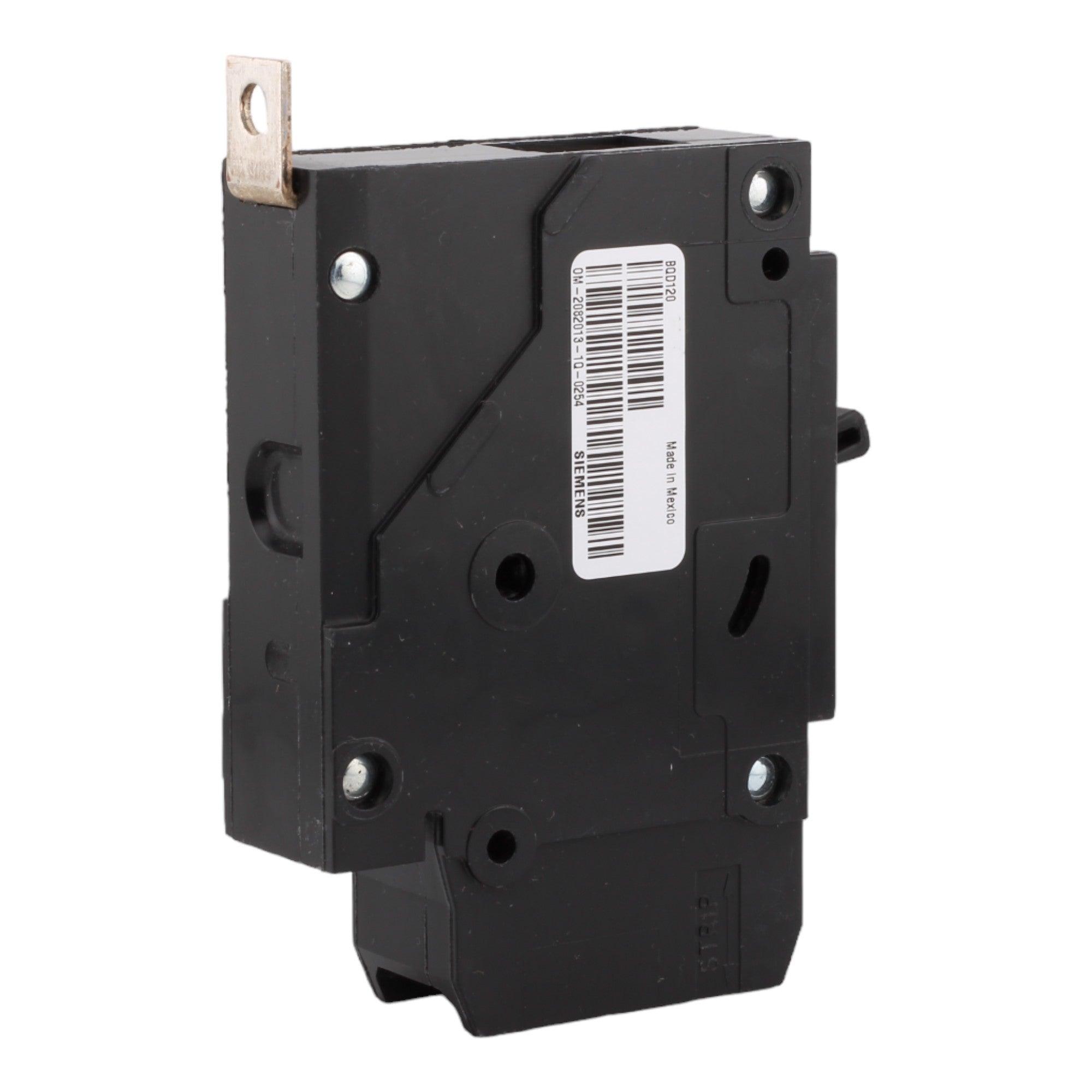

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 5

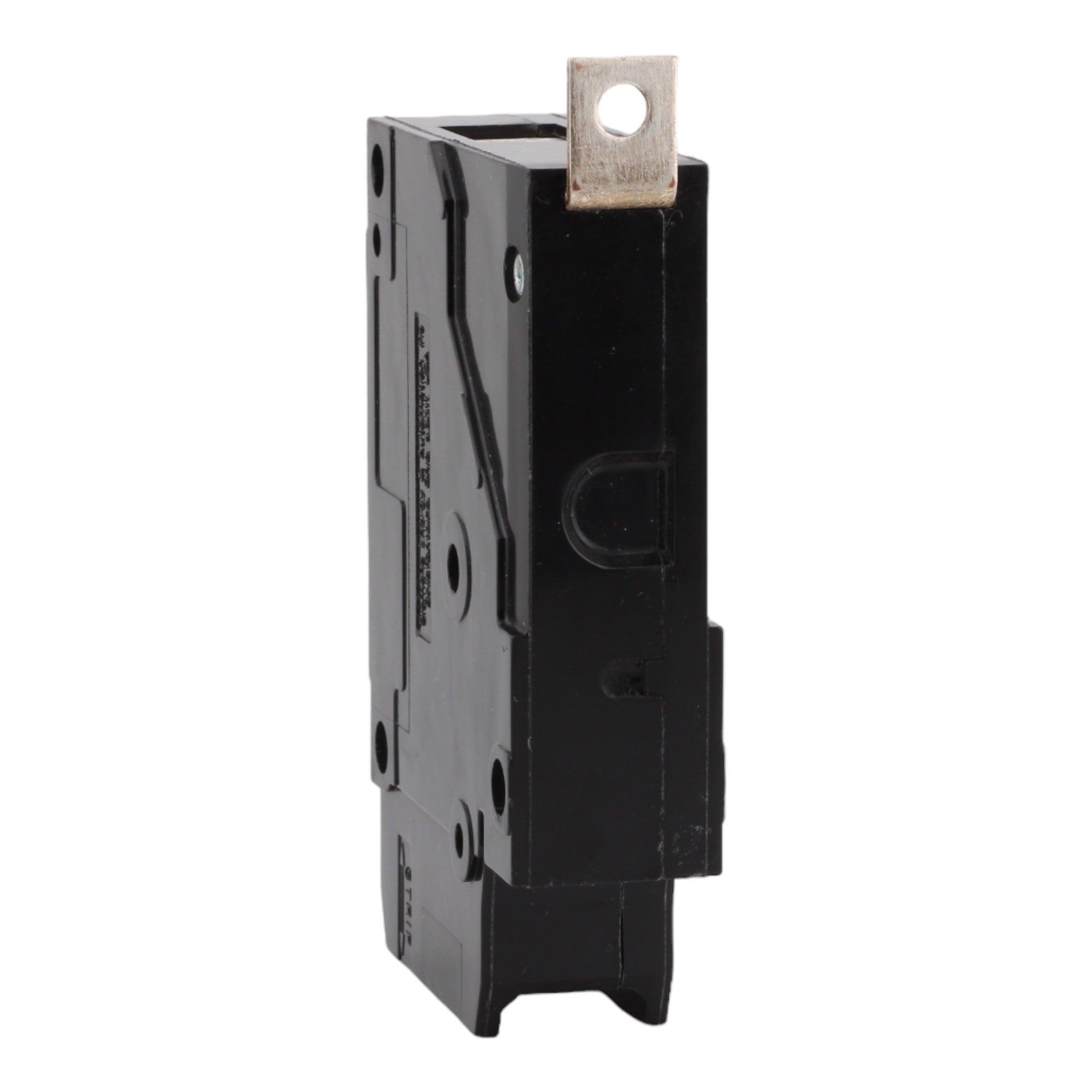

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 6

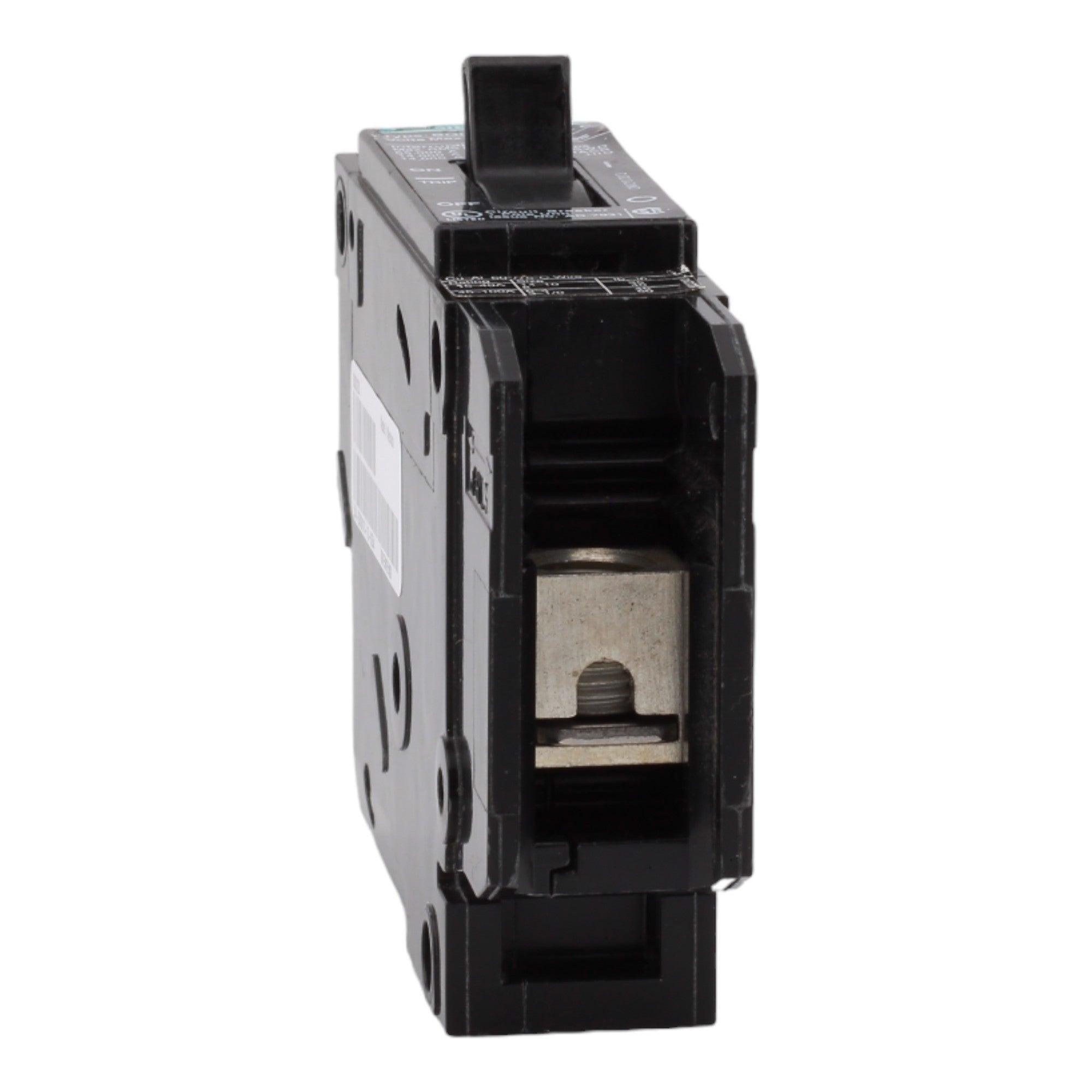

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 7

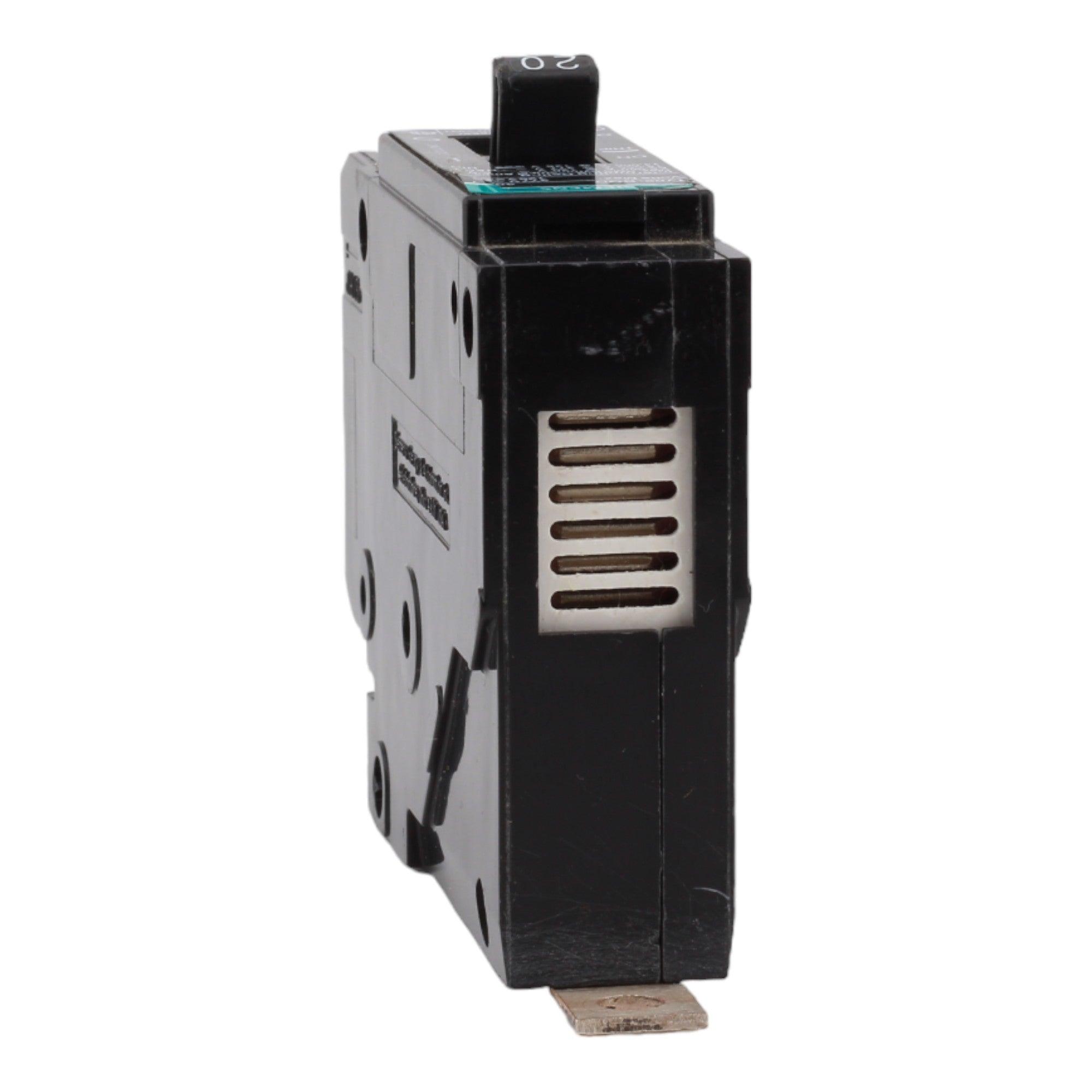

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 8
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 2
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 3
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 4
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 5
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 6
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 7
Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed

Out of stock
SKU: BQD120 UPC: 783643277090
(0)
$26.00
-26% $35.00 $26.00
Out of stock
Condition

BQD120 specifications

Siemens BQD120 20 Amp Single-Pole Circuit Breaker - 277VAC, 125VDC, 14kA, Bolt-On, UL Listed

Specifications:

  • Manufacturer: Siemens
  • Model Number: BQD120
  • UPC: 783643277090
  • Type: Molded Case Circuit Breaker
  • Poles: 1
  • Amperage: 20 Amp
  • Voltage: 277 Volt AC / 125 Volt DC
  • Interrupt Rating: 14 kAIC at 277VAC / 125VDC
  • Connection: Bolt-On
  • Mounting Type: Bolt-In
  • Frequency Rating: 50/60 Hz
  • Terminal Type: Load Lug
  • Wire Size: 14-1/0 AWG (Copper/Aluminum)
  • Weight: 0.584 lb
  • Certification: UL 489, CSA Certified

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
