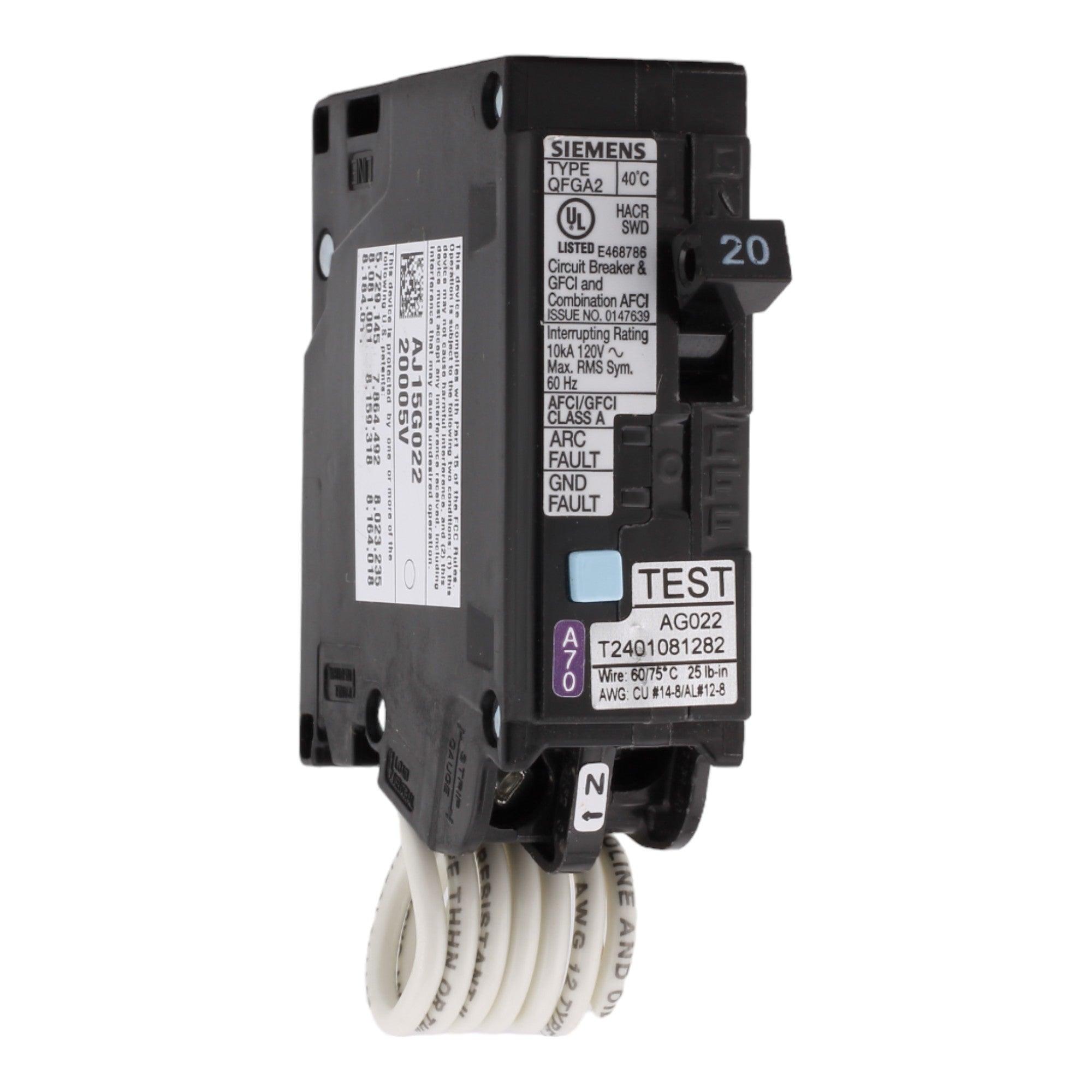

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL

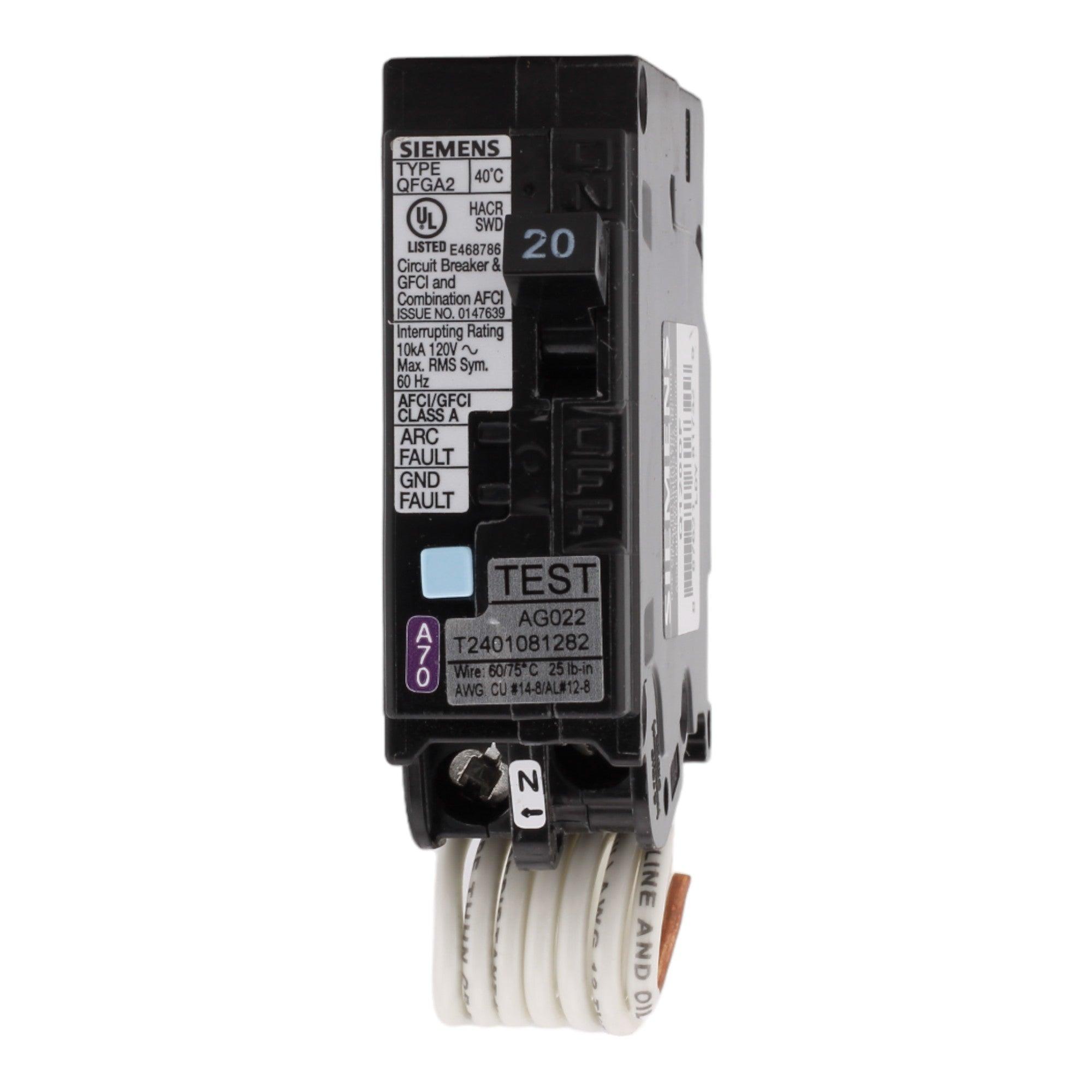

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 2

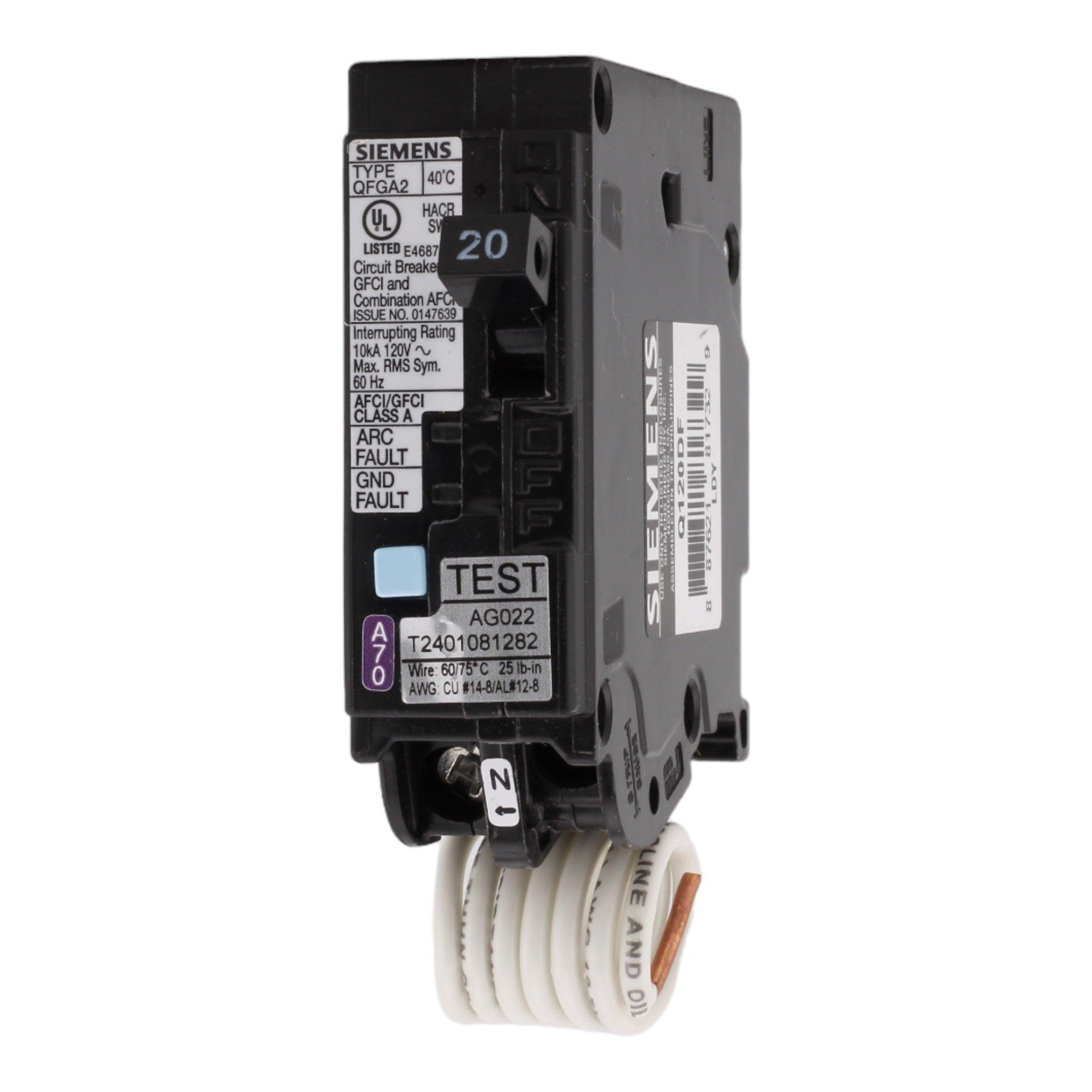

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 3

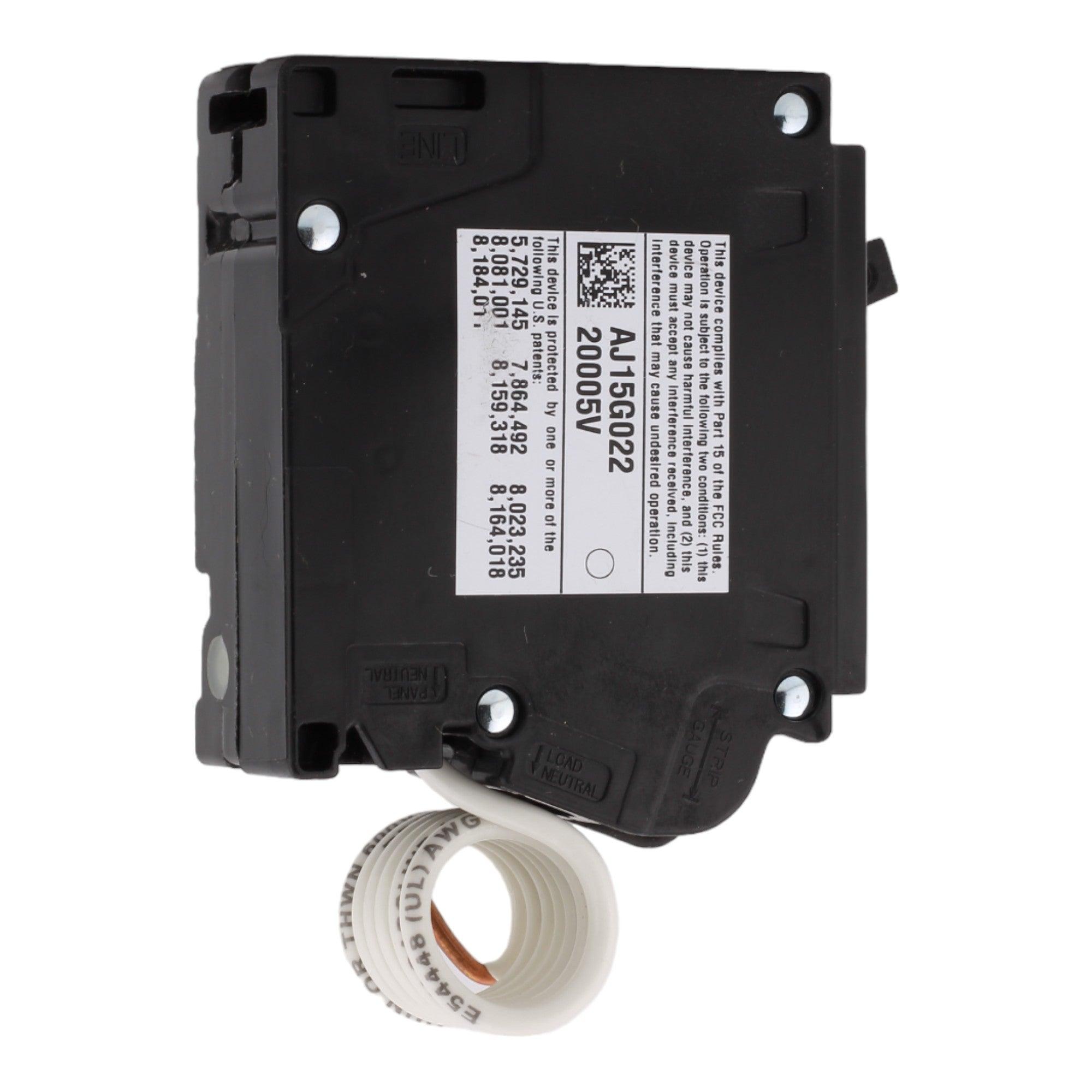

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 4

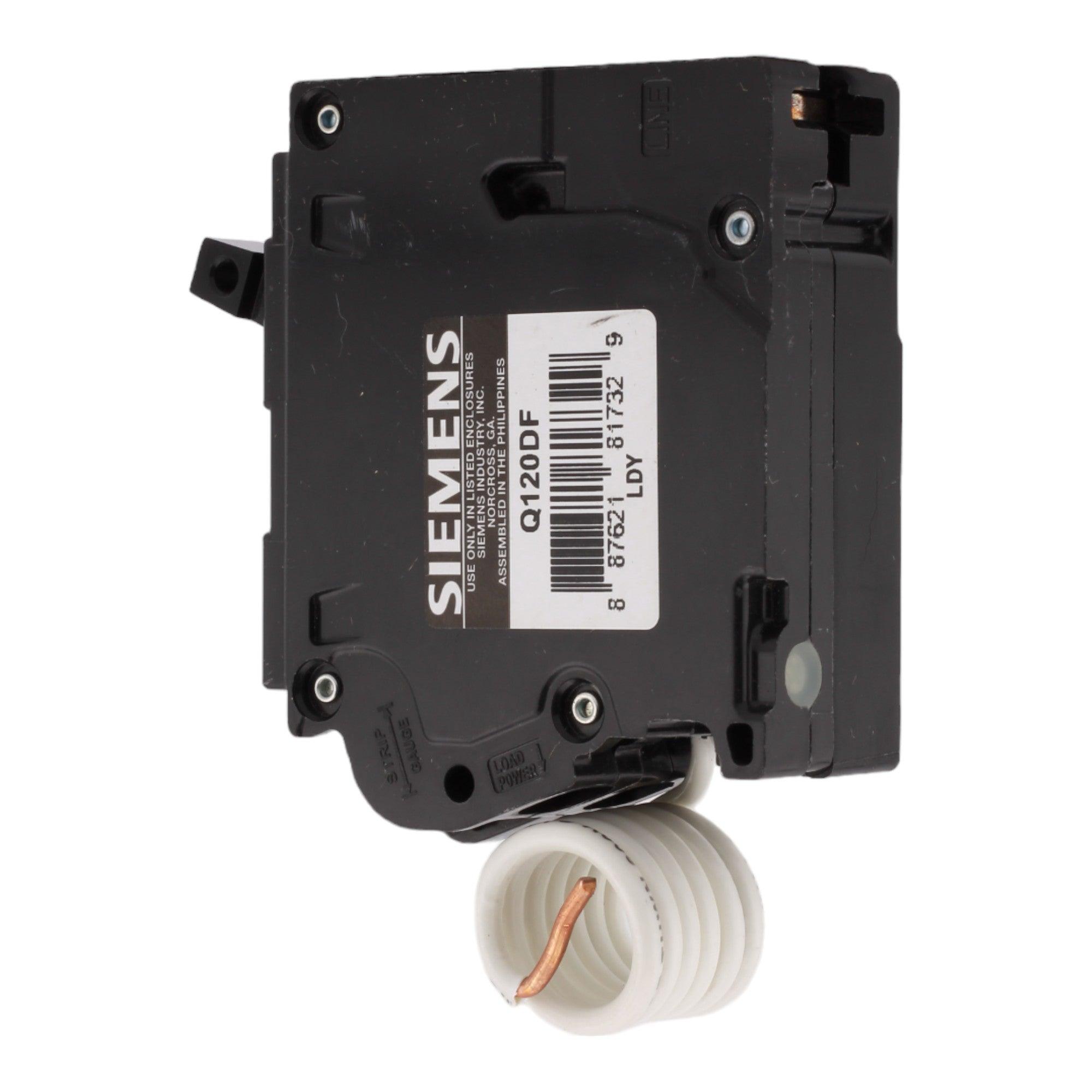

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 5

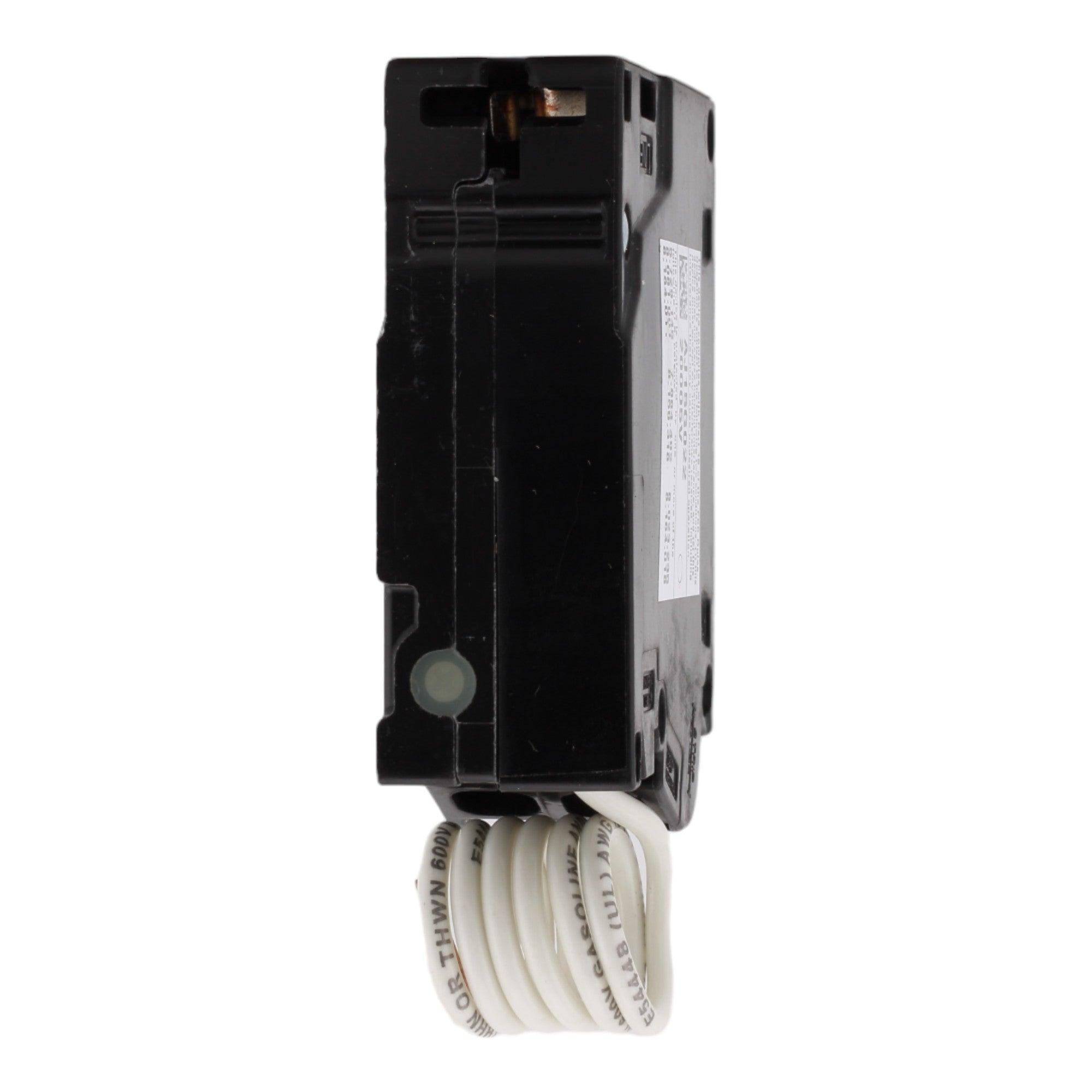

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 6

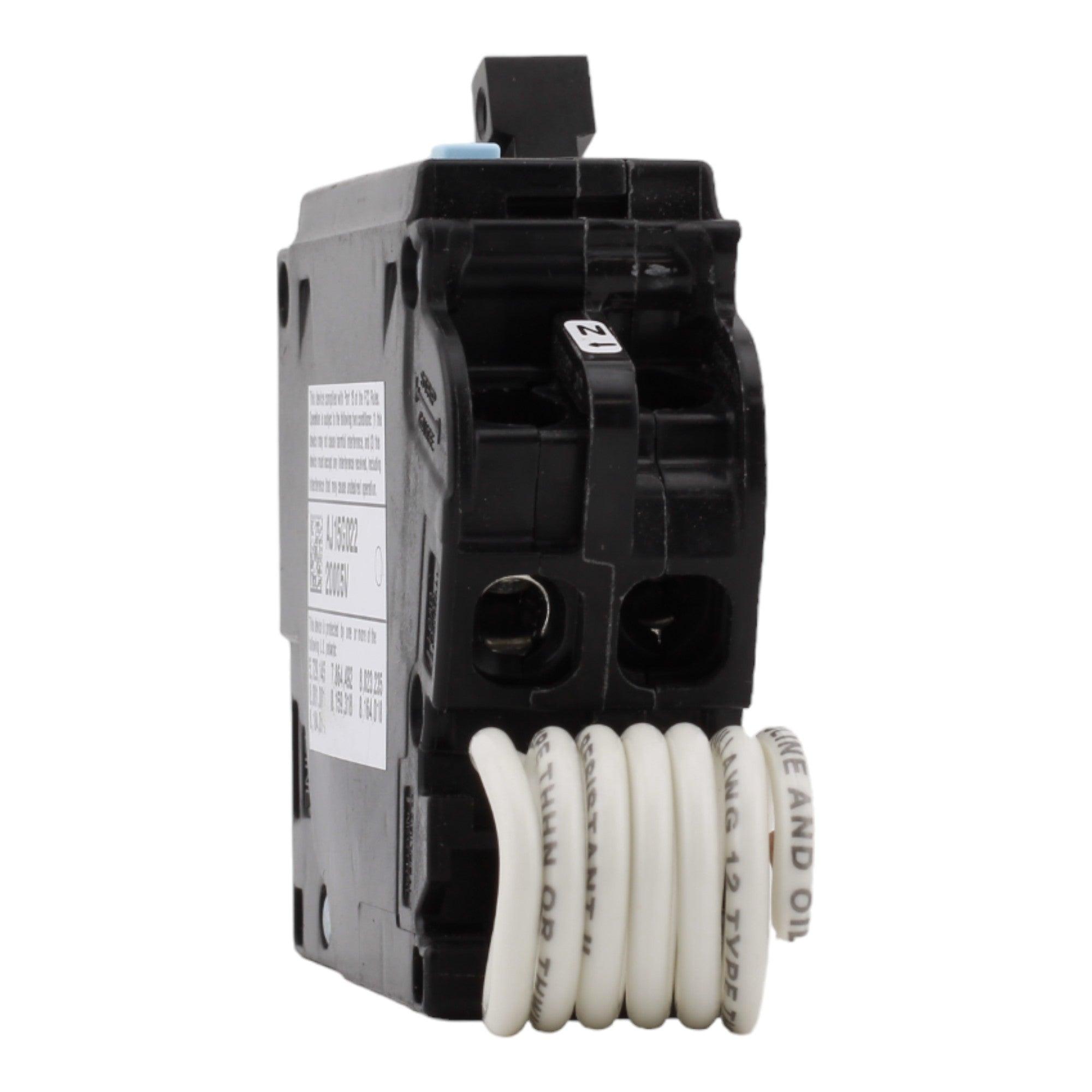

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 7
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 2
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 3
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 4
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 5
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 6
Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

Siemens Q120DF 20 Amp Single Pole 120V Pigtail-Neutral AFCI/GFCI Dual Function Circuit Breaker UL

In stock
SKU: Q120DF UPC: 887621817329
(0)
$60.00
-5% $63.00 $60.00
In stock
Usually ships within 24 hours
Condition

Q120DF is Siemens’ pigtail-neutral 20A dual-function breaker. It combines combination AFCI and Class A 5 mA GFCI protection for a single 120V branch circuit, using the QFGA2 plug-in format and a 10 kA interrupting rating.

Q120DF specifications

  • Catalog number: Q120DF
  • Type: Siemens QFGA2
  • Protection: CAFCI plus Class A GFCI
  • Ground-fault level: 5 mA
  • Rating: 20A, 1 pole, 120V AC
  • Interrupt rating: 10 kA
  • Neutral: Factory pigtail
  • Electronics: Self-test and lockout

The pigtail is the key DF detail

Q120DF and Q120DFN offer the same two protection categories, but Q120DFN is made for a plug-on-neutral rail. This Q120DF version retains a line-neutral pigtail. The loadcenter label decides which connection is approved.

Match the QFGA2 configuration

Verify QFGA2 acceptance, 20A single-pole 120V rating, pigtail wiring, 5 mA dual-function need, and 10 kA capacity. Follow the Siemens diagram for load neutral and breaker neutral connections. A qualified person should validate and install the circuit protection.
