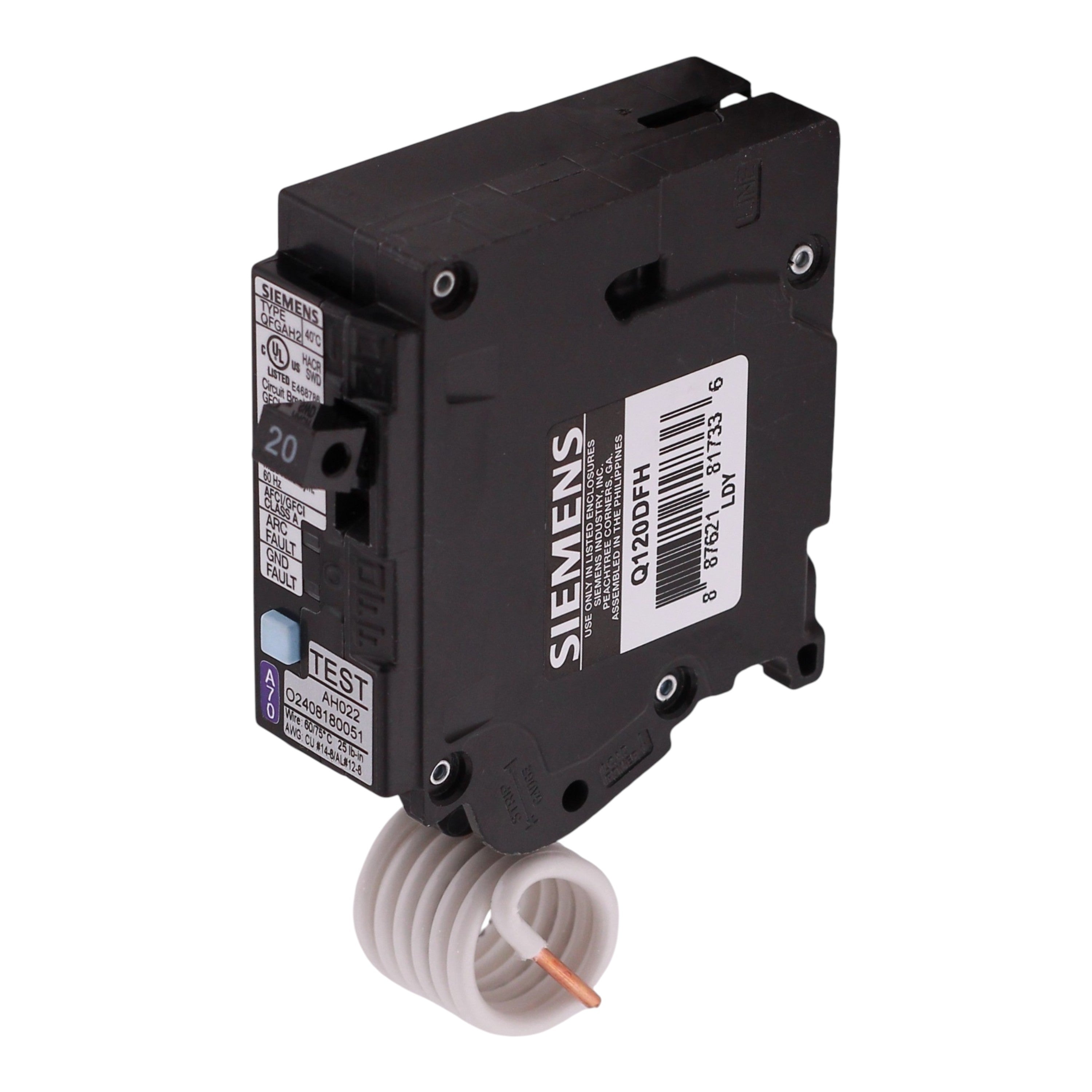

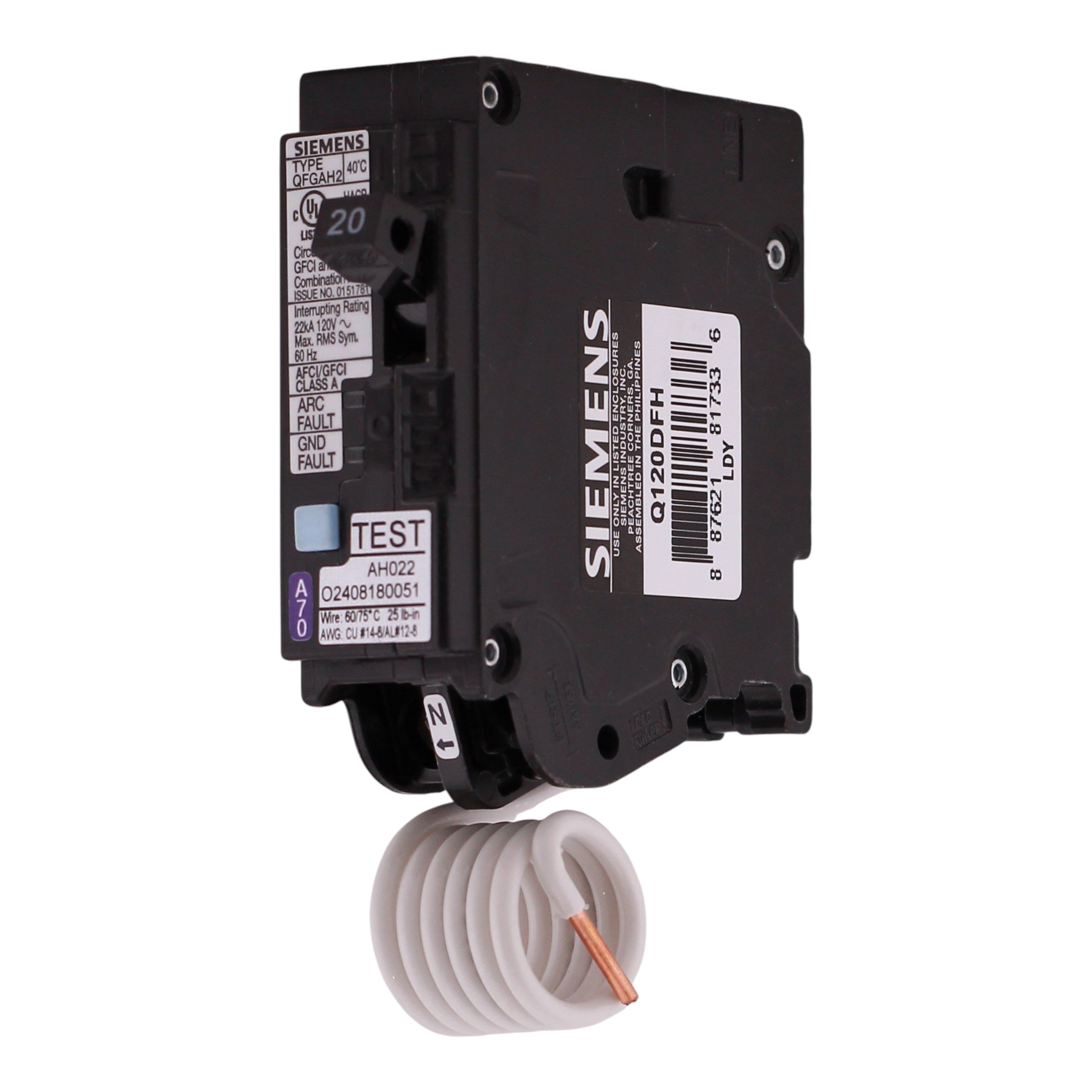

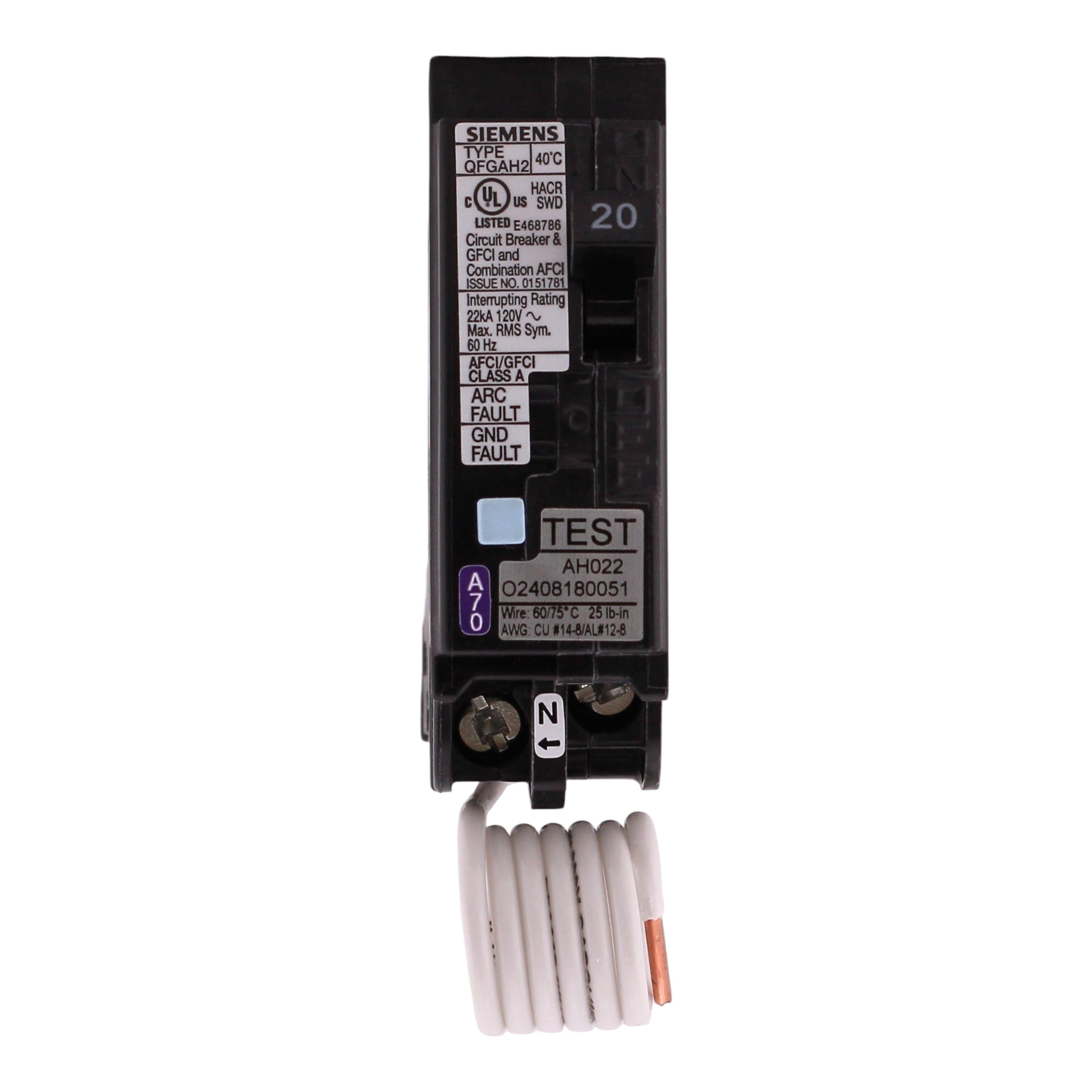

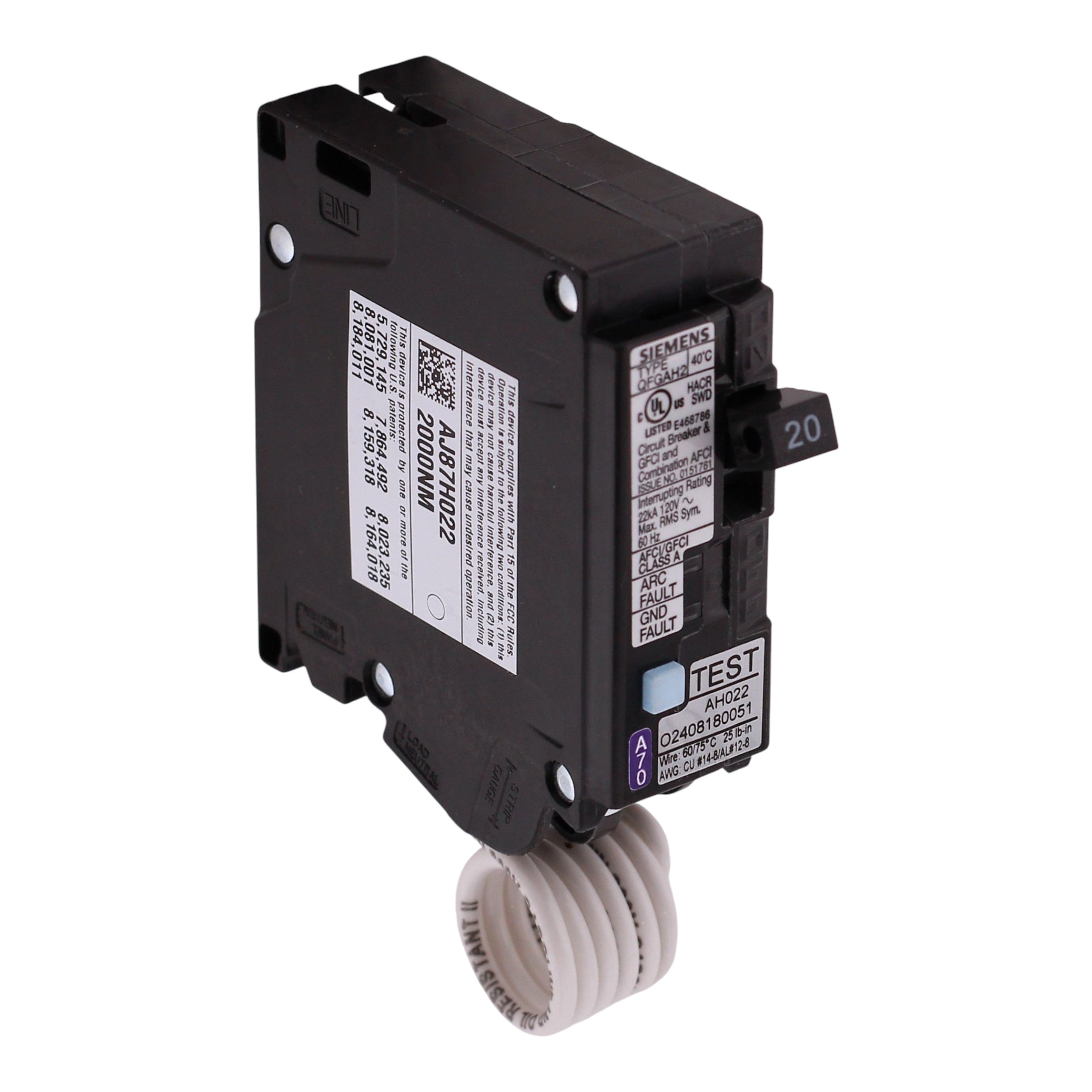

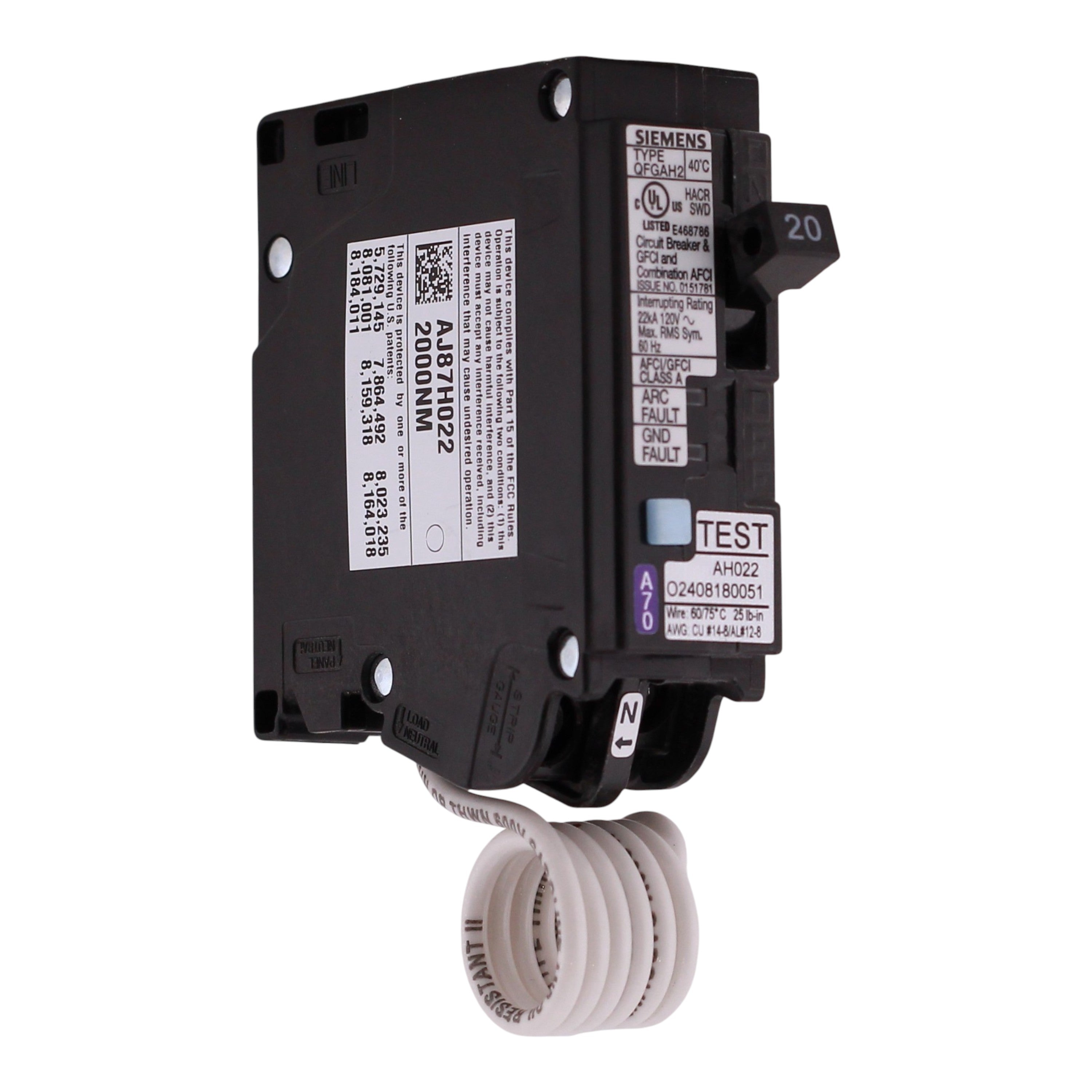

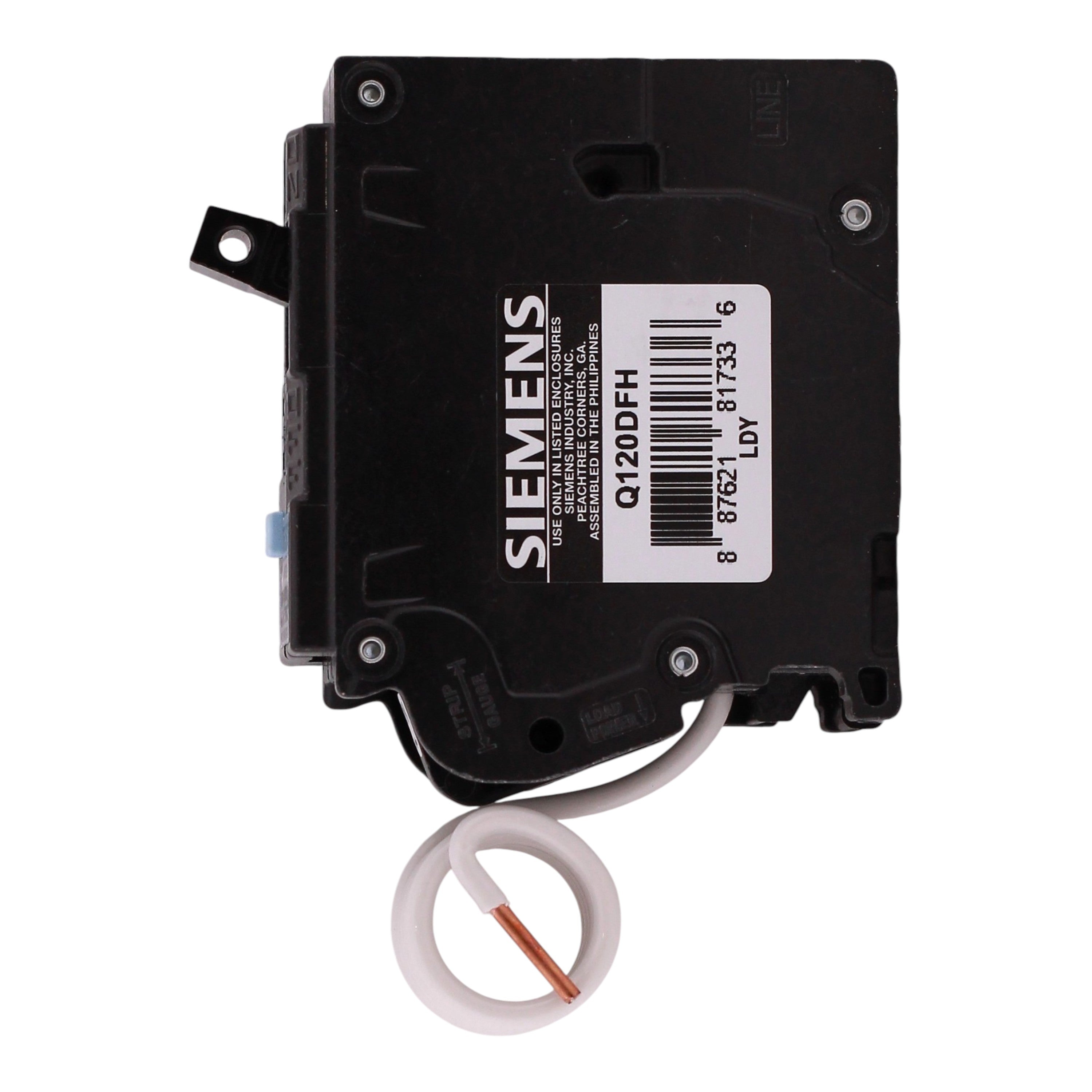

Siemens Q120DFH: 20 Amp, 1-Pole, Dual Function AFCI/GFCI Arc-Fault/Ground-Fault Circuit Interrupter breaker, 120V, 22kA, pigtail neutral, 5mA trip sensitivity, UL listed.
-
Manufacturer: Siemens
-
Brand: Siemens
-
Product Range: QFGA2 High Interrupt (for Siemens QP plug-in load centers)
-
UPC: 887621817336
-
Model Number: Q120DFH
-
Breaker Type: Combination Arc-Fault/Ground-Fault Circuit Interrupter (AFCI/GFCI) — Self-Test with Lockout
-
Amperage: 20 Amps
-
Poles: 1-Pole
-
Voltage: 120 Volts AC
-
Interrupt Rating: 22 kAIC
-
Mounting Mode: Plug-in
-

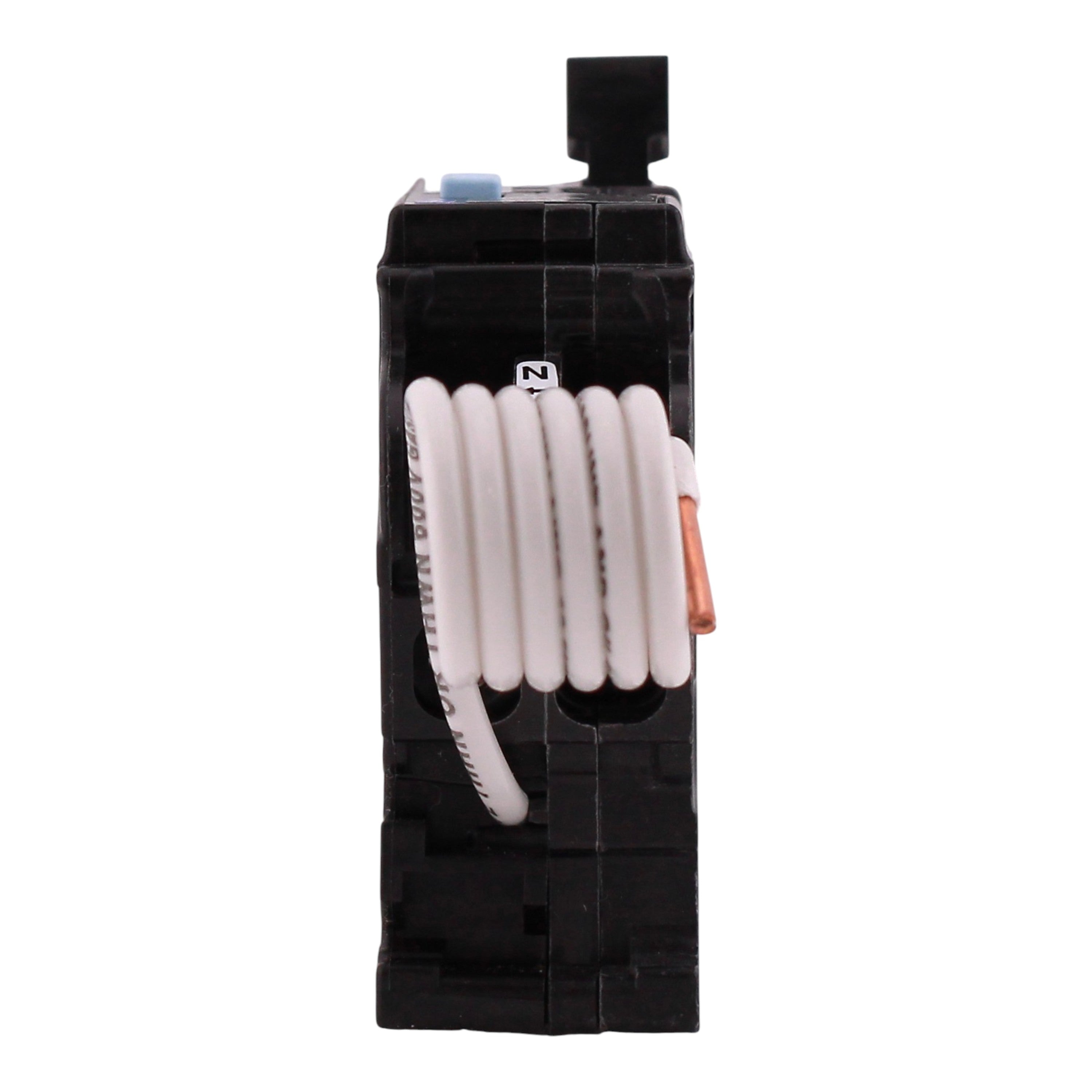

Connections / Terminals: Pigtail Neutral
-
Wire Size: #14–10 AWG Cu
-
Dimensions: Height: 3.00 in; Width: 1.00 in; Depth: 3.00 in
-
Weight: 0.243 lbs
-
Certifications: UL Listed, CSA Certified, HACR Rated
-
Trip Sensitivity: 5 mA ground fault protection (Class A)
This Siemens Q120DFH pigtail neutral circuit breaker provides reliable 20 Amp, 1-Pole dual function AFCI/GFCI protection for 120V circuits in Siemens QP plug-in load centers. With 5mA ground fault detection, arc-fault protection, self-test and lockout, LED trip indicator, and a 22kAIC high interrupt rating, it ensures enhanced safety for residential applications requiring higher fault current protection.
