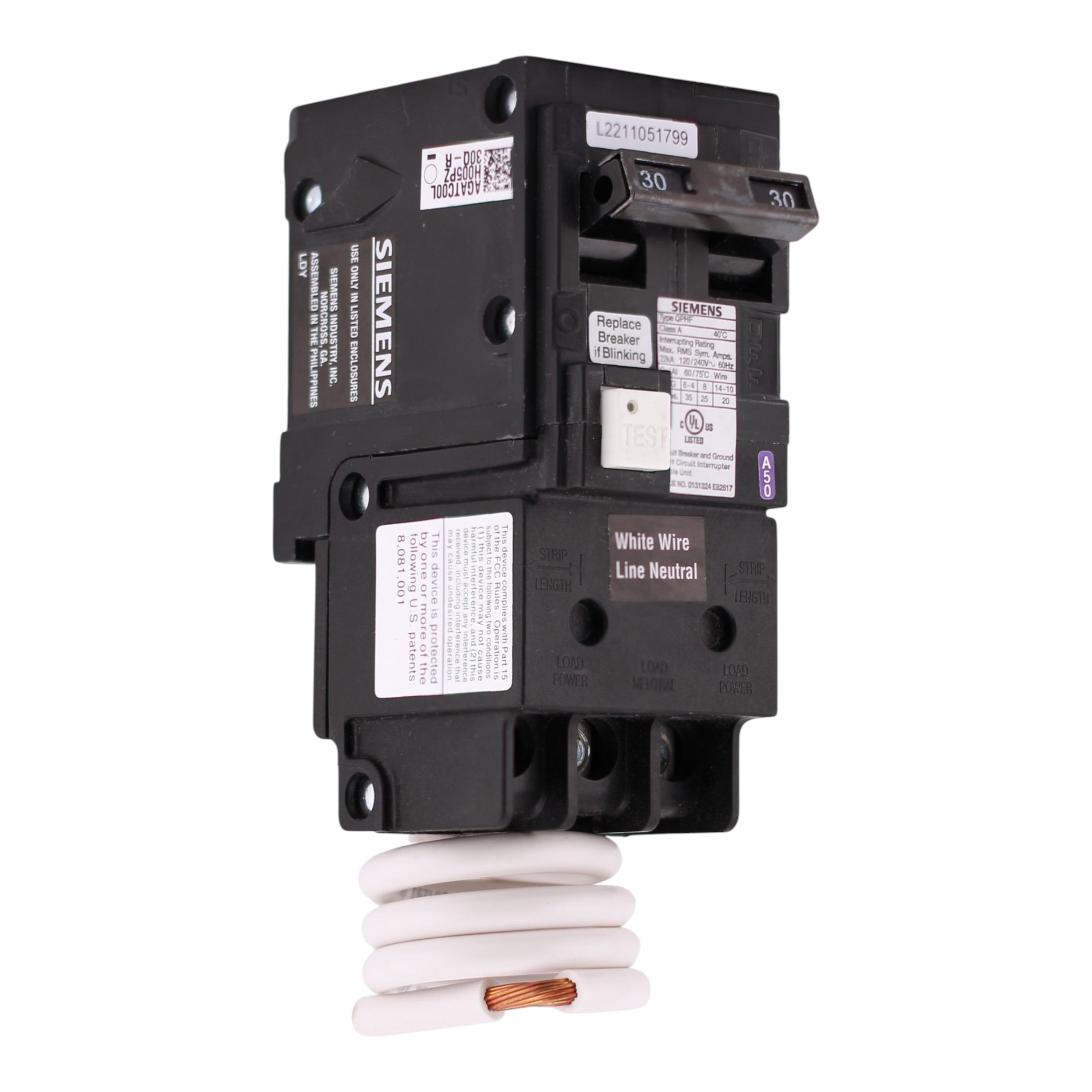

Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 2

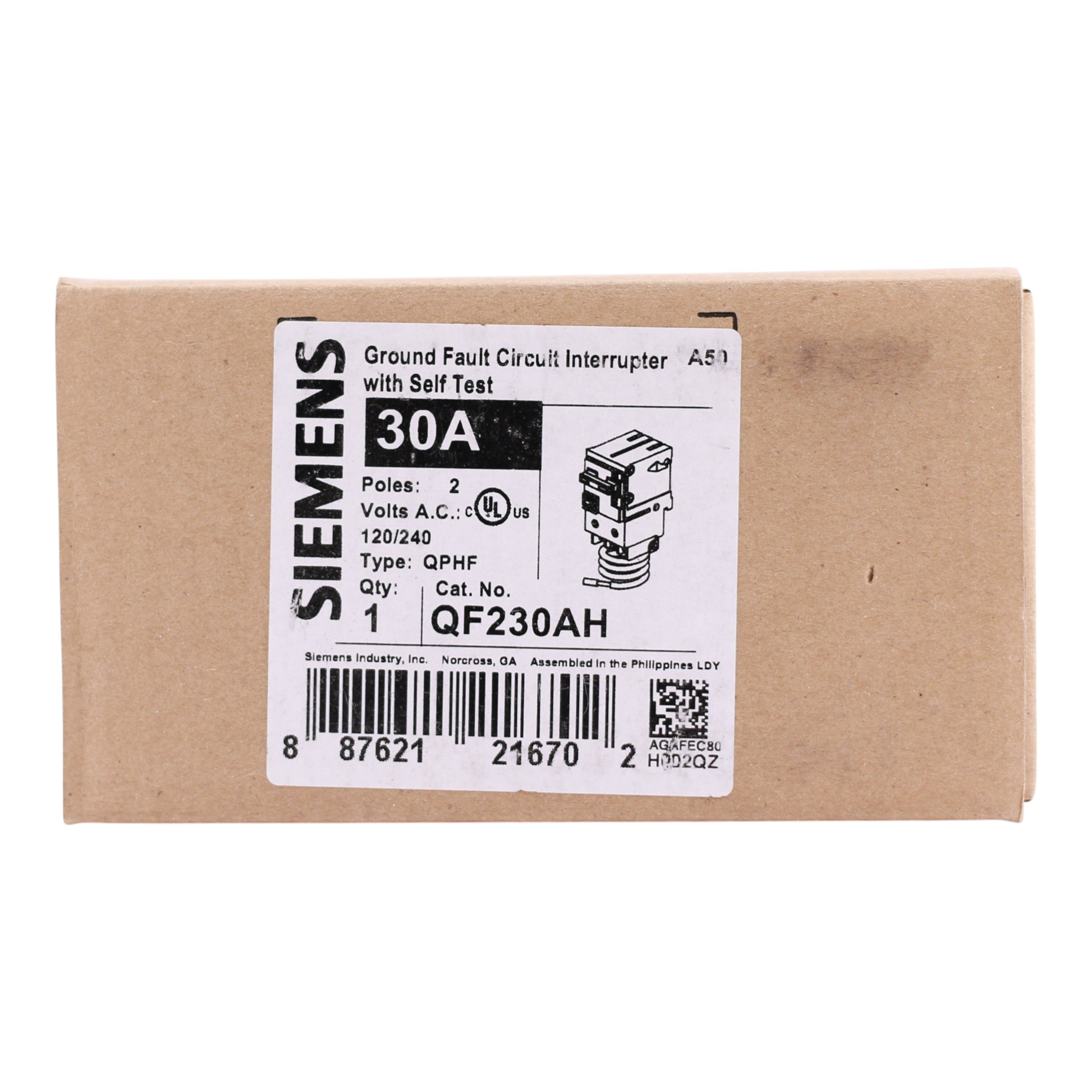

Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 3
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 4
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 5
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 6
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 7
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 8
Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

Siemens QP, QF230AH, 30A, 2P, 120/240V, GFCI, Pigtail Neutral, 22 kAIC, Circuit Breaker

Out of stock
SKU: QF230AH UPC: 887621216702
(0)
$99.00
-58% $233.00 $99.00
Out of stock
Condition

QF230AH specifications

  • Manufacturer: Siemens
  • Brand: Siemens
  • Product Range: QP (QPHFB) (for Siemens EQ, ES, and PL series load centers)
  • Model Number: QF230AH
  • Product Status: ⚠️ Discontinued — Current replacement: Q230GFH
  • Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 22 kAIC
  • Mounting Mode: Plug-in
  • Connections Terminals: Pigtail Neutral
  • Wire Size: #14–8 AWG Cu; #12–8 AWG Al
  • Weight: 0.992 lbs
  • Certifications: UL Listed, CSA Certified
  • Trip Sensitivity: 5 mA ground fault protection (Class A)
  • Special Features: Self-test with lockout; LED trip indicator; HACR Rated; SWD Rated

This Siemens QF230AH pigtail neutral circuit breaker provides reliable 30 Amp, 2-pole GFCI protection for 120/240V circuits in QP-series loadcenters. With 22 kAIC interrupt rating and 5mA ground fault detection, it ensures enhanced safety for residential applications including spas, hot tubs, kitchens, and bathrooms. ⚠️ This model is discontinued — the current replacement is the Siemens Q230GFH.
