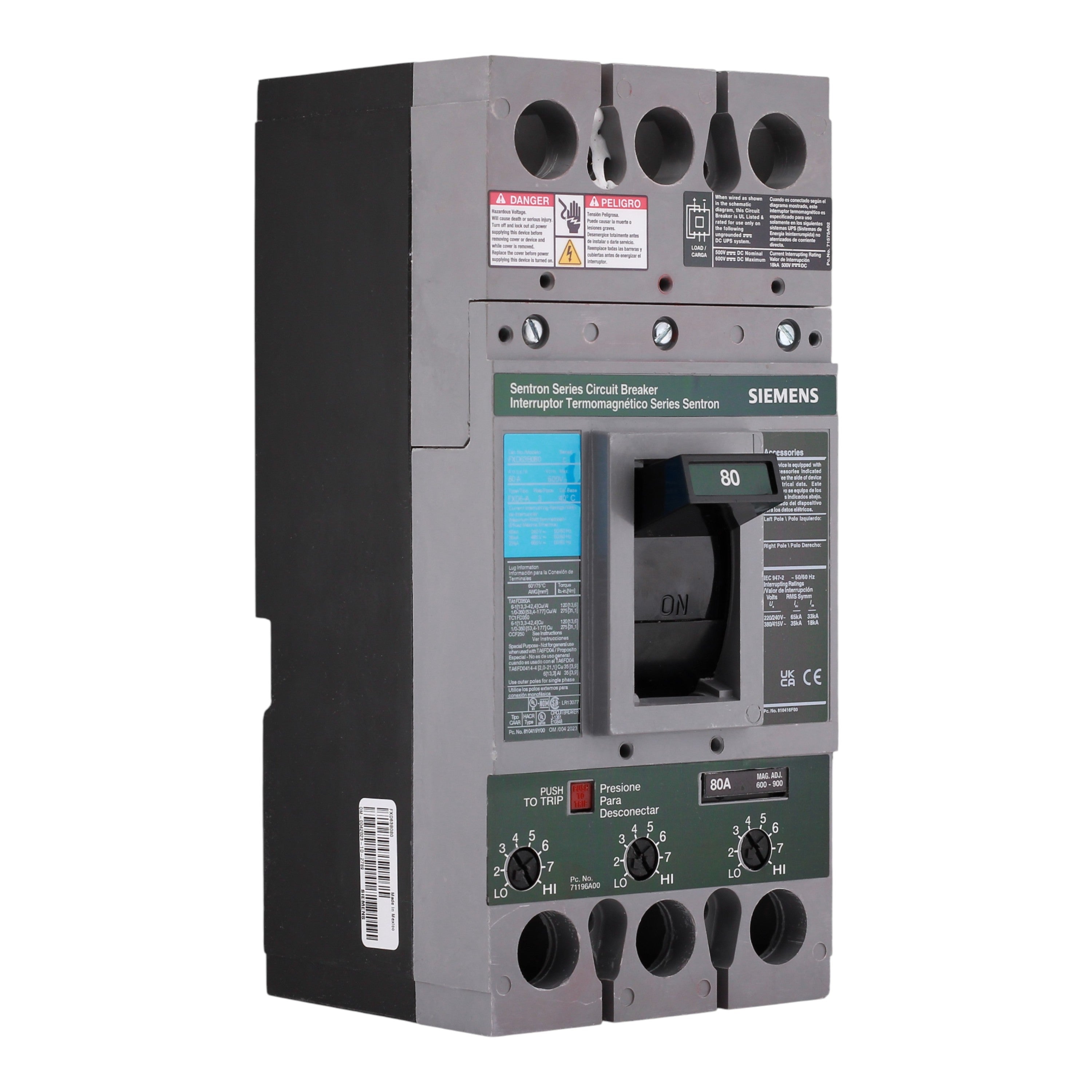

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker

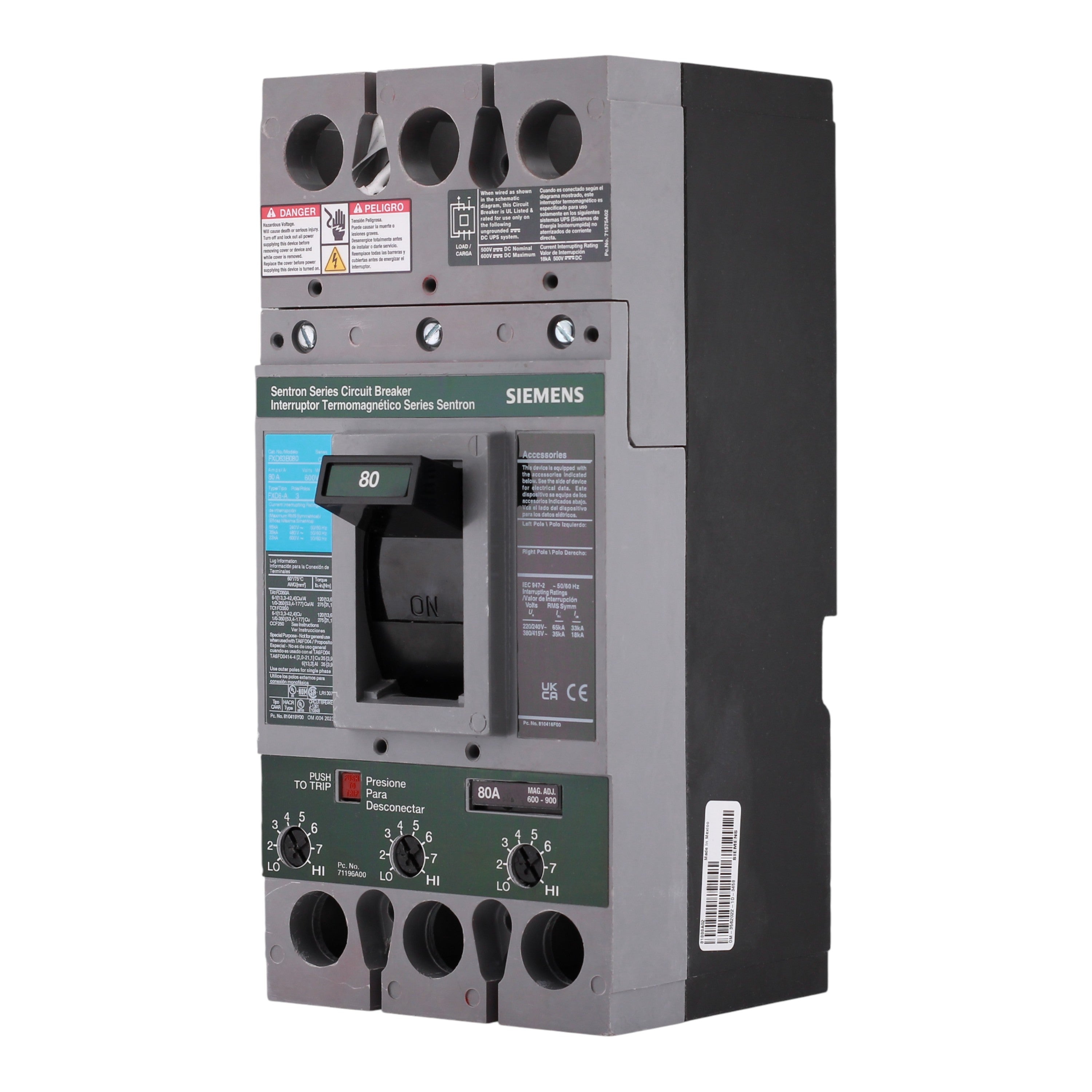

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 2
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 3

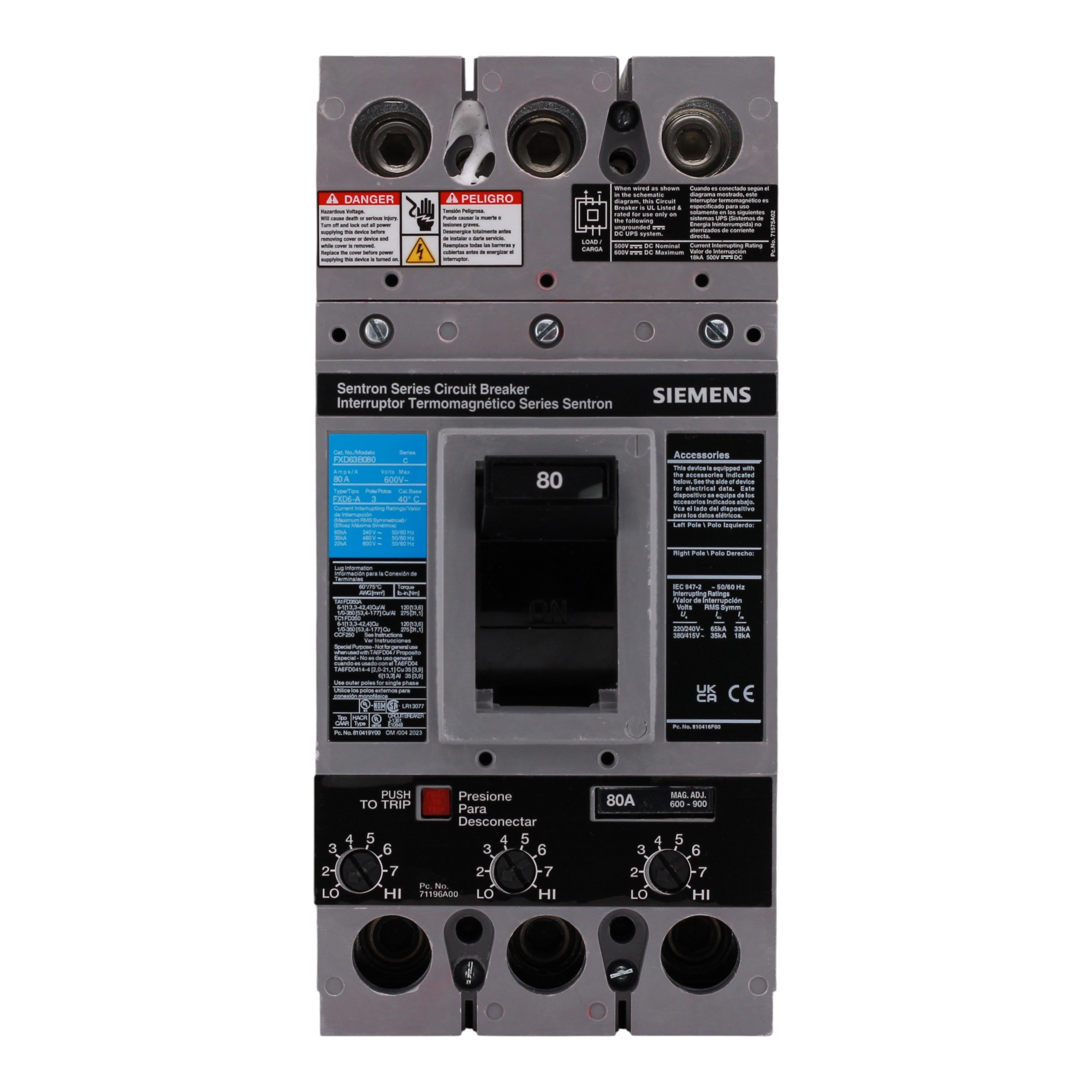

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 4

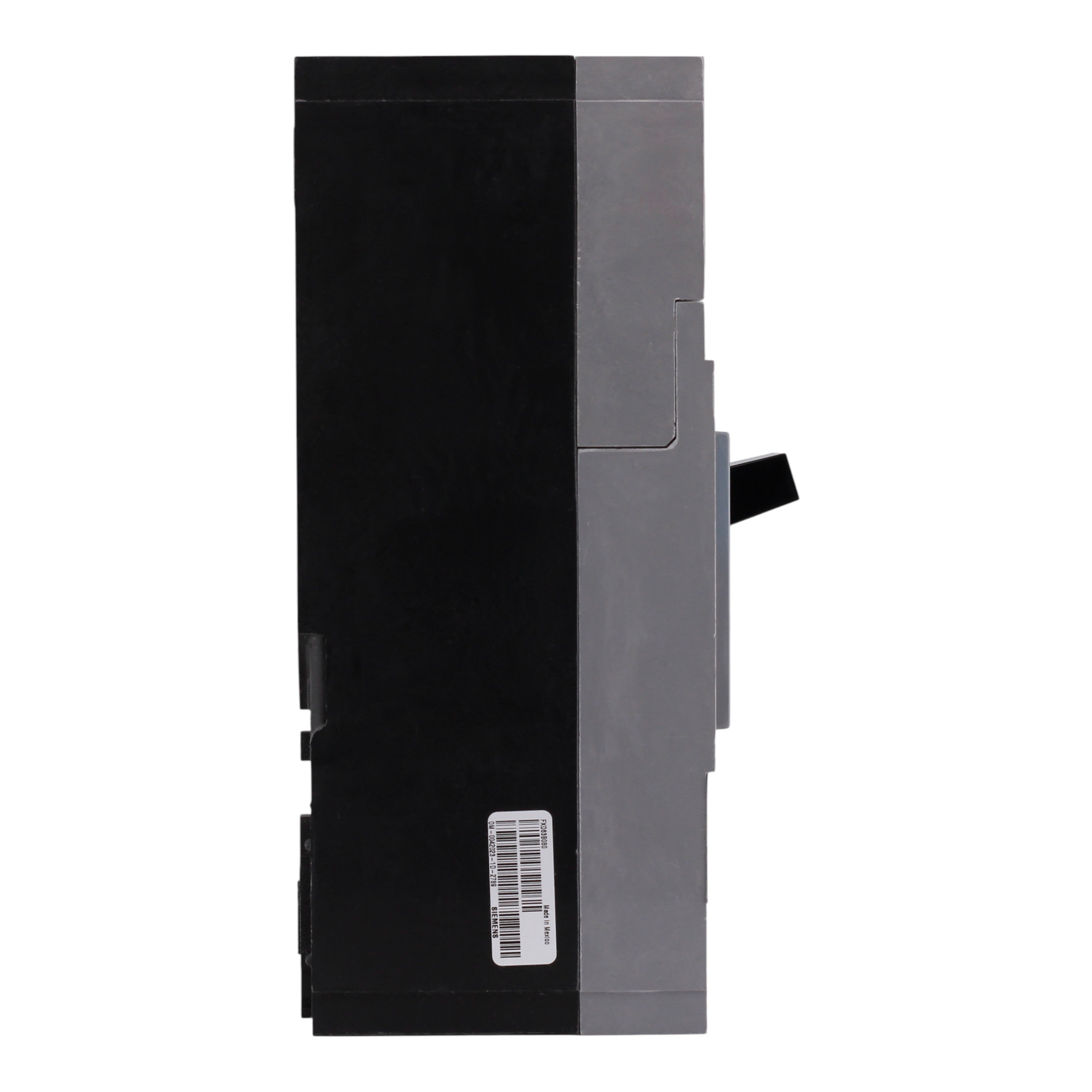

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 5

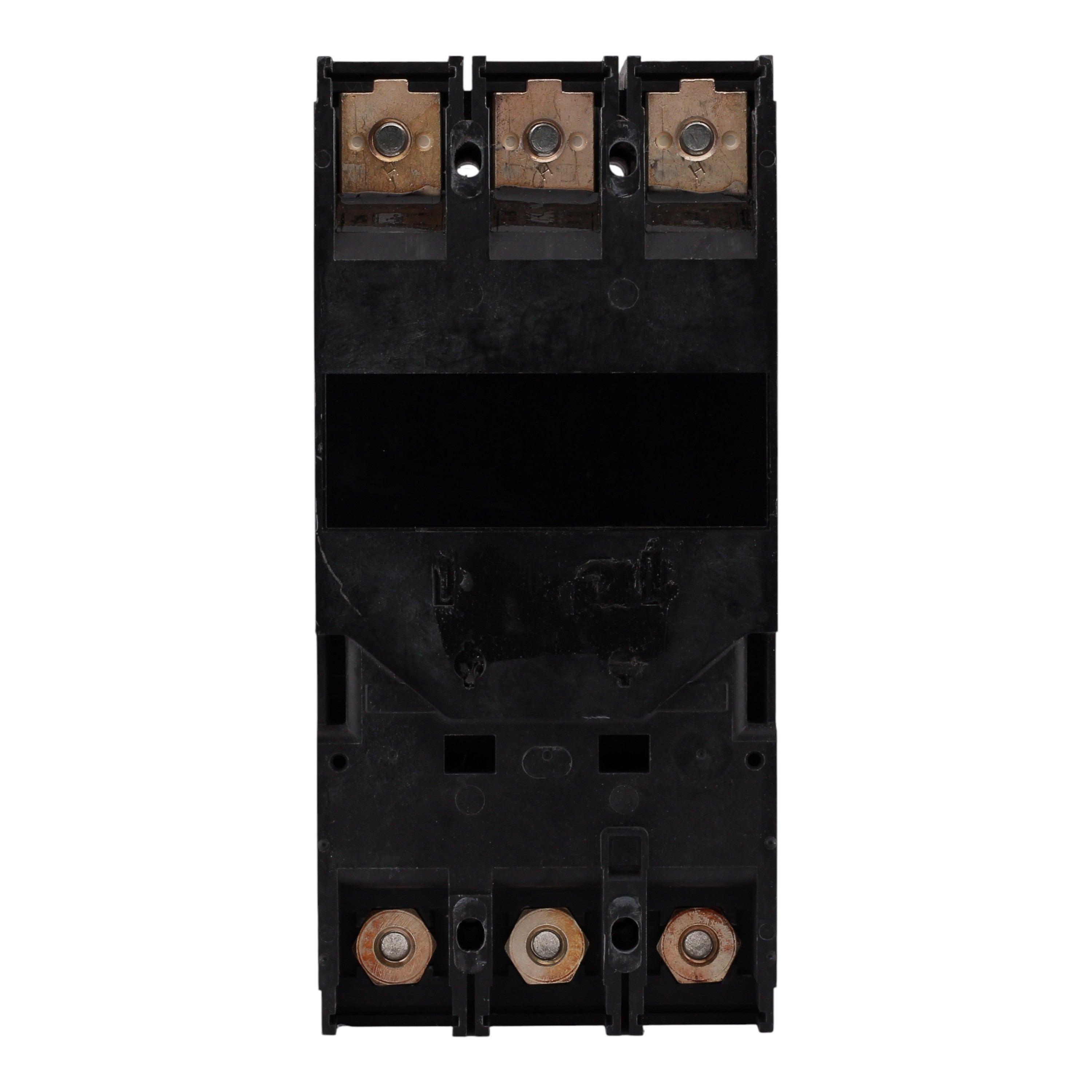

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 6

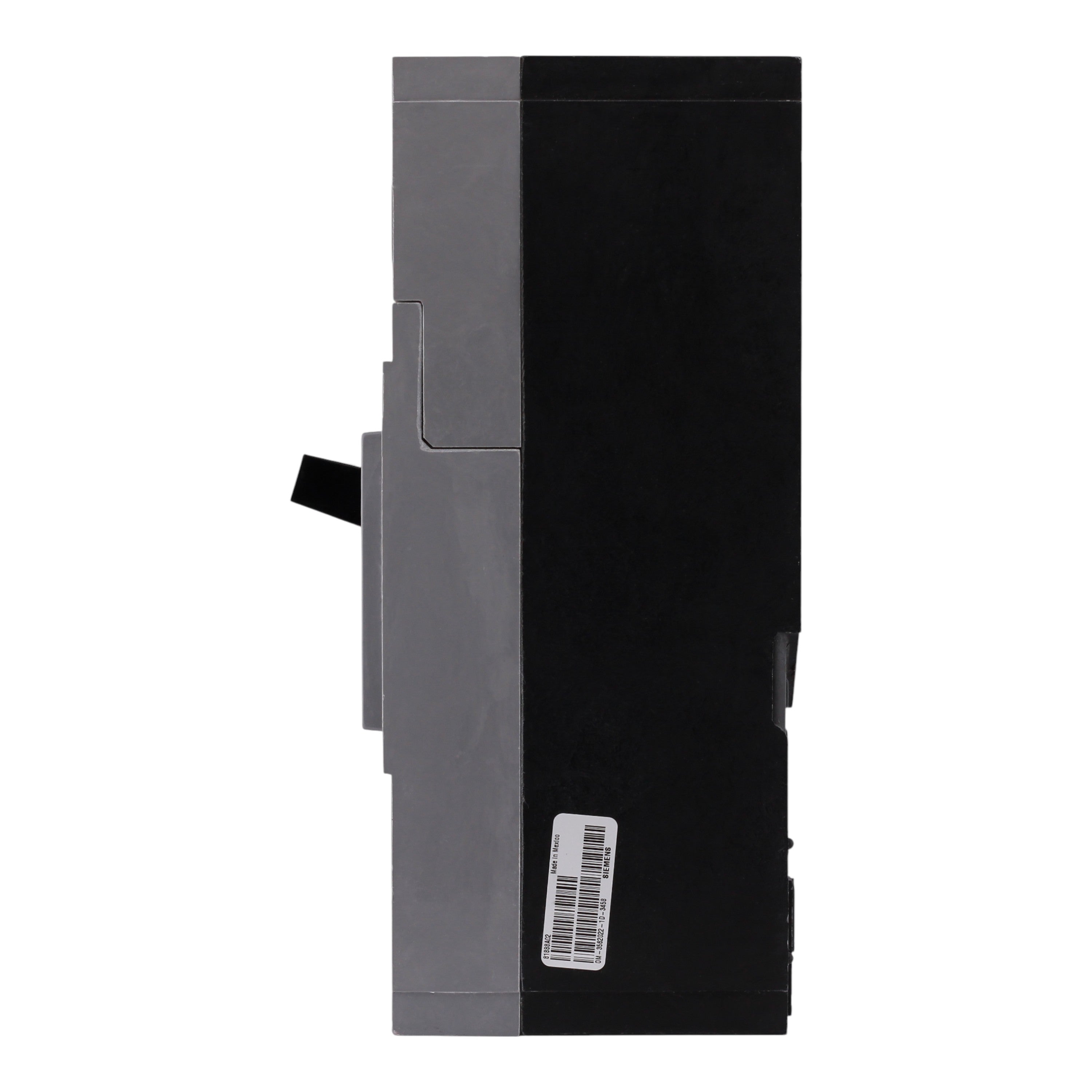

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 7

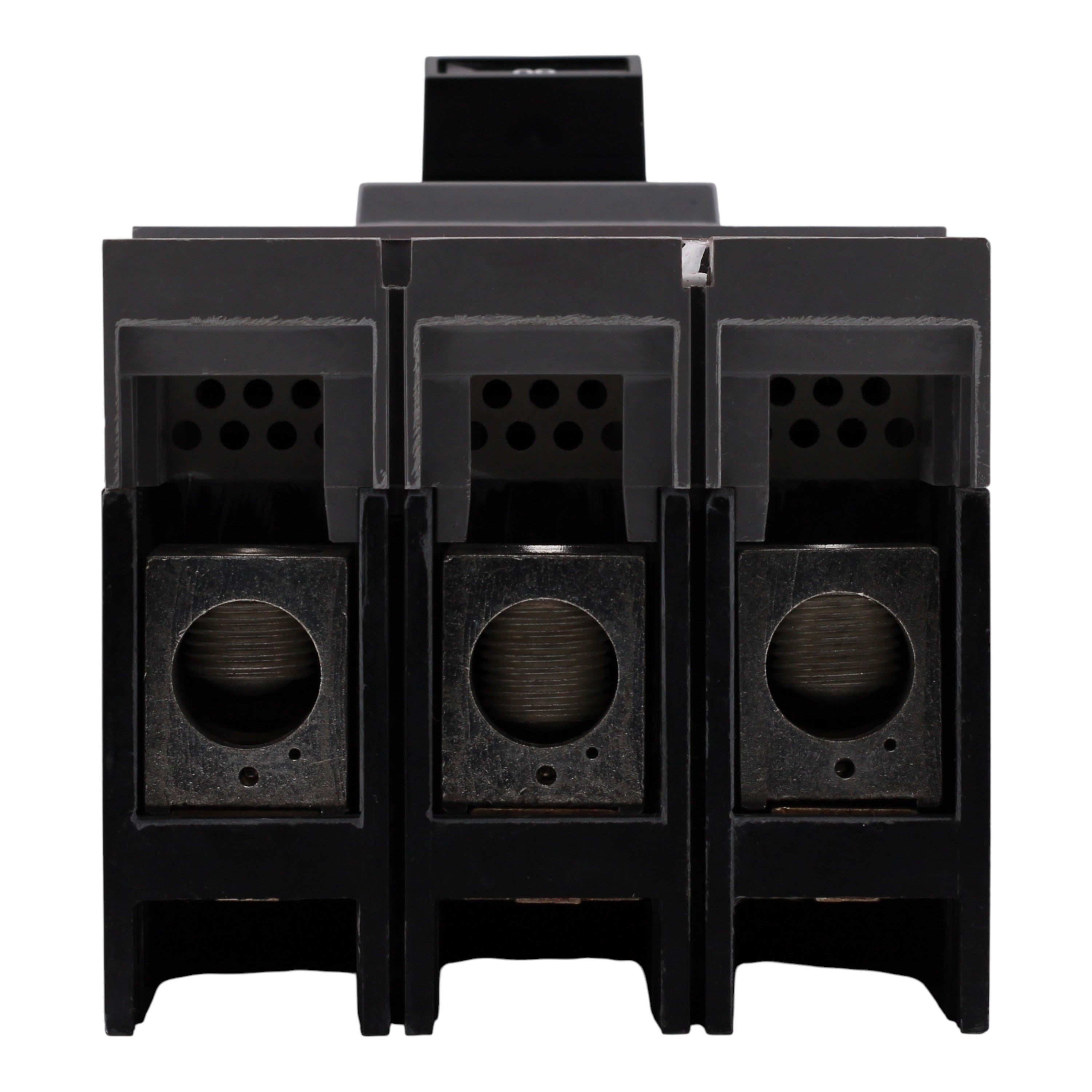

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 8

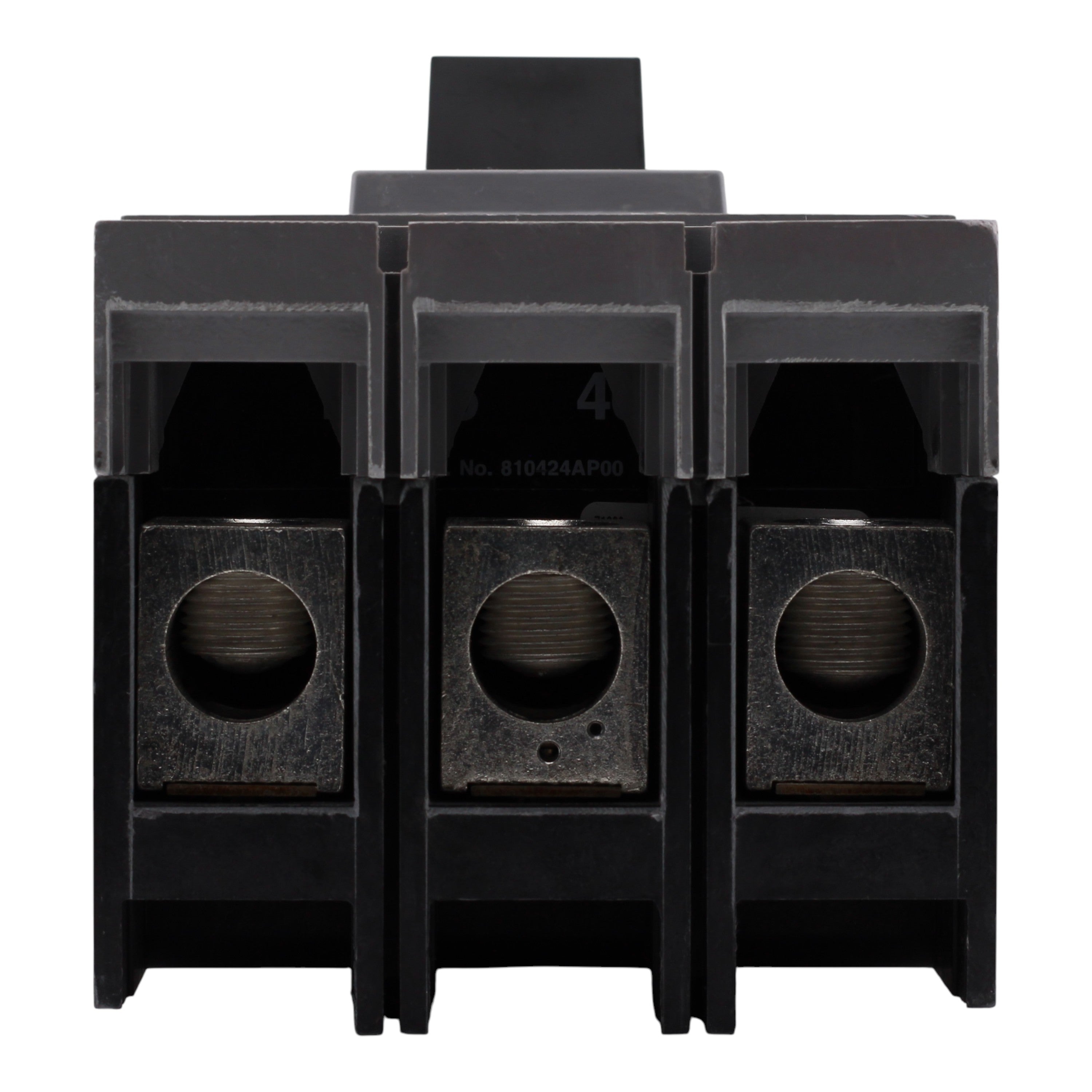

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 9
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 2
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 3
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 4
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 5
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 6
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 7
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 8
Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

Siemens Sentron, FXD63B080L, 80A, 3P, 600V, Thermal-Magnetic, Circuit Breaker

Out of stock
SKU: FXD63B080L UPC: 783643005785
(0)
$795.00
-21% $1,012.00 $795.00
Out of stock
Condition

Siemens FXD63B080L: 80 Amp, 3-Pole, Thermal-Magnetic Molded Case Circuit Breaker, 600V, 22kA at 600V, 35kA at 480V, line and load lugs, UL listed.

  • Manufacturer: Siemens
  • Brand: Sentron
  • Product Range: FD (for Type FD molded case circuit breakers and industrial panels)
  • UPC: 783643005785
  • Model Number: FXD63B080L
  • Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
  • Amperage: 80 Amps
  • Poles: 3-Pole
  • Voltage: 600 Volts AC (also rated for 240V AC, 480V AC, 250V DC, 500V DC)
  • Interrupt Rating: 22 kAIC at 600V, 35 kAIC at 480V
  • Mounting Mode: Bolt-on
  • Trip Unit: Non-interchangeable, Long-Time and Instantaneous (LI) trip functions
  • Connections Terminals: Line and load side lugs (TA1FD350A) pre-installed
  • Wire Size: #6 AWG - 350 kcmil Cu, #4 AWG - 350 kcmil Al
  • Dimensions: Width: 4.5 in; Height: 9.5 in; Depth: 4 in
  • Weight: 8.818 lbs
  • Certifications: UL Listed (UL 489), HACR Rated, meets IEC 60947-2

This Siemens FXD63B080L thermal-magnetic circuit breaker delivers dependable 80 Amp, 3-Pole protection for 600V circuits in FD frame industrial panels. Designed for bolt-on installation with 22kA interrupt rating at 600V and pre-installed line/load lugs, it supports industrial and commercial applications with reliable overcurrent protection.
