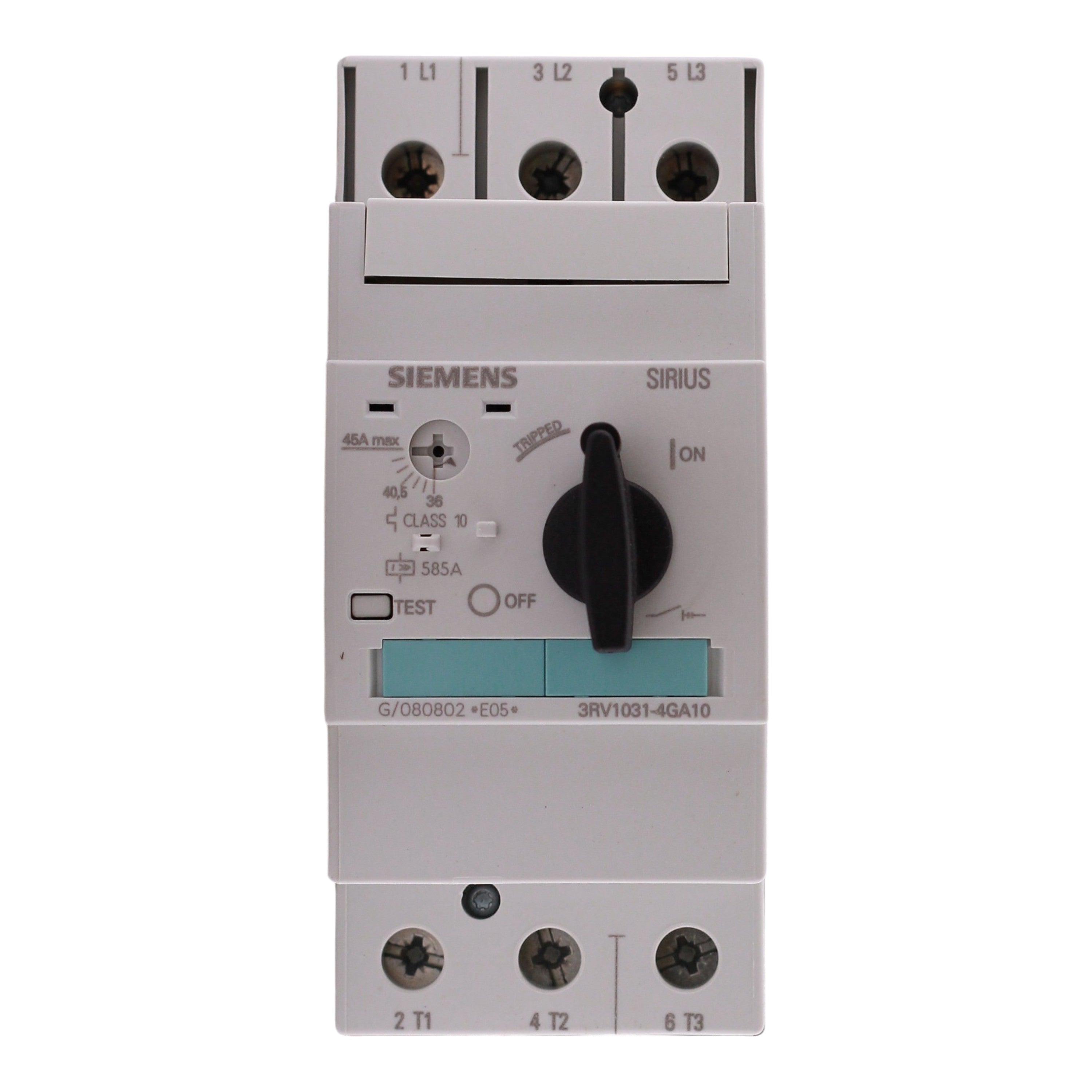

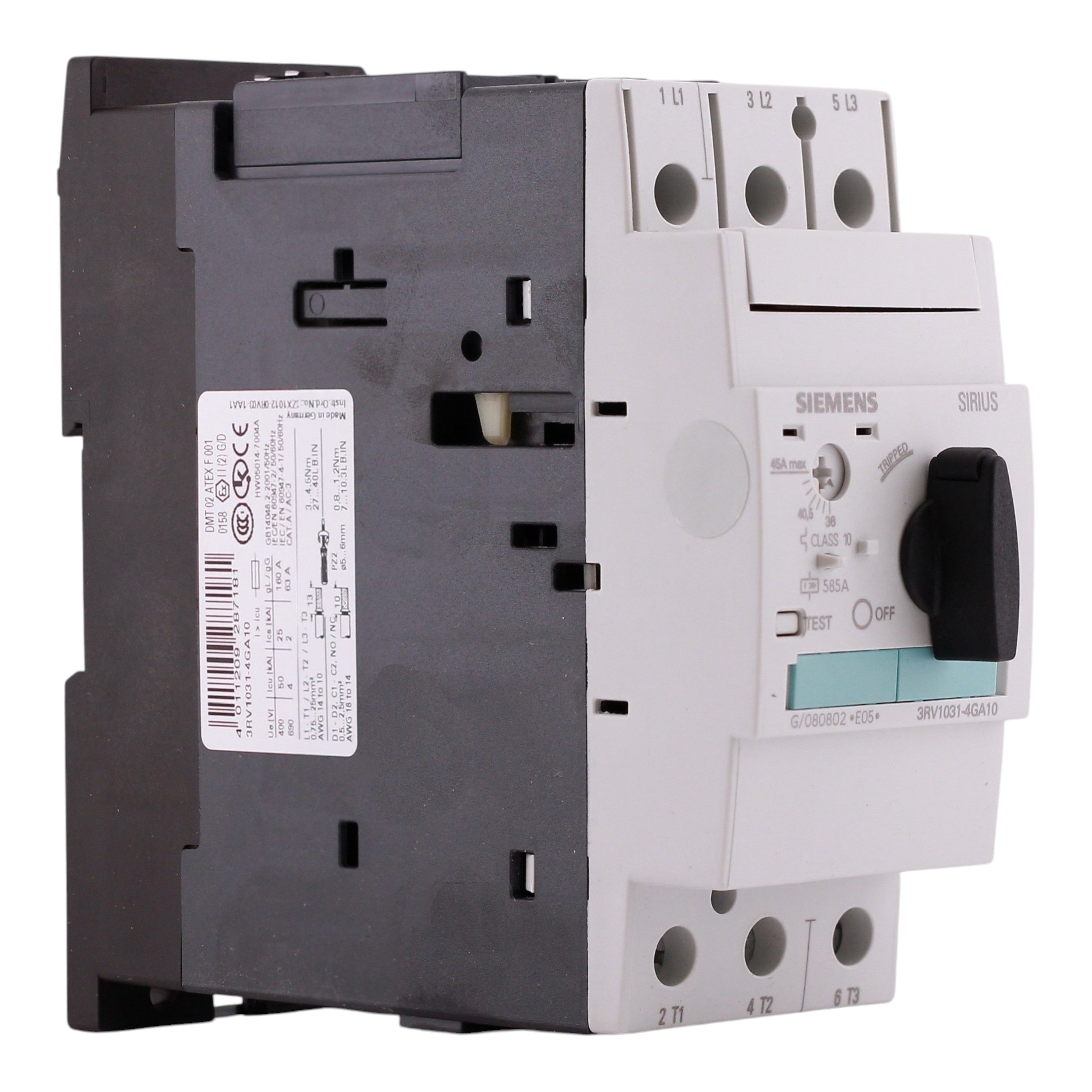

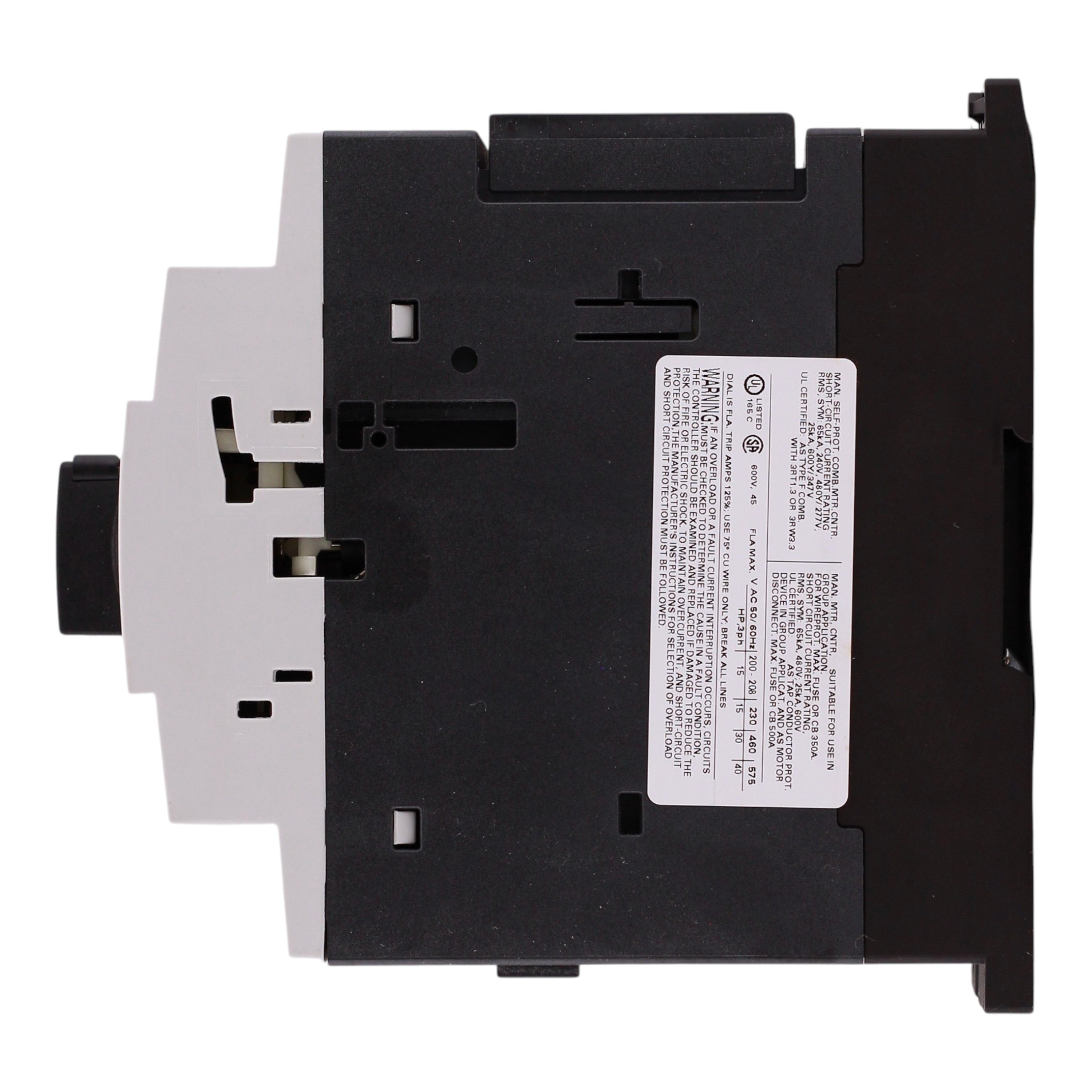

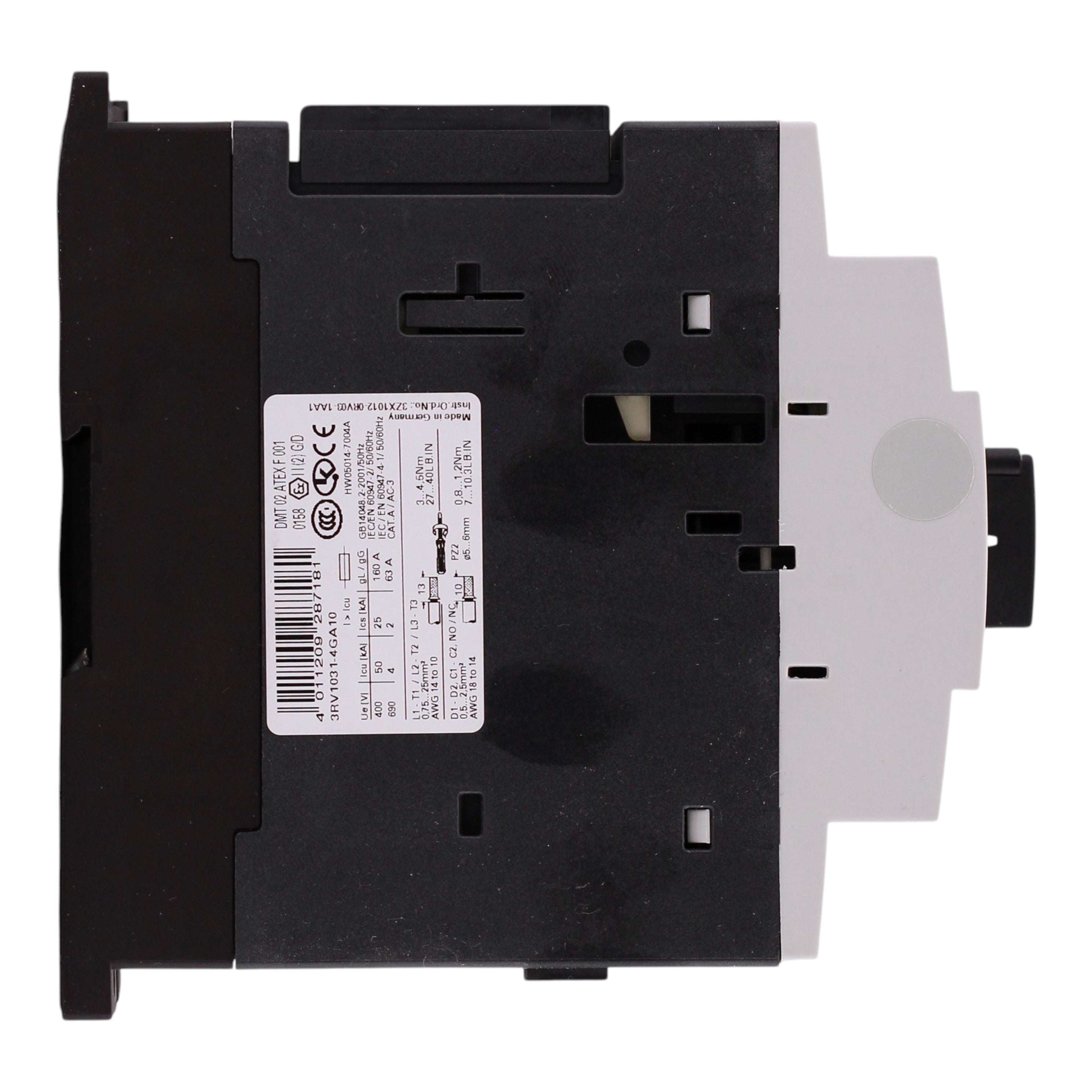

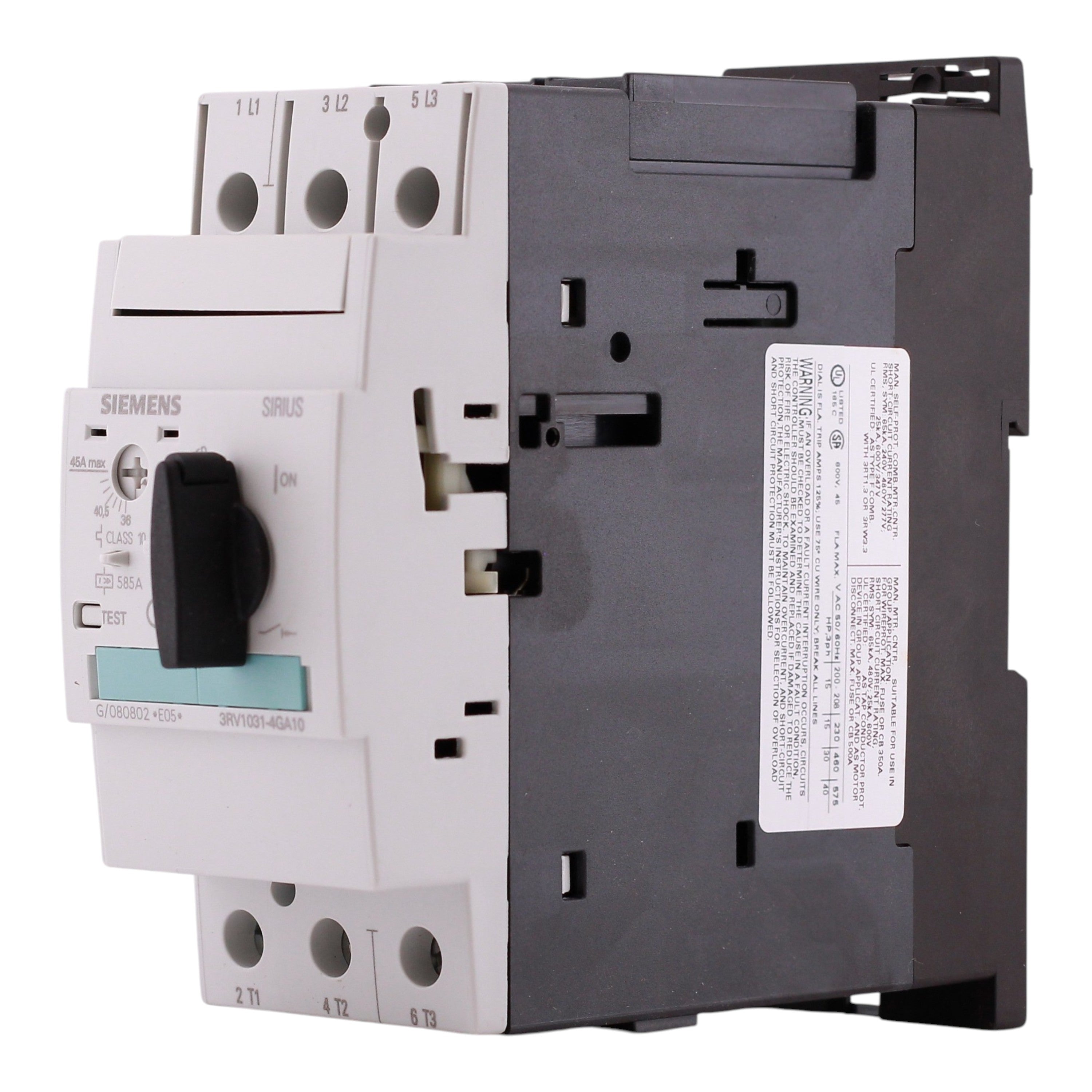

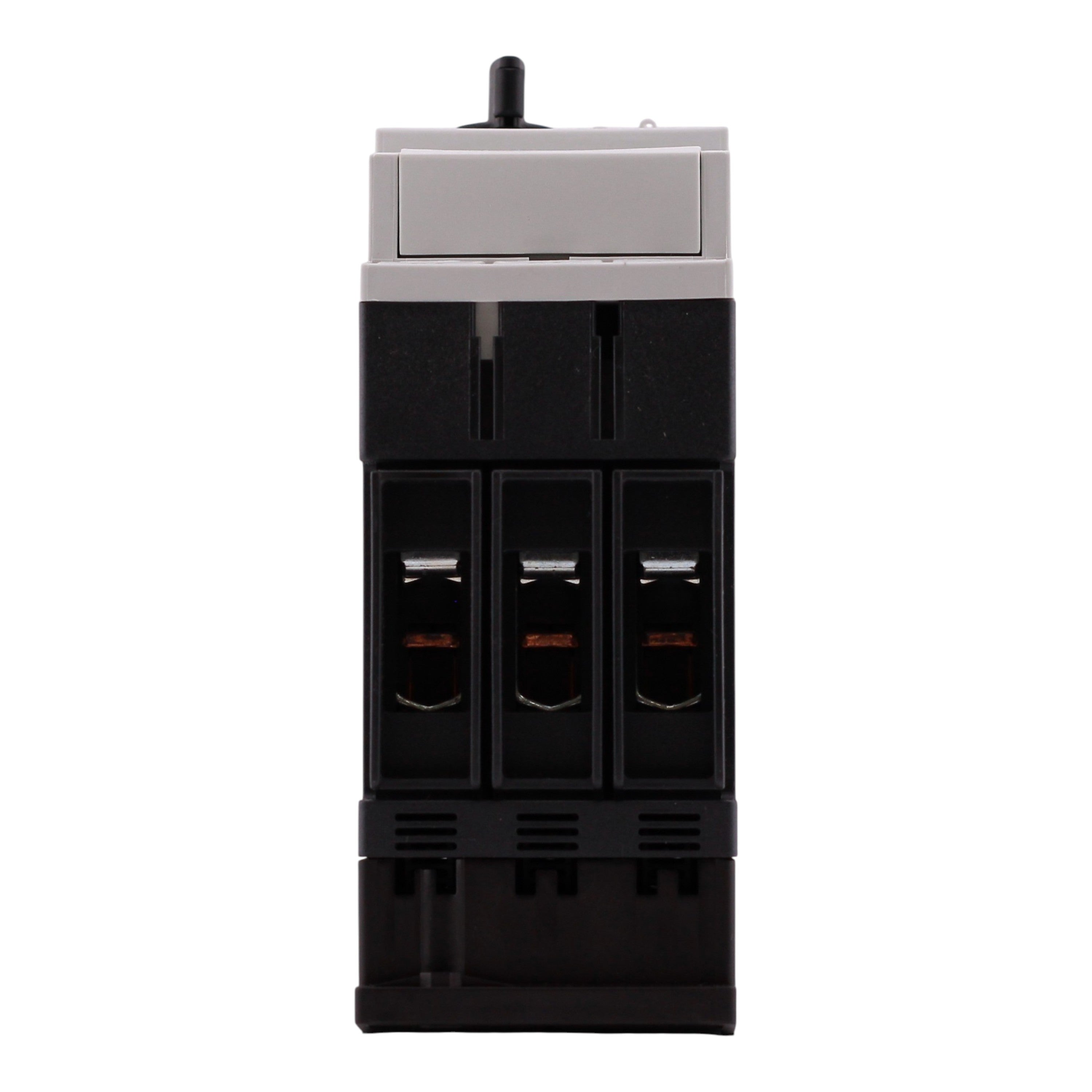

Siemens 3RV1031-4GA10: 36–45 Amp, 3-Pole, Motor Protection Circuit Breaker, 690V, 4kA, Class 10, Screw Terminal, UL Listed.
-
Manufacturer: Siemens
-
Brand: Siemens SIRIUS
-
Product Range: 3RV1 Series (Size S2, for motor starter and load feeder applications)
-
Model Number: 3RV1031-4GA10
-
Breaker Type: Motor Protection Circuit Breaker, Thermal/Magnetic Trip
-
Amperage: 36–45 Amps (adjustable)
-
Short-Circuit Release: 585 A
-
Poles: 3-Pole
-
Voltage: 690 Volts AC
-
Frequency: 50/60 Hz
-
Interrupt Rating: 4 kA @ 690V
-
Tripping Class: Class 10
-
Motor Power (AC-3 @ 400V): 22 kW
-
Frame Size: S2
-

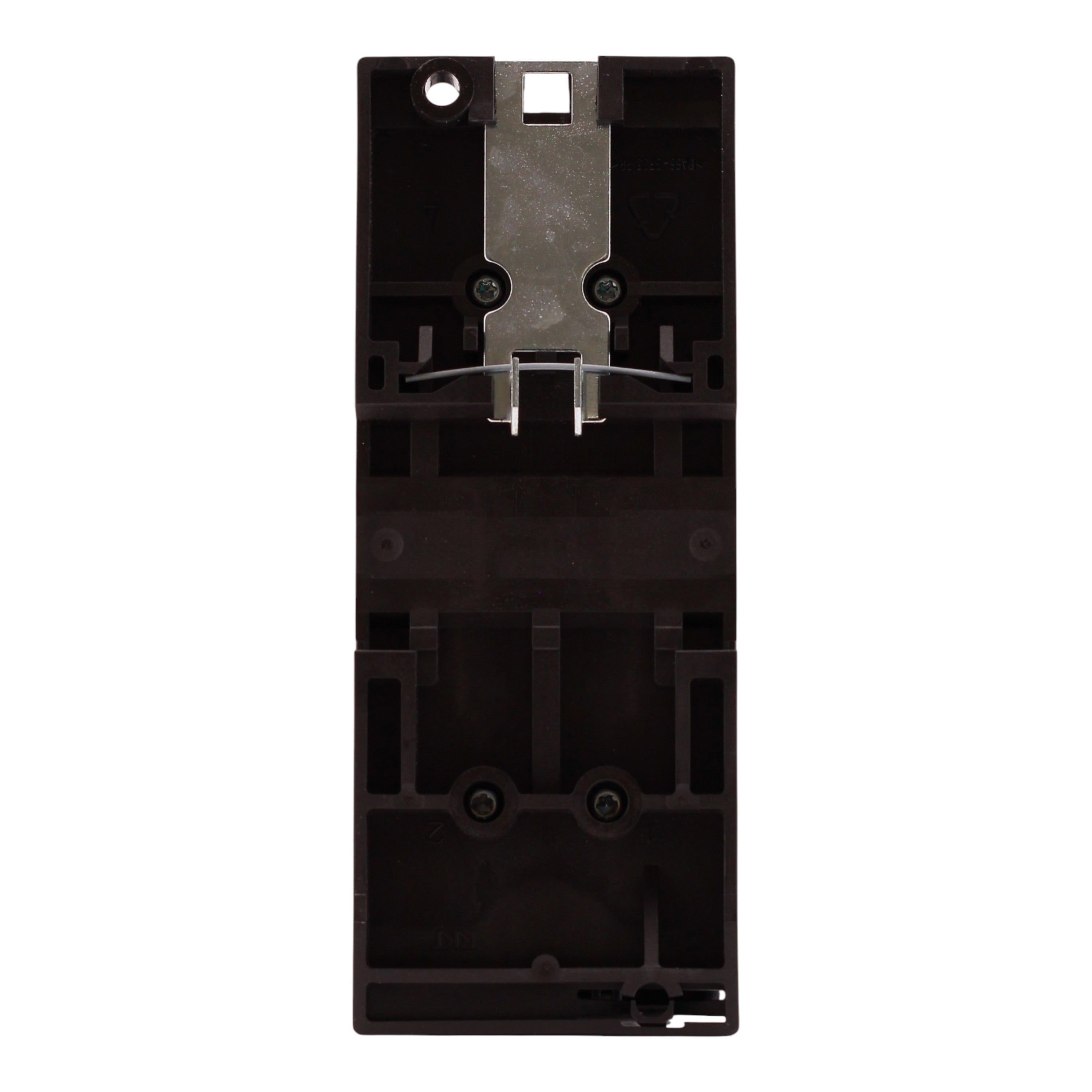

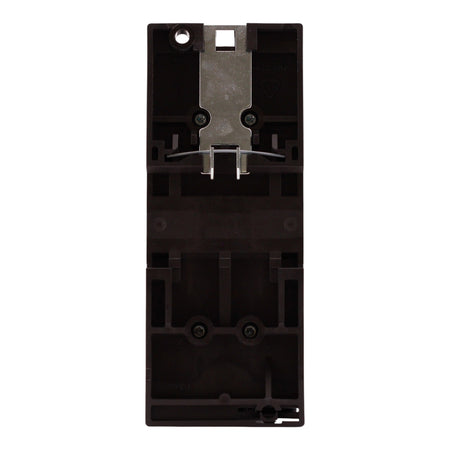

Mounting Mode: DIN Rail
-

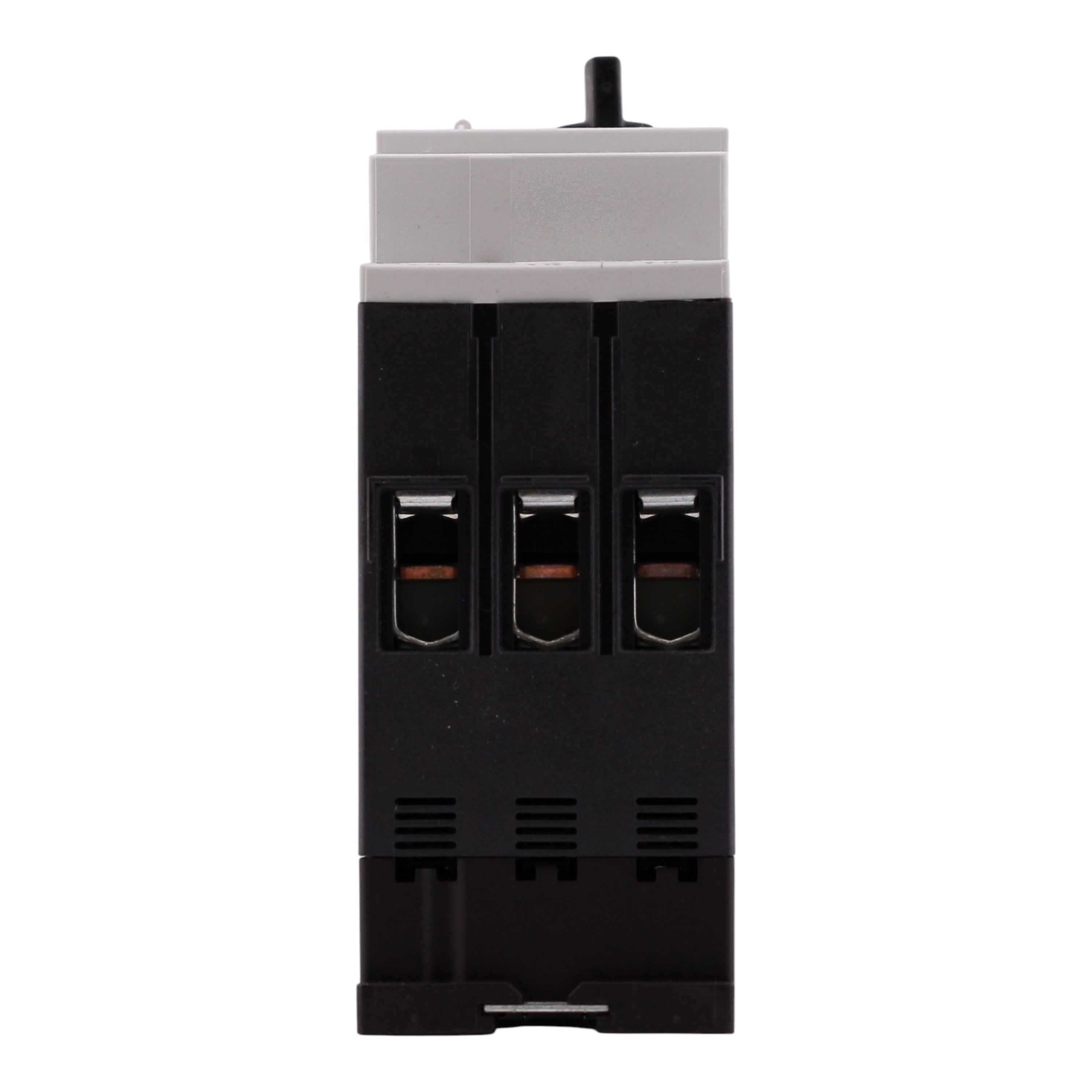

Connections / Terminals: Screw-type (box terminals), front-side connection
-
Wire Size: #18–2 AWG (solid: 2×0.75–16 mm²; stranded: 2×0.75–25 mm², 1×0.75–35 mm²)
-
Tightening Torque: 27–40 lb-in (main); 7–10.3 lb-in (auxiliary)
-
Protection Rating: IP20
-
Dimensions: Height: 5.51 in; Width: 2.17 in; Depth: 5.87 in
-
Weight: 2.36 lbs
-
Certifications: UL Listed
This Siemens SIRIUS 3RV1031-4GA10 motor protection circuit breaker delivers dependable 36–45 Amp, 3-Pole thermal/magnetic protection for 690V, 3-phase motors in 3RV1 Series DIN rail-mount applications, with Class 10 tripping and 4kA interrupt capacity.
