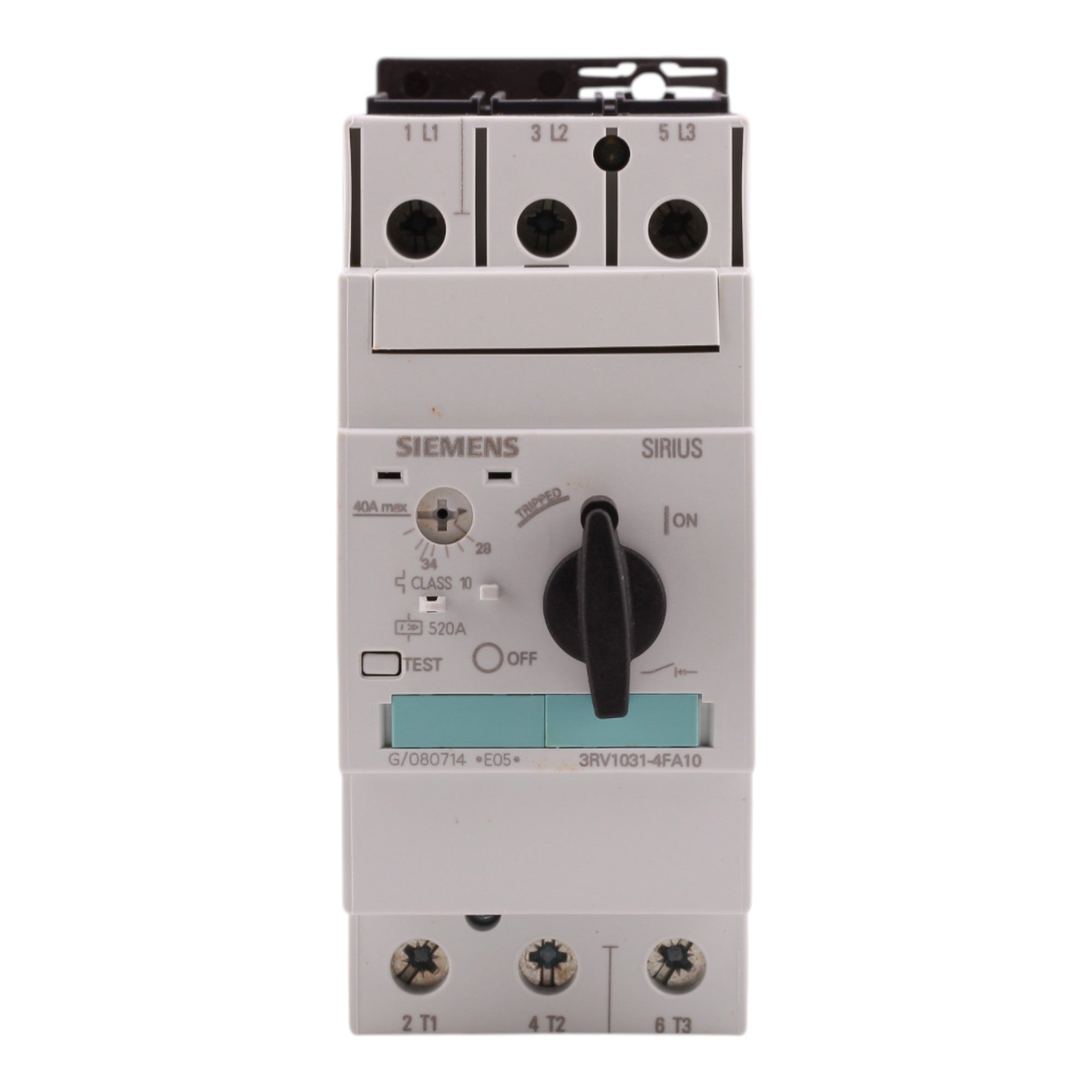

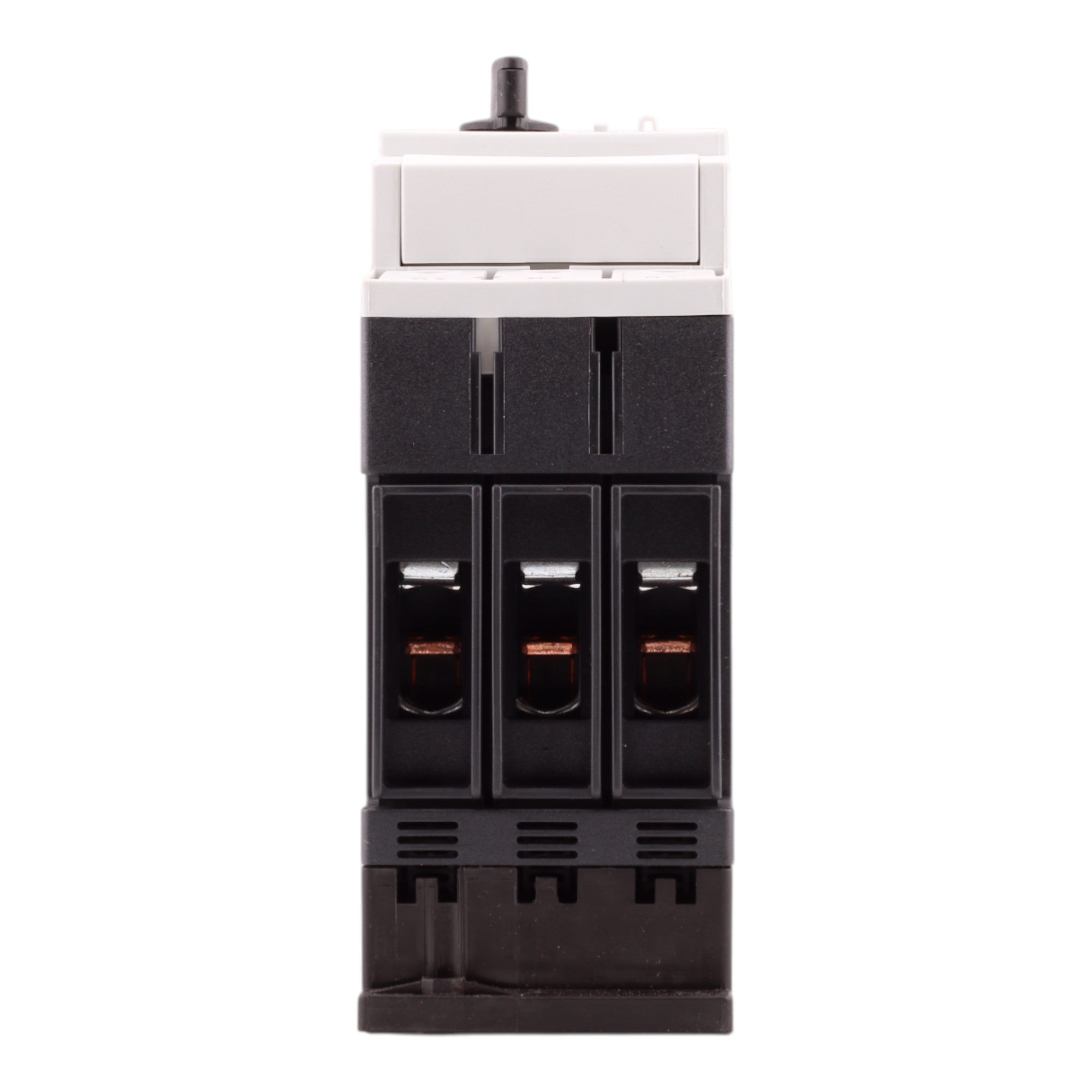

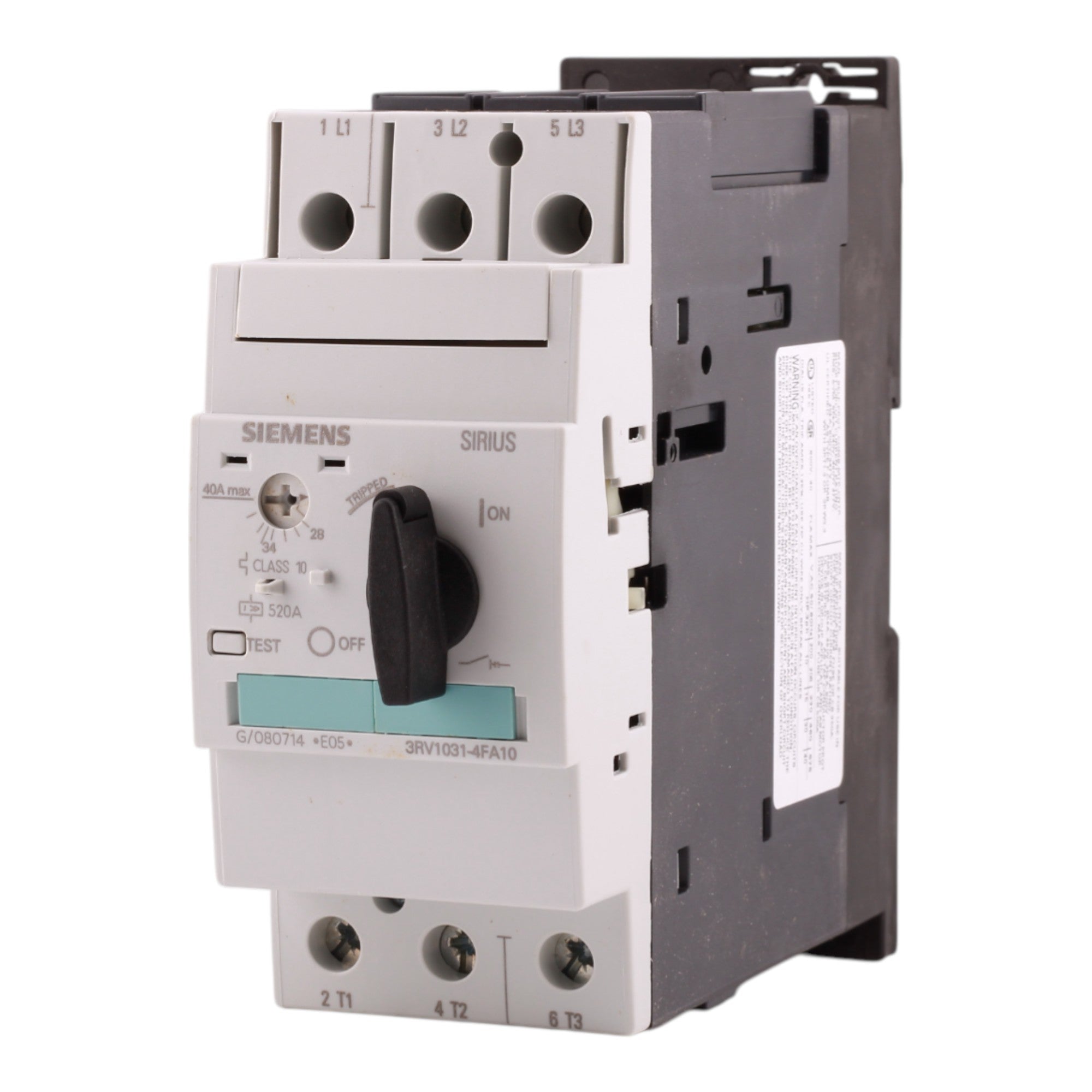

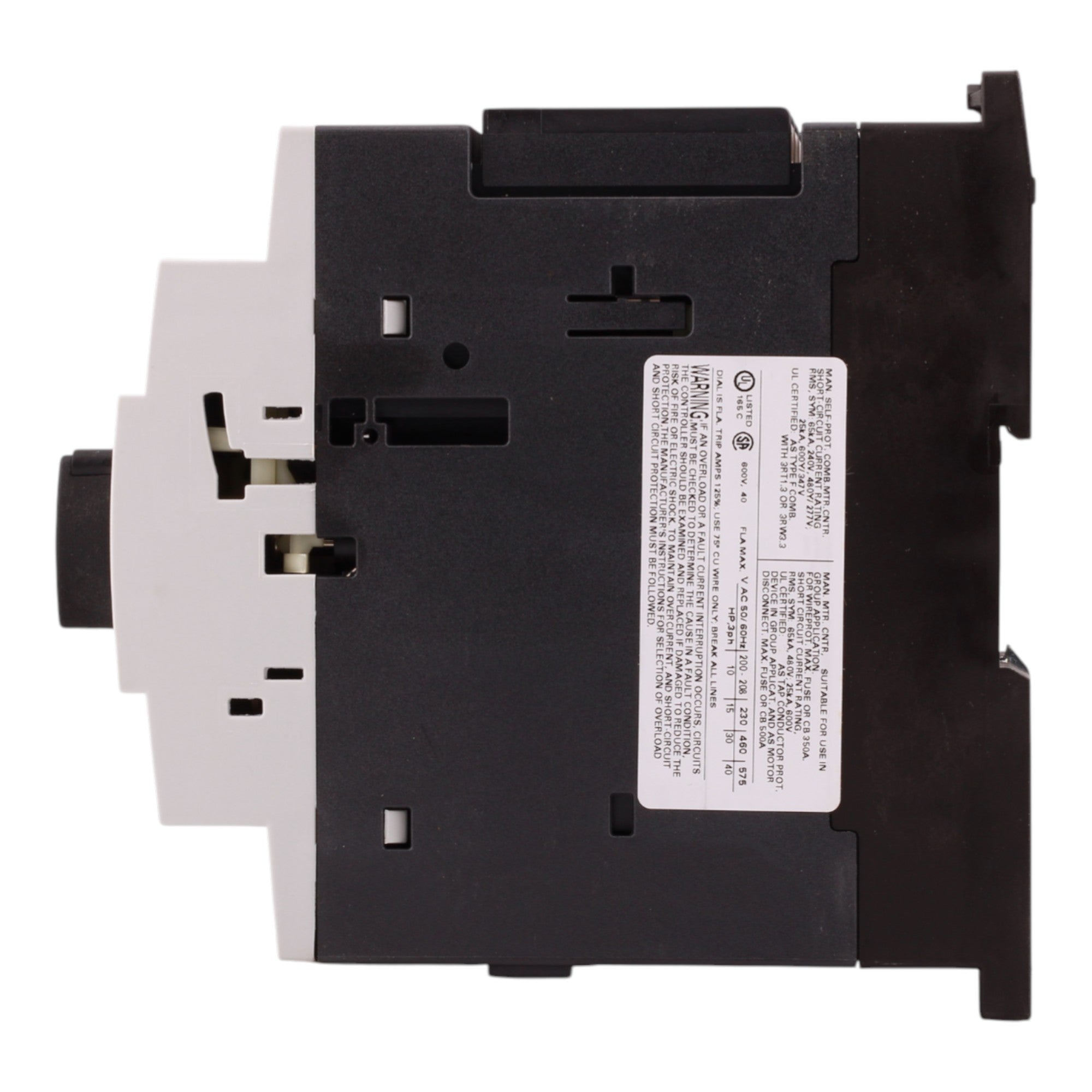

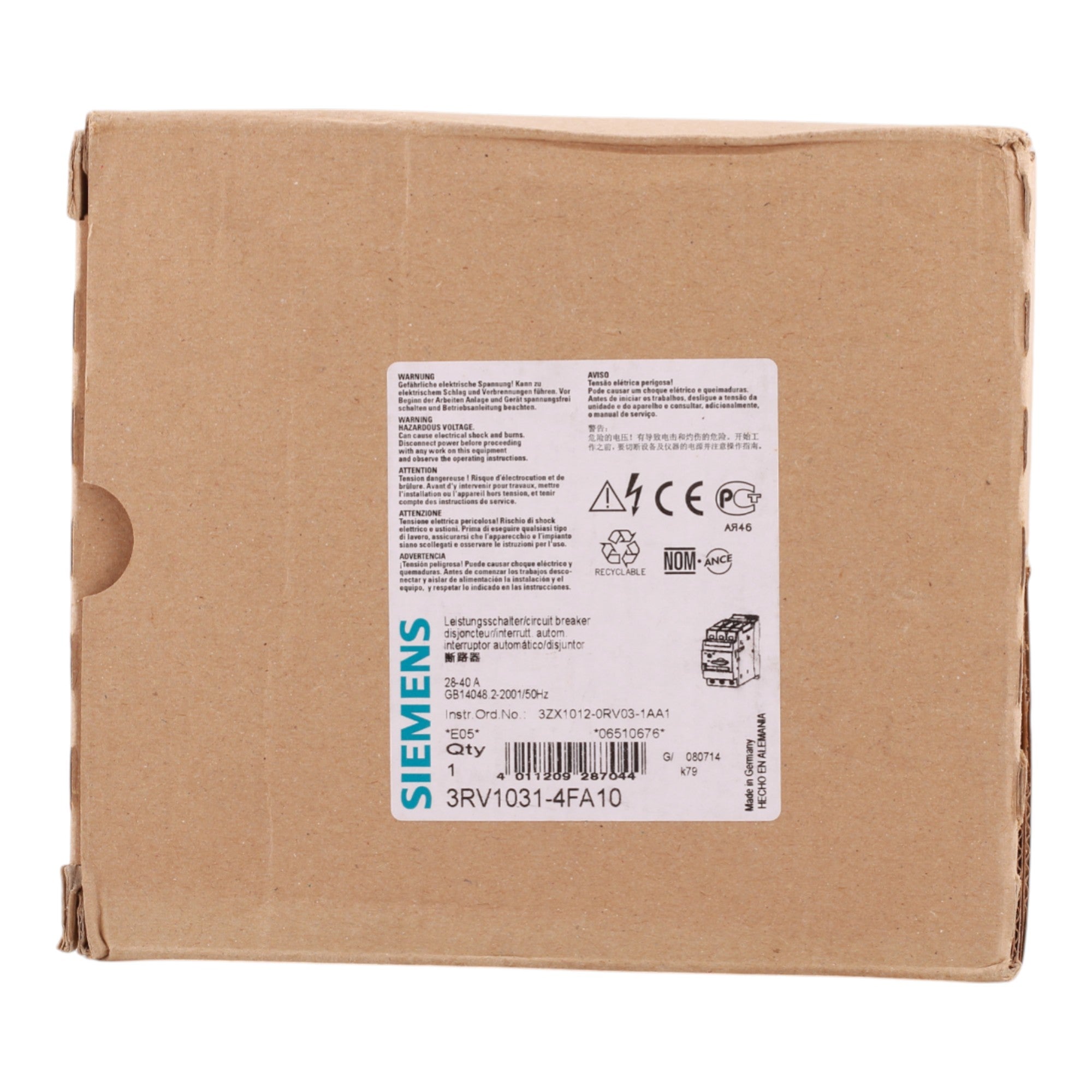

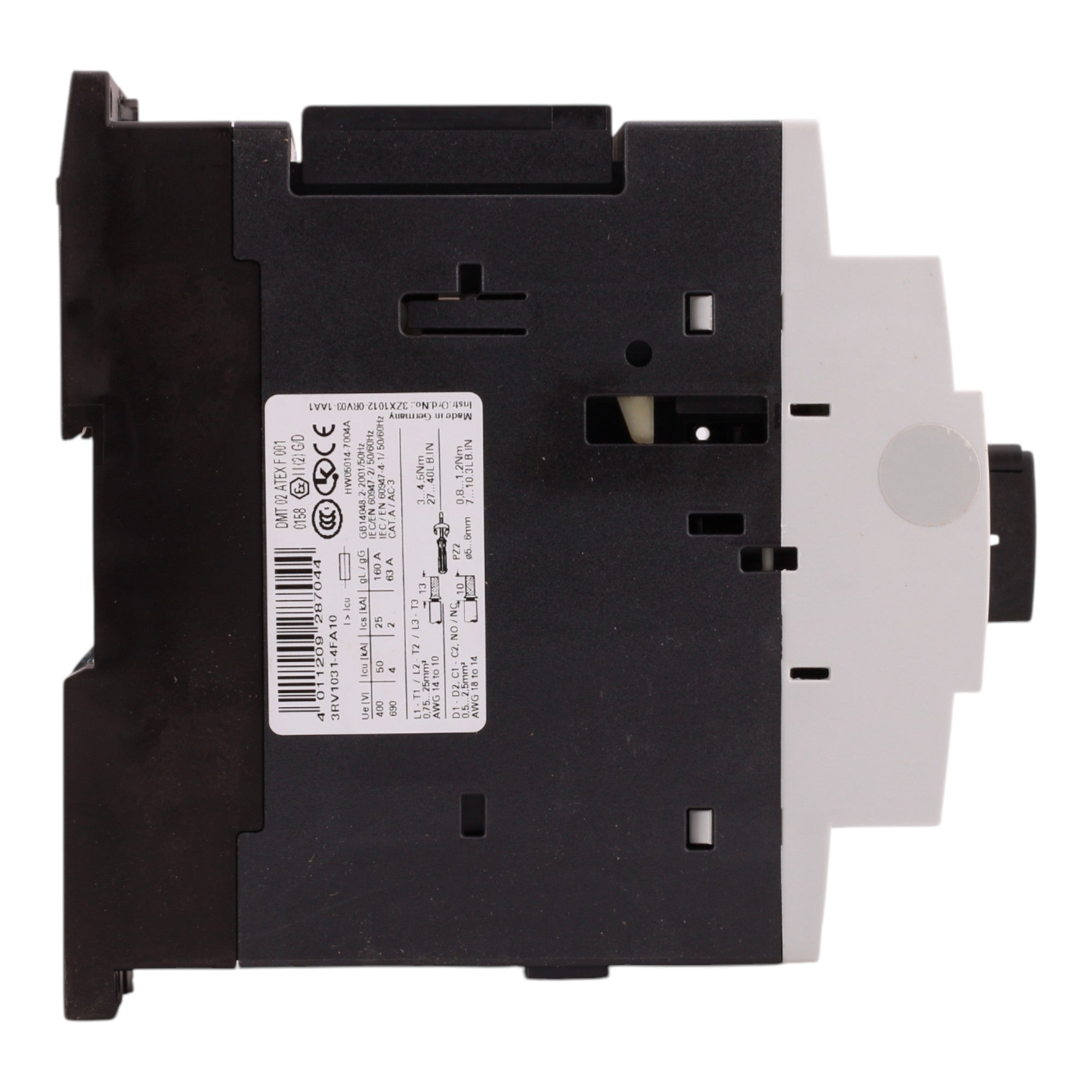

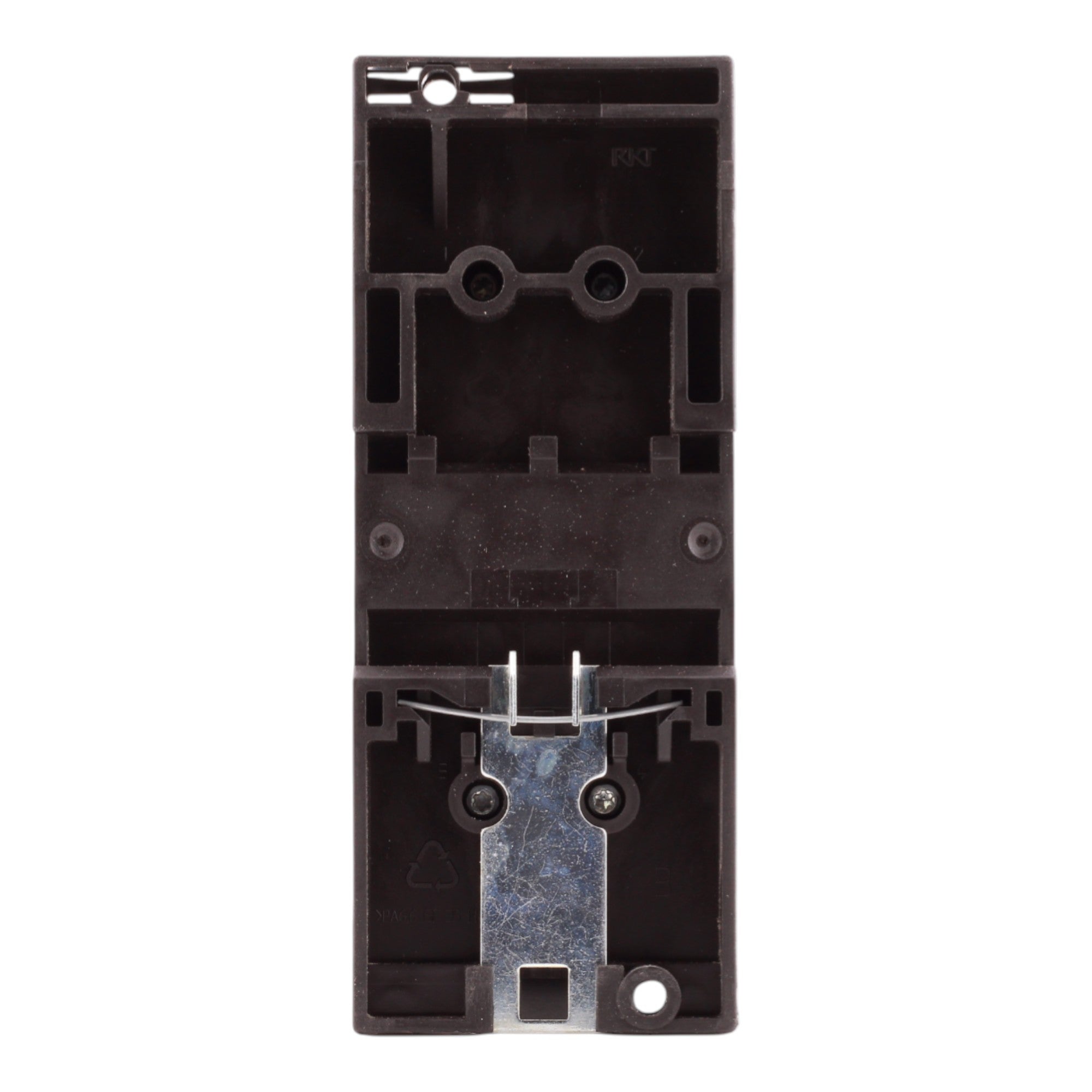

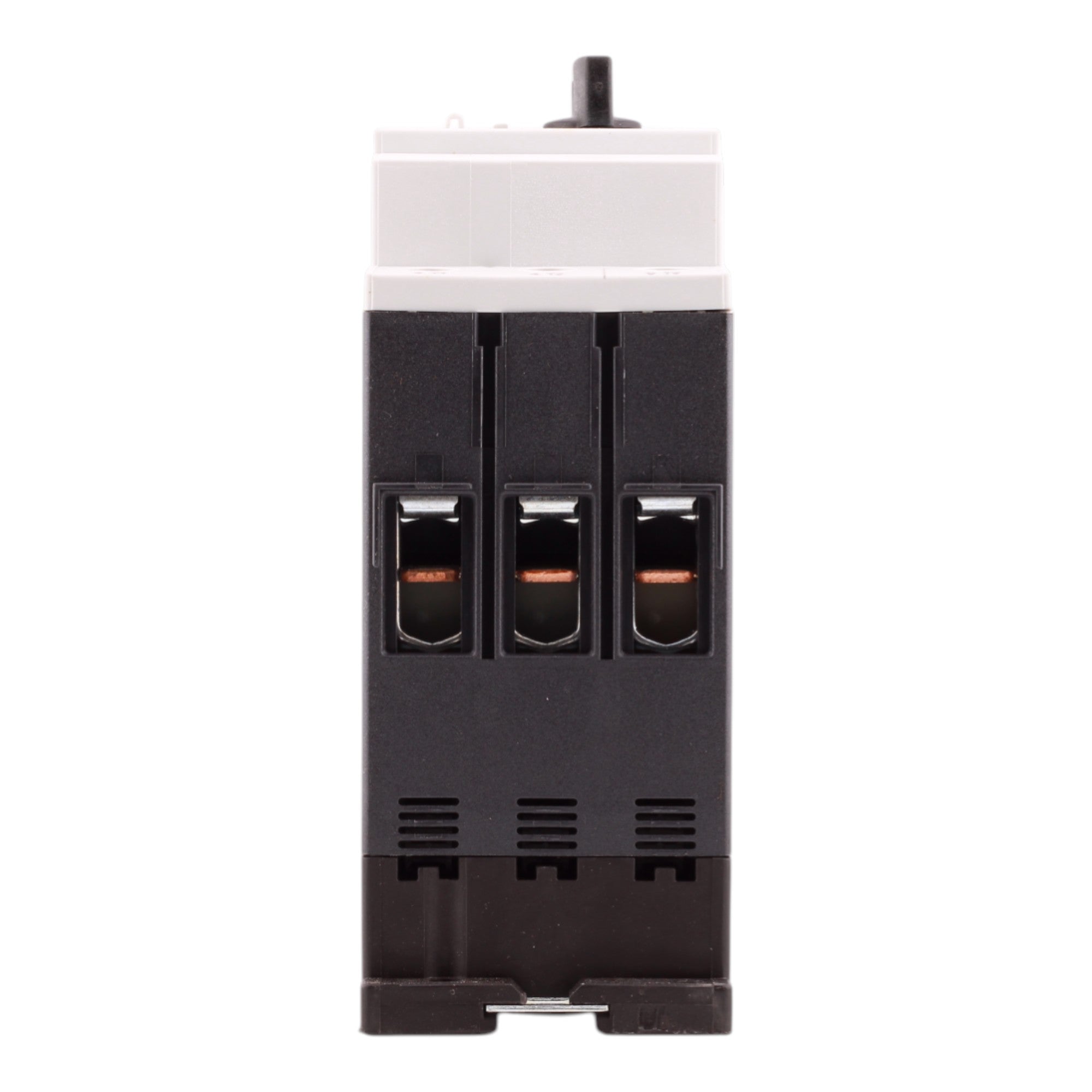

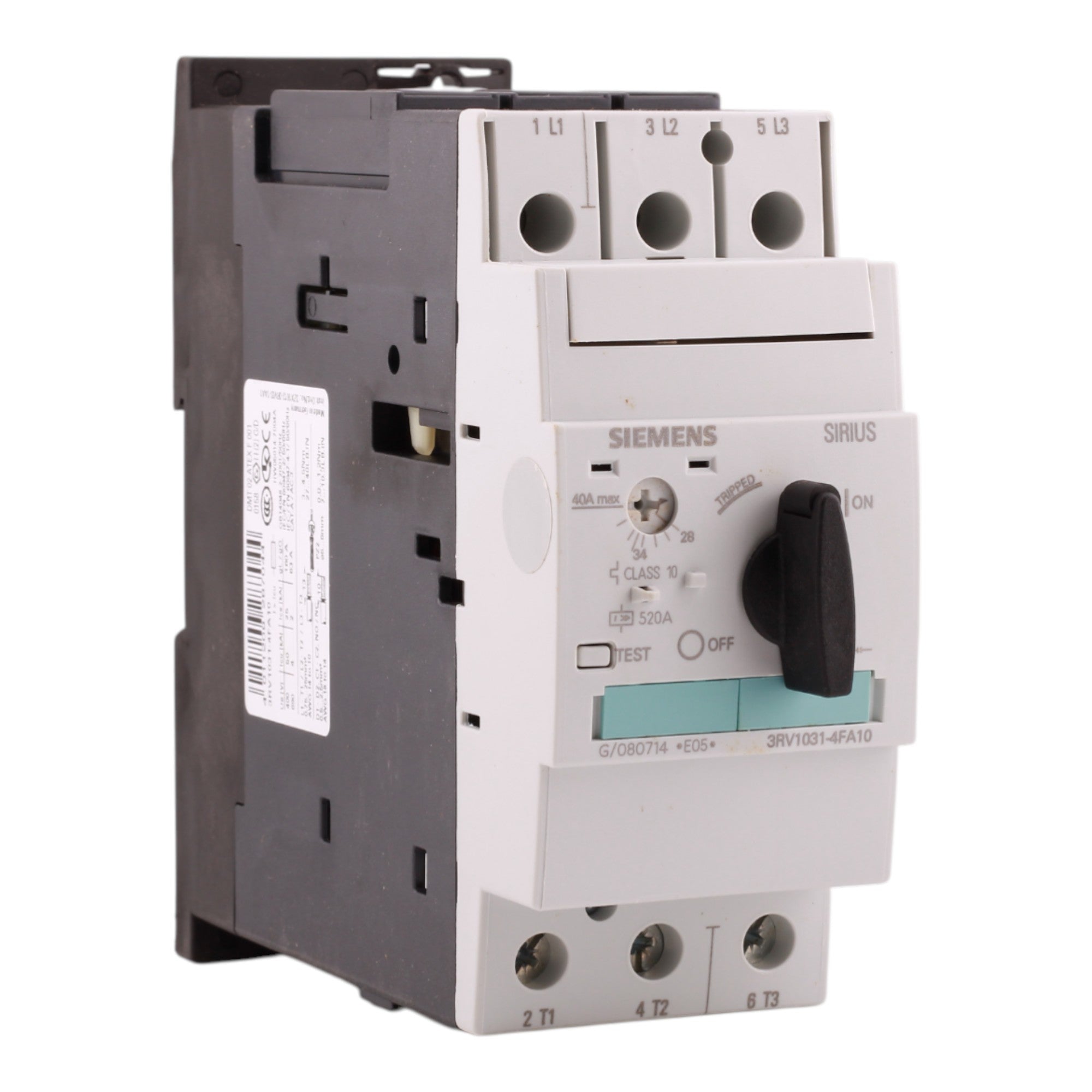

Siemens SIRIUS 3RV1031-4FA10 28-40A 3P 690V Motor Protection Circuit Breaker

Siemens 3RV1031-4FA10: 28-40 Amp 3-Pole Motor Protection Circuit Breaker, 690V, 100kA, screw terminal, Class 10, UL listed.

• Manufacturer: Siemens
• Brand: Siemens
• Product Range: SIRIUS (for SIRIUS motor control and protection systems)
• UPC: 754554409368
• Model Number: 3RV1031-4FA10
• Breaker Type: Motor Protection Circuit Breaker
• Amperage: 28-40 Amps (Adjustable A-release)
• Poles: 3-Pole
• Voltage: 690 Volts AC
• Interrupt Rating: 100 kAIC
• Mounting Mode: Screw terminal
• Connections Terminals: Screw terminal
• Wire Size: (1) #14-4 AWG Cu/Al
• Tightening Torque: 26.6 lb-in
• Dimensions: Height: 5.79 in; Width: 2.17 in; Depth: 6.57 in
• Weight: 2.359 lbs
• Certifications: UL Listed, IEC 60947-2

This Siemens 3RV1031-4FA10 motor protection circuit breaker provides reliable 28-40A, 3-pole protection for 690V motor circuits in SIRIUS motor control systems. With adjustable Class 10 overload protection and a 100kA interrupt rating, it ensures robust safety and performance for industrial applications.
