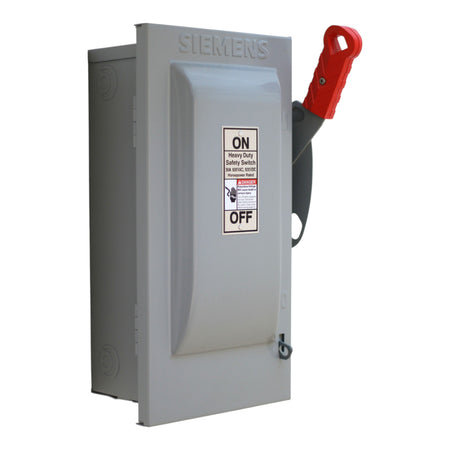

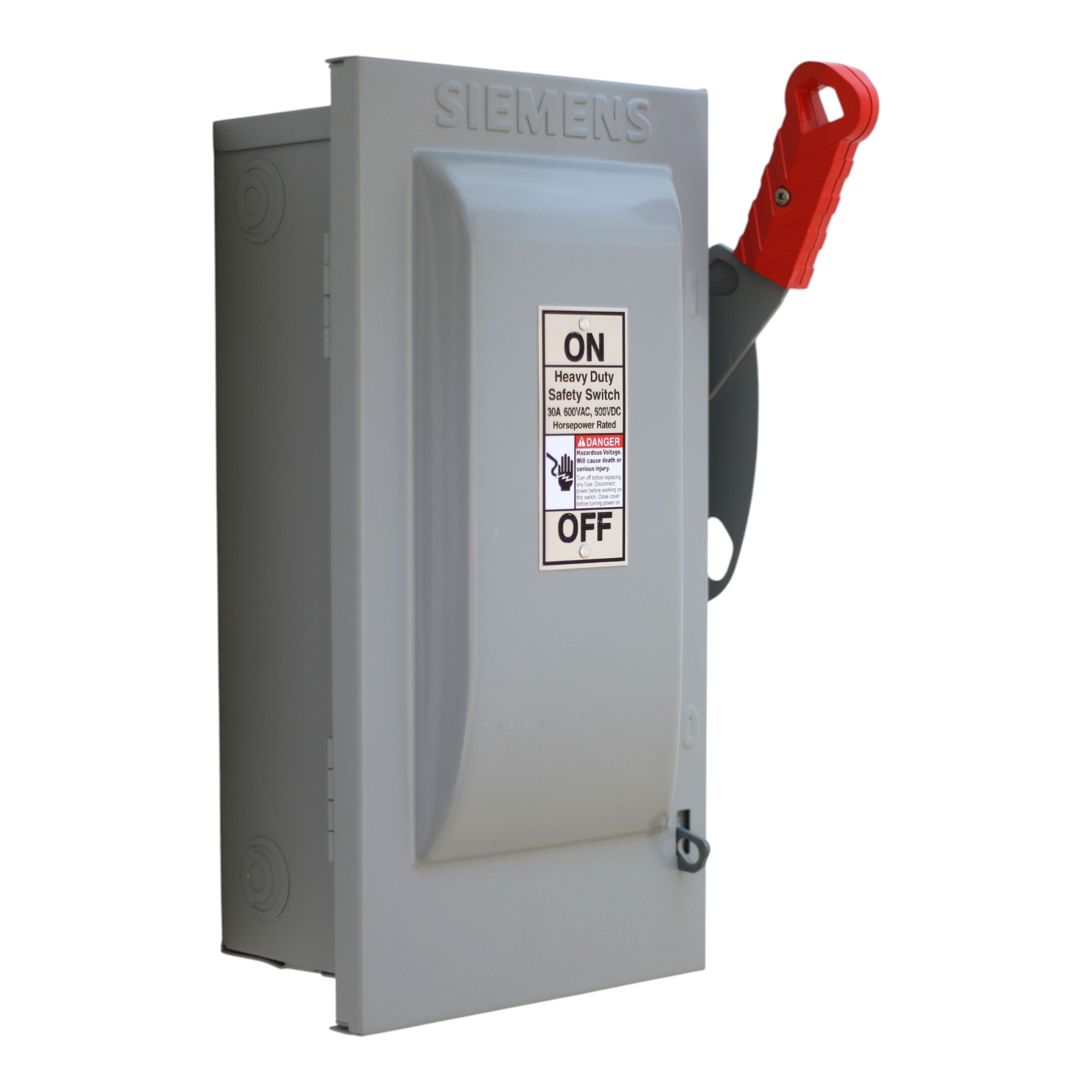

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 2

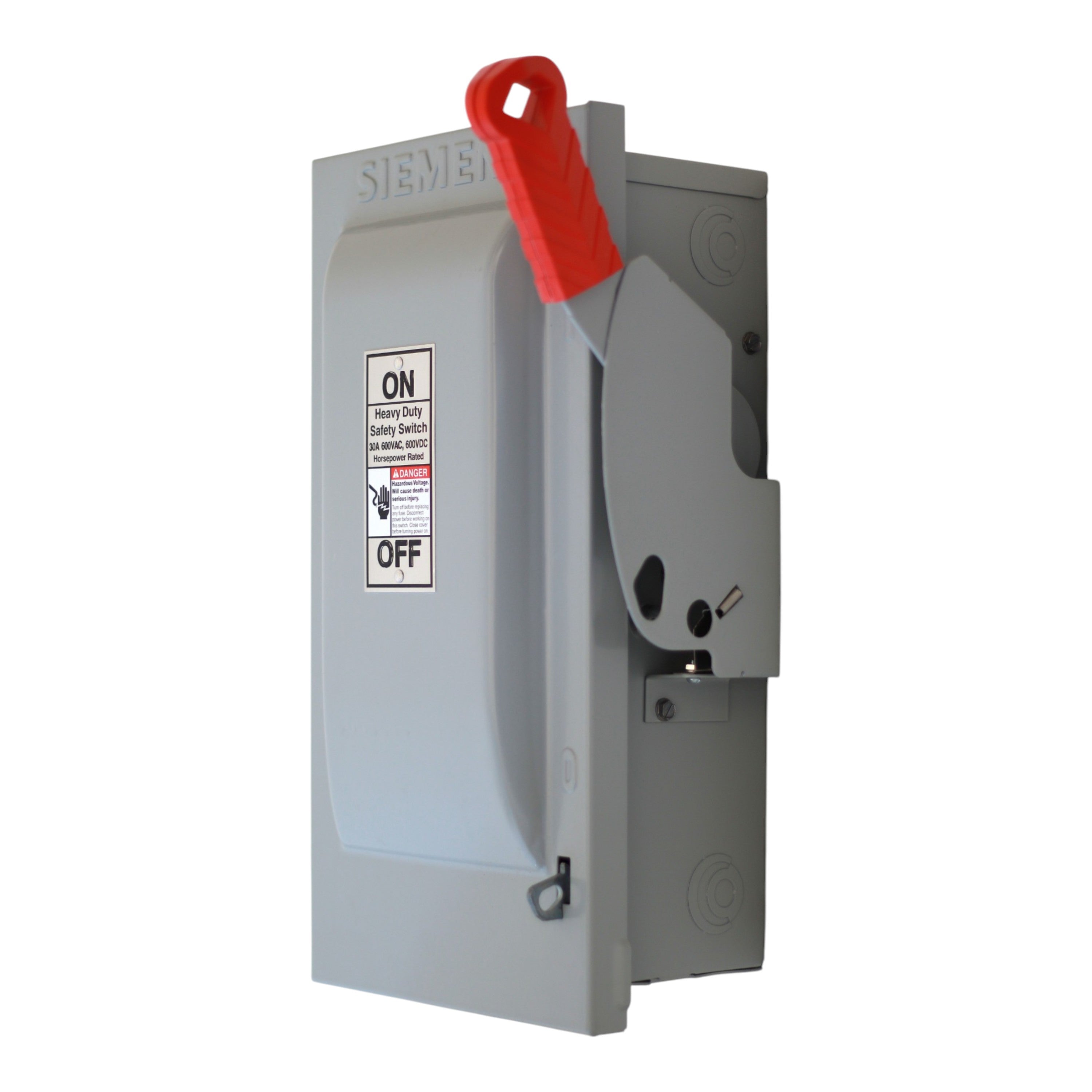

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 3
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 4
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 5

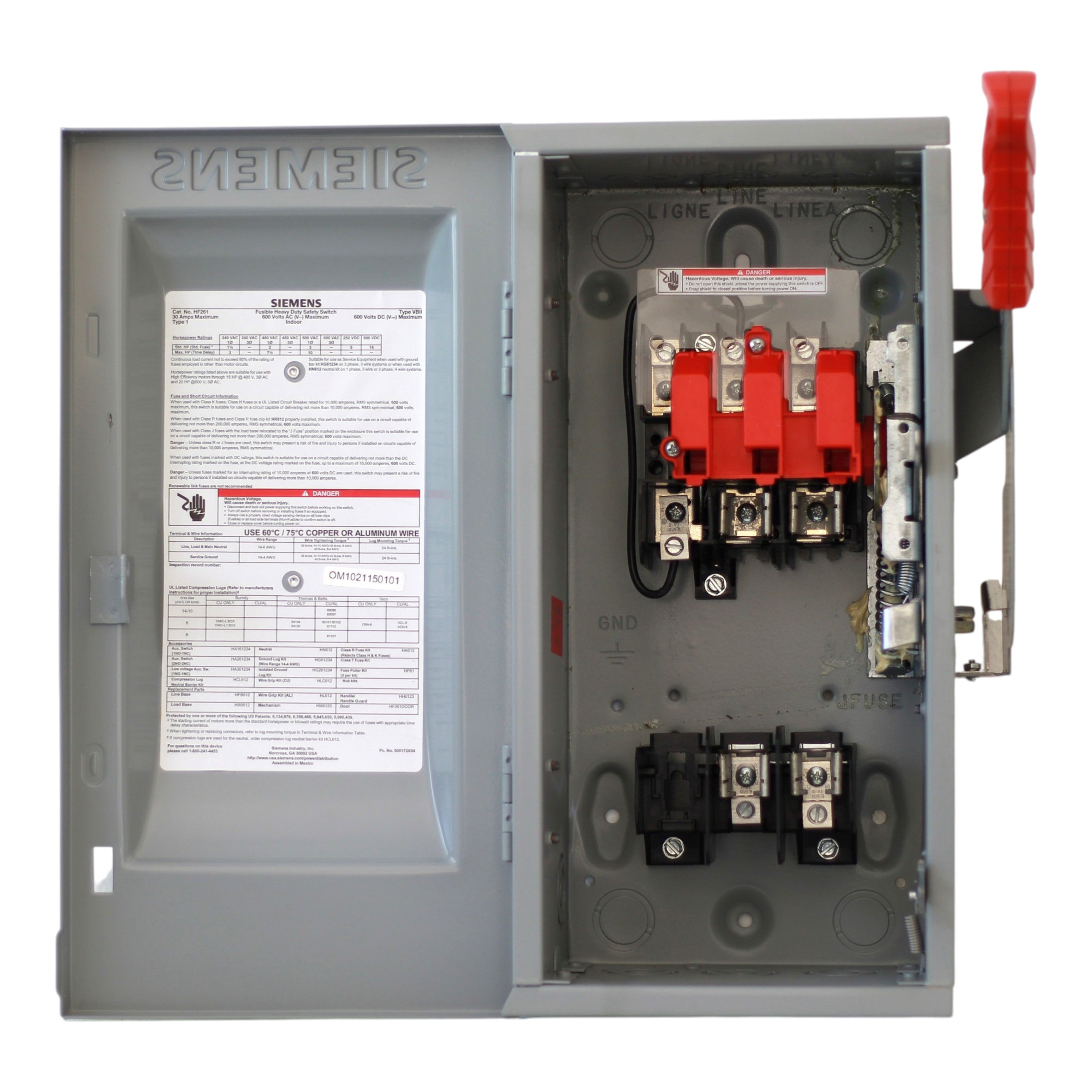

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 6

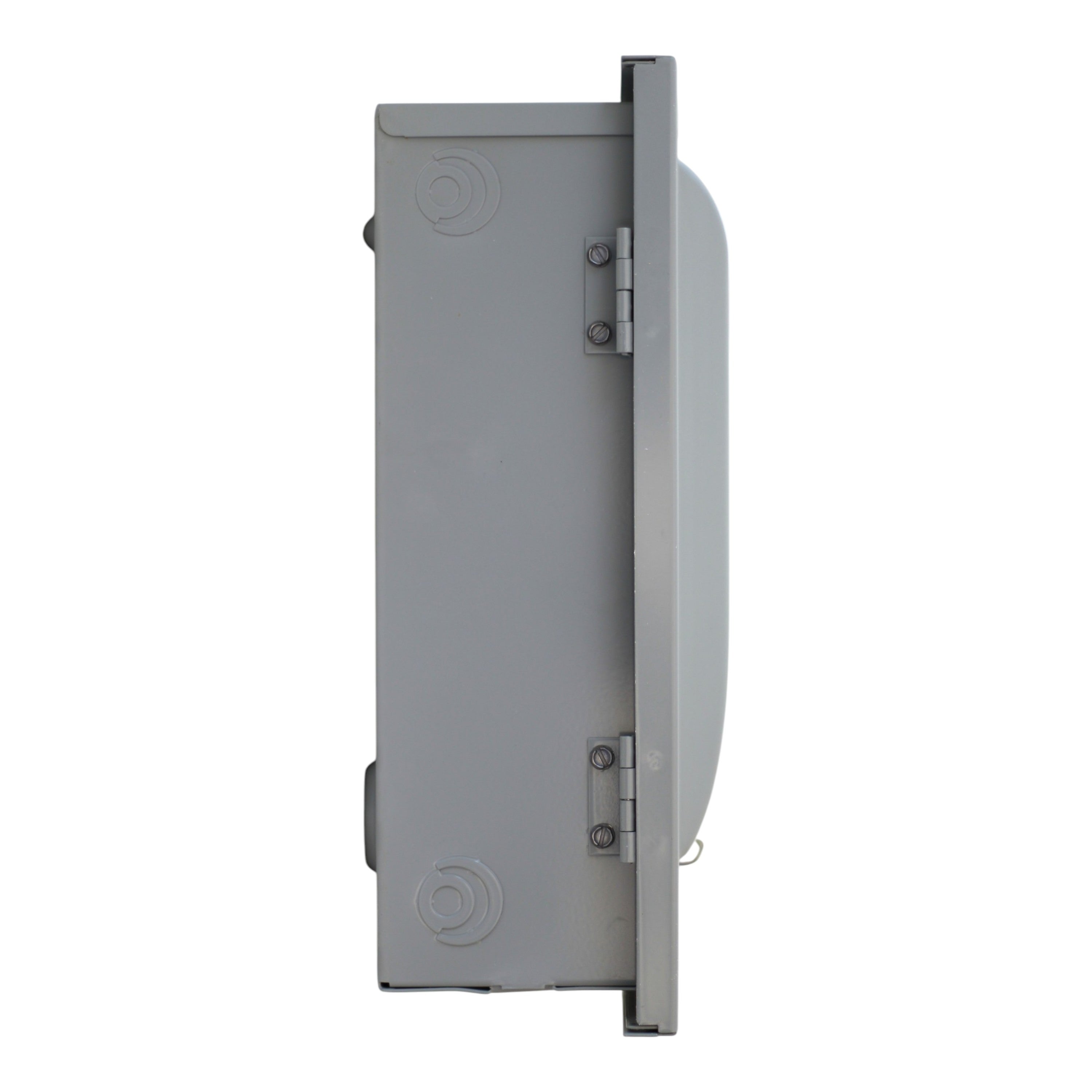

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 7

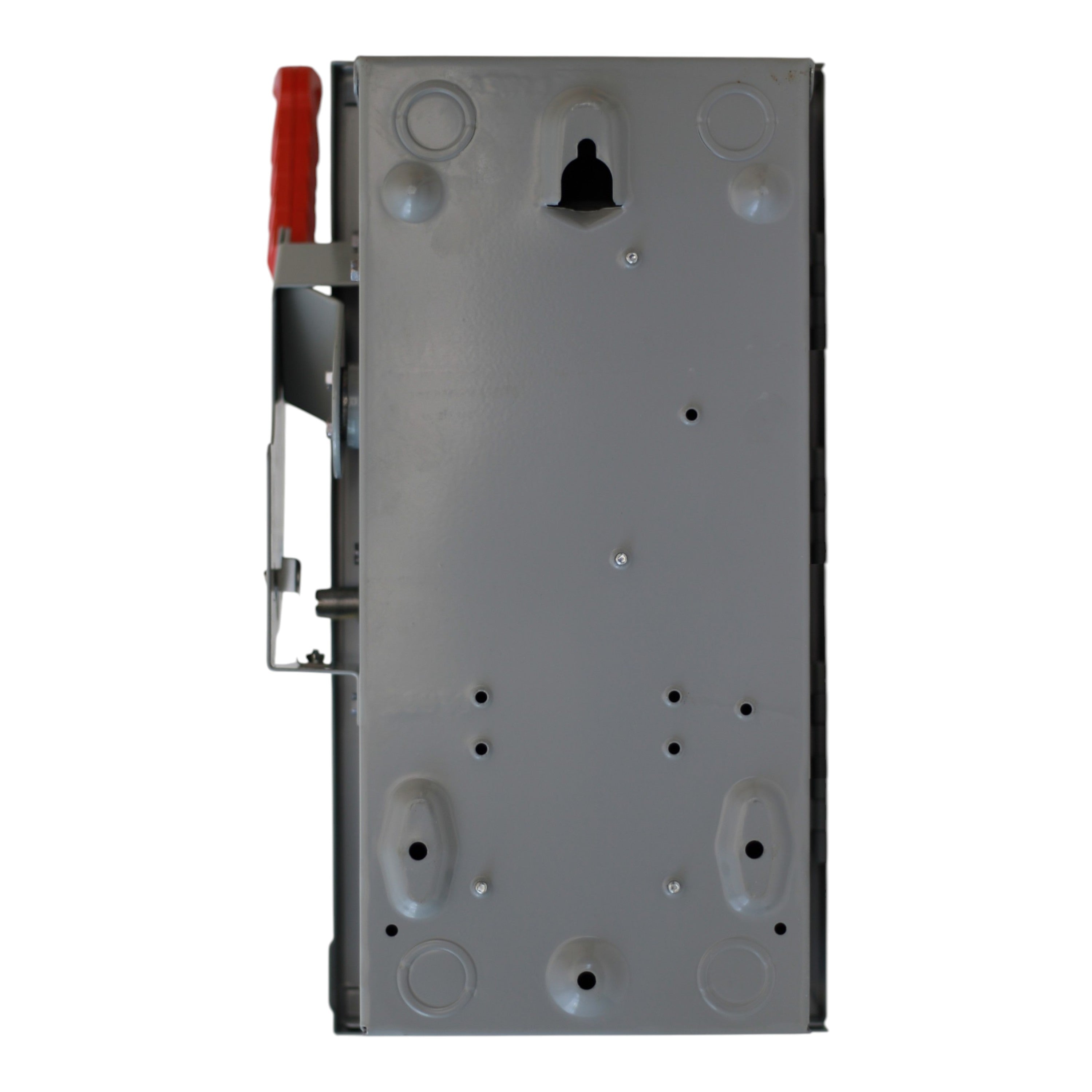

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 8
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 9

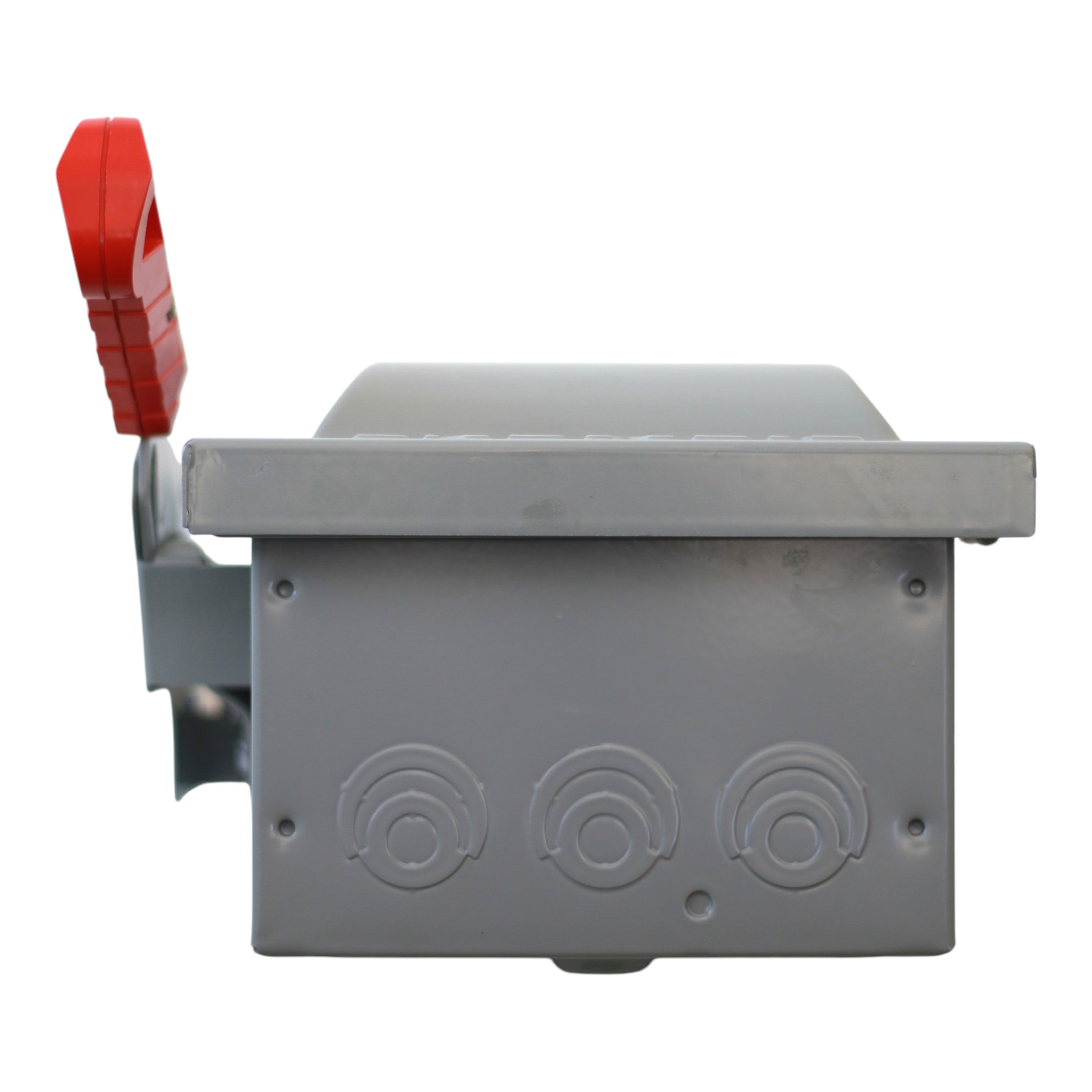

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 10

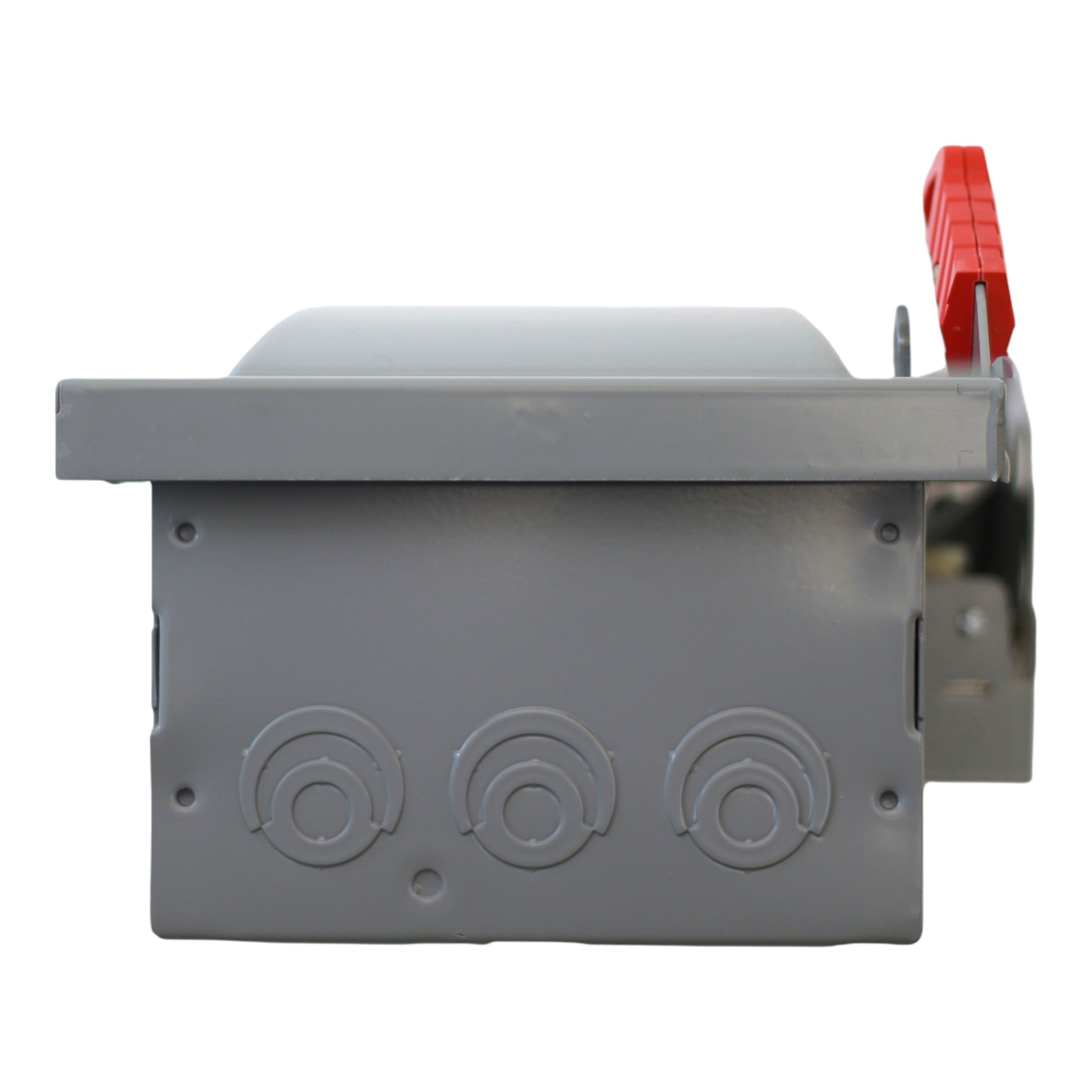

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 2
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 3
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 4
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 5
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 6
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 7
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 8
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 9
Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Siemens

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch

SKU: HF261
(0)
$72.00
-73% $271.00 $72.00
Out of stock
Condition

Siemens HF261: 30 Amp, 2-Pole, 2-Wire, Heavy Duty Fusible Safety Switch, 600V AC, 200kA SCCR, NEMA 1, painted steel, UL listed.

  • Manufacturer: Siemens
  • Brand: Siemens
  • Product Range: VBII Heavy Duty Safety Switches (for commercial and industrial single-throw fusible disconnect applications)
  • UPC: 783643173880
  • Model Number: HF261
  • Switch Type: Fusible Heavy Duty Safety Switch (Single-Throw)
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Number of Wires: 2-Wire
  • Voltage: 600 Volts AC / 600 Volts DC
  • Fuse Class Provision: Class H, R, T, or J fuses (not included)
  • Short Circuit Current Rating (SCCR): 200 kA (with Class R, T, or J fuses); 10 kAIC (with Class H fuses)
  • HP Rating: 3 HP @ 240V AC (1Ph); 7.5 HP @ 480V AC (1Ph); 10 HP @ 600V AC (1Ph)
  • Wire Size: #14–6 AWG Cu; #12–6 AWG Al (60/75°C, line and load)
  • Mounting Mode: Surface mount
  • Enclosure: NEMA 1 (Type 1), Painted Steel

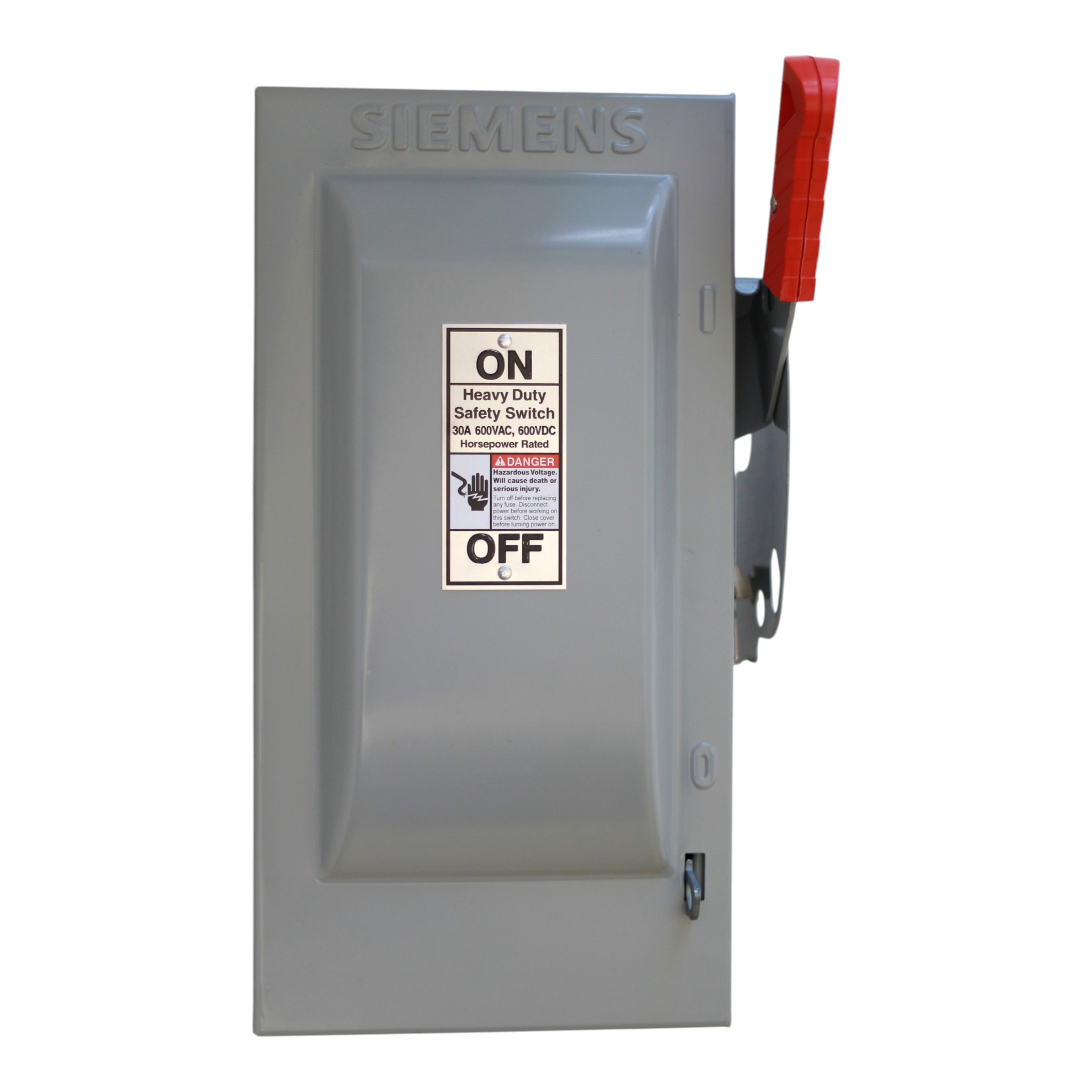

  • Features: Spring-reinforced fuse clips; hinged clear line terminal shield; front-removable mechanical lugs; door padlocking provision; embossed aluminum ON/OFF nameplate
  • Dimensions: Height: 14.26 in; Width: 7.67 in; Depth: 10.17 in
  • Weight: 13.0 lbs
  • Country of Origin: Mexico
  • Certifications: UL Listed, CSA Certified, NEMA KS-1

This Siemens VBII HF261 heavy duty fusible safety switch delivers dependable 30 Amp, 2-Pole manual disconnection and overcurrent protection for 600V AC commercial and industrial applications. With 200 kA SCCR when used with Class R, T, or J fuses, spring-reinforced fuse clips, and a NEMA 1 painted steel enclosure, it ensures safe and reliable power isolation in demanding environments.
