Square D

Square D 8910DPA42V09, 40A, 2P, 600V, Definite Purpose Contactor

In stock
SKU: 8910DPA42V09 UPC: 785901073468
(0)
$80.00
-58% $189.99 $80.00
In stock
Usually ships within 24 hours
Condition

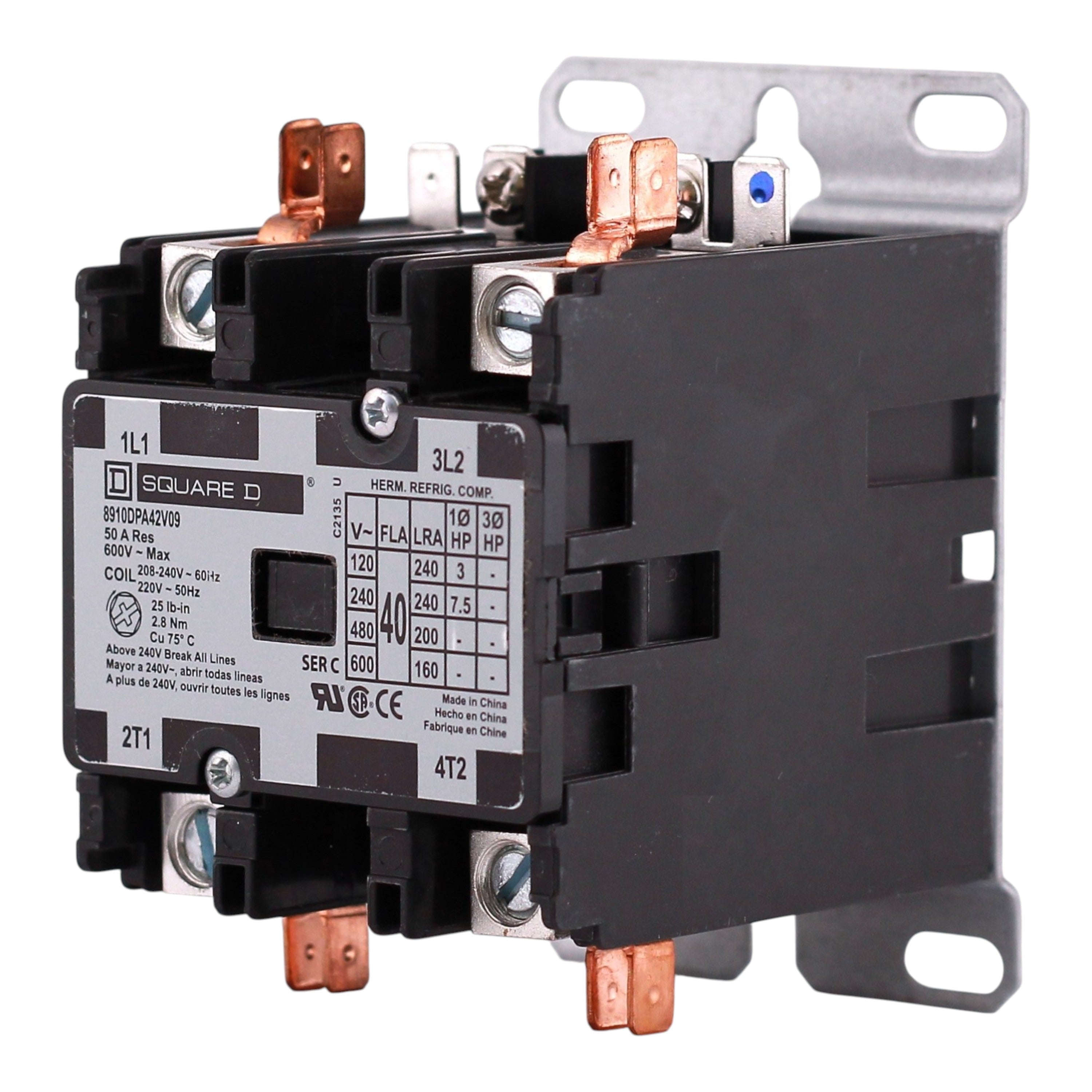

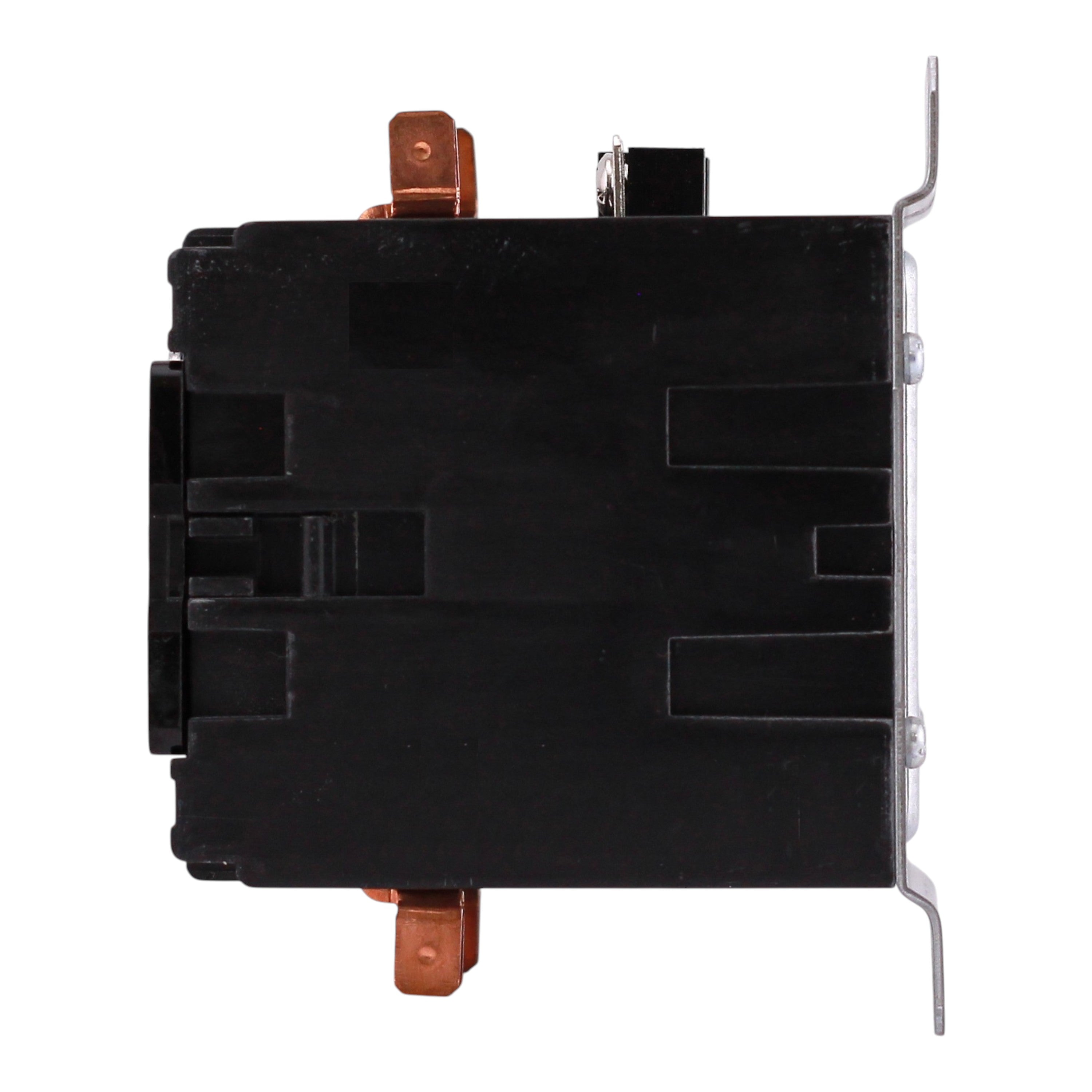

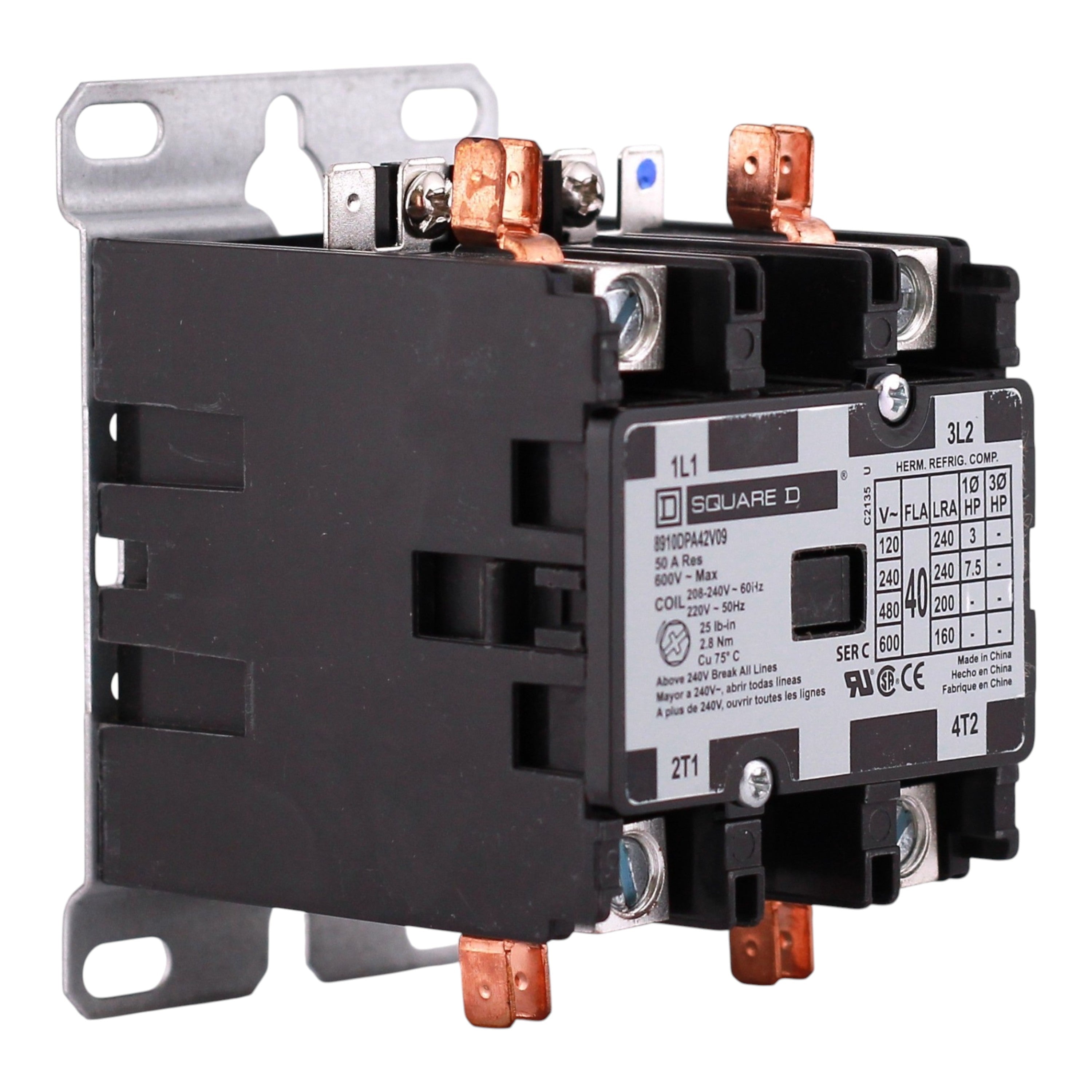

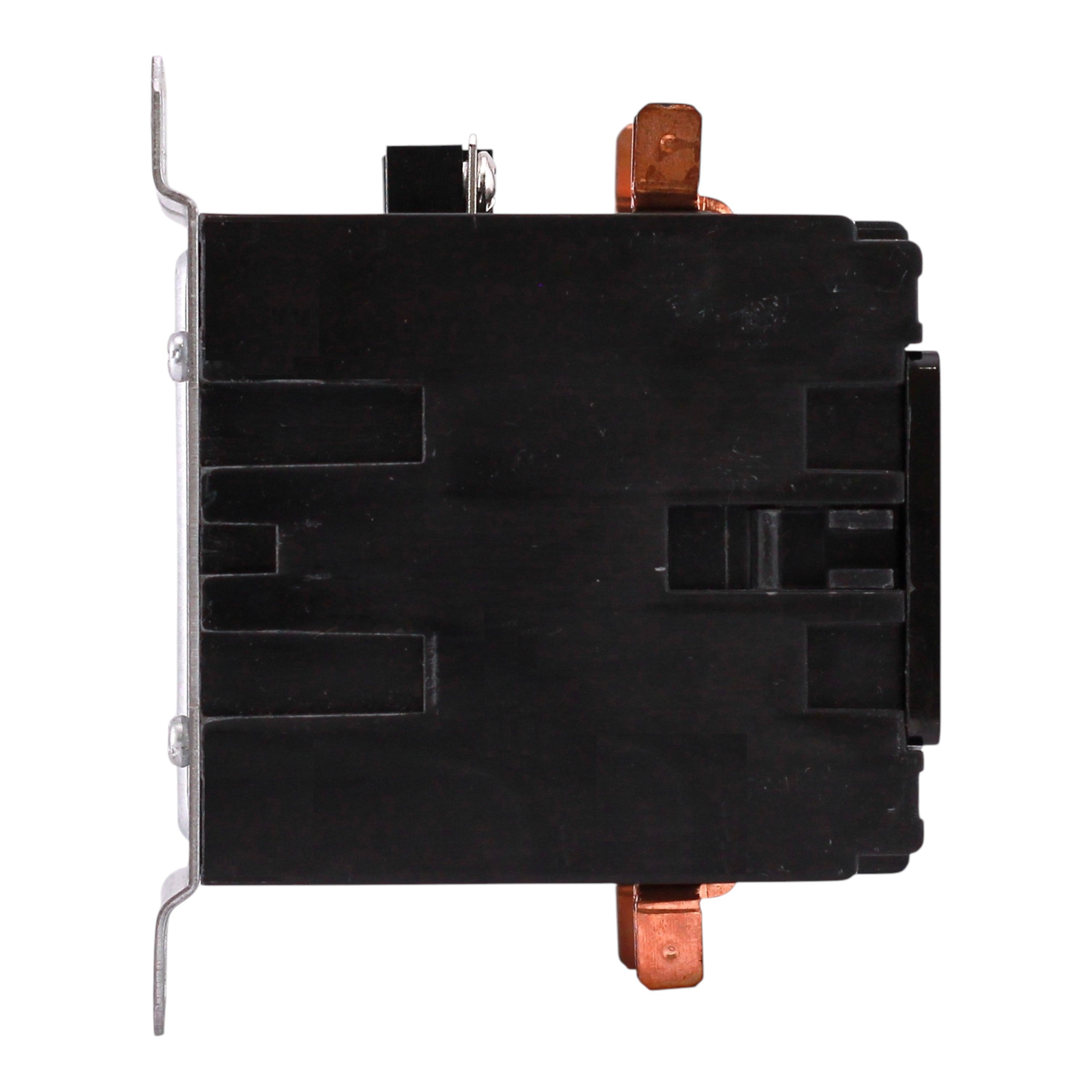

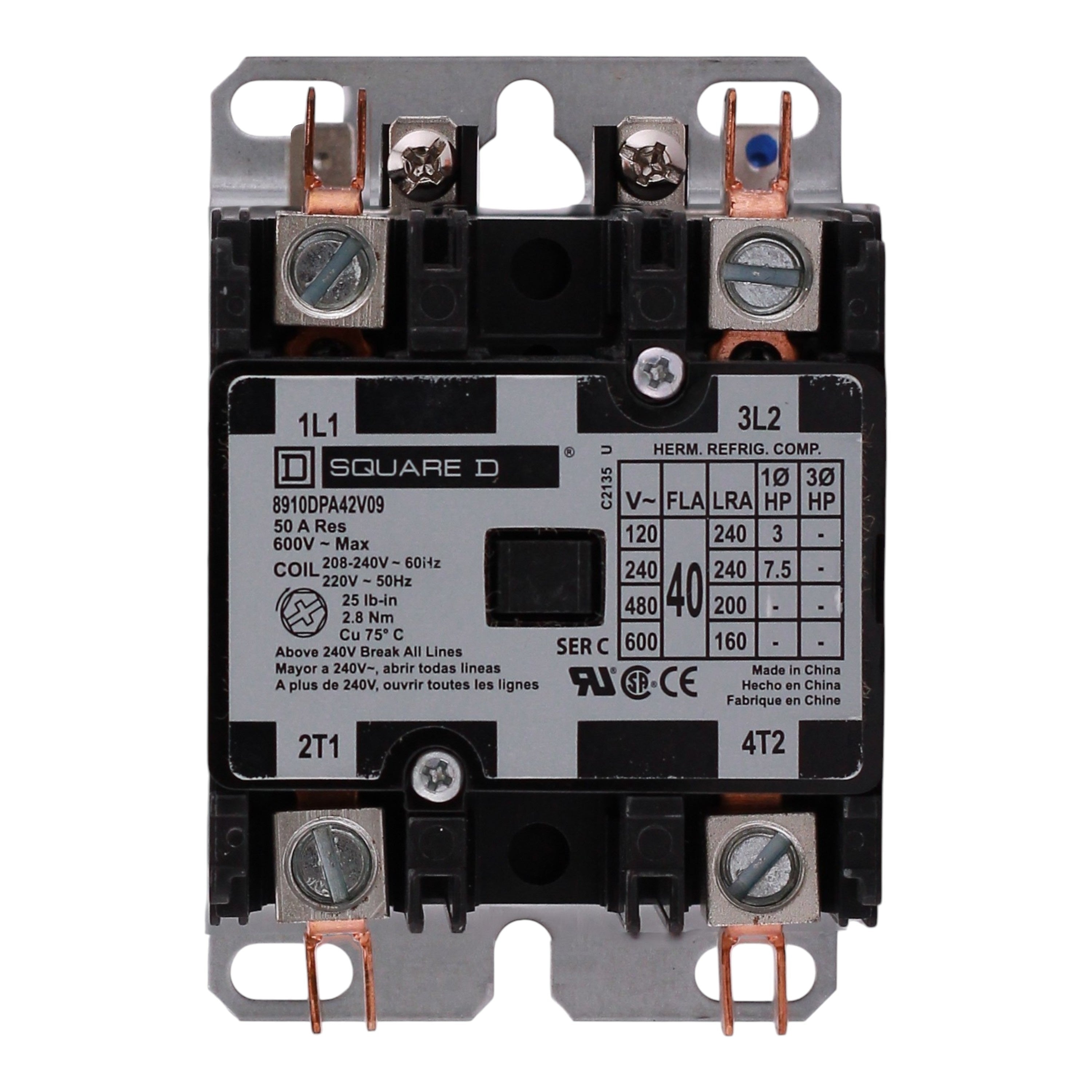

Square D 8910DPA42V09: 40 Amp, 2-Pole, Definite Purpose Contactor, 208/240V coil, 600V, 7.5HP, UL Recognized, CSA.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: 8910 DPA (Definite Purpose Contactors for HVAC, refrigeration, and heating applications)
  • UPC: 785901073468
  • Model Number: 8910DPA42V09
  • Type: Definite Purpose Contactor
  • Current Rating: 40 Amps (50 Amps resistive)
  • Poles: 2-Pole
  • Pole Contact Composition: 2 NO (Normally Open)
  • Max Operational Voltage: 600 Volts AC
  • Coil Voltage: 208/240 Volts AC 60 Hz; 220 Volts AC 50 Hz
  • Max Horsepower Rating: 3 HP at 115 Volts AC (1-phase); 7.5 HP at 230 Volts AC (1-phase)

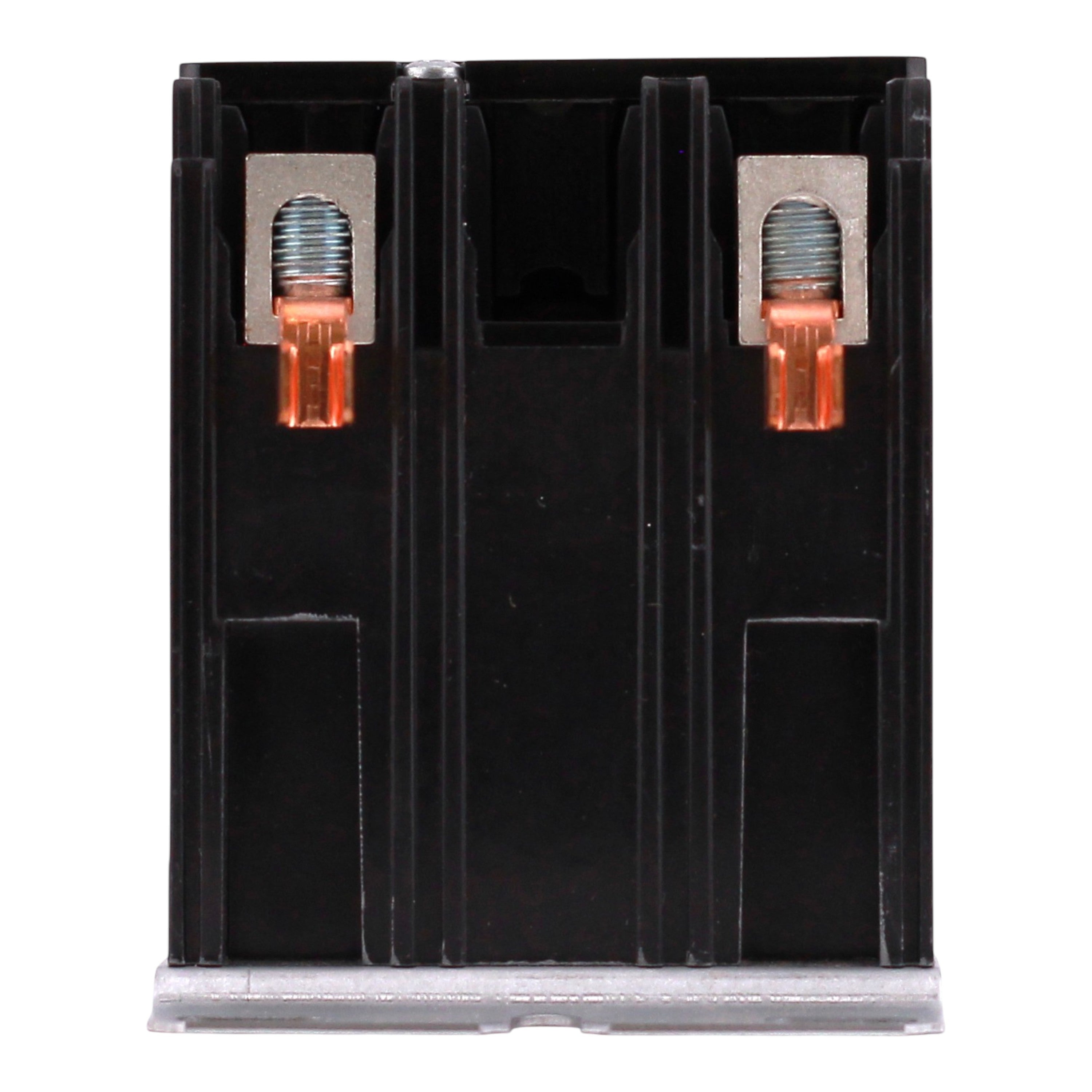

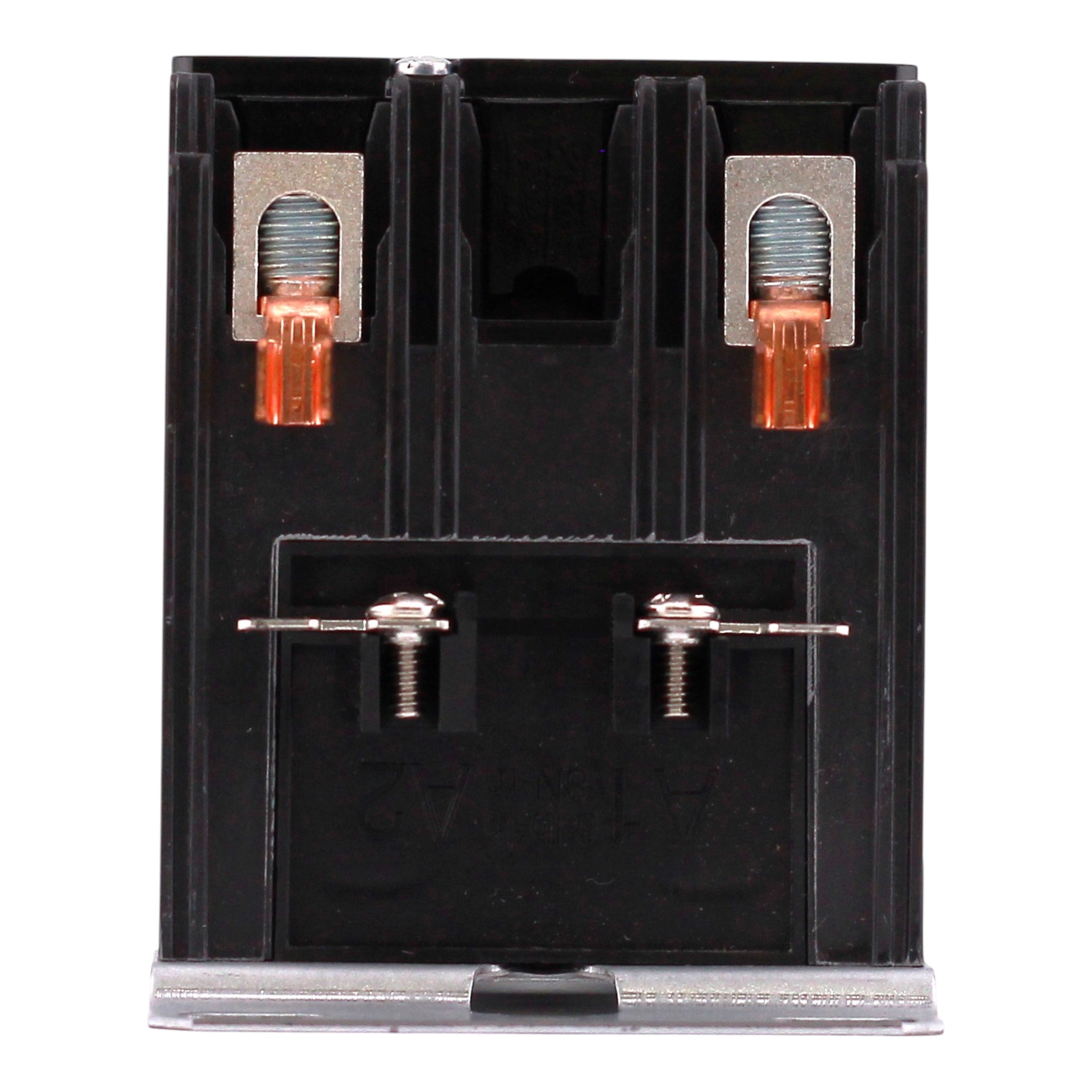

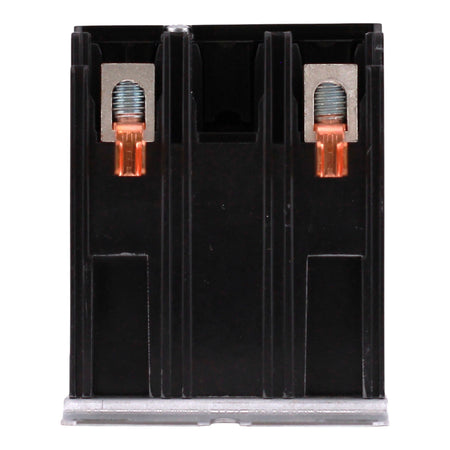

  • Electrical Connection: Box lugs; Quick connect terminals
  • Dimensions: Height: 3.20 in; Width: 4.00 in; Depth: 2.60 in
  • Weight: 0.98 lbs
  • Certifications: UL Recognized, CSA

This Square D 8910DPA42V09 definite purpose contactor delivers reliable 40 Amp, 2-pole switching for 208/240V circuits in HVAC, refrigeration, heating, and food service equipment. Rated to 600V AC with quick connect terminals for easy wiring.

8910DPA42V09 specifications
