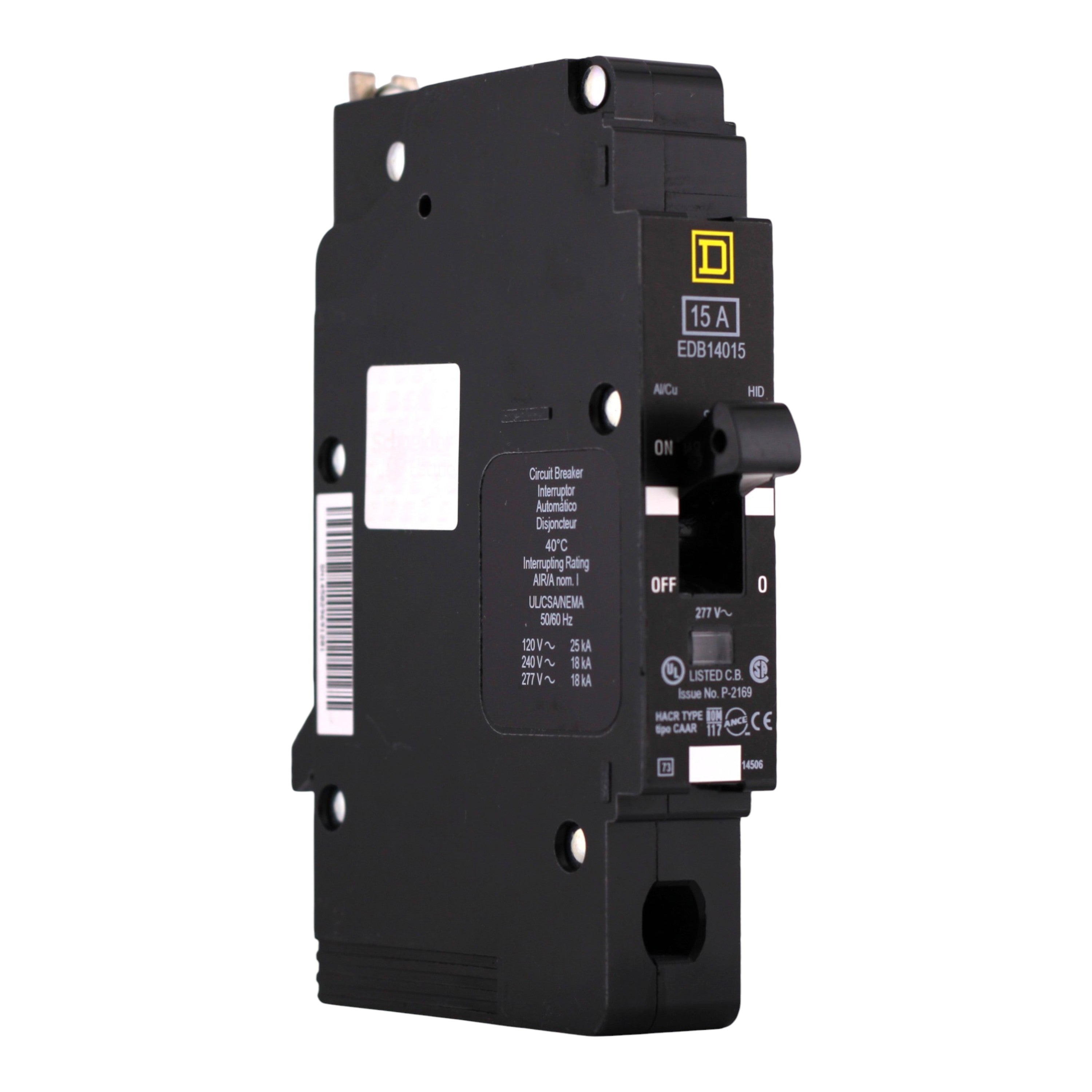

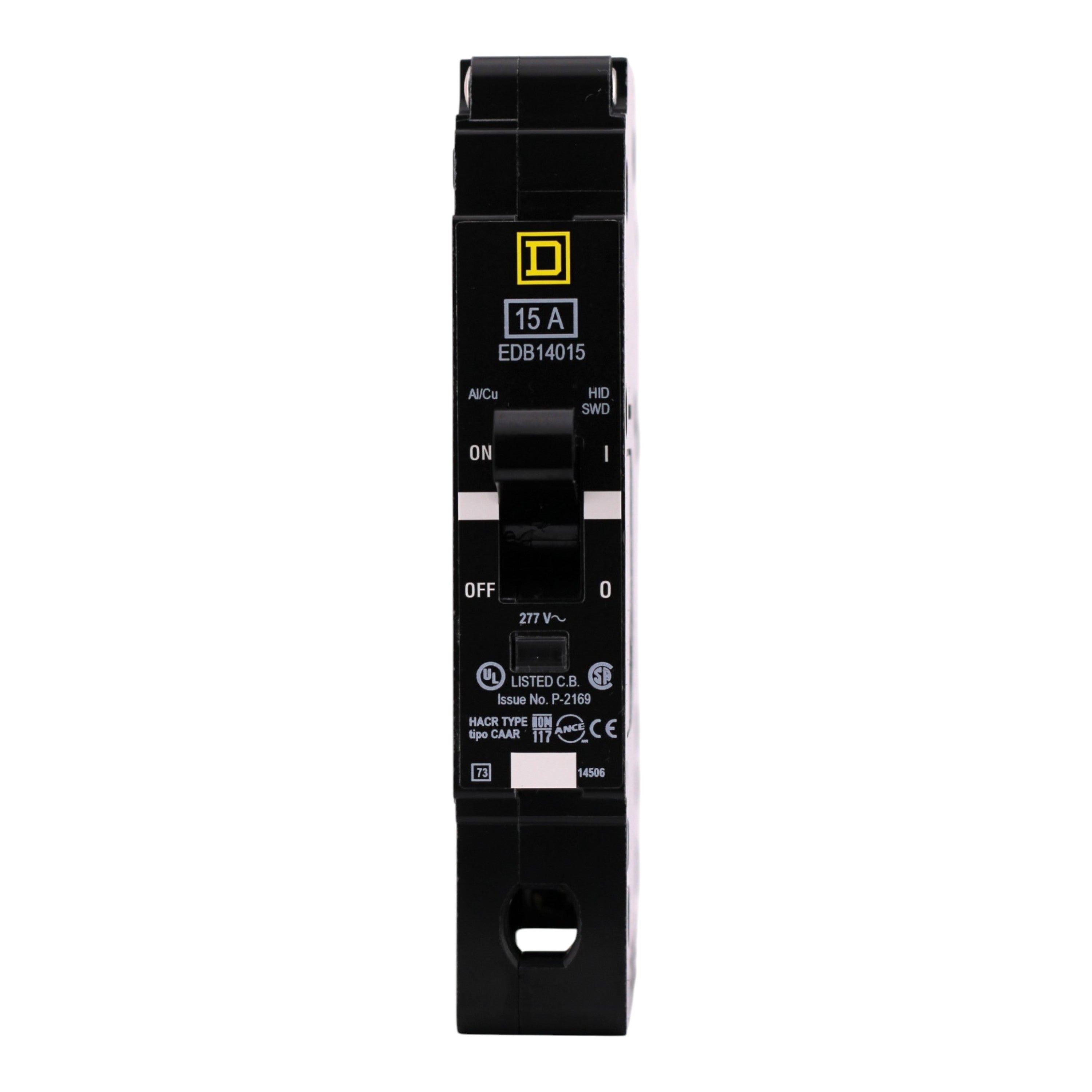

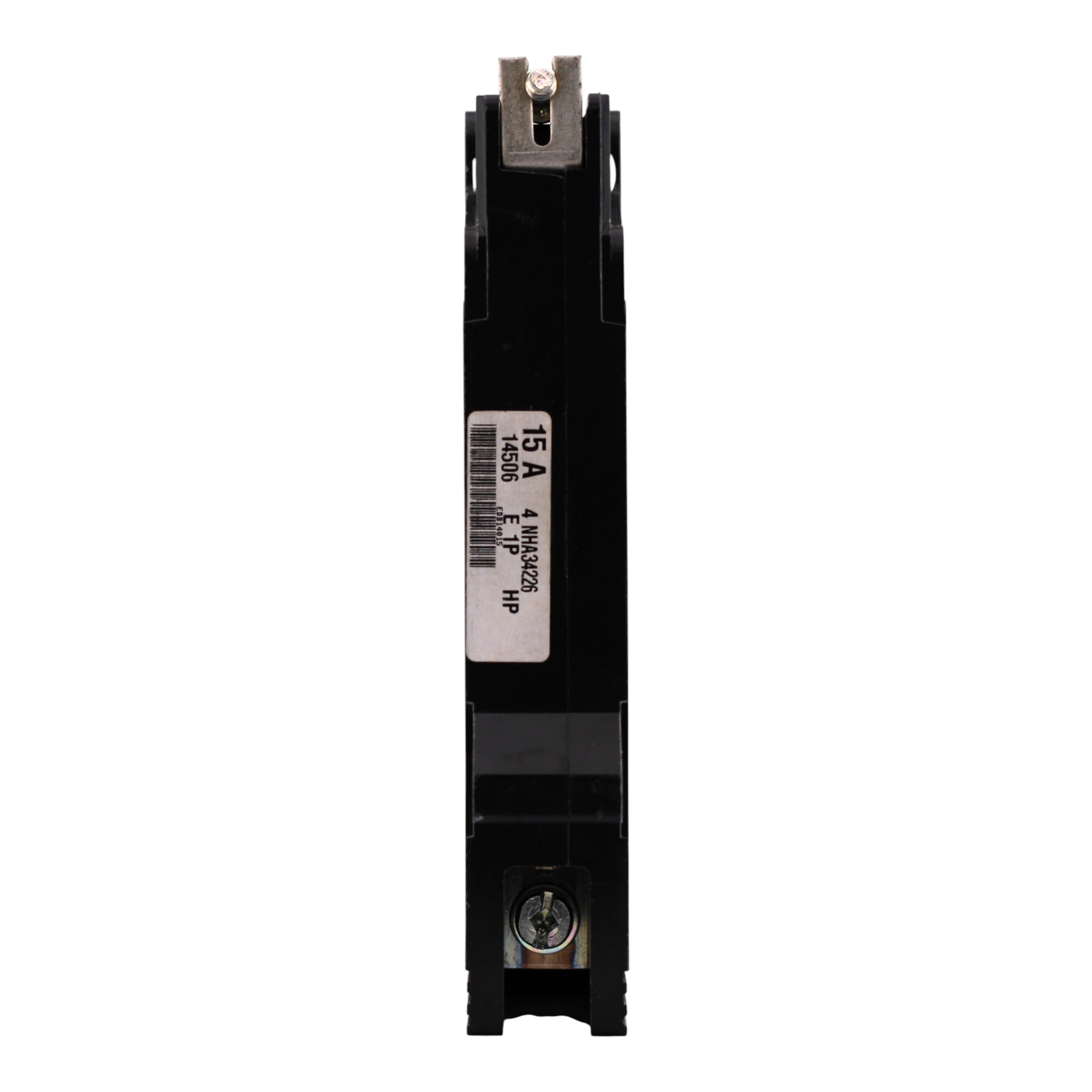

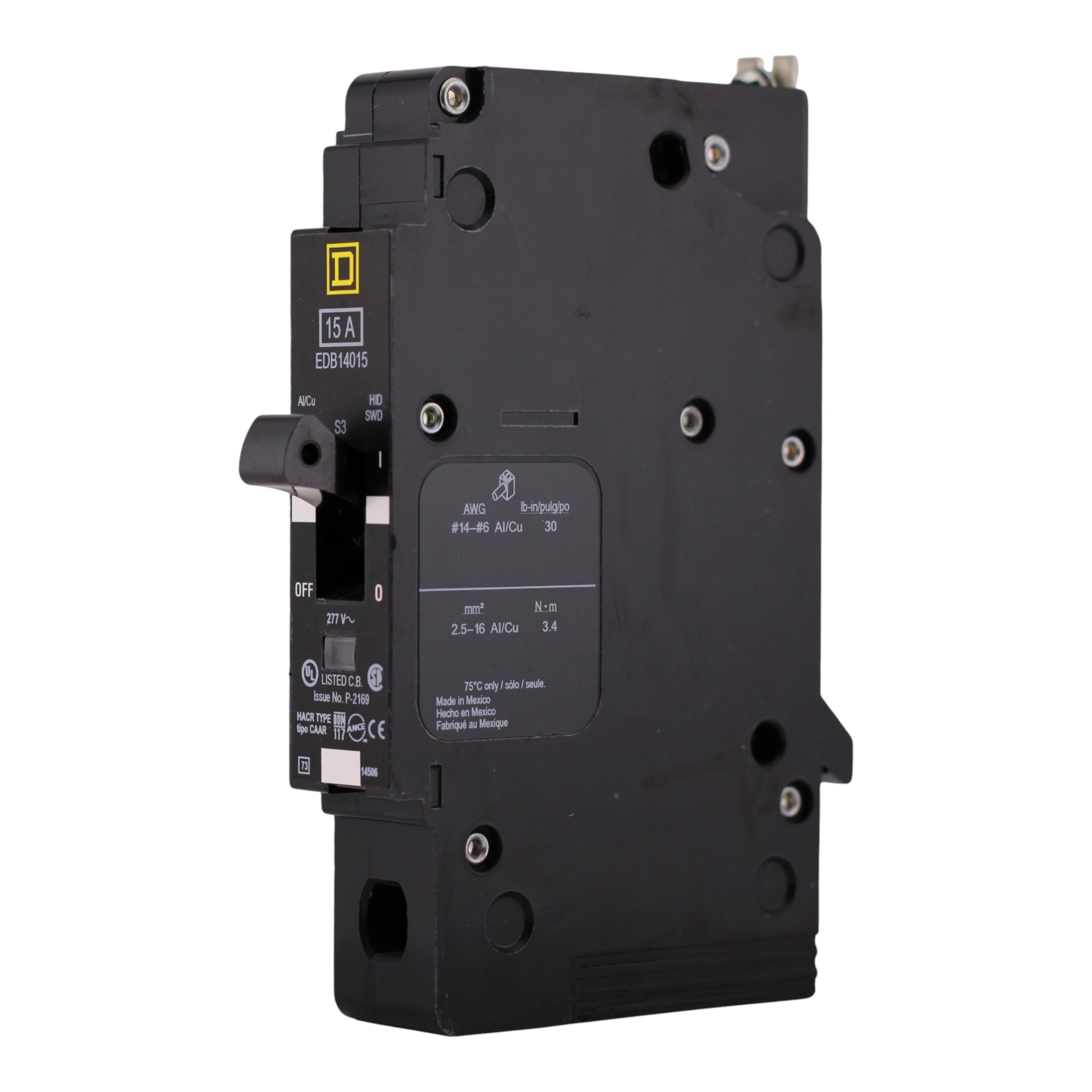

Square D E-Frame, EDB14015, 15A, 1P, 277V, 25kA, Bolt-On, Circuit Breaker
Square D EDB14015: 15 Amp, 1-Pole, E-Frame Thermal Magnetic Circuit Breaker, 277V, 25kA, bolt-on, HACR/HID/Switching Duty, cULus listed. [TAA]
-
Manufacturer: Schneider Electric
-
Brand: Square D (Schneider Electric)
-
Product Range: E-Frame EDB (for Square D NF lighting panelboards)
-
UPC: 785901878896
-
Model Number: EDB14015
-
Breaker Type: Thermal Magnetic Miniature Circuit Breaker
-
Amperage: 15 Amps
-
Poles: 1-Pole
-
Voltage: 277 Volts AC (max operating)
-

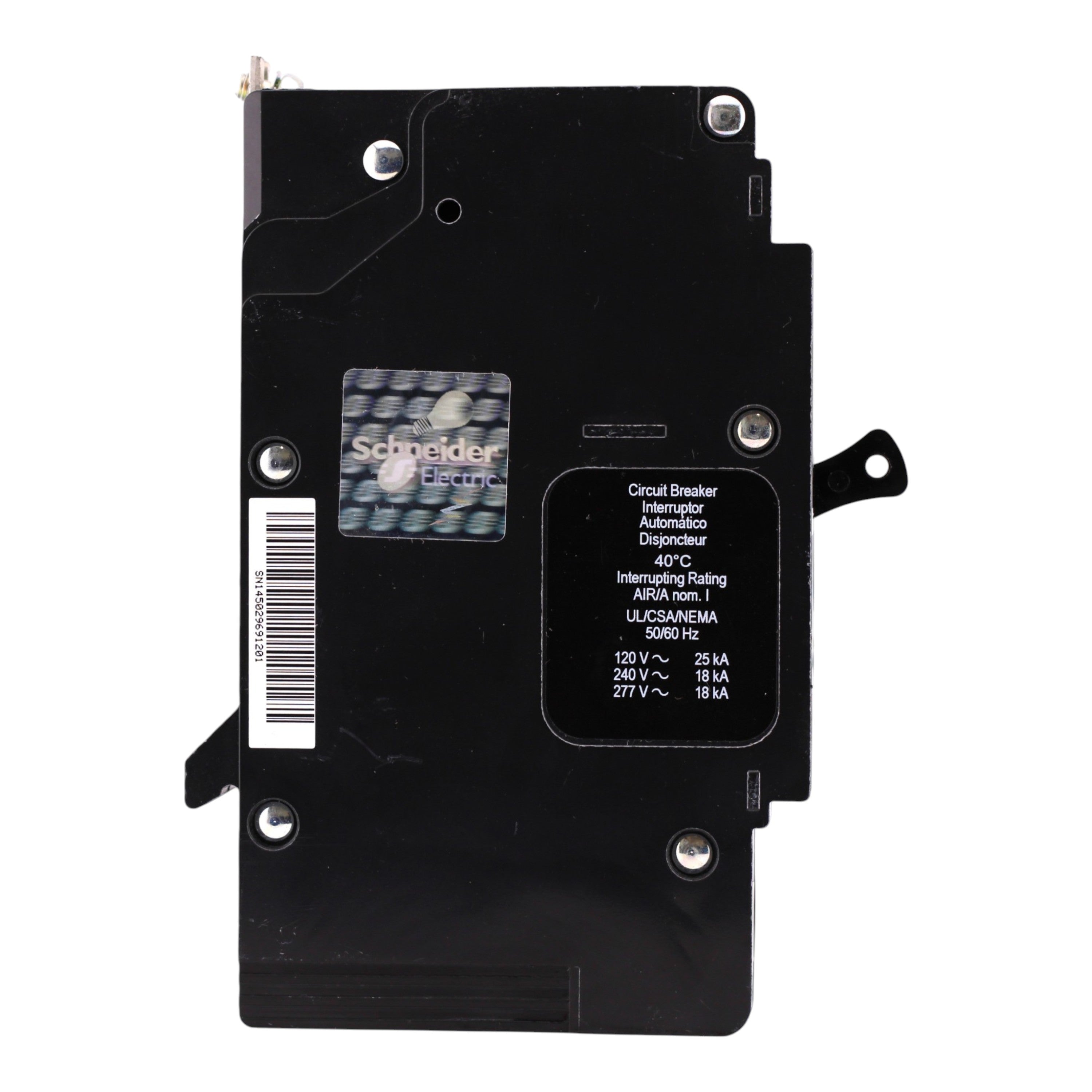

Interrupt Rating: 25 kAIC @ 120V AC; 18 kAIC @ 277V AC, 240V AC, 120/240V AC
-

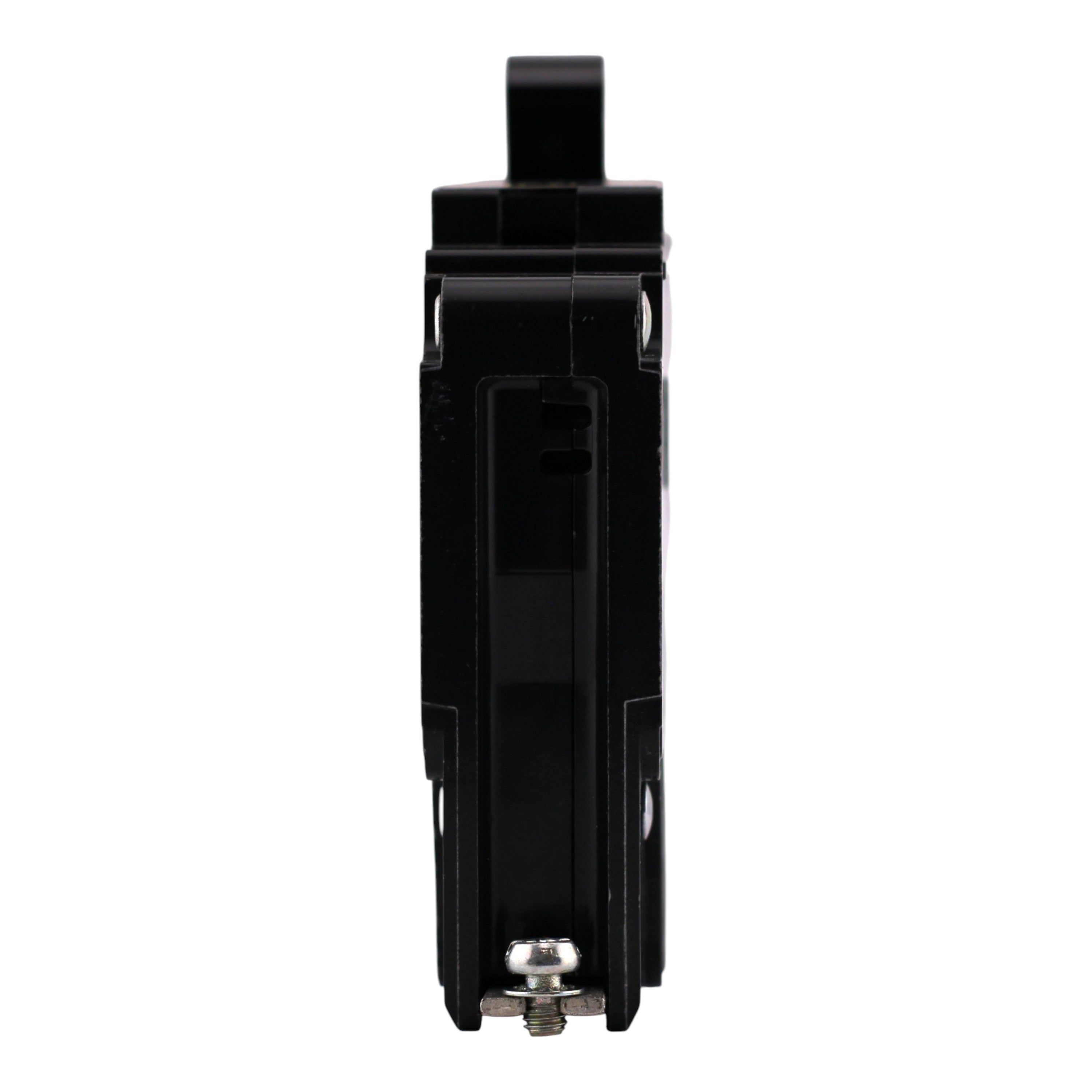

Mounting Mode: Bolt-on
-
Trip Type: Thermal-Magnetic (Visi-Trip™ indicator)
-
Hold Current: 270 Amps
-
Trip Current: 875 Amps
-

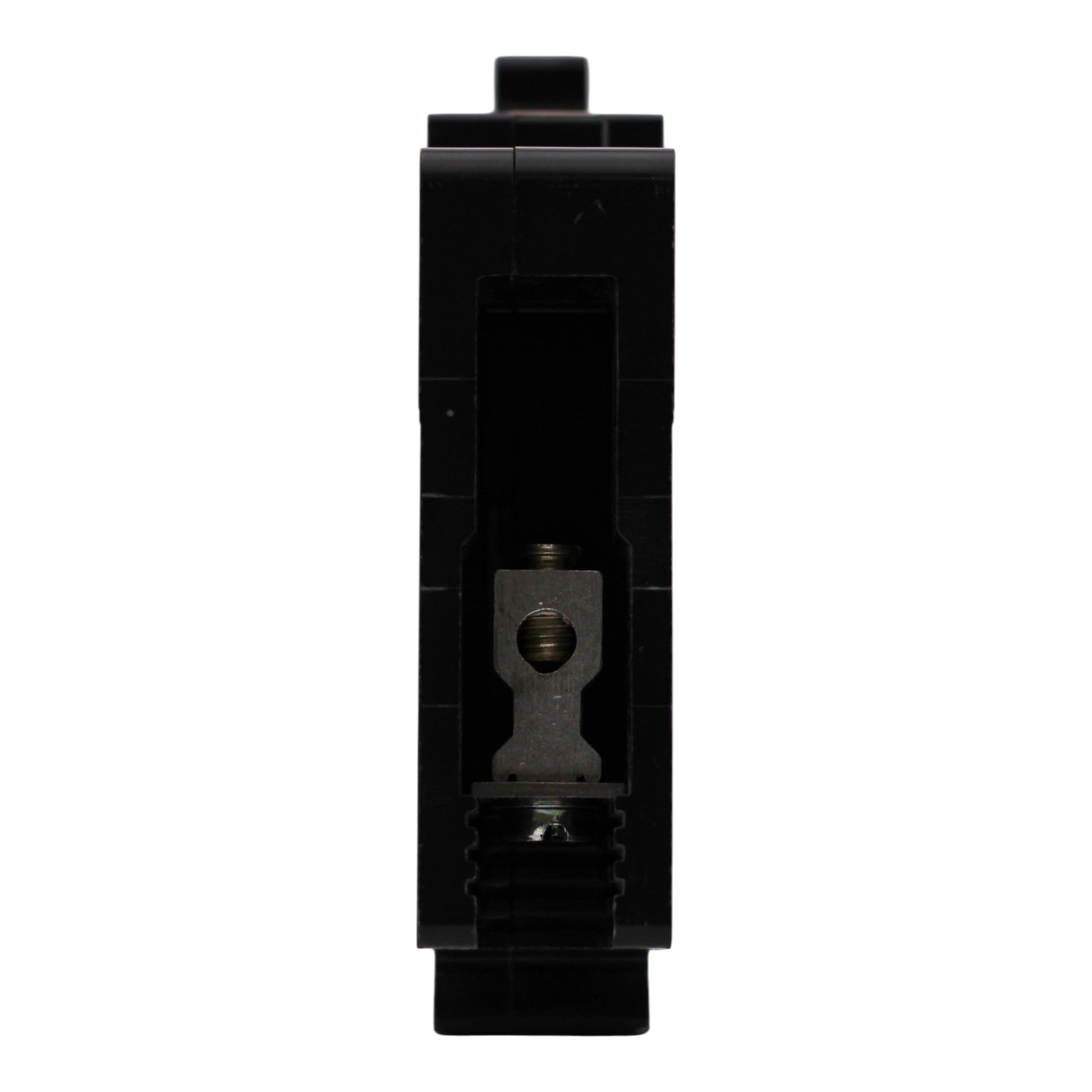

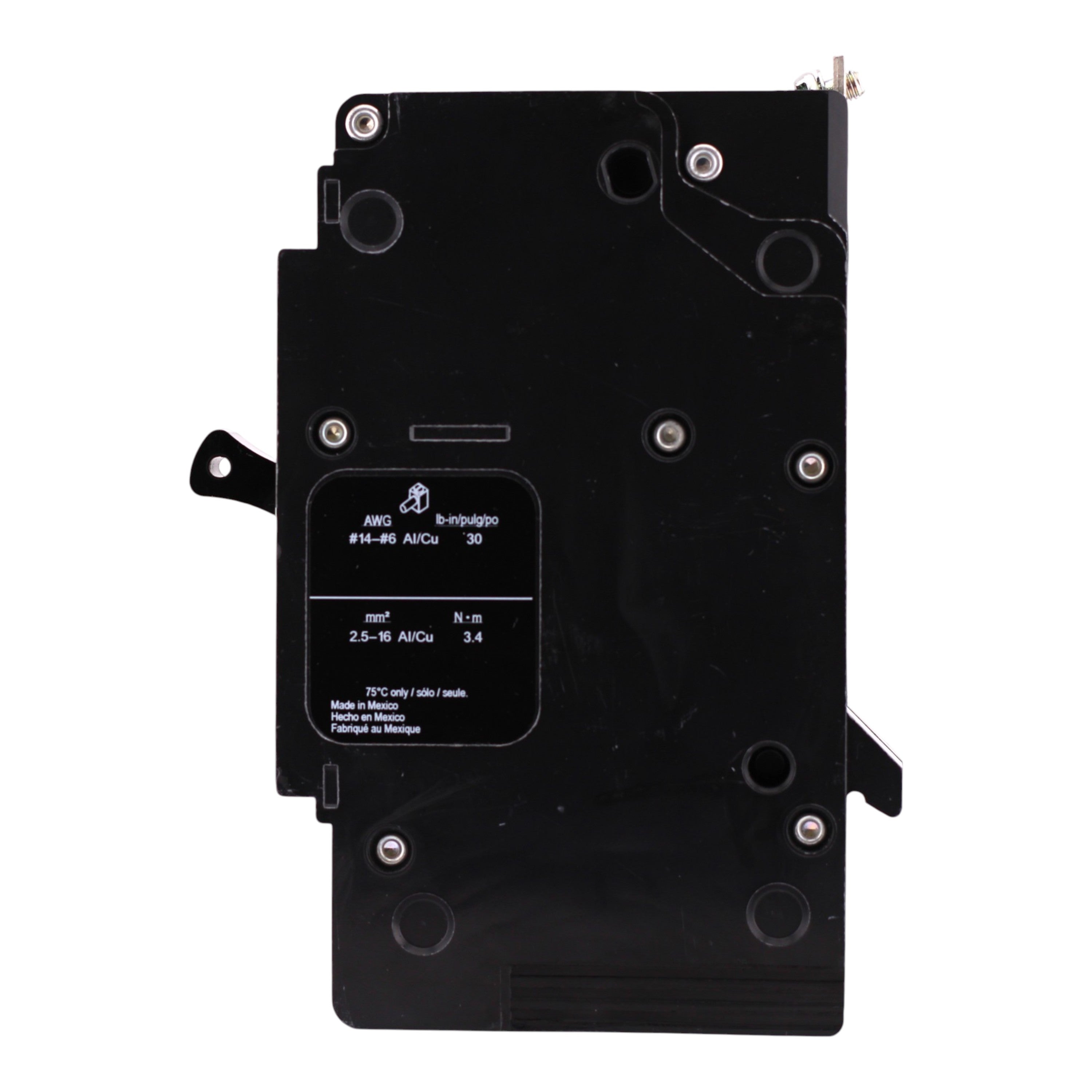

Wire Size: #14–6 AWG Cu; #12–6 AWG Al
-
Tightening Torque: 30.09 lb-in (#14–6 AWG)
-
Number of Spaces Required: 1
-
Calibration Temperature: 40°C
-
Dimensions: Height: 5.66 in; Width: 0.98 in; Depth: 4.05 in
-
Weight: 2 lbs
-
Compliance: TAA Compliant
-
Certifications: cULus Listed, IEC, CSA Certified, HACR Rated, HID Rated, Switching Duty Rated
This Square D EDB14015 bolt-on E-Frame circuit breaker delivers dependable 15 Amp, 1-Pole thermal magnetic protection for 277V circuits in Square D NF lighting panelboards. With 25 kAIC interrupt rating at 120V, Visi-Trip™ indication, and HACR/HID/Switching Duty ratings, it supports commercial lighting distribution applications.
