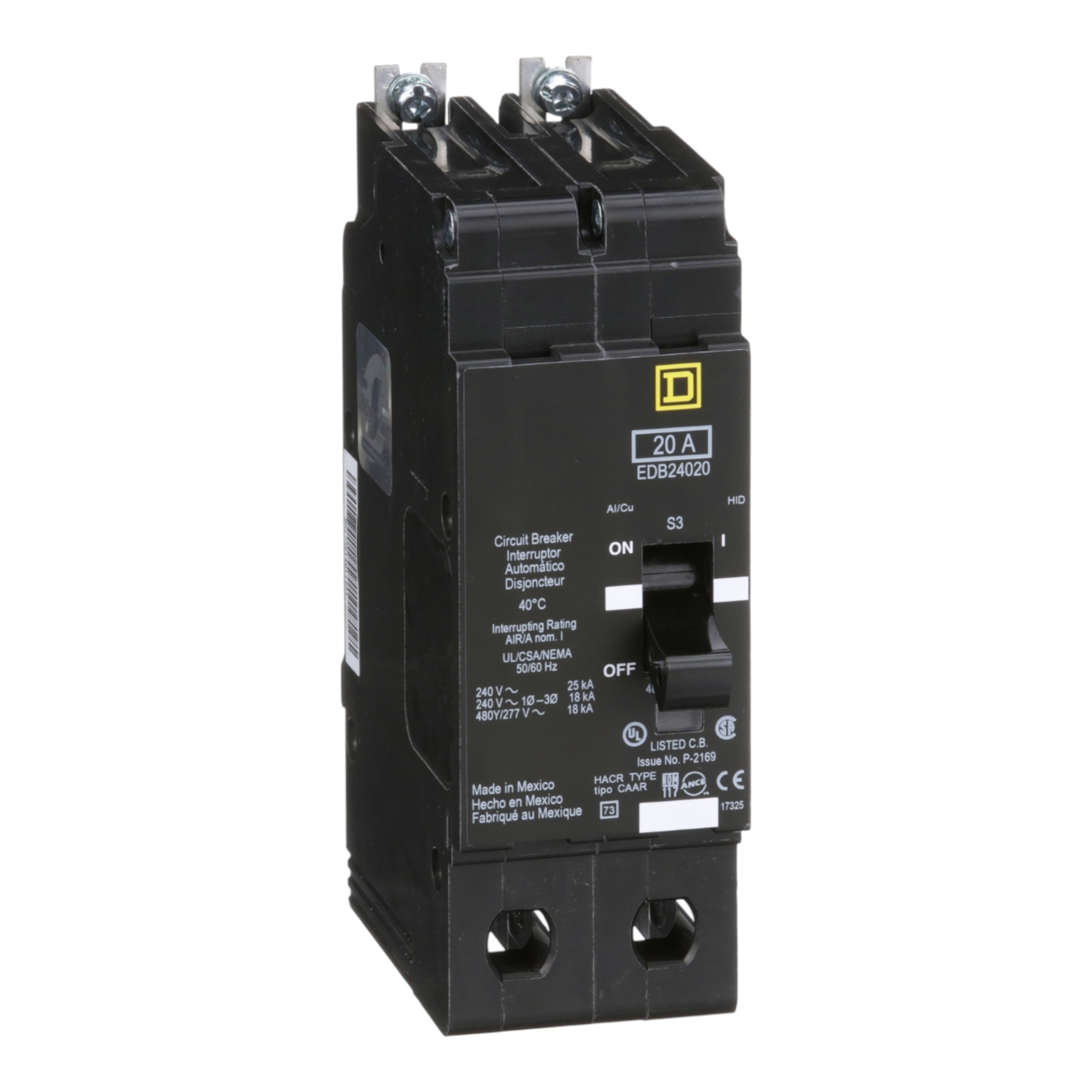

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker

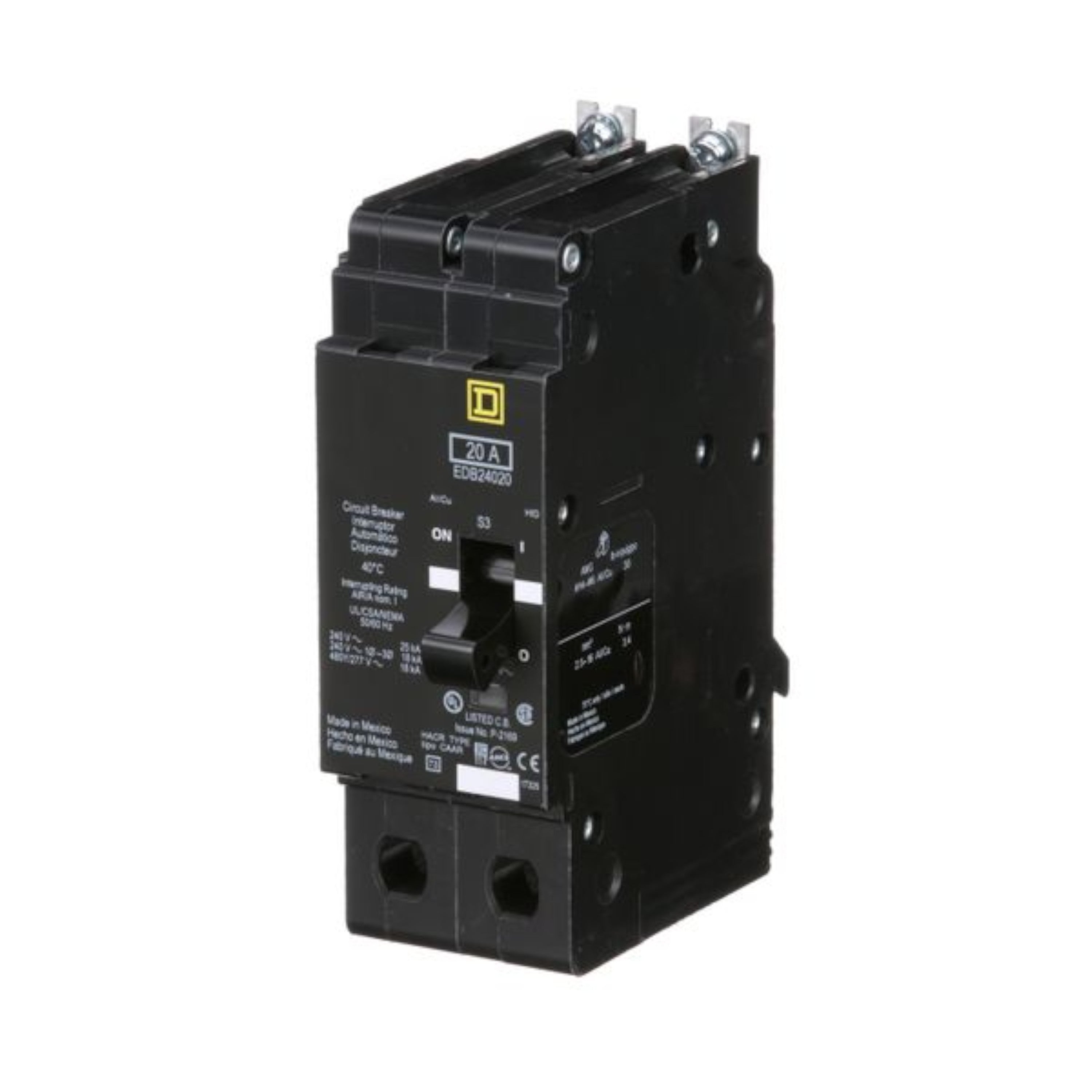

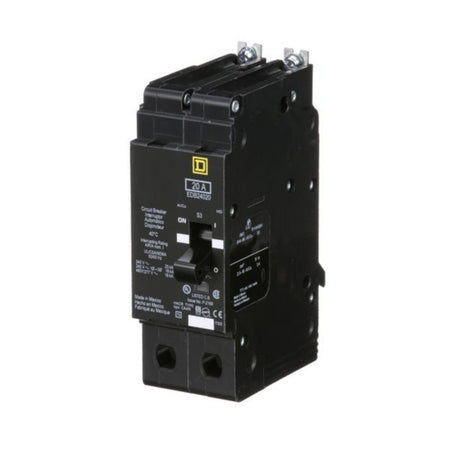

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 2

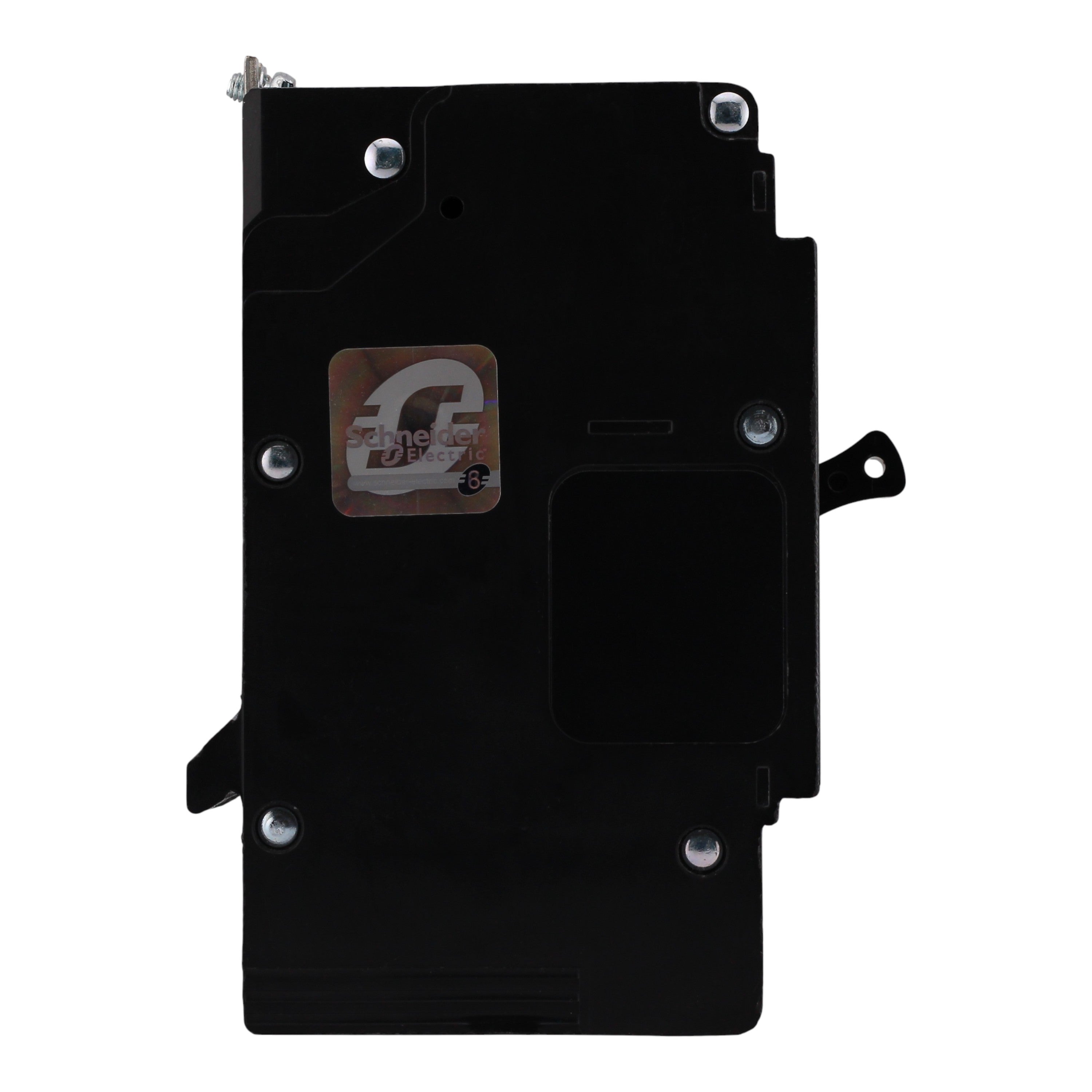

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 3

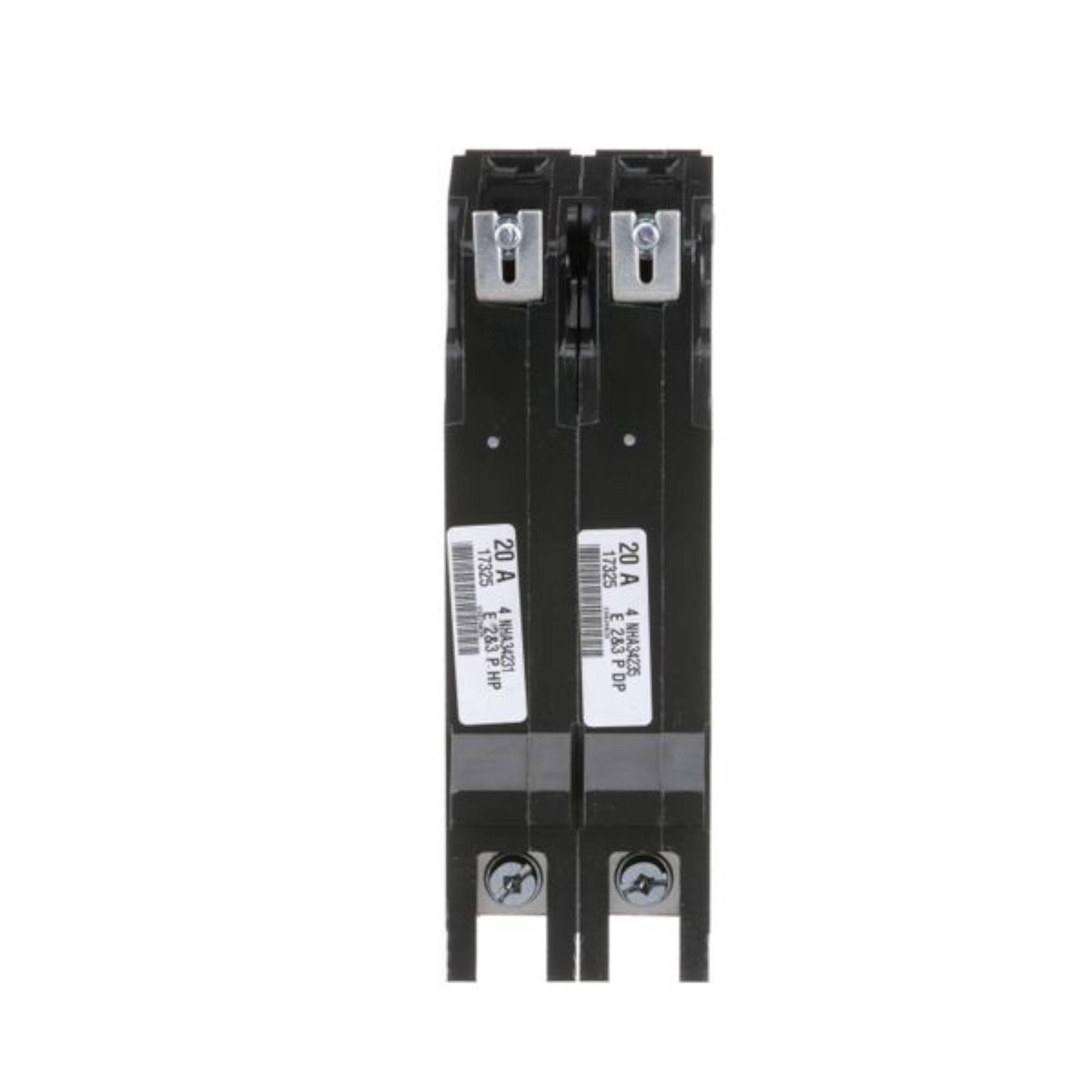

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 4

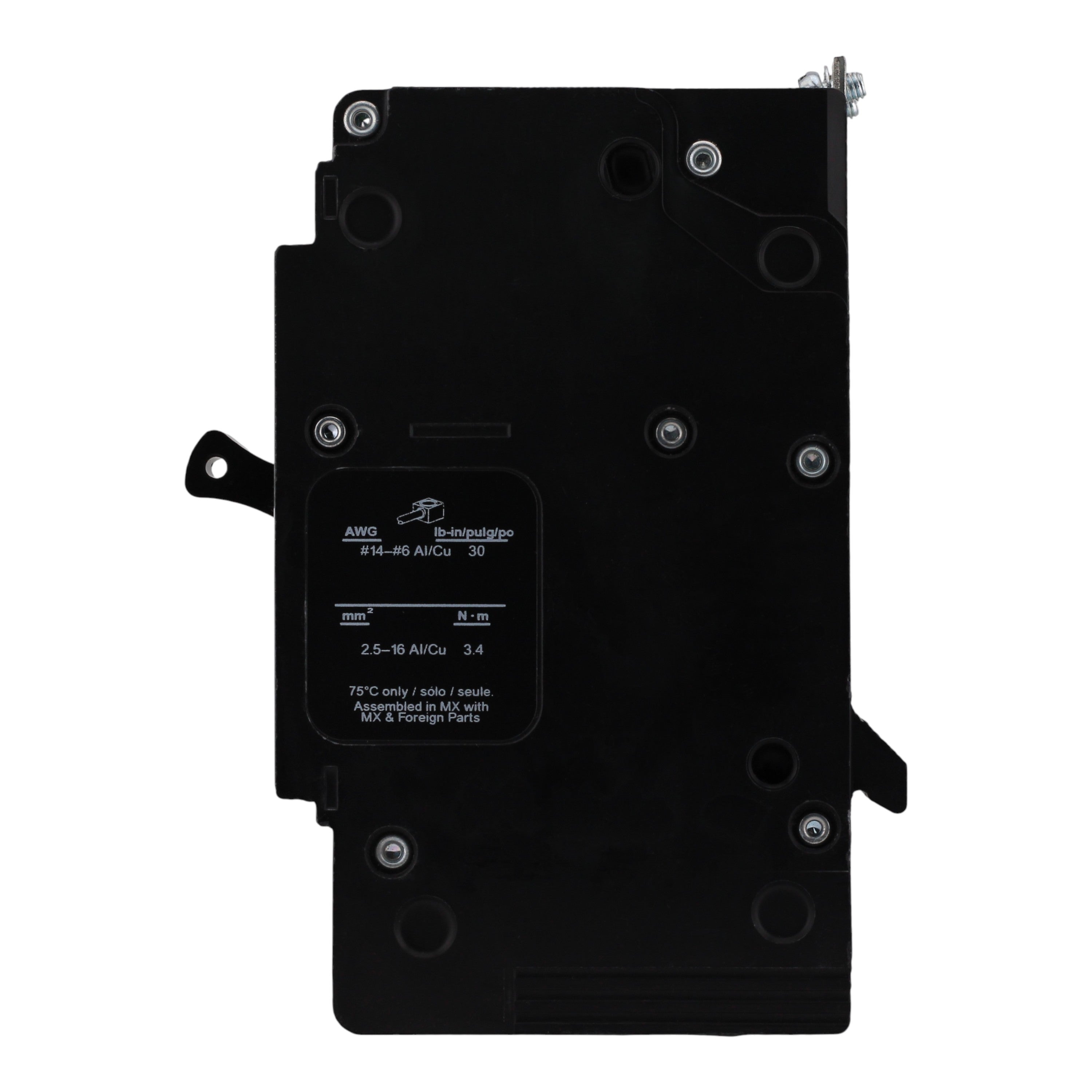

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 5

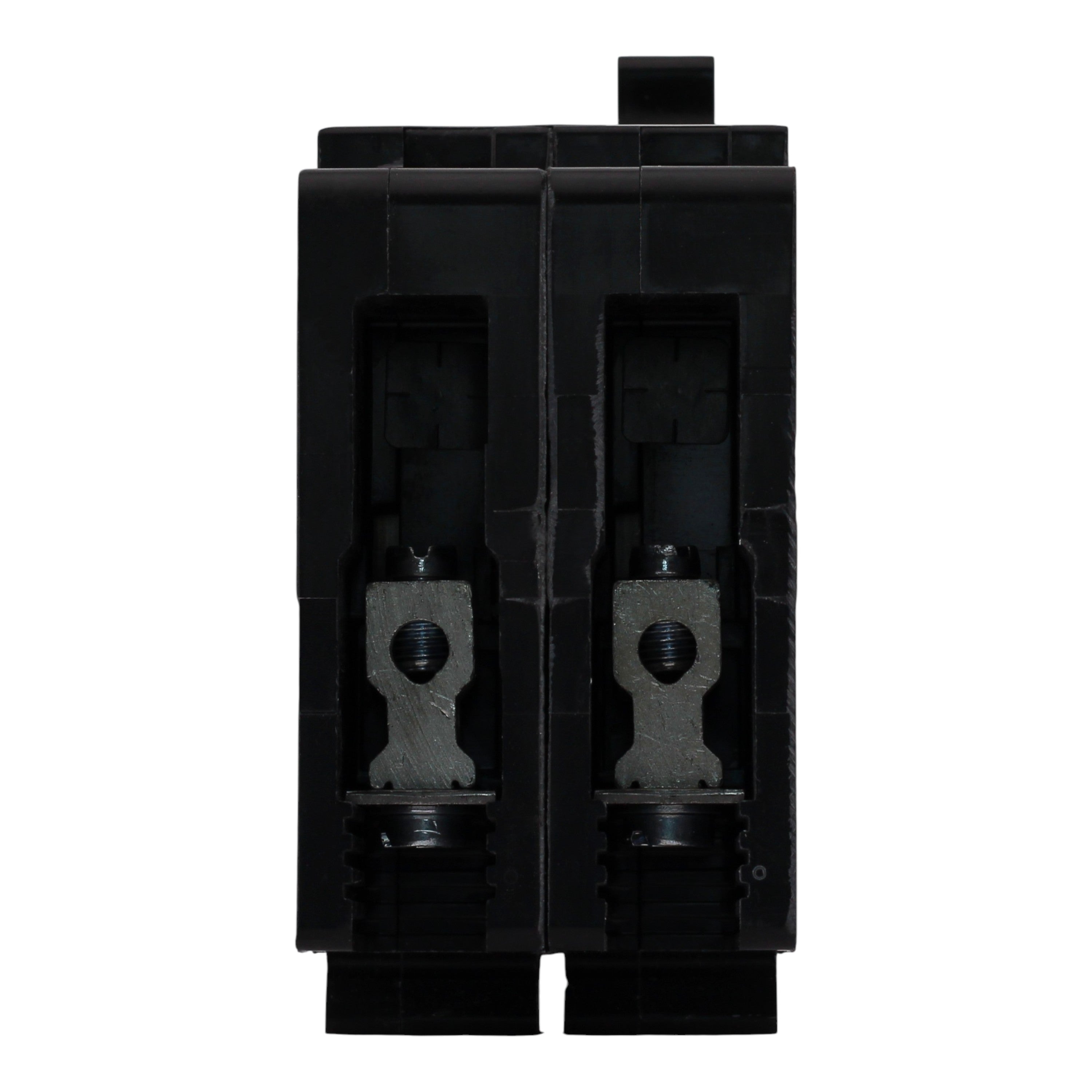

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 6

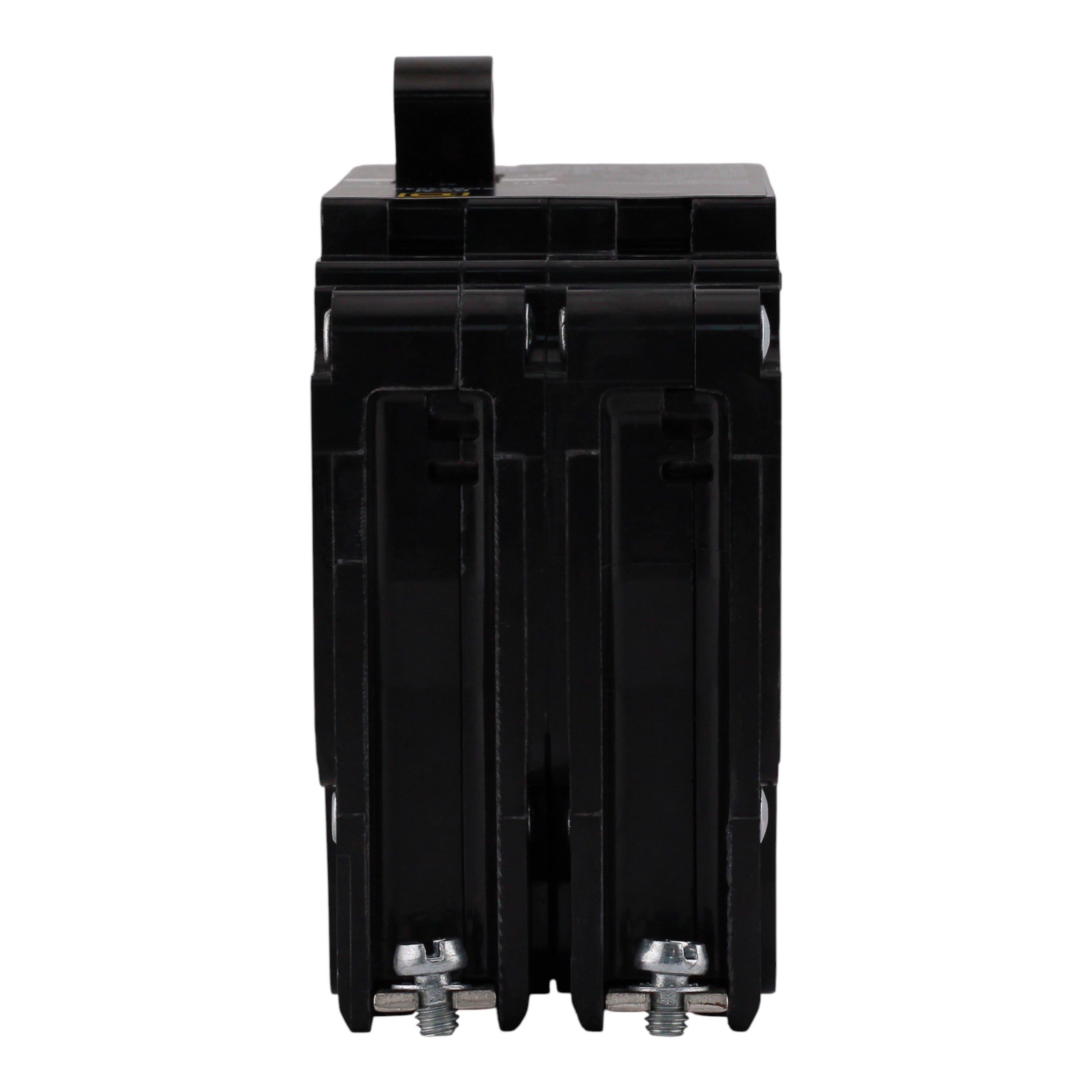

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 7
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 2
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 3
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 4
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 5
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 6
Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame EDB24020 20A 2P 480Y/277V Bolt-On Circuit Breaker

Out of stock
SKU: EDB24020 UPC: 785901879015
(0)
$109.00
Out of stock
Condition

Square D EDB24020: 20 Amp 2-Pole Miniature Circuit Breaker, 480Y/277V, 25kA, bolt-on, UL listed, HACR rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF panelboards)
  • UPC: 785901879015
  • Model Number: EDB24020
  • Product Type: Miniature Circuit Breaker
  • Amperage: 20 Amps
  • Poles: 2-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 25 kAIC
  • Mounting Mode: Bolt-on
  • Connections Terminals: Lugs aluminium
  • Wire Size: AWG 14...AWG 6 copper, AWG 12...AWG 6 aluminium
  • Tightening Torque: 30.09 lb-in
  • Dimensions: Height: 5.66 in; Width: 1.96 in; Depth: 4.05 in
  • Weight: 2.650 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

This Square D EDB24020 miniature circuit breaker provides reliable 20A, 2-pole protection for 480Y/277V circuits in NF panelboards. With a 25kA interrupt rating and bolt-on design, it ensures superior overload and short-circuit protection for lighting panelboards in commercial applications.
