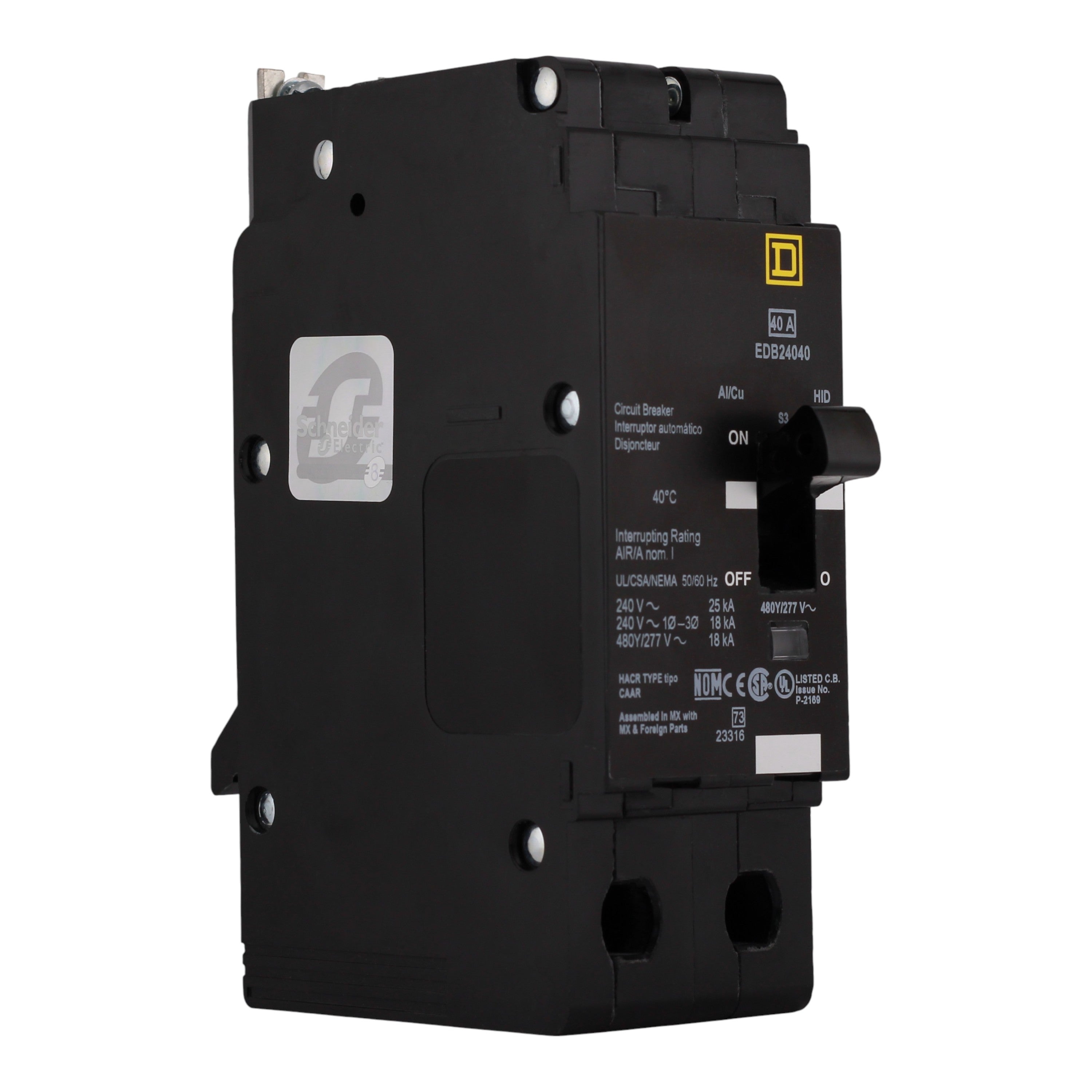

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker

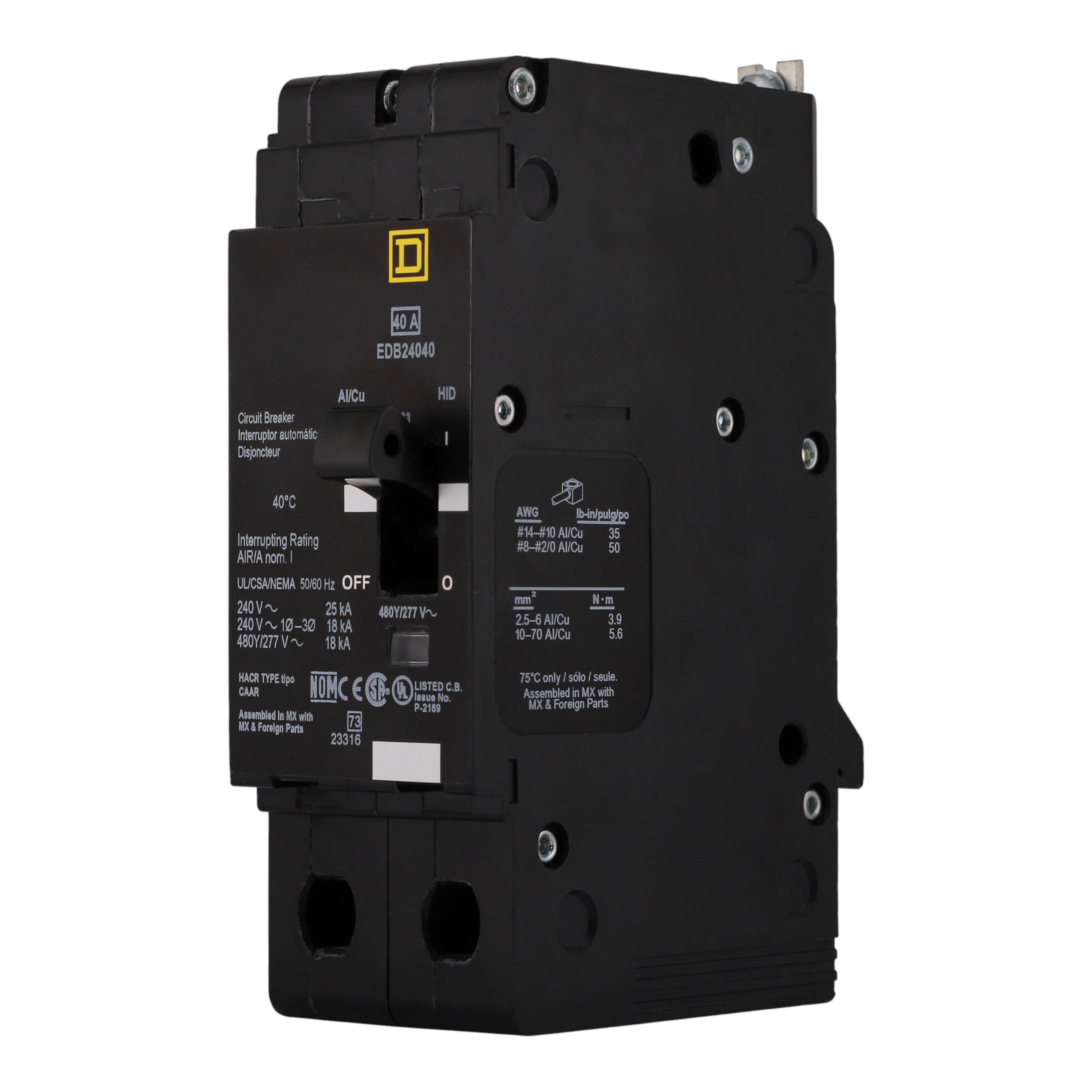

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 2

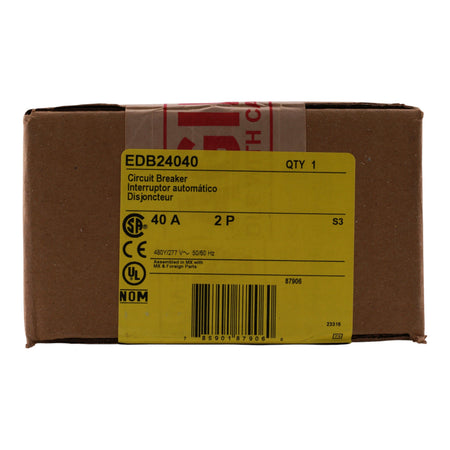

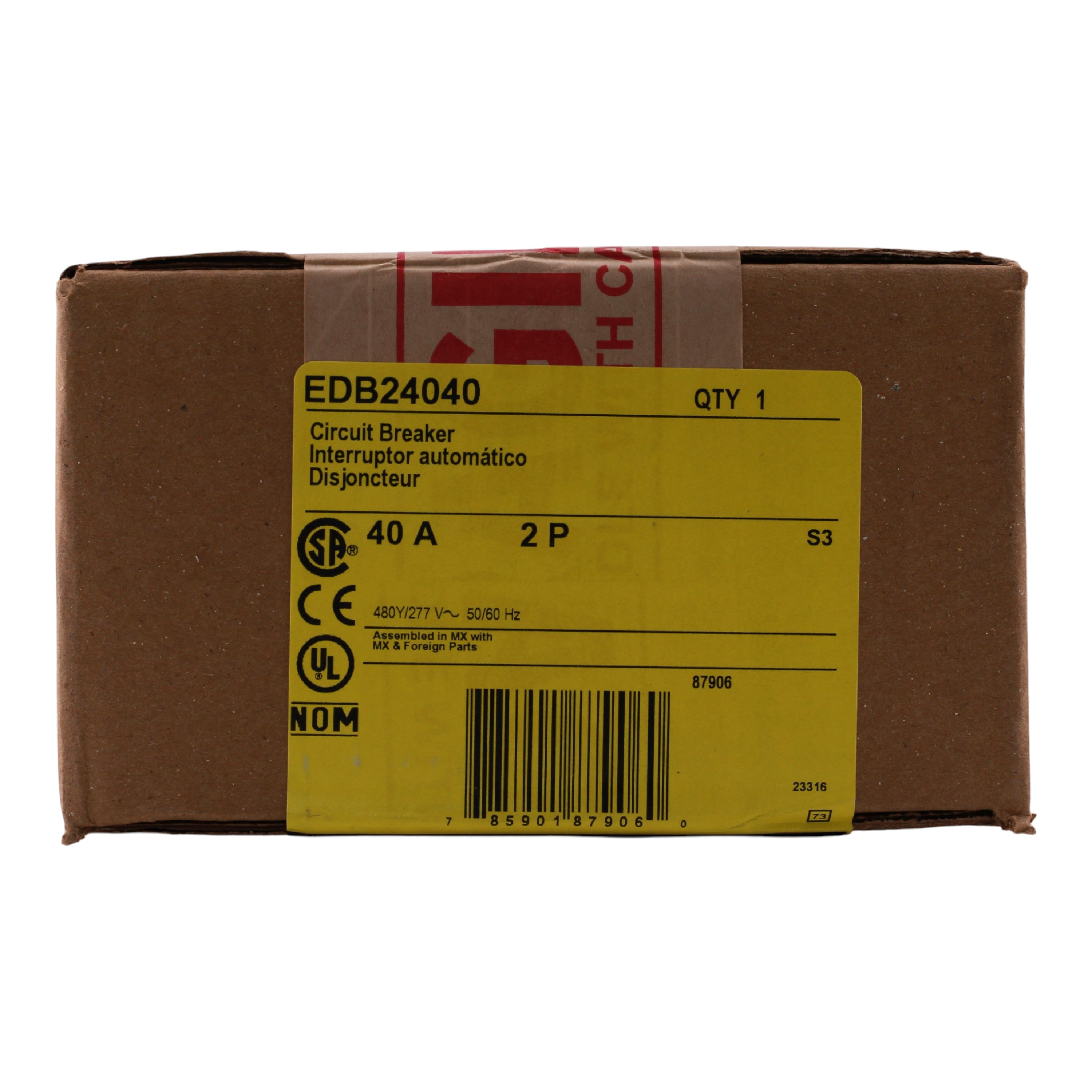

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 3

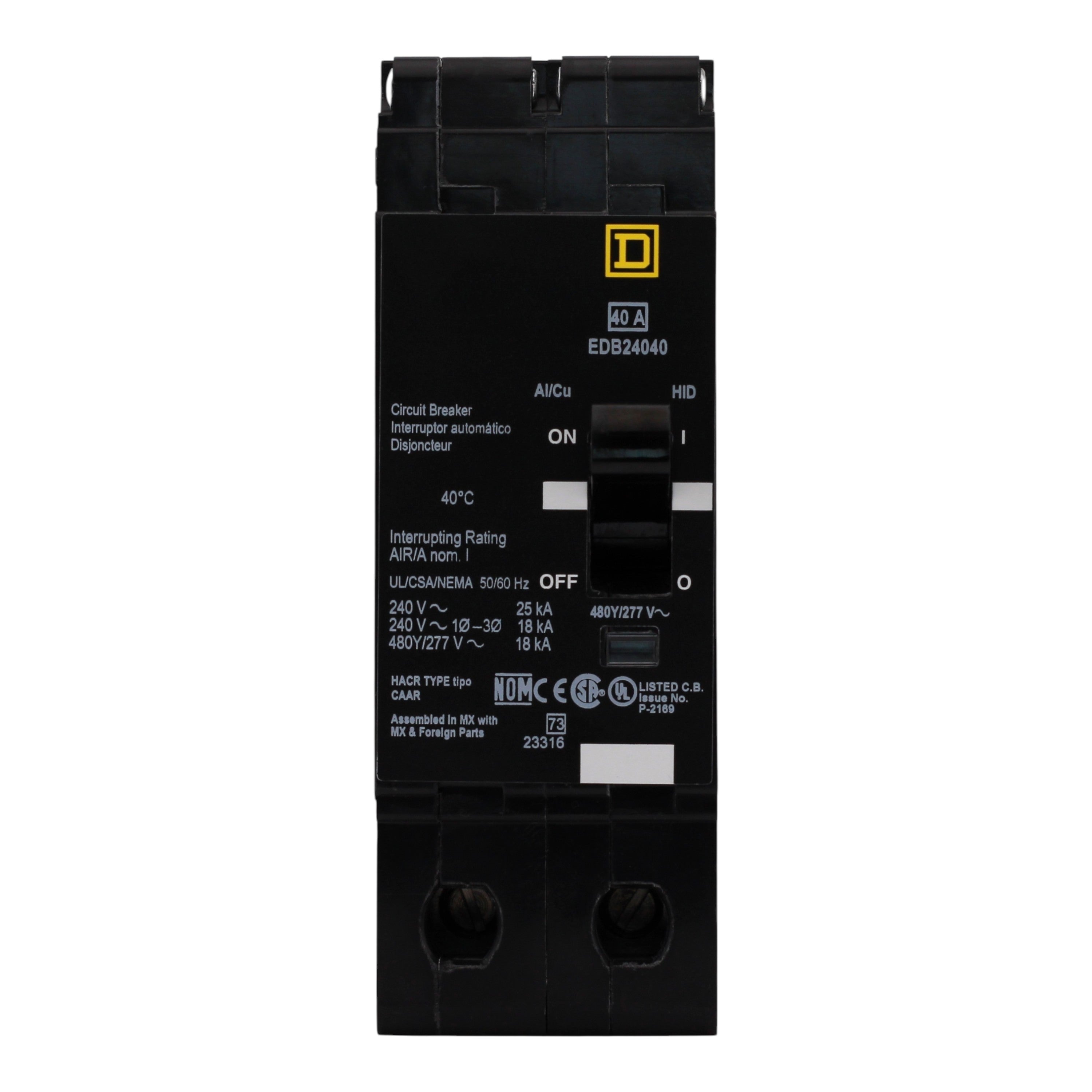

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 4
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 5

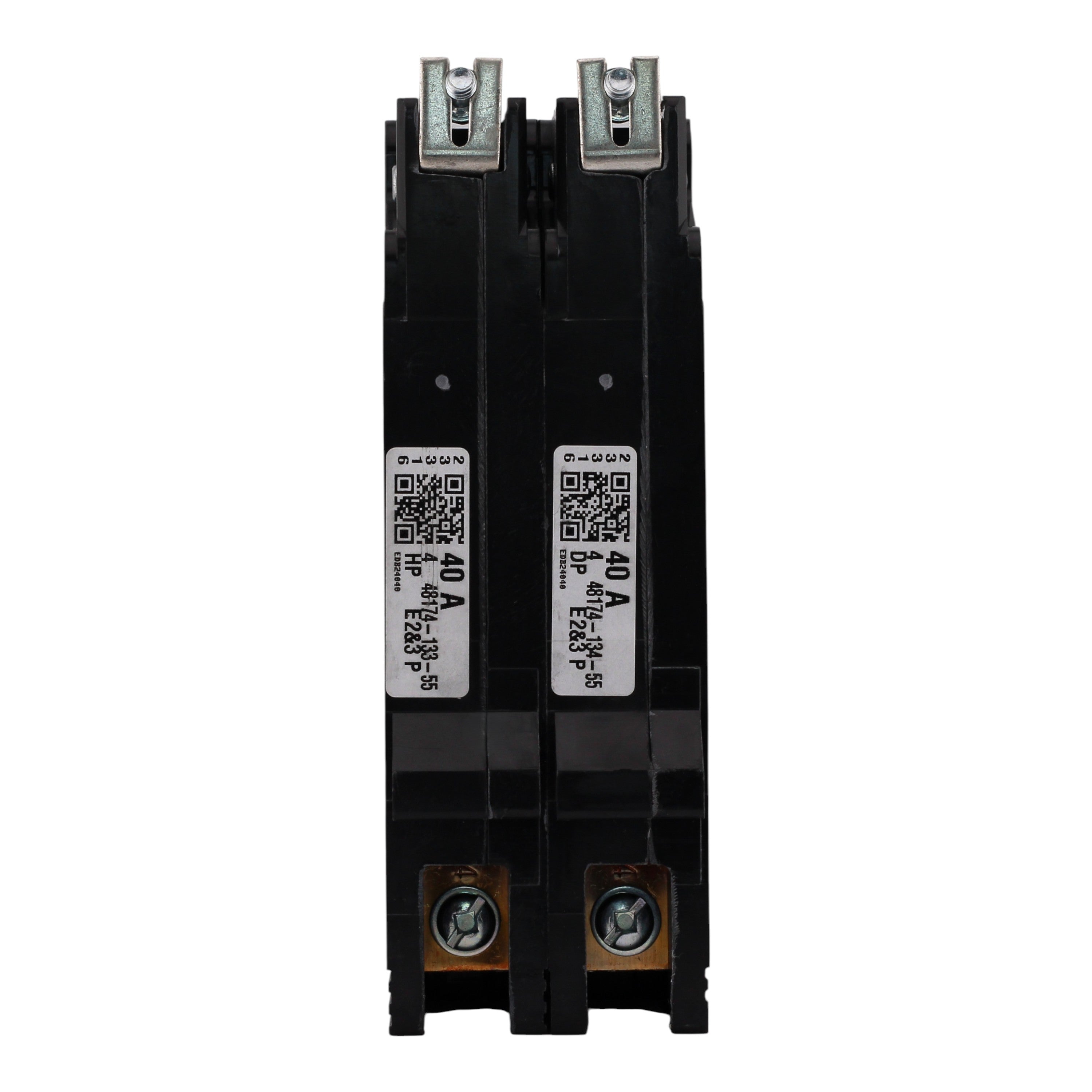

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 6

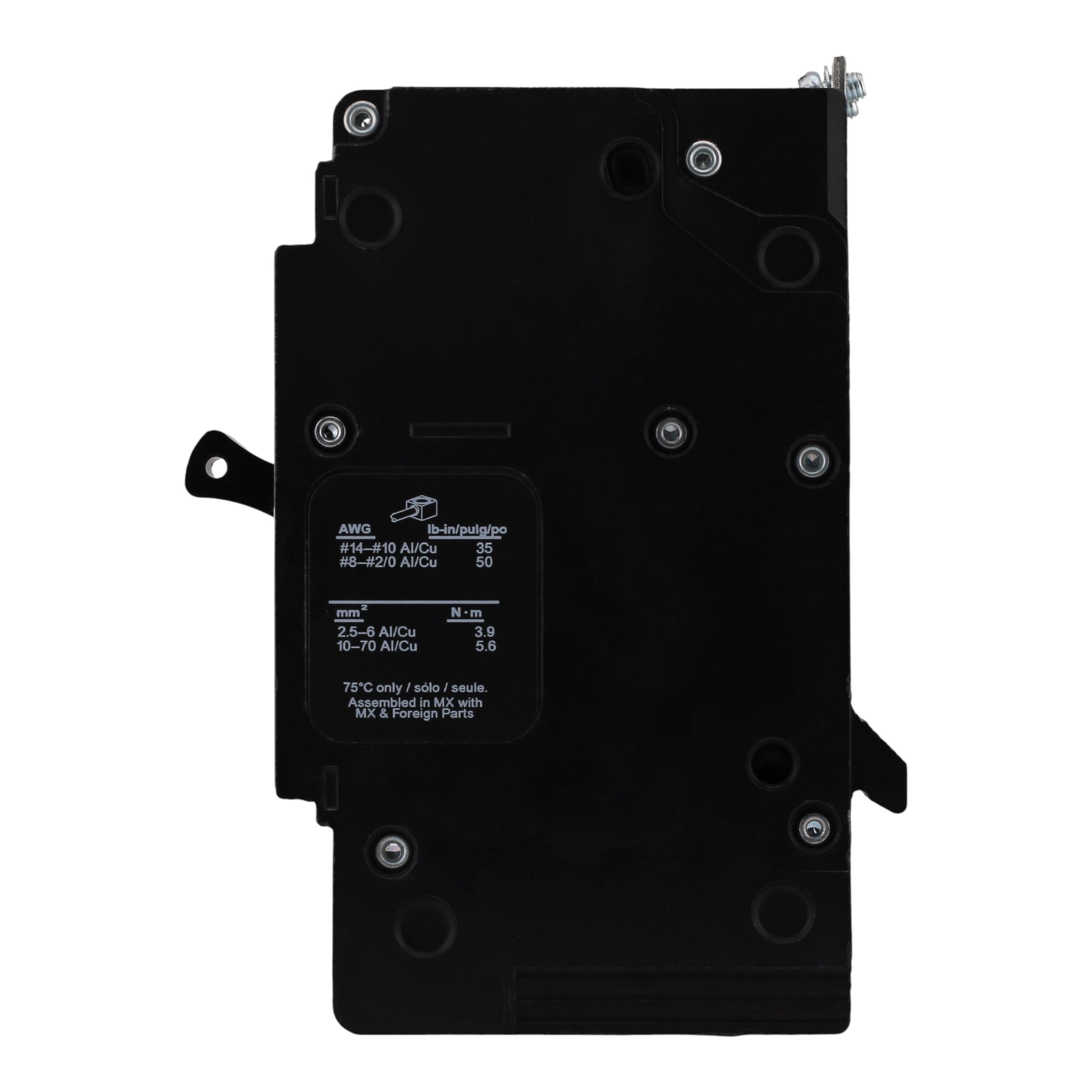

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 7
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 8

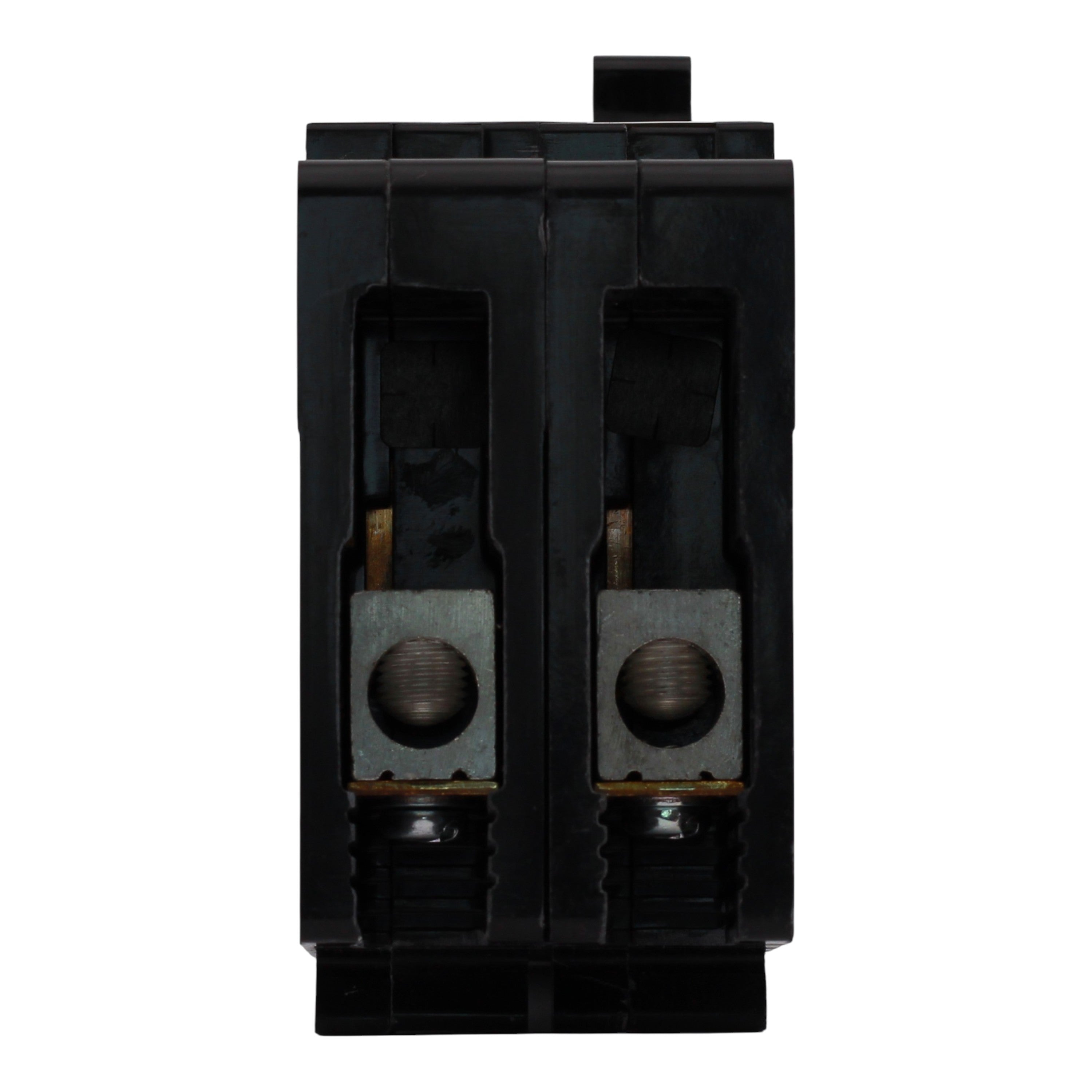

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 9
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 2
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 3
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 4

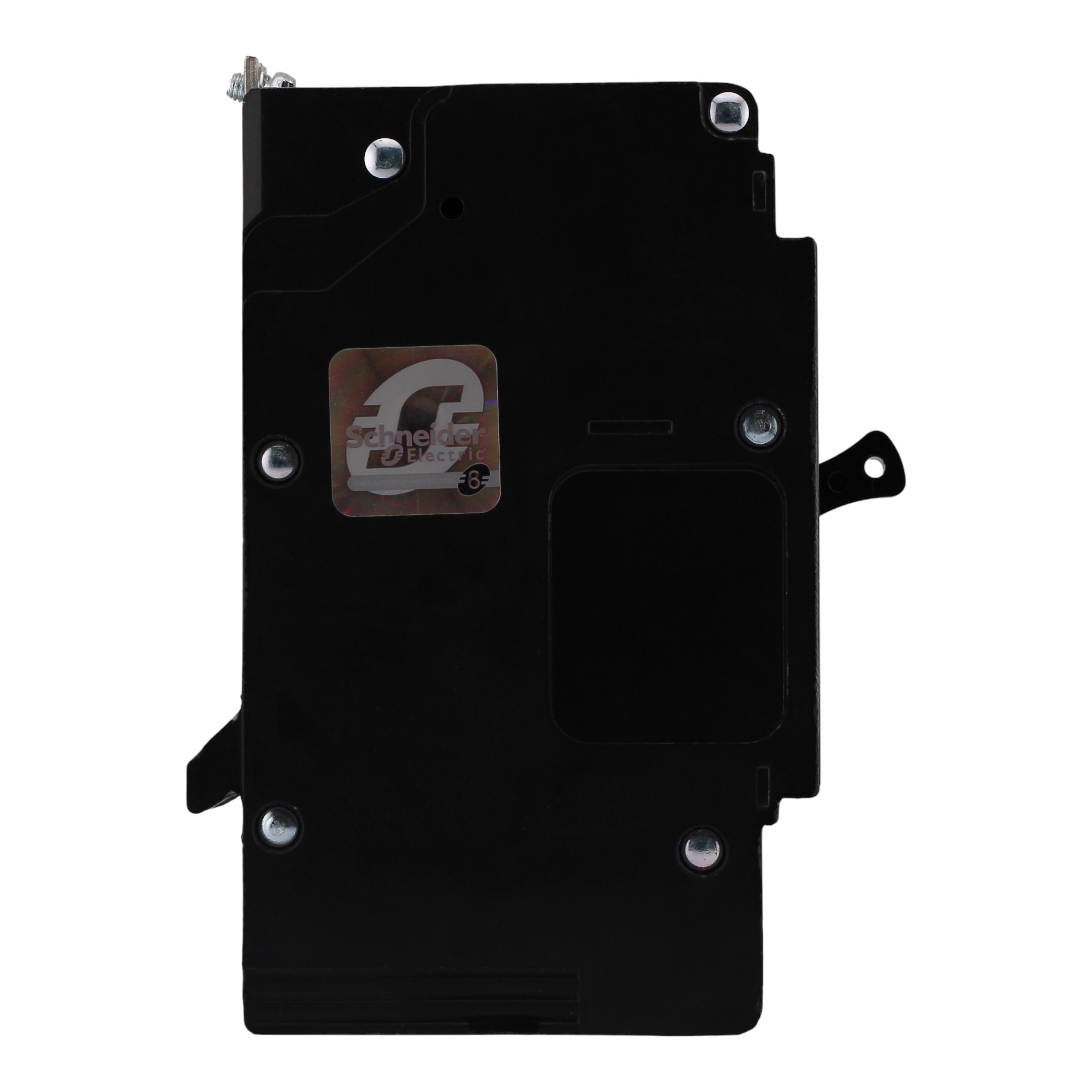

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 5
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 6
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 7

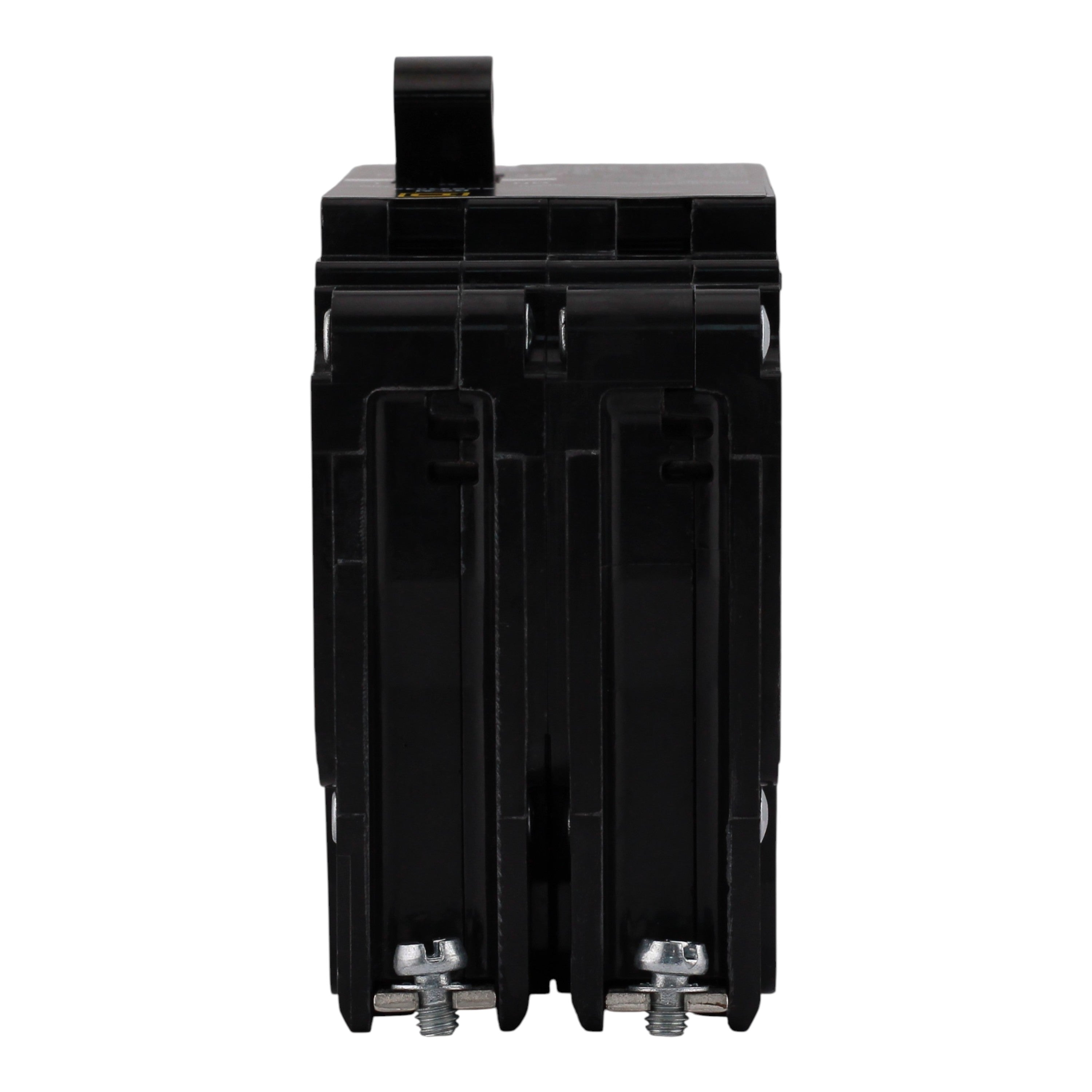

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 8
Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame EDB24040 40A 2P 480Y/277V 25kA Bolt-On Circuit Breaker

Out of stock
SKU: EDB24040 UPC: 78590187906
(0)
$108.00
-33% $160.00 $108.00
Out of stock
Condition

Square D EDB24040: 40 Amp 2-Pole Thermal-Magnetic Circuit Breaker, 480Y/277V AC, 25kA Interrupt Rating at 240V/480Y/277V, Bolt-On Mounting, Visi-Trip Indicator, UL Listed, HACR & HID Rated

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF and NQ panelboards)
  • UPC: 785901879060
  • Model Number: EDB24040
  • Breaker Type: Thermal-Magnetic
  • Amperage: 40 Amps
  • Poles: 2-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 25 kAIC at 240V AC, 18 kAIC at 480Y/277V AC
  • Mounting Mode: Bolt-on
  • Connections Terminals: Lugs (aluminum/copper)
  • Wire Size: AWG 14...AWG 2/0 Cu / AWG 12...AWG 2/0 Al
  • Tightening Torque: 34.5 lbf.in (AWG 14...AWG 10), 49.6 lbf.in (AWG 8...AWG 2/0)
  • Dimensions: Height: 5.66 in; Width: 1.96 in; Depth: 4.05 in
  • Weight: 3.0 lbs
  • Certifications: UL Listed, cULus, HACR Rated, HID Rated
  • Additional Features: Visi-Trip indicator, calibrated for 40°C ambient

This Square D EDB24040 E-Frame bolt-on circuit breaker delivers reliable 40A, 2-pole thermal-magnetic protection for 480Y/277V systems in NF and NQ lighting panelboards. With 25kA interrupt rating at 240V, Visi-Trip indicator for faster troubleshooting, and robust lugs accepting up to 2/0 AWG wire, it provides superior overload and short-circuit performance for commercial and industrial applications. TAA compliant and HACR/HID rated for versatile use.
