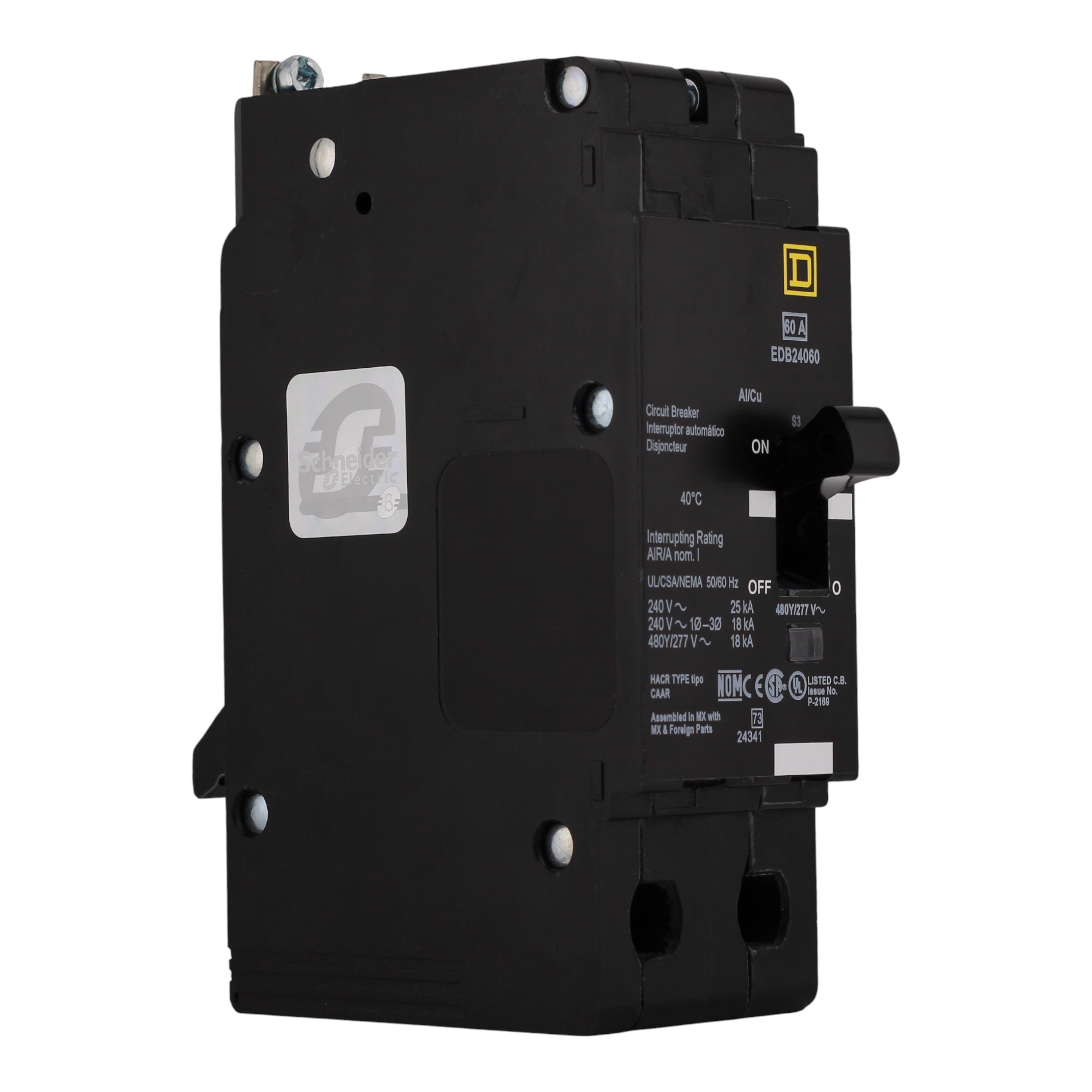

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker

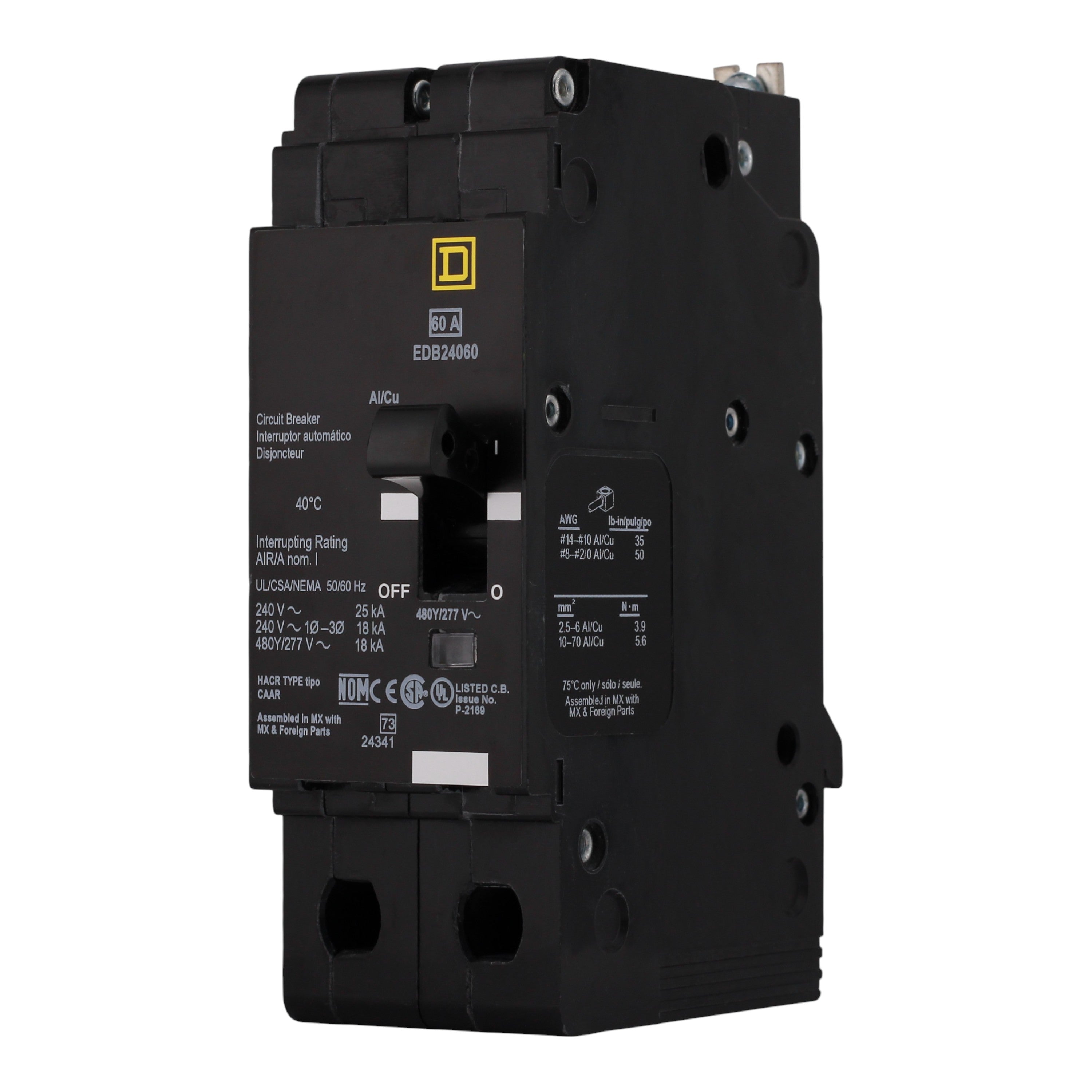

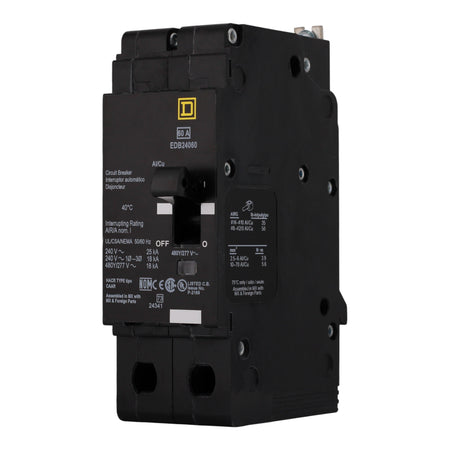

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 2

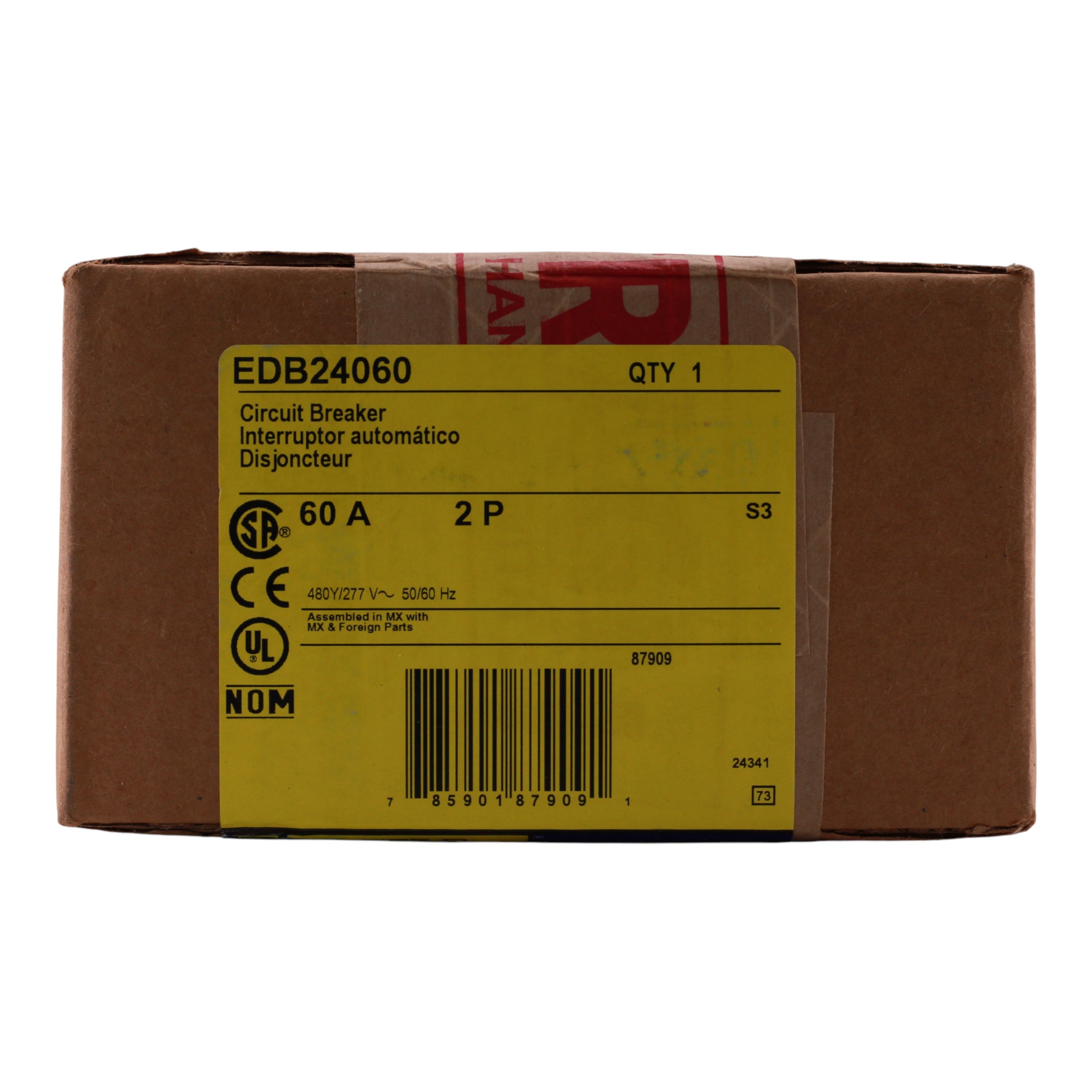

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 3

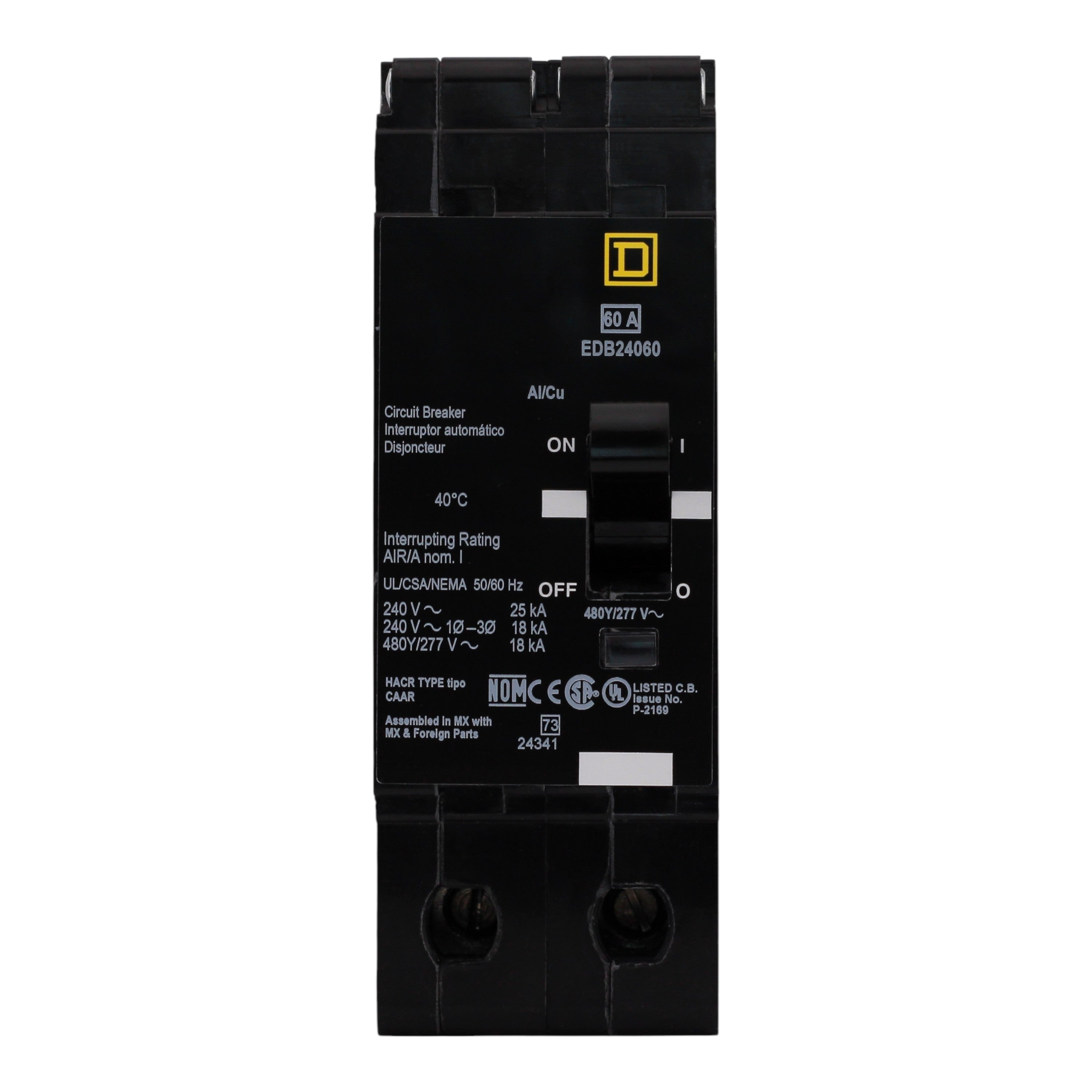

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 4

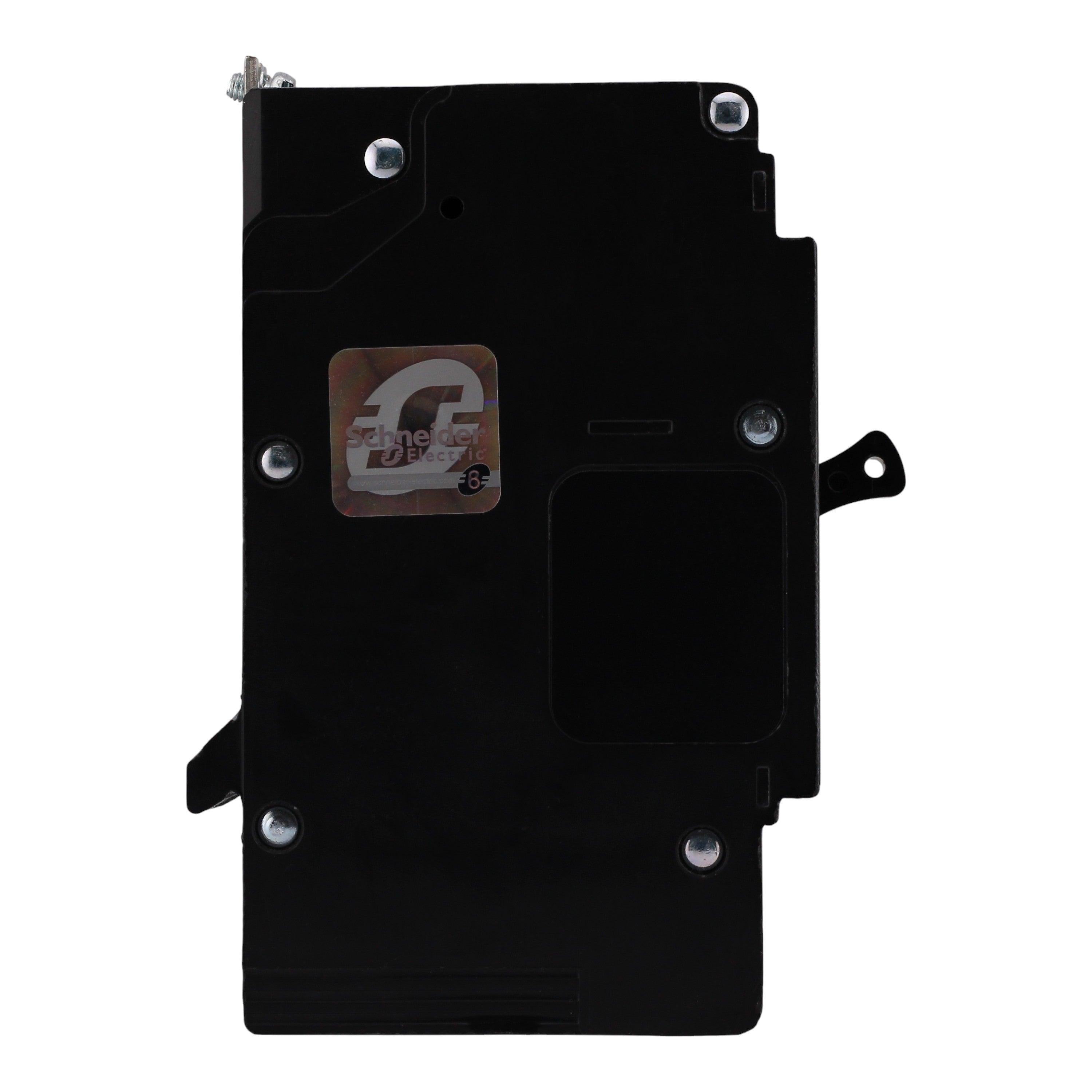

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 5
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 6

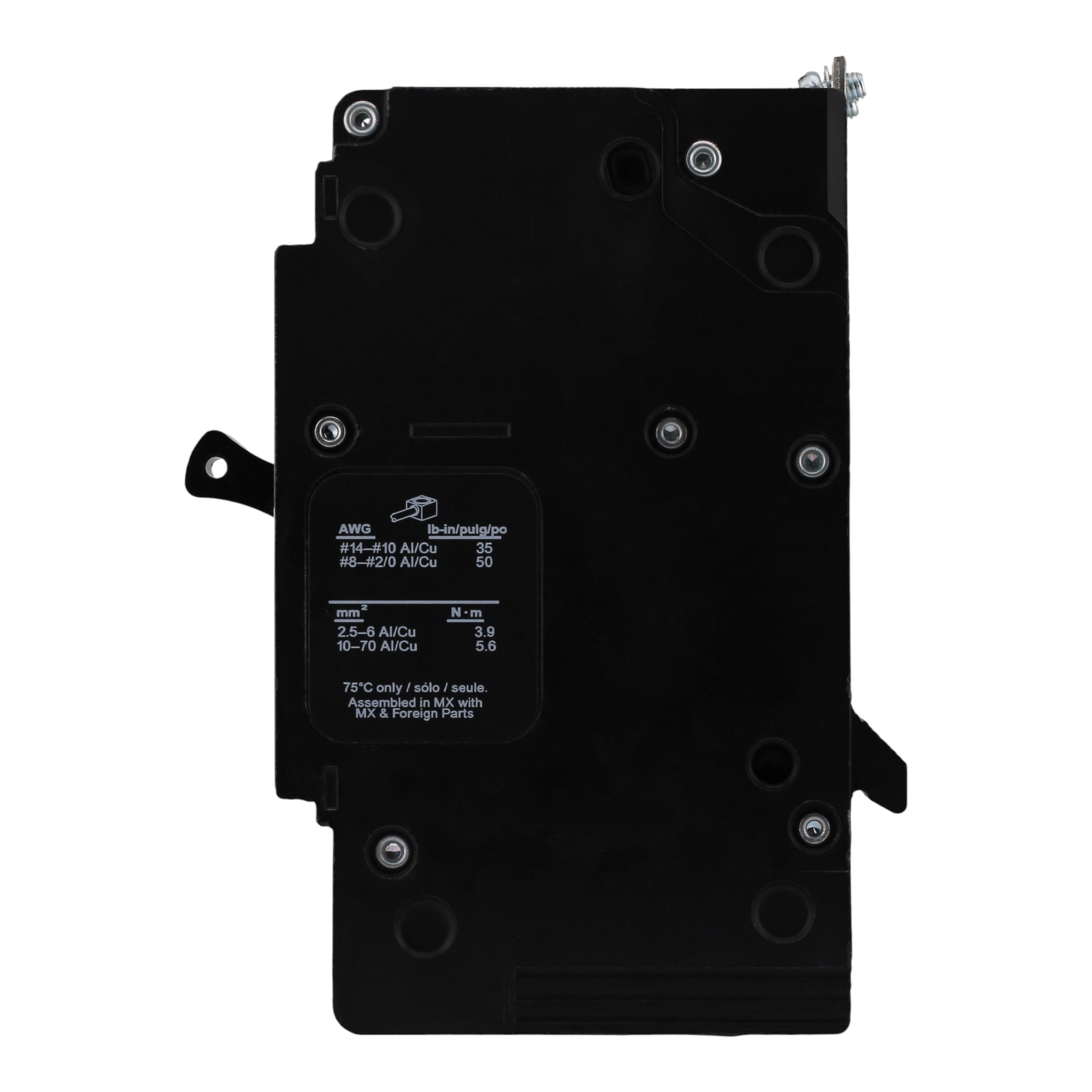

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 7
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 8

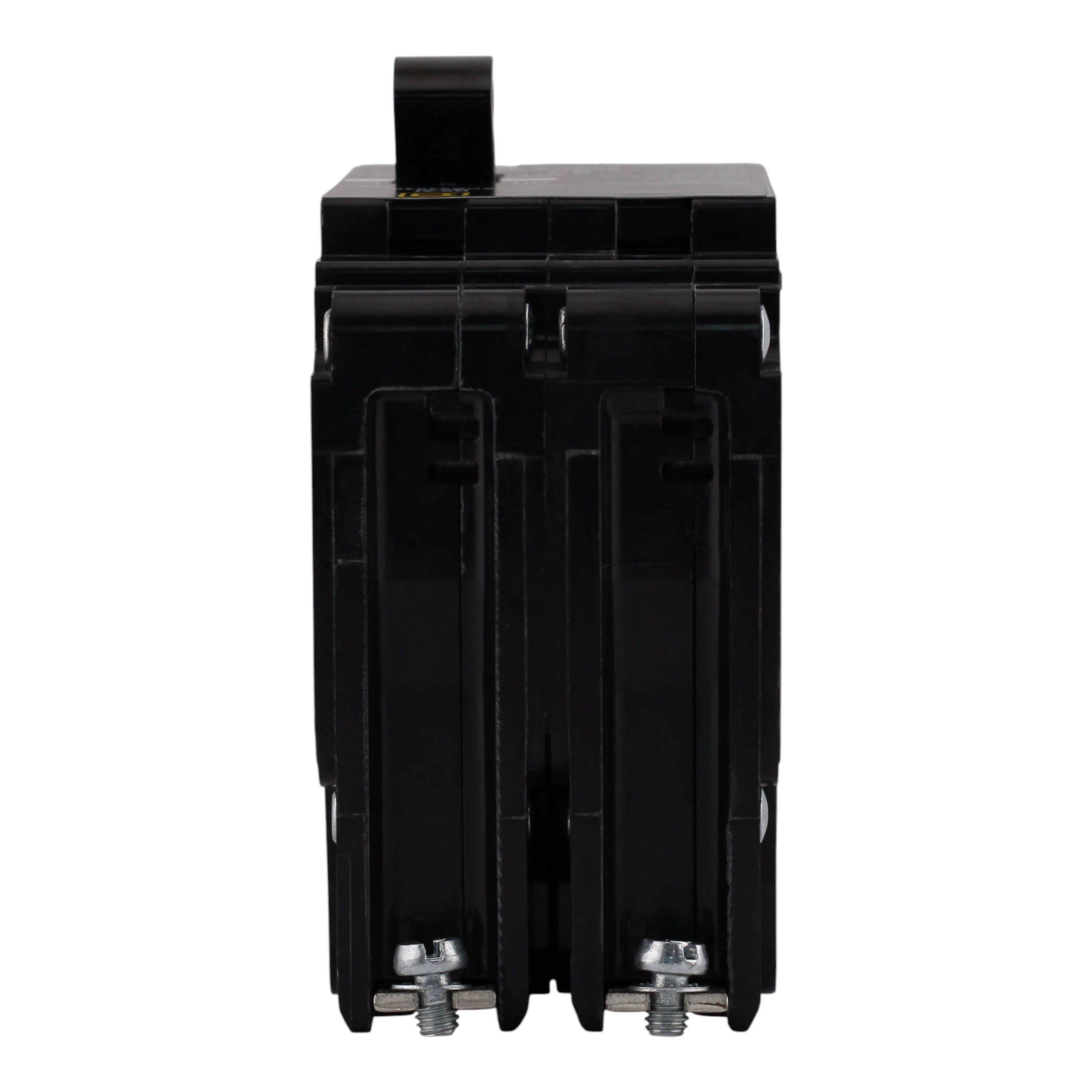

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 9
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 2
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 3

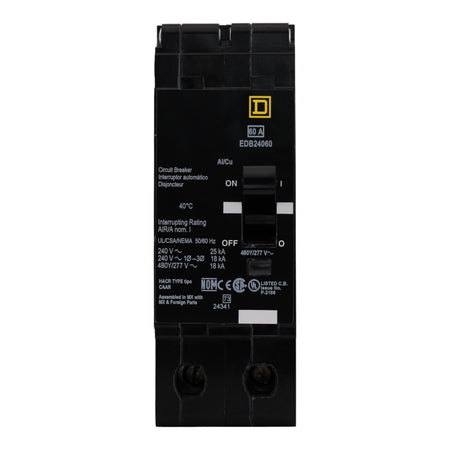

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 4
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 5

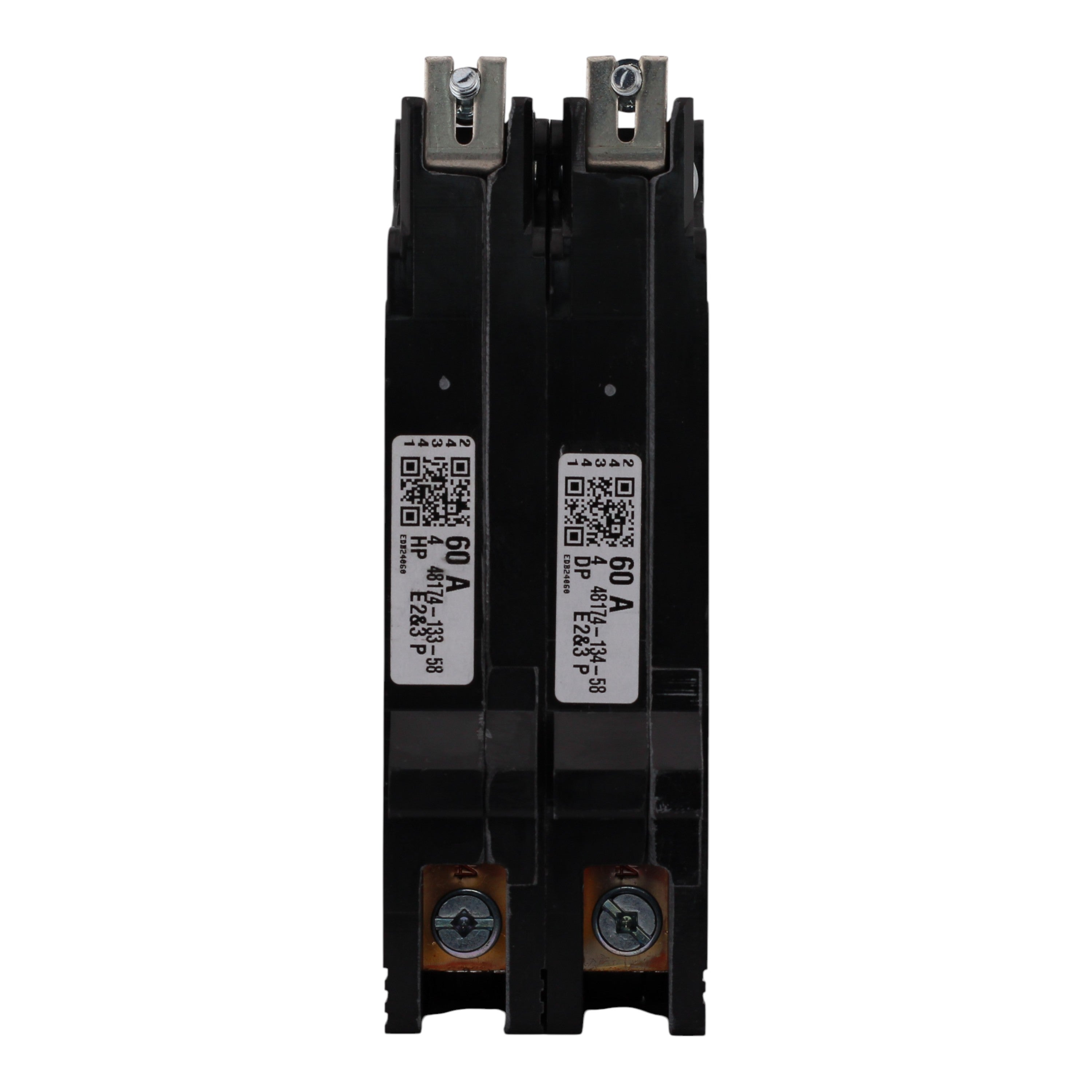

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 6
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 7

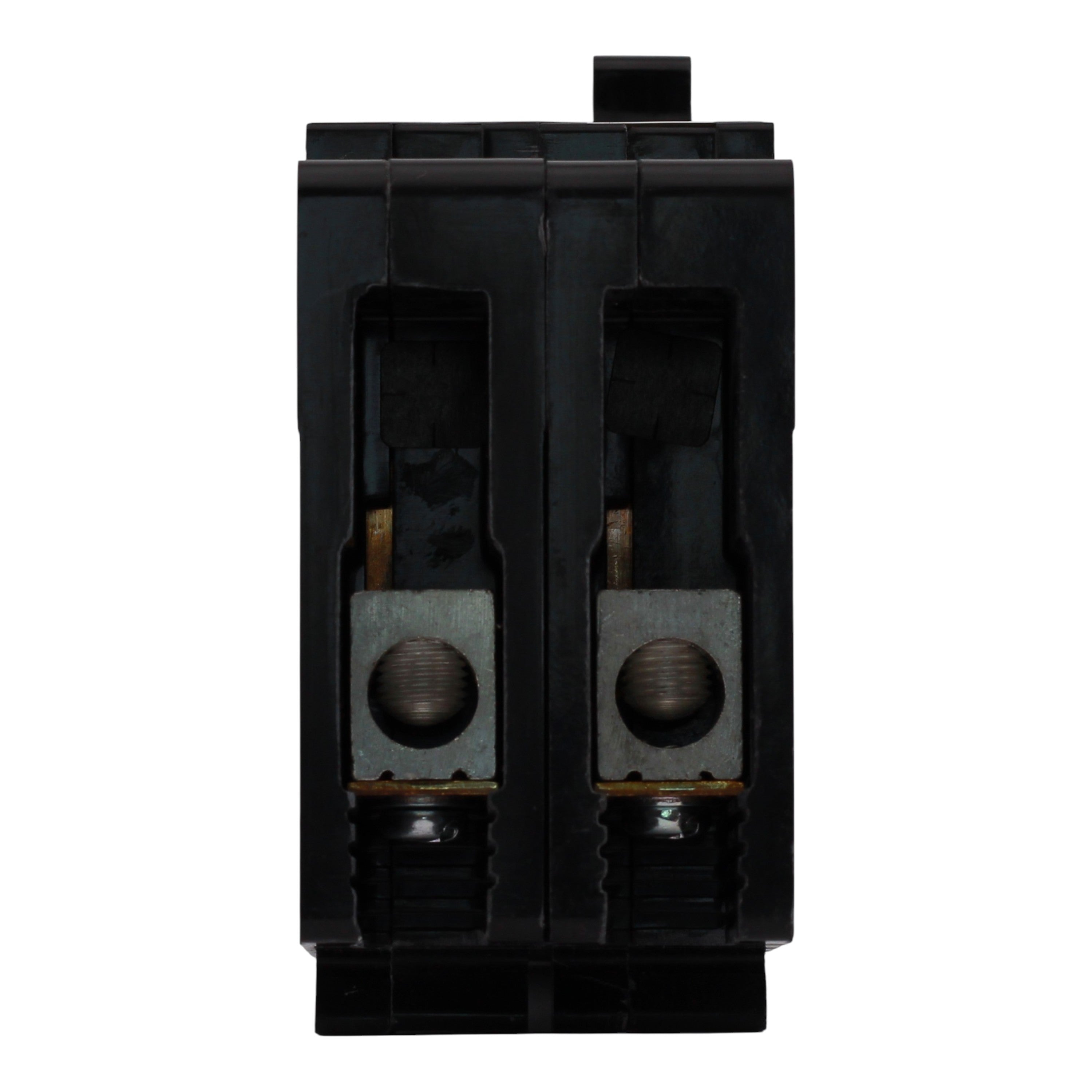

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 8
Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker

Out of stock
SKU: EDB24060 UPC: 78590187909
(0)
$119.00
Out of stock
Condition

Square D EDB24060: 60 Amp 2-Pole Thermal-Magnetic Circuit Breaker, 480Y/277 VAC, 25kA at 240V/18kA at 480Y/277V Interrupt Rating, Bolt-On, Visi-Trip Indicator, HACR Rated, UL Listed

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF and NFM panelboards)
  • UPC: 785901879091
  • Model Number: EDB24060
  • Breaker Type: Thermal-Magnetic
  • Amperage: 60 Amps
  • Poles: 2-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 25 kA at 240 VAC, 18 kA at 480Y/277 VAC
  • Mounting Mode: Bolt-on
  • Connections Terminals: Lugs (aluminum/copper)
  • Wire Size: AWG 14...AWG 2/0 Cu / AWG 12...AWG 2/0 Al
  • Tightening Torque: 34.5 lbf.in (AWG 14-10), 49.6 lbf.in (AWG 8-2/0)
  • Dimensions: Height: 5.66 in; Width: 3.92 in; Depth: 4.05 in
  • Weight: 4.0 lbs
  • Certifications: UL Listed, cULus, HACR Rated
  • Additional Features: Visi-Trip indicator, calibrated for 40°C ambient

This Square D EDB24060 60A 2-pole thermal-magnetic bolt-on circuit breaker delivers reliable overload and short-circuit protection in Square D NF panelboards at 480Y/277 VAC systems. Featuring a 25kA interrupt rating at 240V (18kA at 480Y/277V), Visi-Trip indication for faster troubleshooting, and bolt-on mounting, it is ideal for commercial lighting panelboard applications requiring HACR-rated performance and robust 60 Amp protection.
