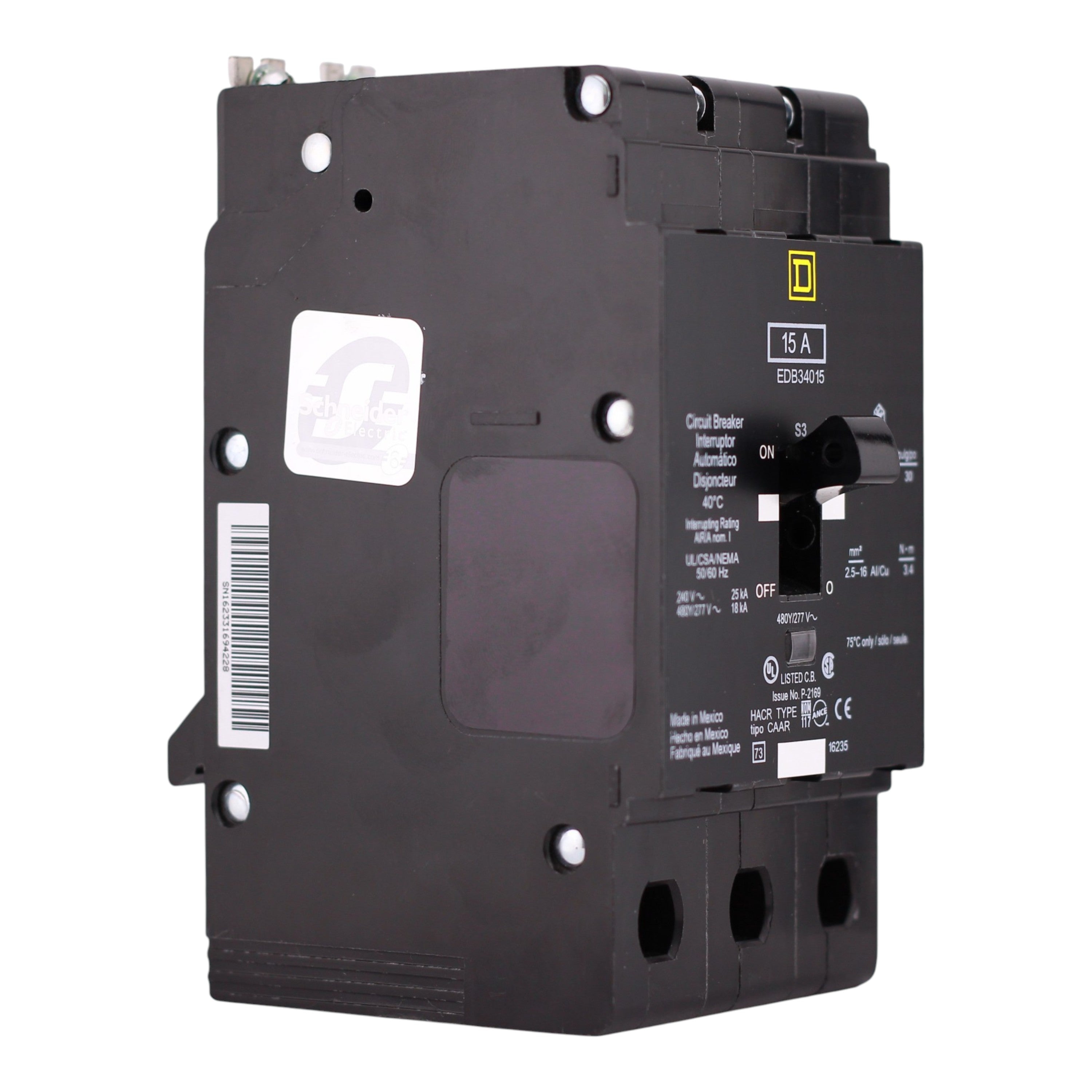

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker

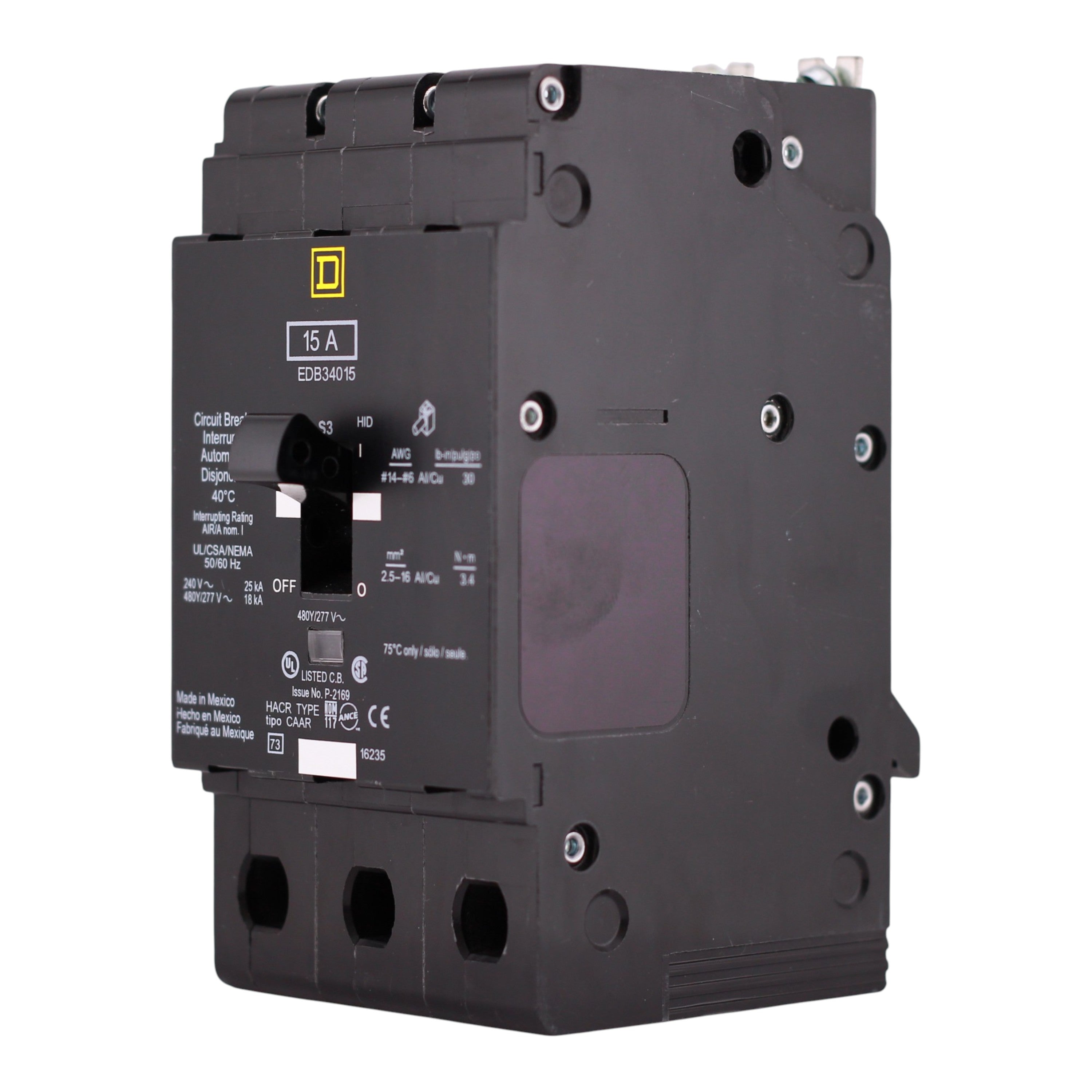

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 2

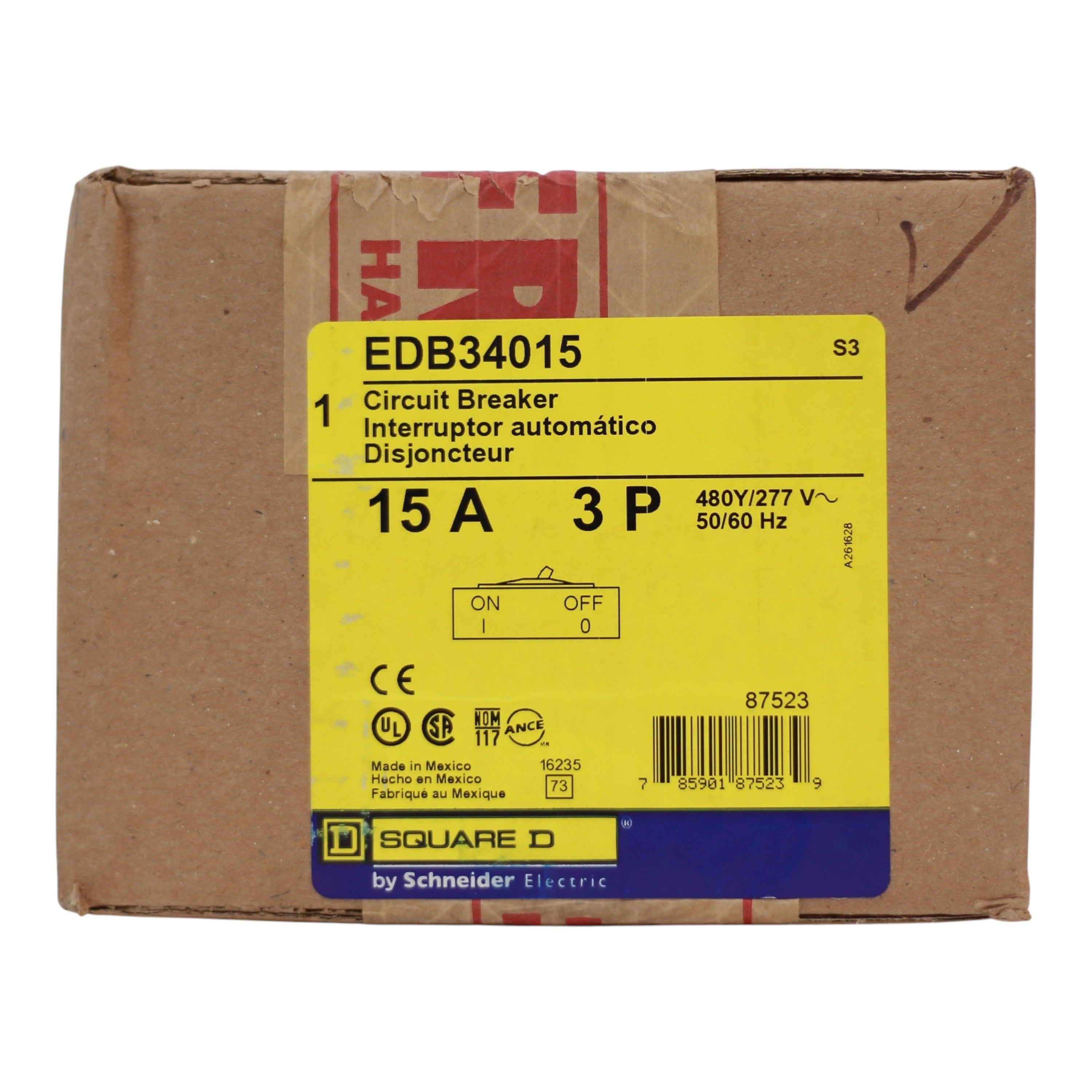

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 3

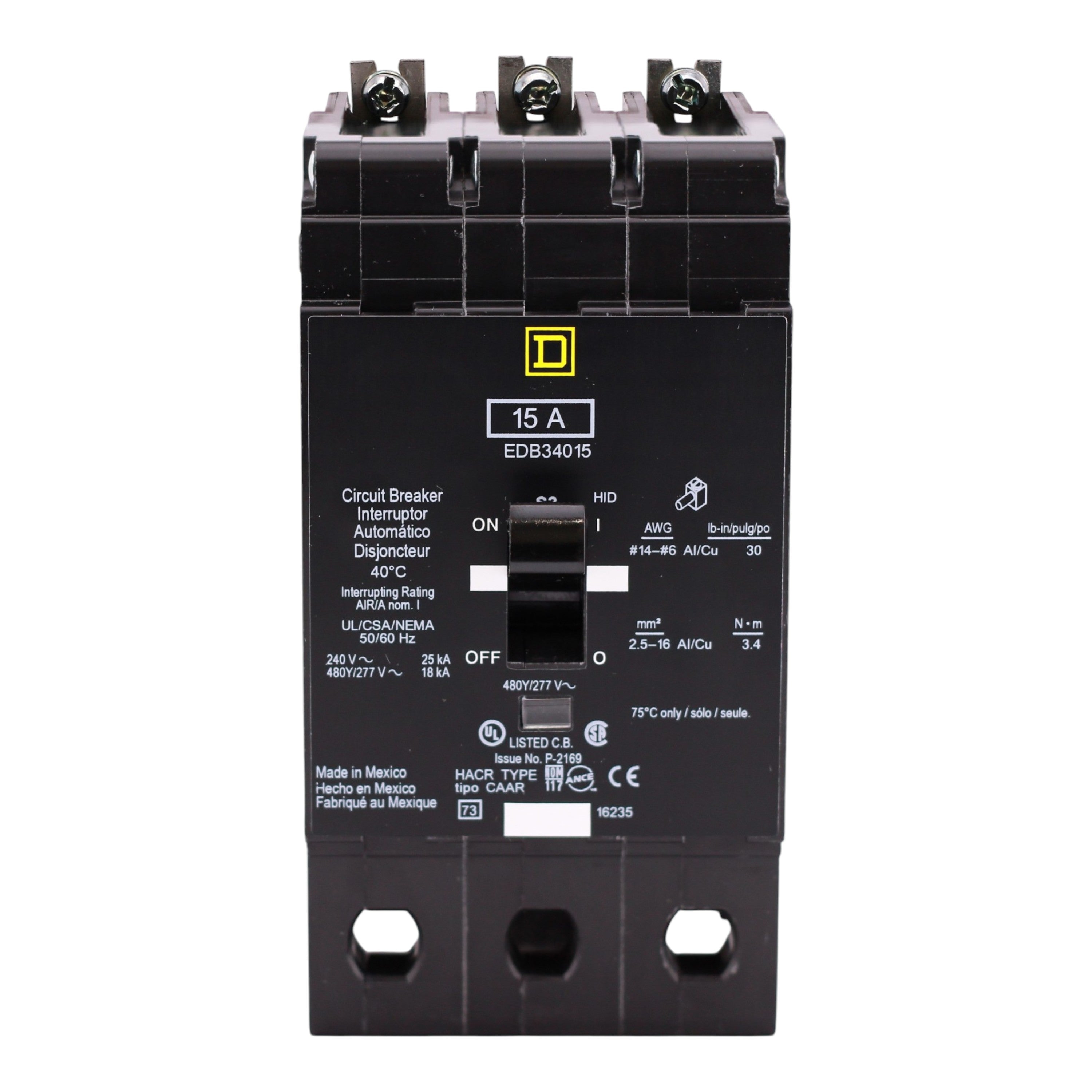

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 4

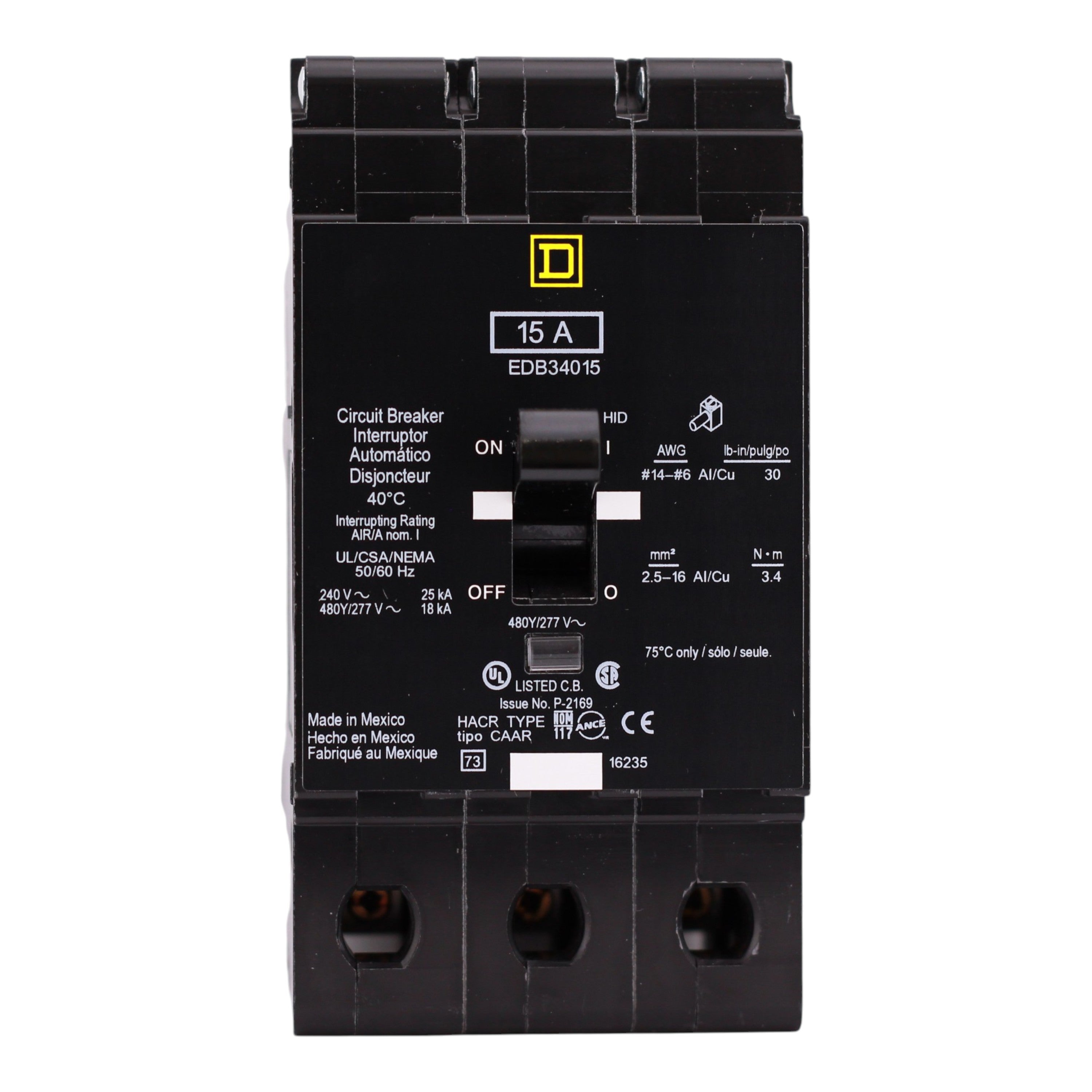

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 5

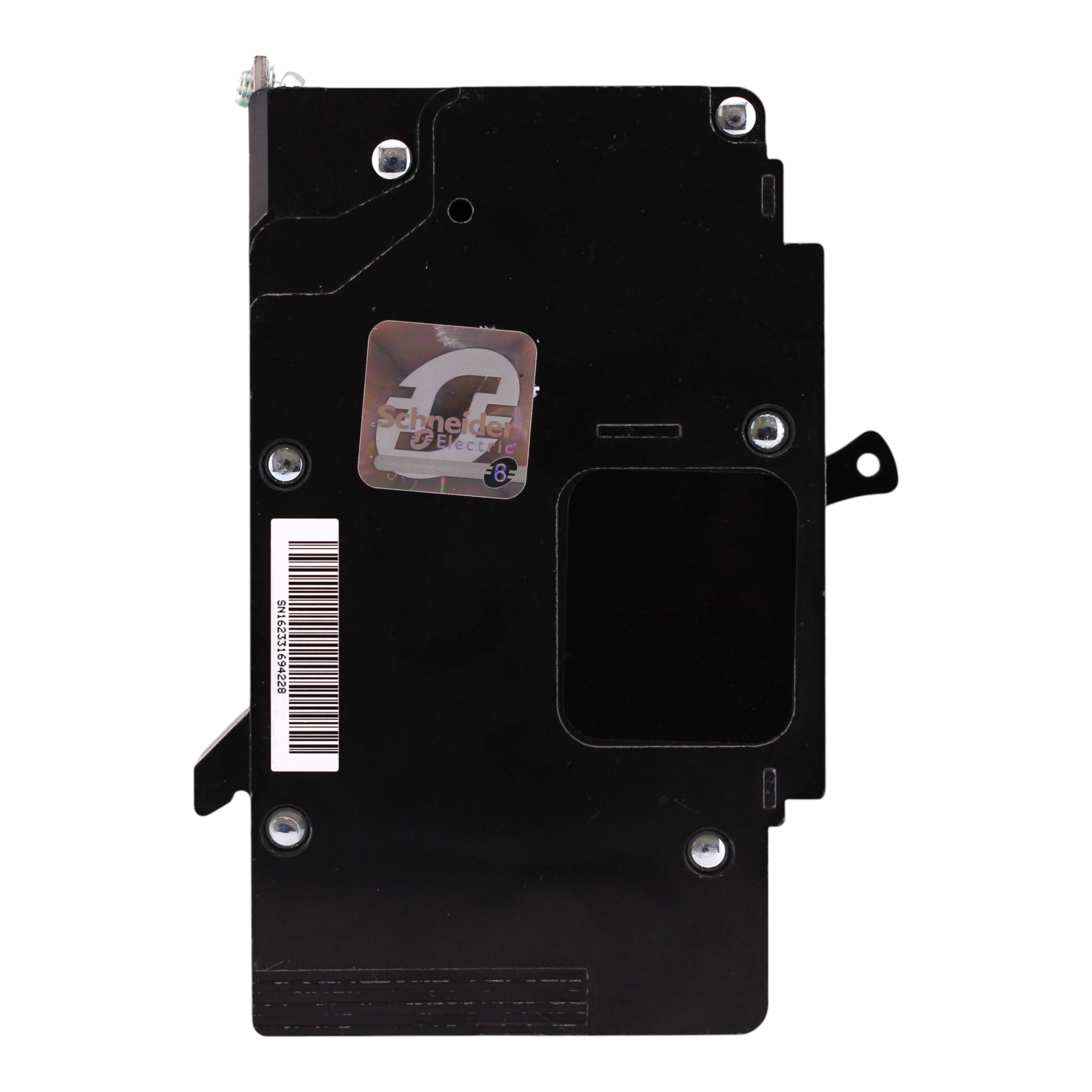

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 6

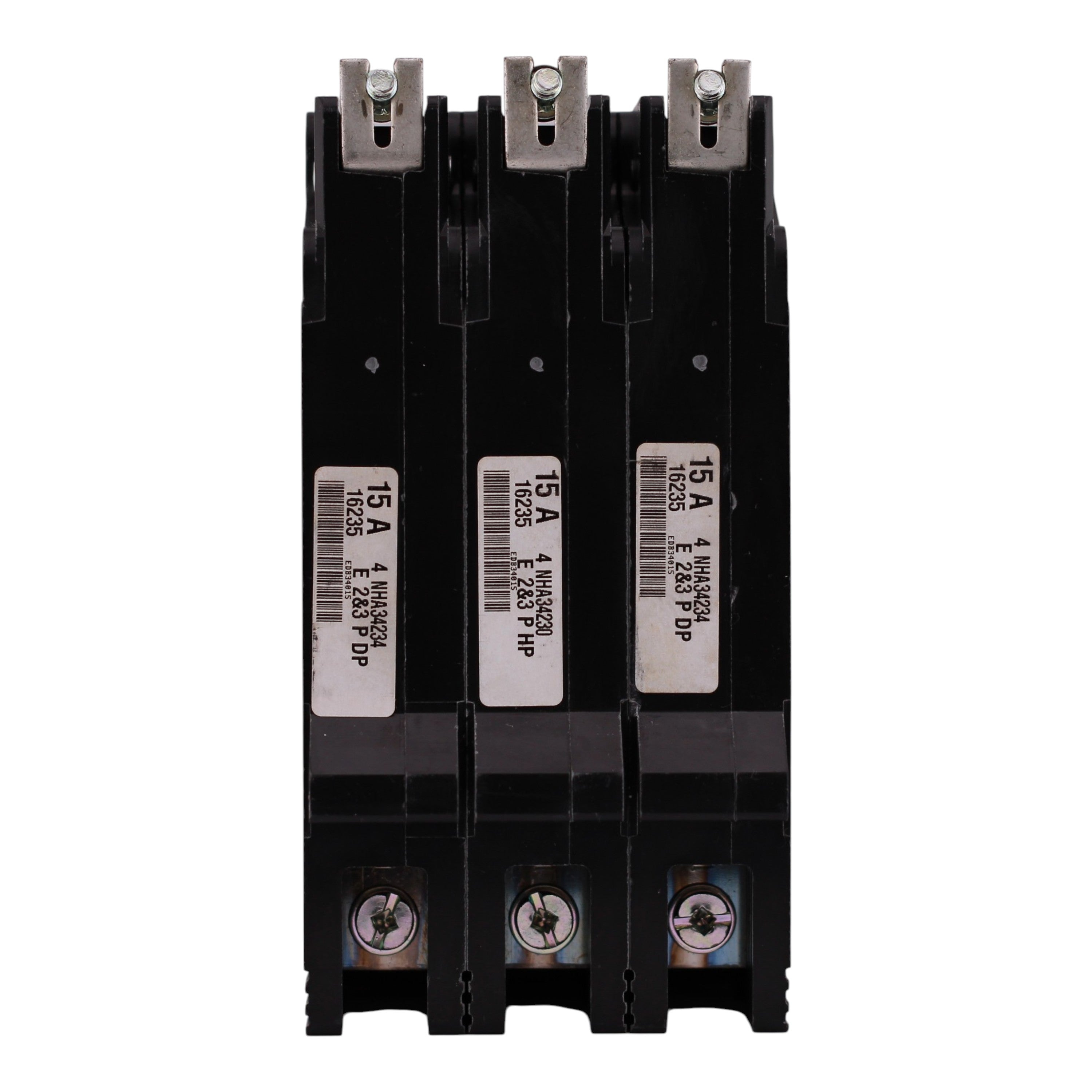

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 7

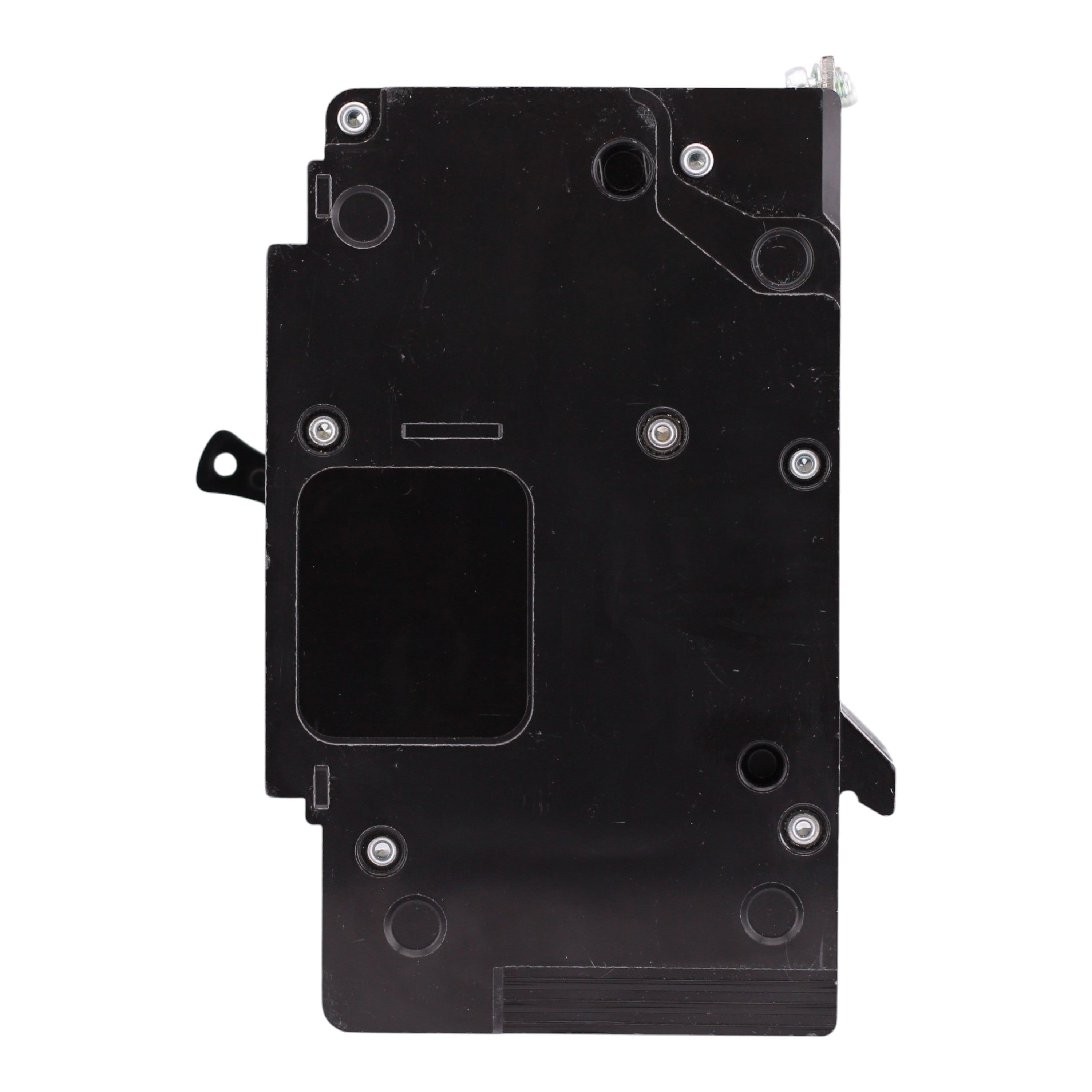

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 8

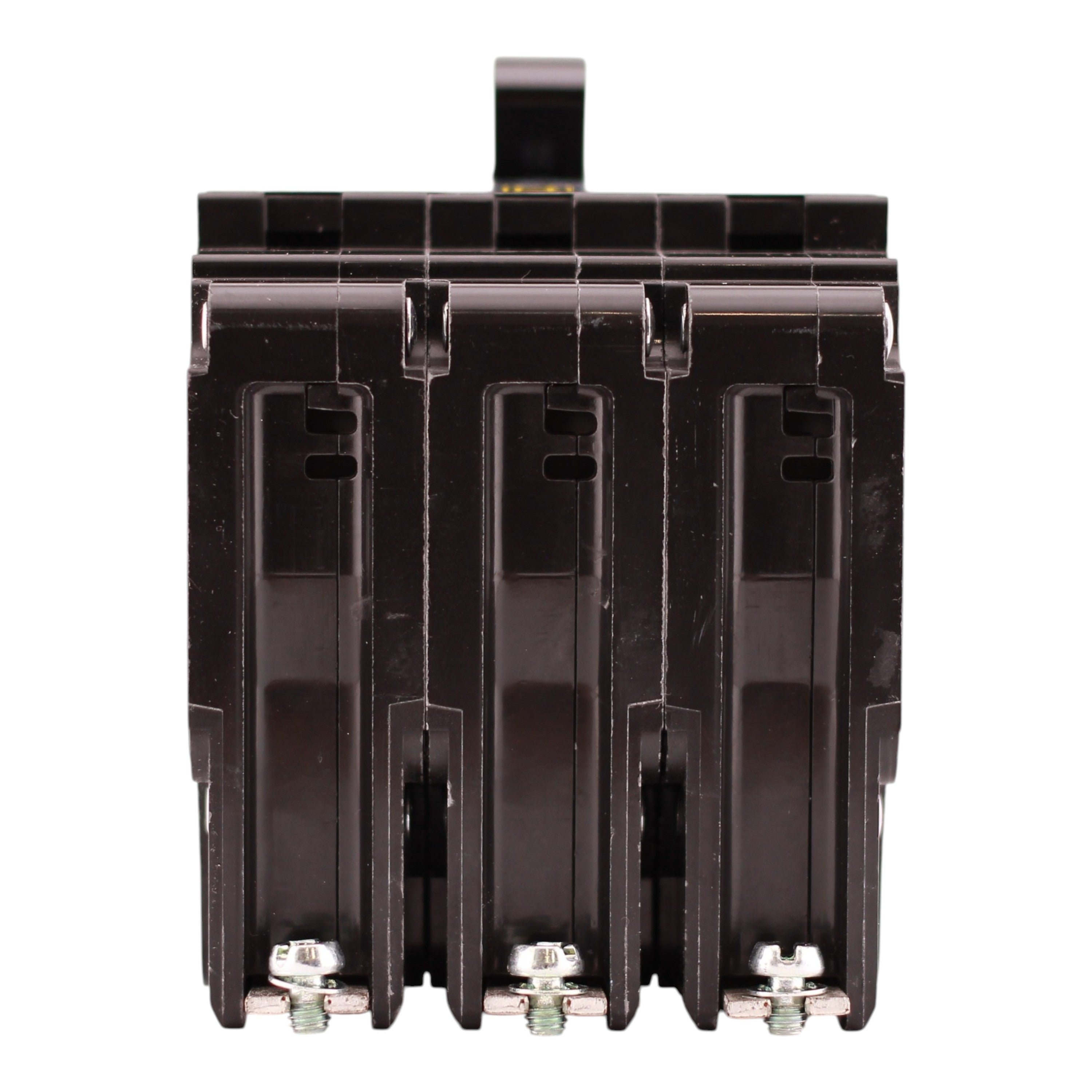

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 9

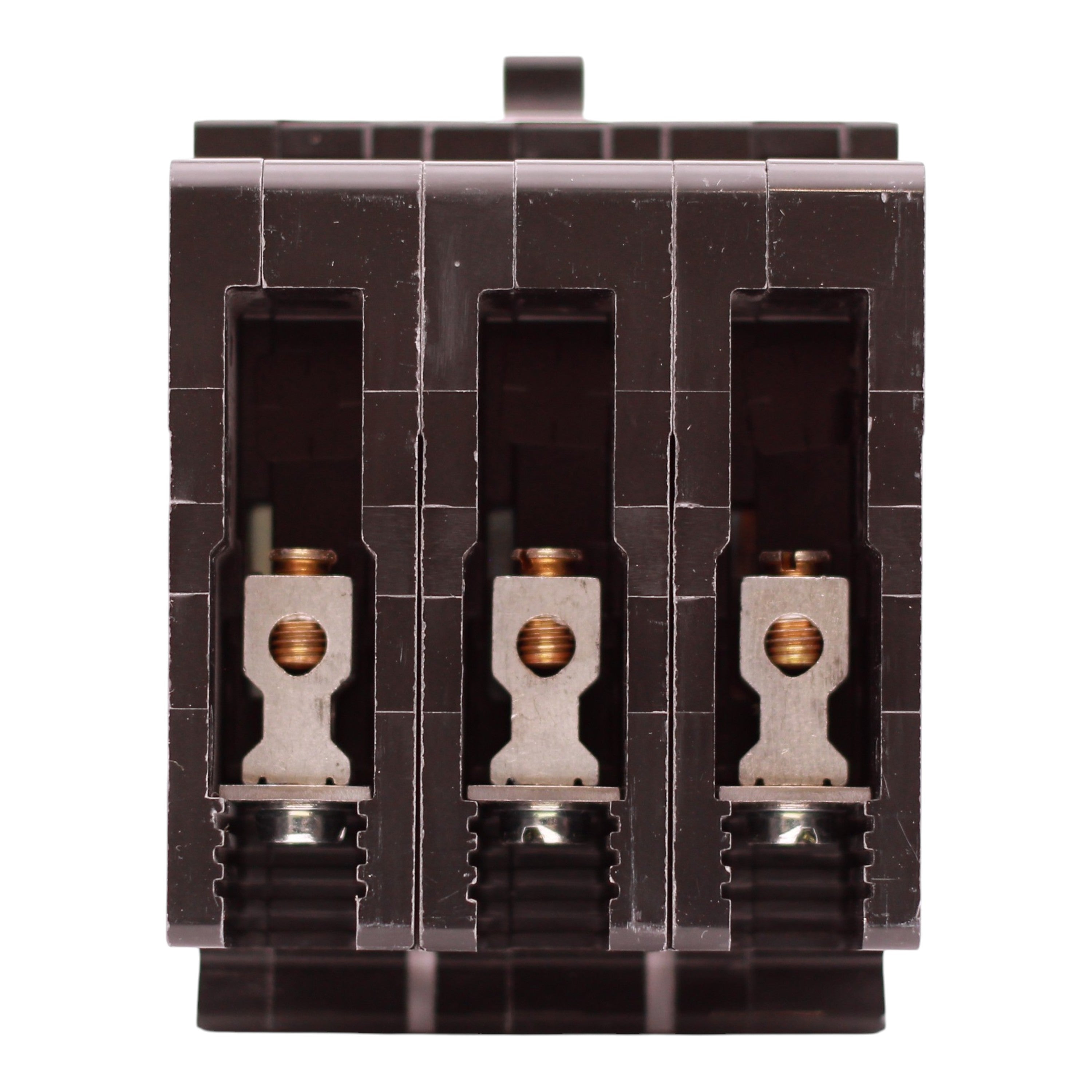

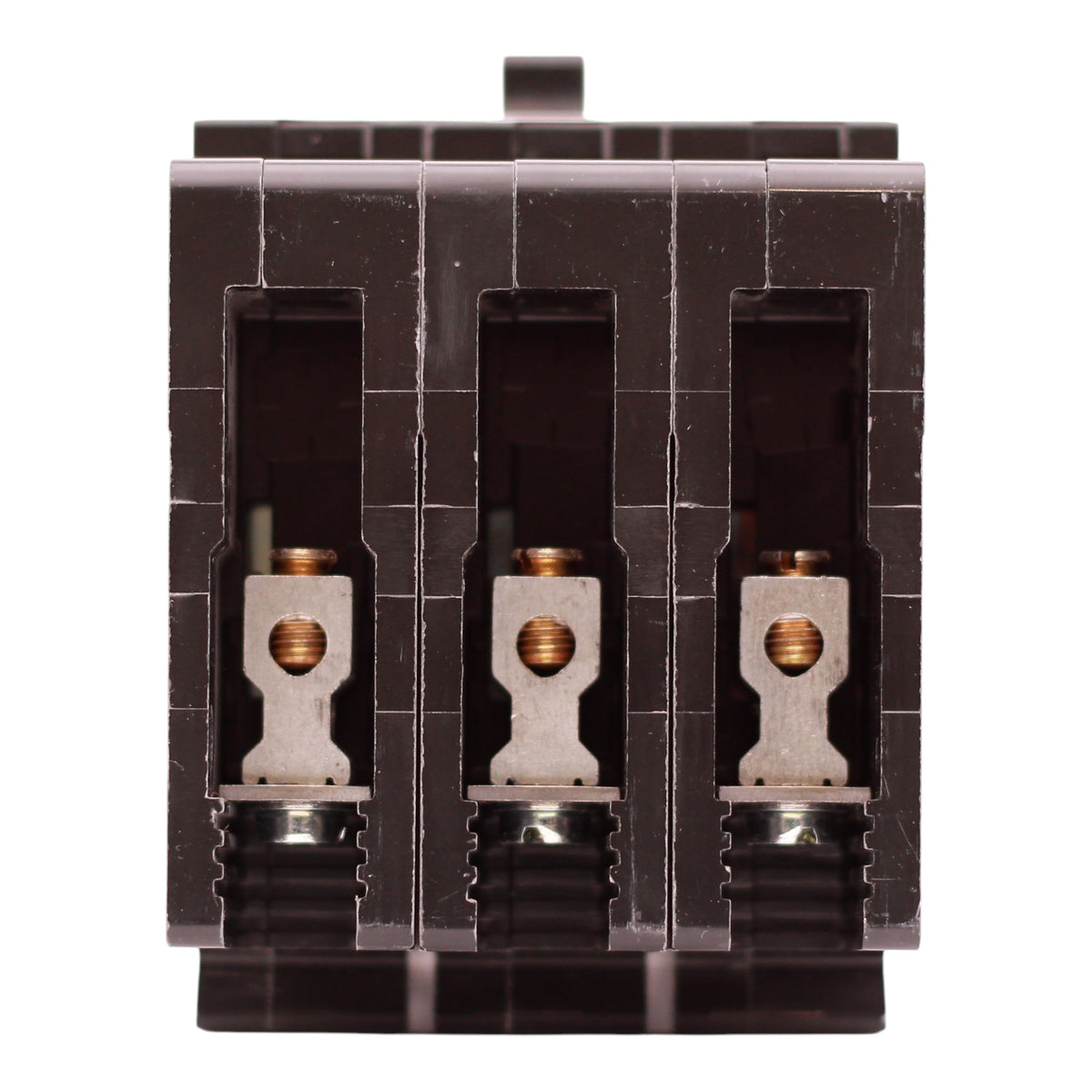

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame EDB34015 15A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker

Out of stock
SKU: EDB34015 UPC: 78590187523
(0)
$169.00
Out of stock
Condition

Square D EDB34015: 15 Amp 3-Pole Thermal-Magnetic circuit breaker, 480Y/277V AC, 18kA at 480Y/277V (25kA max), bolt-on mount, Visi-Trip indicator, UL listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF panelboards and lighting panels)
  • UPC: 785901875239
  • Model Number: EDB34015
  • Breaker Type: Thermal-Magnetic
  • Amperage: 15 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 18 kAIC at 480Y/277V AC (25 kAIC max)
  • Mounting Mode: Bolt-on
  • Connections Terminals: Lugs (aluminum)
  • Wire Size: AWG 14-6 Cu / AWG 12-6 Al
  • Tightening Torque: 30.09 lb-in
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4.0 lbs
  • Certifications: UL Listed, cULus, HACR Rated, HID Rated

This Square D E-Frame EDB34015 thermal-magnetic bolt-on circuit breaker delivers reliable 15A, 3-pole overload and short circuit protection for 480Y/277V circuits in NF panelboards and lighting panels. Featuring Visi-Trip indicator for faster troubleshooting and robust interruption up to 25kA max, it provides enhanced safety and performance for commercial and industrial applications.
