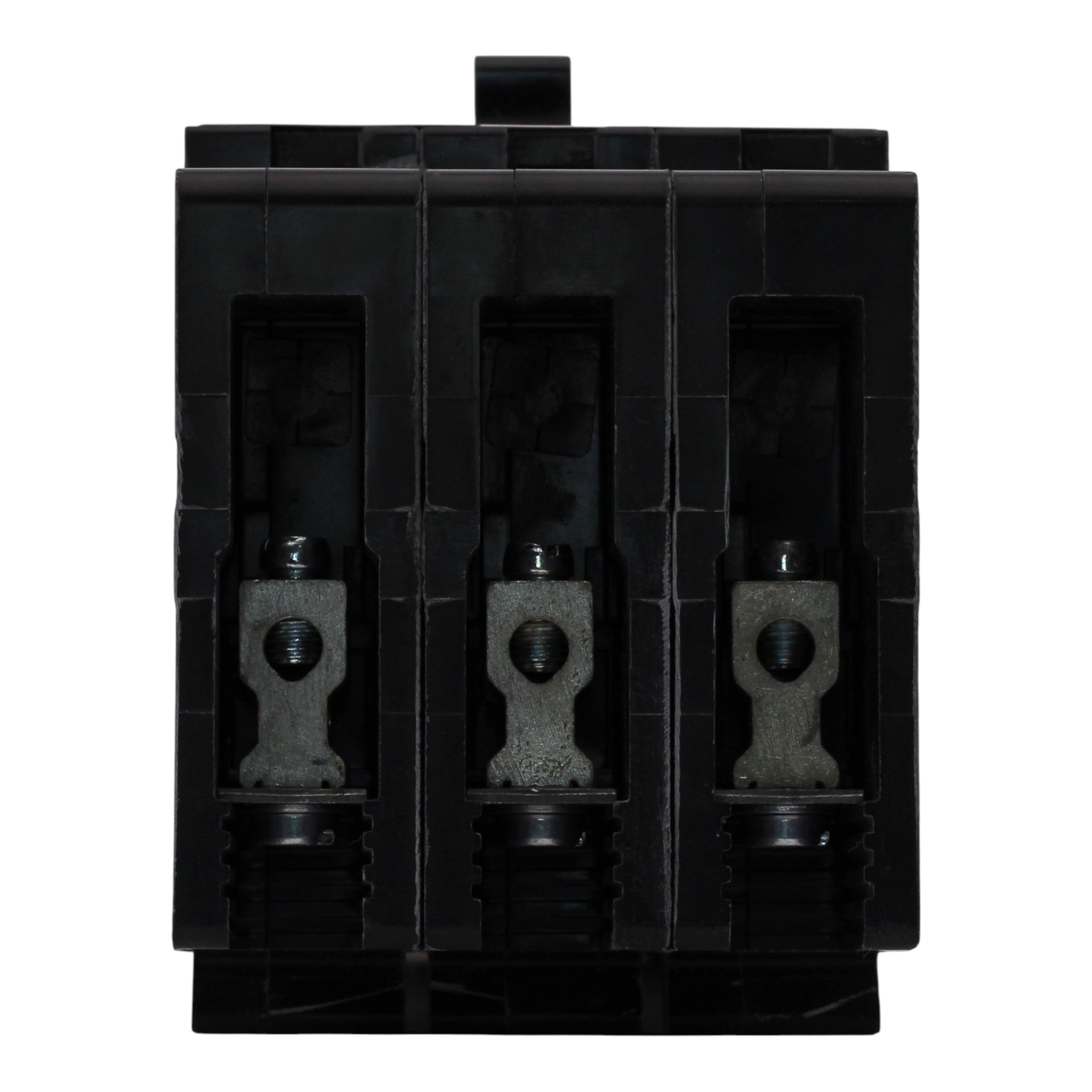

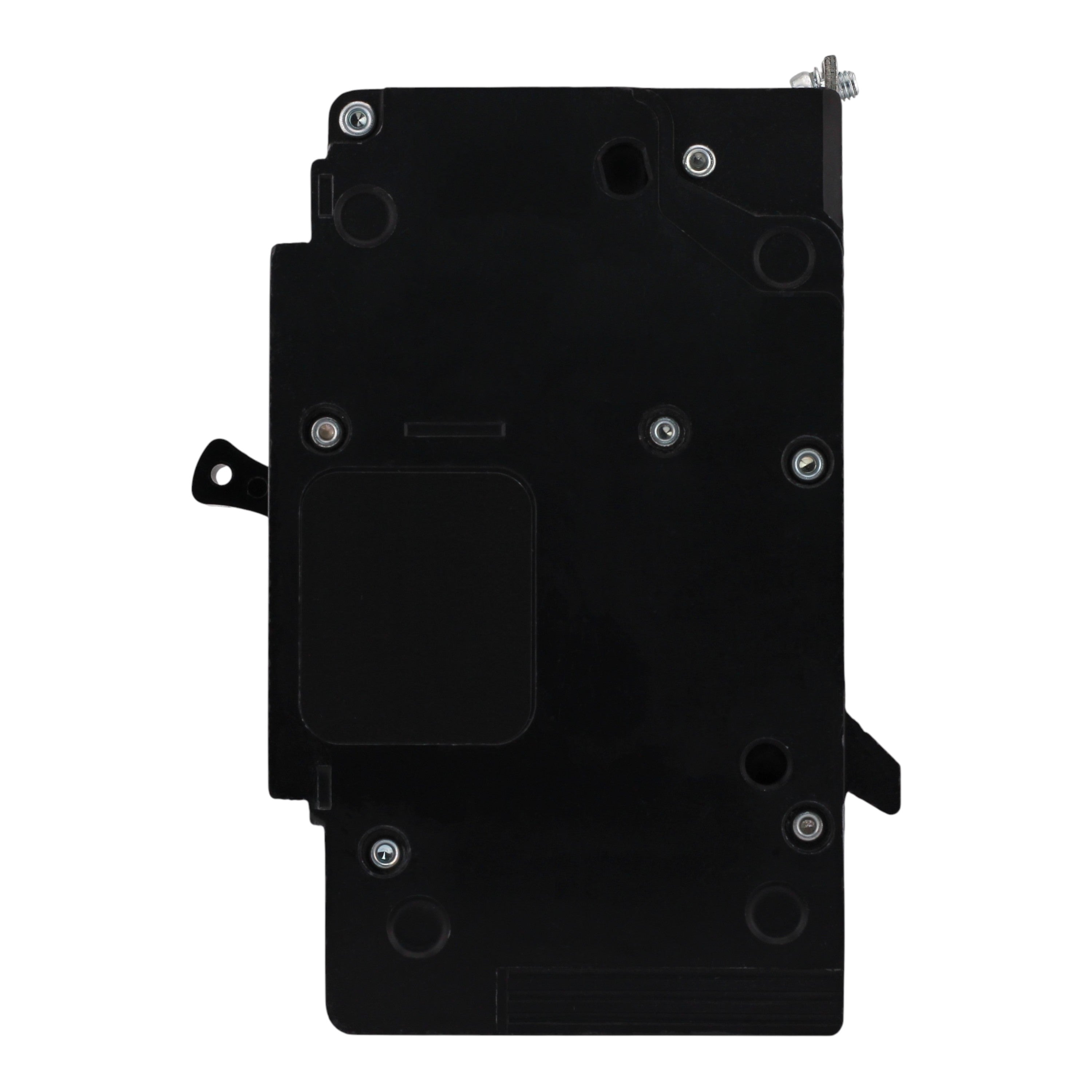

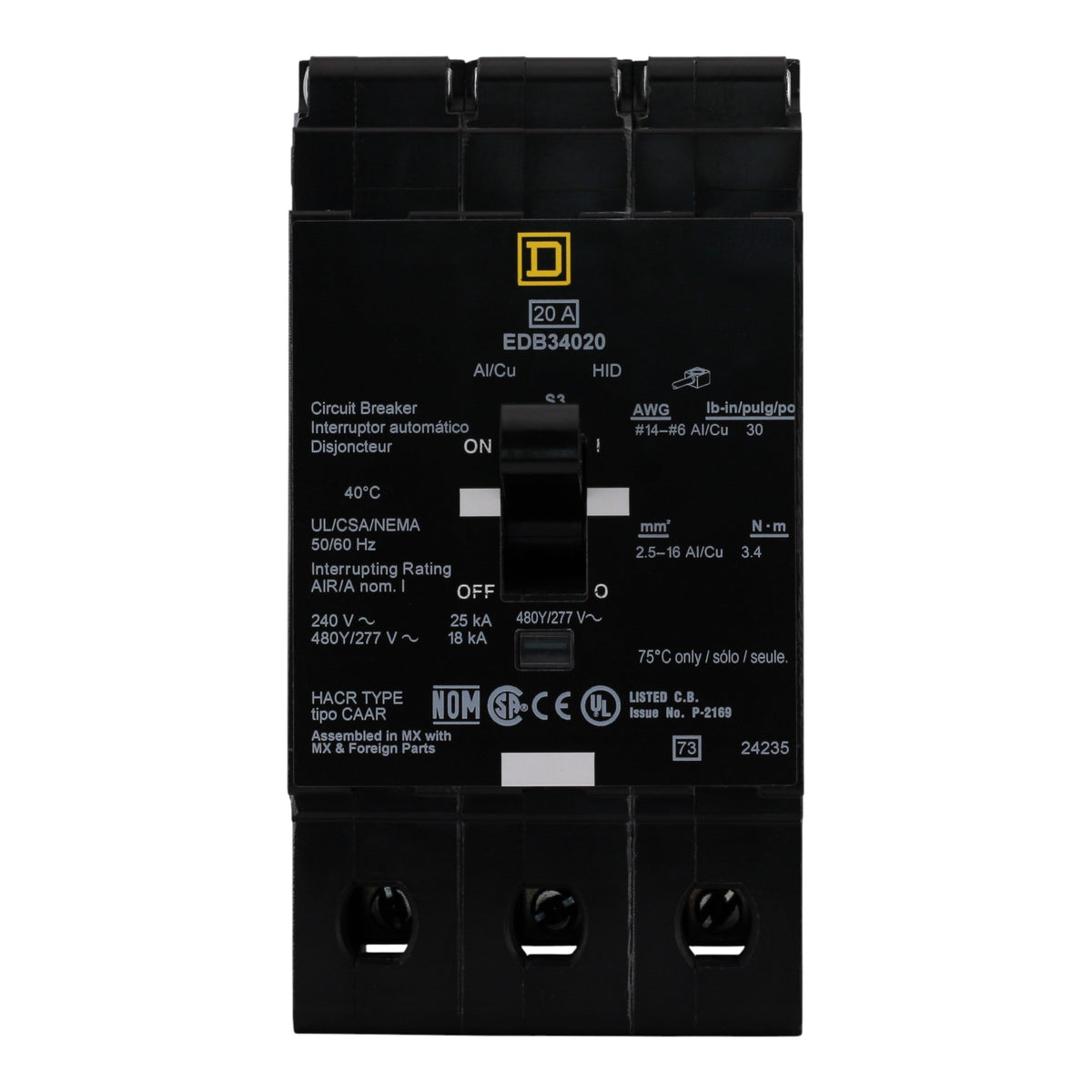

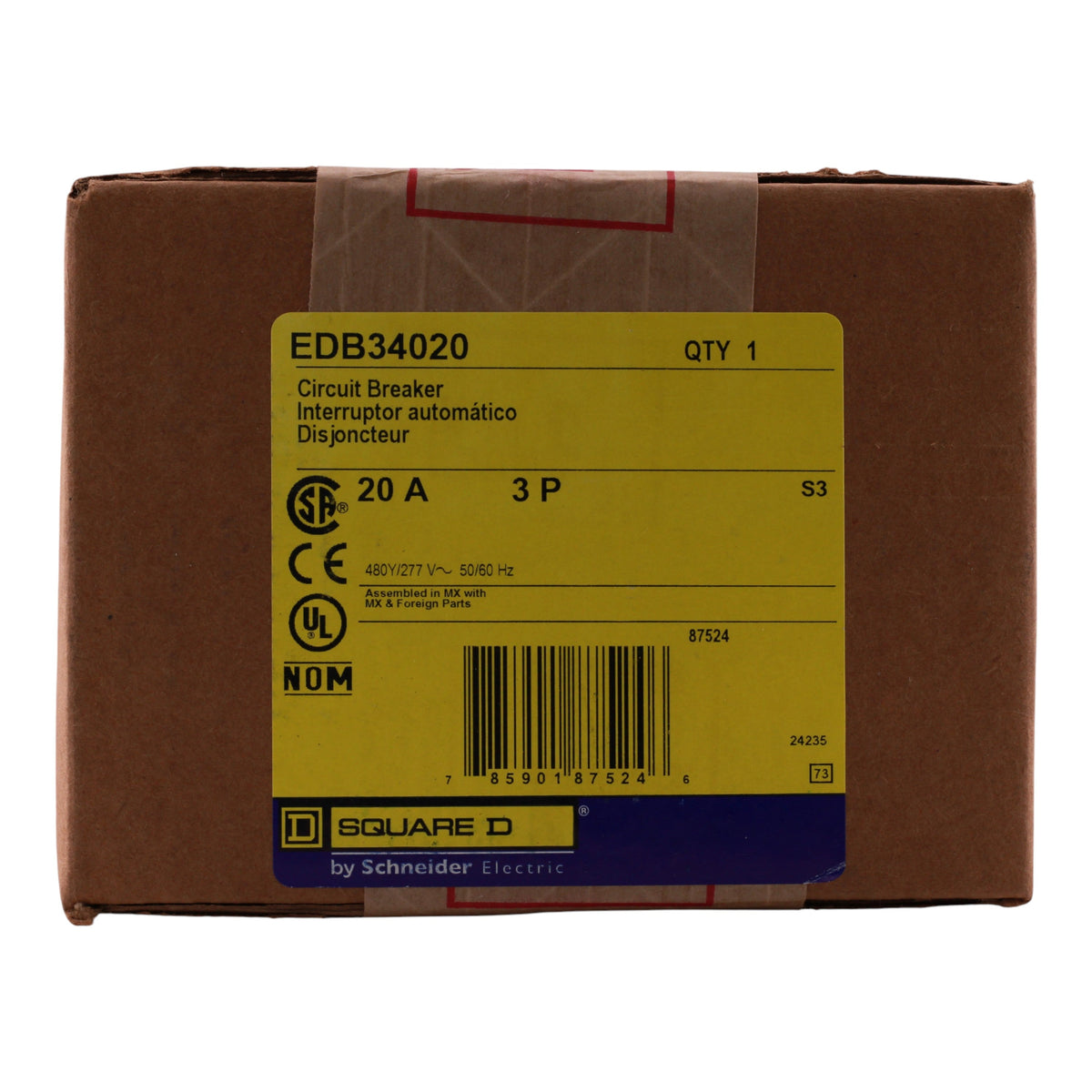

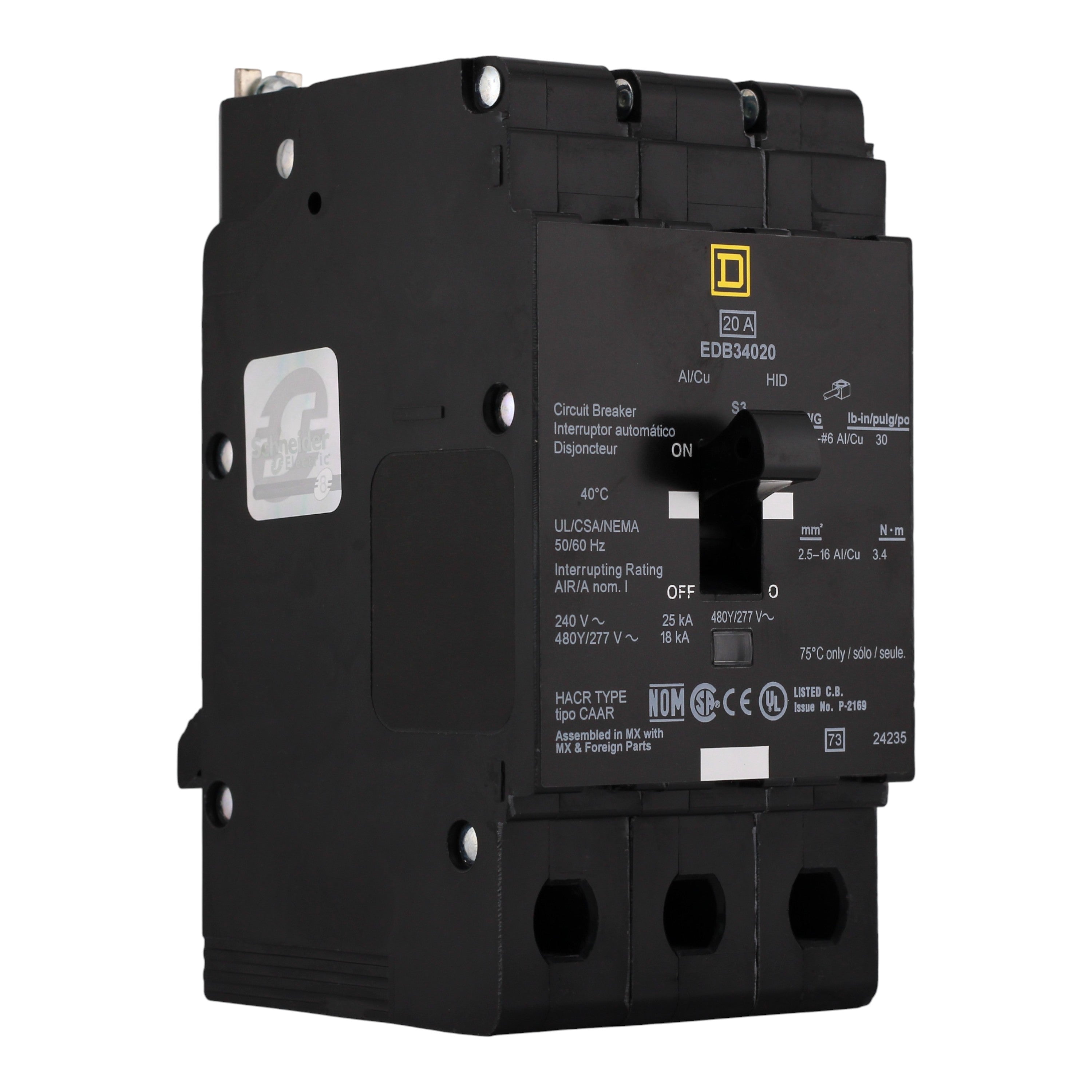

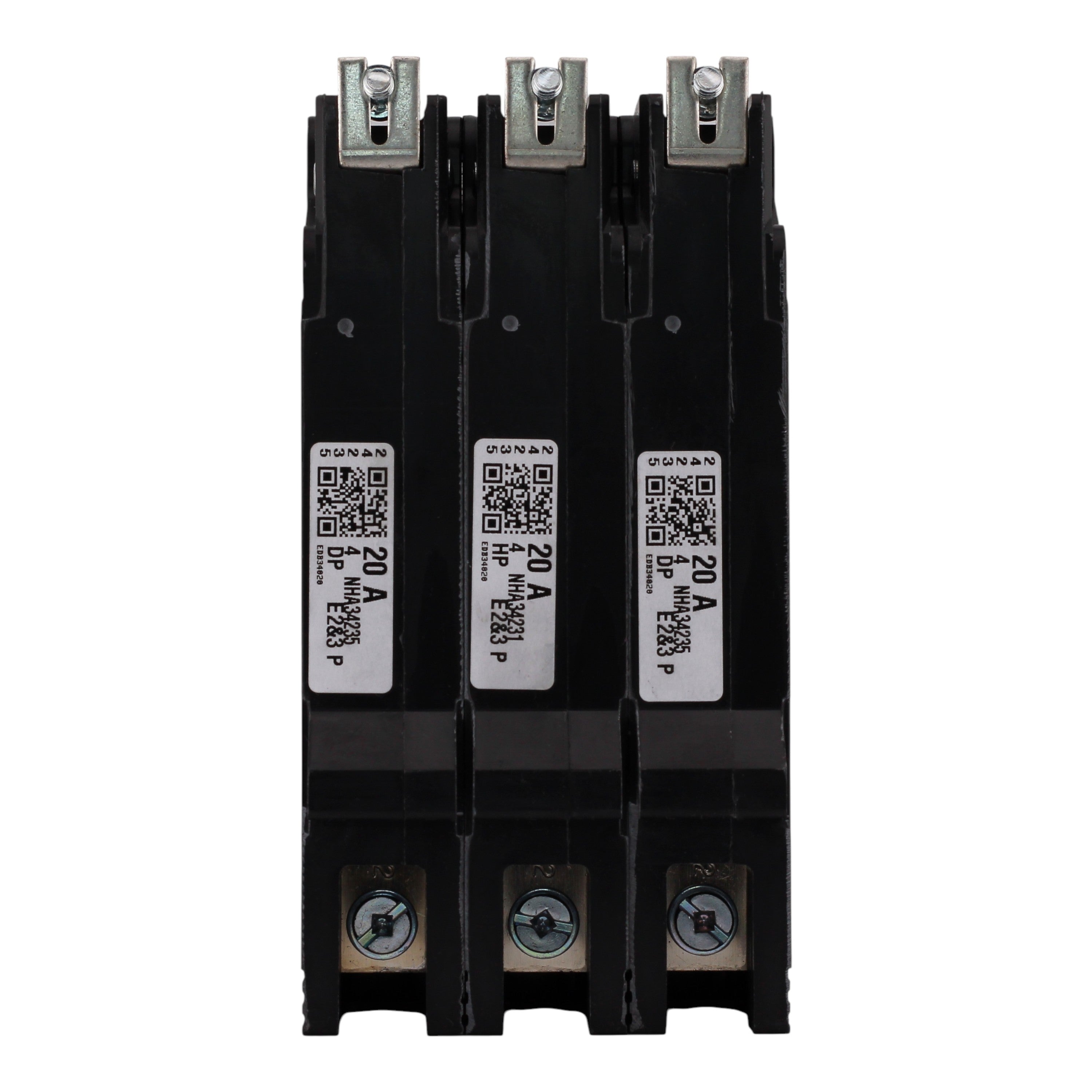

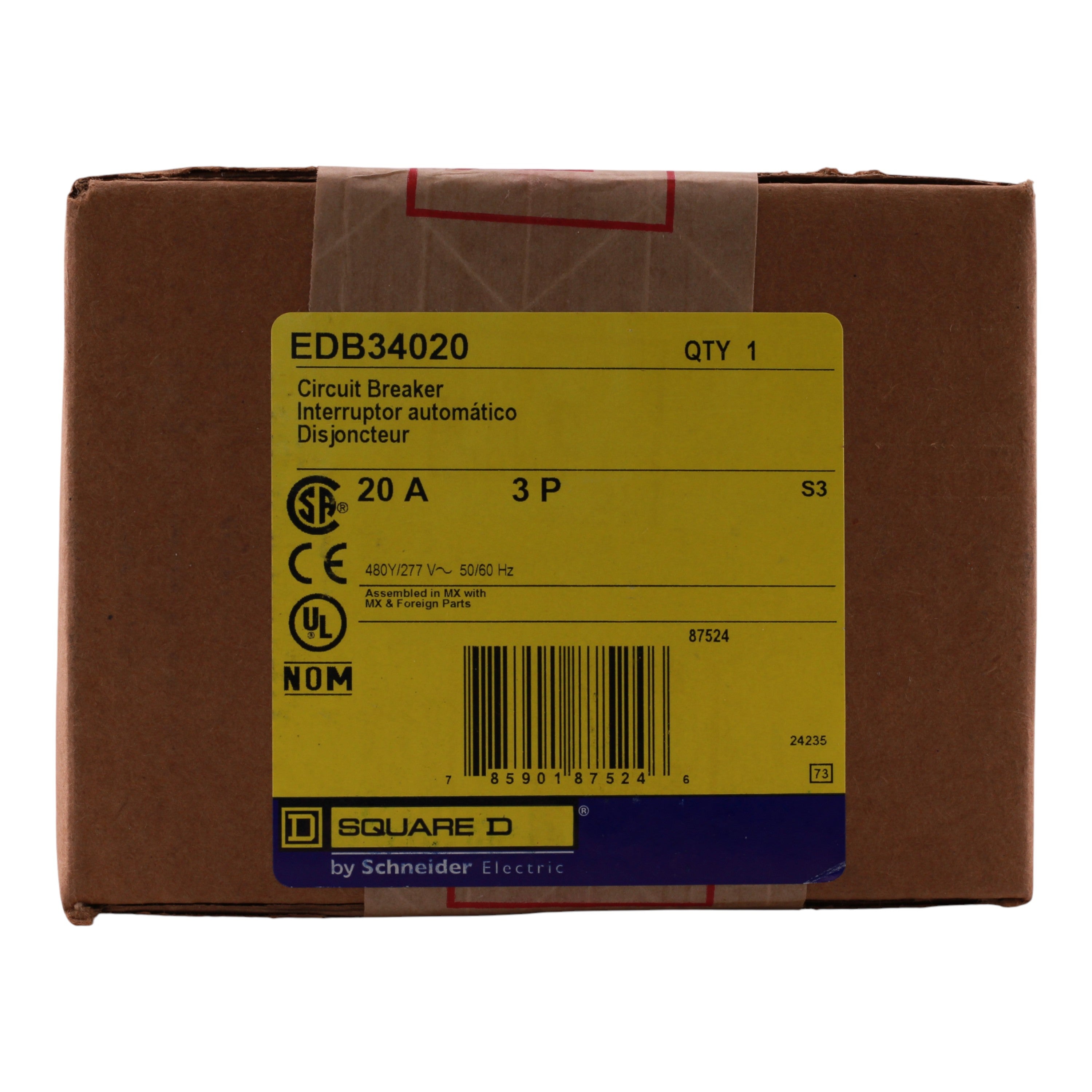

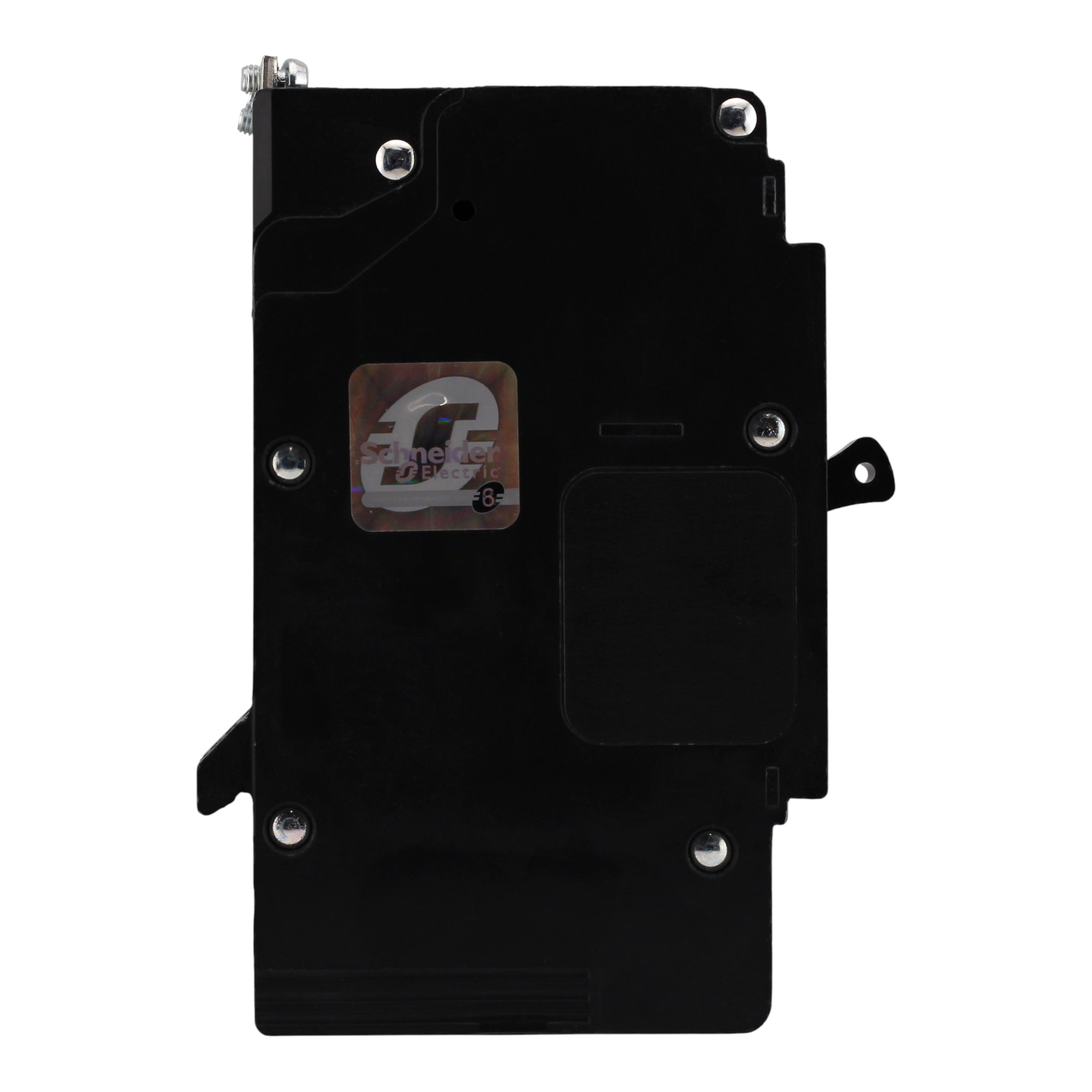

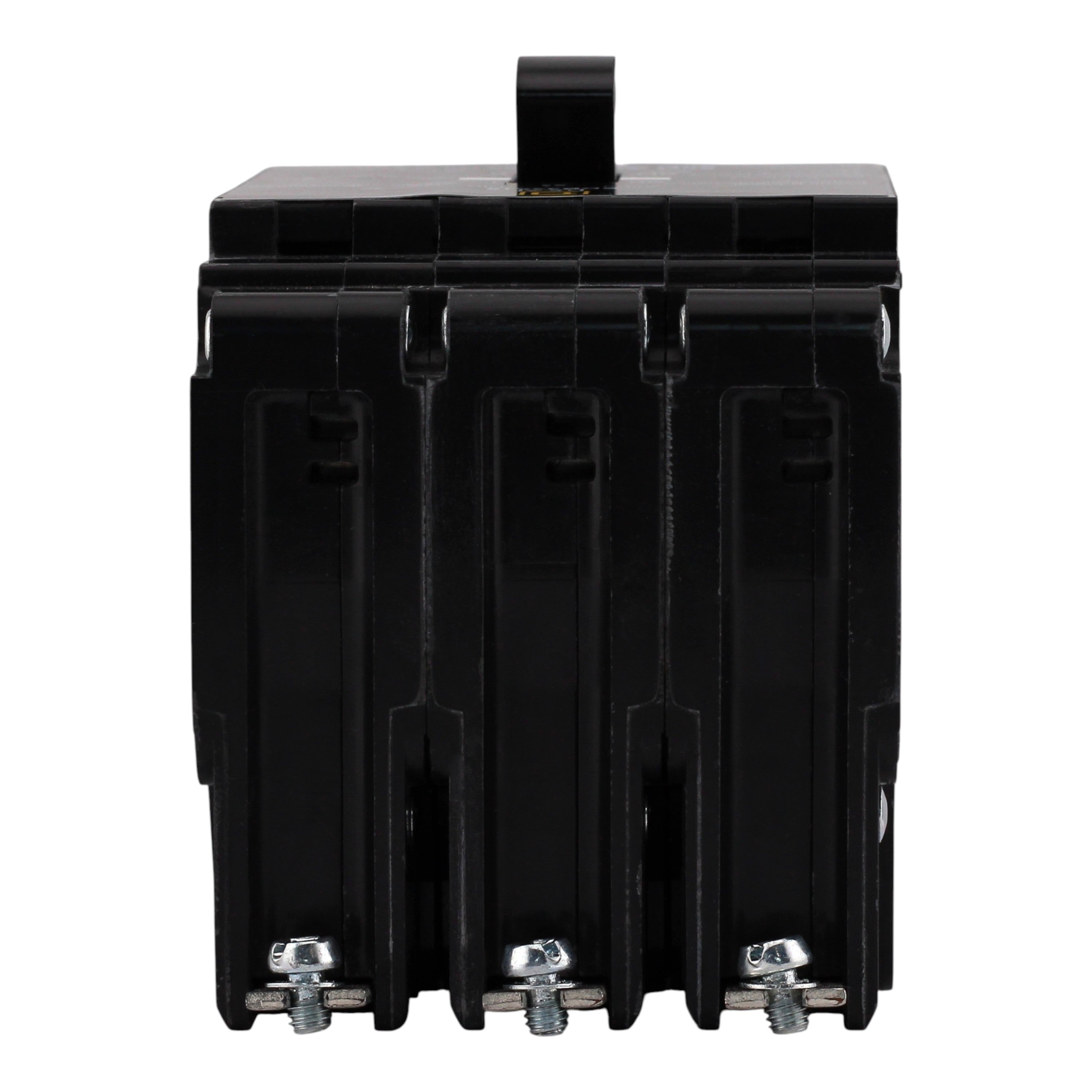

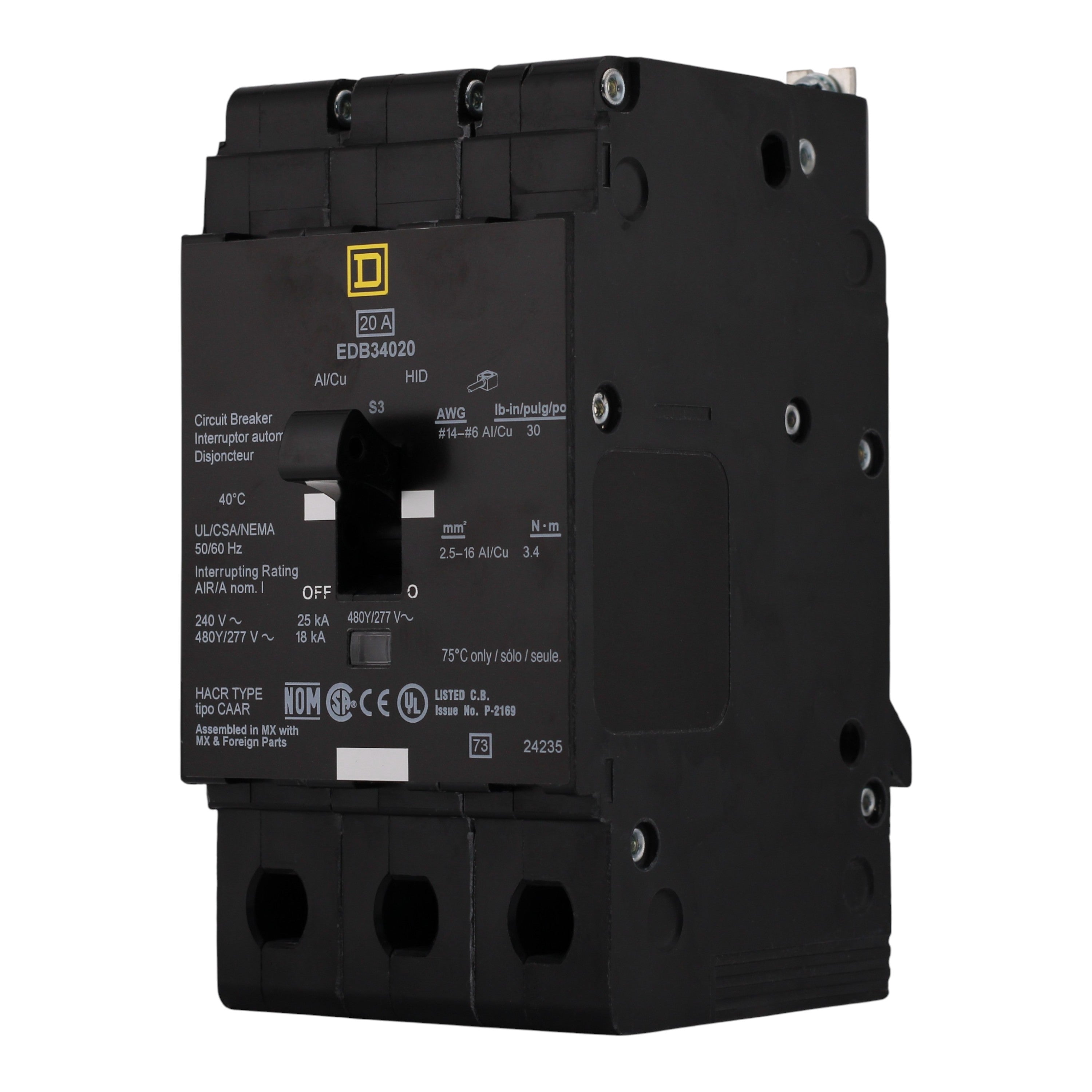

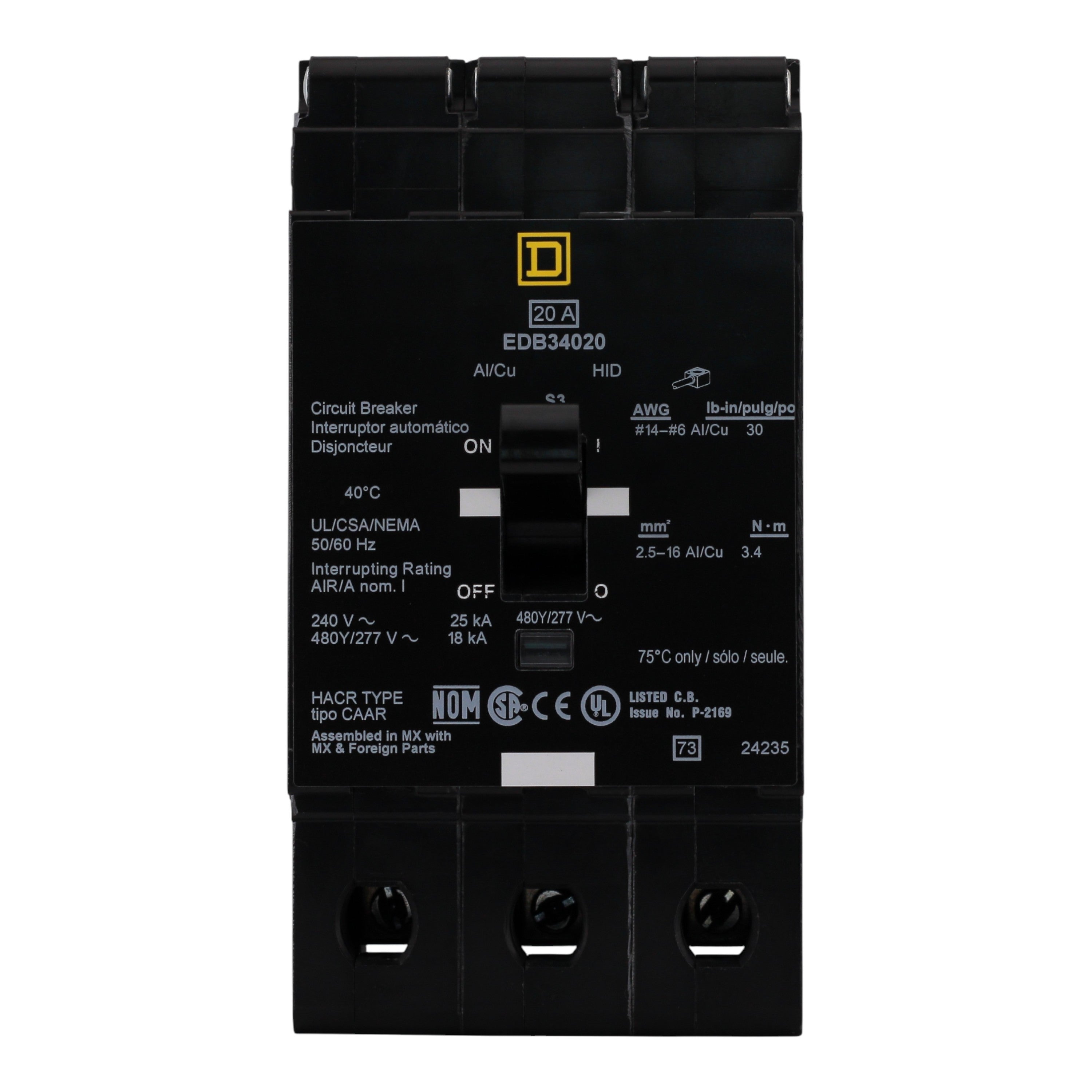

Square D E-Frame EDB34020 20A 3P 480Y/277V 25kA Bolt-On Circuit Breaker

Square D EDB34020: 20 Amp 3-Pole thermal-magnetic circuit breaker, 480Y/277V, 25kA interrupt rating, bolt-on mounting, Visi-Trip indicator, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: E-Frame (for Square D NF panelboards and lighting panels)
• UPC: 785901875246
• Model Number: EDB34020
• Breaker Type: Thermal-Magnetic
• Amperage: 20 Amps
• Poles: 3-Pole
• Voltage: 480Y/277 Volts AC
• Interrupt Rating: 25 kAIC at 480Y/277V AC (18 kAIC at 277V AC, 25 kAIC at 240V AC)
• Mounting Mode: Bolt-on
• Connections Terminals: Lugs (aluminum/copper)
• Wire Size: AWG 14-6 Cu / AWG 12-6 Al
• Tightening Torque: 30.09 lb-in
• Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
• Weight: 4 lbs
• Certifications: UL Listed, cULus, CSA Certified, HACR Rated, HID Rated

This Square D E-Frame EDB34020 bolt-on circuit breaker delivers reliable 20A, 3-pole thermal-magnetic protection for 480Y/277V circuits in NF panelboards and lighting applications. Featuring a 25kA interrupt rating, Visi-Trip indicator for quick troubleshooting, and robust overload/short circuit safeguards, it provides superior performance and safety for commercial and industrial installations.
