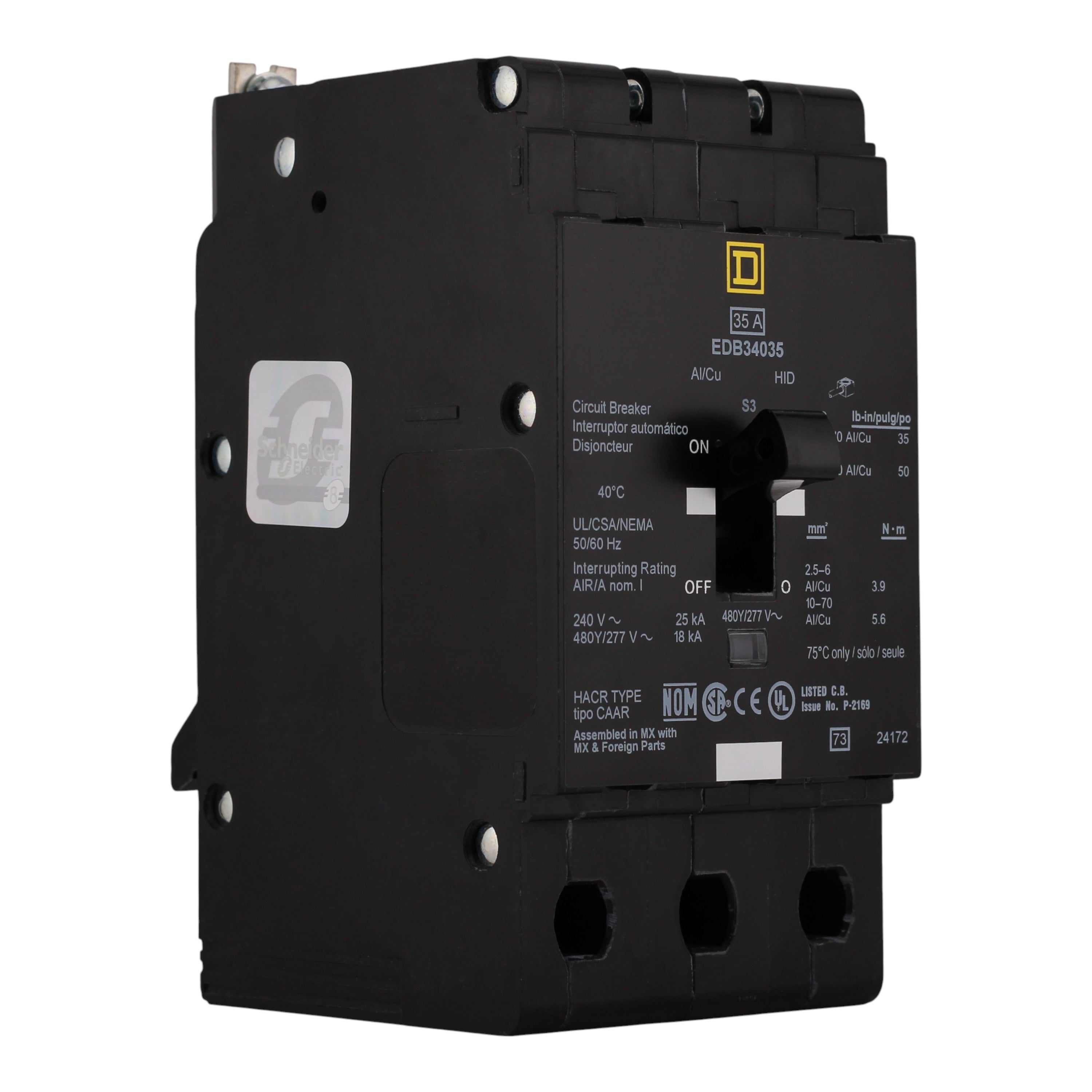

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker

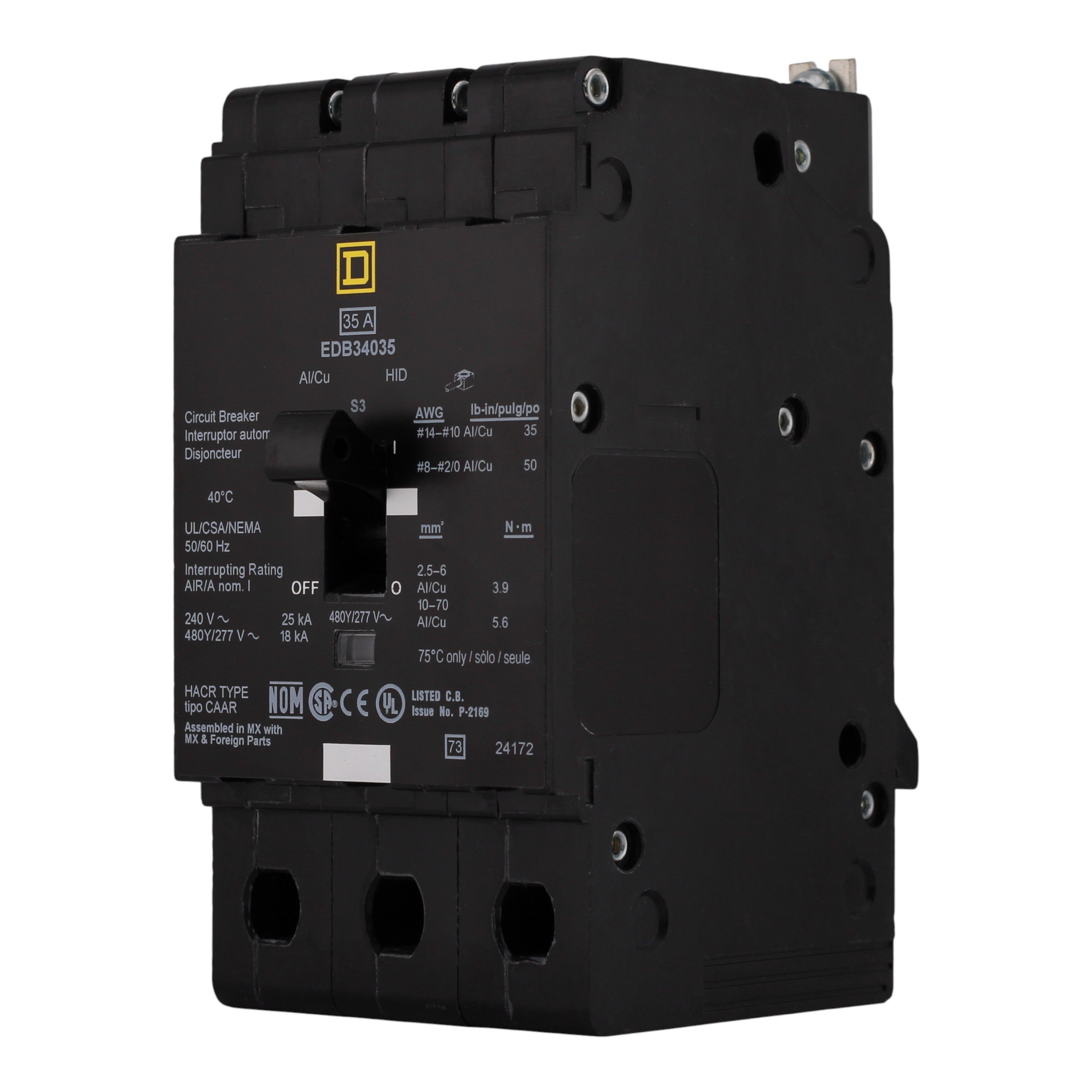

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 2

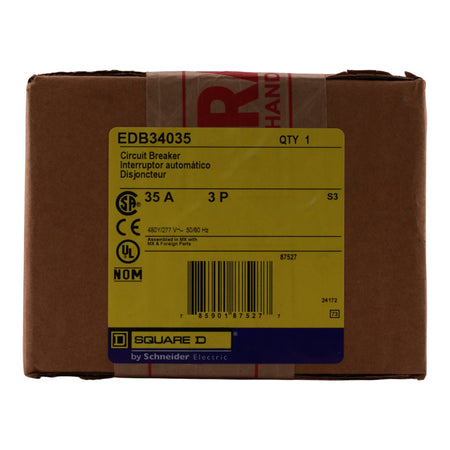

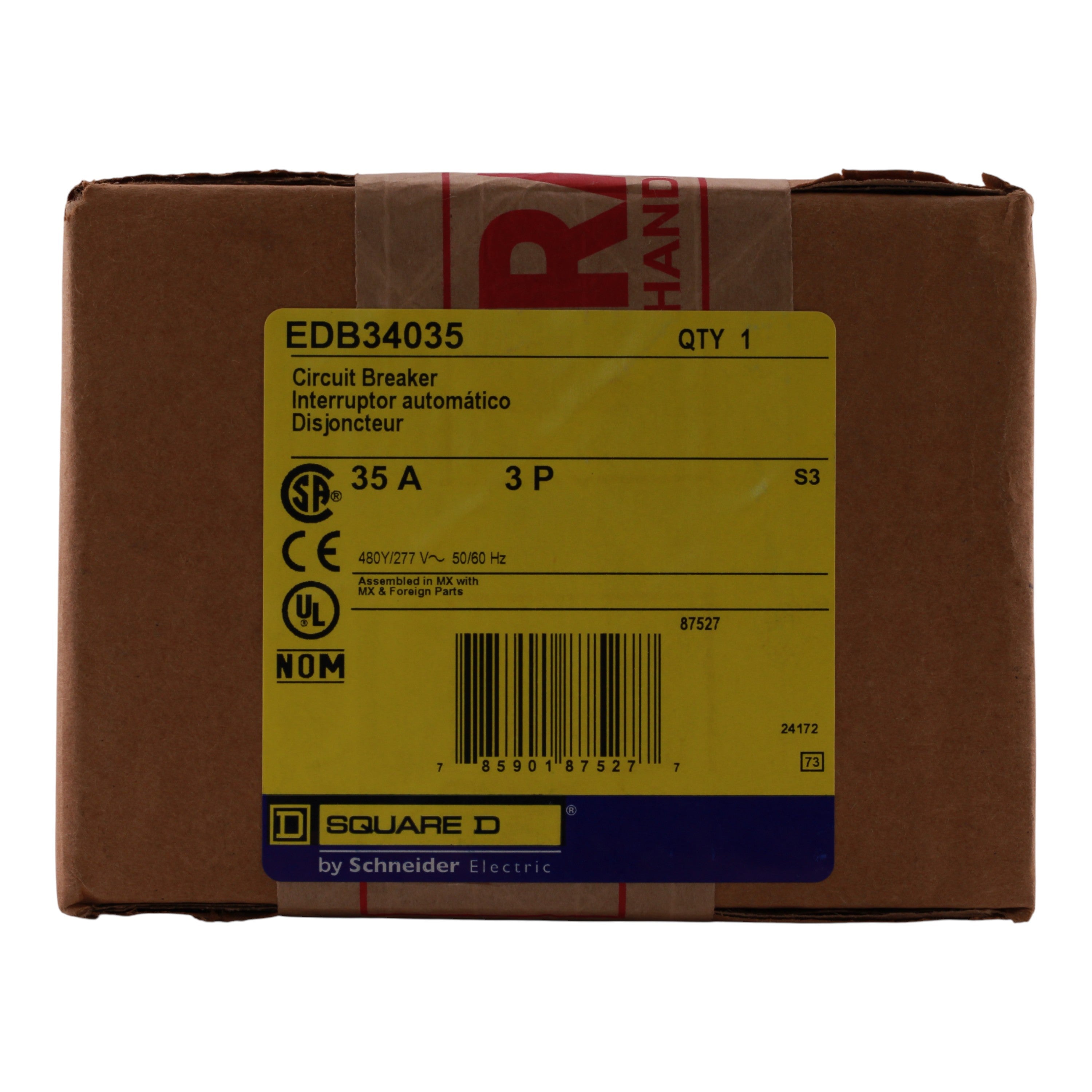

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 3

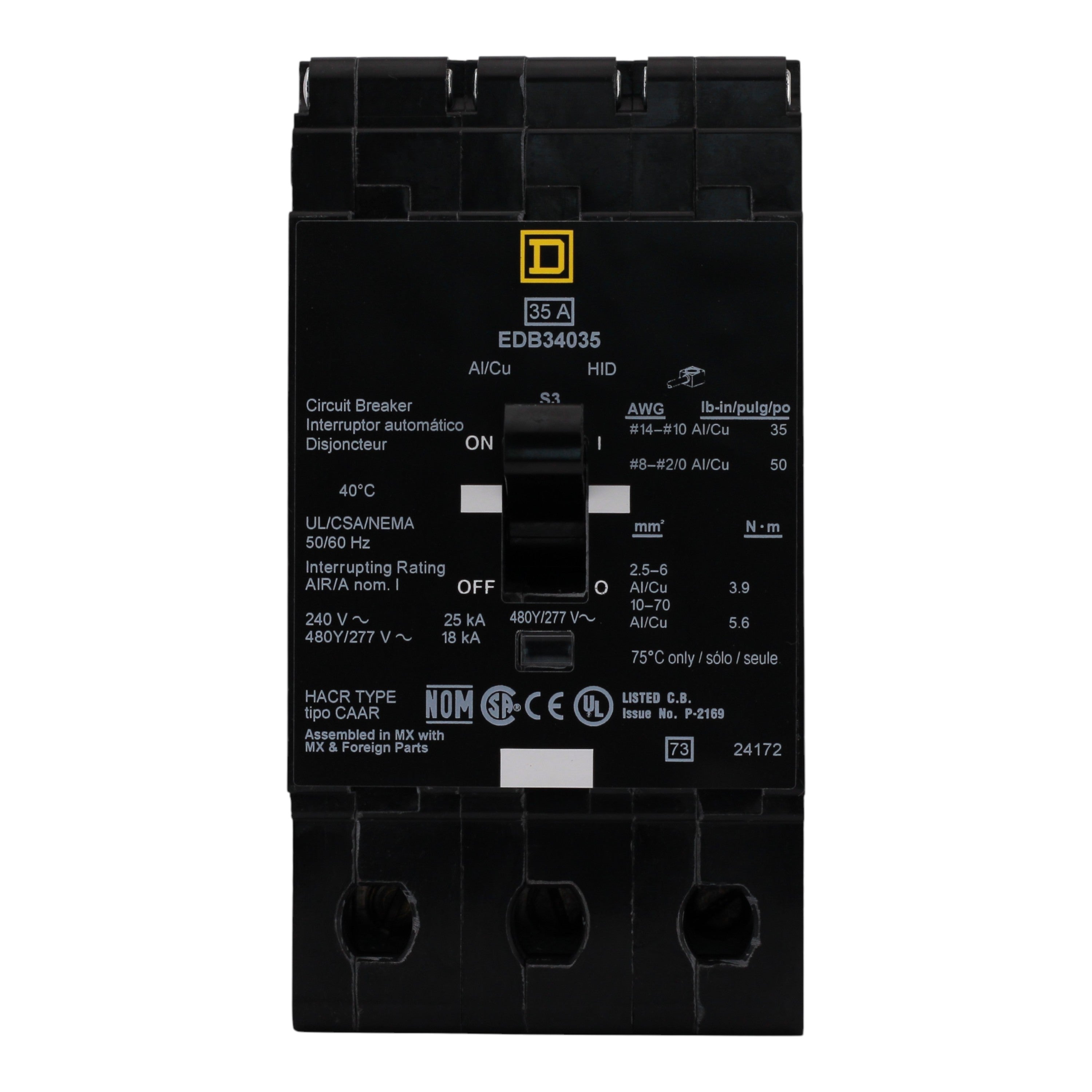

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 4

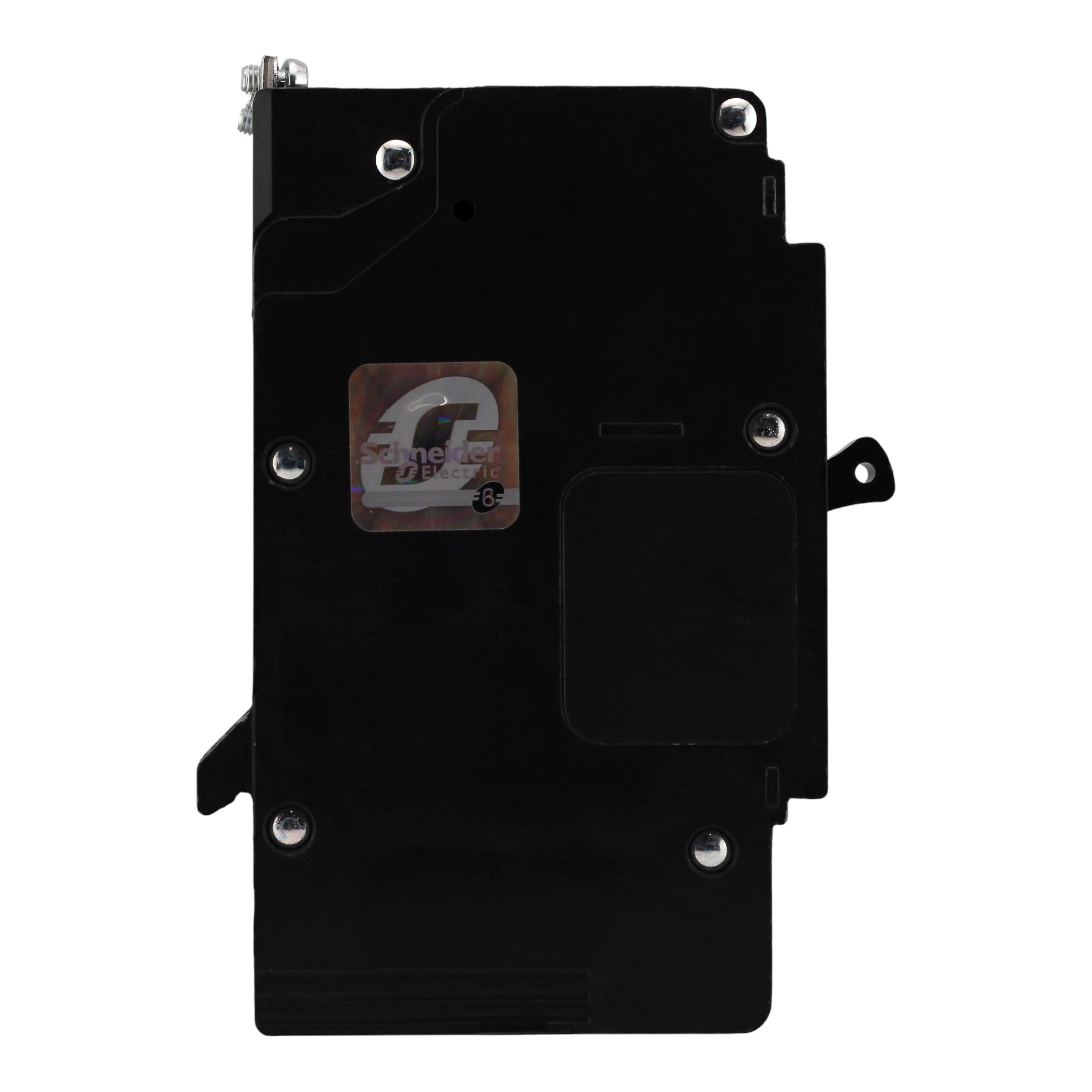

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 5

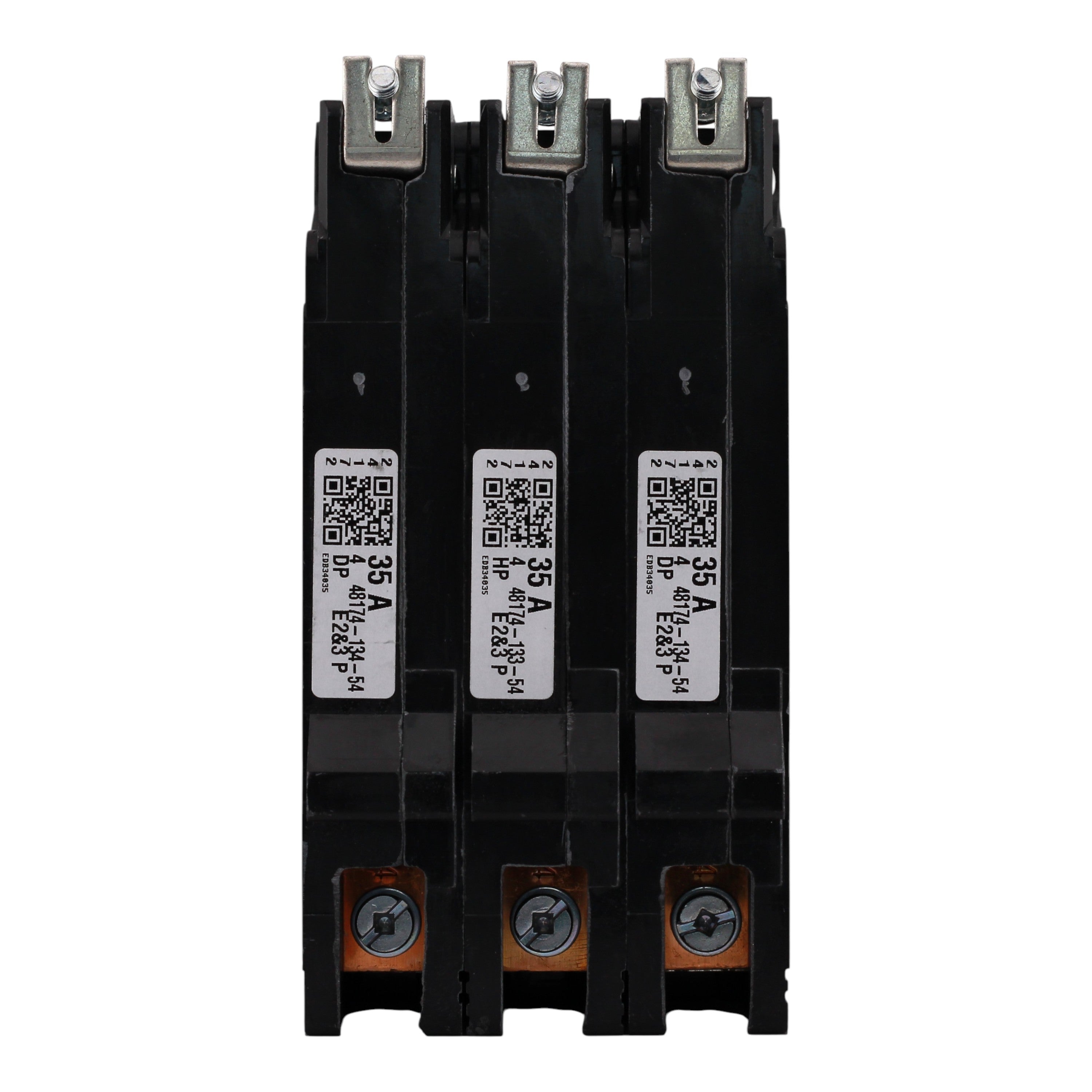

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 6

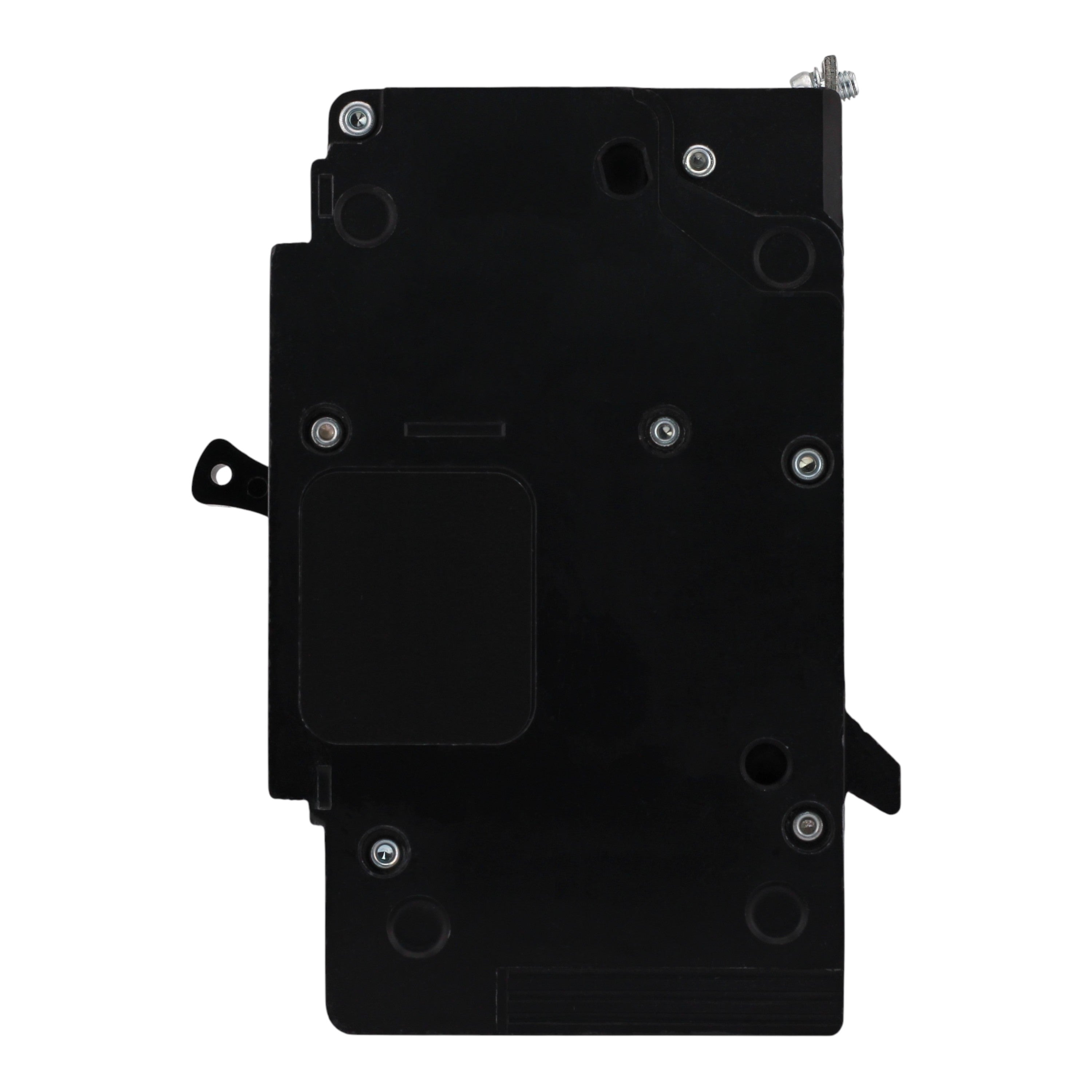

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 7

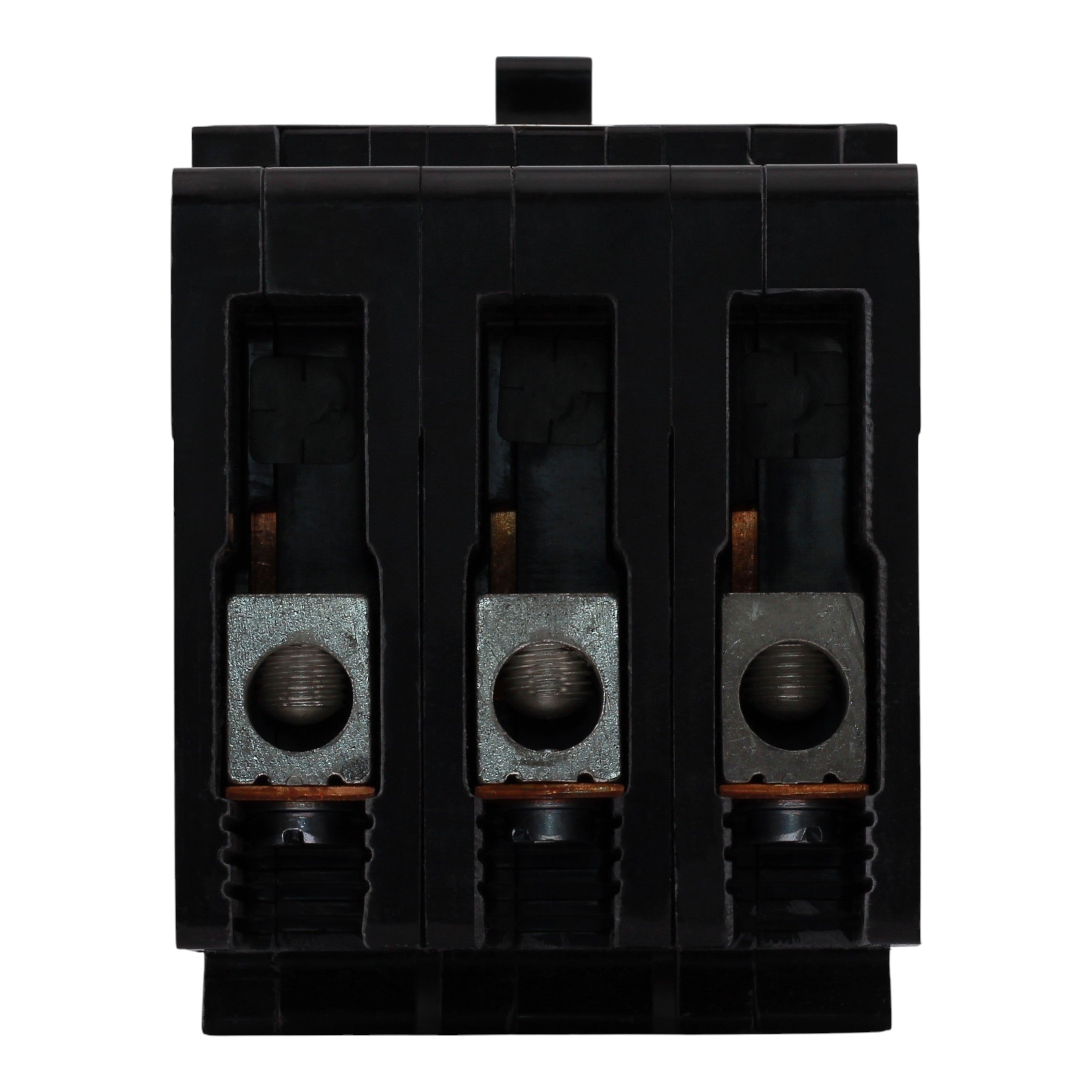

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 8

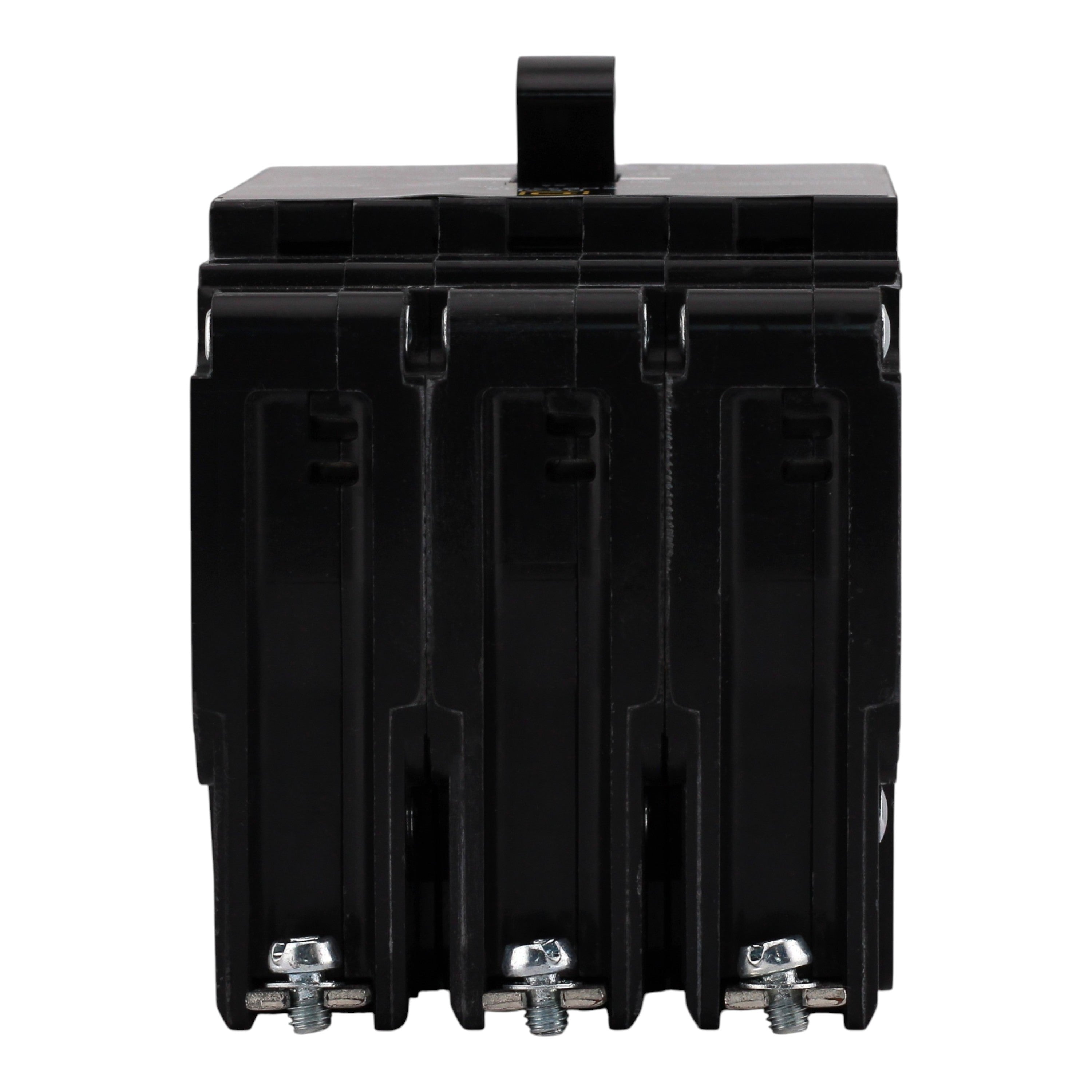

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame EDB34035 35A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker

Out of stock
SKU: EDB34035 UPC: 785901875277
(0)
$172.00
Out of stock
Condition

Square D EDB34035: 35 Amp 3-Pole Thermal-Magnetic circuit breaker, 480Y/277V, 25kA interrupt rating, bolt-on mounting, Visi-Trip indicator, UL listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF panelboards and equipment)
  • UPC: 785901875277
  • Model Number: EDB34035
  • Breaker Type: Thermal-Magnetic
  • Amperage: 35 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 25 kAIC
  • Mounting Mode: Bolt-on
  • Connections Terminals: Lugs
  • Wire Size: AWG 14-2/0 Cu / AWG 12-2/0 Al
  • Tightening Torque: 34.5-49.6 lb-in
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4.0 lbs
  • Certifications: UL Listed, cULus, HID Rated, HACR Rated

This Square D EDB34035 thermal-magnetic bolt-on circuit breaker delivers reliable 35A, 3-pole protection for 480Y/277V circuits in NF panelboards. Featuring Visi-Trip indication for faster troubleshooting, superior overload and short circuit protection, and compatibility with lighting and commercial applications, it provides enhanced safety and performance.
