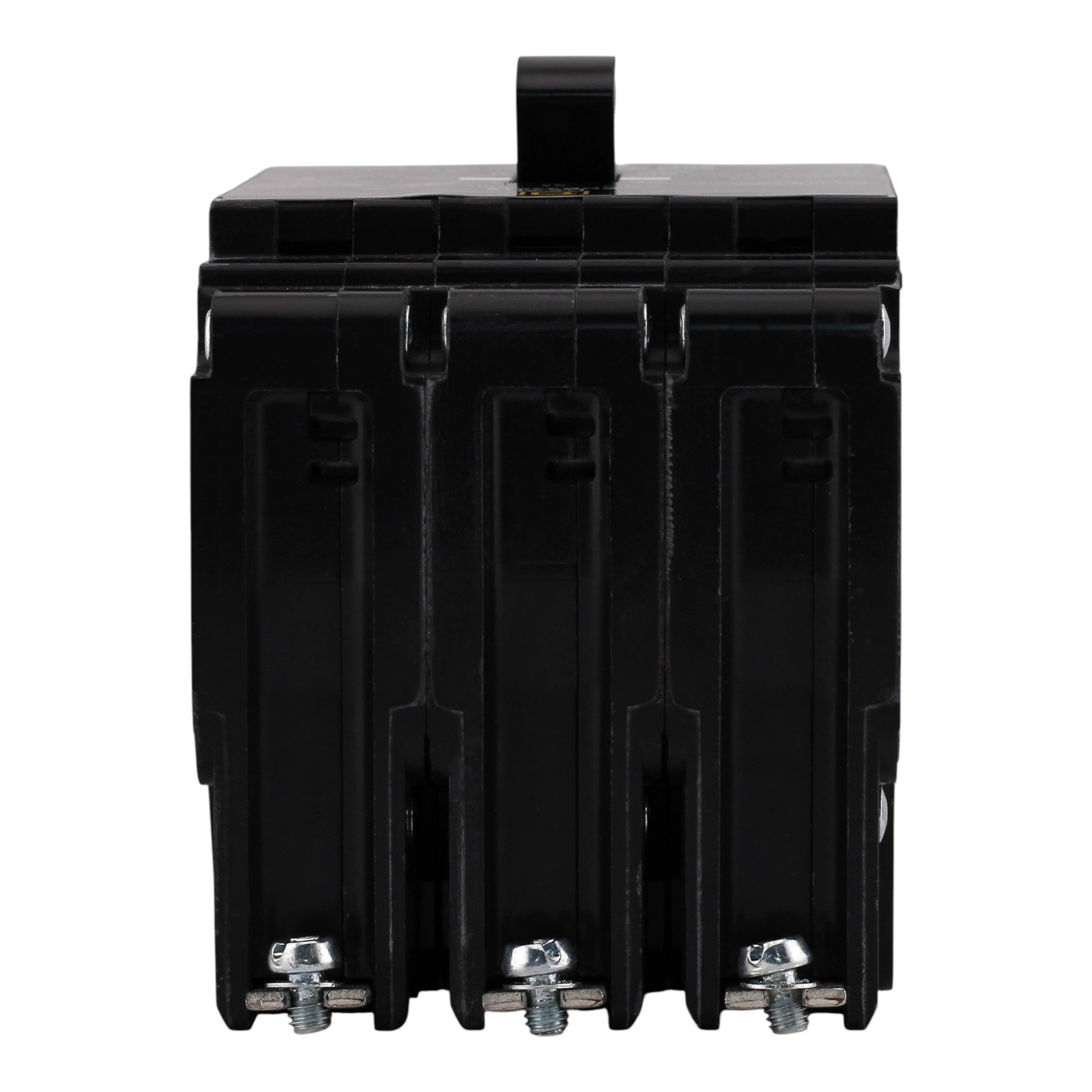

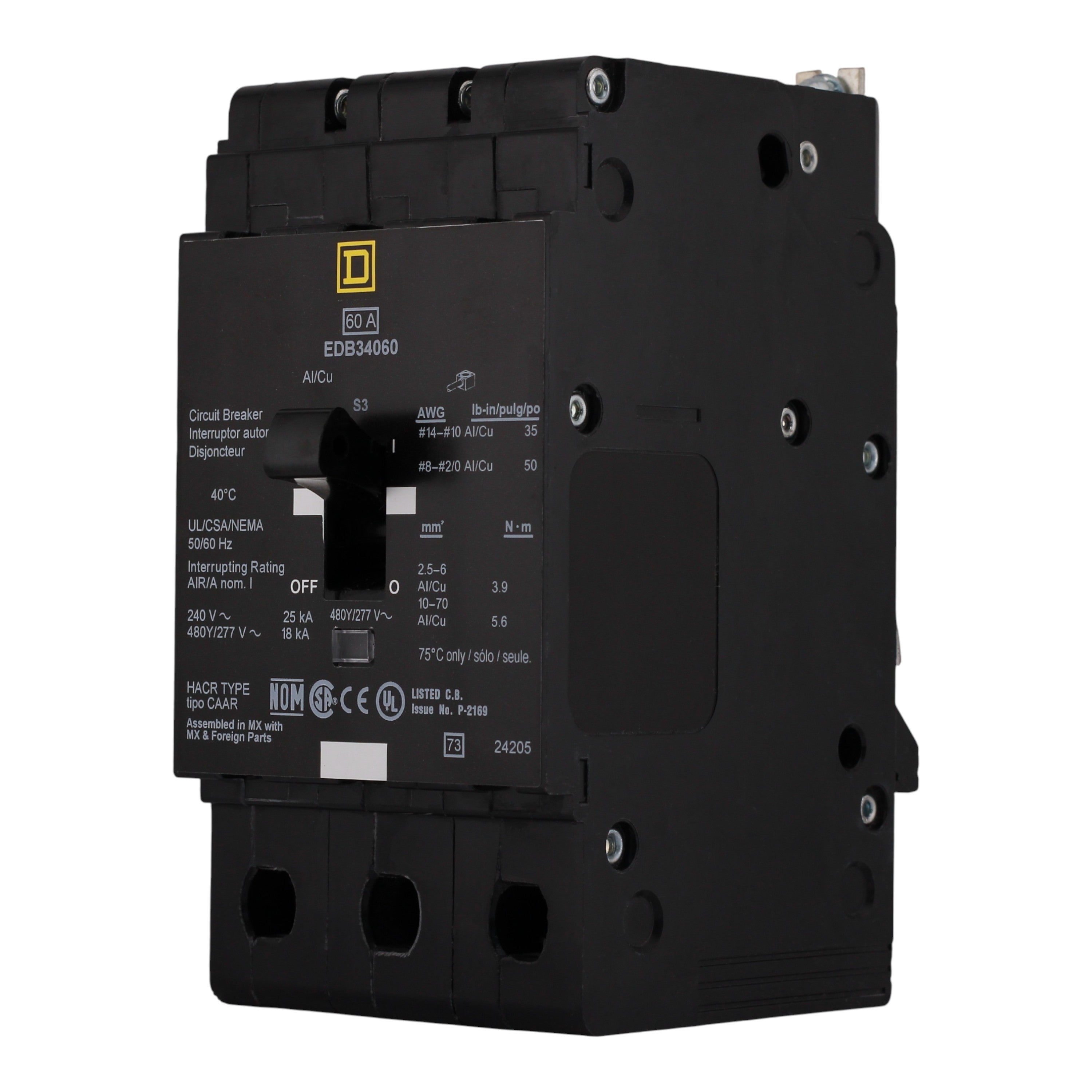

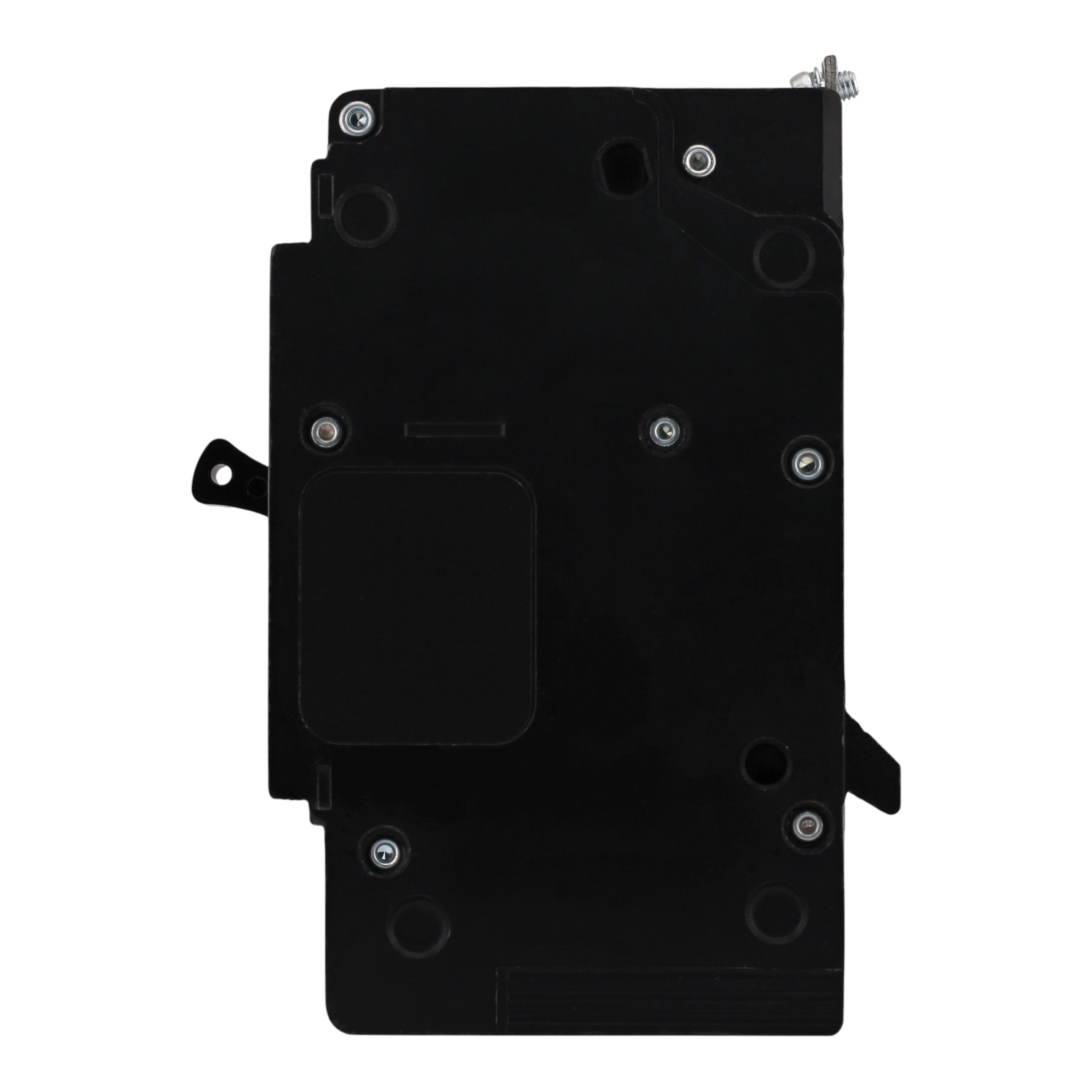

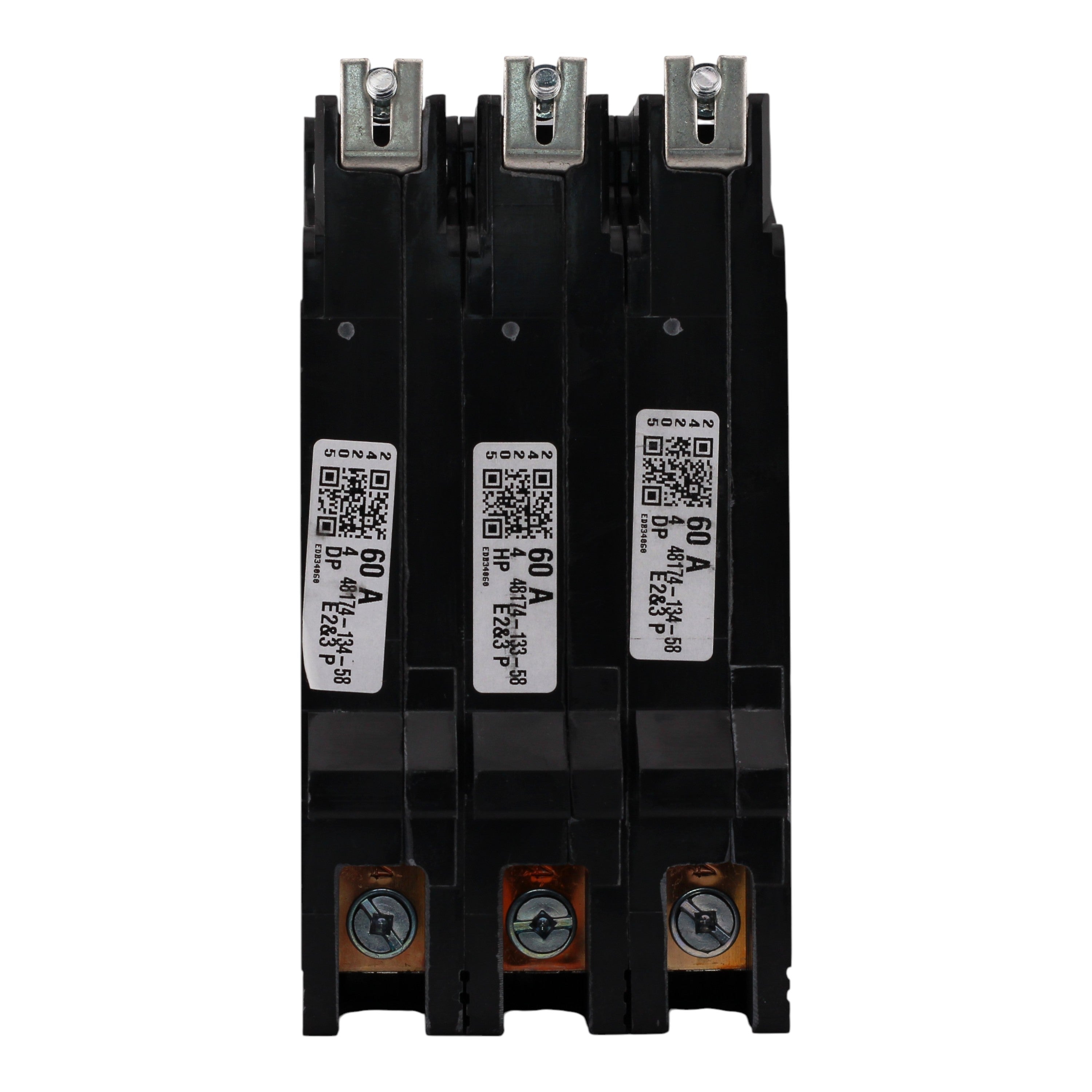

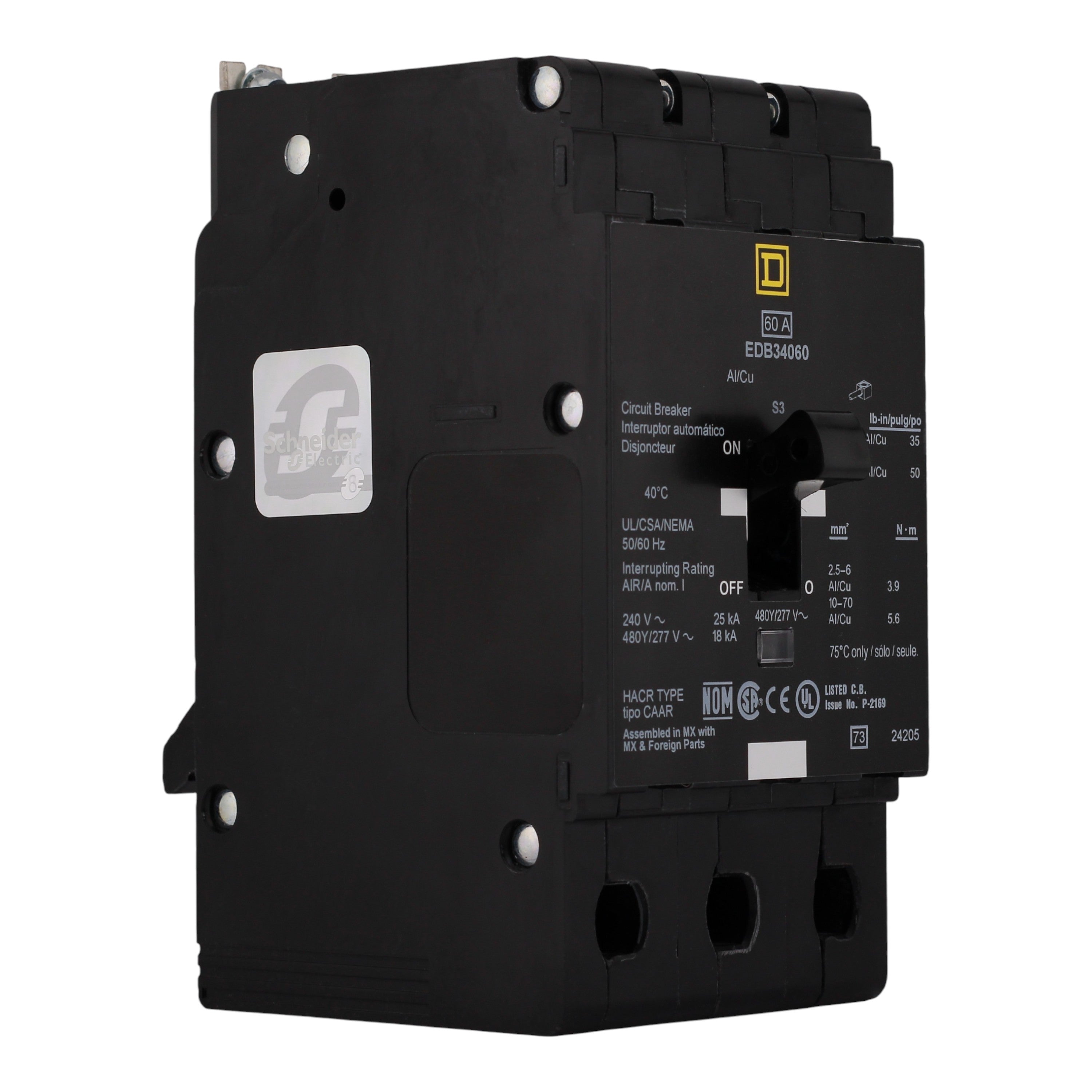

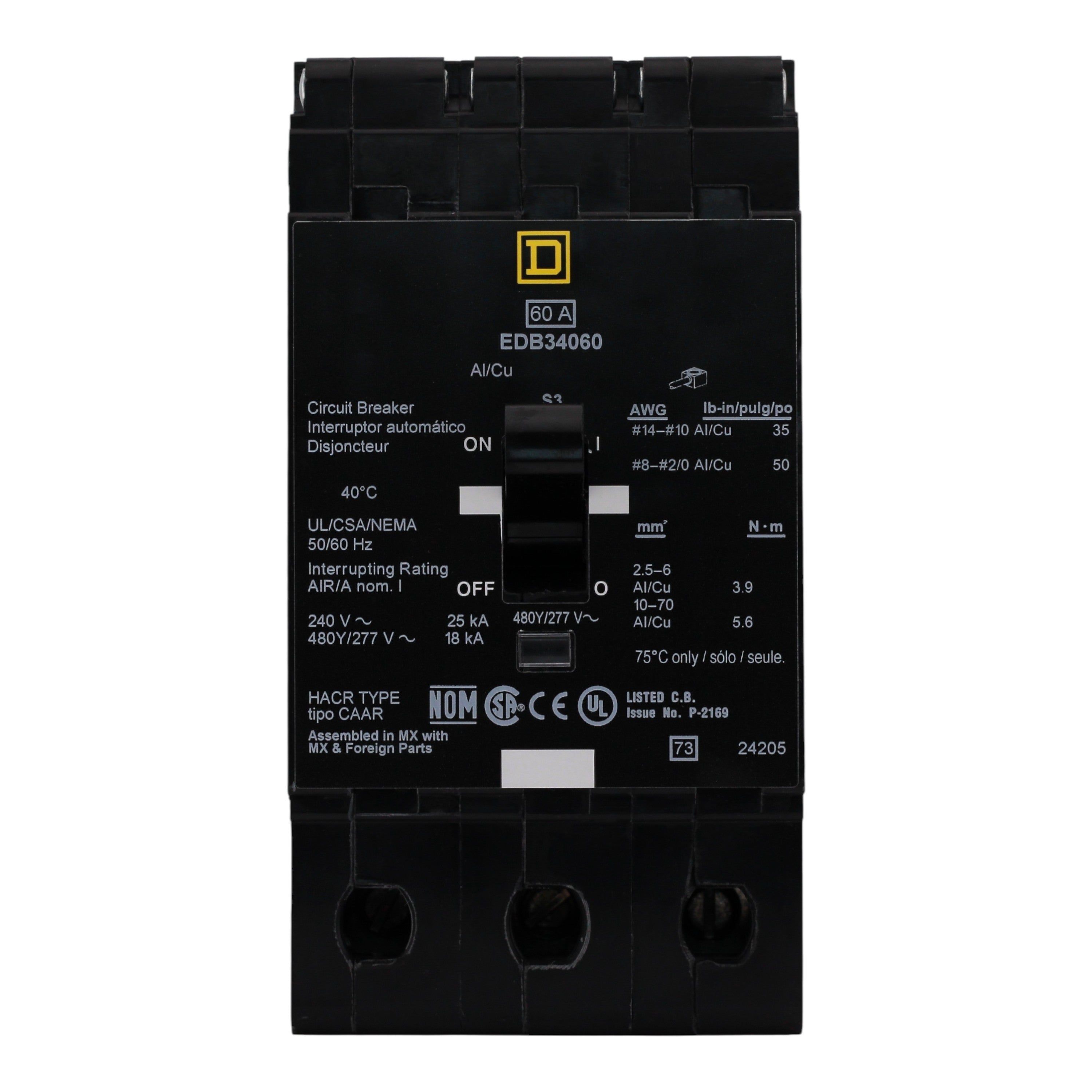

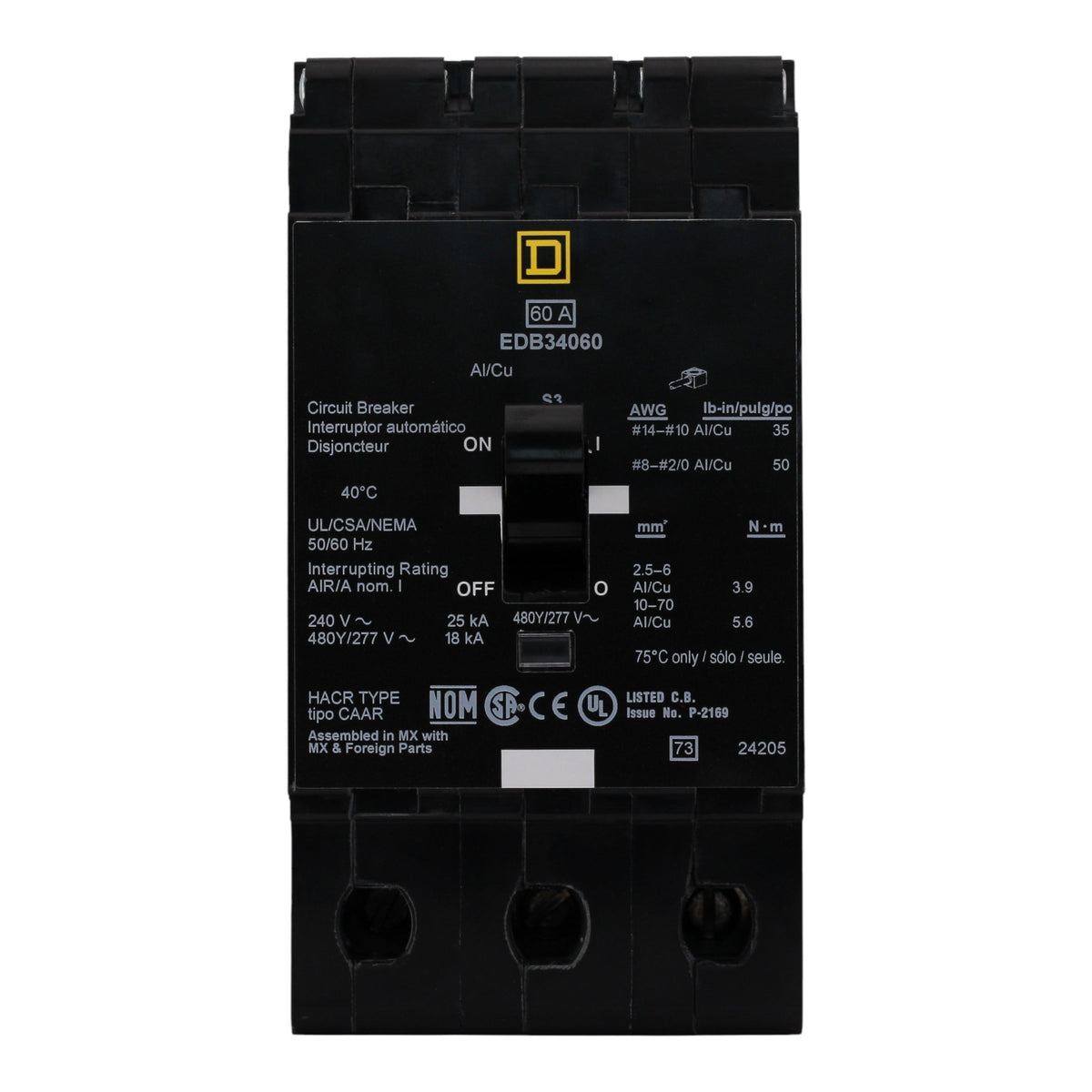

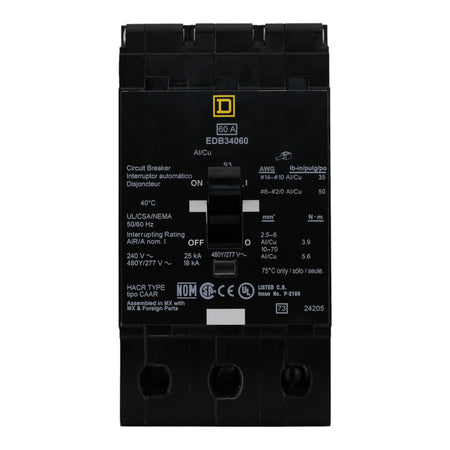

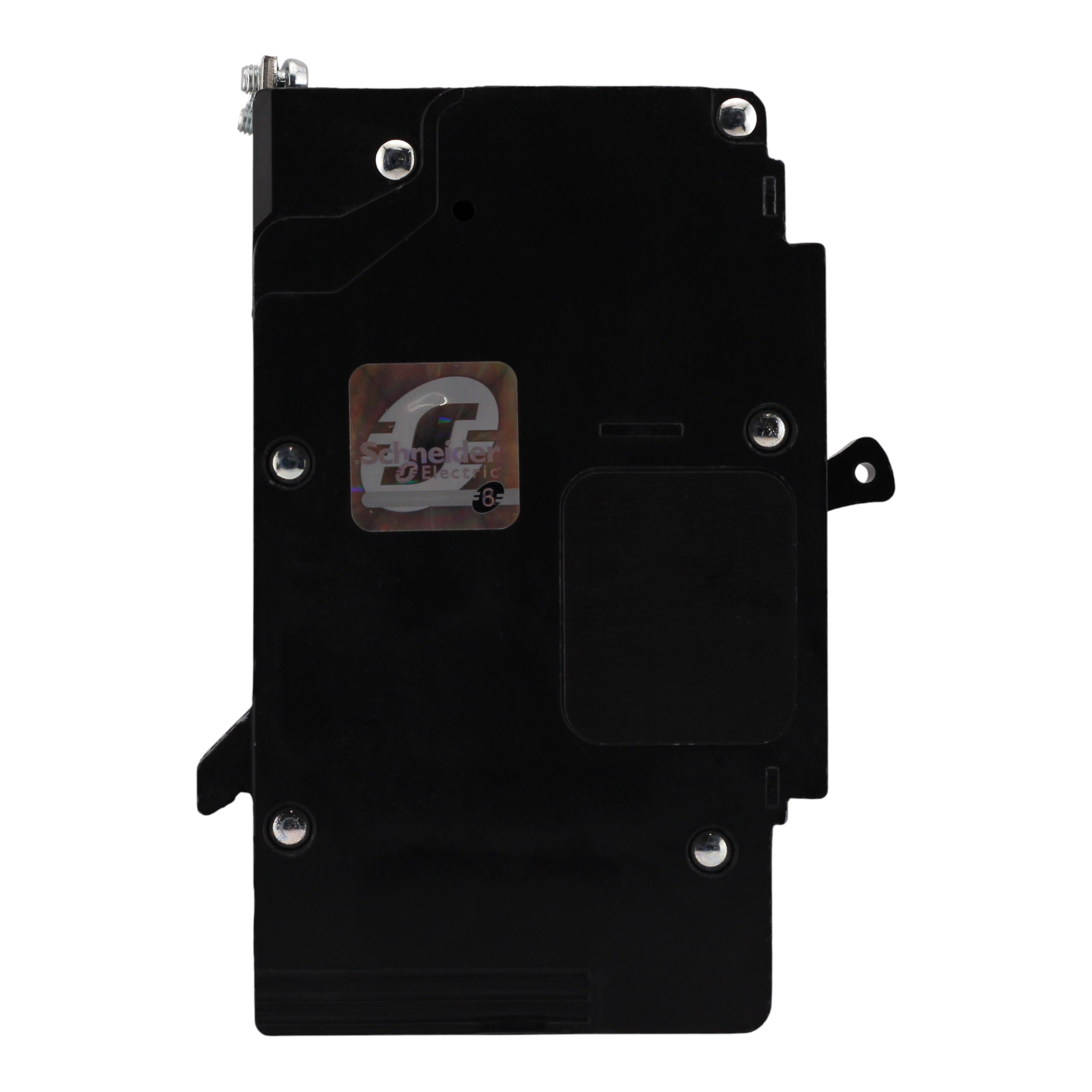

Square D EDB34060: 60 Amp 3-Pole Thermal-Magnetic circuit breaker, 480Y/277V, 25kA at 240V/18kA at 480Y/277V, bolt-on, Visi-Trip indicator, UL listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: E-Frame (for Square D NF panelboards and equipment)
-
UPC: 785901875345
-
Model Number: EDB34060
-
Breaker Type: Thermal-Magnetic
-
Amperage: 60 Amps
-
Poles: 3-Pole
-
Voltage: 480Y/277 Volts AC
-
Interrupt Rating: 25 kA at 240V AC / 18 kA at 480Y/277V AC
-
Mounting Mode: Bolt-on
-

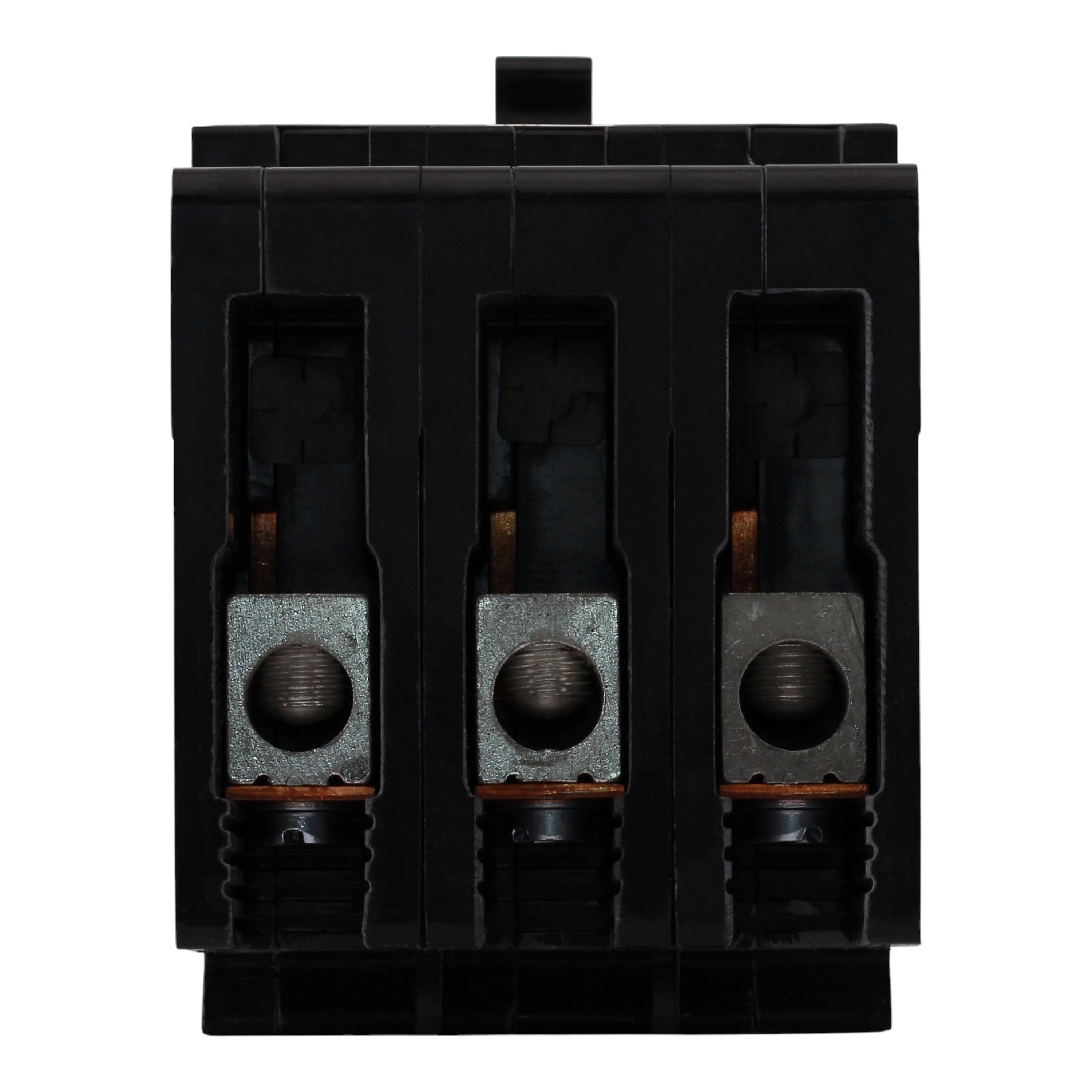

Connections Terminals: Line and load lugs
-
Wire Size: AWG 14...AWG 2/0 Cu/Al
-
Tightening Torque: 34.5 lb-in (AWG 14-10); 49.6 lb-in (AWG 8-2/0)
-
Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
-
Weight: 4.0 lbs
-
Certifications: UL Listed, cULus, HACR Rated
This Square D E-Frame EDB34060 bolt-on circuit breaker provides reliable 60A, 3-pole thermal-magnetic protection for 480Y/277V circuits in NF panelboards. Featuring Visi-Trip indication for faster troubleshooting and robust overload/short-circuit protection, it ensures enhanced safety and performance in commercial and industrial lighting applications.
