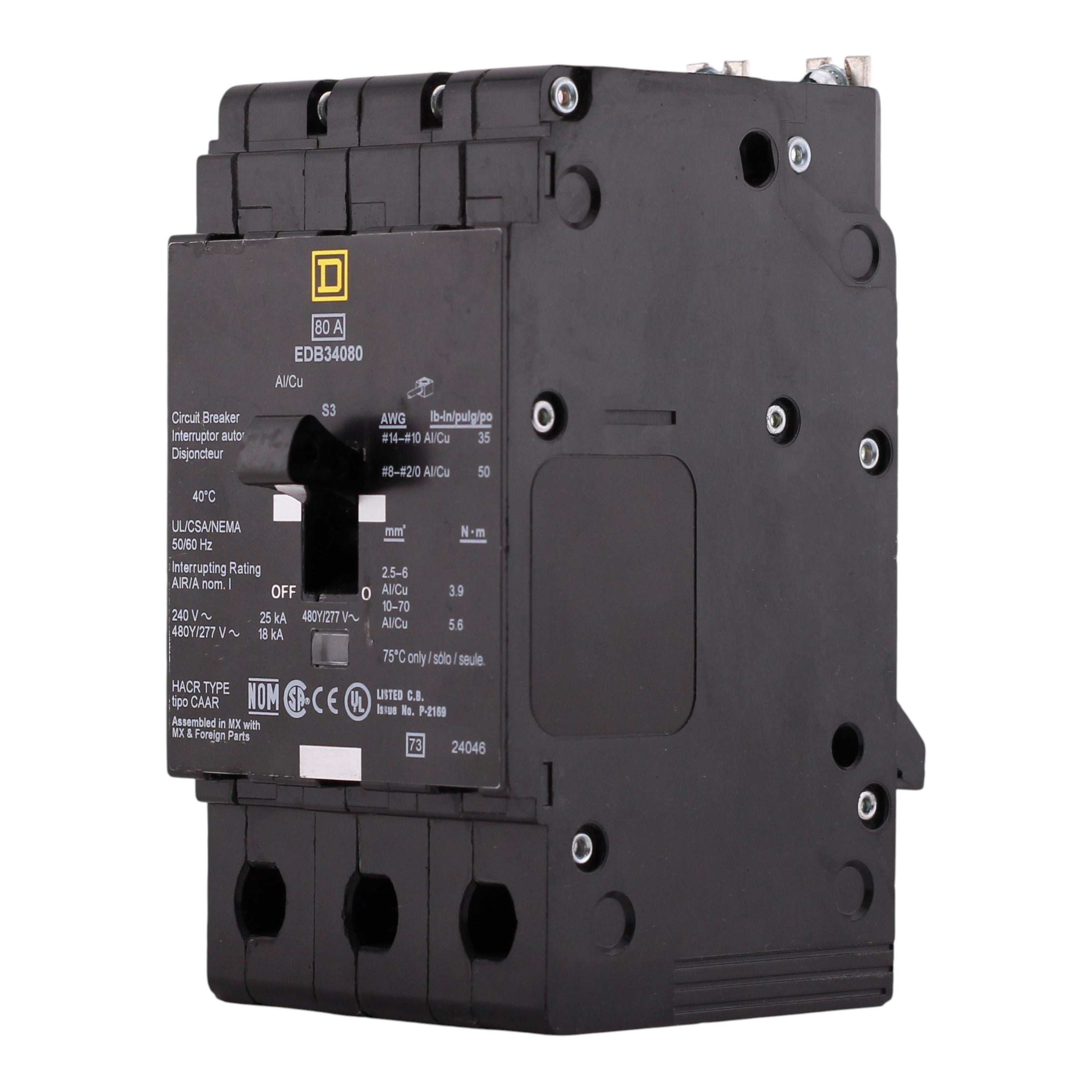

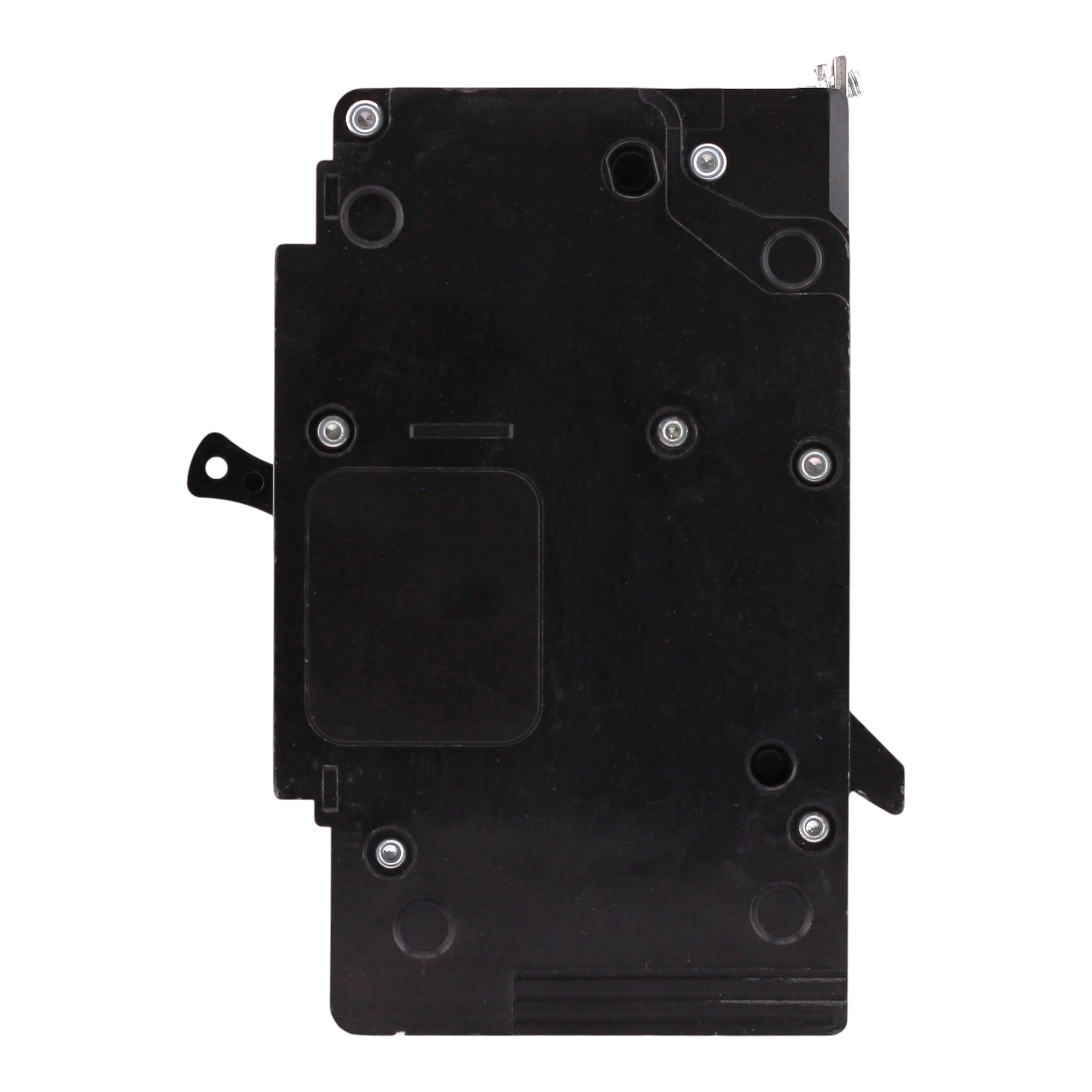

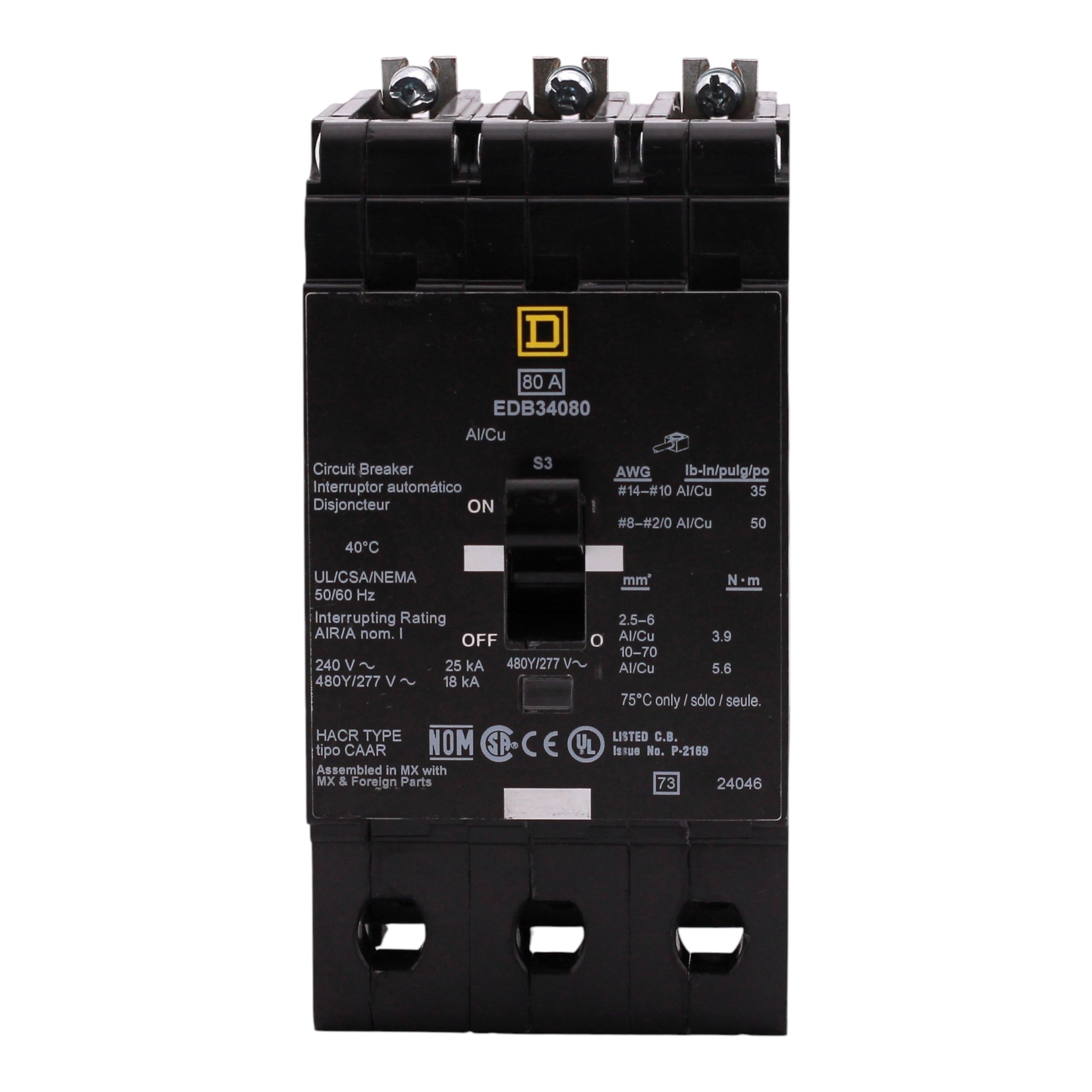

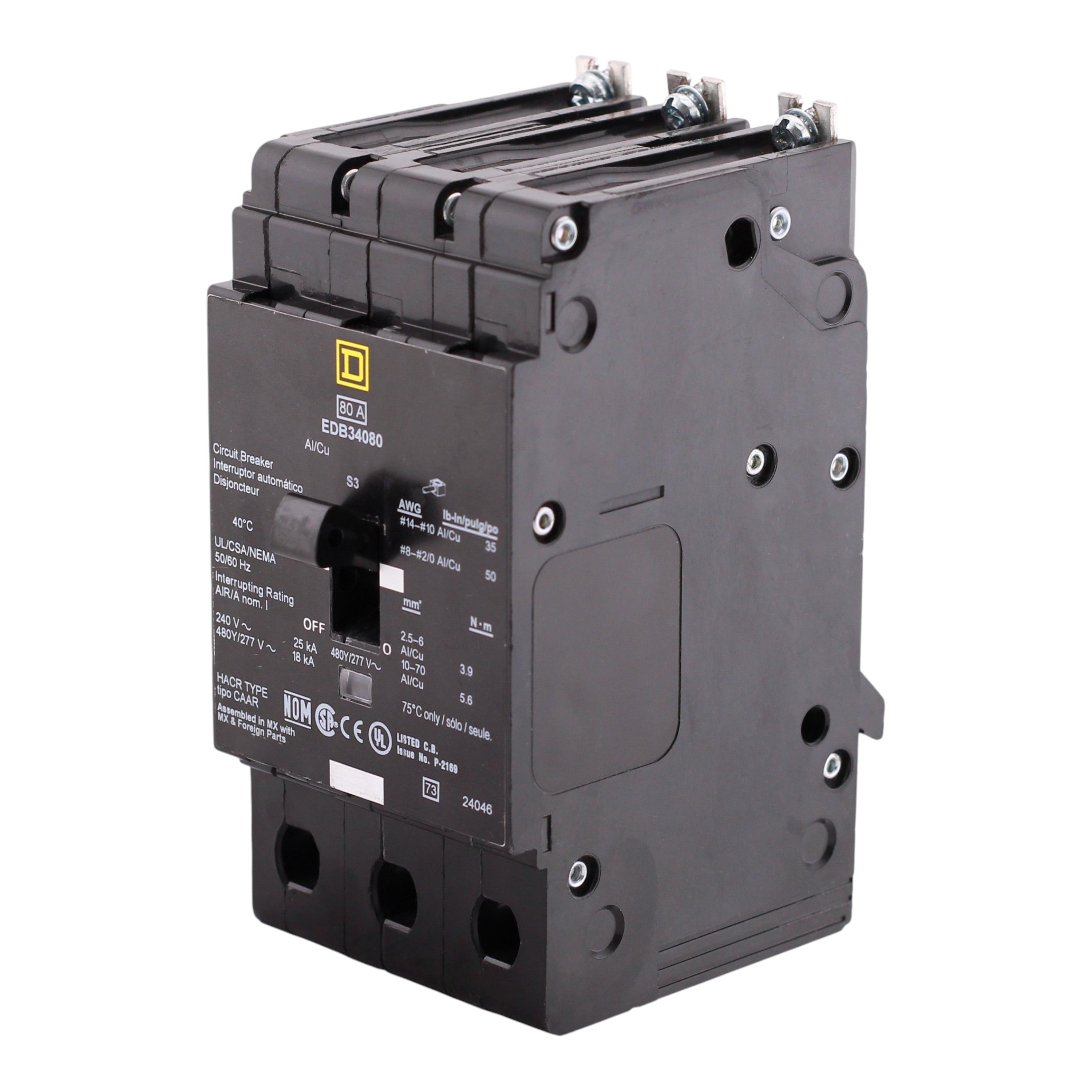

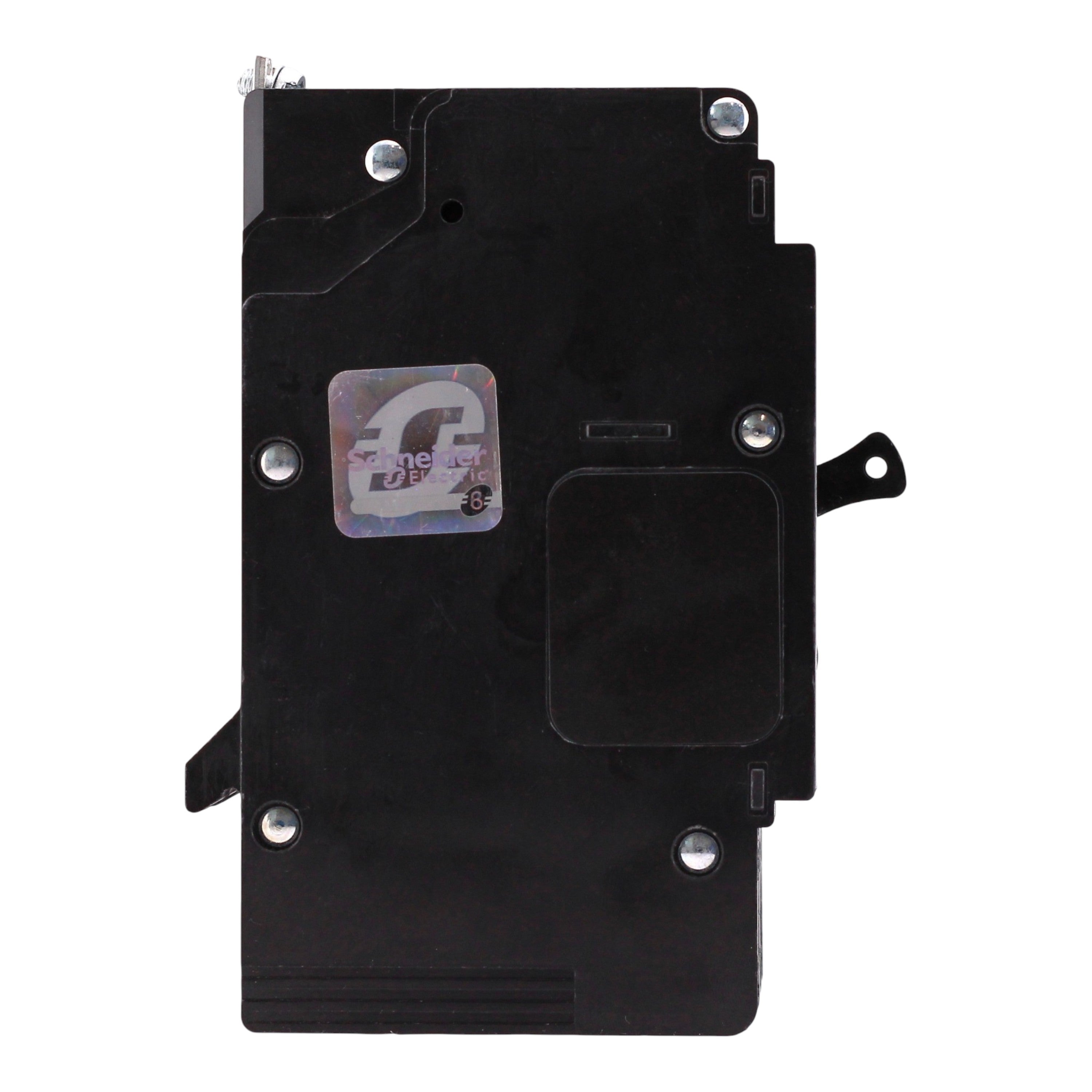

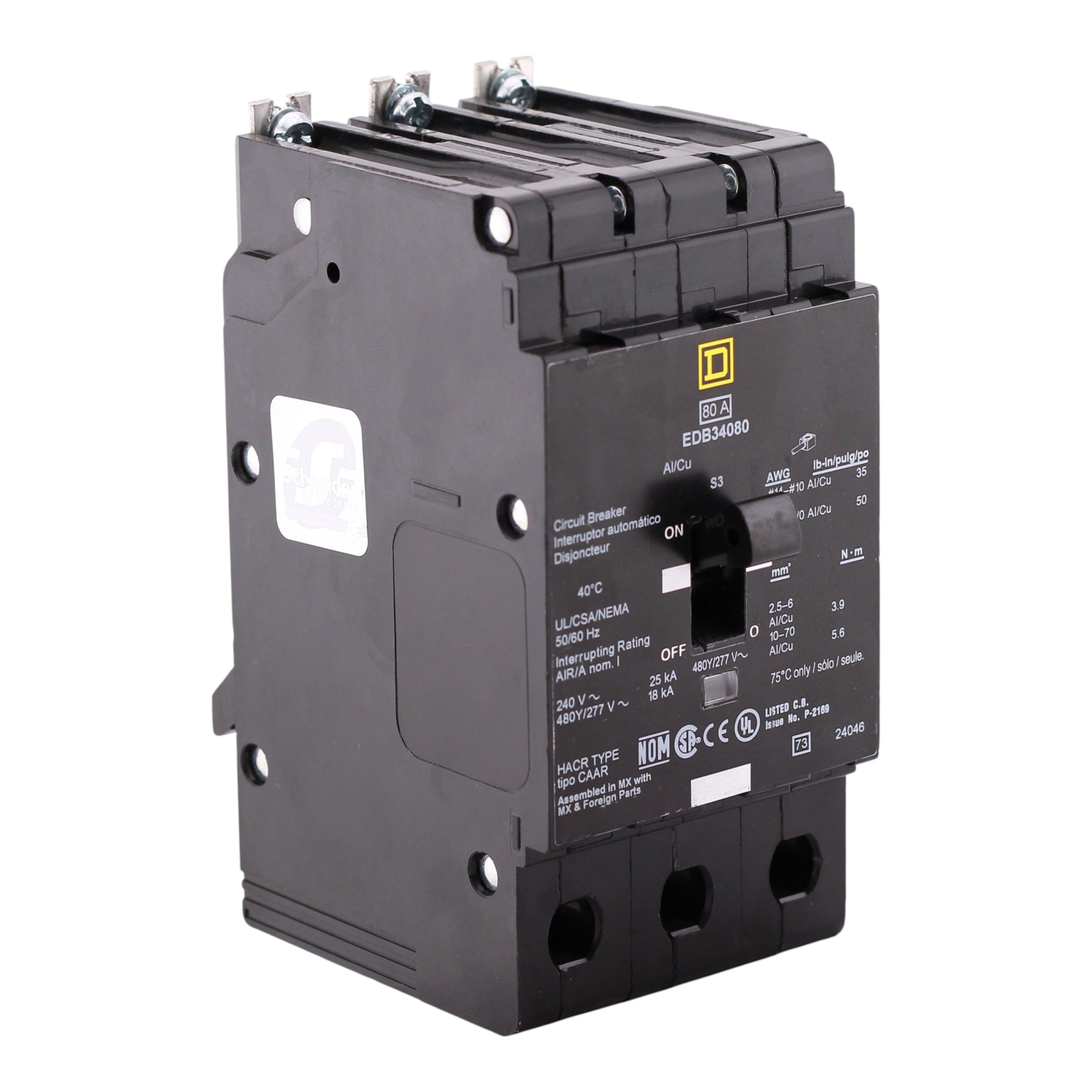

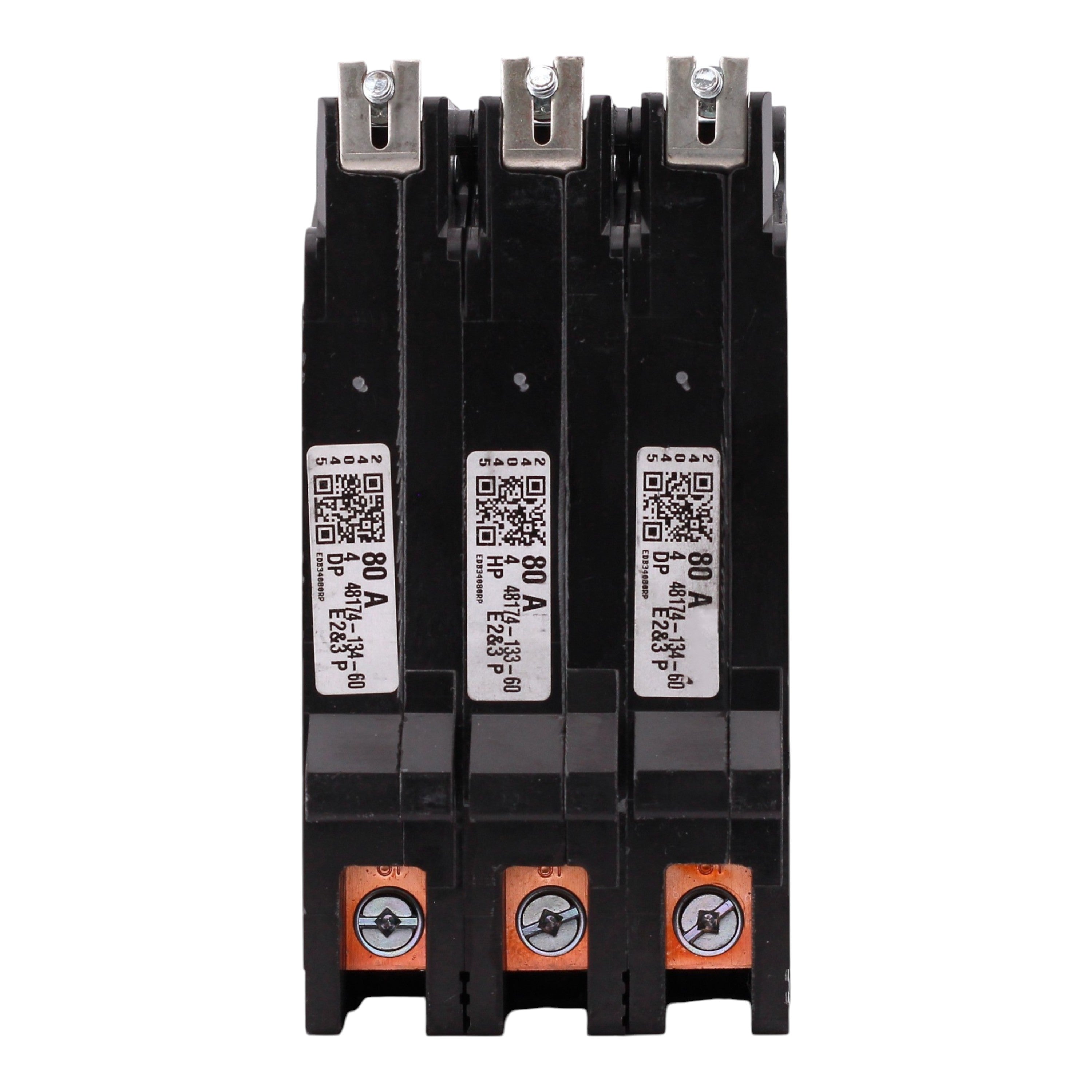

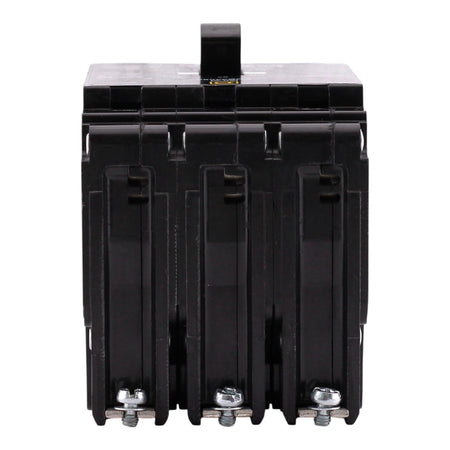

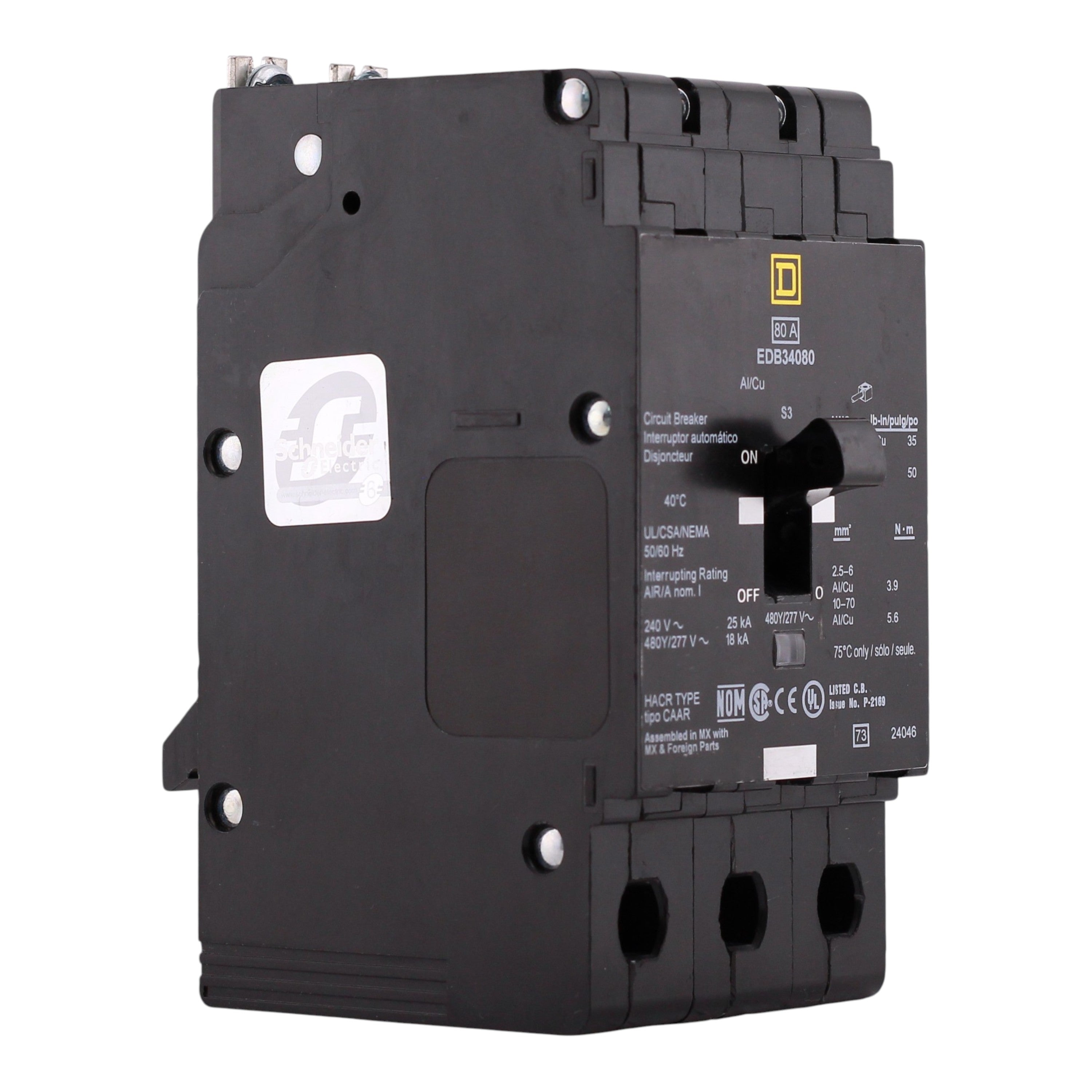

Square D EDB34080: 80 Amp, 3-Pole, E-Frame Thermal Magnetic Lighting Panelboard Circuit Breaker, 480Y/277VAC, 25kA, Bolt-On, HACR Rated, cULus Listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: E-Frame (125A Frame EDB-EGB-EJB — for Square D NF lighting panelboards)
-
UPC: 785901875369
-
Model Number: EDB34080
-
Breaker Type: Thermal Magnetic Miniature Circuit Breaker with Visi-Trip™ Indicator
-
Trip Unit Rating: 2300A (guaranteed trip); 1000A (hold current)
-
Amperage: 80 Amps
-
Poles: 3-Pole
-
Number of Spaces: 3
-
Voltage: 480Y/277 Volts AC
-
Interrupt Rating: 25 kAIC @ 120/240VAC; 18 kAIC @ 480Y/277VAC; 18 kAIC @ 277VAC
-
Breaking Capacity Code: D
-

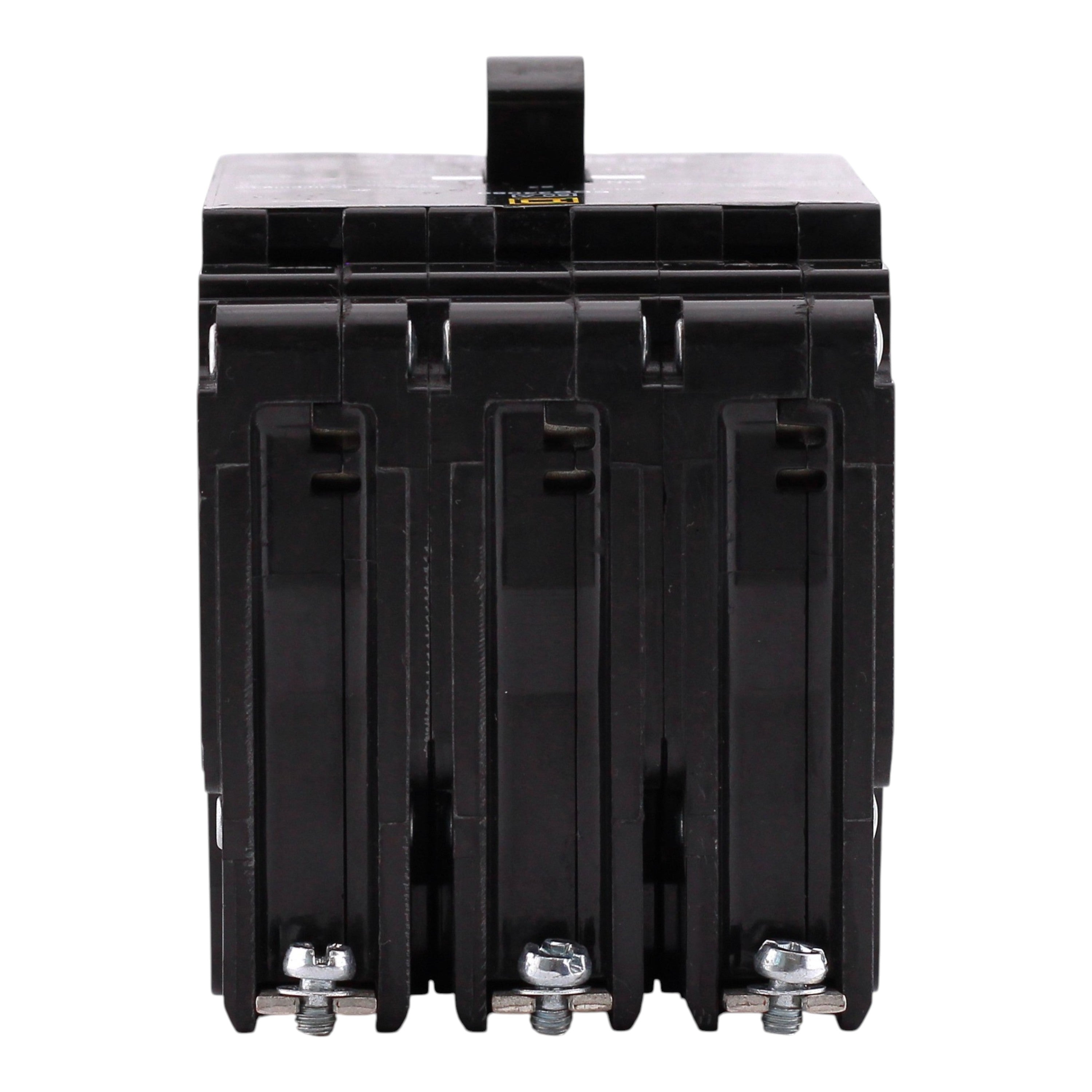

Mounting Mode: Bolt-on
-

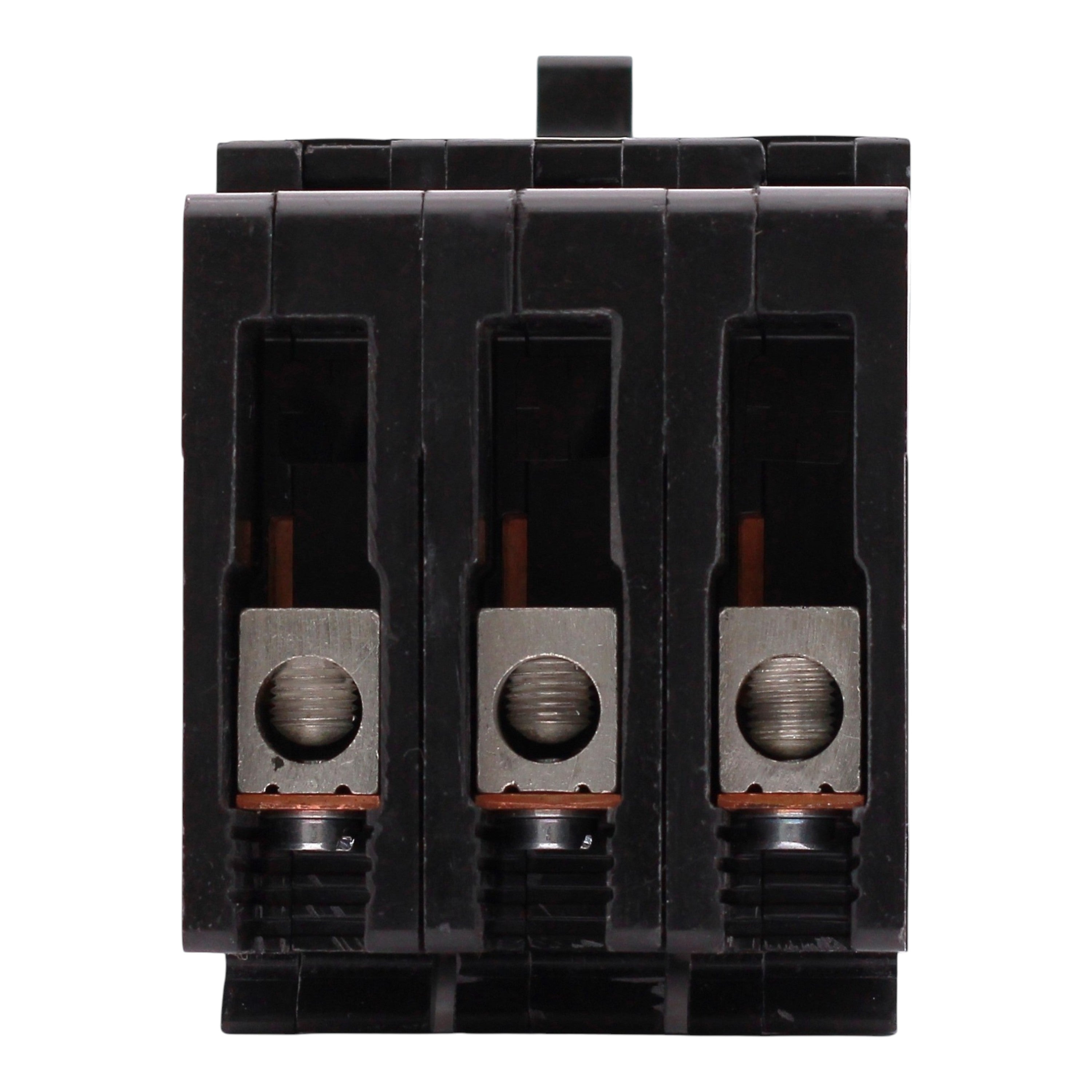

Connections / Terminals: Aluminum lugs (line and load)
-
Wire Size: #14–2/0 AWG Cu, #12–2/0 AWG Al
-
Tightening Torque: 34.5 lb-in (#14–10 AWG); 49.6 lb-in (#8–2/0 AWG)
-
Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
-
Weight: 4.00 lbs
-
Certifications: cULus Listed, HACR Rated, TAA Compliant
This Square D EDB34080 E-Frame thermal magnetic circuit breaker delivers dependable 80 Amp, 3-Pole protection for 480Y/277VAC lighting circuits in Square D NF panelboards. With 25kAIC interrupt capacity at 120/240VAC, Visi-Trip™ trip indication, HACR rating, and bolt-on mounting, it supports commercial and industrial lighting distribution applications.
