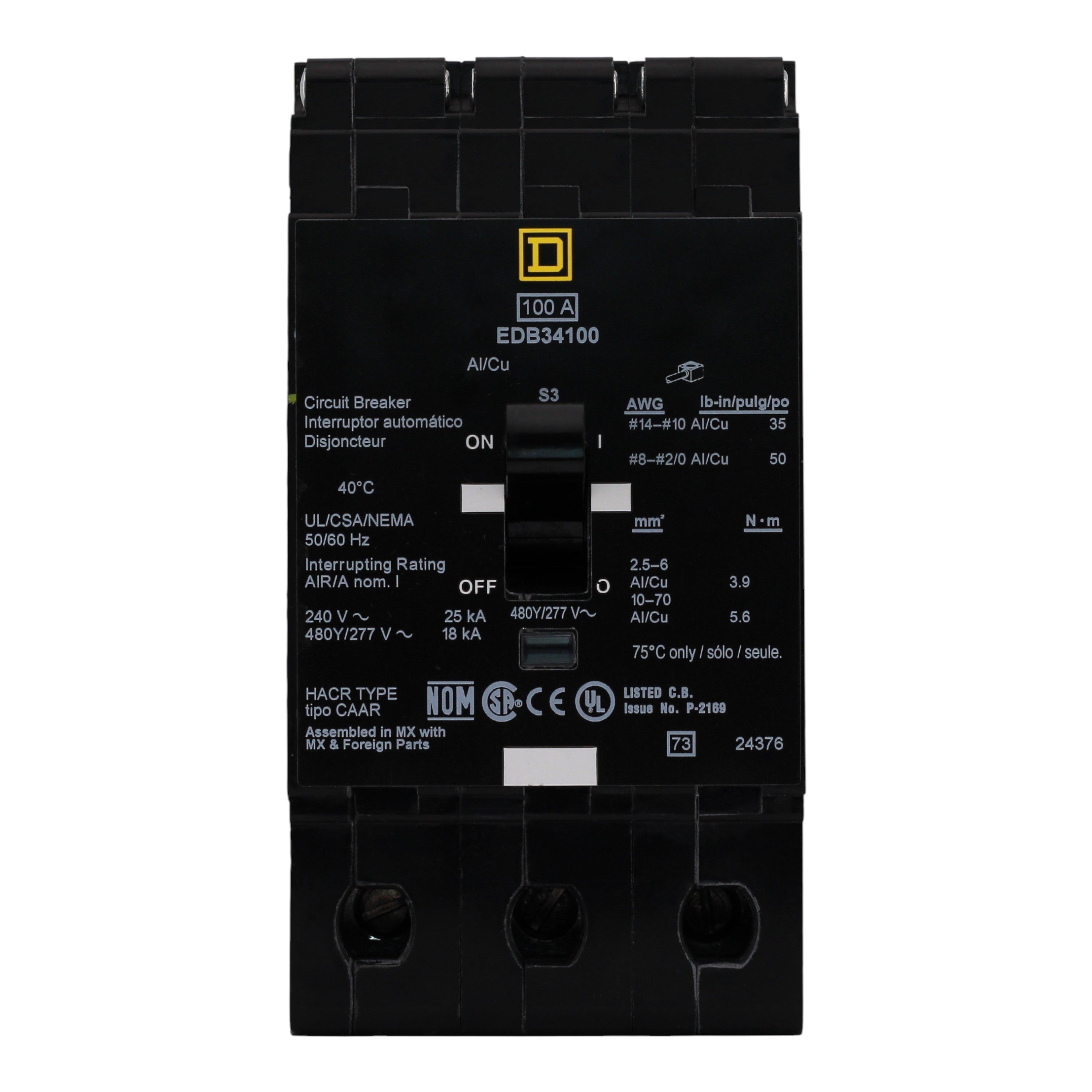

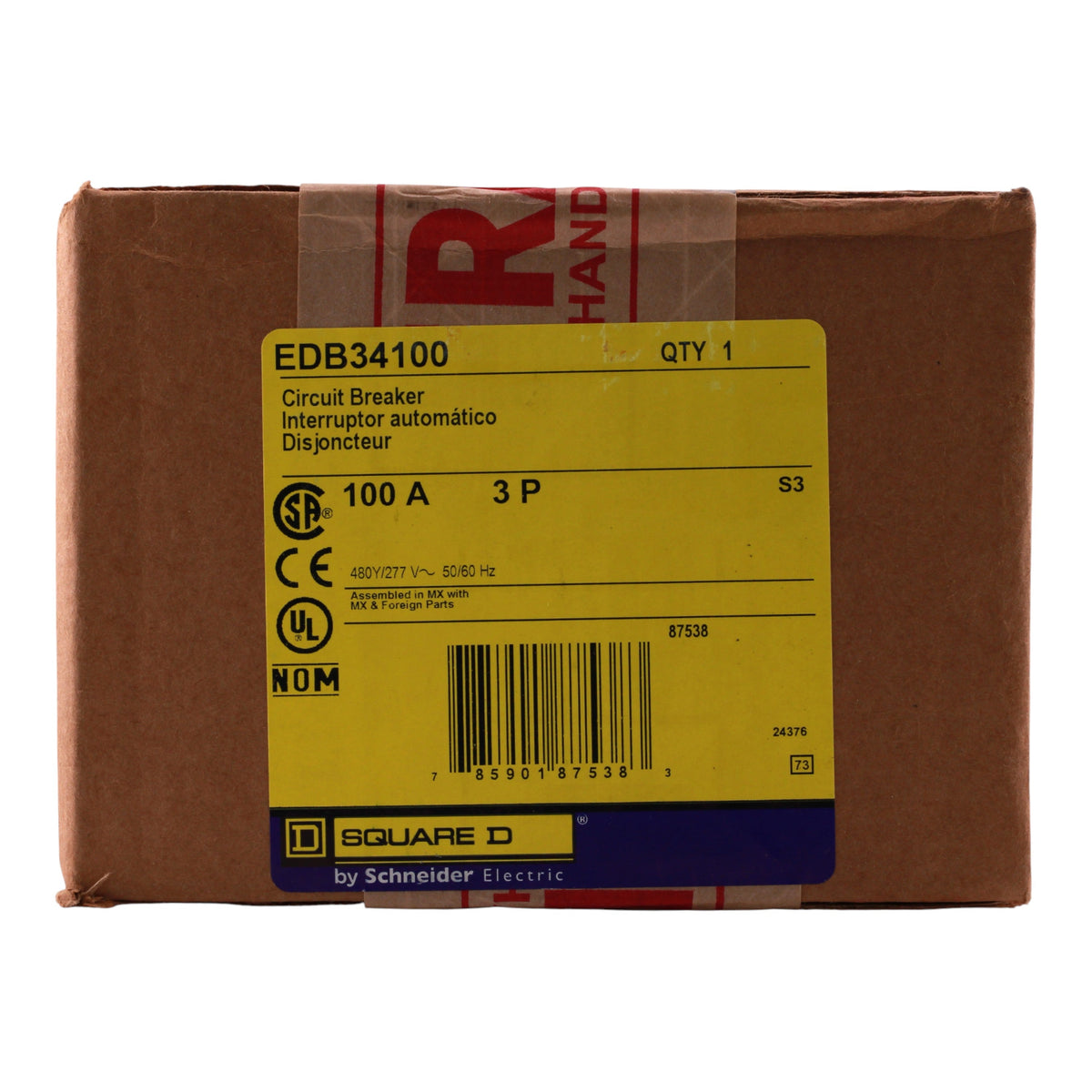

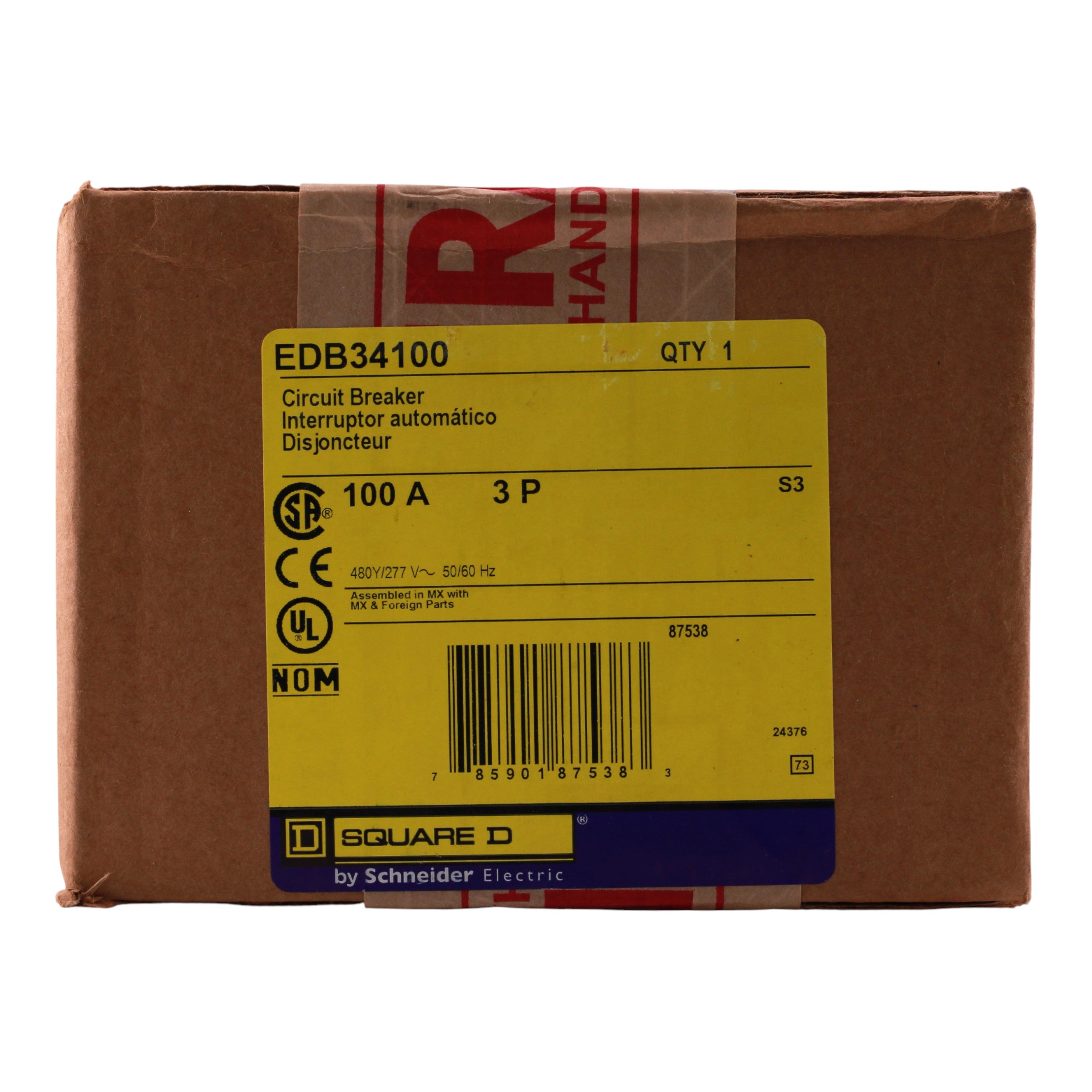

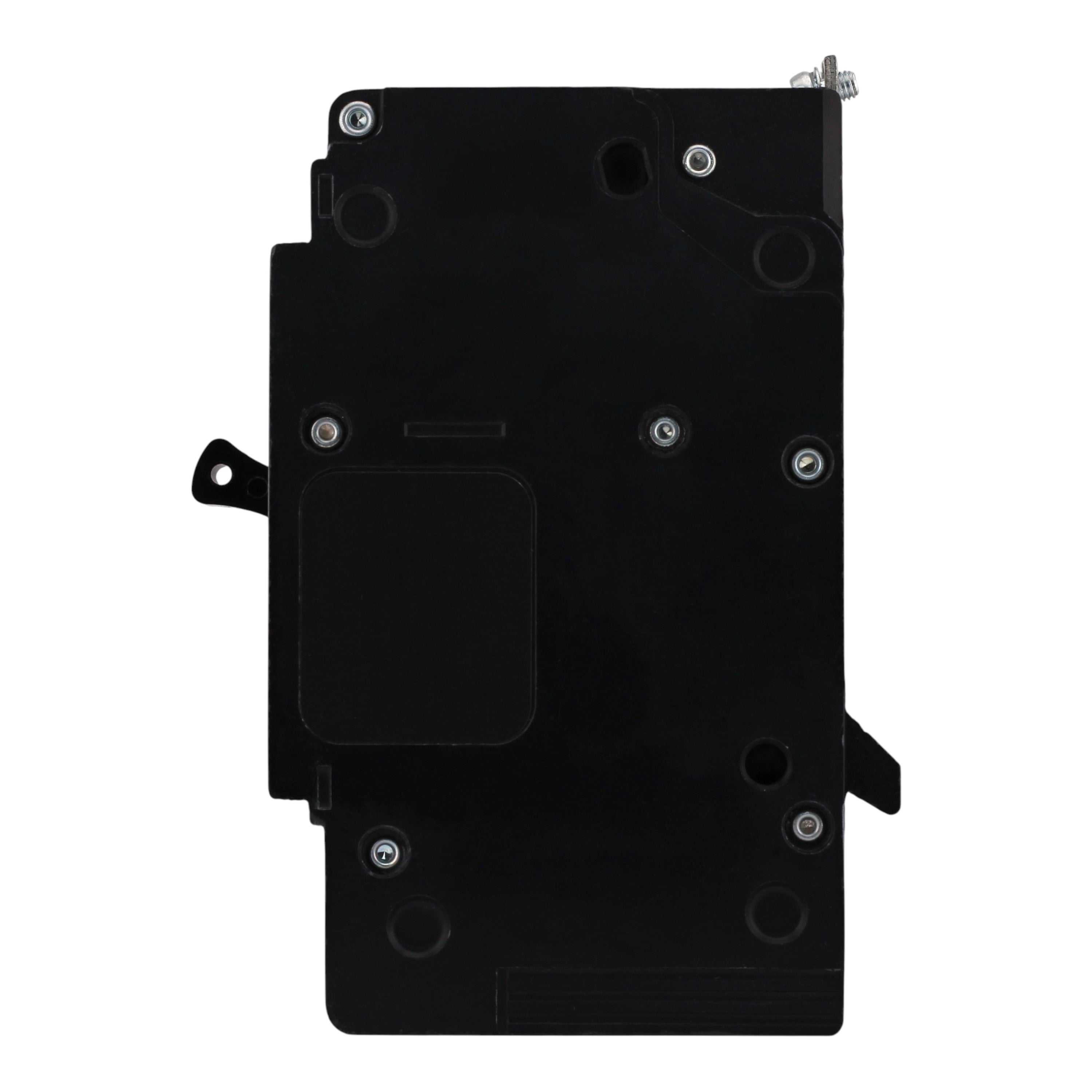

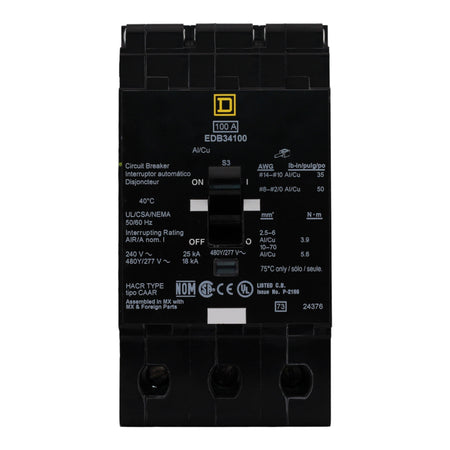

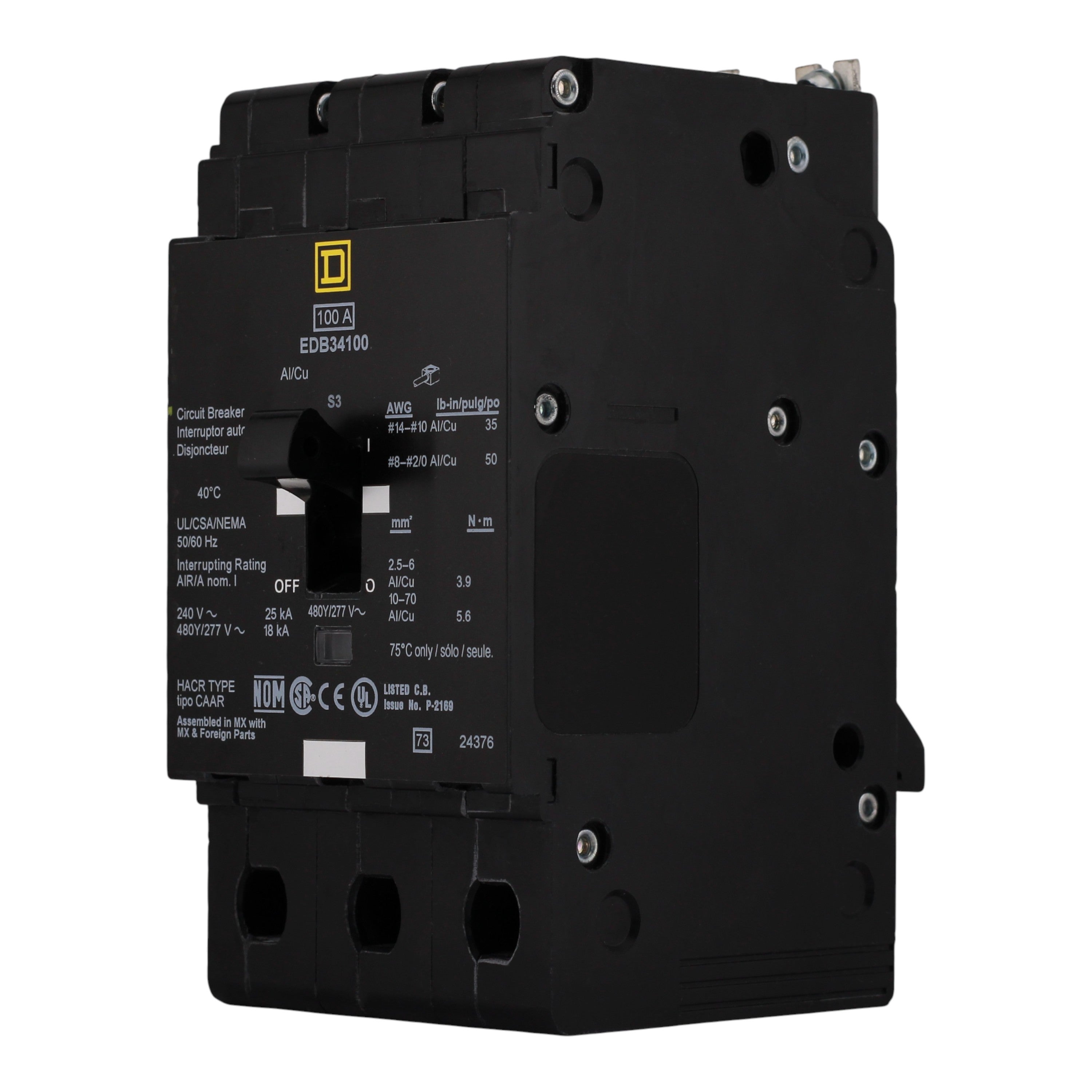

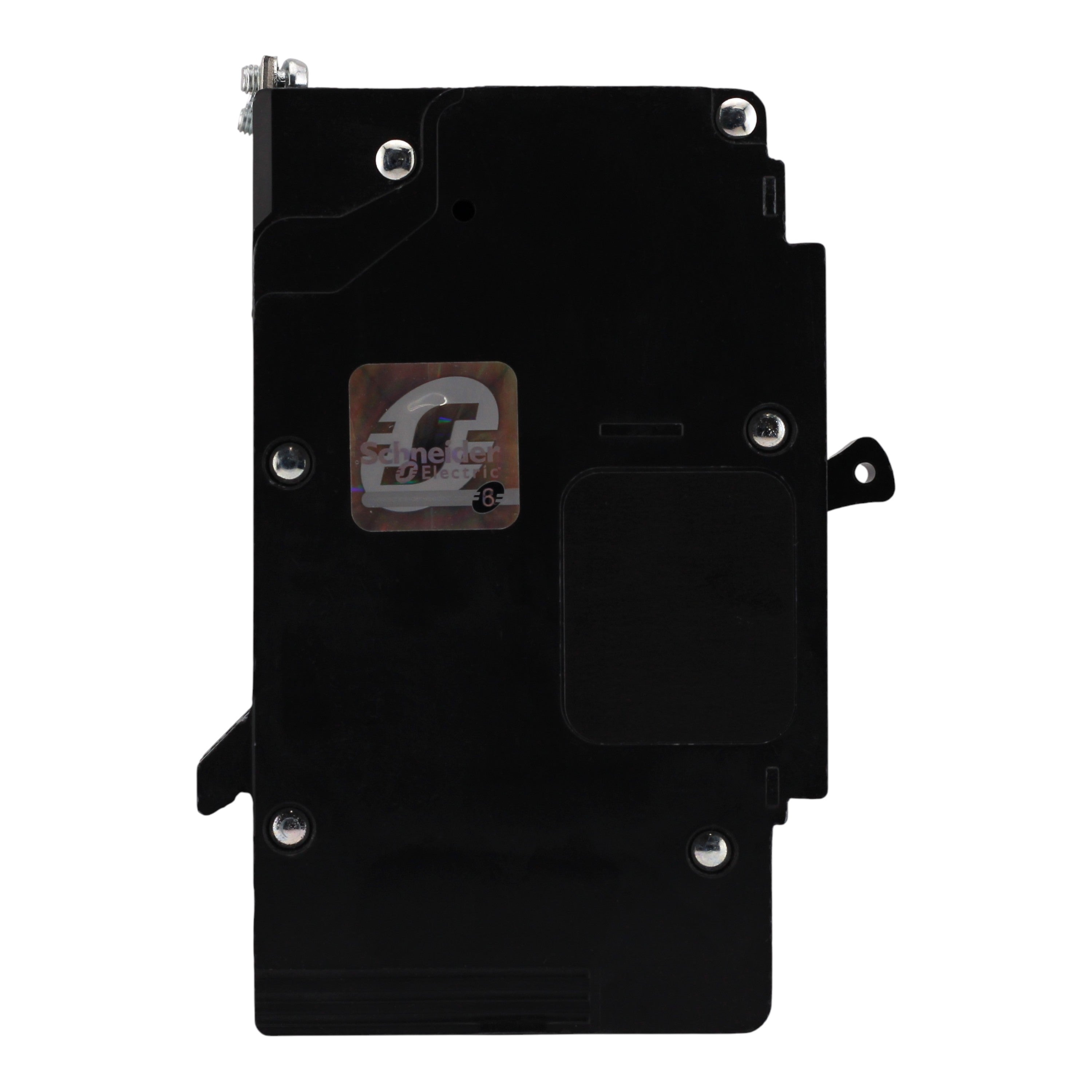

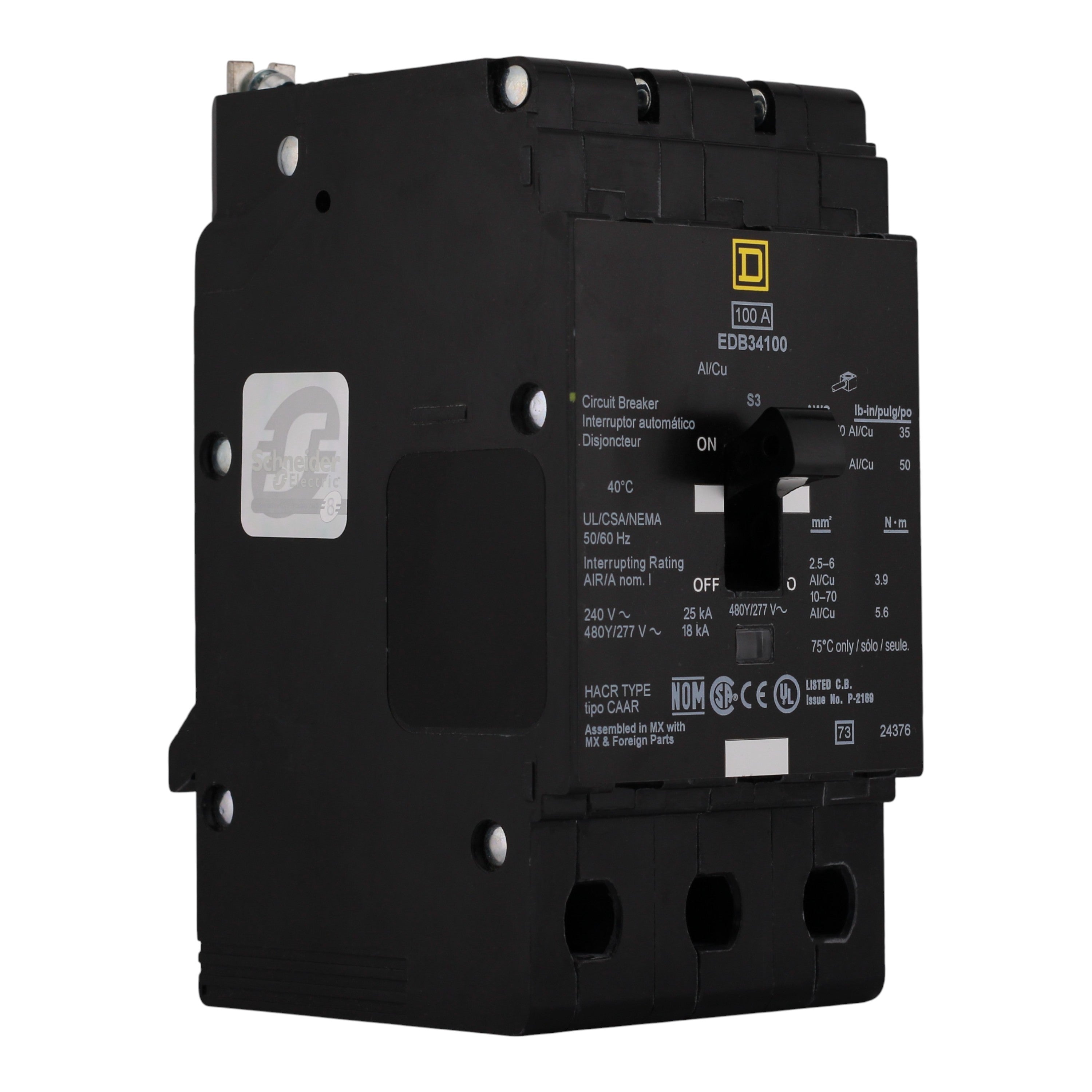

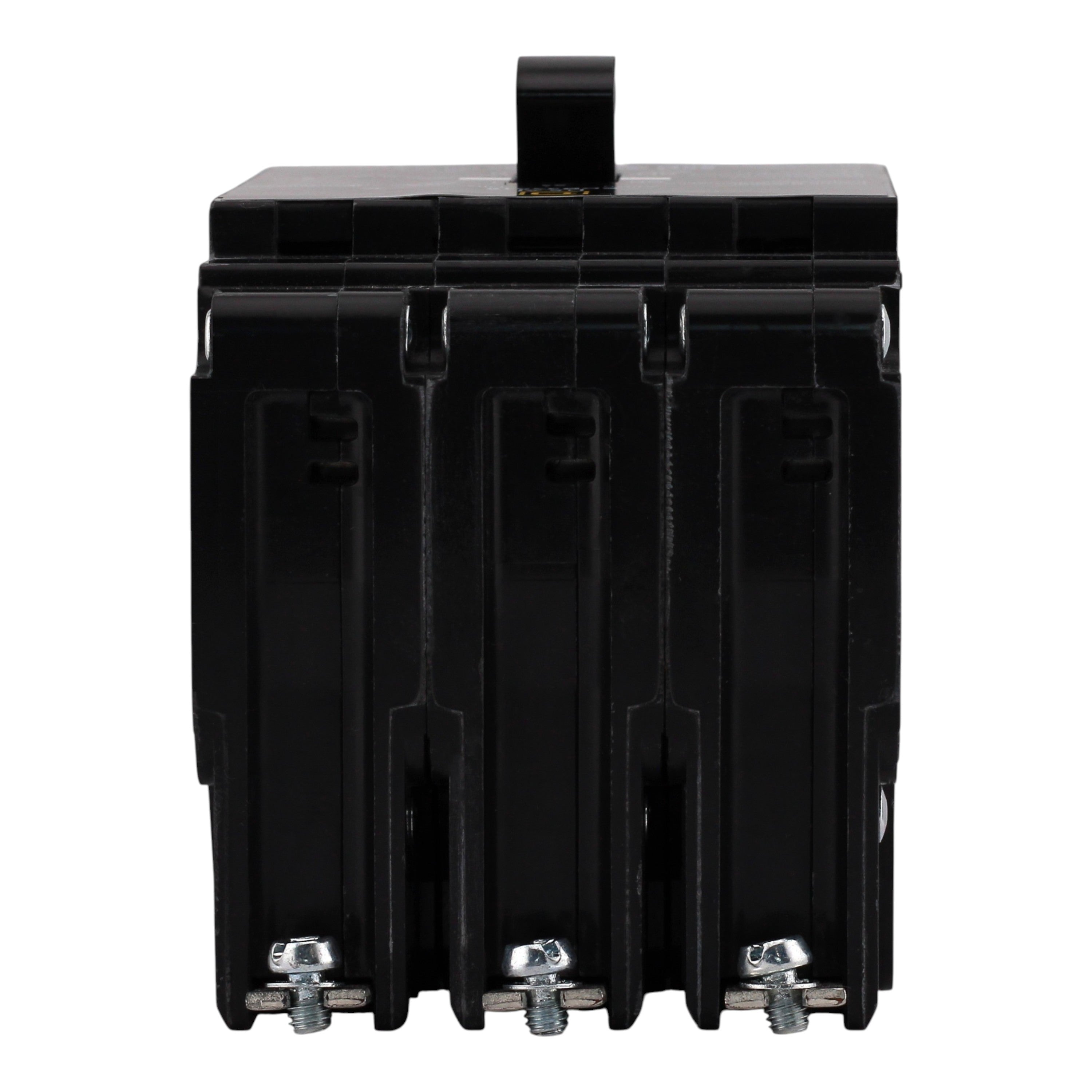

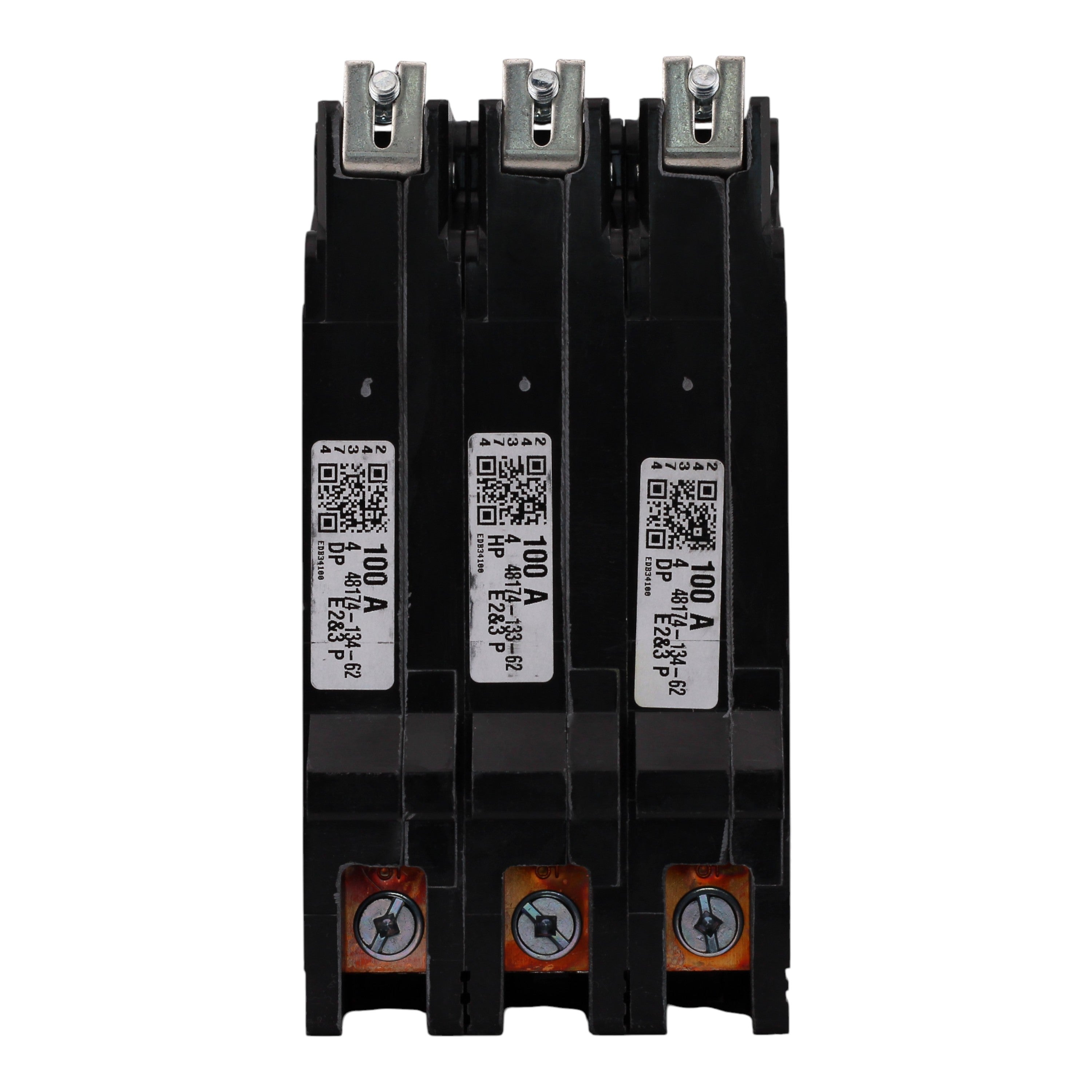

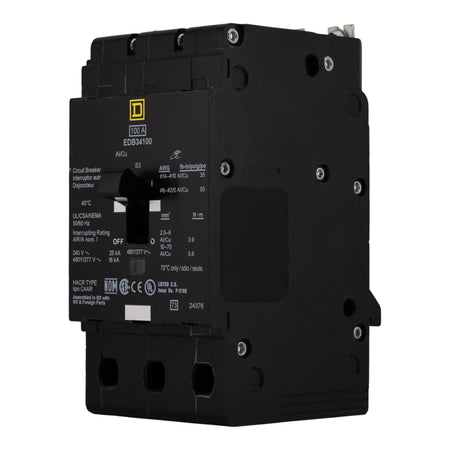

Square D EDB34100: 100 Amp 3-Pole Thermal-Magnetic circuit breaker, 480Y/277V AC, 25kA interrupt rating at 240V/277V, 18kA at 480Y/277V, bolt-on mounting, Visi-Trip indicator, UL listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: E-Frame (for Square D NF panelboards and equipment)
-
UPC: 785901875383
-
Model Number: EDB34100
-
Breaker Type: Thermal-Magnetic
-
Amperage: 100 Amps
-
Poles: 3-Pole
-
Voltage: 480Y/277 Volts AC
-
Interrupt Rating: 18 kAIC at 480Y/277V AC (25 kAIC at 240V AC and below)
-
Mounting Mode: Bolt-on
-

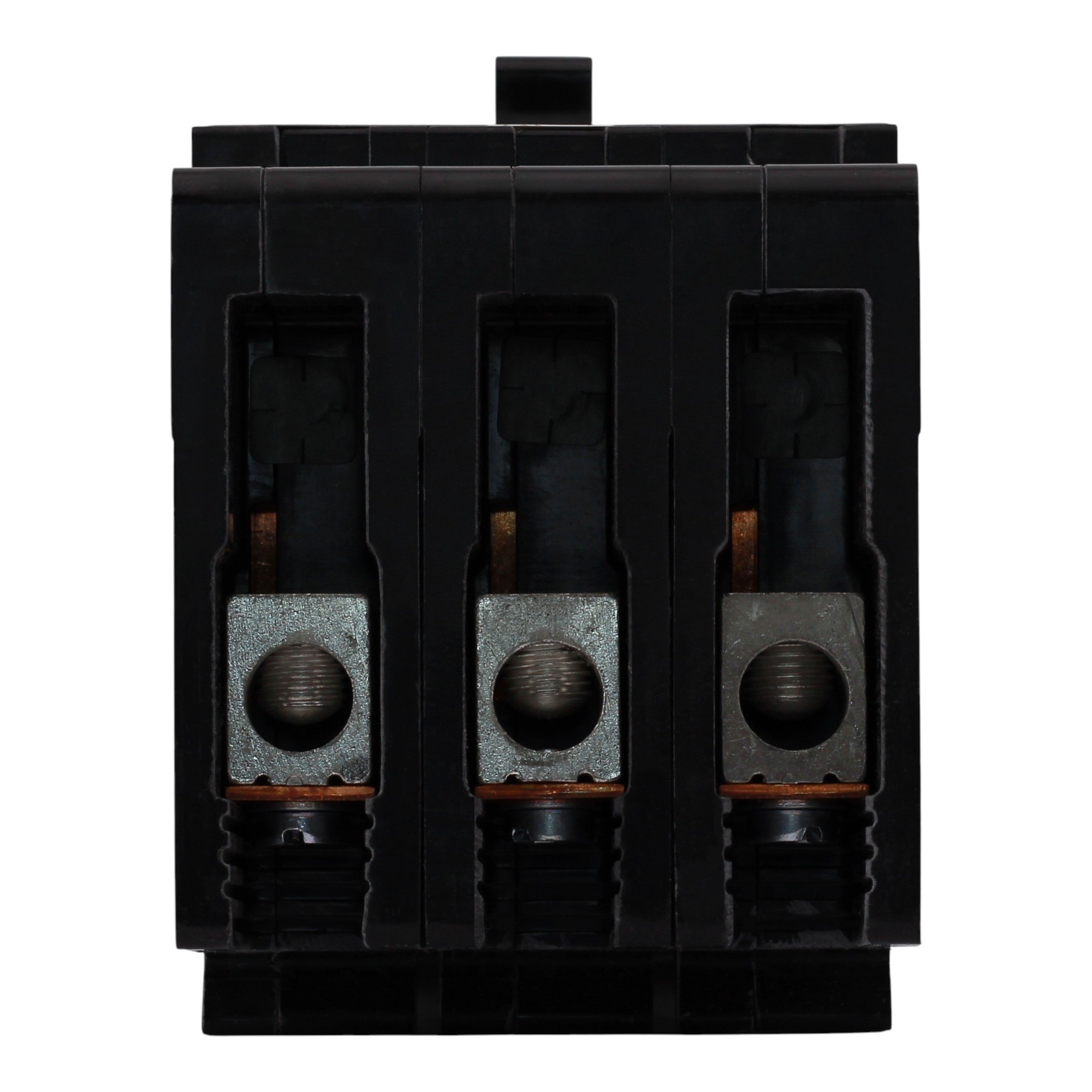

Connections Terminals: Lug terminals
-
Wire Size: AWG 14-2/0 Cu/Al
-
Tightening Torque: 34.5 lb-in (AWG 14-10); 49.6 lb-in (AWG 8-2/0)
-
Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
-
Weight: 4.0 lbs
-
Certifications: UL Listed, cULus, HACR Rated
This Square D E-Frame EDB34100 thermal-magnetic bolt-on circuit breaker delivers reliable 100A, 3-pole protection for 480Y/277V circuits in NF panelboards. Featuring Visi-Trip indication for faster troubleshooting, superior overload and short circuit protection, and robust construction, it provides enhanced safety and performance for commercial and lighting applications.
