Square D

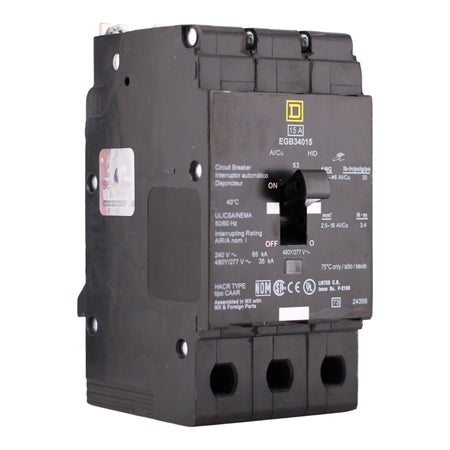

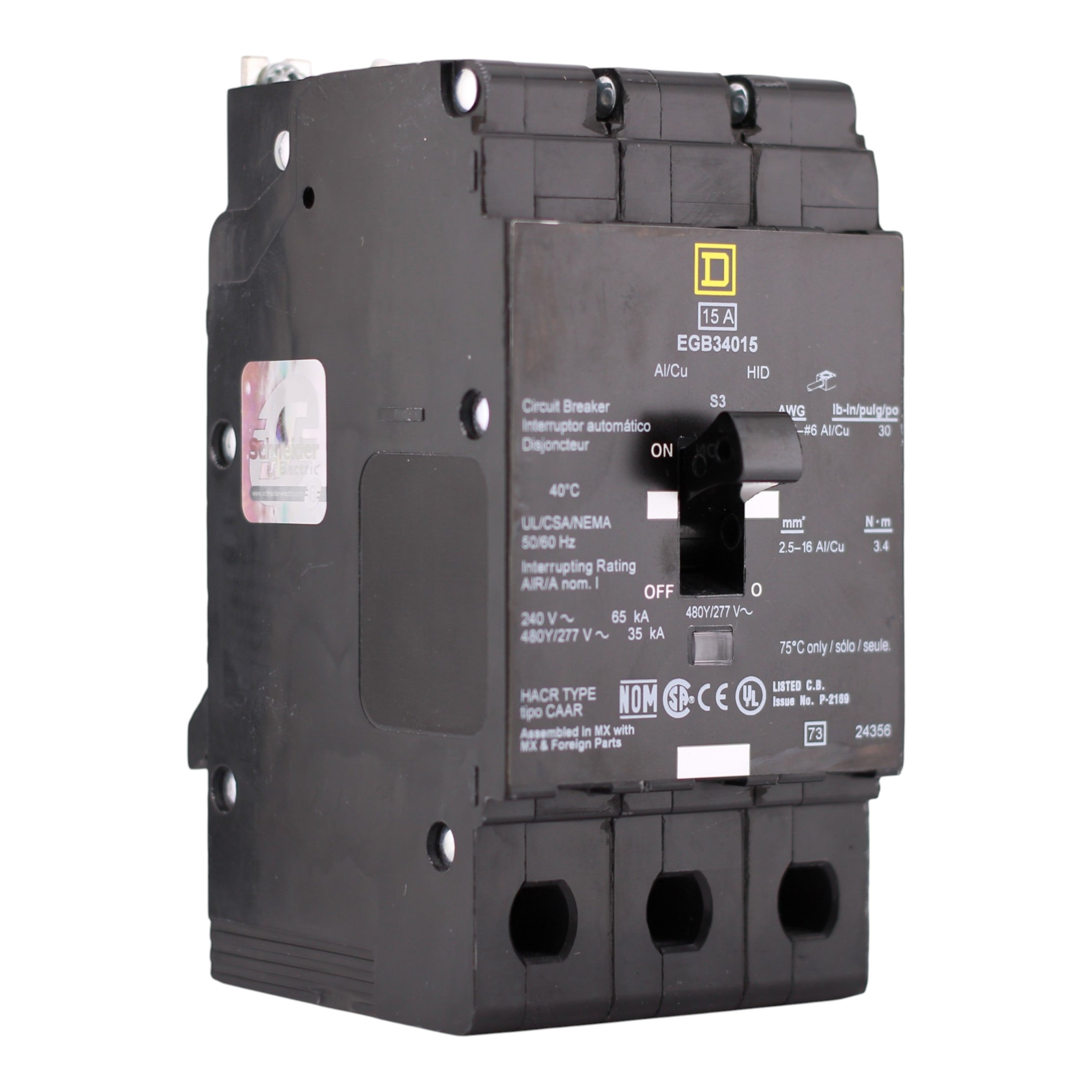

Square D E-Frame, EGB34015, 15A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker

Out of stock
SKU: EGB34015 UPC: 785901311133
(0)
$245.00
-53% $525.00 $245.00
Out of stock
Condition

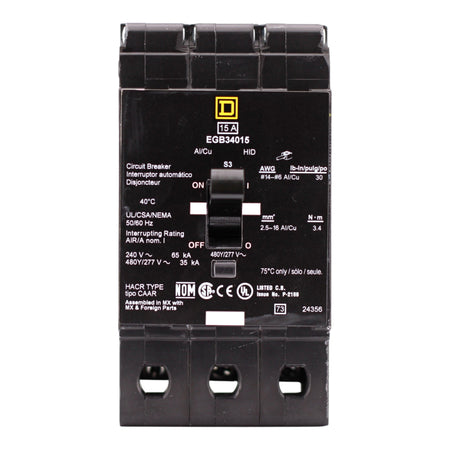

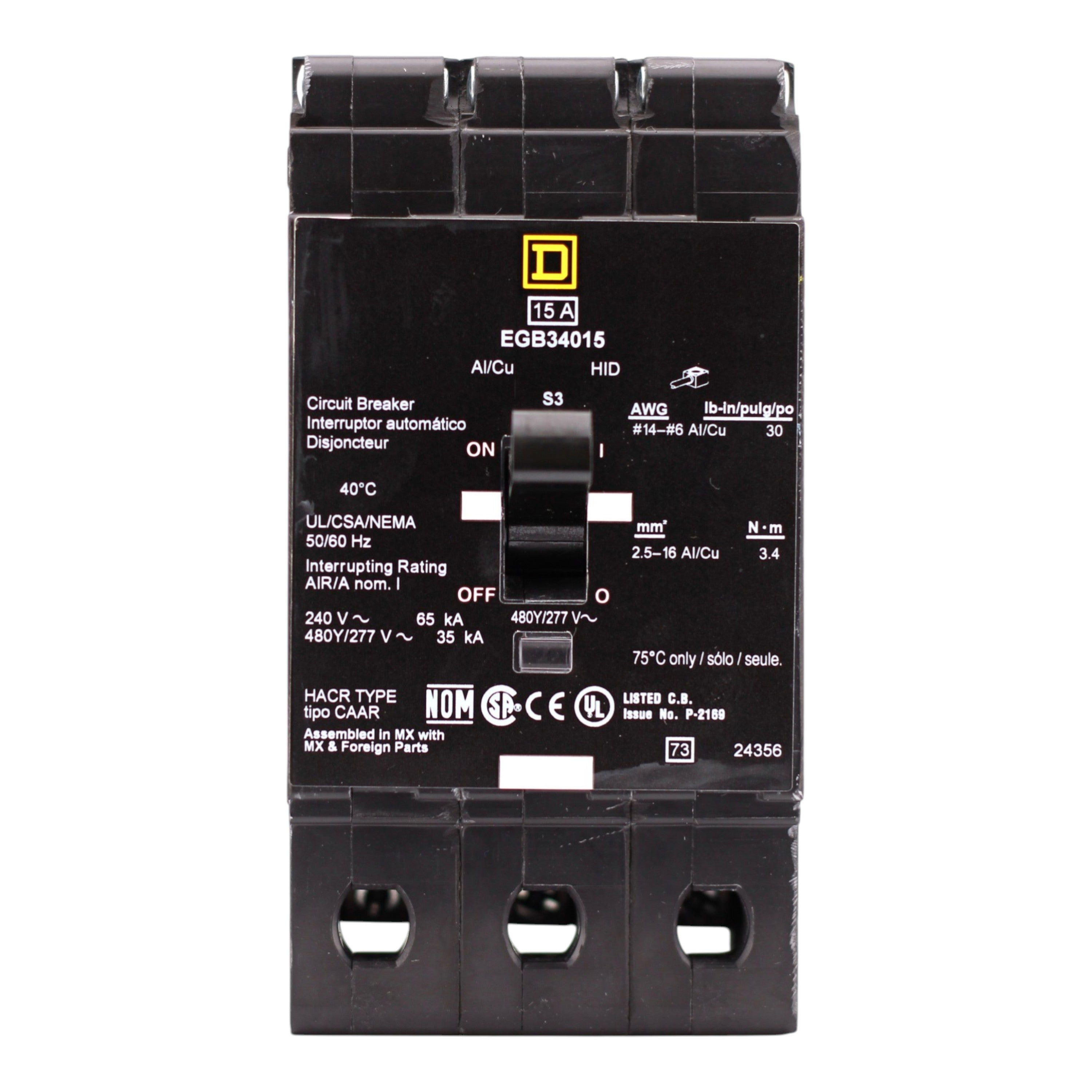

Square D EGB34015: 15 Amp, 3-Pole, E-Frame Thermal-Magnetic Circuit Breaker, 480Y/277V, 35/65kA, bolt-on, NF panelboard, UL Listed, HACR Rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (EDB-EGB-EJB, 125A Frame — for Square D NF Panelboards)
  • UPC: 785901311133
  • Model Number: EGB34015
  • Breaker Type: Thermal-Magnetic Miniature Circuit Breaker
  • Amperage: 15 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 35 kAIC @ 480Y/277V AC; 65 kAIC @ 120/240V AC
  • Mounting Mode: Bolt-On
  • Wire Size: #14–6 AWG Cu; #12–6 AWG Al
  • Tightening Torque: 30.09 lb-in
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4 lbs
  • Certifications: cULus Listed, HACR Rated, HID Rated
  • Local Signalling: Visi-Trip™ trip indicator

This Square D EGB34015 bolt-on circuit breaker delivers dependable 15 Amp, 3-Pole thermal-magnetic protection for 480Y/277V circuits in Square D NF lighting panelboards. With 35kA interrupt rating at 480V and Visi-Trip™ indication, it supports commercial and industrial applications.
