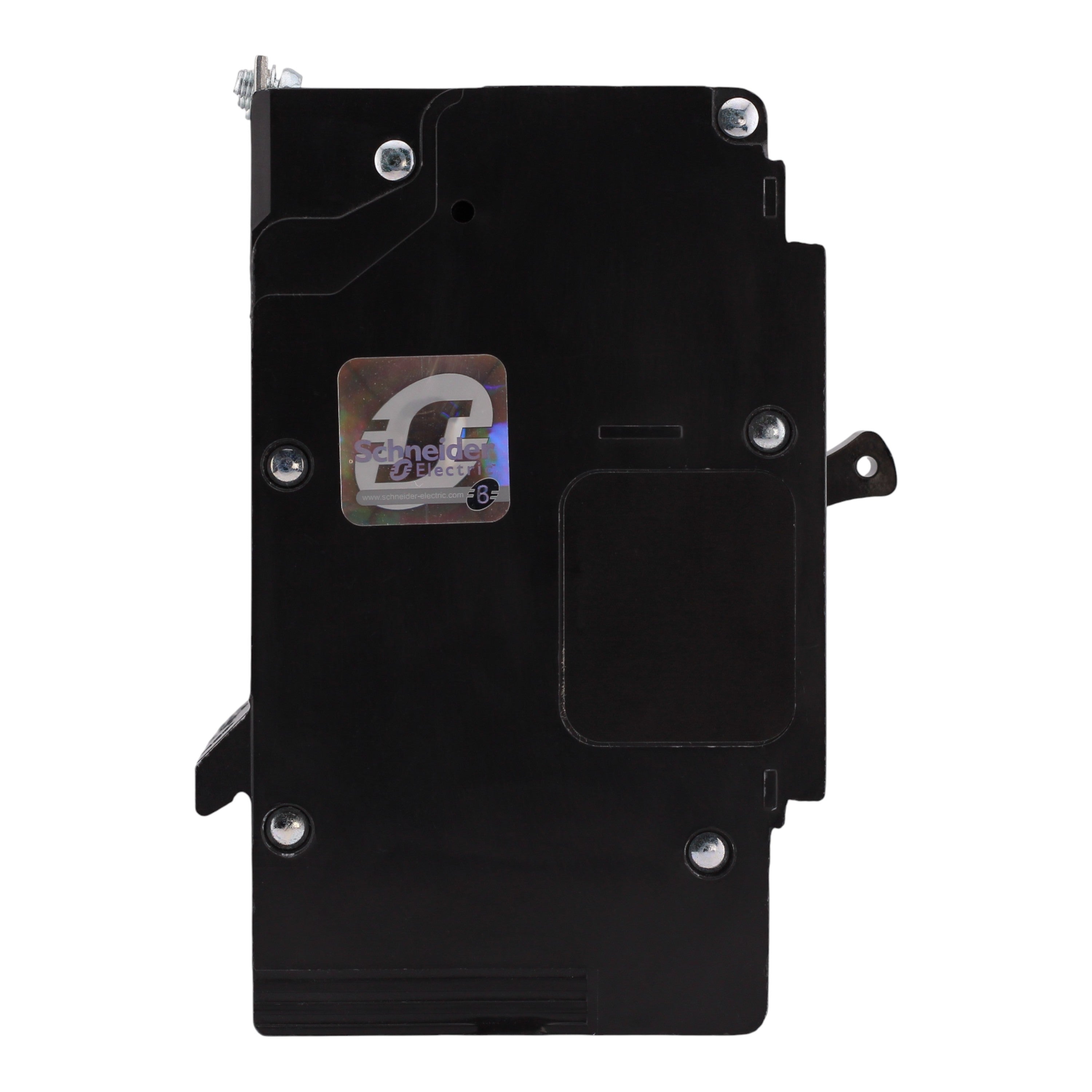

Square D E-Frame, EGB34030, 30A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 5

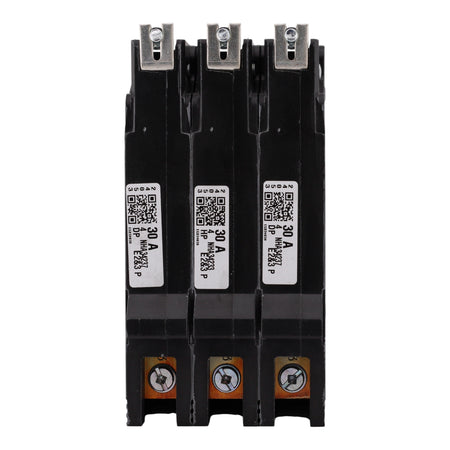

Square D E-Frame, EGB34030, 30A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 6
Square D E-Frame, EGB34030, 30A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 7

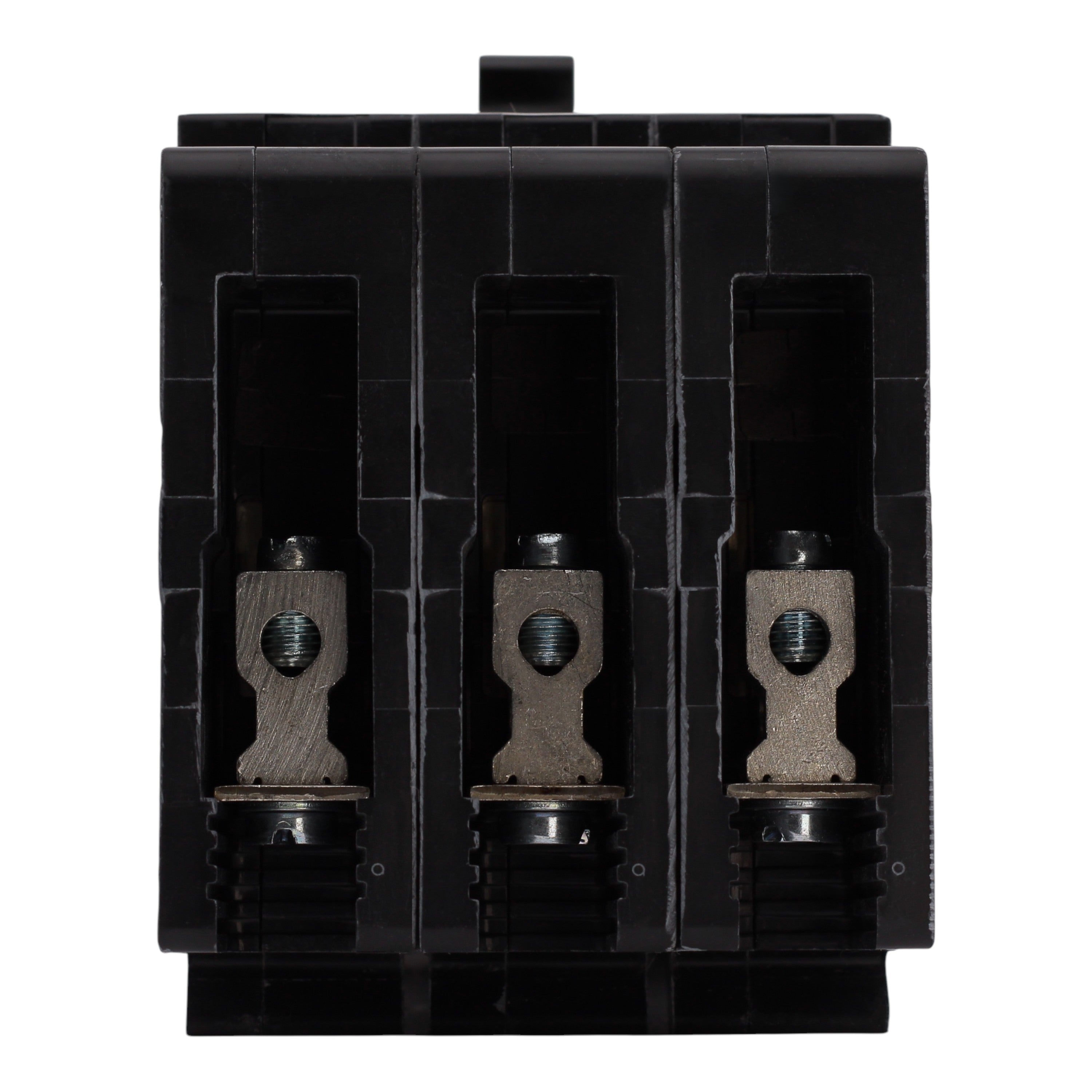

Square D E-Frame, EGB34030, 30A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 8

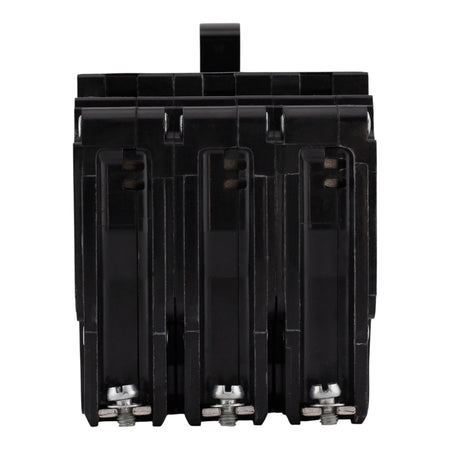

Square D E-Frame, EGB34030, 30A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

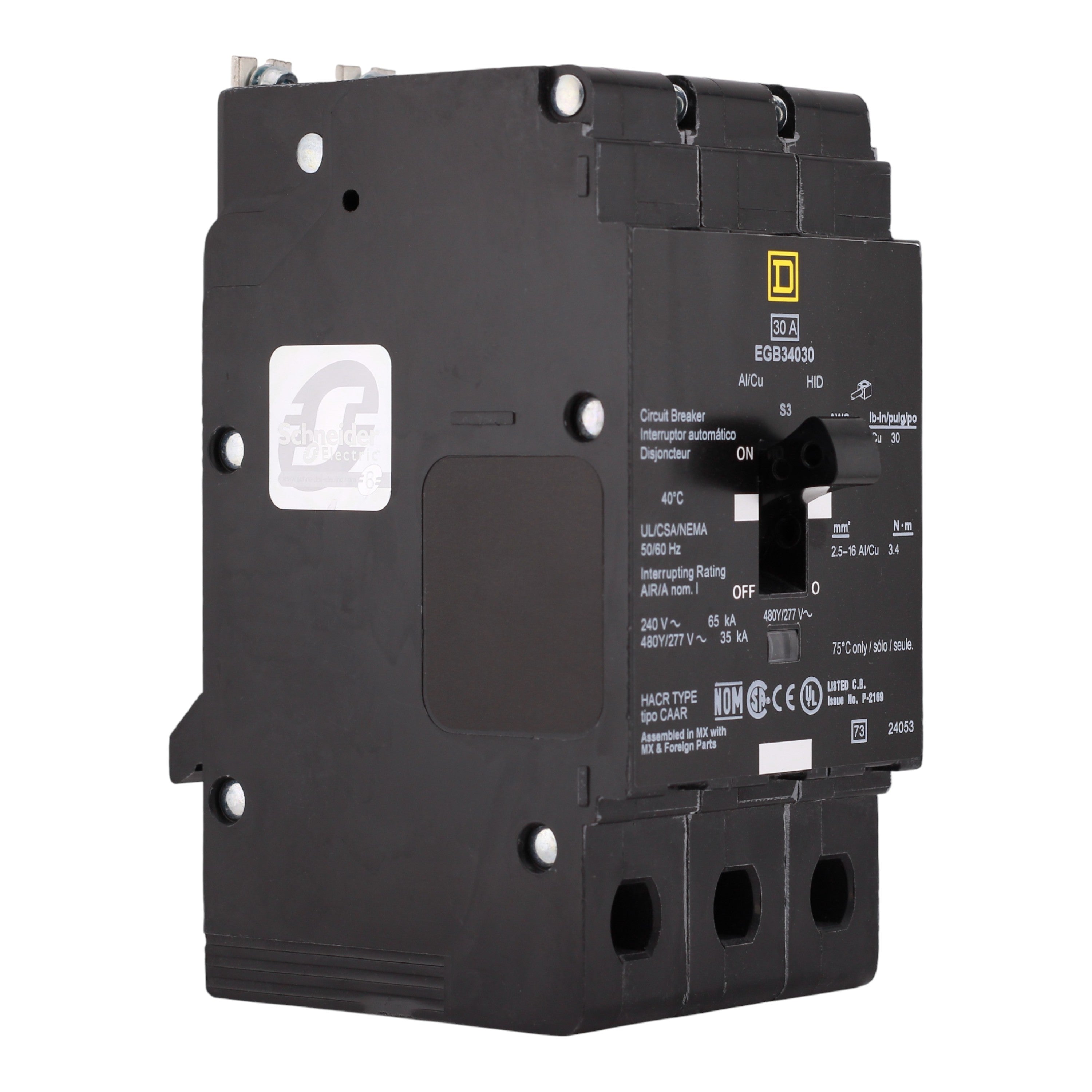

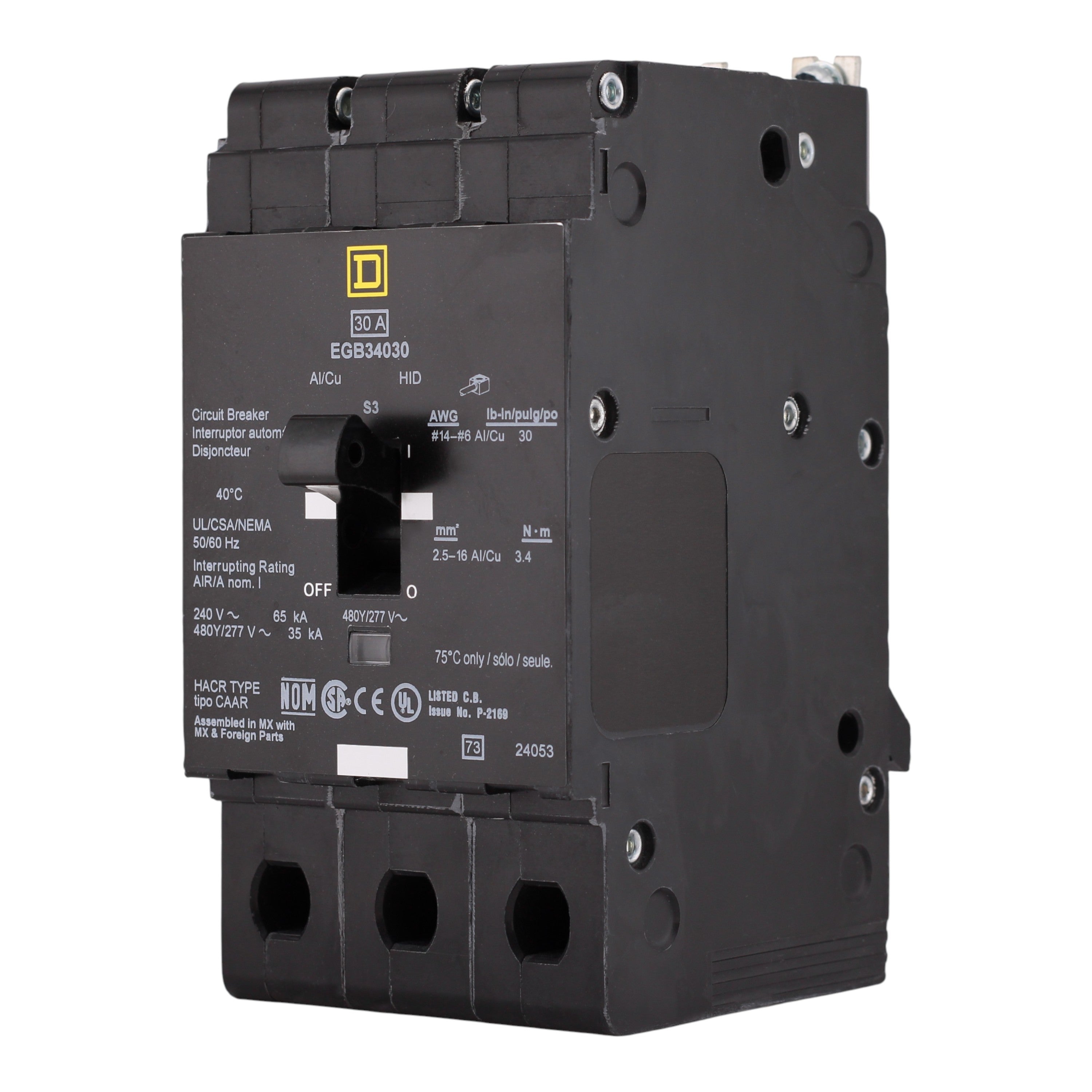

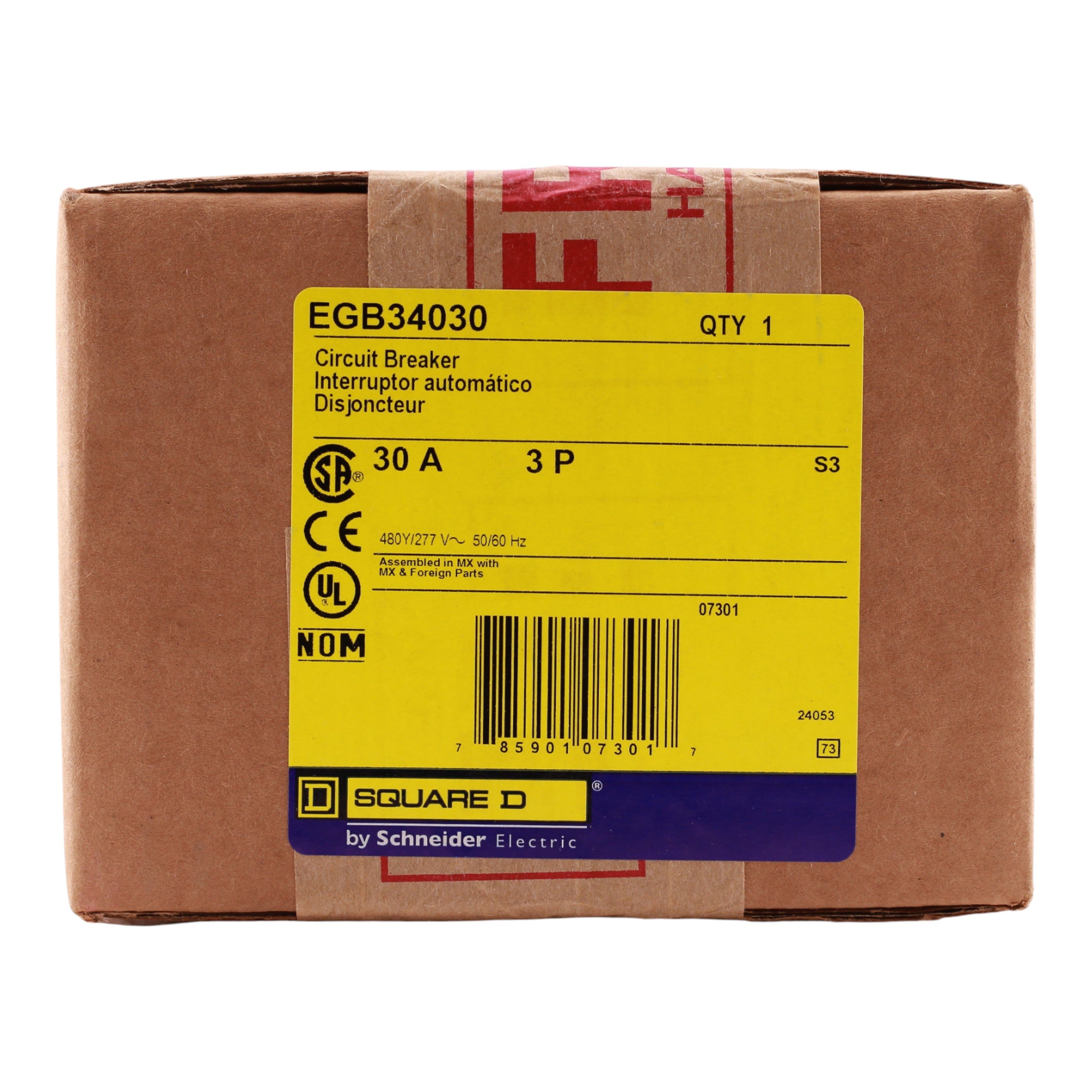

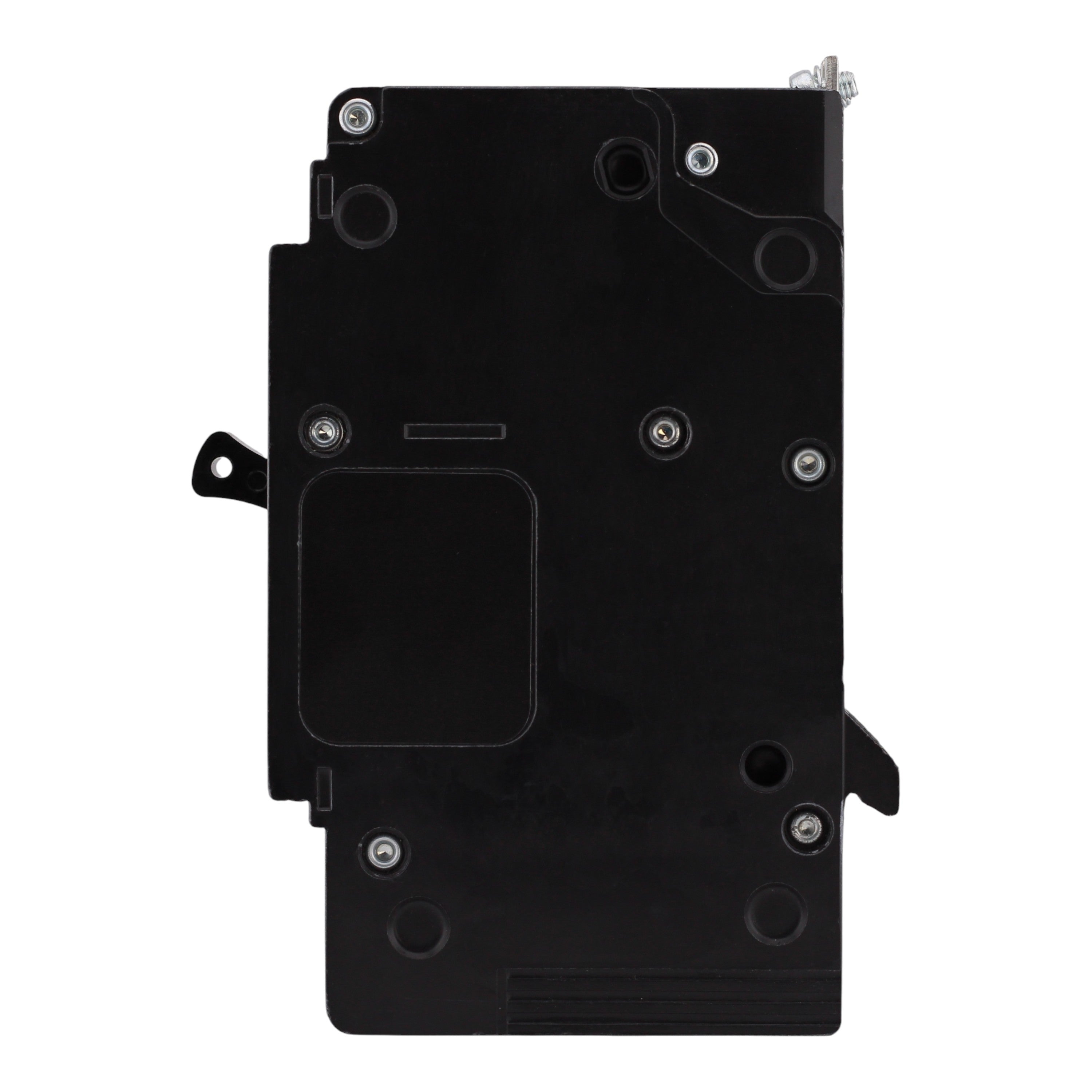

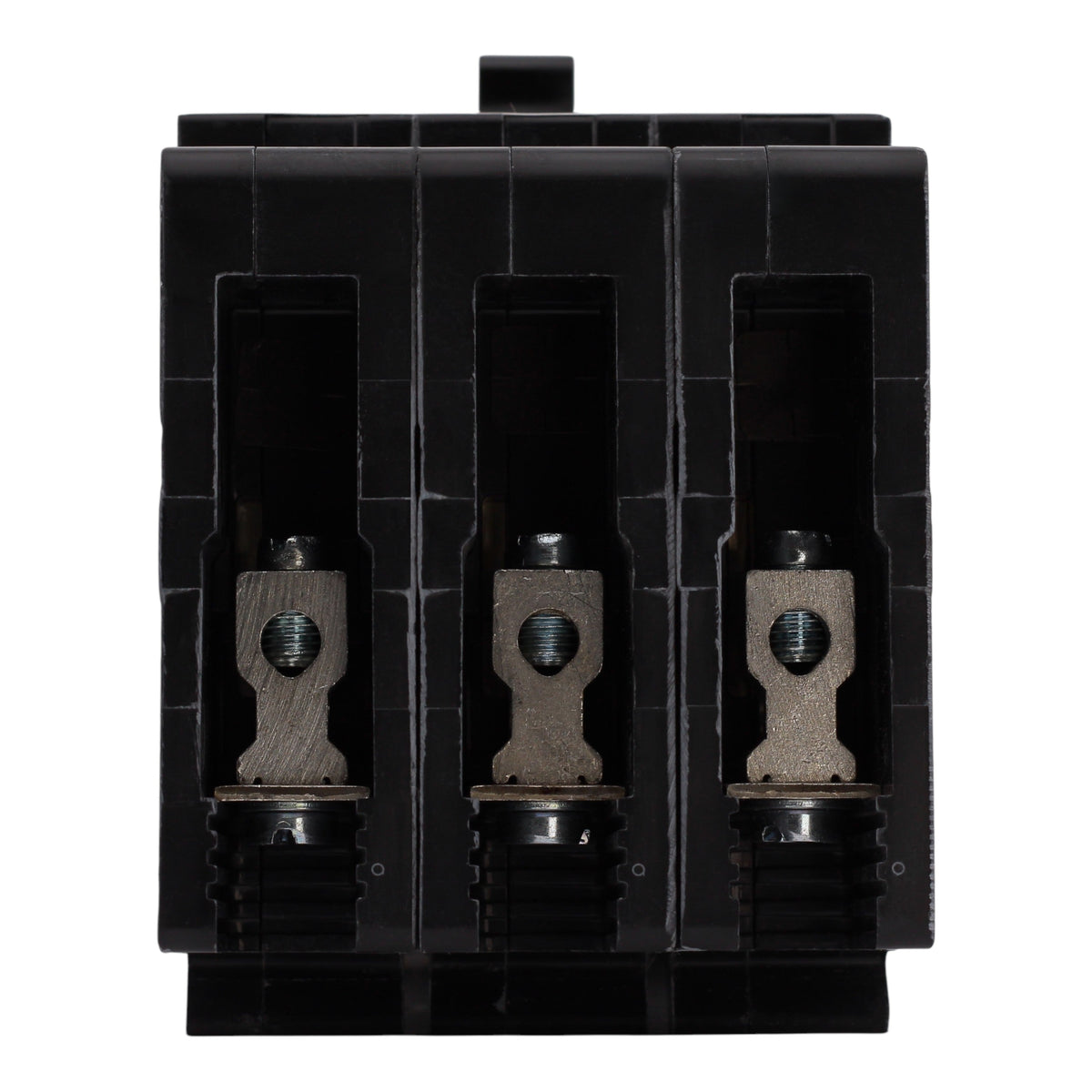

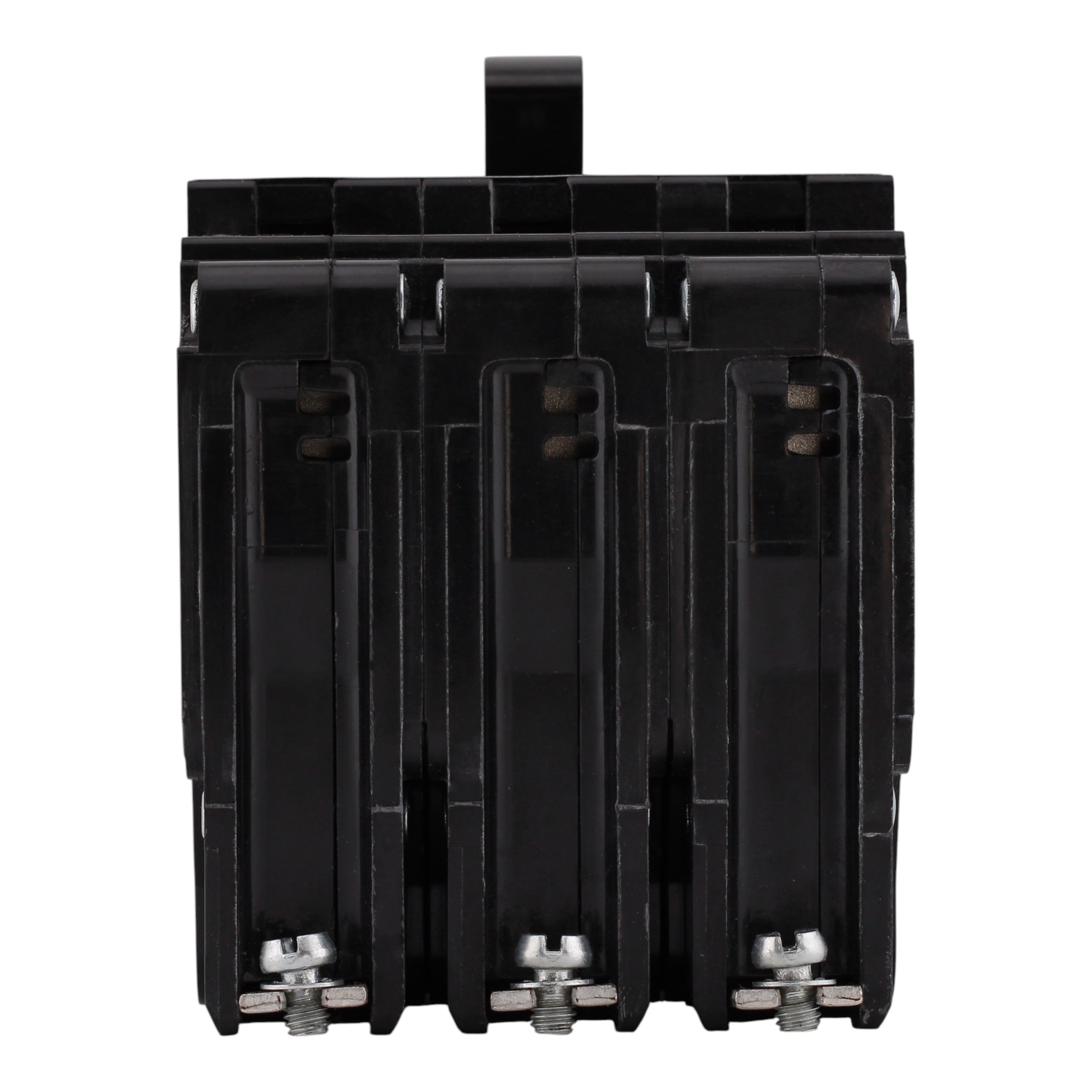

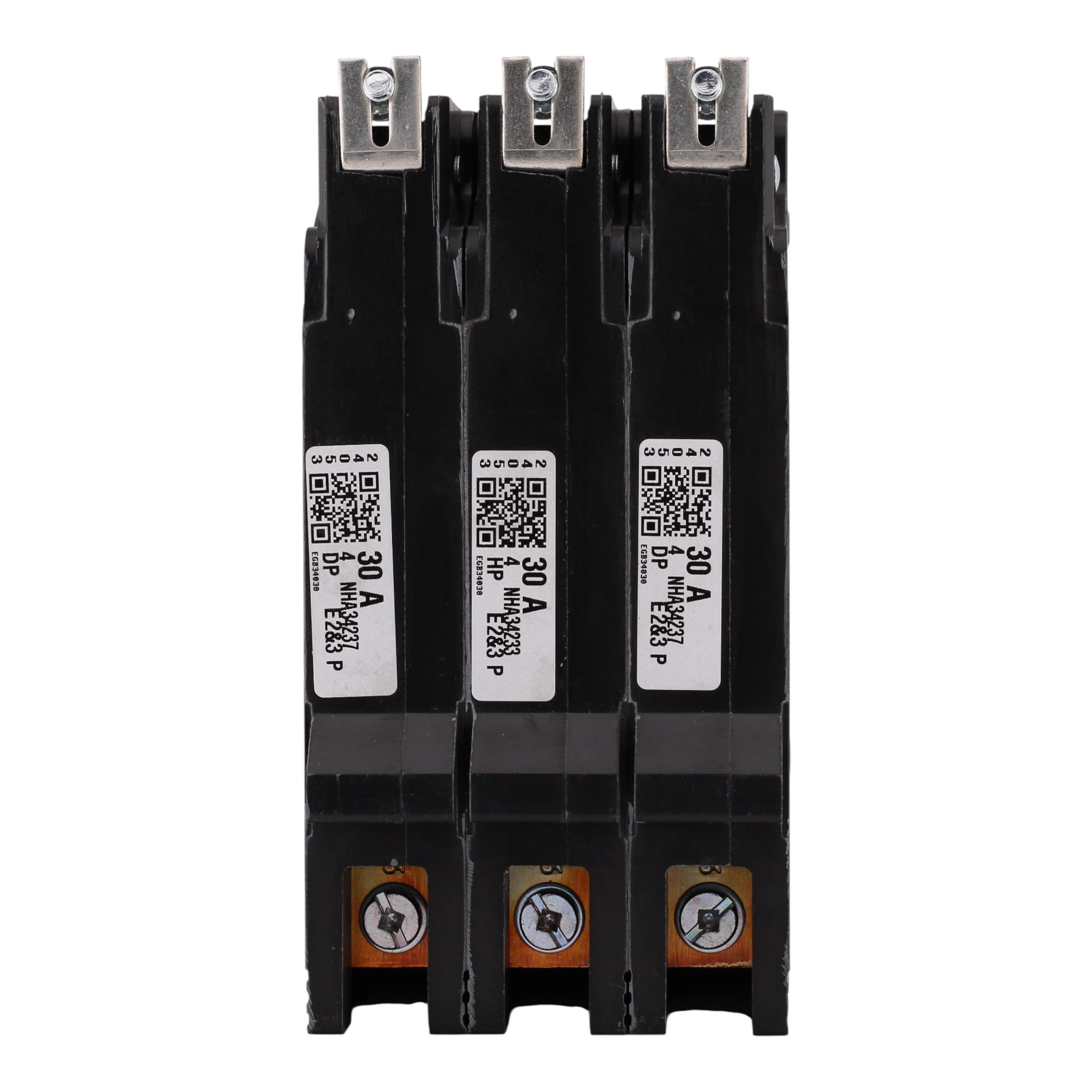

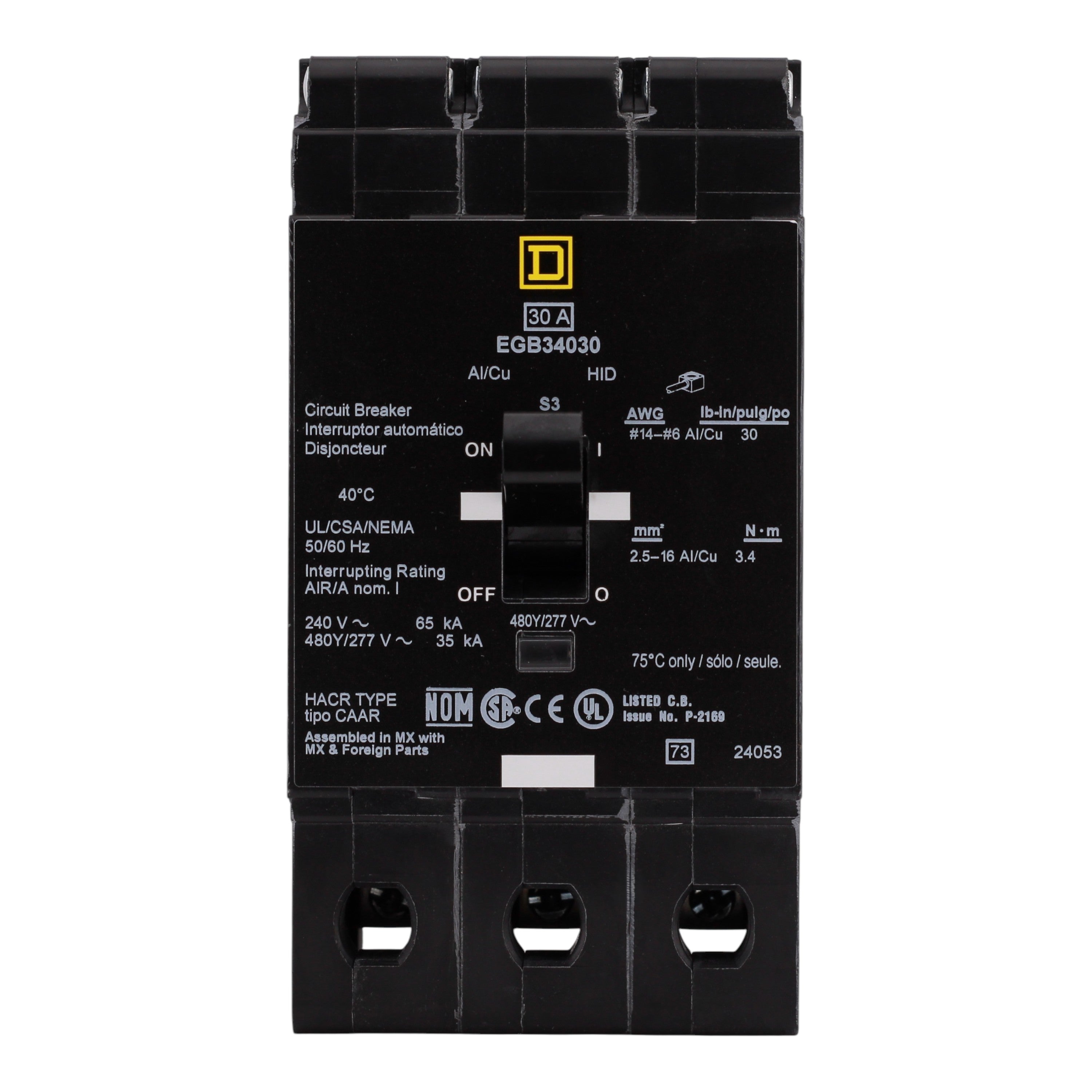

Square D E-Frame, EGB34030, 30A, 3P, 480Y/277V, Bolt-On, Circuit Breaker

Out of stock
SKU: EGB34030 UPC: 785901073017
(0)
$215.00
-43% $380.00 $215.00
Out of stock
Condition

Square D EGB34030: 30 Amp, 3-Pole, thermal-magnetic miniature circuit breaker, 480Y/277V, 35kA interrupt rating, bolt-on mounting, UL Listed, HACR rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF Panelboards)
  • UPC: 785901073017
  • Model Number: EGB34030
  • Breaker Type: Thermal-Magnetic Miniature Circuit Breaker
  • Amperage: 30 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 35 kAIC at 480Y/277V, 65 kAIC at 120/240V
  • Mounting Mode: Bolt-on
  • Connections Terminals: Aluminum Lugs
  • Wire Size: #12-6 AWG Al, #14-6 AWG Cu
  • Tightening Torque: 30.09 lb-in
  • Trip Unit Technology: Thermal-Magnetic
  • Hold Current: 270 Amps
  • Trip Current: 875 Amps
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4.0 lbs
  • Certifications: UL Listed, CSA, HACR Rated, HID Rated
  • Protection Type: Short-circuit and Overload

This Square D EGB34030 thermal-magnetic circuit breaker delivers dependable 30 Amp, 3-Pole protection for 480Y/277V circuits in NF lighting panelboards. Designed for bolt-on installation with 35 kA interrupt rating, it supports commercial and light commercial applications with trip indicator for fault detection.
