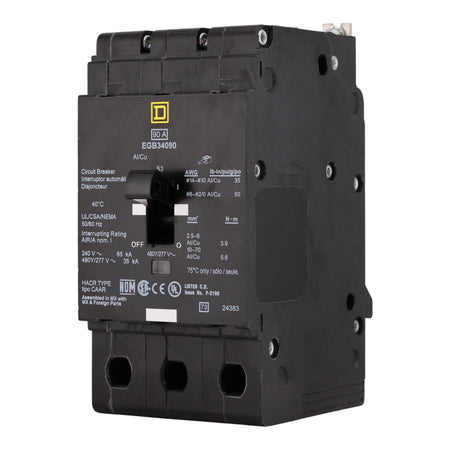

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 2

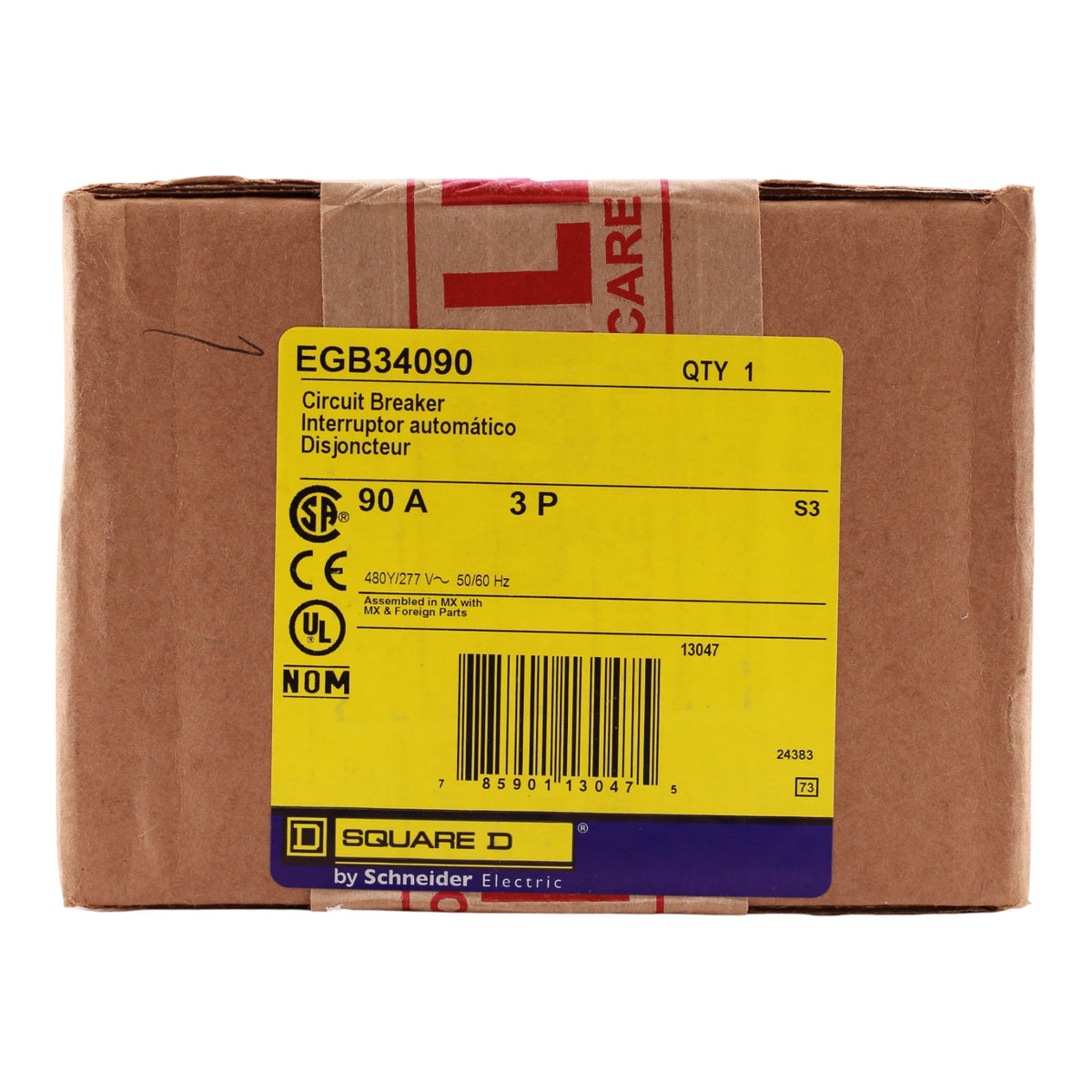

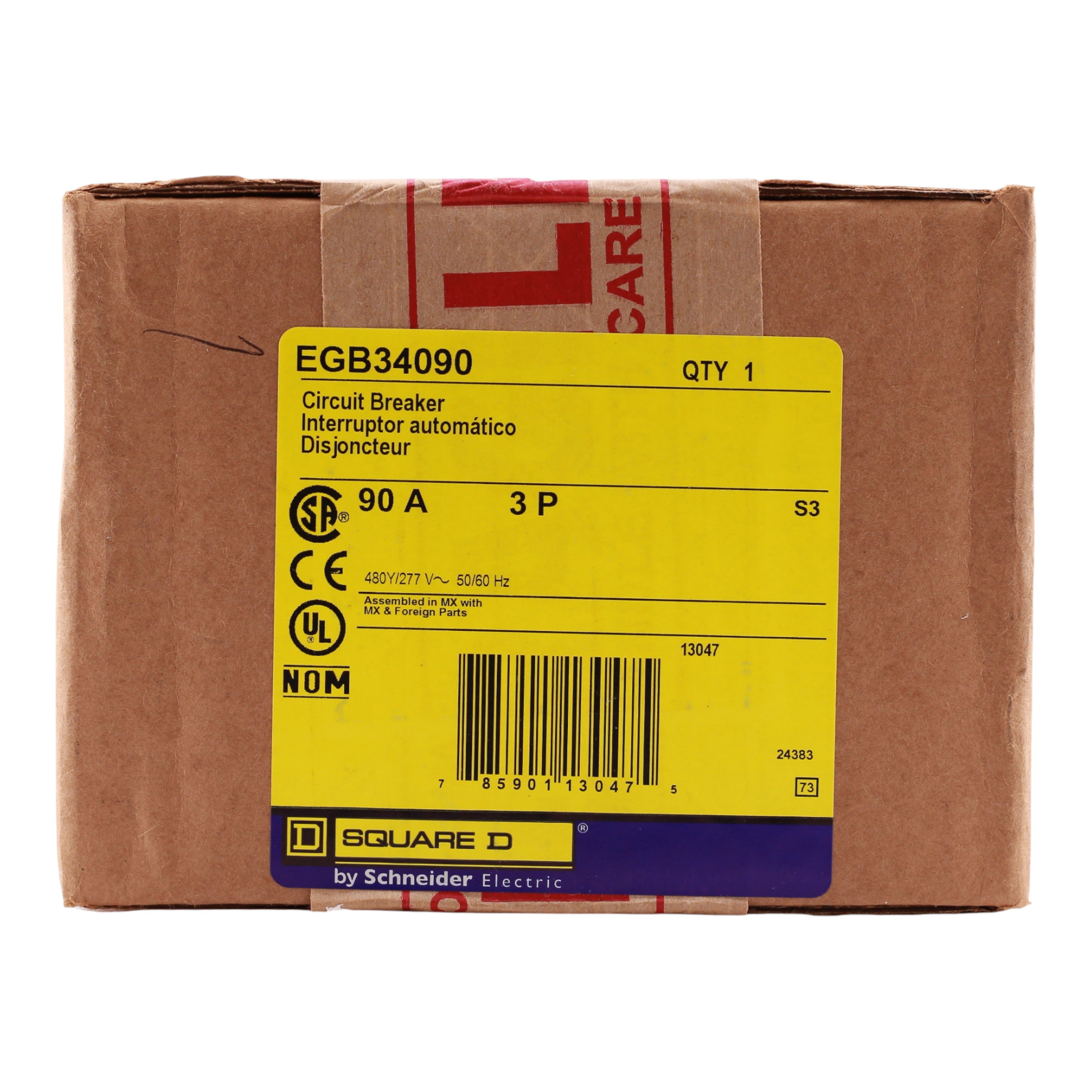

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 3
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 4

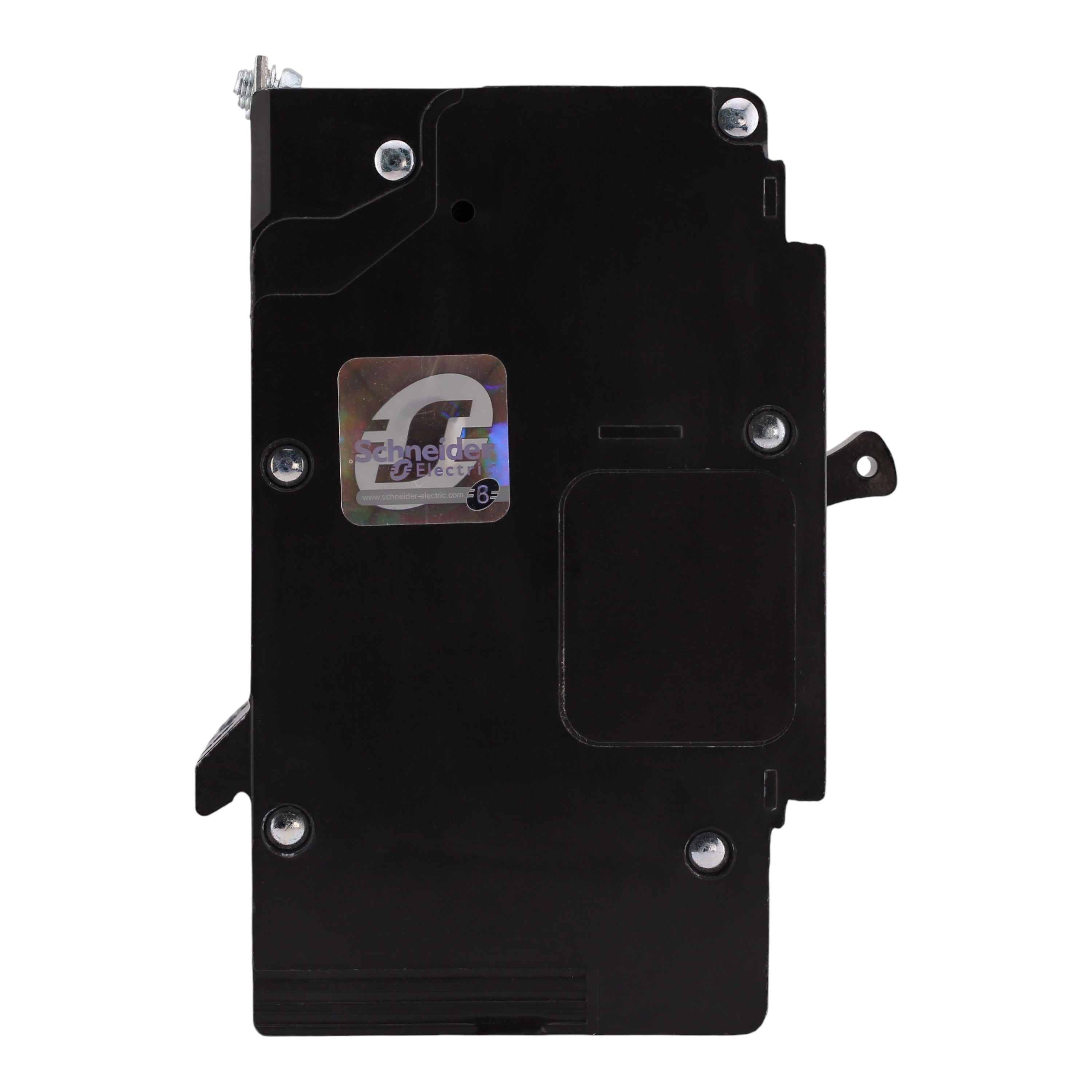

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 5

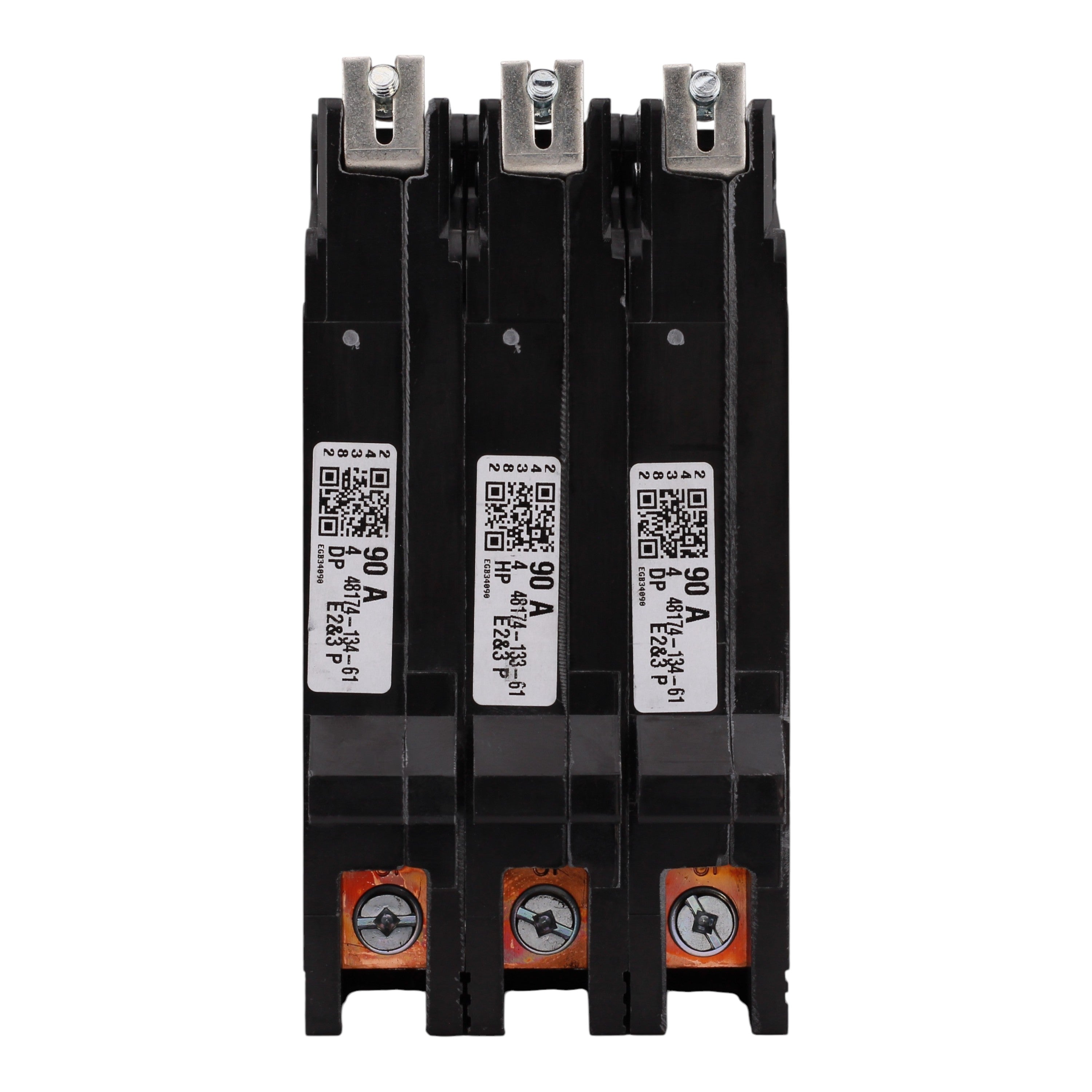

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 6

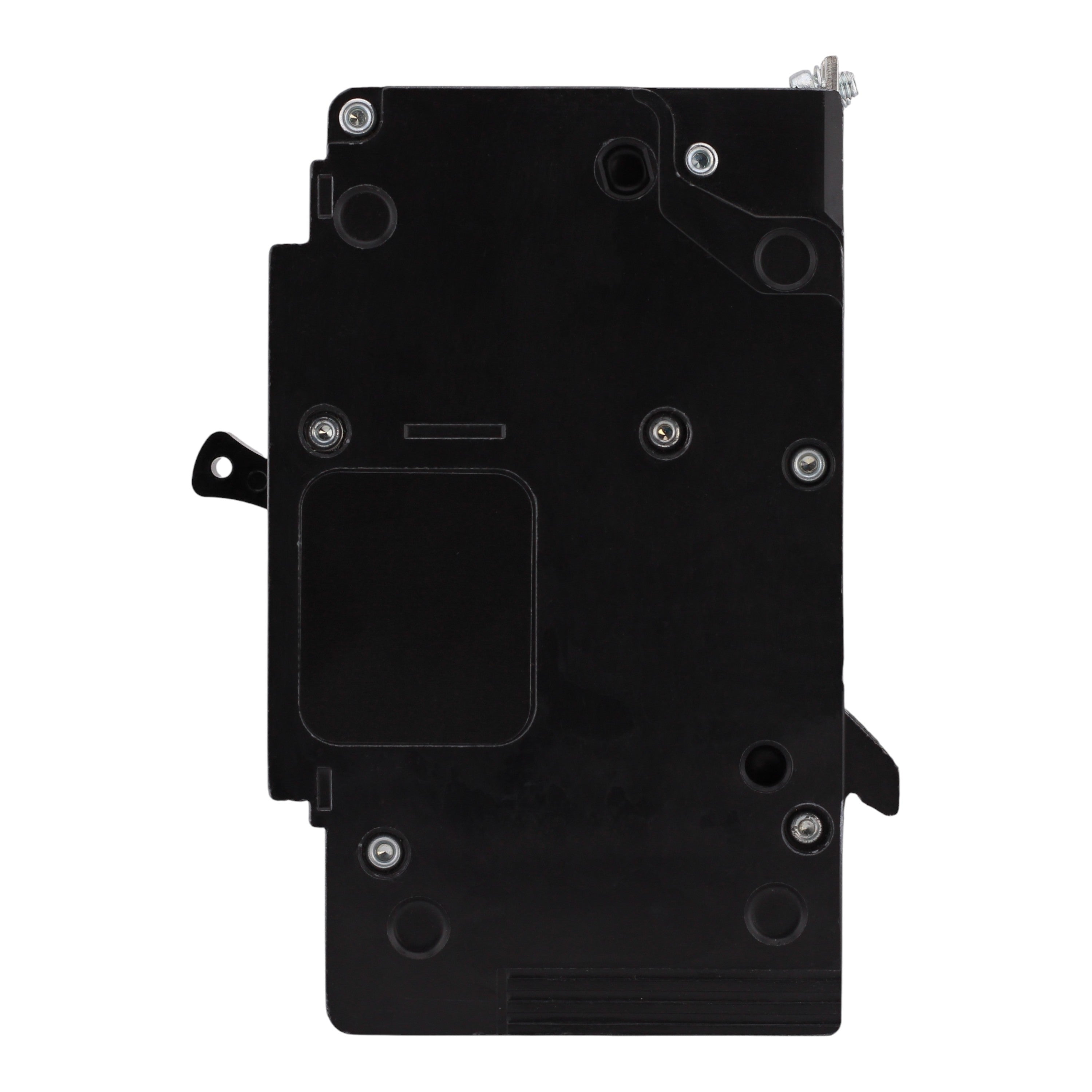

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 7

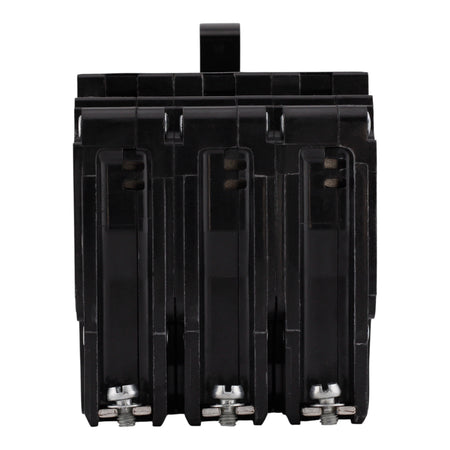

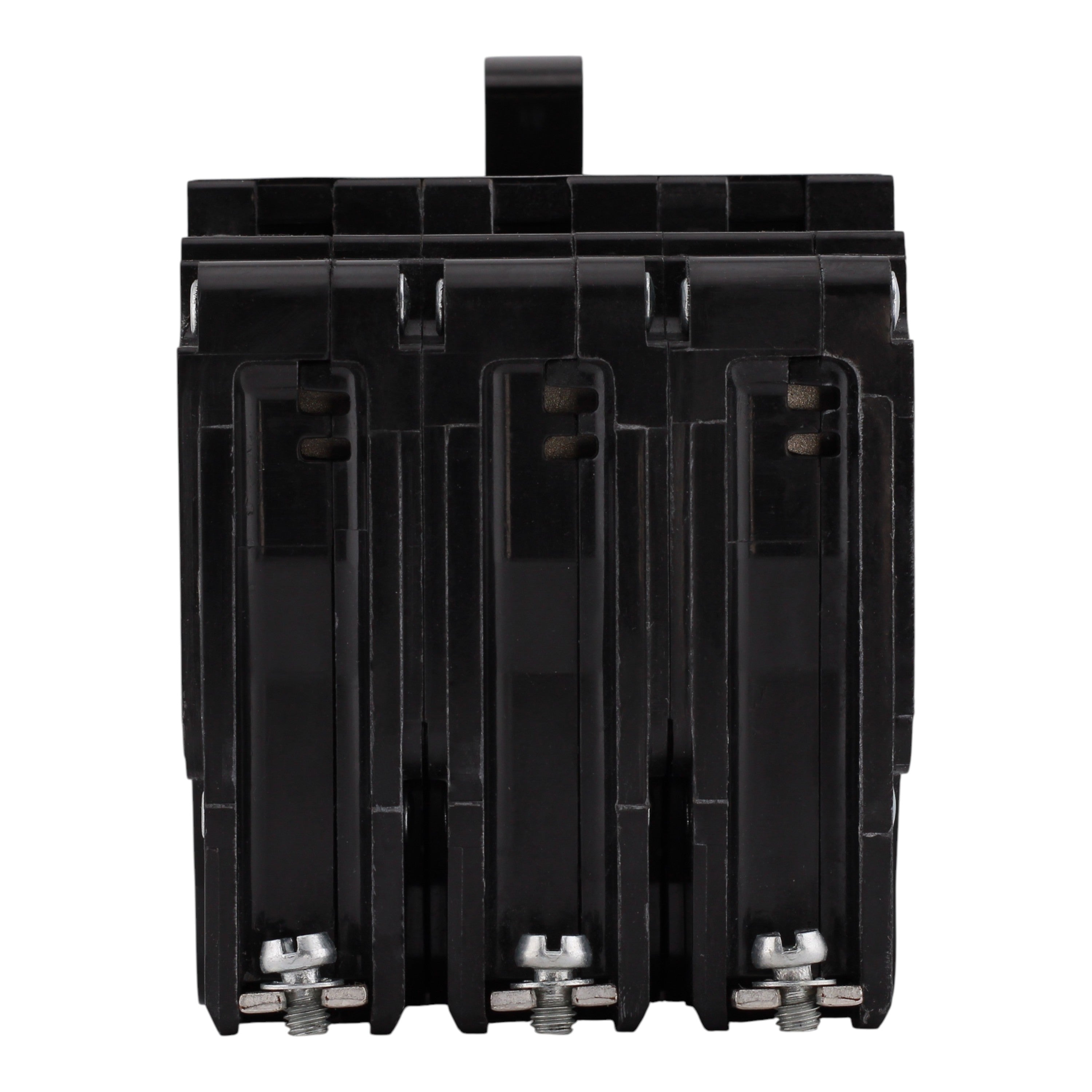

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 8
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 9

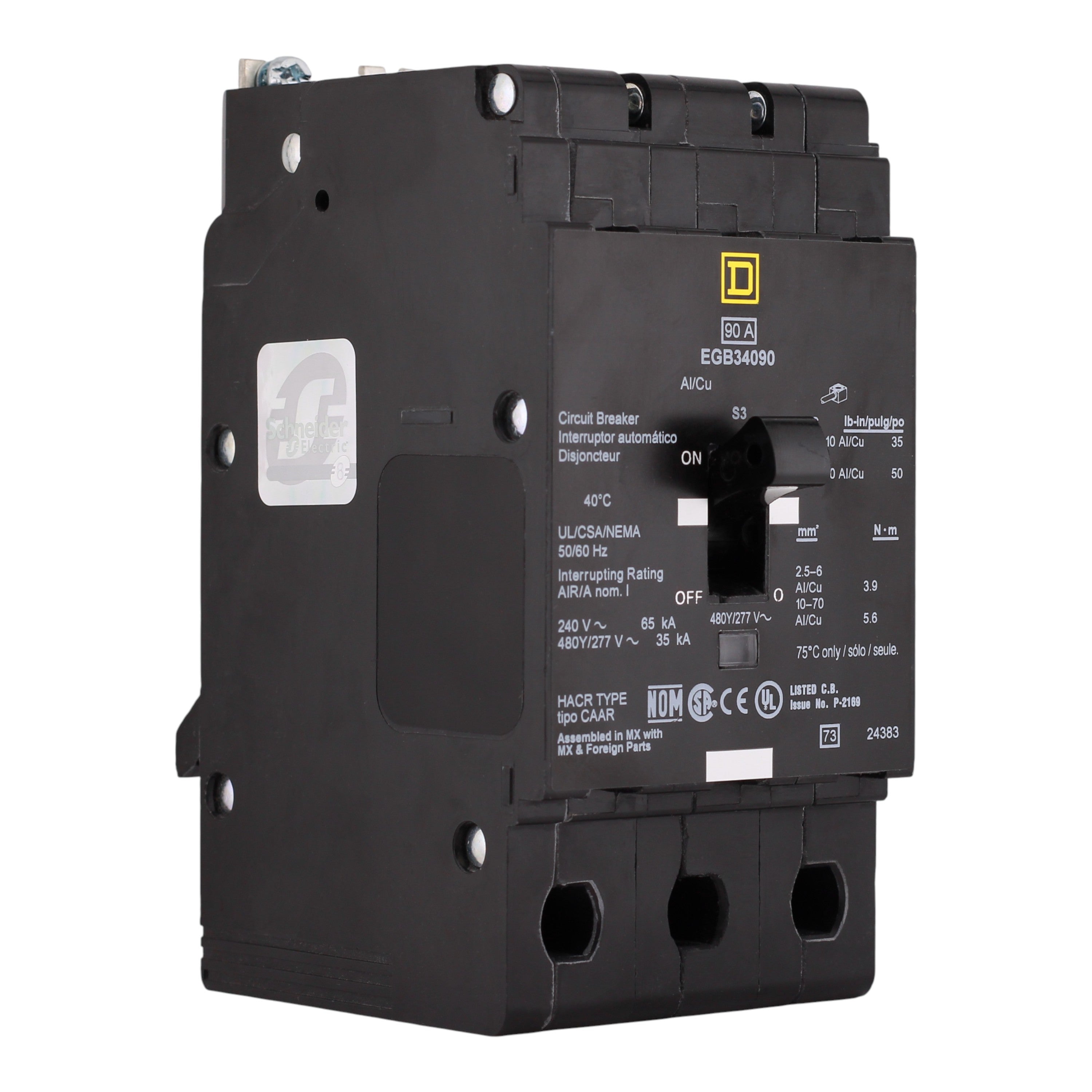

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker

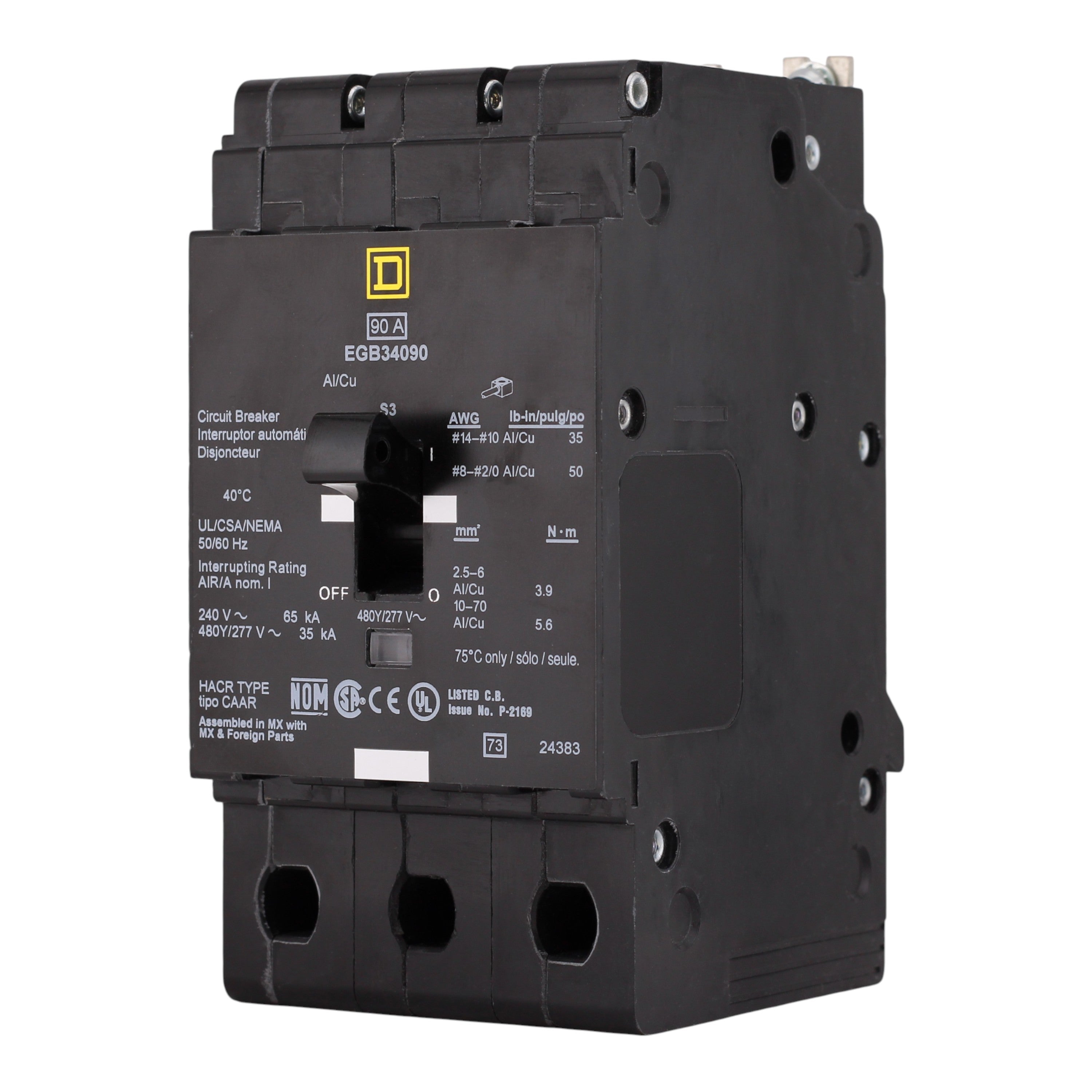

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 2
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 3

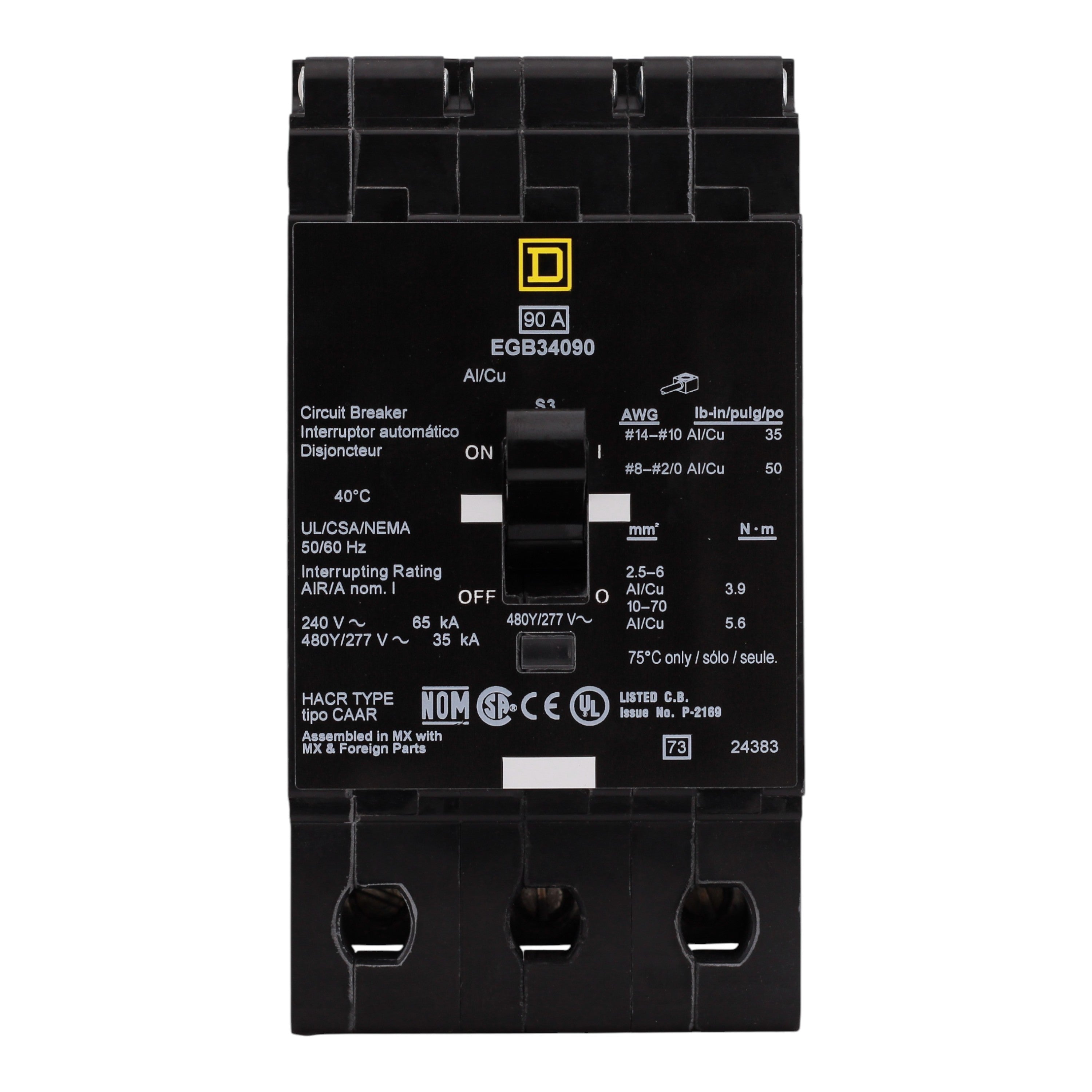

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 4
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 5
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 6
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 7
Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 8

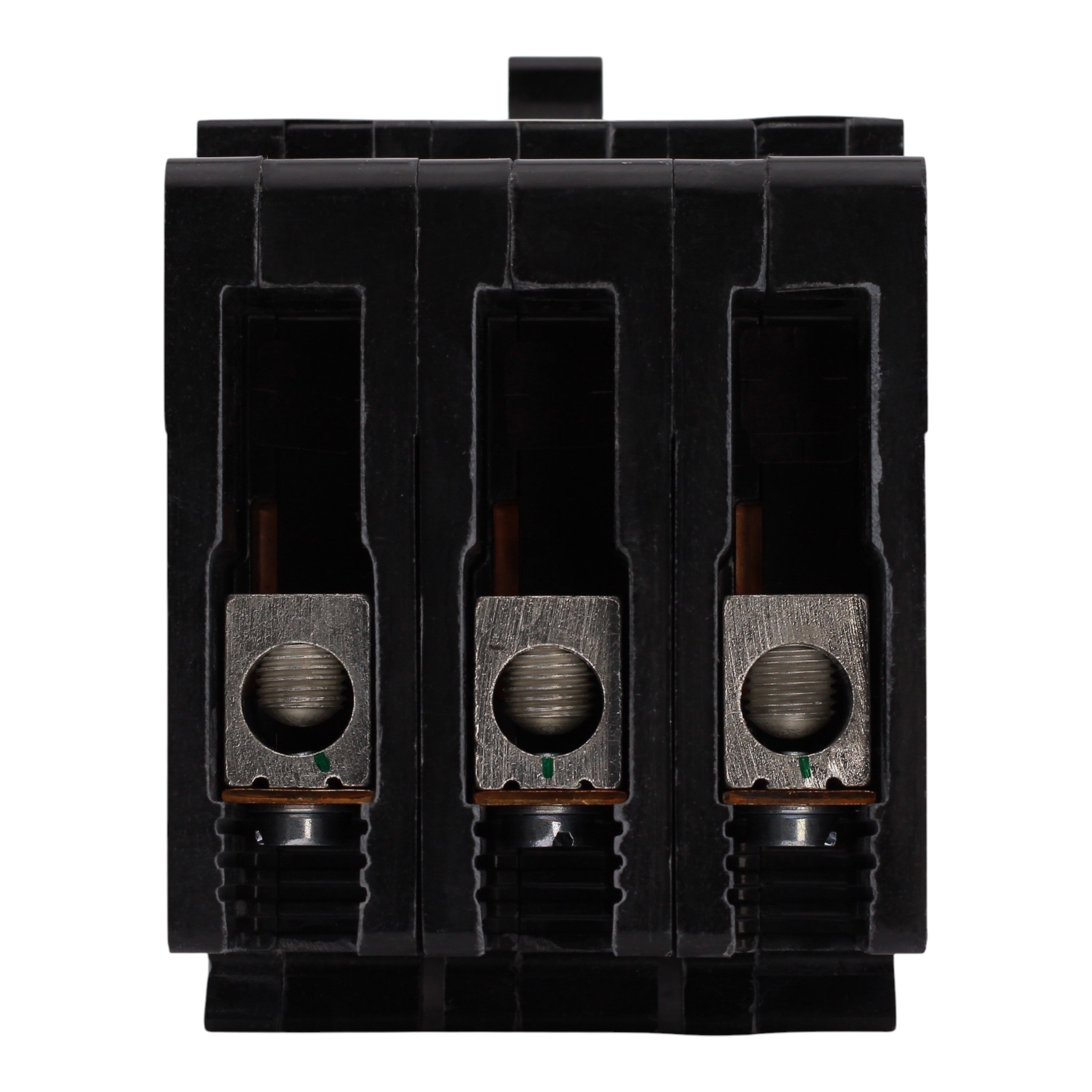

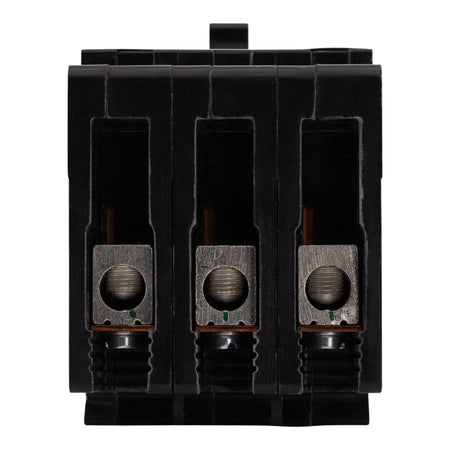

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame, EGB34090, 90A, 3P, 480Y/277V, Bolt-On Circuit Breaker

Out of stock
SKU: EGB34090 UPC: 785901130475
(0)
$345.00
-29% $486.00 $345.00
Out of stock
Condition

Square D EGB34090: 90 Amp, 3-Pole, thermal-magnetic circuit breaker, 480Y/277V AC, 65kA interrupt rating, bolt-on mount, UL listed, HACR rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF Panelboards and lighting applications)
  • UPC: 785901130475
  • Model Number: EGB34090
  • Breaker Type: Thermal-Magnetic Circuit Breaker
  • Amperage: 90 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC, 120/240 Volts AC
  • Interrupt Rating: 65 kAIC at 120V and 120/240V; 35 kAIC at 277V and 480Y/277V
  • Mounting Mode: Bolt-On
  • Wire Size: #14-2/0 AWG Cu, #12-2/0 AWG Al
  • Tightening Torque: 34.5 lb-in (AWG 14-10); 49.6 lb-in (AWG 8-2/0)
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4 lbs
  • Trip Unit Technology: Thermal-Magnetic
  • Trip Indicator: Visi-Trip indicator for visual trip status
  • Hold Current: 1000 A
  • Trip Current: 2300 A
  • Certifications: UL Listed, CSA, HACR Rated

This Square D EGB34090 thermal magnetic circuit breaker delivers dependable 90 Amp, 3-pole protection for 480Y/277V circuits in E-Frame NF loadcenters. Designed for bolt-on installation with 65kA interrupt rating, it supports commercial and industrial lighting applications with Visi-Trip trip indication.
