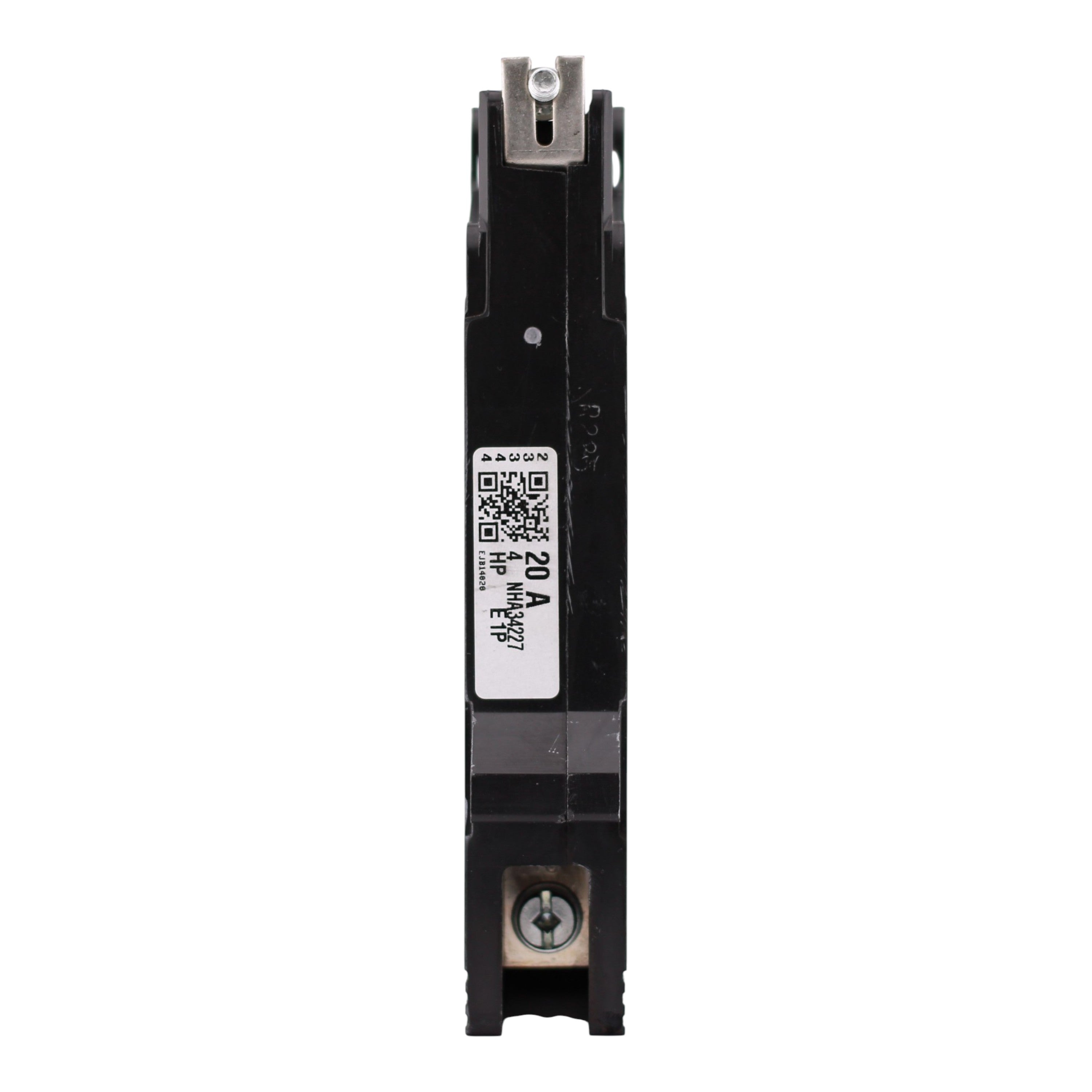

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 7
Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 8
Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 9

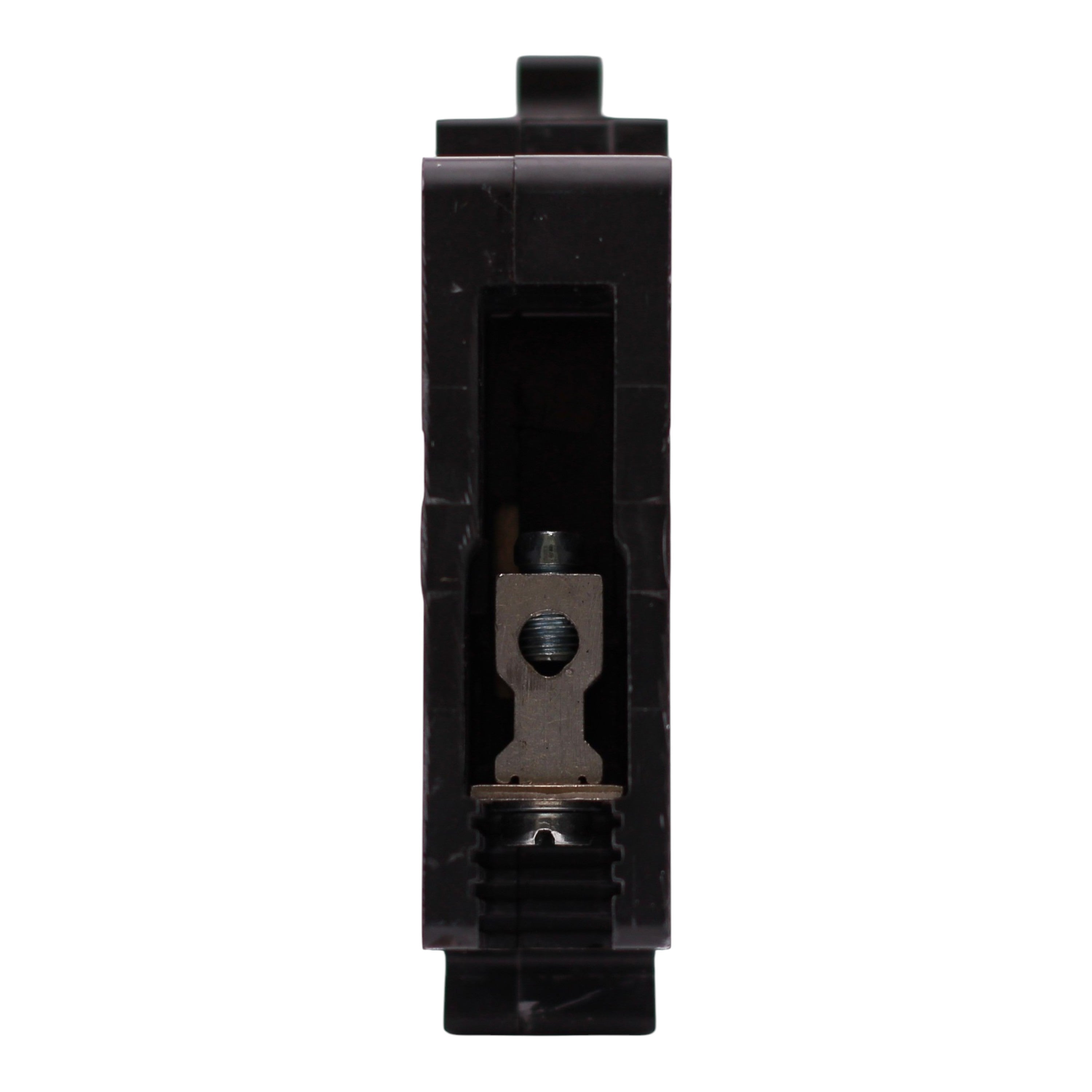

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 10

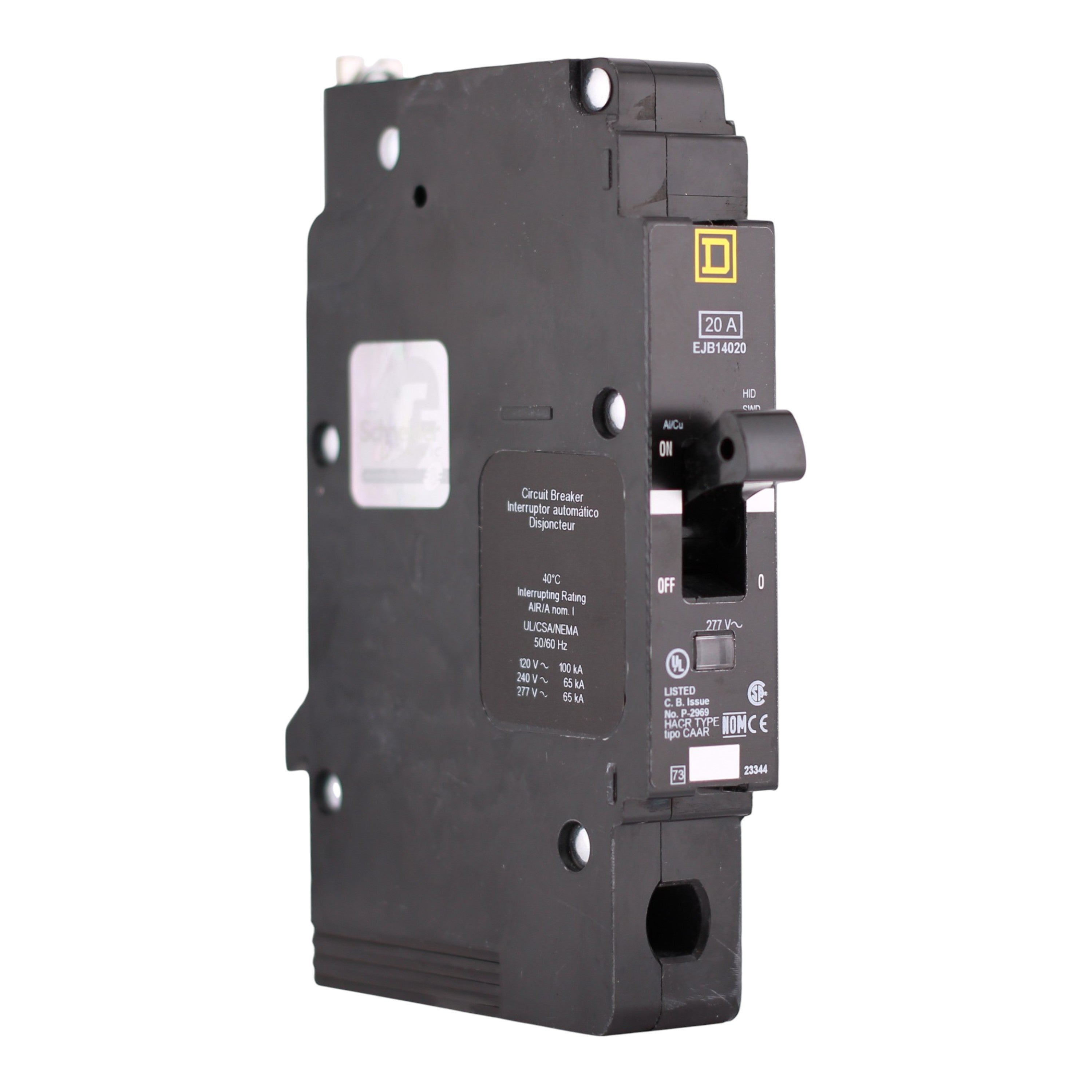

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker

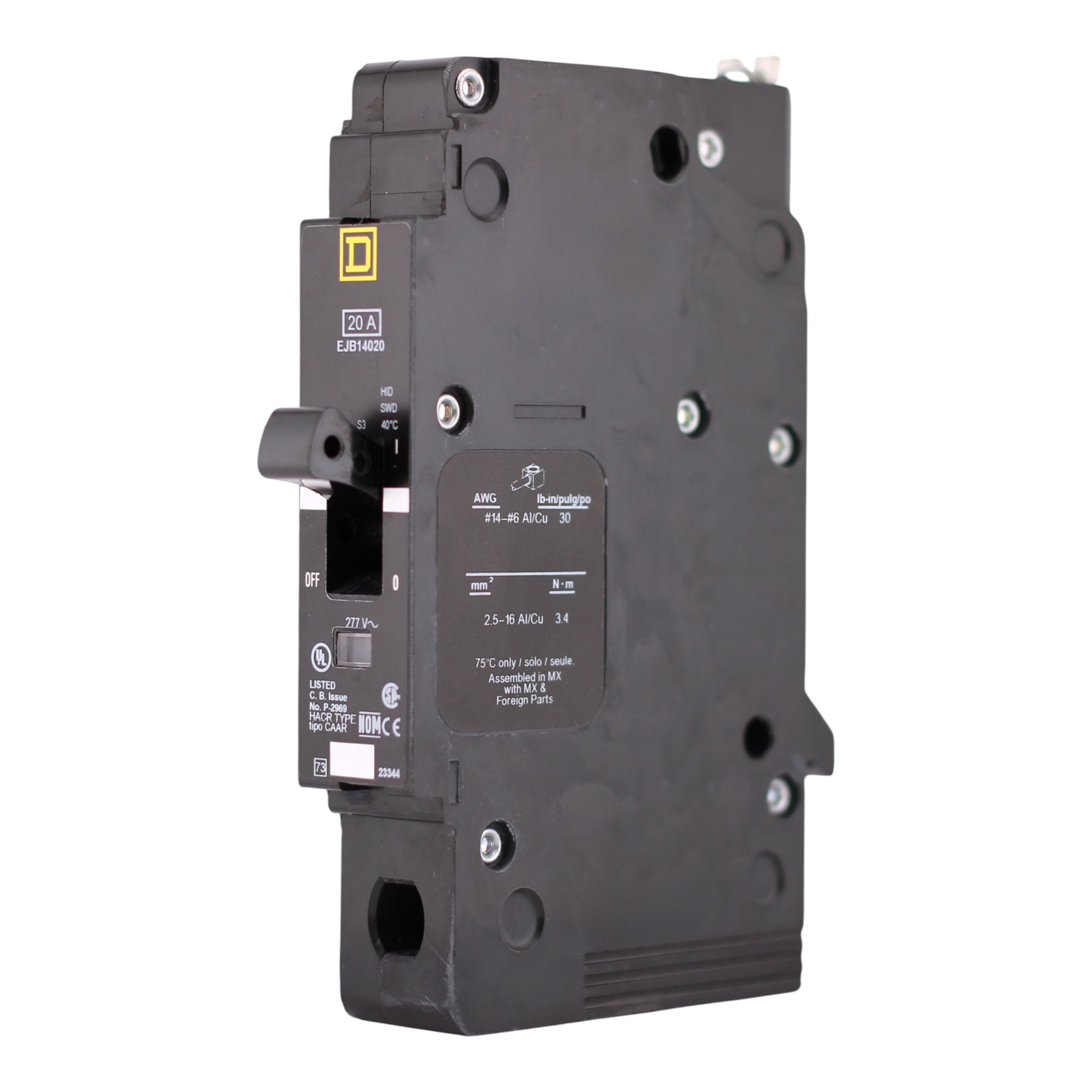

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 2

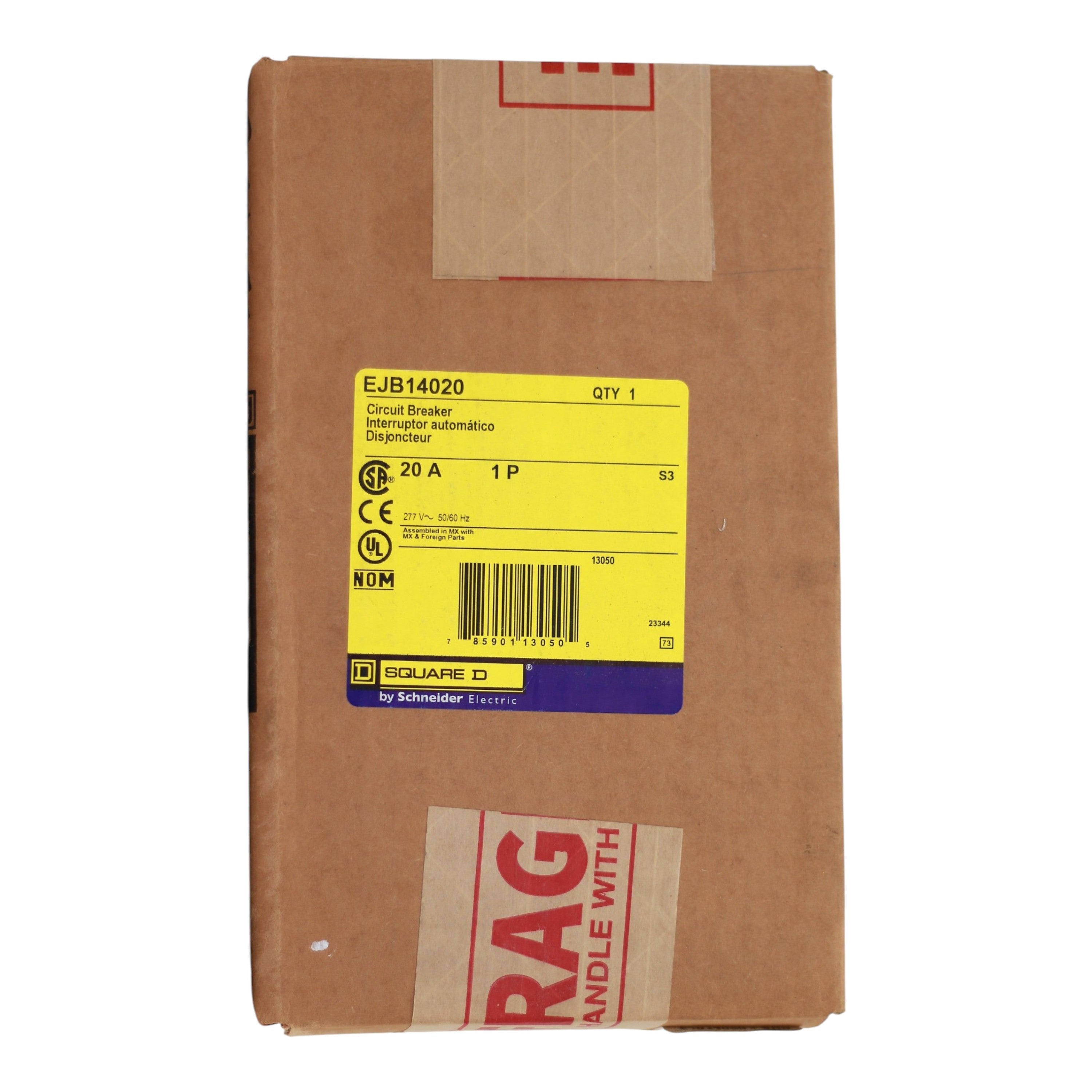

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 3

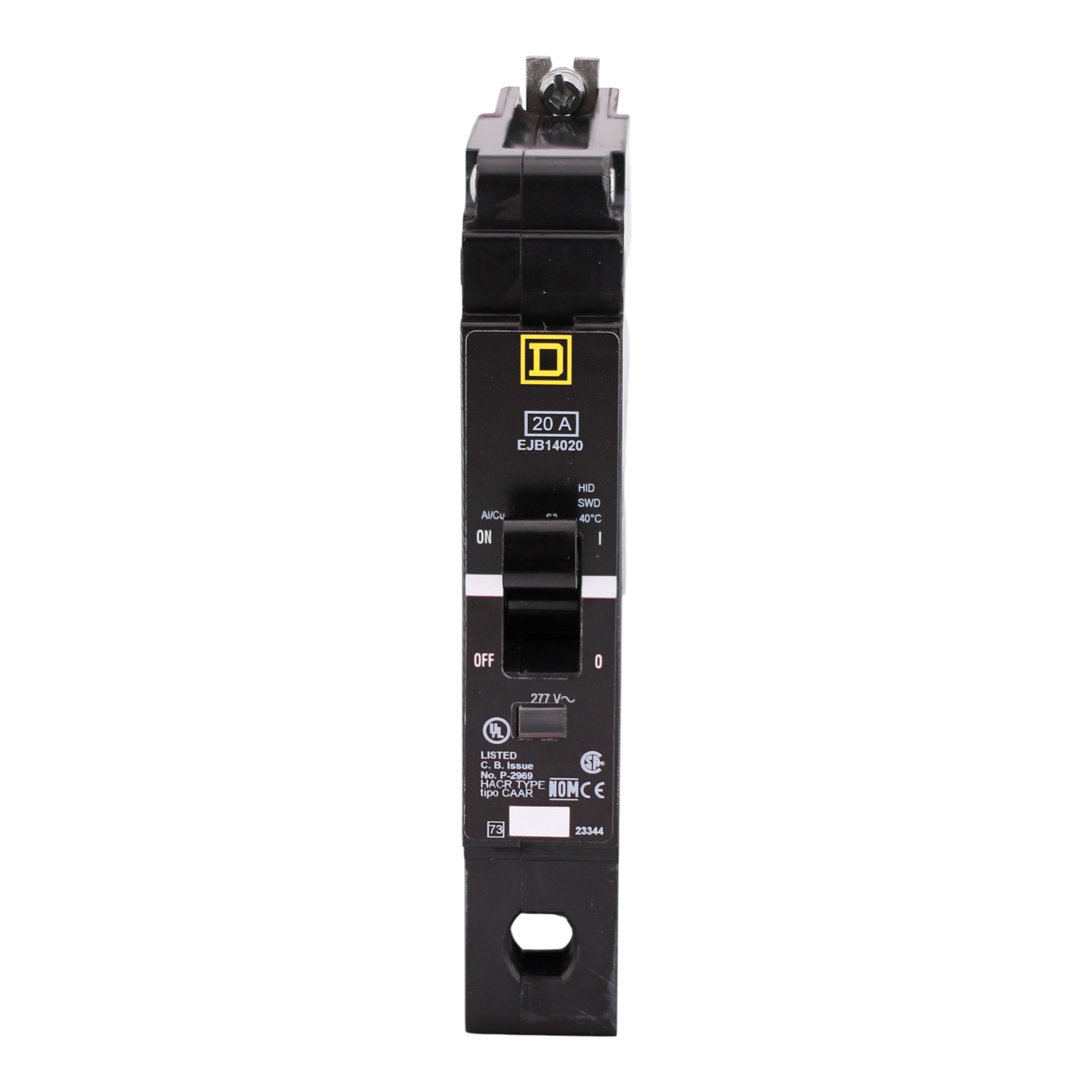

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 4

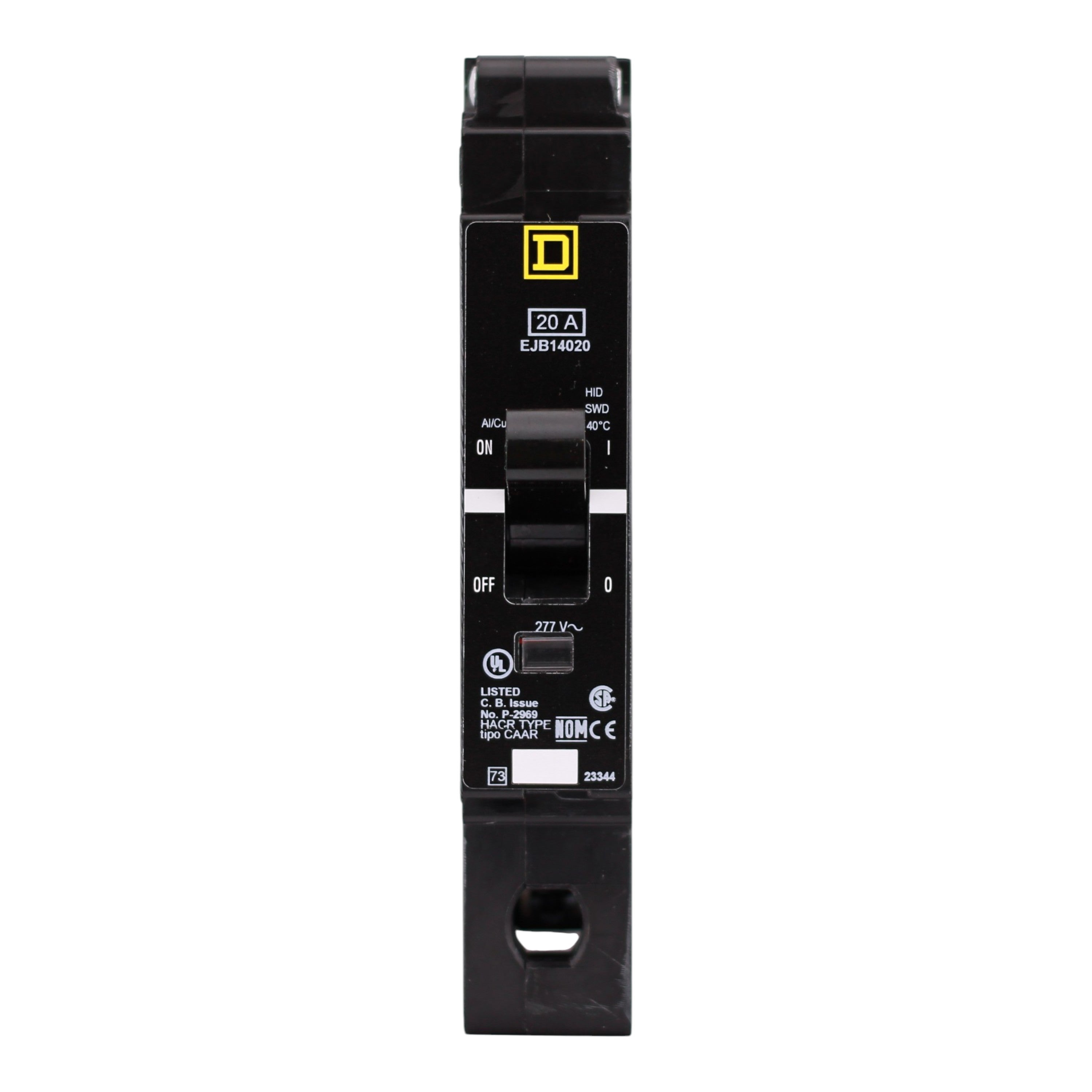

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 5

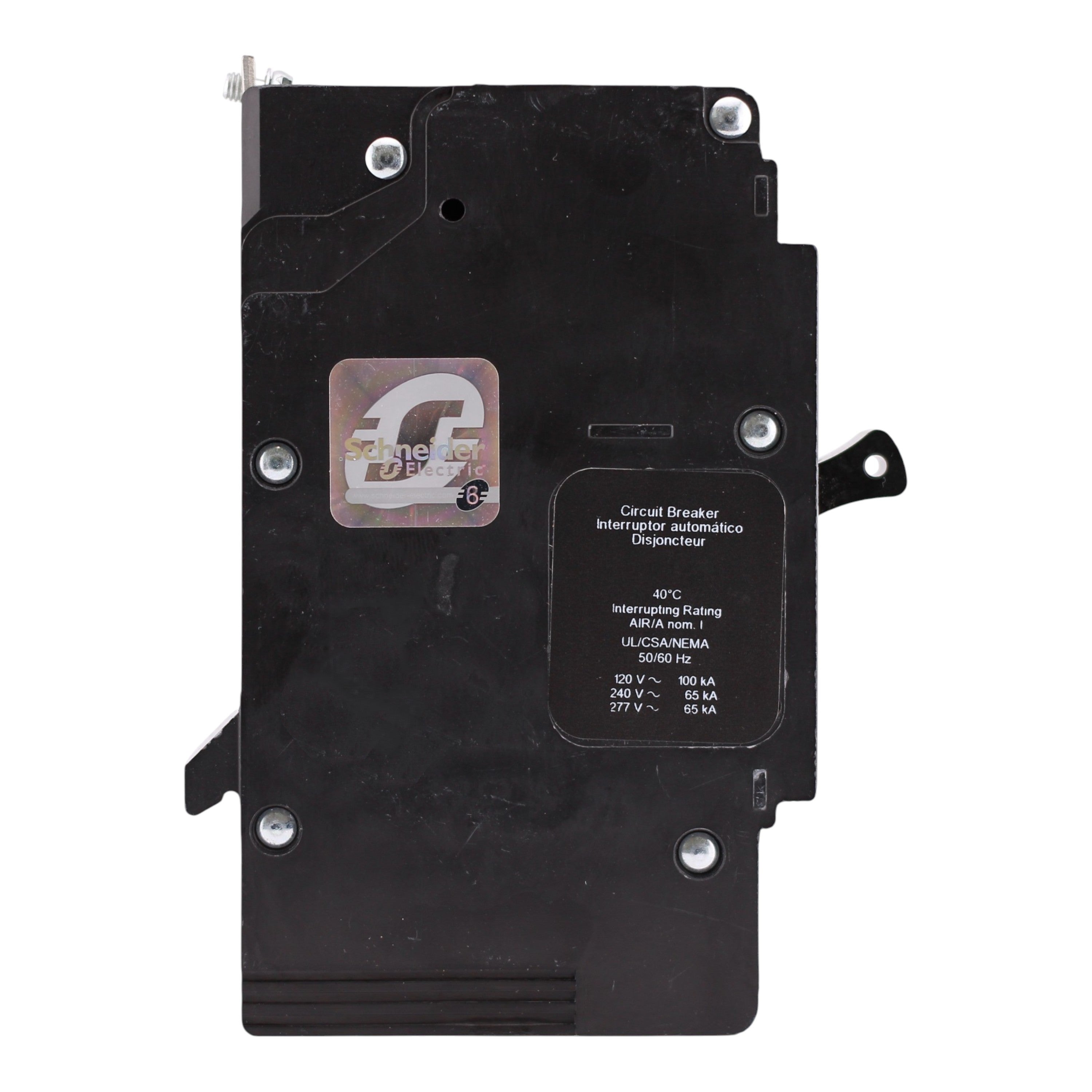

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 6
Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 7

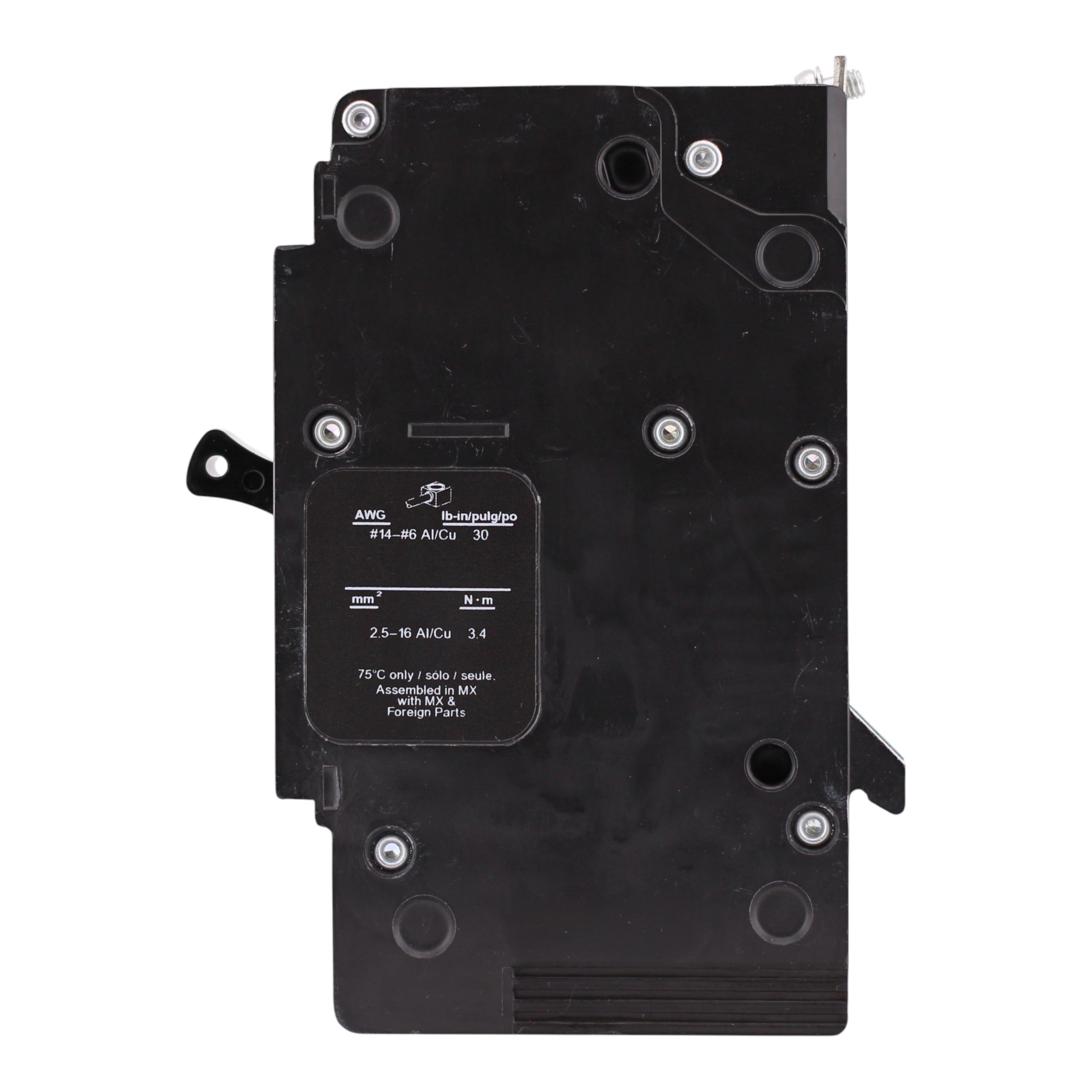

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 8

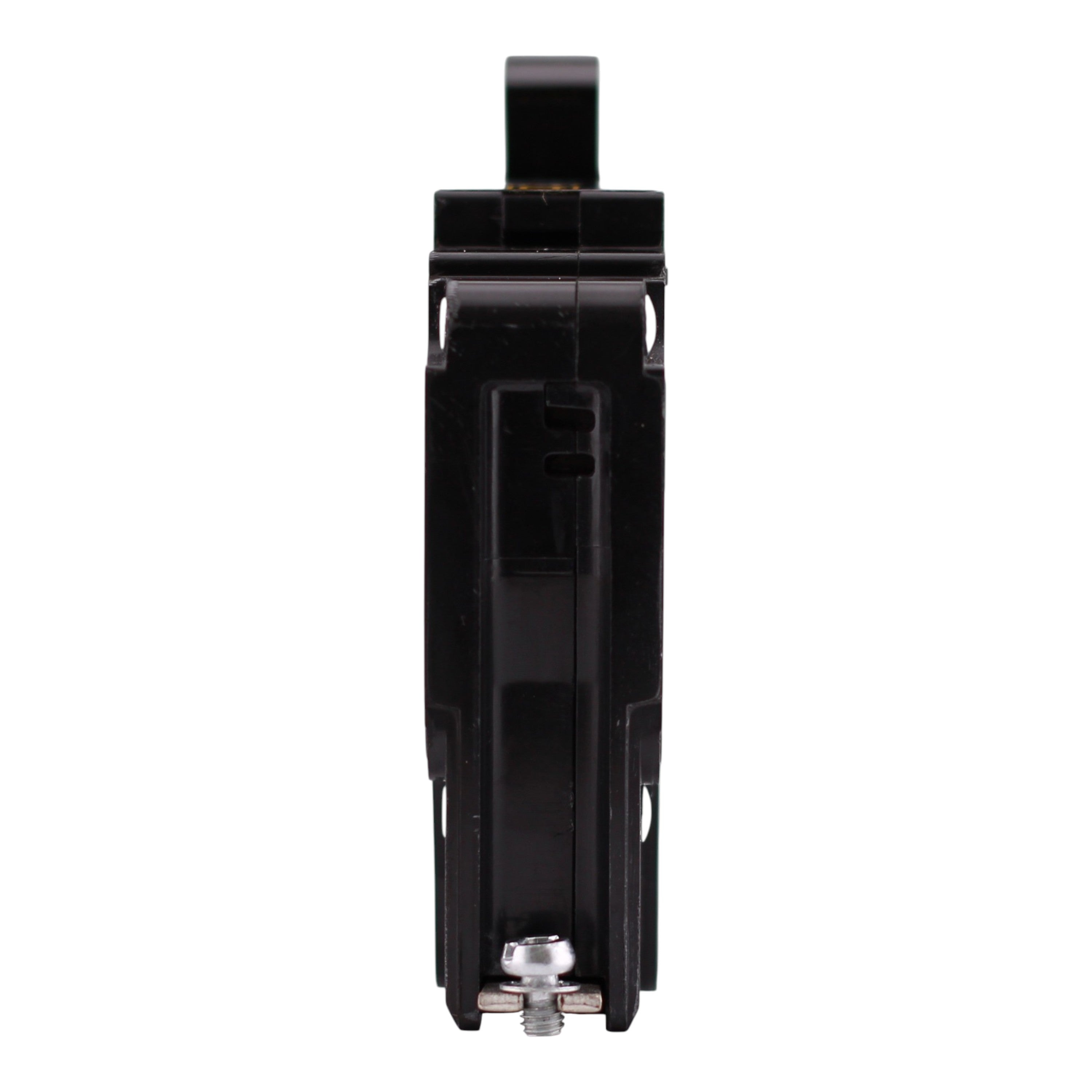

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 9
Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame, EJB14020, 20A, 1P, 277V, 100kA, Bolt-On, Circuit Breaker

Out of stock
SKU: EJB14020 UPC: 785901130505
(0)
$48.00
-42% $82.50 $48.00
Out of stock
Condition

Square D EJB14020: 20 Amp, 1-Pole, E-Frame Thermal Magnetic Circuit Breaker, 277V, 100kA, bolt-on, HACR/HID/Switching Duty, cULus listed. [TAA]

  • Manufacturer: Schneider Electric
  • Brand: Square D (Schneider Electric)
  • Product Range: E-Frame EJB (for Square D NF lighting panelboards)
  • UPC: 785901130505
  • Model Number: EJB14020
  • Breaker Type: Thermal Magnetic Miniature Circuit Breaker
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 277 Volts AC (max operating)
  • Interrupt Rating: 100 kAIC @ 120V AC; 65 kAIC @ 277V AC, 240V AC, 120/240V AC
  • Mounting Mode: Bolt-on
  • Trip Type: Thermal-Magnetic (Visi-Trip™ indicator)
  • Hold Current: 270 Amps
  • Trip Current: 875 Amps
  • Wire Size: #14–6 AWG Cu; #12–6 AWG Al
  • Tightening Torque: 30.09 lb-in (#14–6 AWG)
  • Number of Spaces Required: 1
  • Calibration Temperature: 40°C
  • Dimensions: Height: 5.66 in; Width: 0.98 in; Depth: 4.05 in
  • Weight: 2 lbs
  • Compliance: TAA Compliant
  • Certifications: cULus Listed, CSA Certified, HACR Rated, HID Rated, Switching Duty Rated

This Square D EJB14020 bolt-on E-Frame circuit breaker delivers dependable 20 Amp, 1-Pole thermal magnetic protection for 277V circuits in Square D NF lighting panelboards. With 100 kAIC interrupt rating at 120V, Visi-Trip™ indication, and HACR/HID/Switching Duty ratings, it supports high-interrupting-capacity commercial lighting distribution applications.
