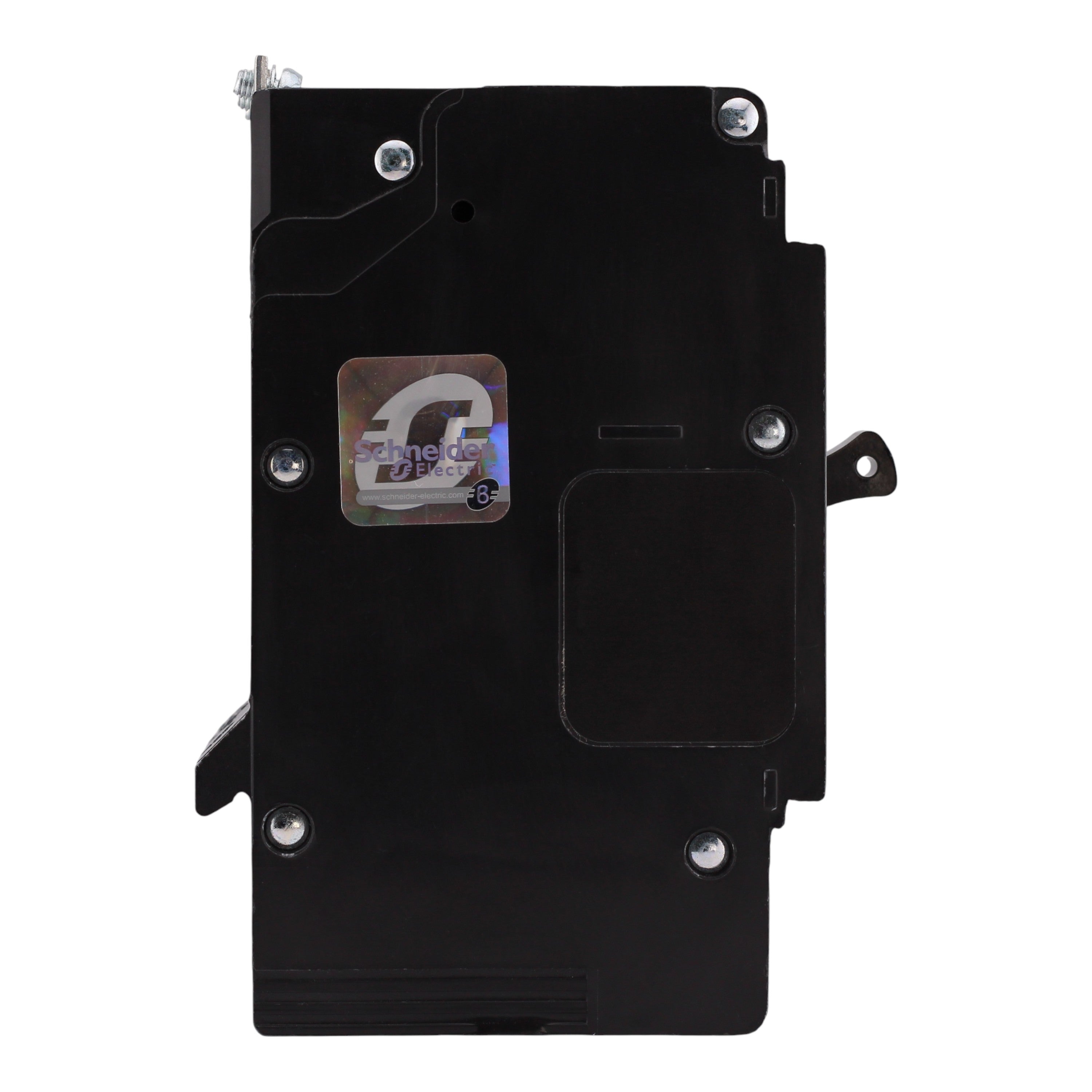

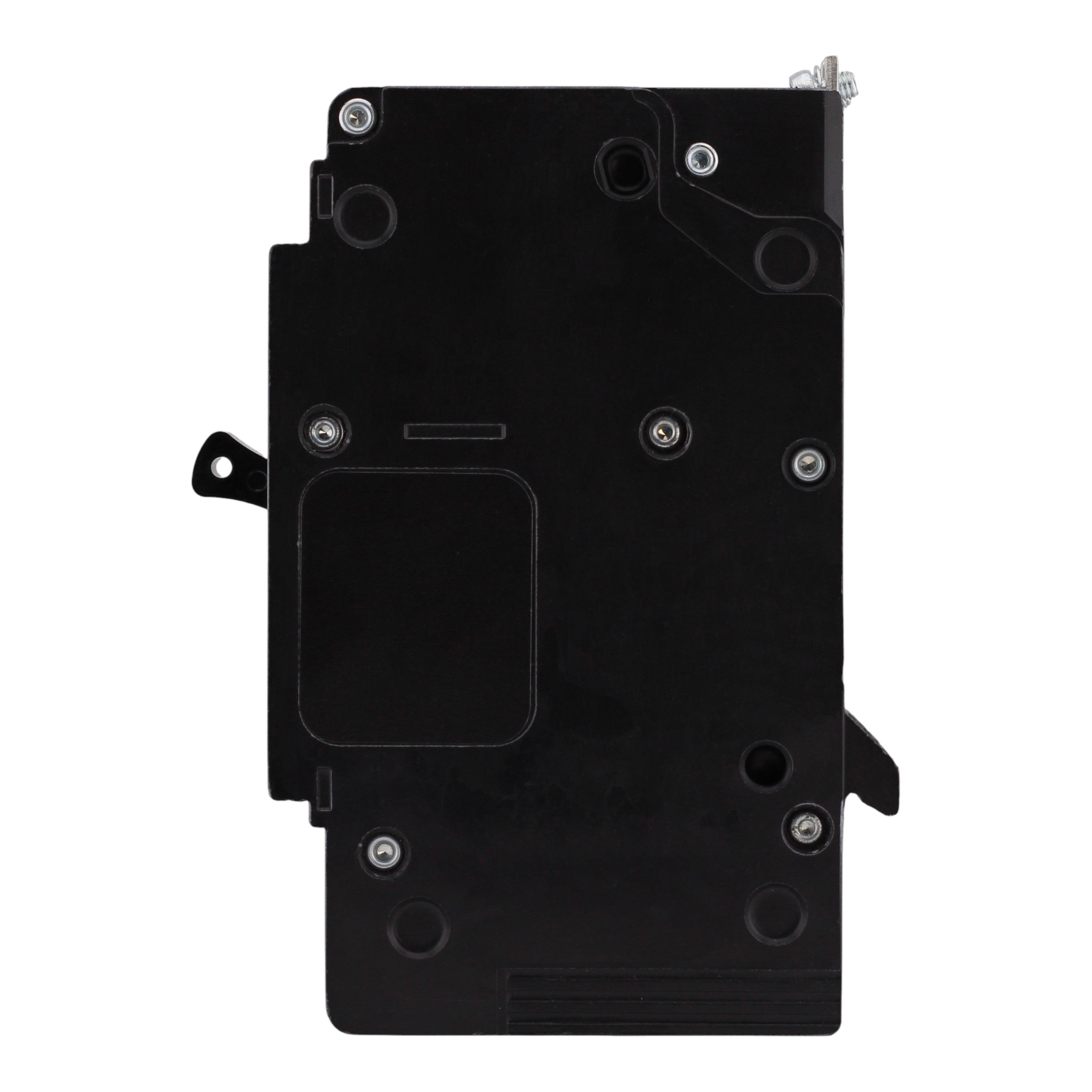

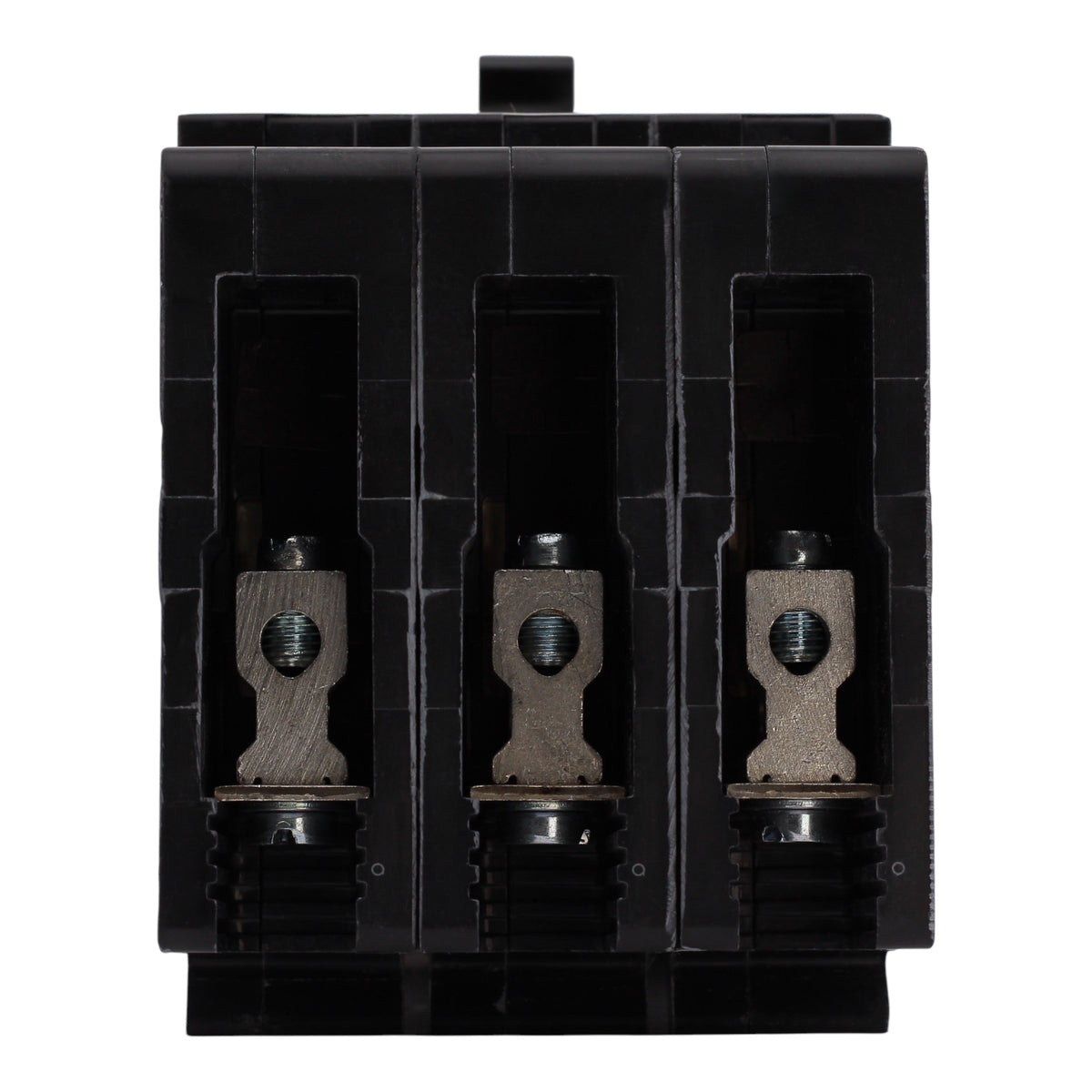

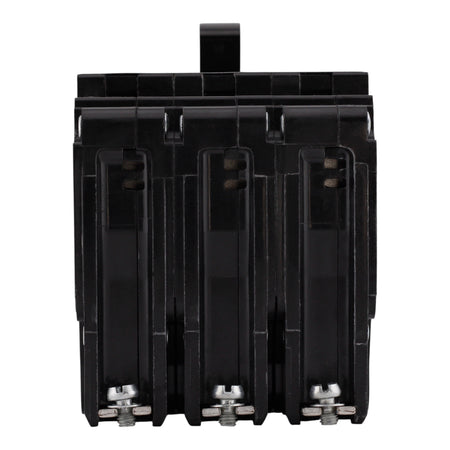

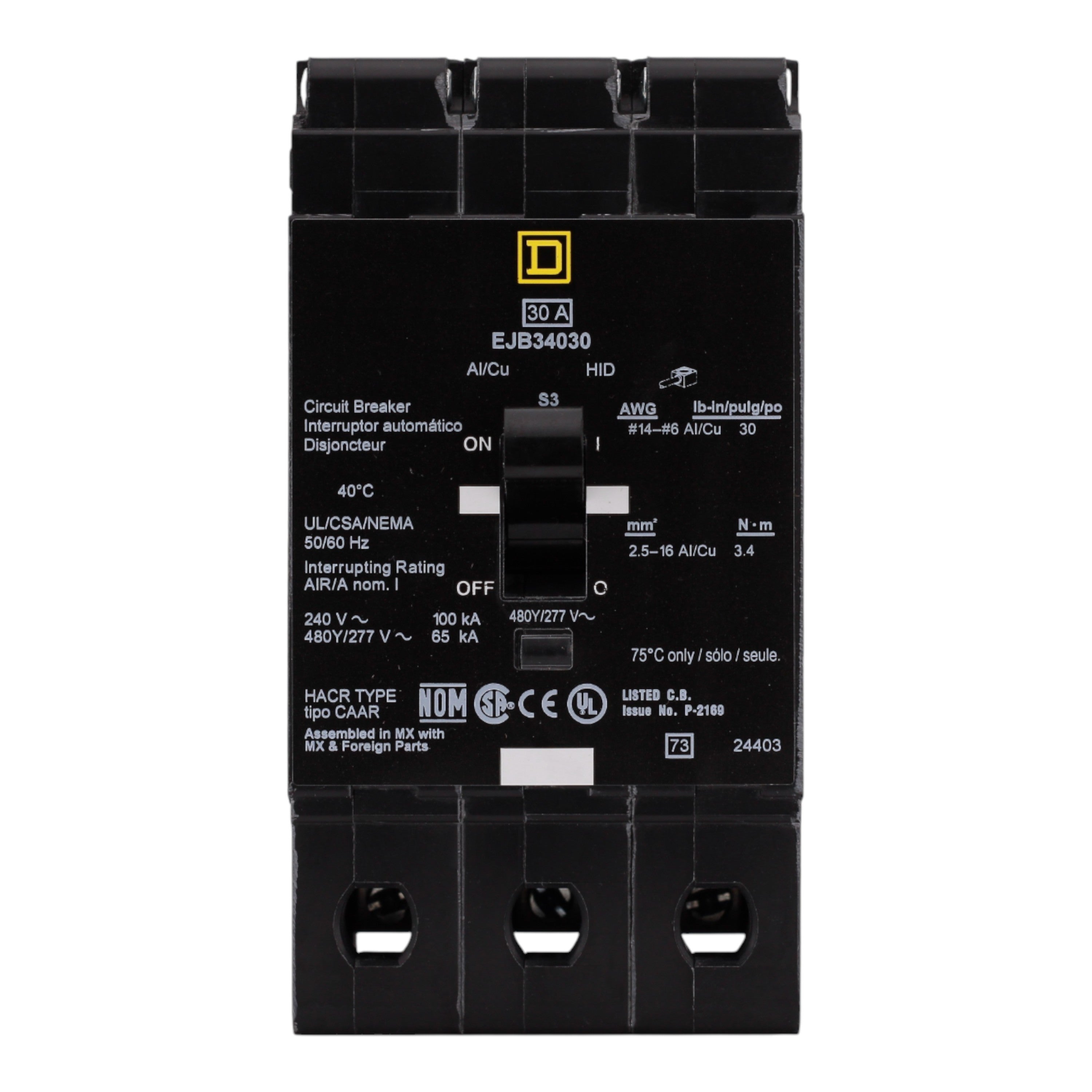

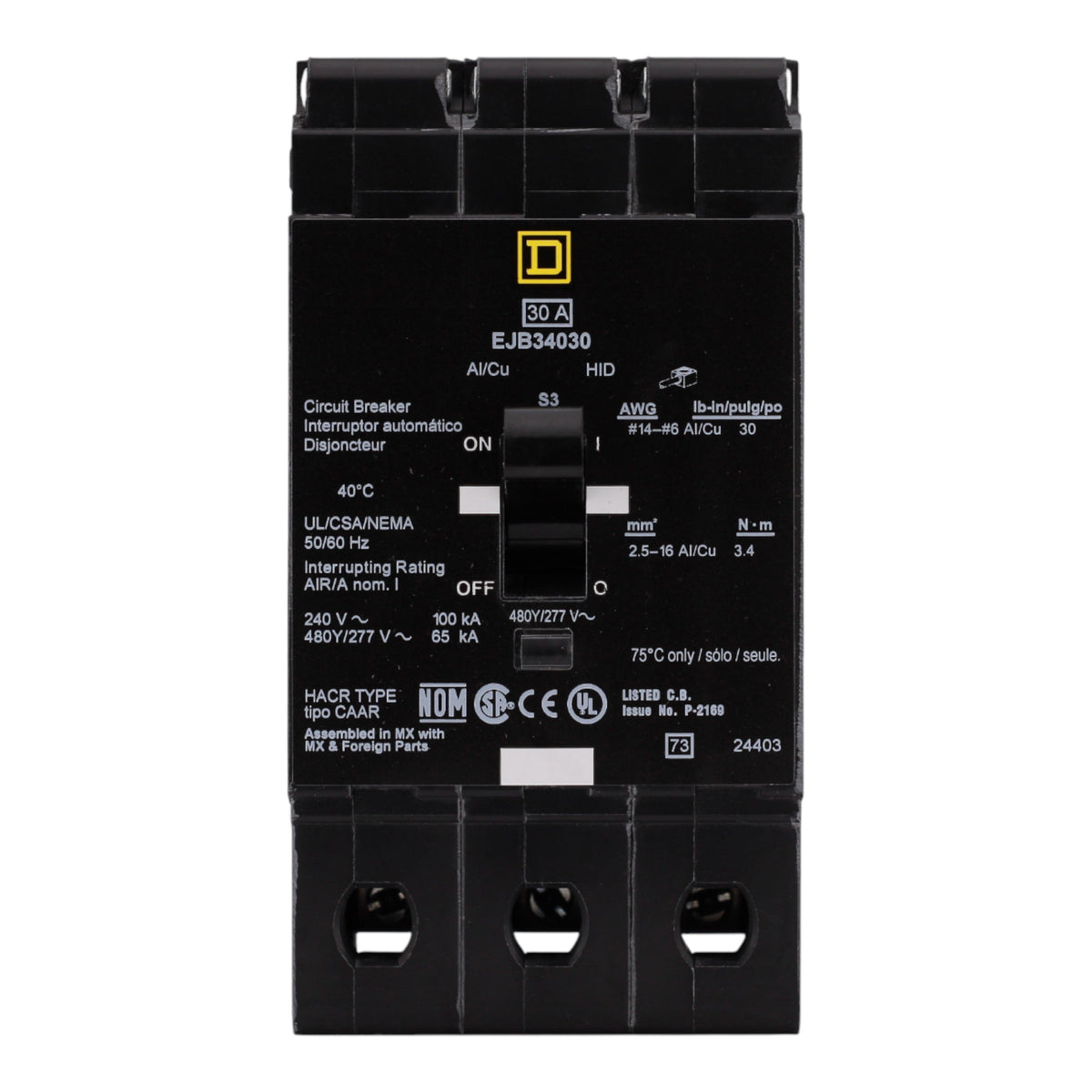

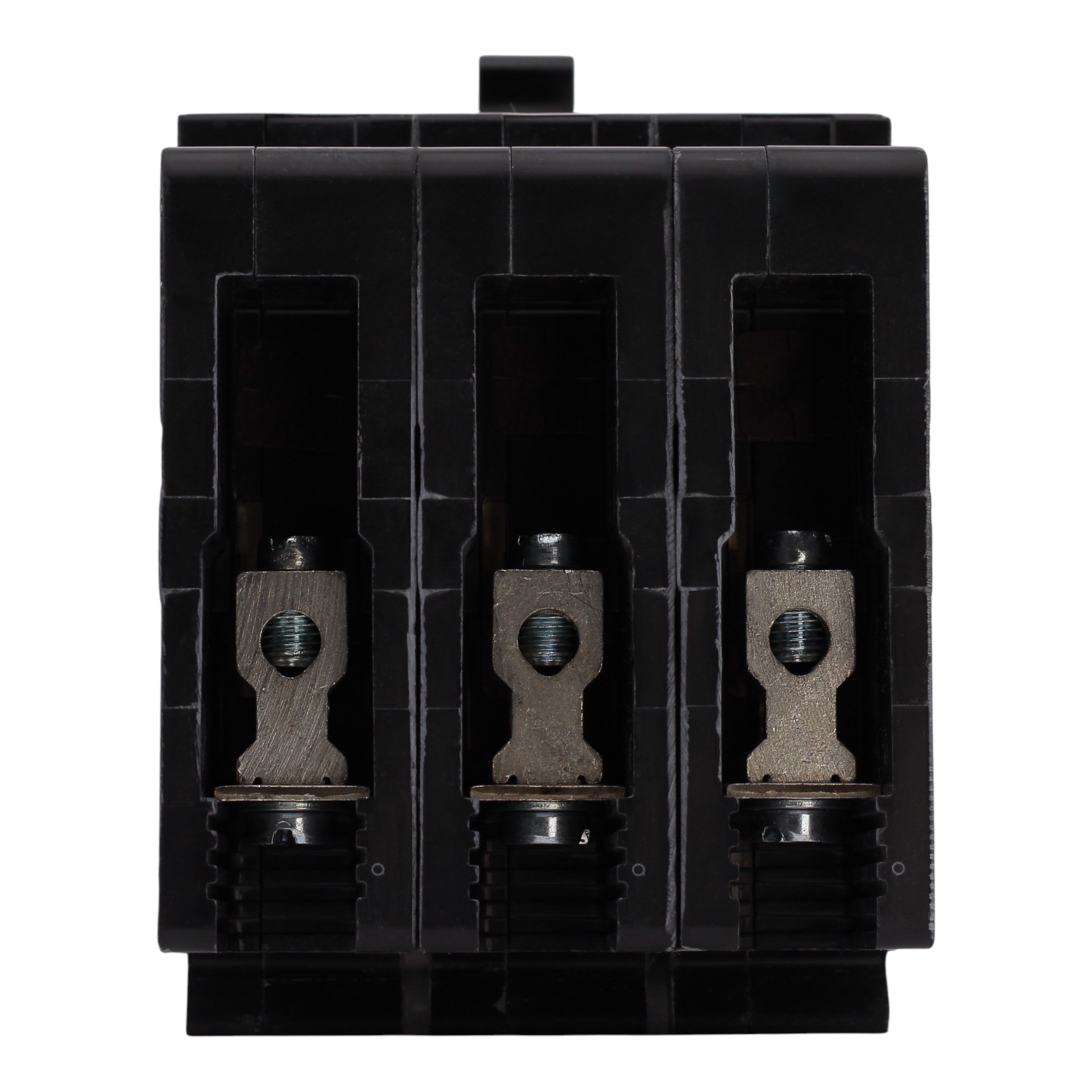

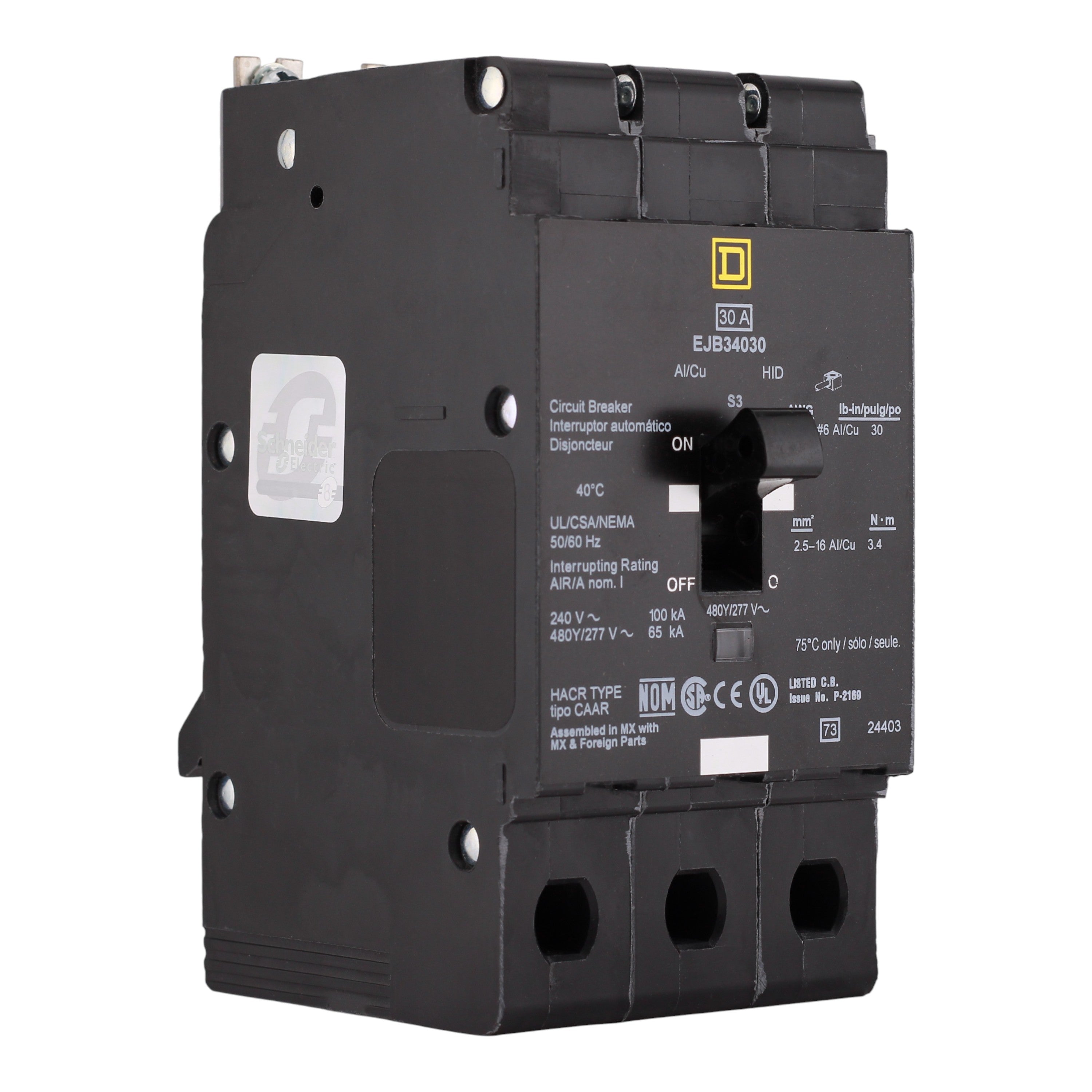

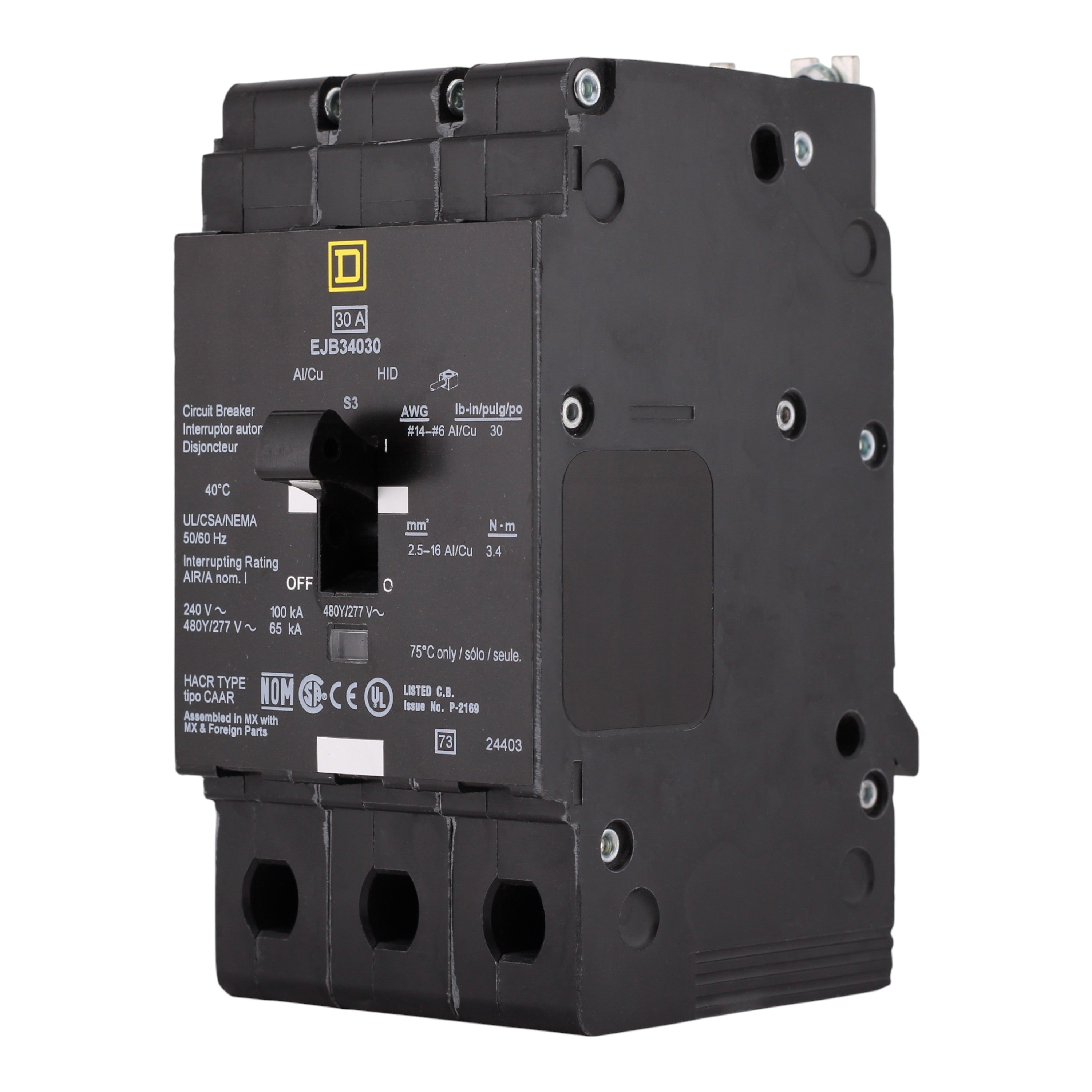

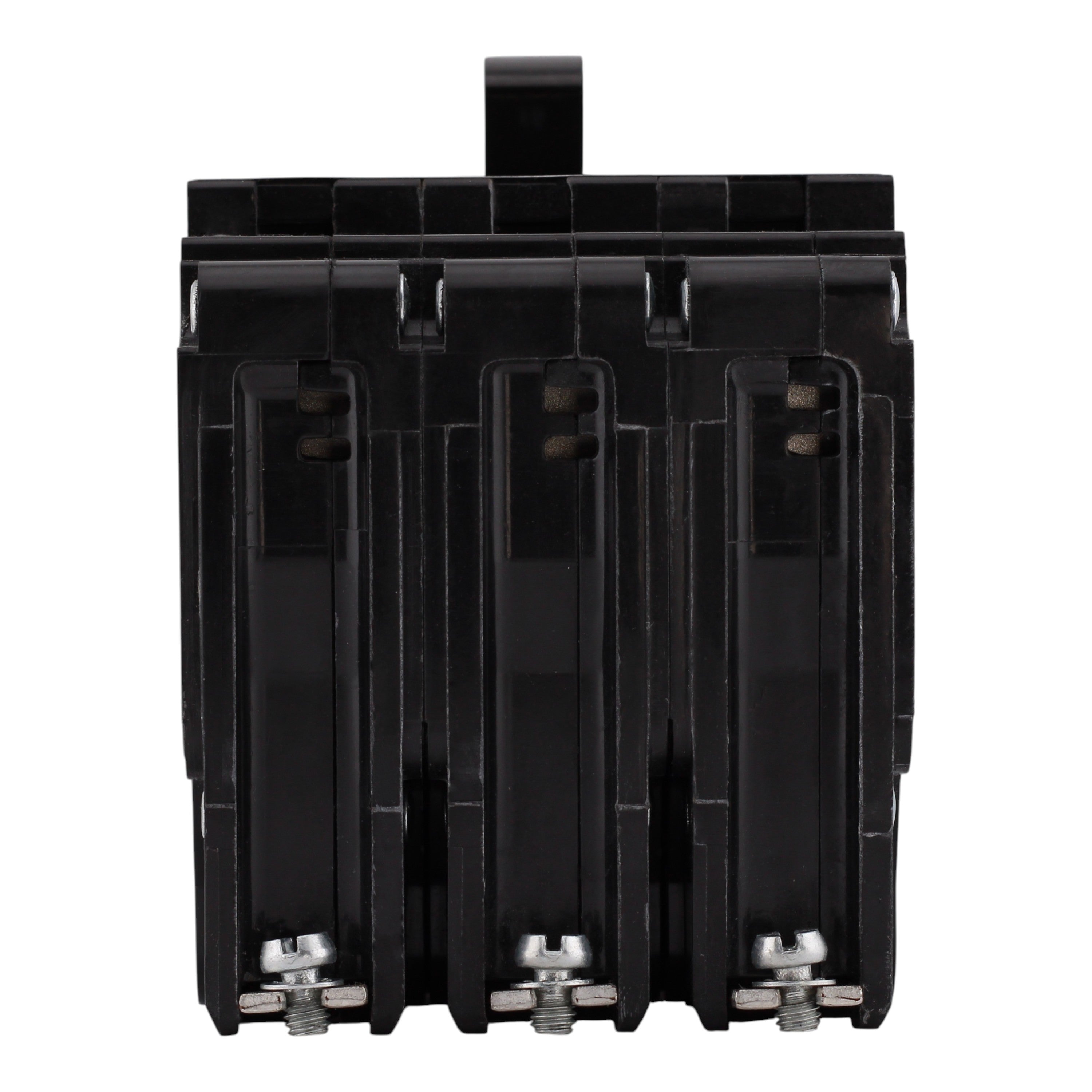

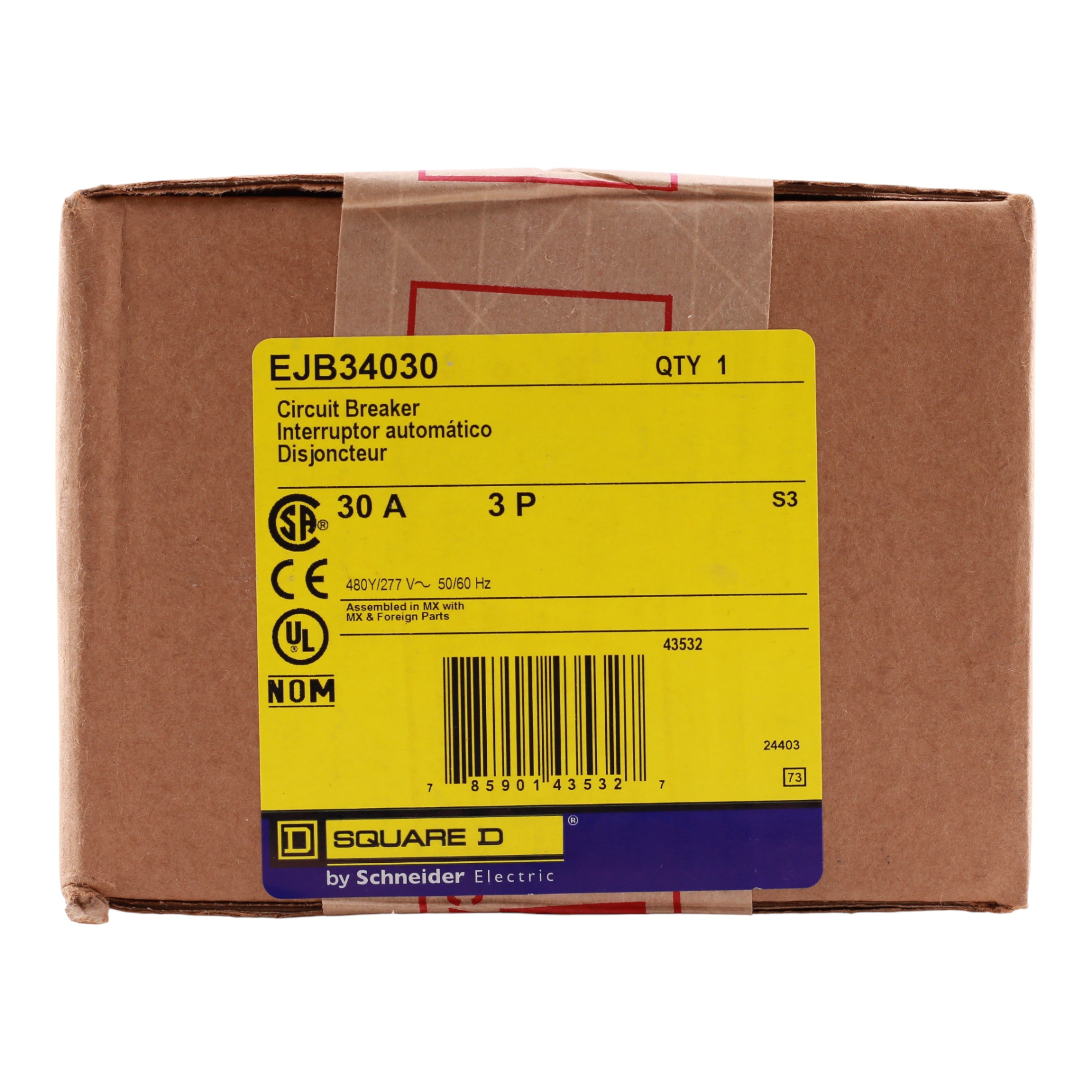

Square D E-Frame, EJB34030, 30A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On Circuit Breaker

Square D EJB34030: 30 Amp, 3-Pole, Thermal-Magnetic Miniature Circuit Breaker, 480Y/277V, 100kA at 120/240V, 65kA at 480Y/277V, bolt-on, UL listed, HACR rated.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: E-Frame (for Square D NF Panelboards)
• UPC: 785901435327
• Model Number: EJB34030
• Breaker Type: Thermal-Magnetic Miniature Circuit Breaker
• Amperage: 30 Amps
• Poles: 3-Pole
• Voltage: 480Y/277 Volts AC
• Interrupt Rating: 100 kAIC at 120V AC, 100 kAIC at 120/240V AC, 100 kAIC at 240V AC, 65 kAIC at 277V AC, 65 kAIC at 480Y/277V AC
• Mounting Mode: Bolt-On
• Wire Size: #14-6 AWG Cu, #12-6 AWG Al
• Tightening Torque: 30.09 lb-in
• Holding Current: 270 Amps
• Trip Current: 875 Amps
• Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
• Weight: 4 lbs
• Certifications: UL Listed, HACR Rated, HID Rated, CSA

This Square D EJB34030 thermal-magnetic circuit breaker delivers dependable 30 Amp, 3-pole protection for 480Y/277V circuits in E-Frame NF Panelboards. Designed for bolt-on installation with 100kA interrupt rating at 120/240V and trip indicator, it supports lighting and commercial applications.
