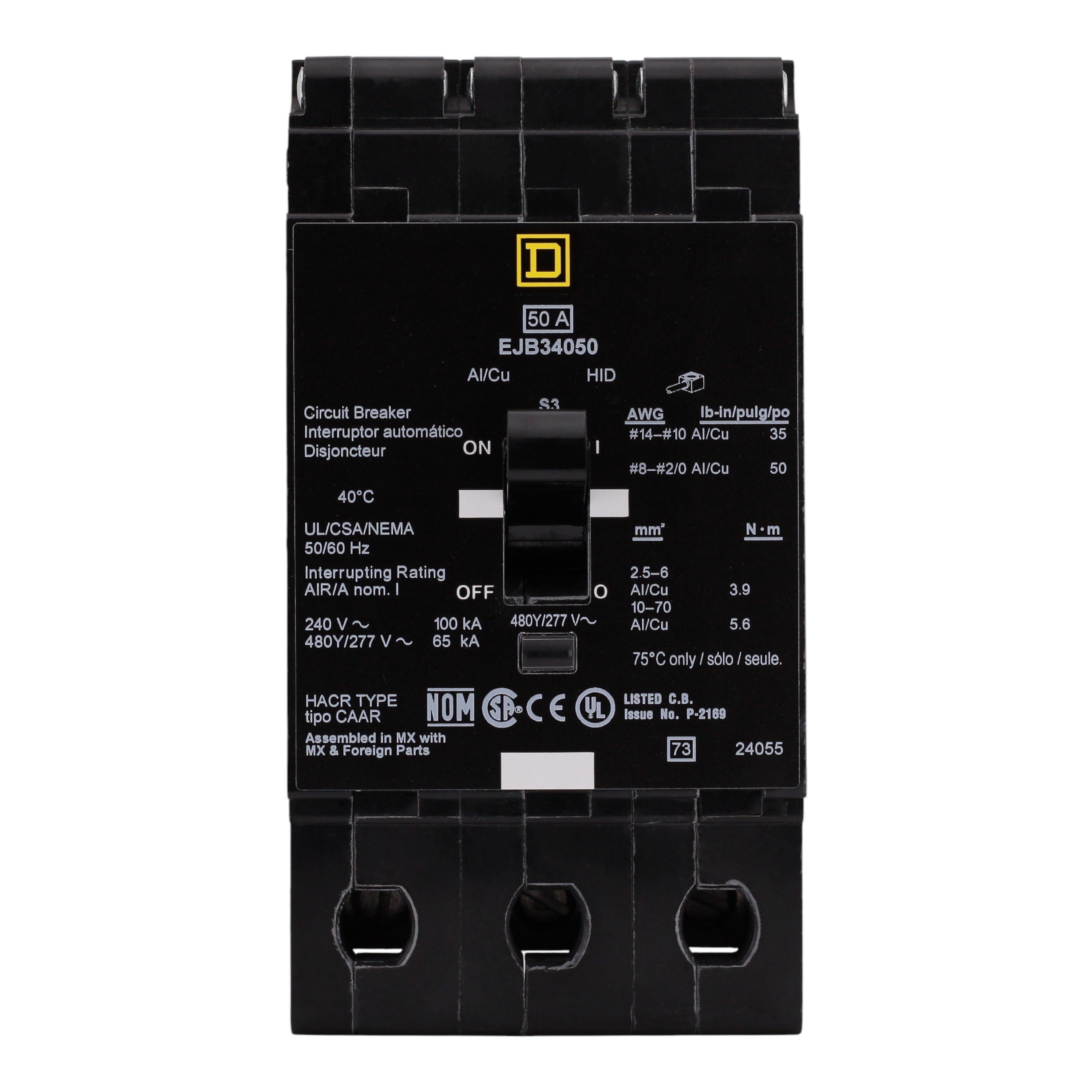

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 4
Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 5
Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 6
Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 7

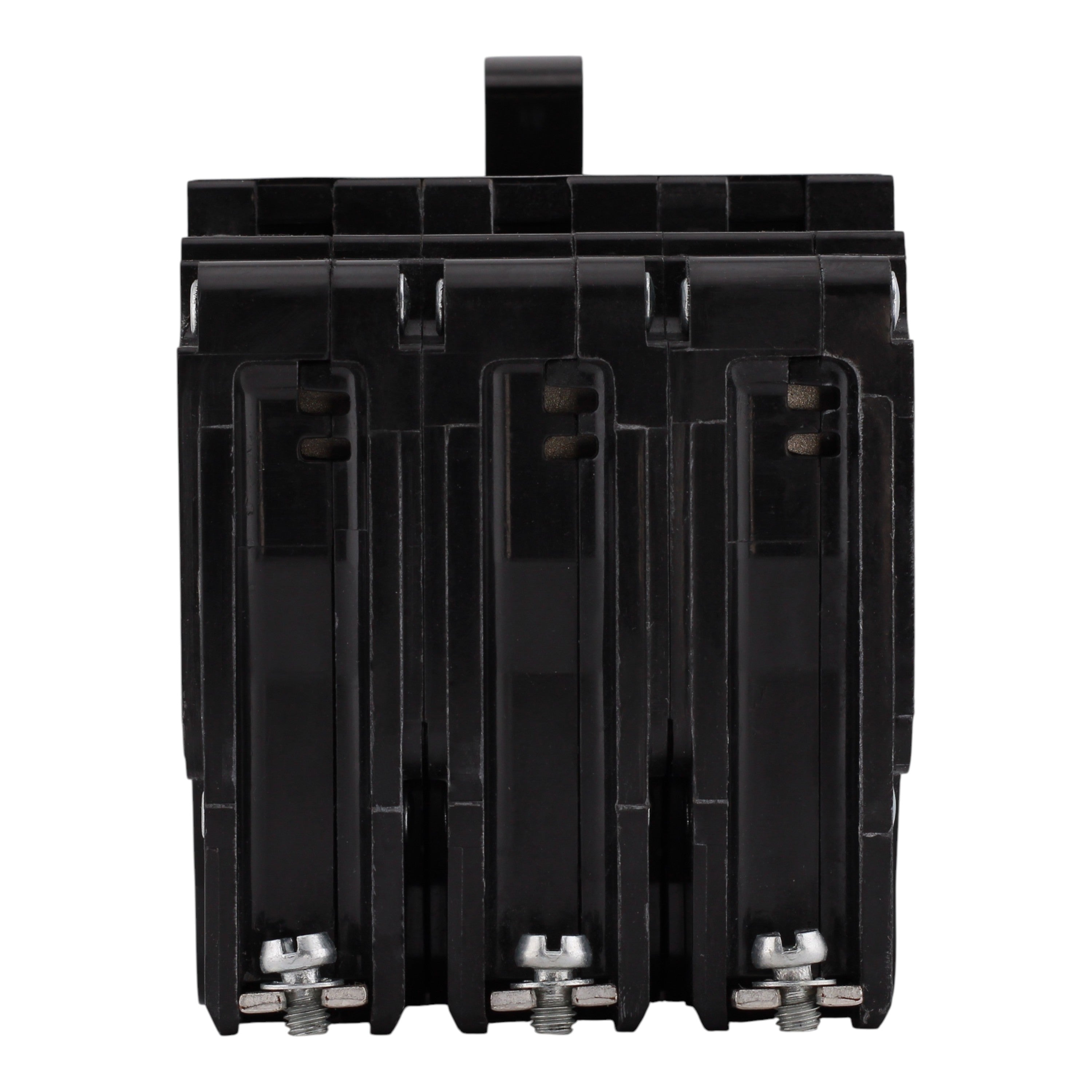

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 8

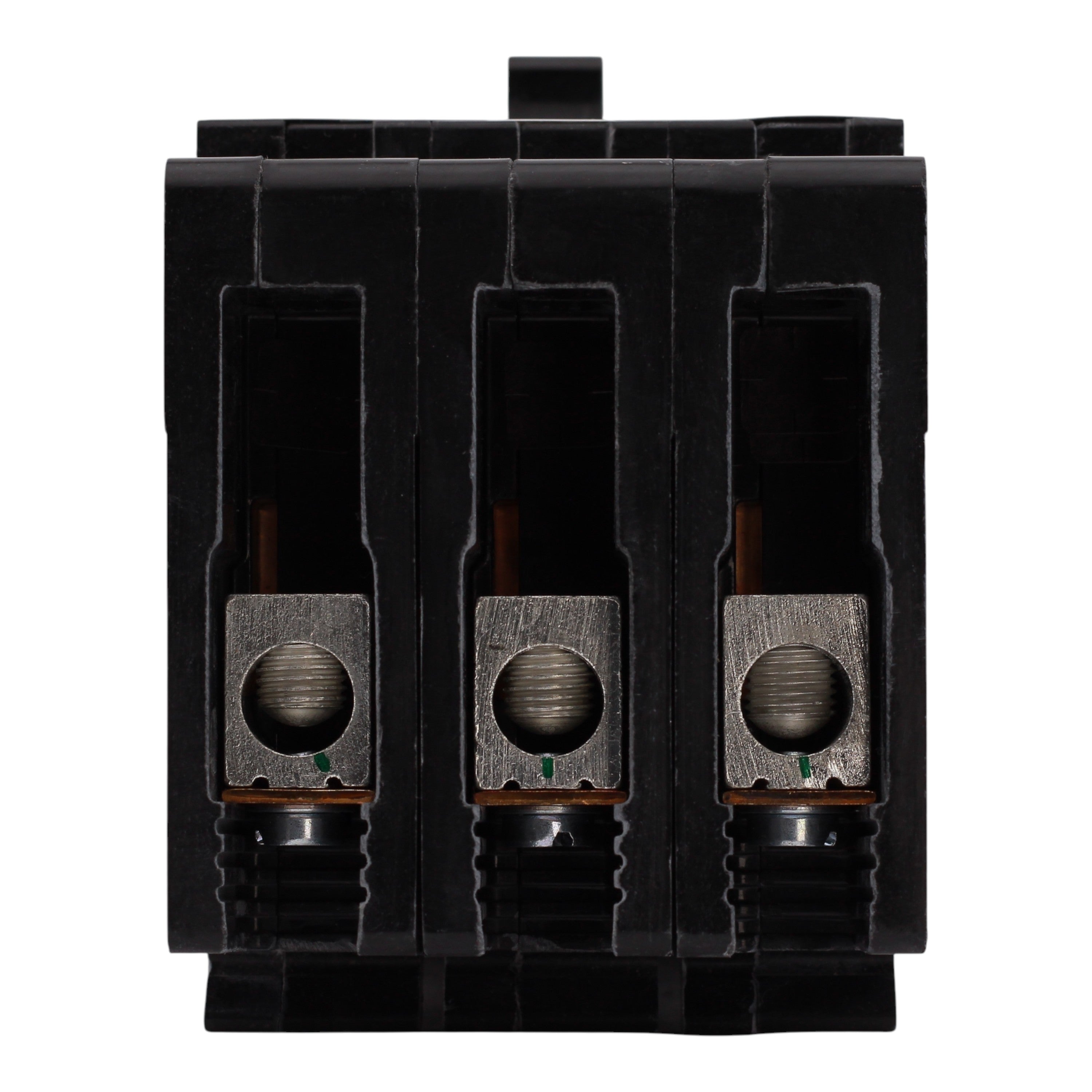

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 9

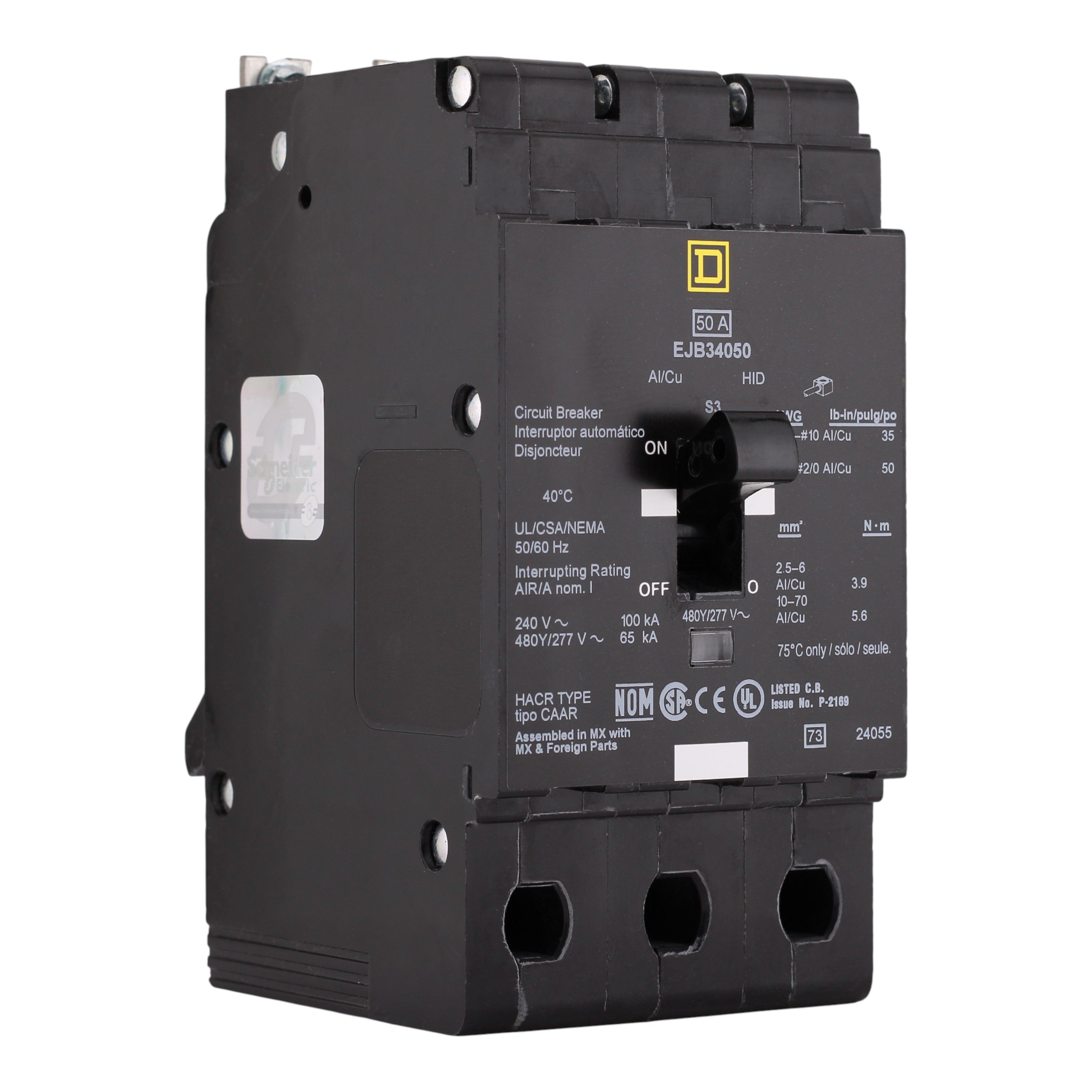

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker

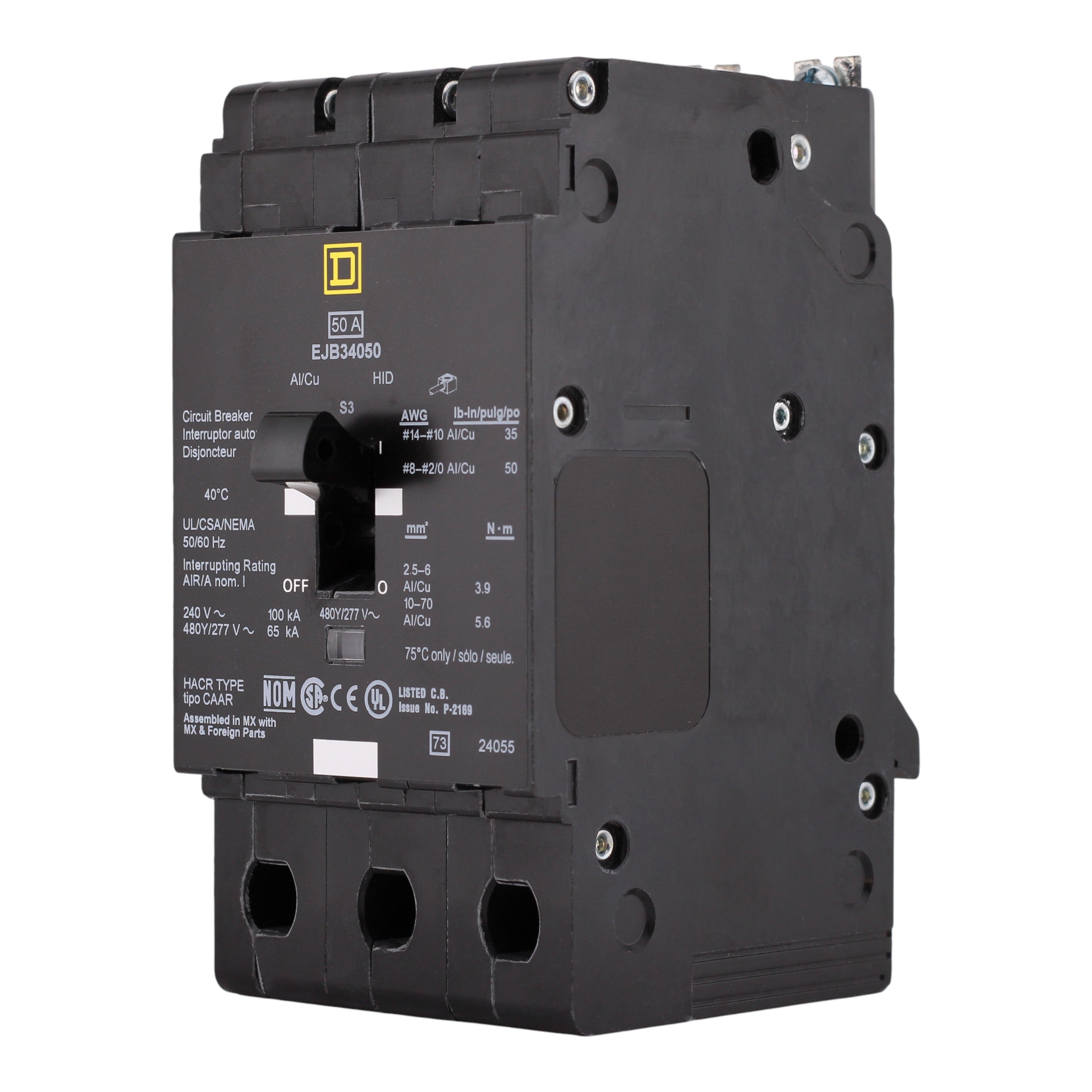

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 2

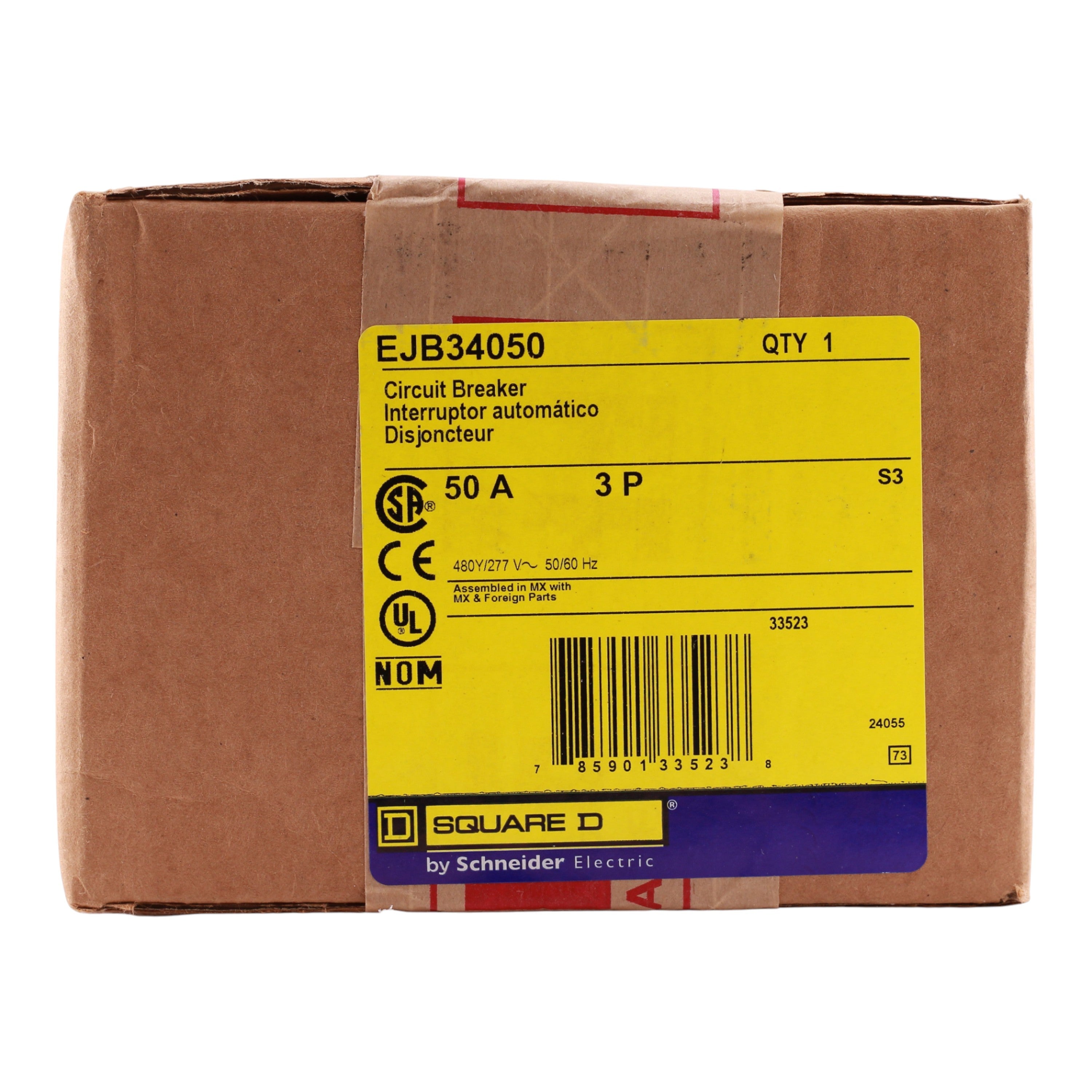

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 3
Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 4

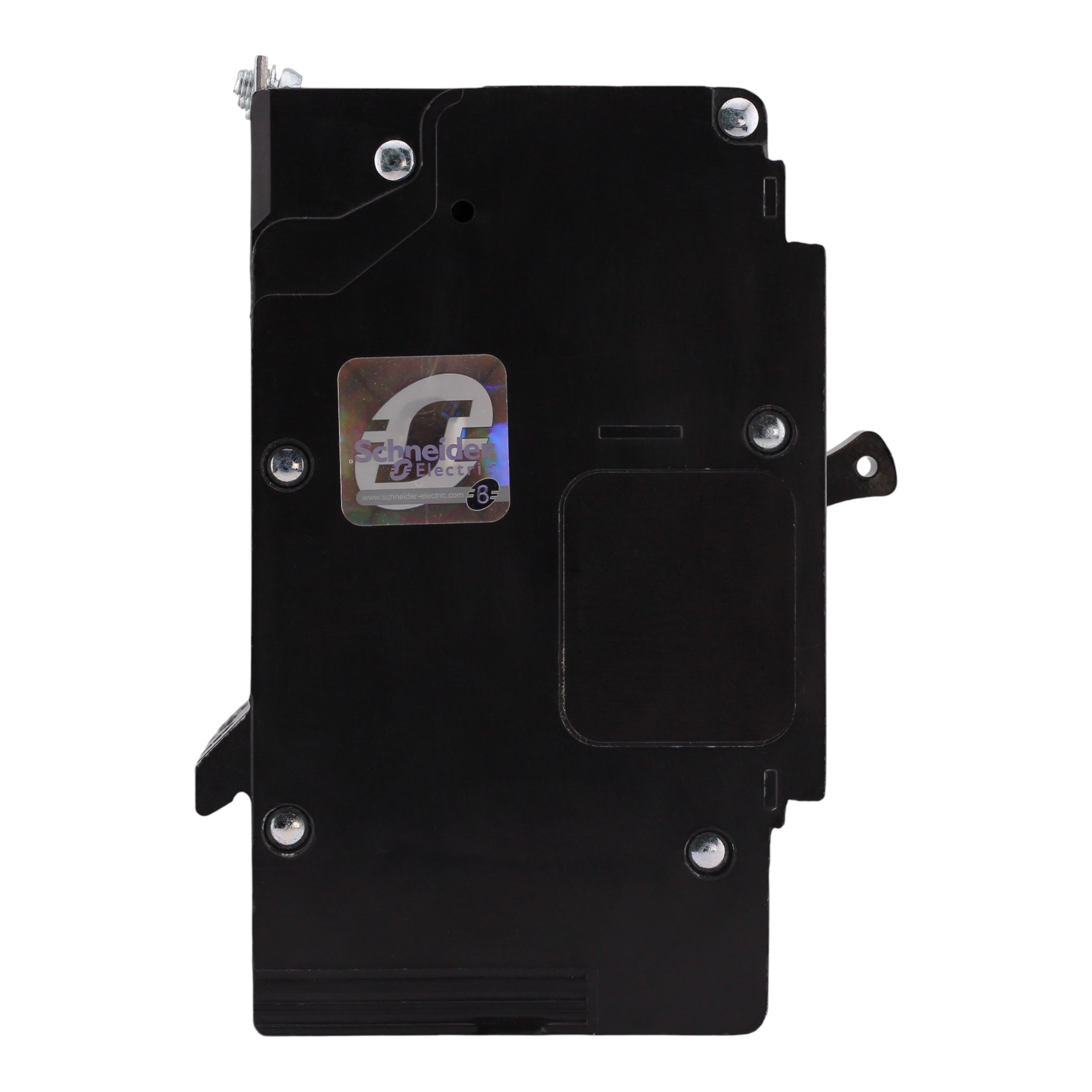

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 5

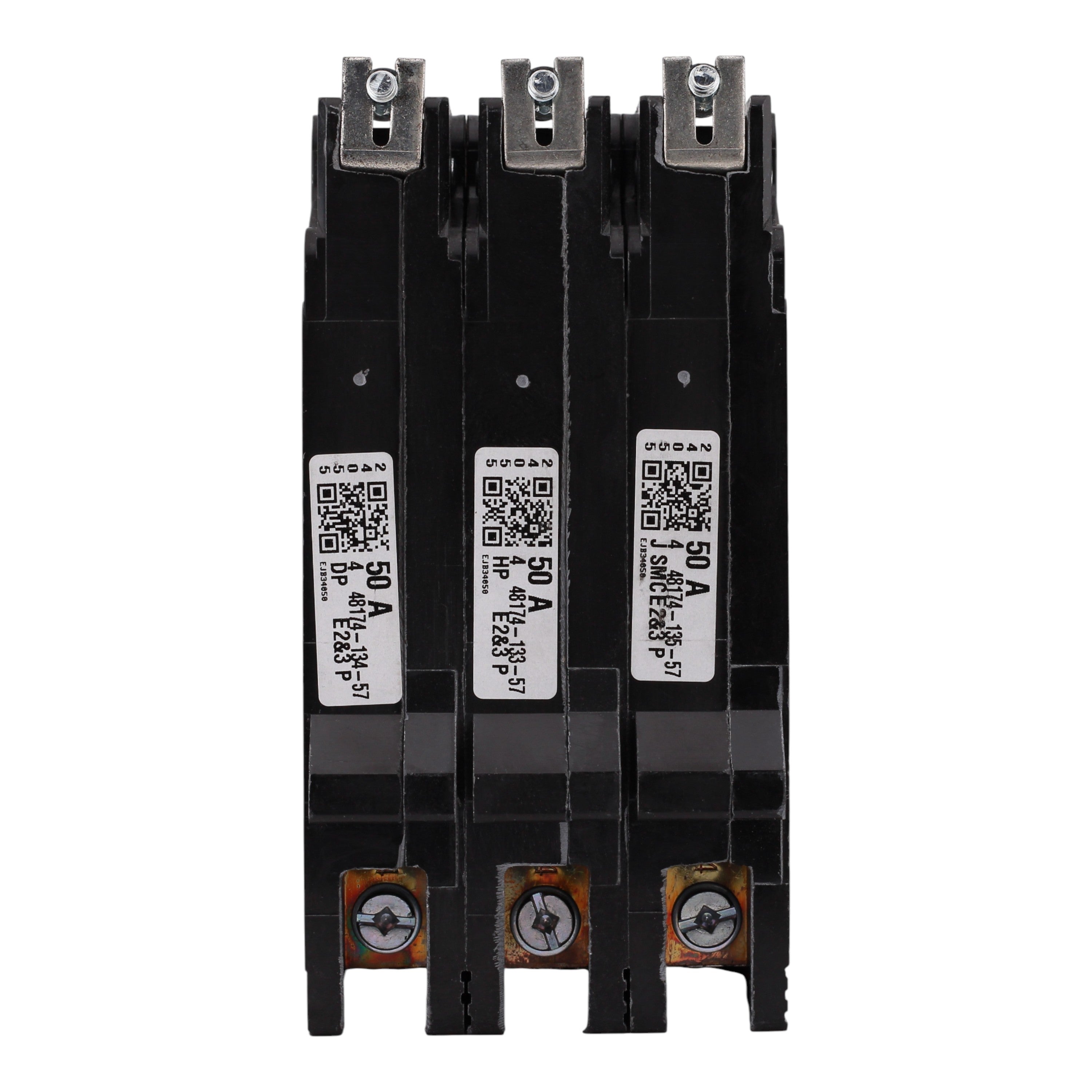

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 6

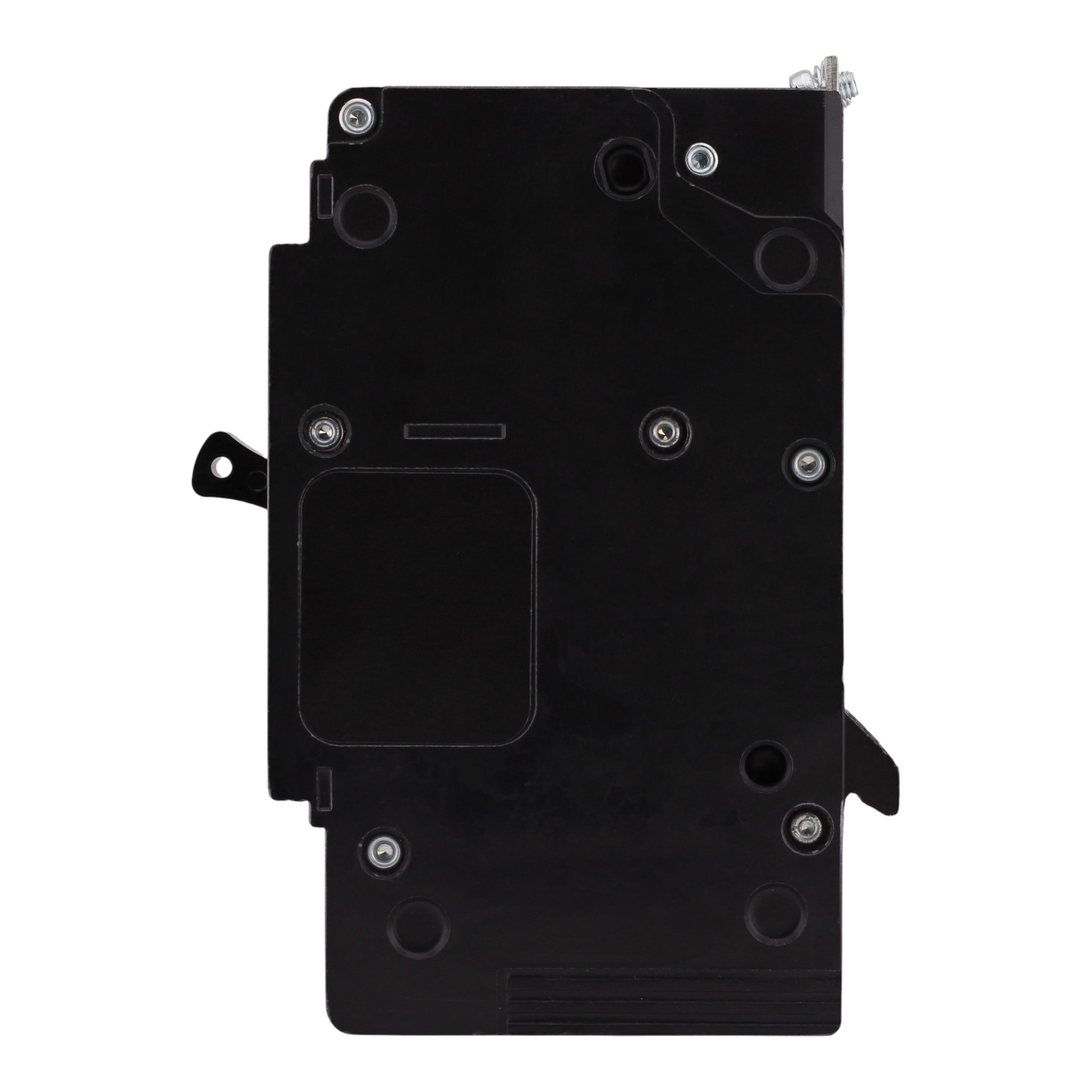

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 7

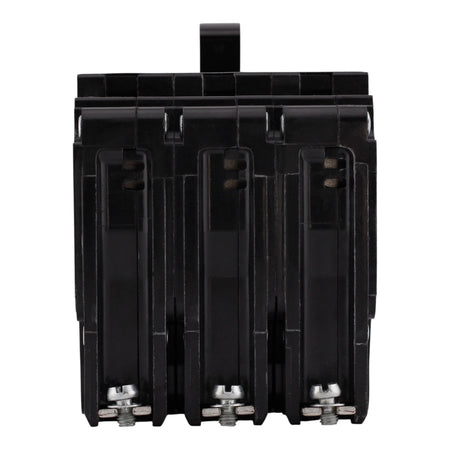

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 8

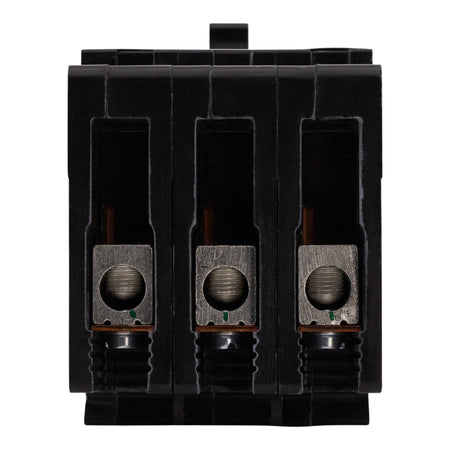

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame, EJB34050, 50A, 3P, 480Y/277V, Bolt-On, Circuit Breaker

Out of stock
SKU: EJB34050 UPC: 785901335238
(0)
$295.00
-40% $495.00 $295.00
Out of stock
Condition

Square D EJB34050: 50 Amp, 3-Pole, Thermal-Magnetic Circuit Breaker, 480Y/277V, 100kA @ 120/240V, 65kA @ 480Y/277V, bolt-on, UL listed, HACR rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF Panelboards and lighting panelboards)
  • UPC: 785901335238
  • Model Number: EJB34050
  • Breaker Type: Thermal-Magnetic Miniature Circuit Breaker
  • Amperage: 50 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 100 kAIC at 120/240V AC, 65 kAIC at 480Y/277V AC
  • Mounting Mode: Bolt-on
  • Wire Size: #14-10 AWG Cu, #12-10 AWG Al (smaller wires); #8-2/0 AWG Cu, #8-2/0 AWG Al (larger wires)
  • Tightening Torque: 34.5 lb-in (#14-10 AWG); 49.6 lb-in (#8-2/0 AWG)
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4 lbs
  • Certifications: UL Listed, HACR Rated, CSA Certified, HID Rated
  • Hold Current: 630 A
  • Trip Current: 1800 A
  • Trip Unit Technology: Thermal-Magnetic with Trip Indicator

This Square D EJB34050 thermal-magnetic circuit breaker delivers dependable 50 Amp, 3-pole protection for 480Y/277V circuits in E-Frame NF lighting panelboards. Designed for bolt-on installation with 100kA interrupt rating at 120/240V, it supports commercial and industrial applications with superior overload and short-circuit protection.
