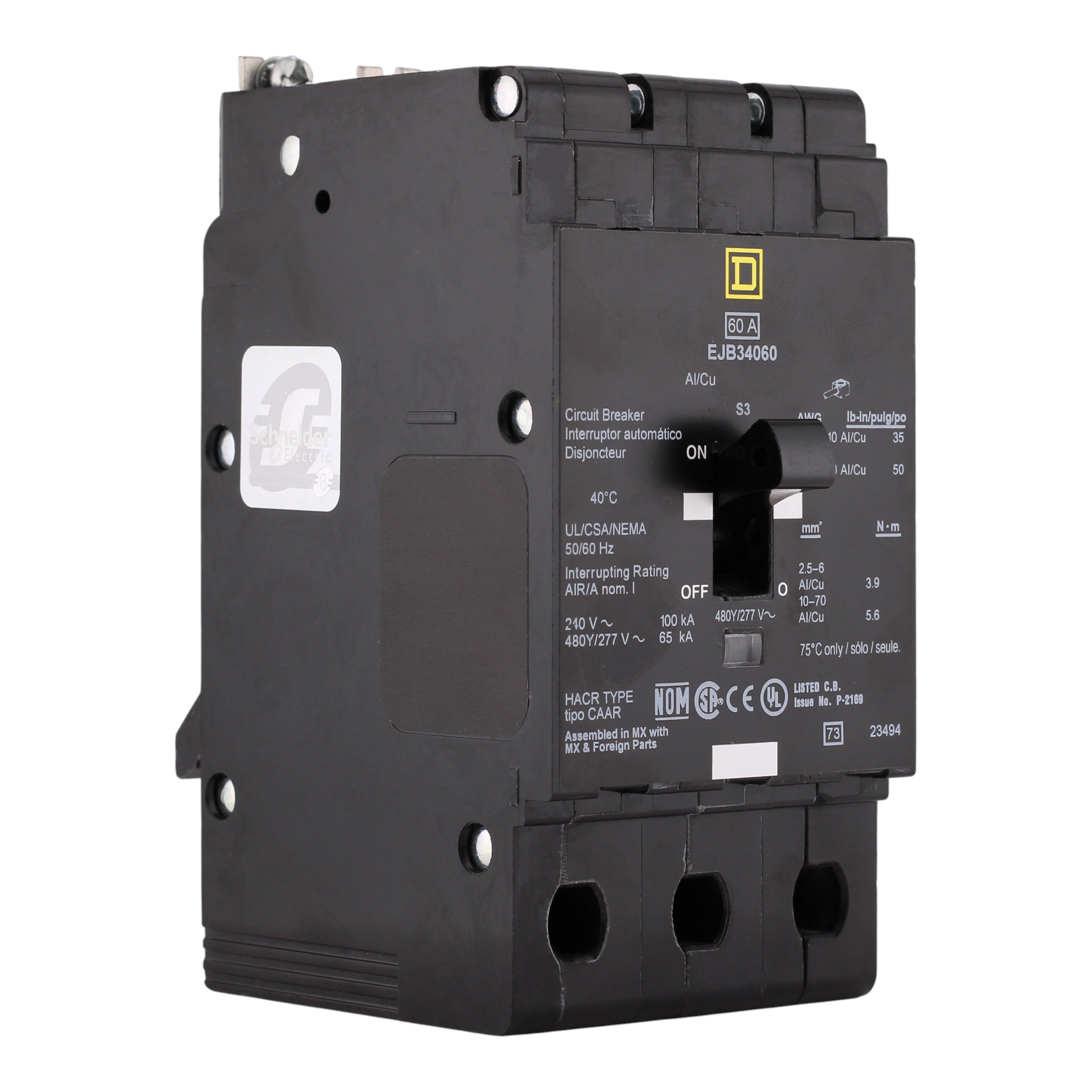

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker

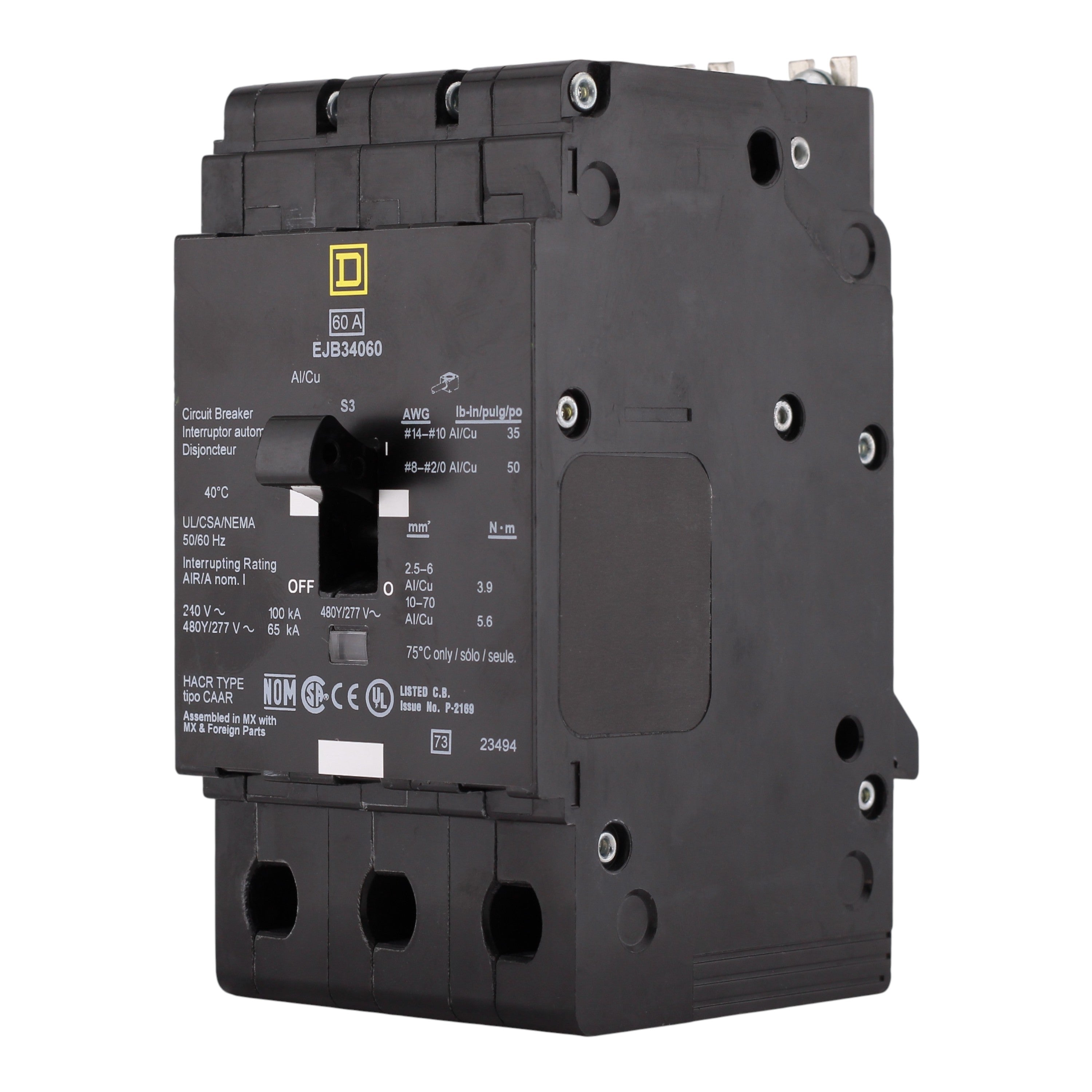

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 2

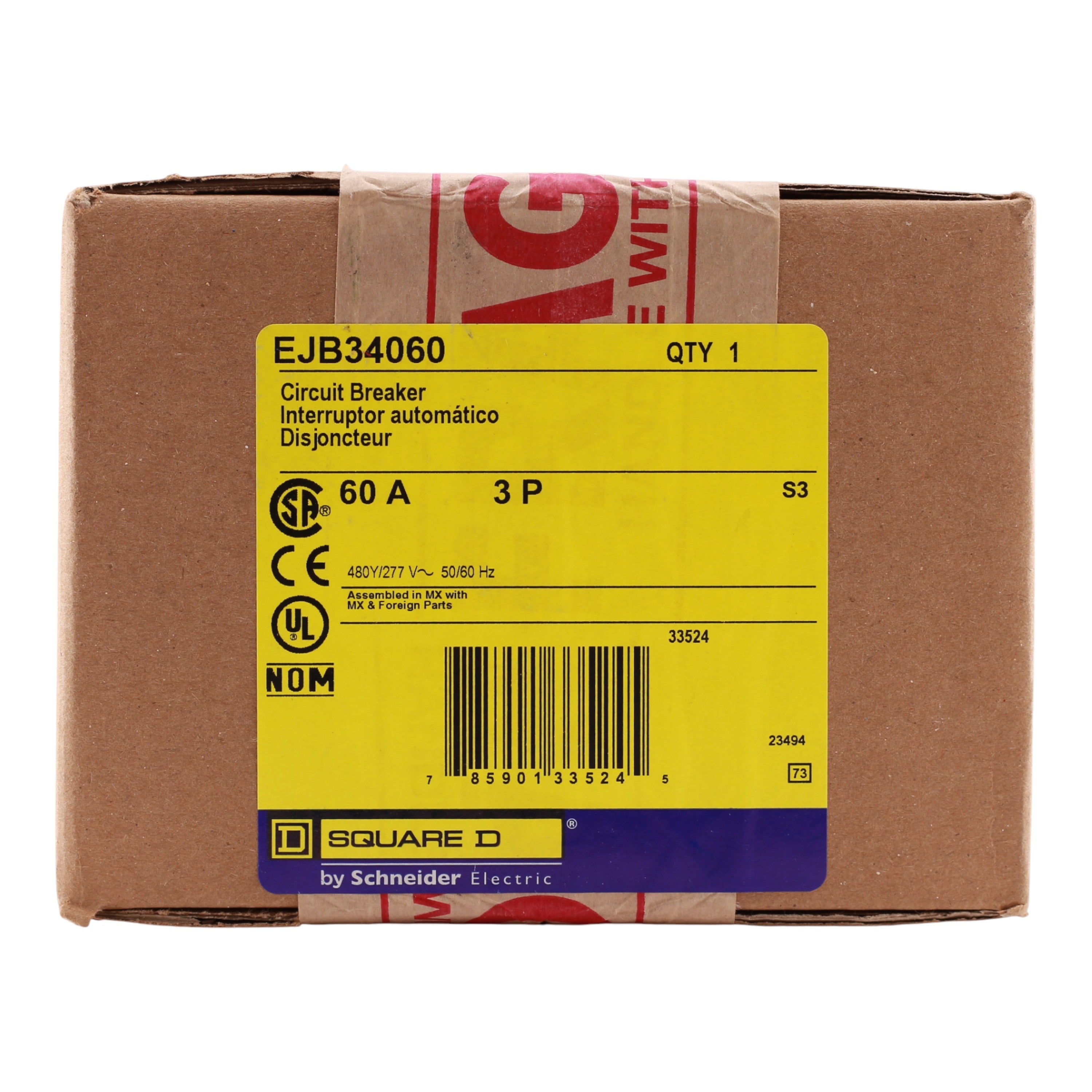

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 3

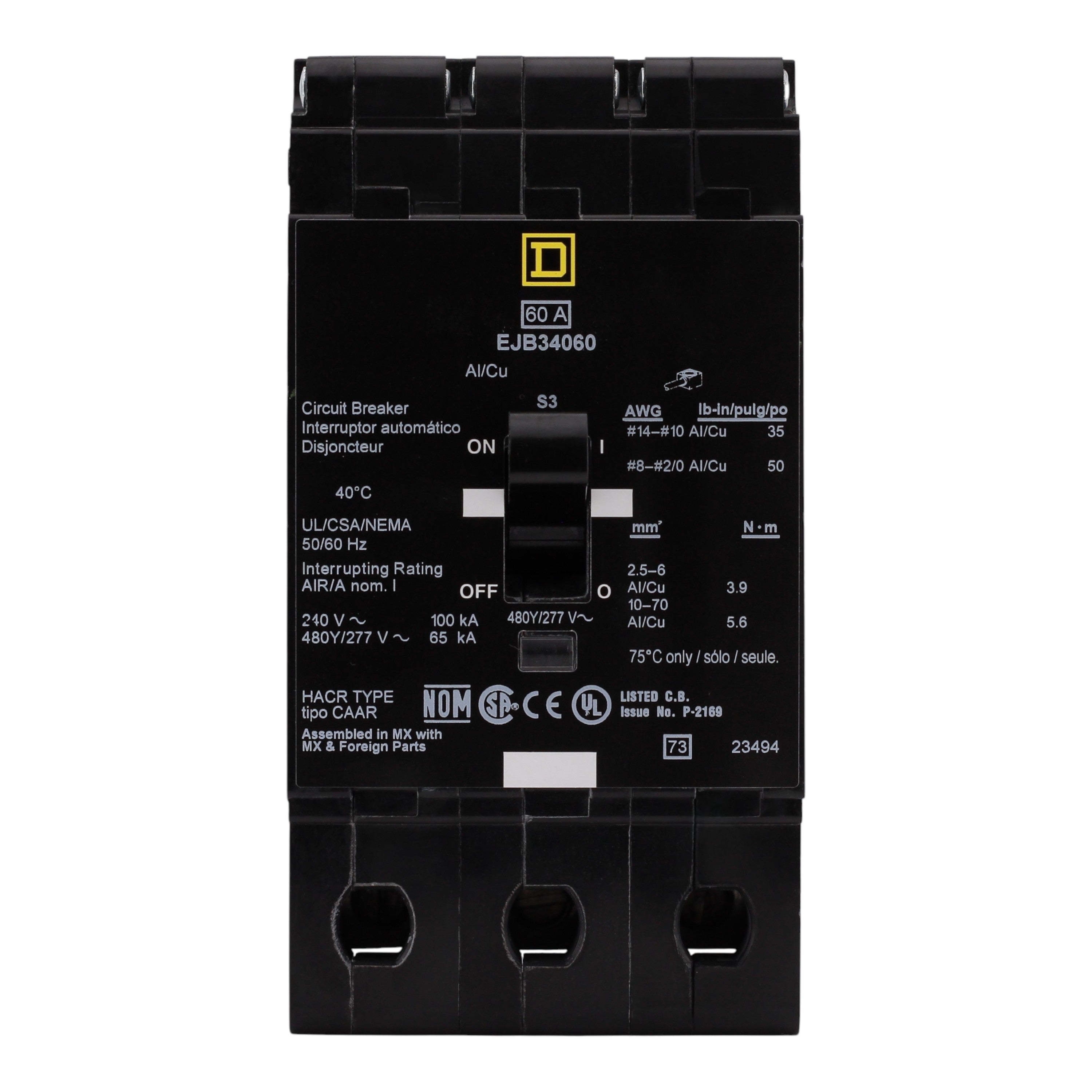

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 4

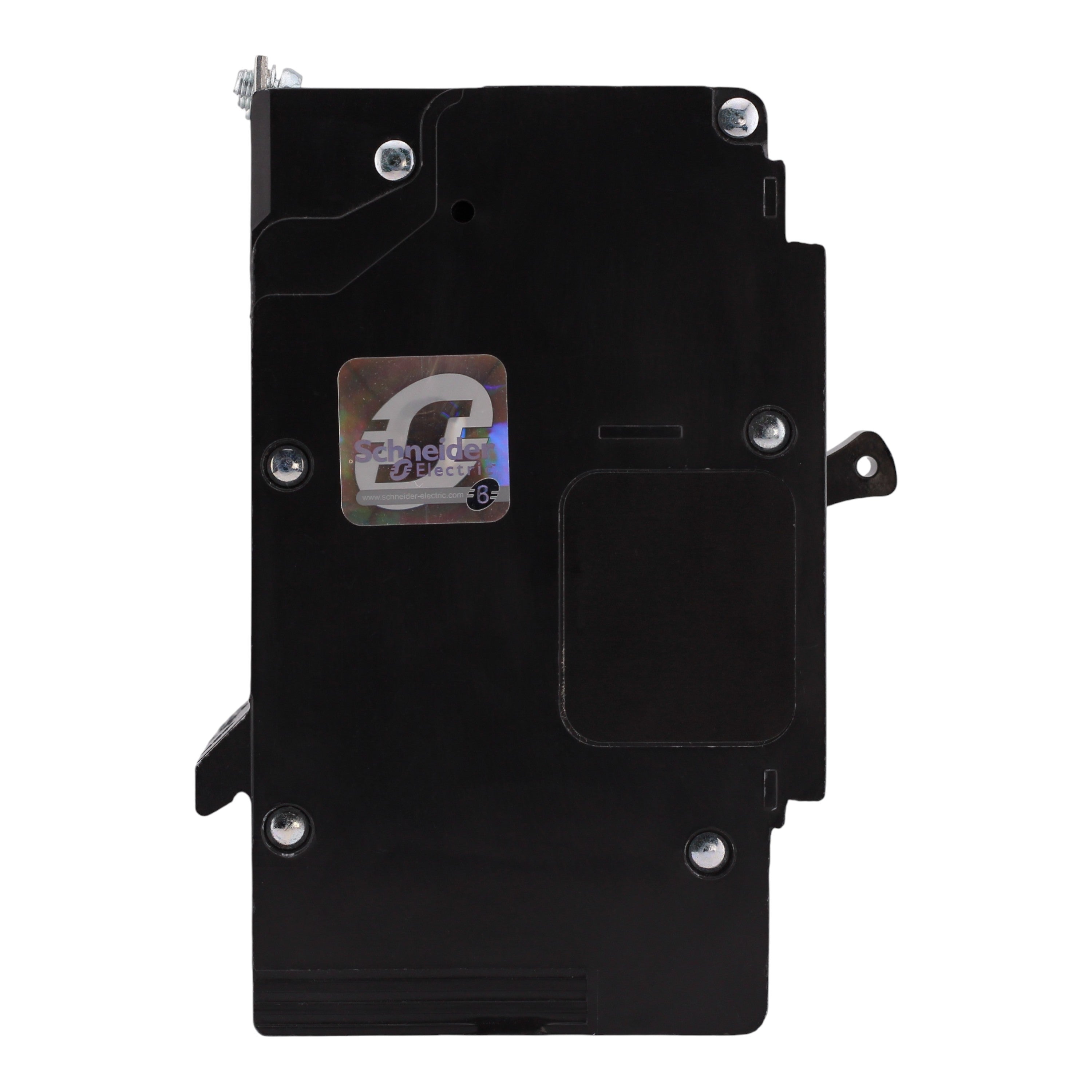

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 5

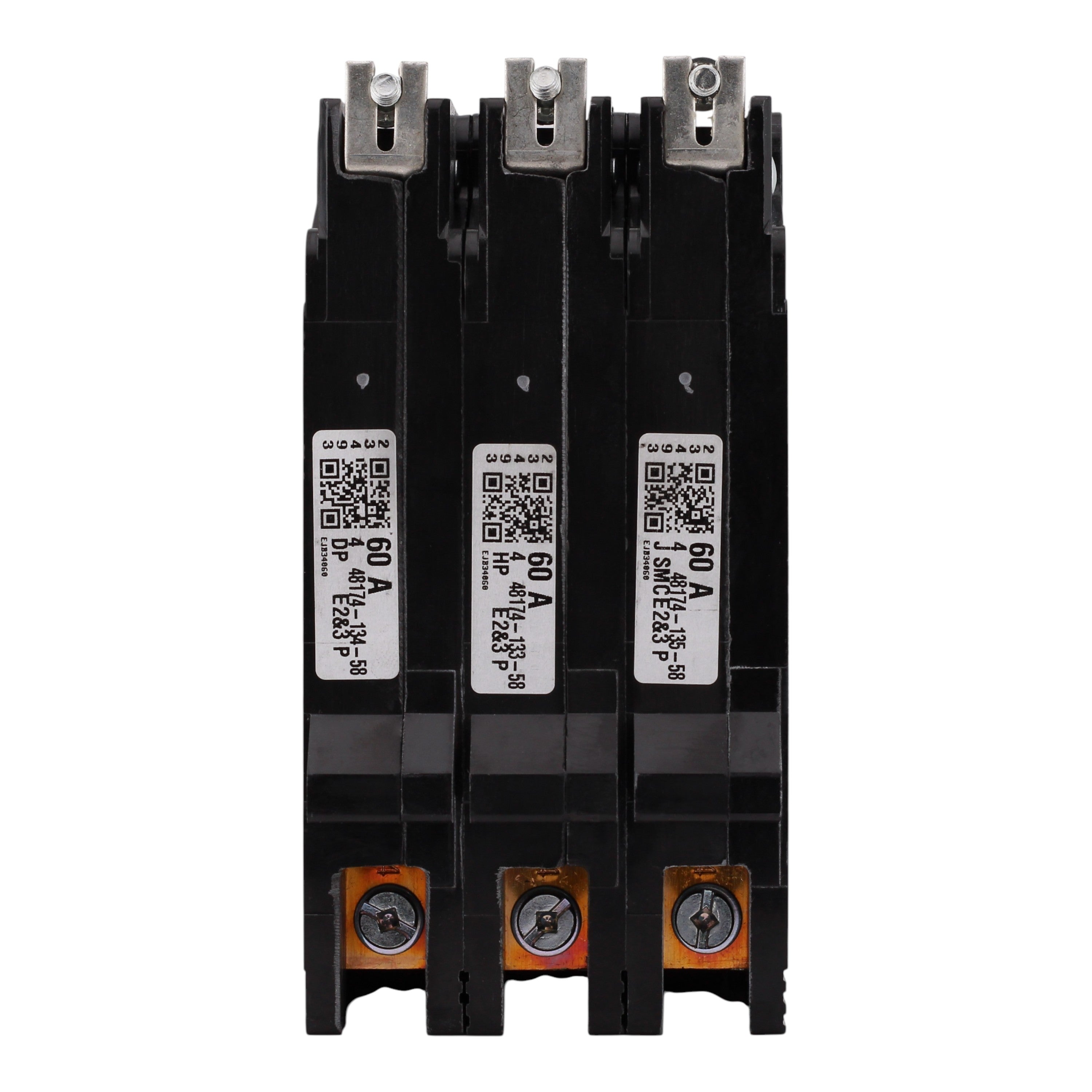

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 6

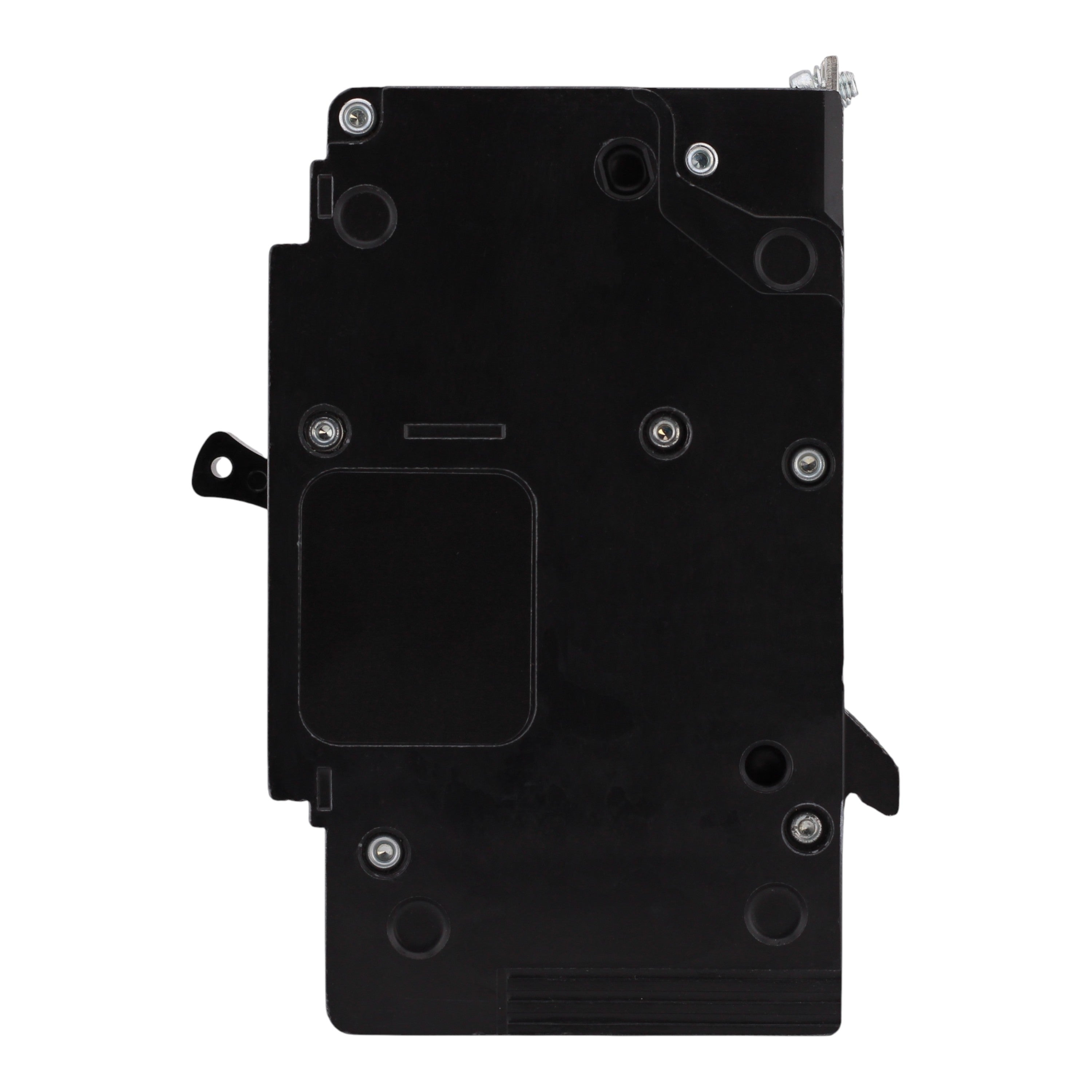

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 7

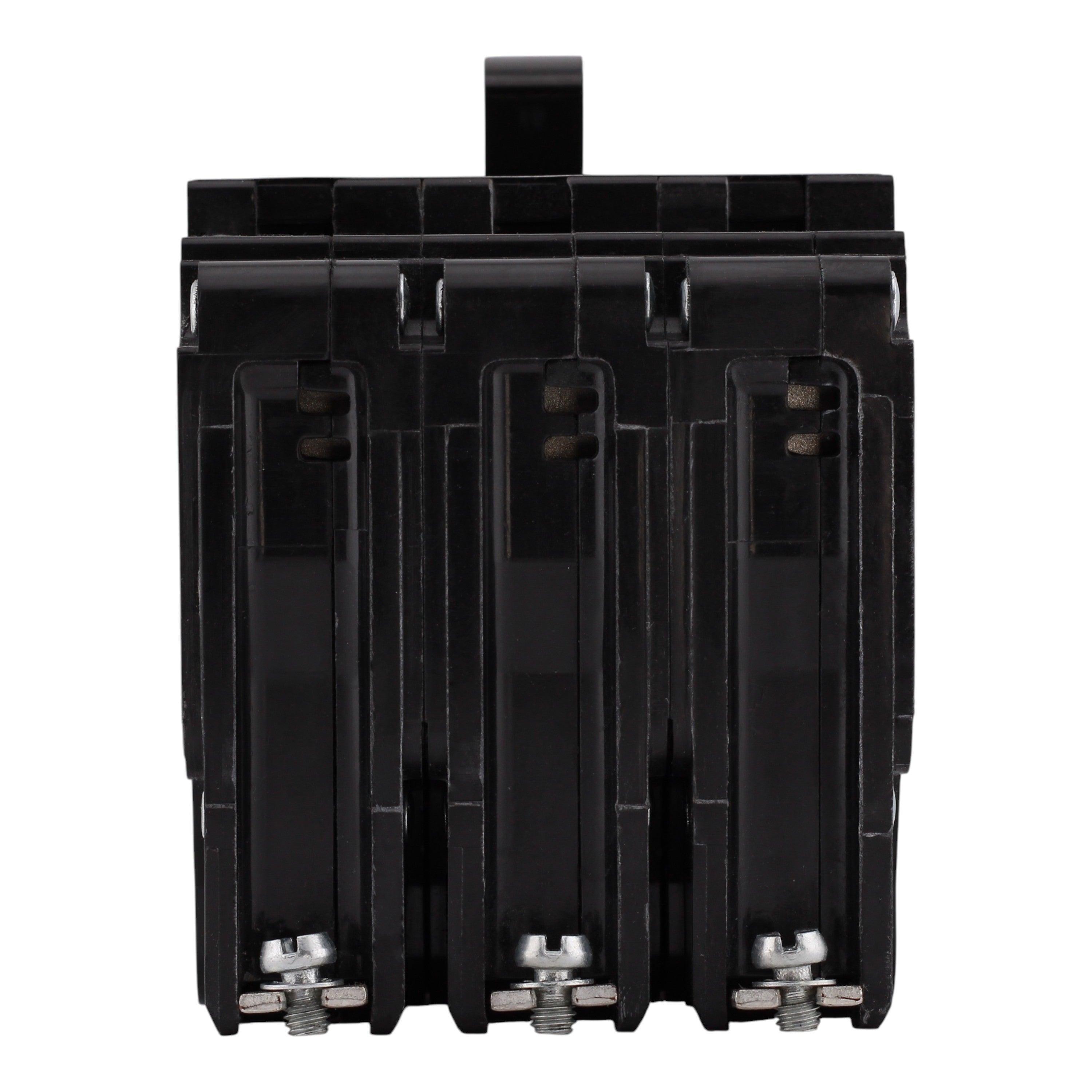

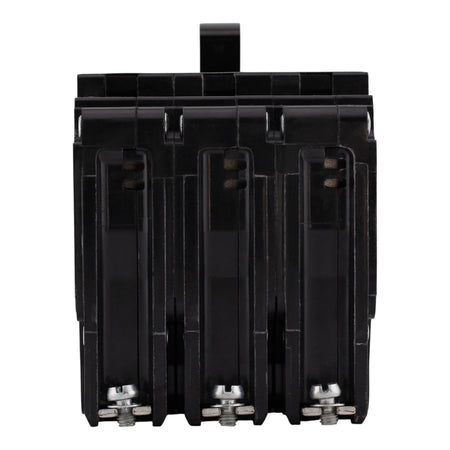

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 8

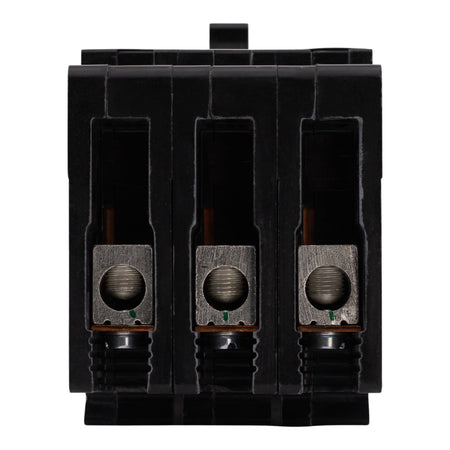

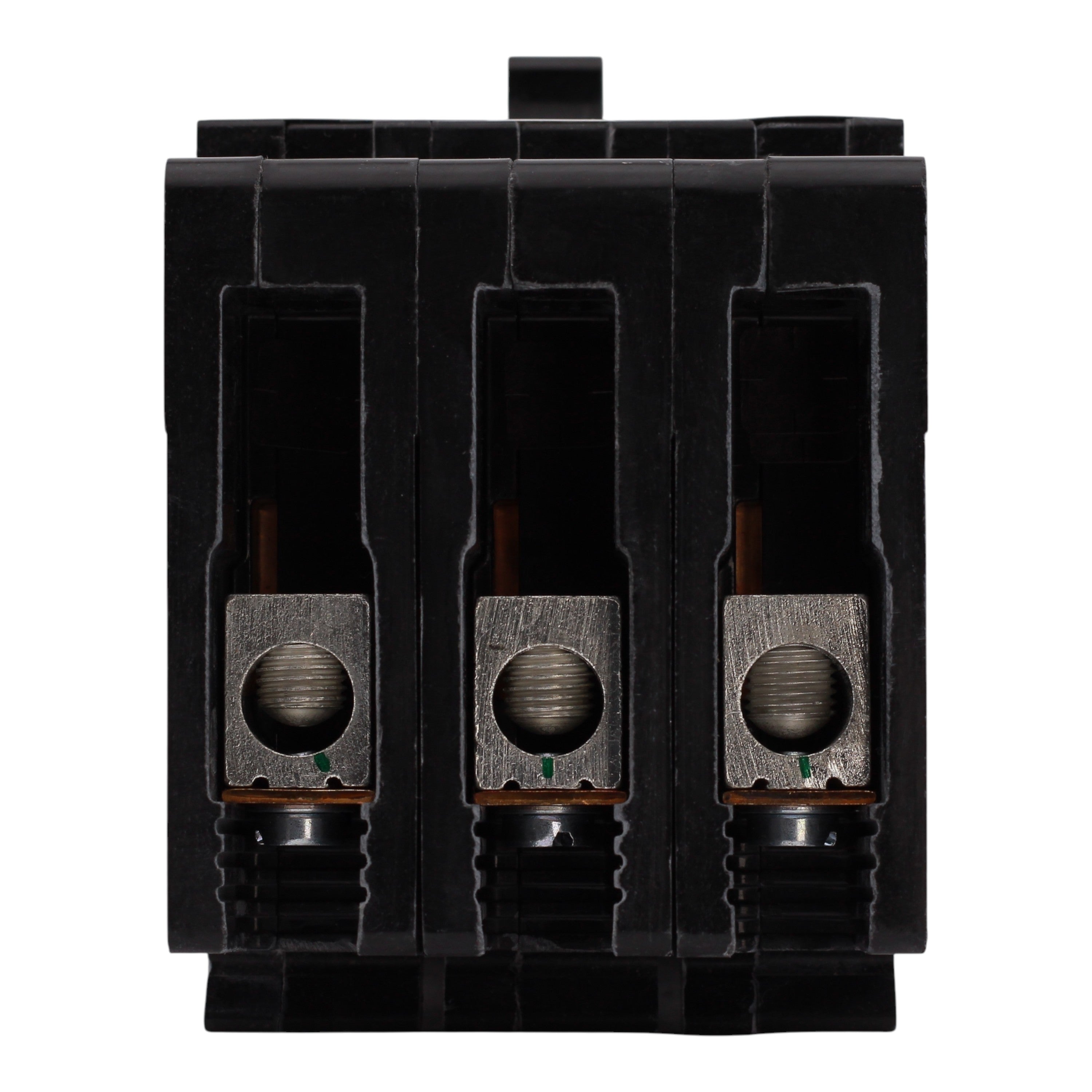

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D E-Frame, EJB34060, 60A, 3P, 480Y/277V, Thermal-Magnetic, Bolt-On, Circuit Breaker

Out of stock
SKU: EJB34060 UPC: 785901335245
(0)
$289.00
-42% $495.00 $289.00
Out of stock
Condition

Square D EJB34060: 60 Amp, 3-Pole thermal-magnetic circuit breaker for 480Y/277VAC lighting panelboards, 100kA at 120/240VAC, bolt-on mount, aluminum lugs, UL listed, HACR rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: E-Frame (for Square D NF lighting panelboards)
  • UPC: 785901335245
  • Model Number: EJB34060
  • Breaker Type: Thermal-Magnetic Circuit Breaker
  • Amperage: 60 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 100 kAIC at 120/240VAC, 65 kAIC at 480Y/277VAC
  • Mounting Mode: Bolt-On
  • Connections Terminals: Aluminum lugs
  • Wire Size: #14-2/0 AWG Cu, #12-2/0 AWG Al
  • Tightening Torque: 34.5 lb-in (#14-10 AWG), 49.6 lb-in (#8-2/0 AWG)
  • Holding Current: 630 Amps
  • Trip Current: 1800 Amps
  • Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
  • Weight: 4 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

This Square D EJB34060 thermal-magnetic circuit breaker delivers dependable 60 Amp, 3-pole protection for 480Y/277 Volt circuits in NF lighting panelboards. Designed for bolt-on installation with 100 kAIC interrupt rating at 120/240VAC and trip indicator, it supports commercial and industrial applications.
