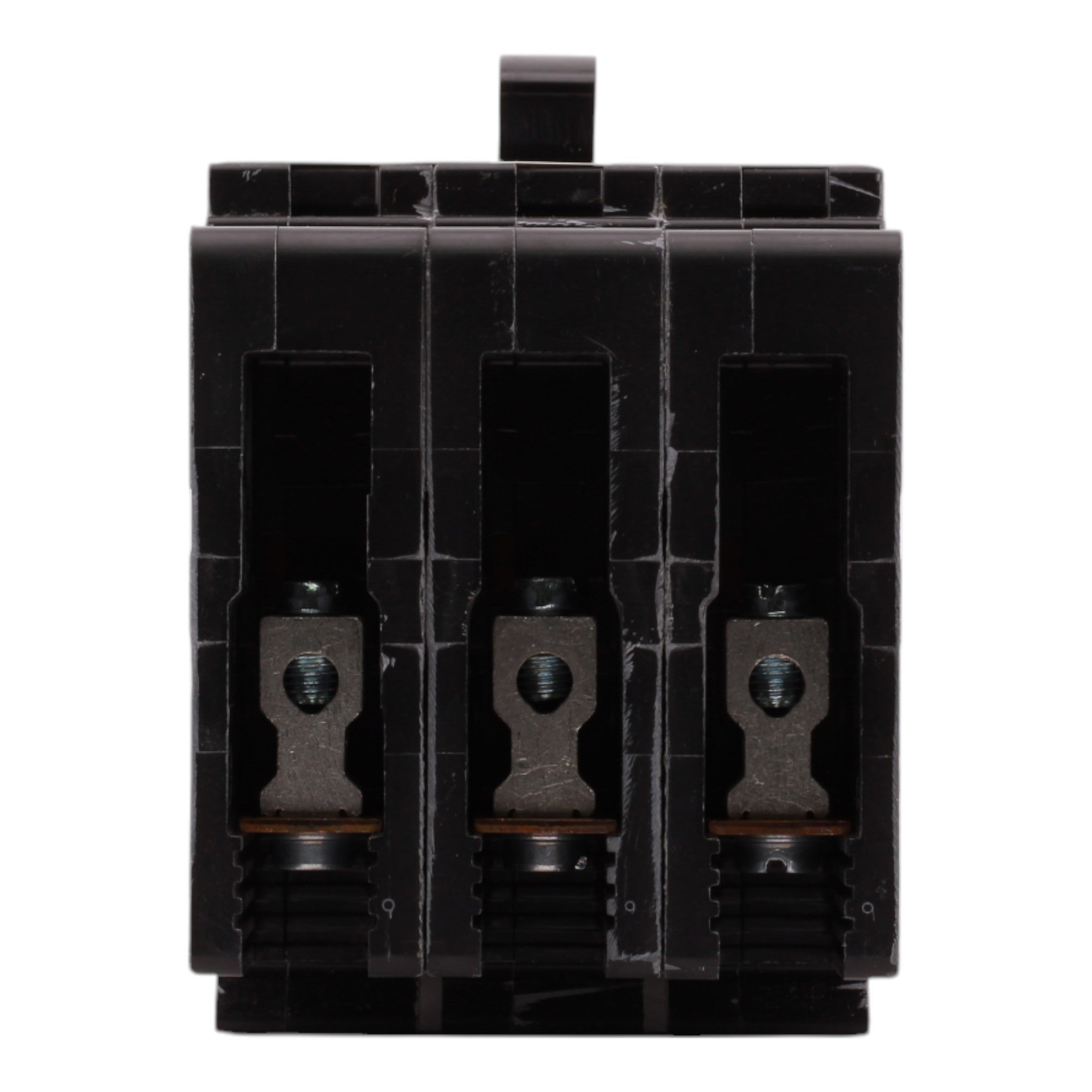

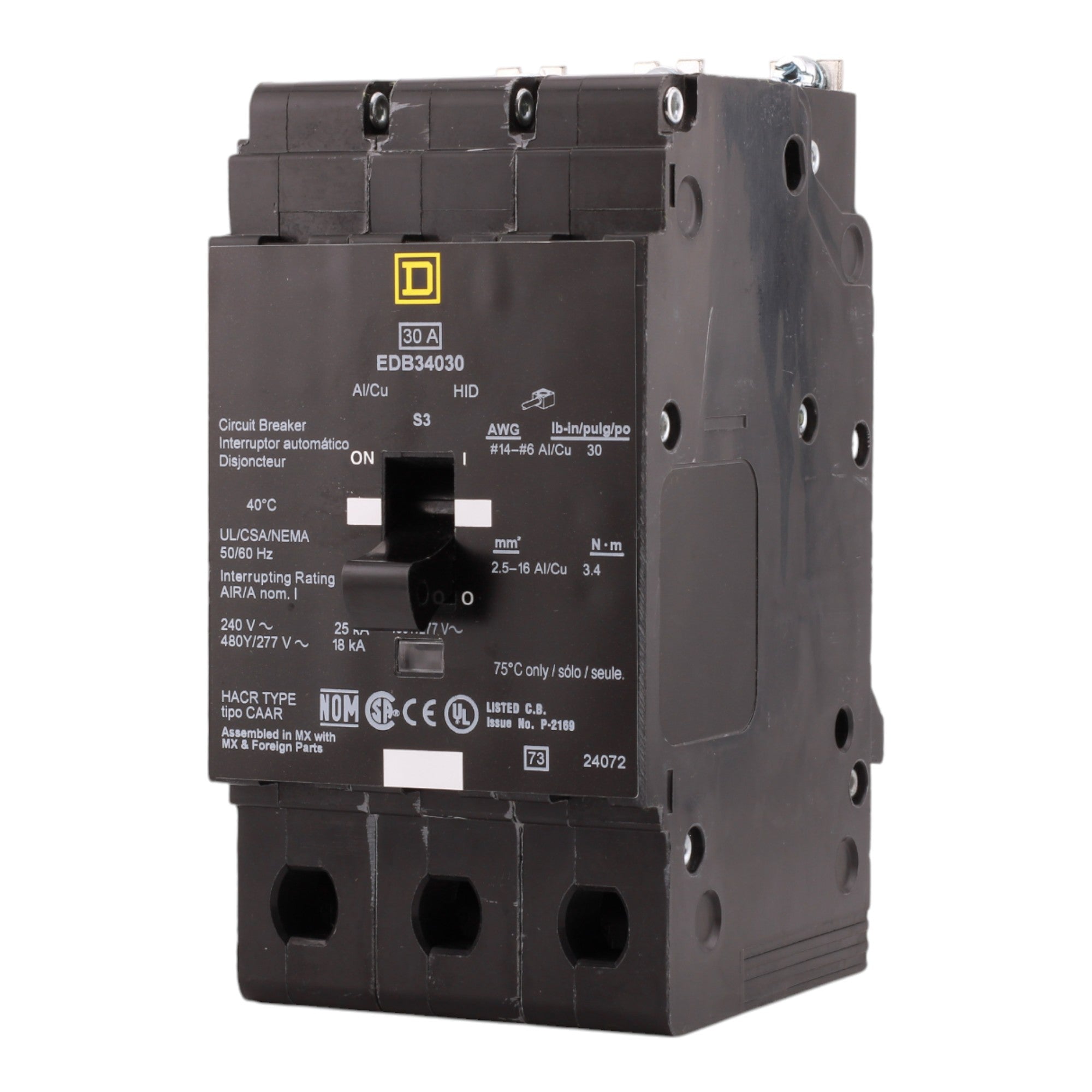

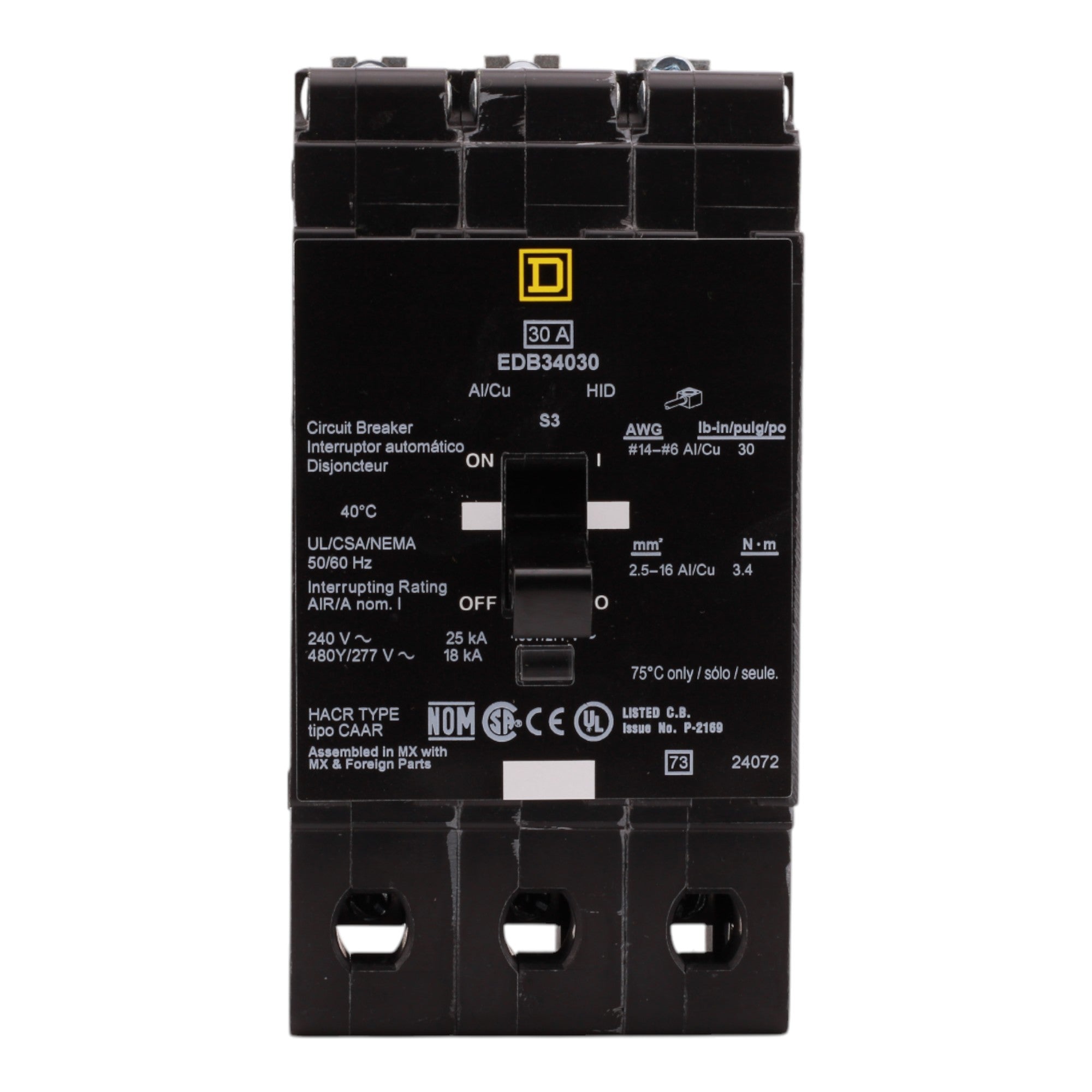

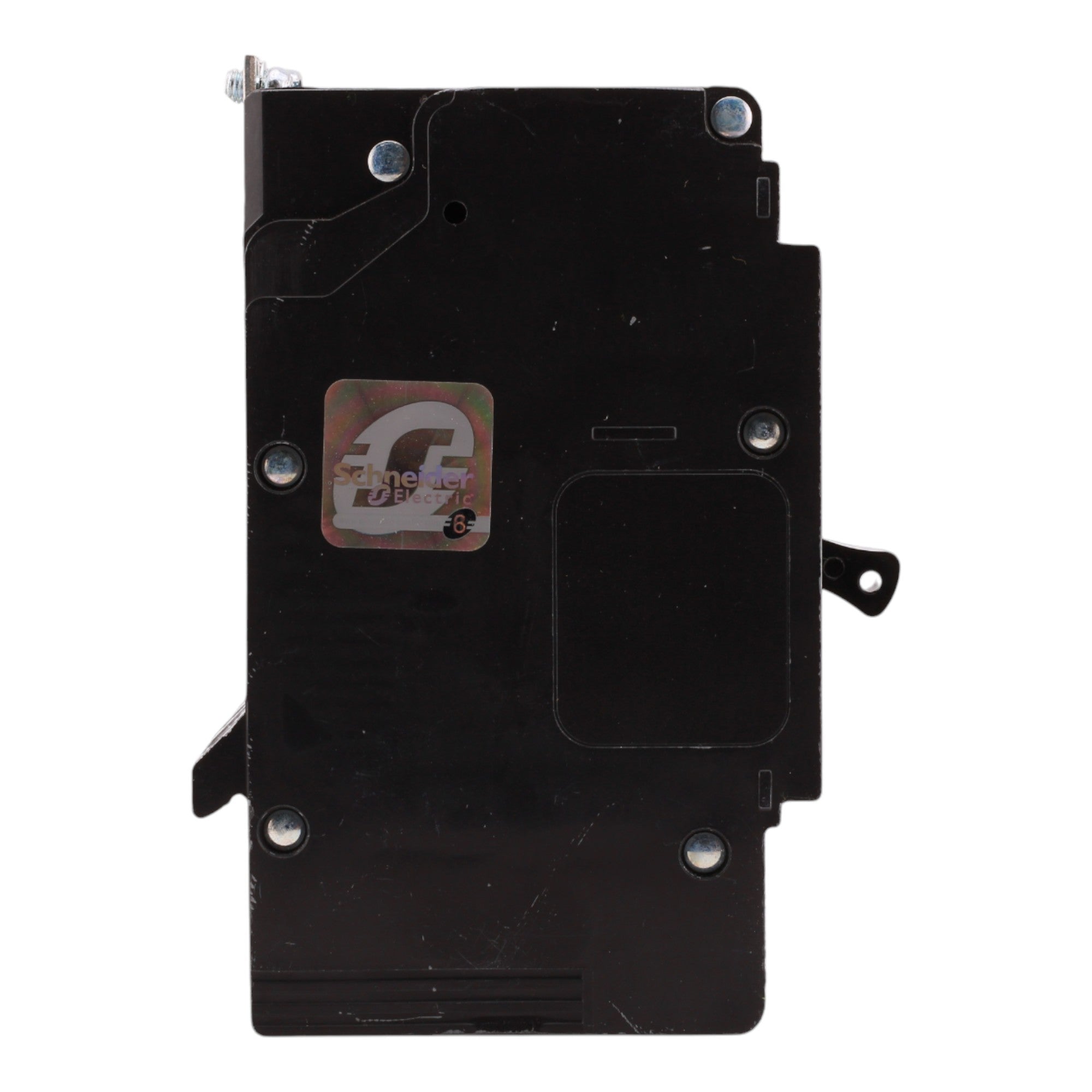

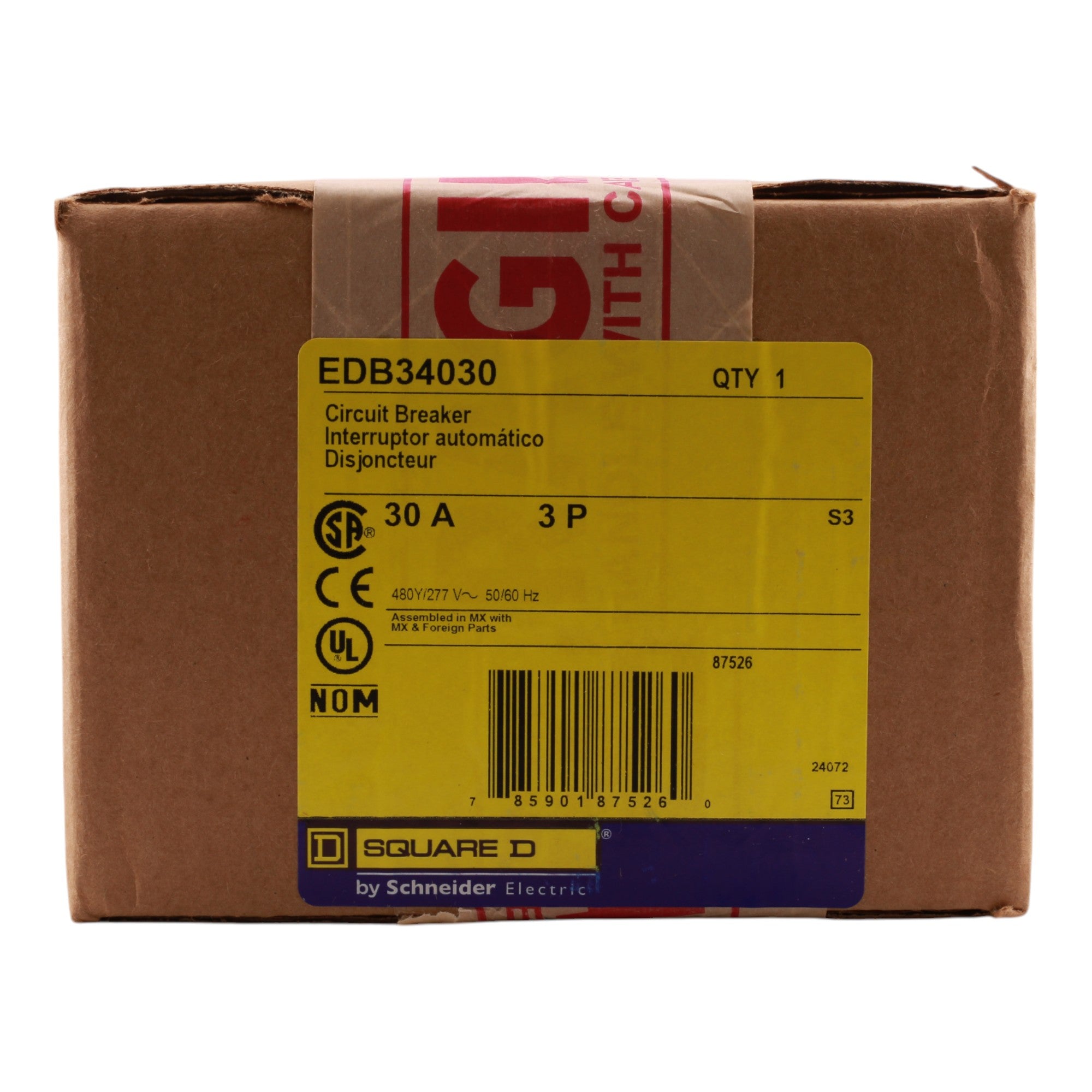

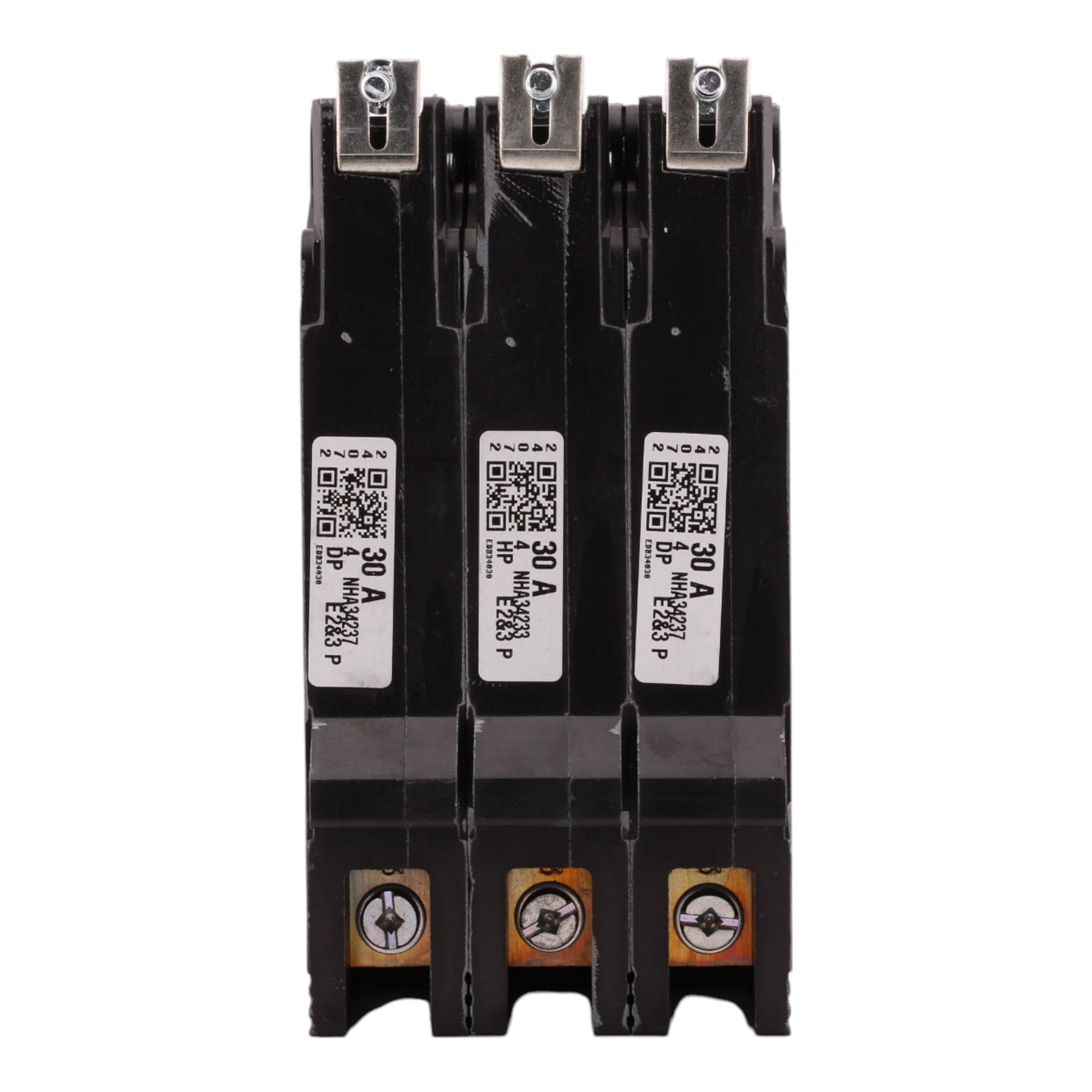

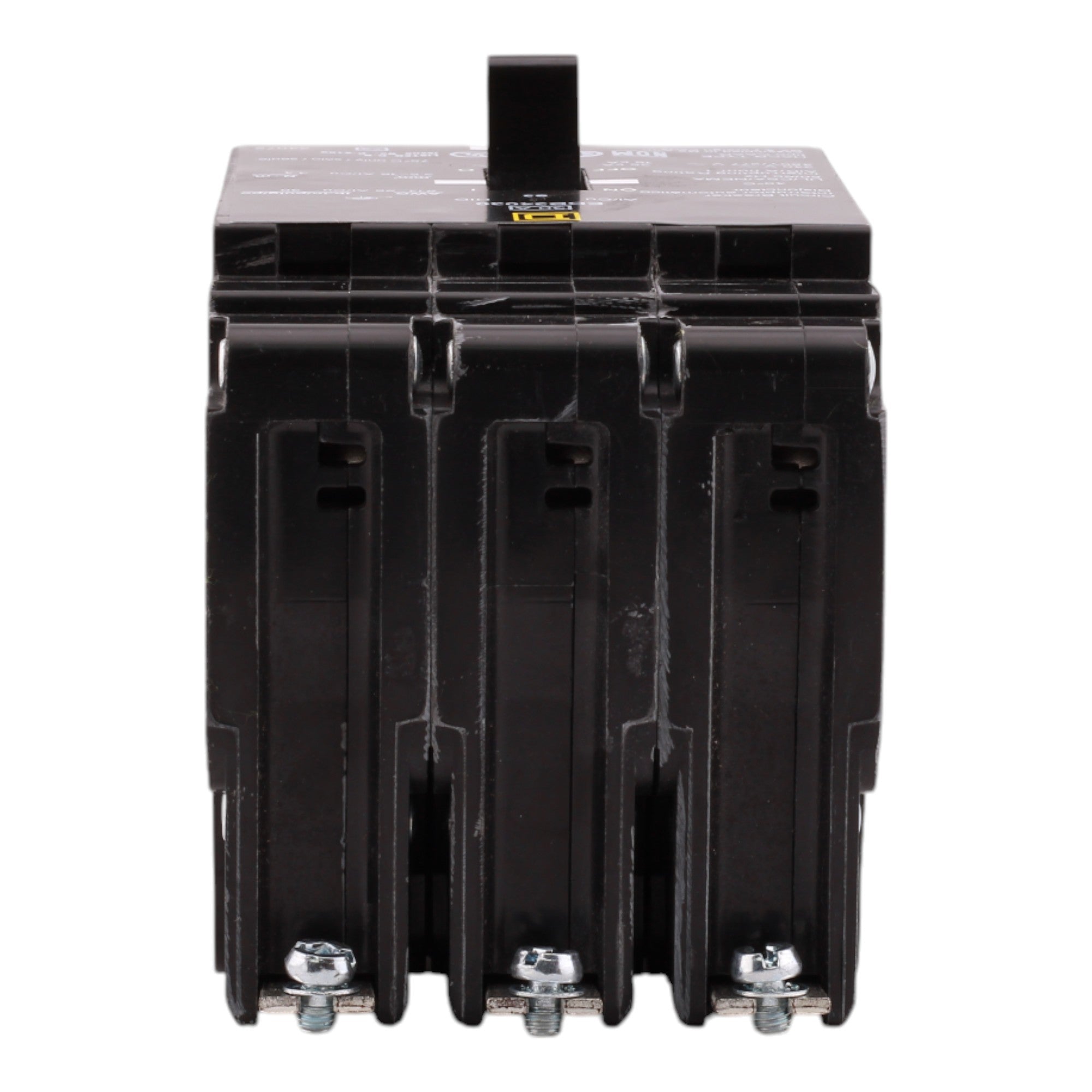

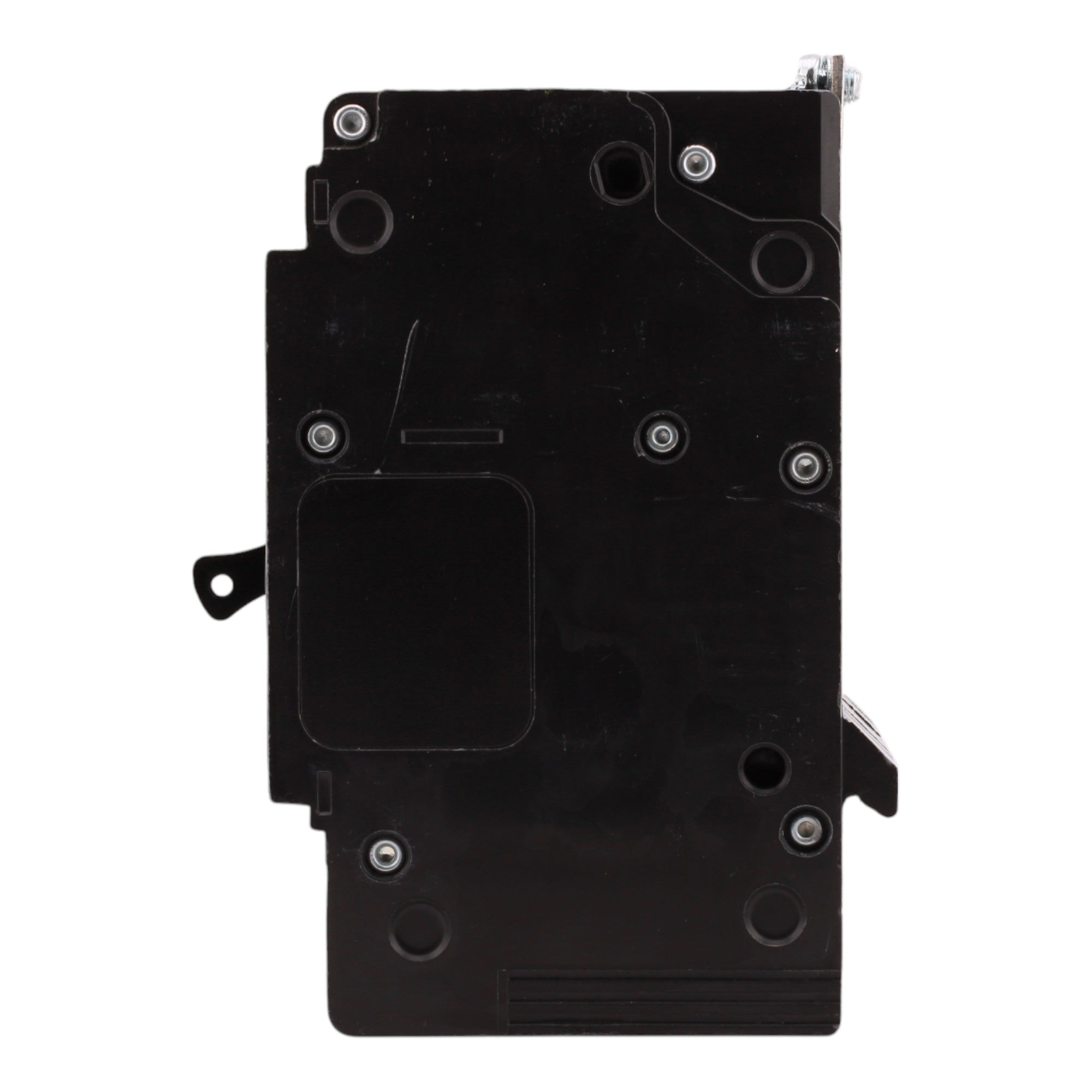

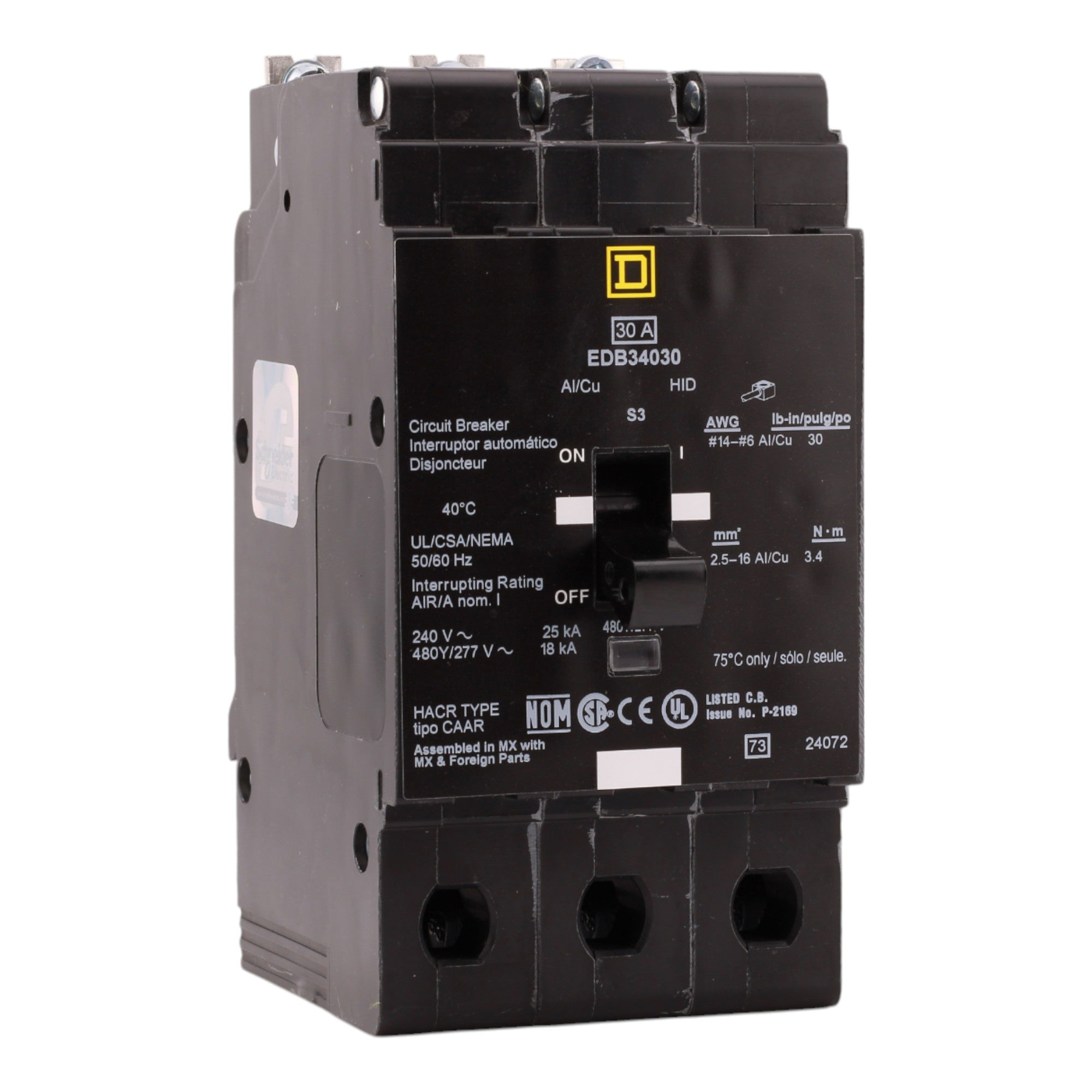

Schneider Electric EDB34030: 30 Amp 3-Pole Circuit Breaker, 480Y/277V, 25kA interrupt rating, bolt-on, NF Panelboard compatible.

Product Specifications

General Characteristics

• Manufacturer: Schneider Electric
• Model Number: EDB34030
• UPC: 785901875260
• Product Type: Miniature Circuit Breaker
• Module Type: E-Frame
• Application: Lighting Panelboards
• Rated Current: 30 Amps
• Maximum Operating Voltage: 480Y/277V AC
• Breaking Capacity:
  • 18 kA at 277V AC
  • 25 kA at 240V AC
  • 18 kA at 480Y/277V AC
  • 25 kA at 120V AC
  • 25 kA at 120/240V AC
• Number of Poles: 3
• Trip Unit Rating: 875A
• Holding Current: 270A
• Trip Current: 875A
• Trip Unit Technology: Thermal-magnetic
• Protection Type:
  • Overload protection
  • Short-circuit protection
• Mounting Mode: Bolt-on
• Electrical Connection: Aluminum lugs
• Wire Compatibility:
  • Aluminum: AWG 12 to AWG 6
  • Copper: AWG 14 to AWG 6
• Dimensions:
  • Height: 5.66 in (143.76 mm)
  • Width: 2.94 in (74.68 mm)
  • Depth: 4.05 in (102.87 mm)
• Weight: 4 lbs (1.8 kg)
• Tightening Torque: 30.09 lbf.in (3.4 N.m)
• Certifications: cULus
• Ratings:
  • HACR Rated
  • HID (High Intensity Discharge) Rated
• Ambient Operating Temperature: 104°F (40°C)
