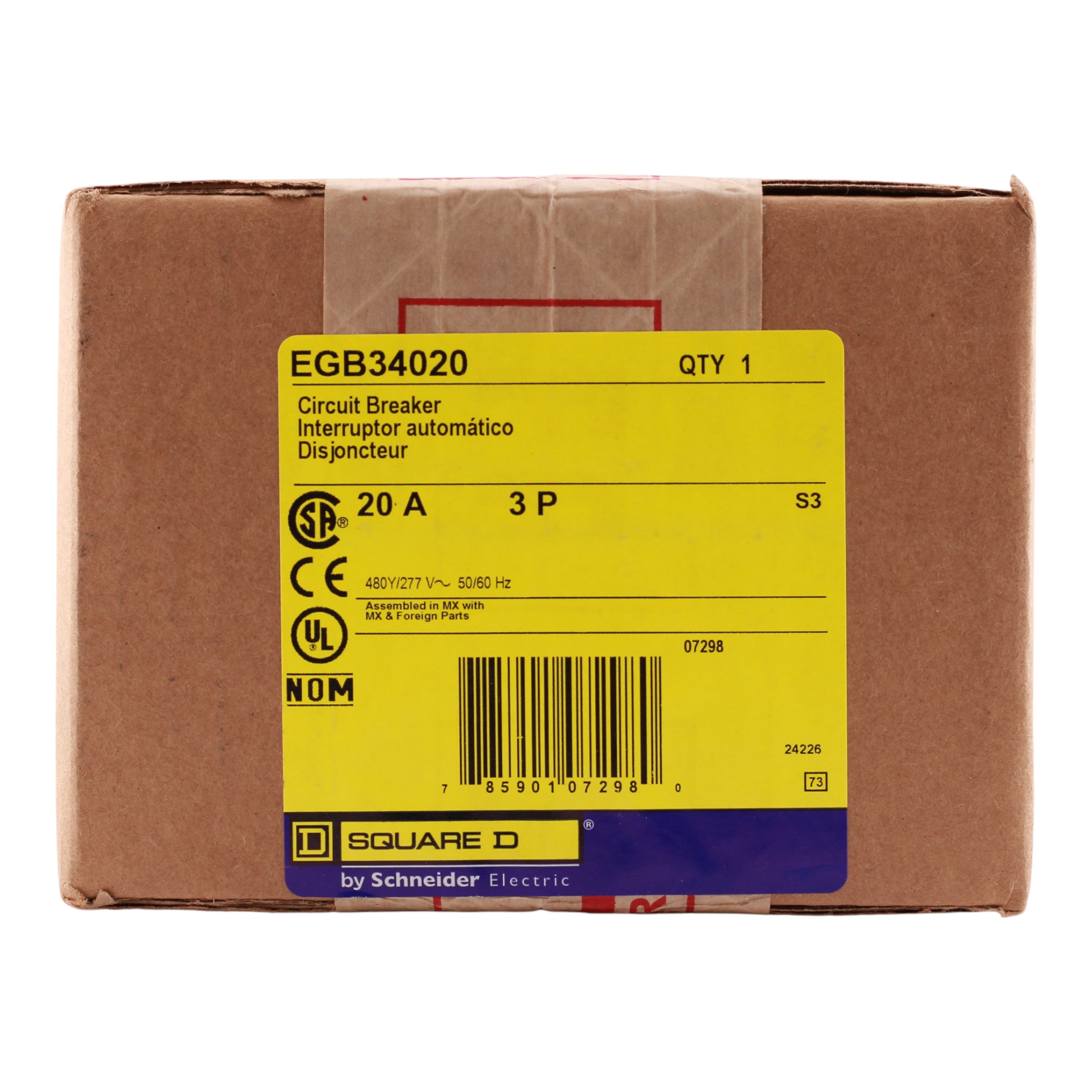

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 3
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 4

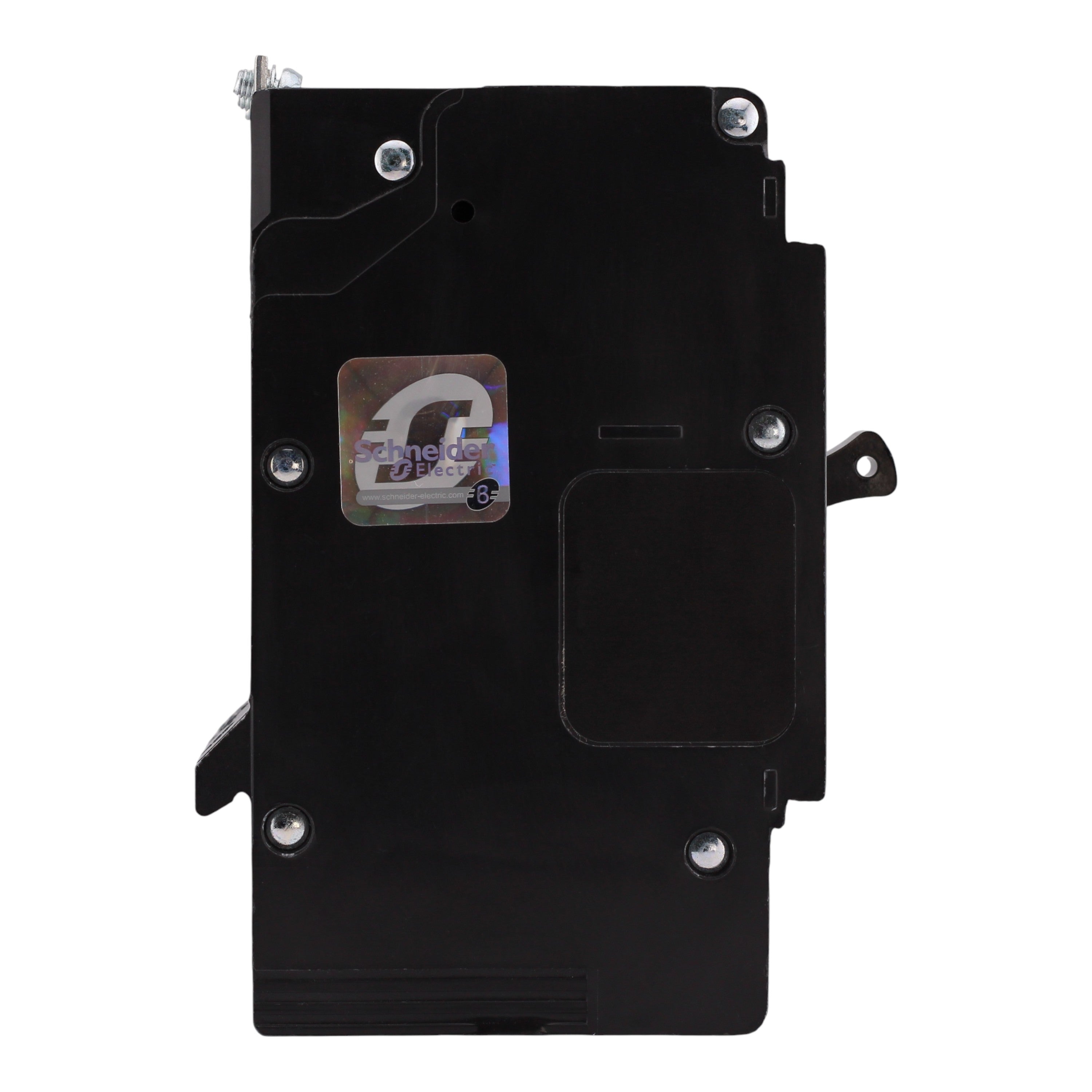

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 5
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 6
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 7
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 8

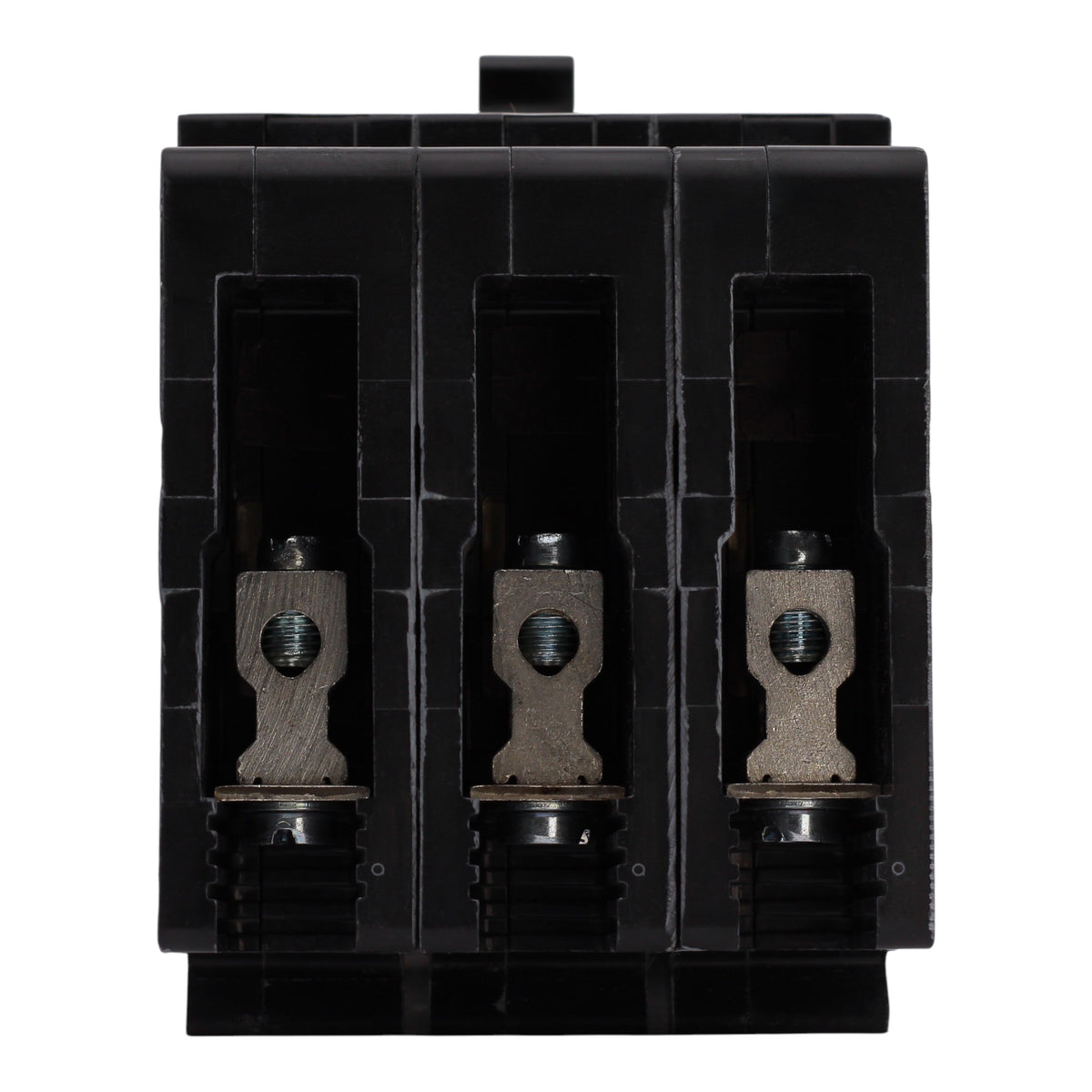

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 9

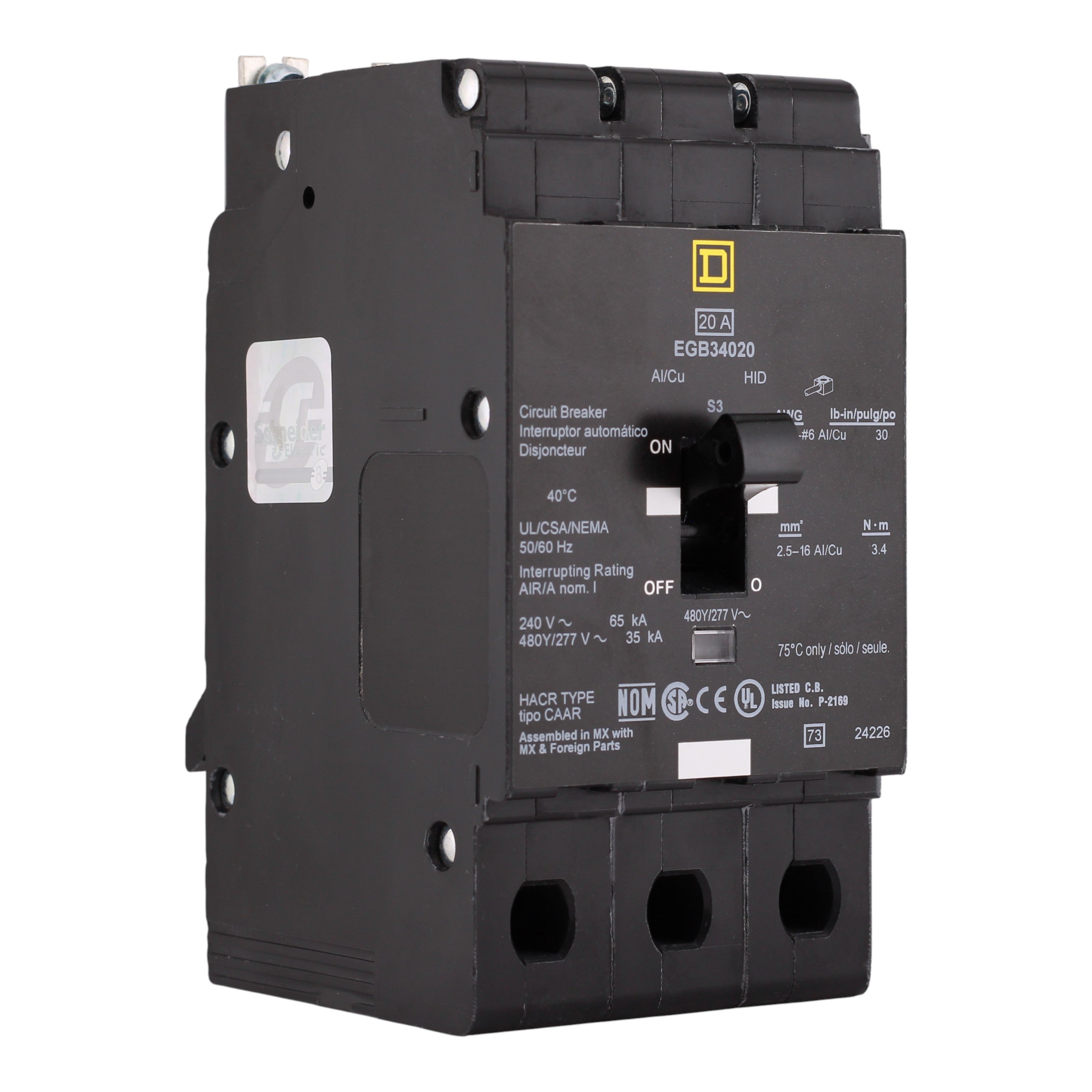

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker

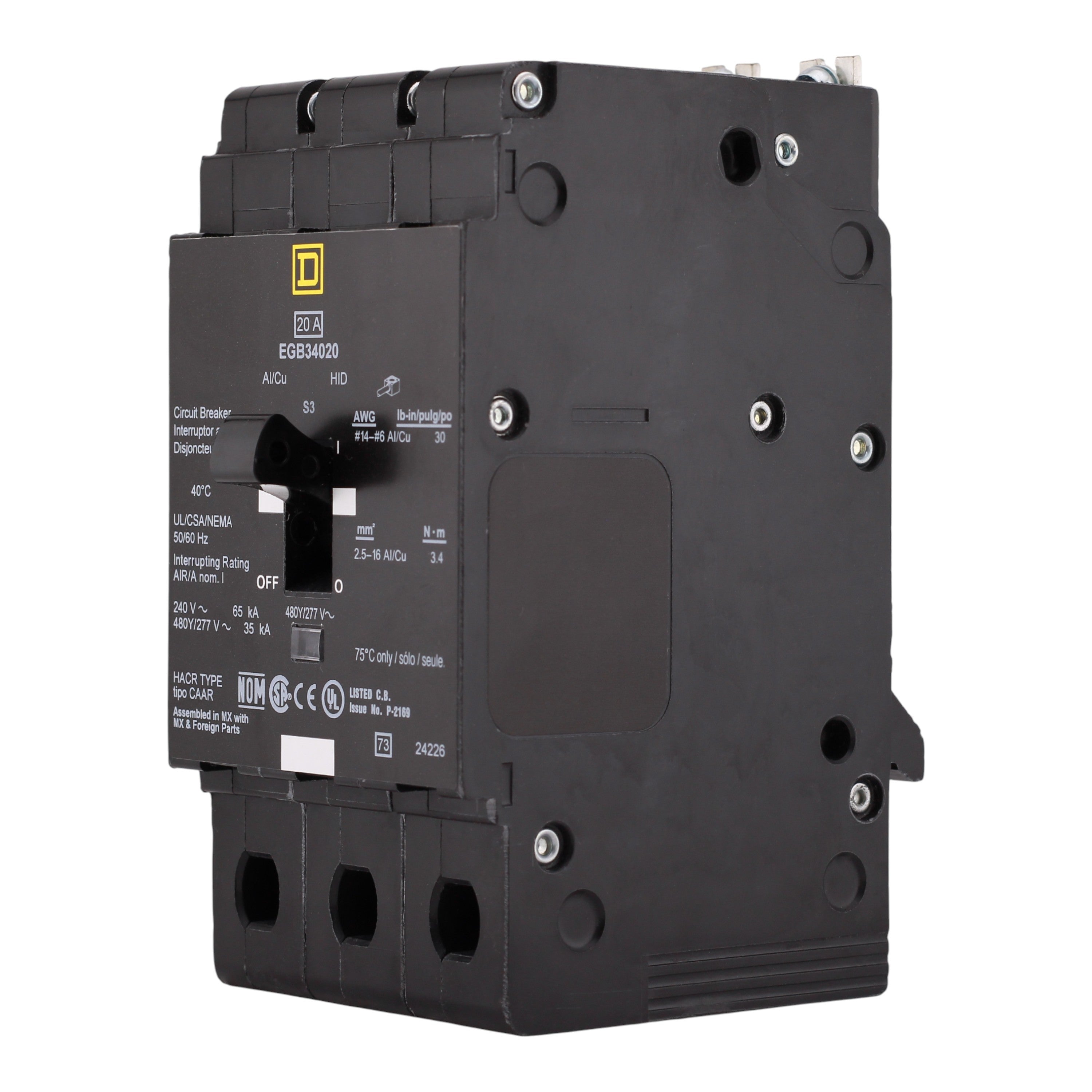

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 2
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 3

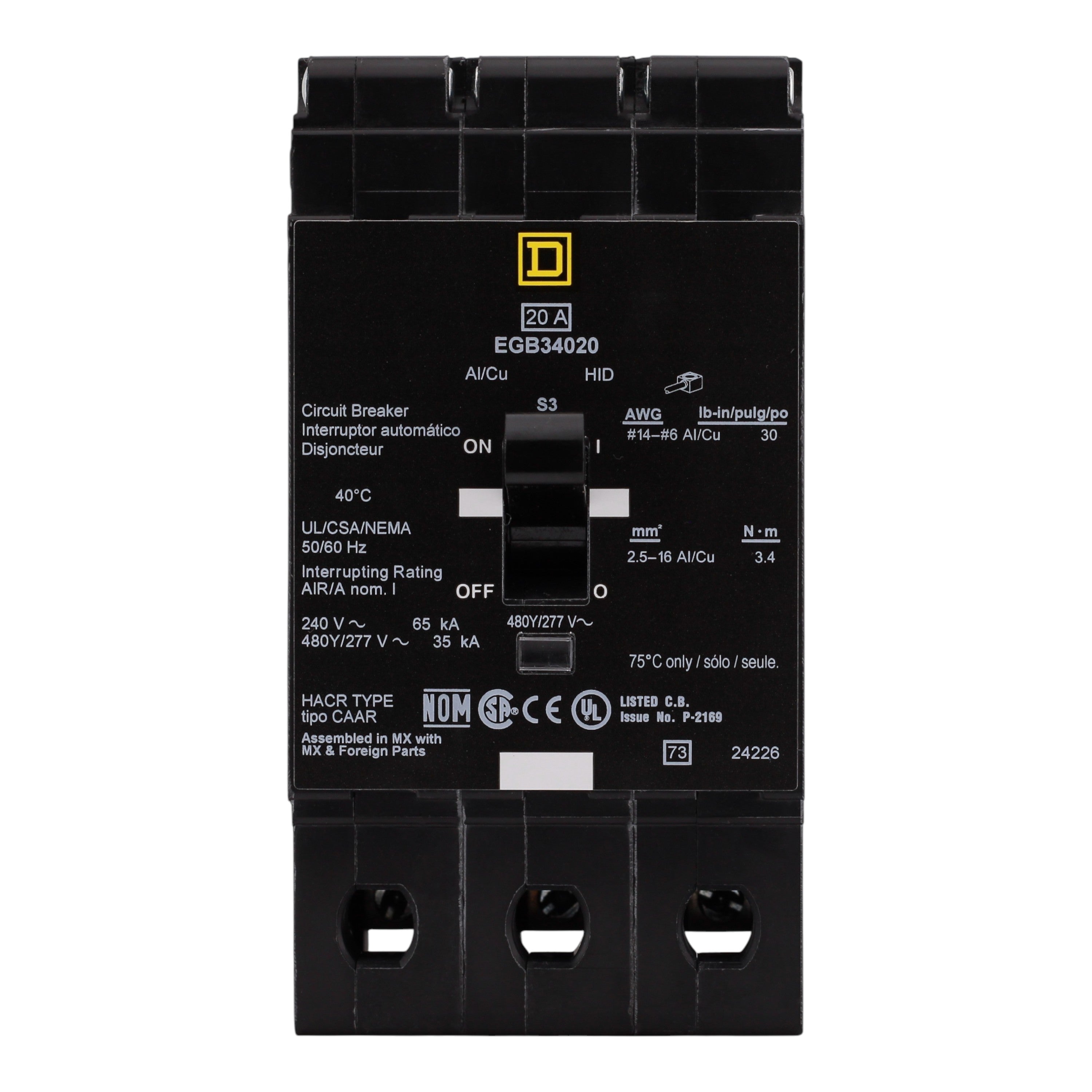

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 4
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 5
Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 6

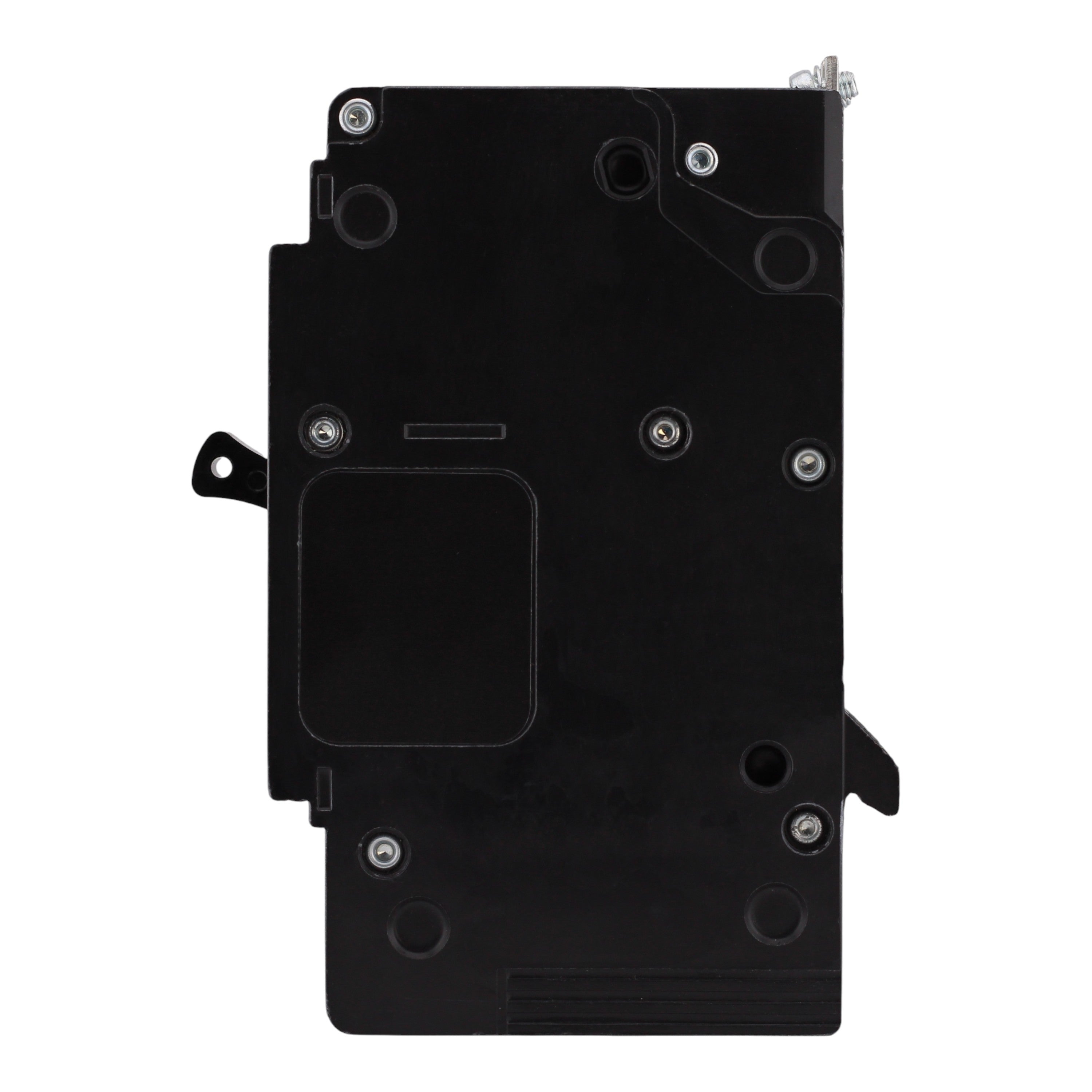

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 7

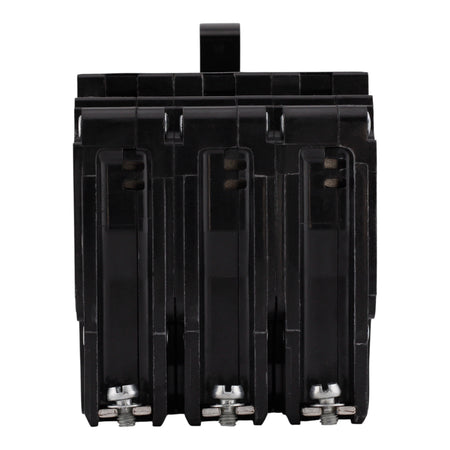

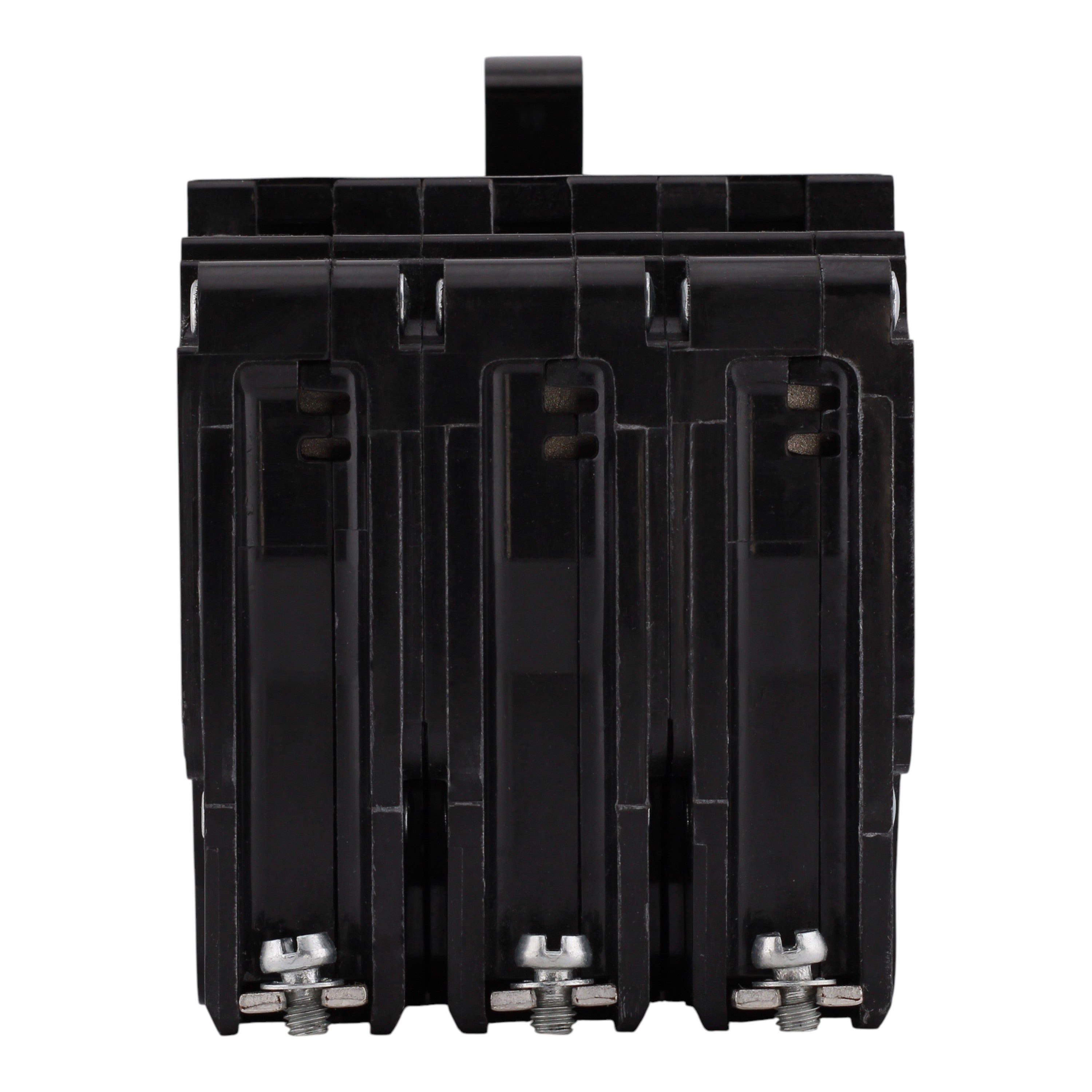

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 8

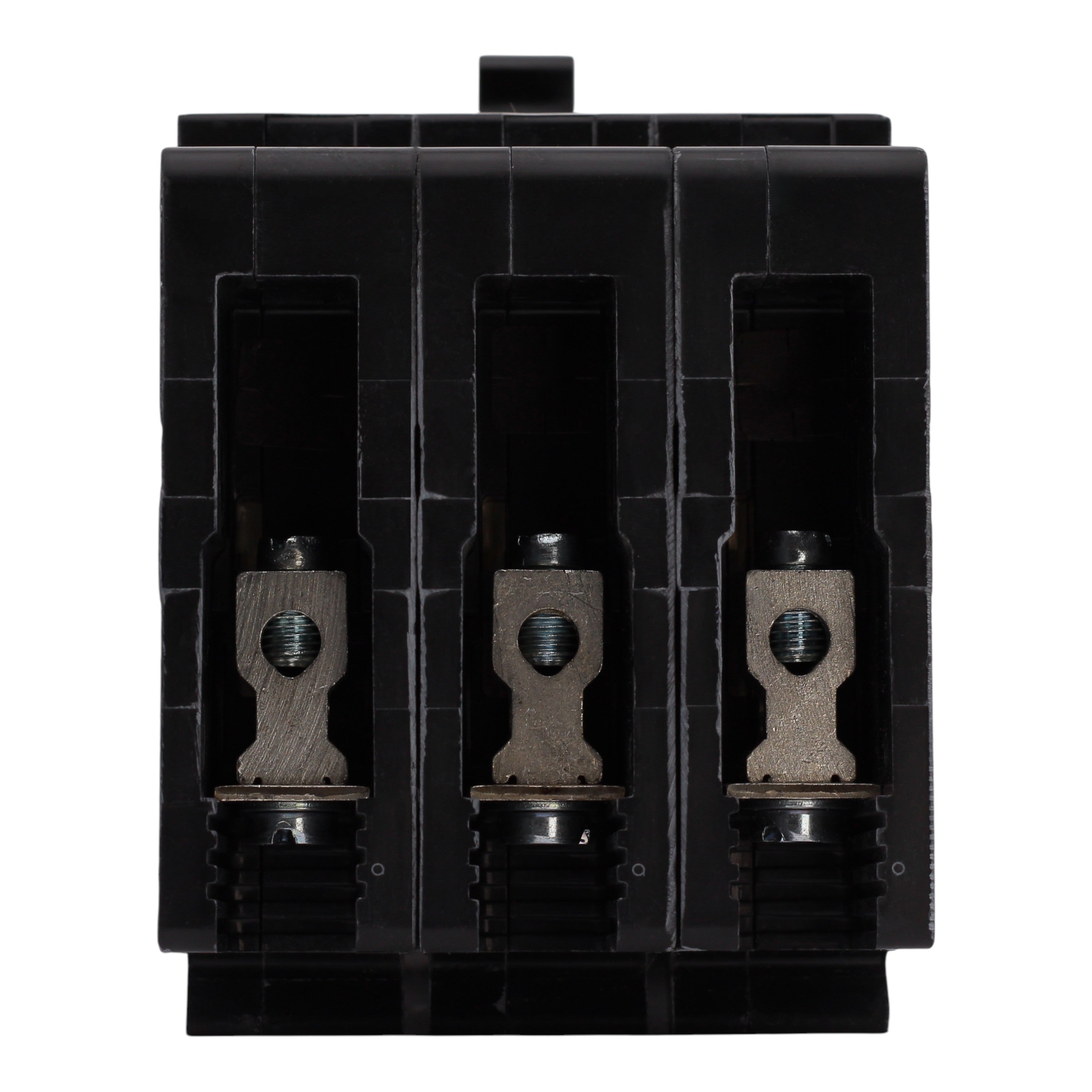

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D EGB, EGB34020, 20A, 3P, 480Y/277VAC, Bolt-On, Circuit Breaker

Out of stock
SKU: EGB34020 UPC: 78590107298
(0)
$199.00
-47% $375.00 $199.00
Out of stock
Condition

Square D EGB34020: 20 Amp, 3-Pole thermal-magnetic molded case circuit breaker, 480Y/277VAC, 35kAIC, bolt-on mounting, VISI-TRIP indicator, UL listed, HACR rated, TAA compliant.

  • Manufacturer: Schneider Electric / Square D
  • Brand: Square D
  • Product Range: E-Frame (EGB Series for NF Series Panelboards)
  • UPC: 785901072980
  • Model Number: EGB34020
  • Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
  • Amperage: 20 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 35 kAIC @ 480Y/277V, 65 kAIC @ 240V
  • Mounting Mode: Bolt-on
  • Trip Type: Thermal-magnetic, non-interchangeable trip unit with LI (long-time and instantaneous) functions
  • Trip Indicator: VISI-TRIP feature (signal indicator shows when trip has occurred)
  • Wire Size: #14-6 AWG Cu, #12-6 AWG Al
  • Tightening Torque: Load terminal lugs
  • Dimensions: Width: 2.94 in; Depth: 4.05 in; Height: 5.66 in
  • Weight: 4 lbs
  • Operating Temperature: 40°C
  • Certifications: UL Listed, CSA, HACR Rated, HID (High Intensity Discharge) Rated, TAA Compliant

This Square D EGB34020 bolt-on thermal-magnetic circuit breaker delivers dependable 20 Amp, 3-Pole protection for 480Y/277V circuits in NF Series lighting panelboards. Designed for bolt-on installation with 35kAIC interrupt rating and VISI-TRIP indicator, it supports commercial and industrial lighting applications with superior overload and short-circuit protection.
