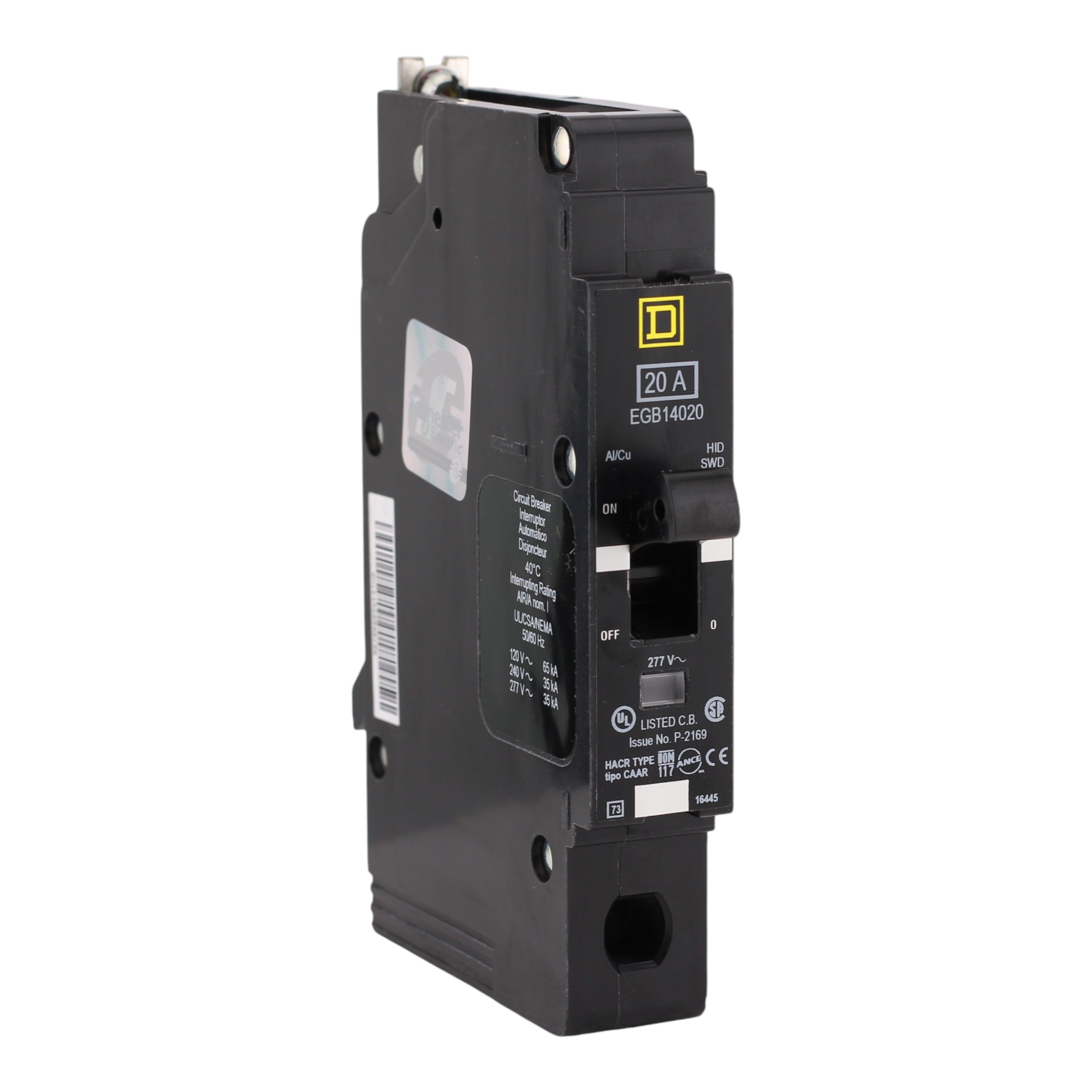

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker

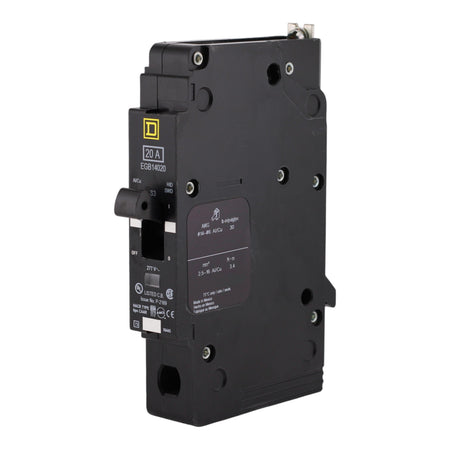

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 2
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 3
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 4

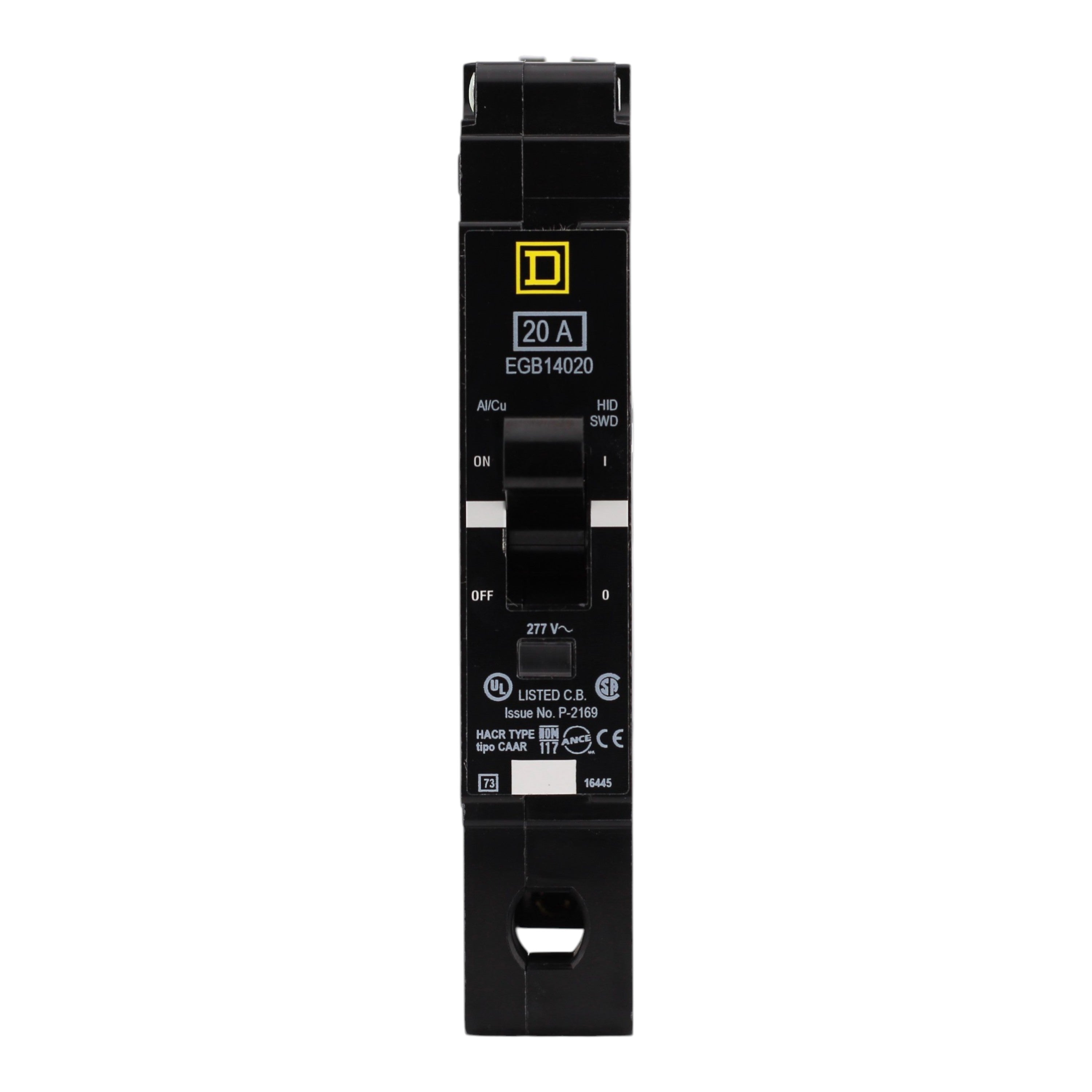

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 5

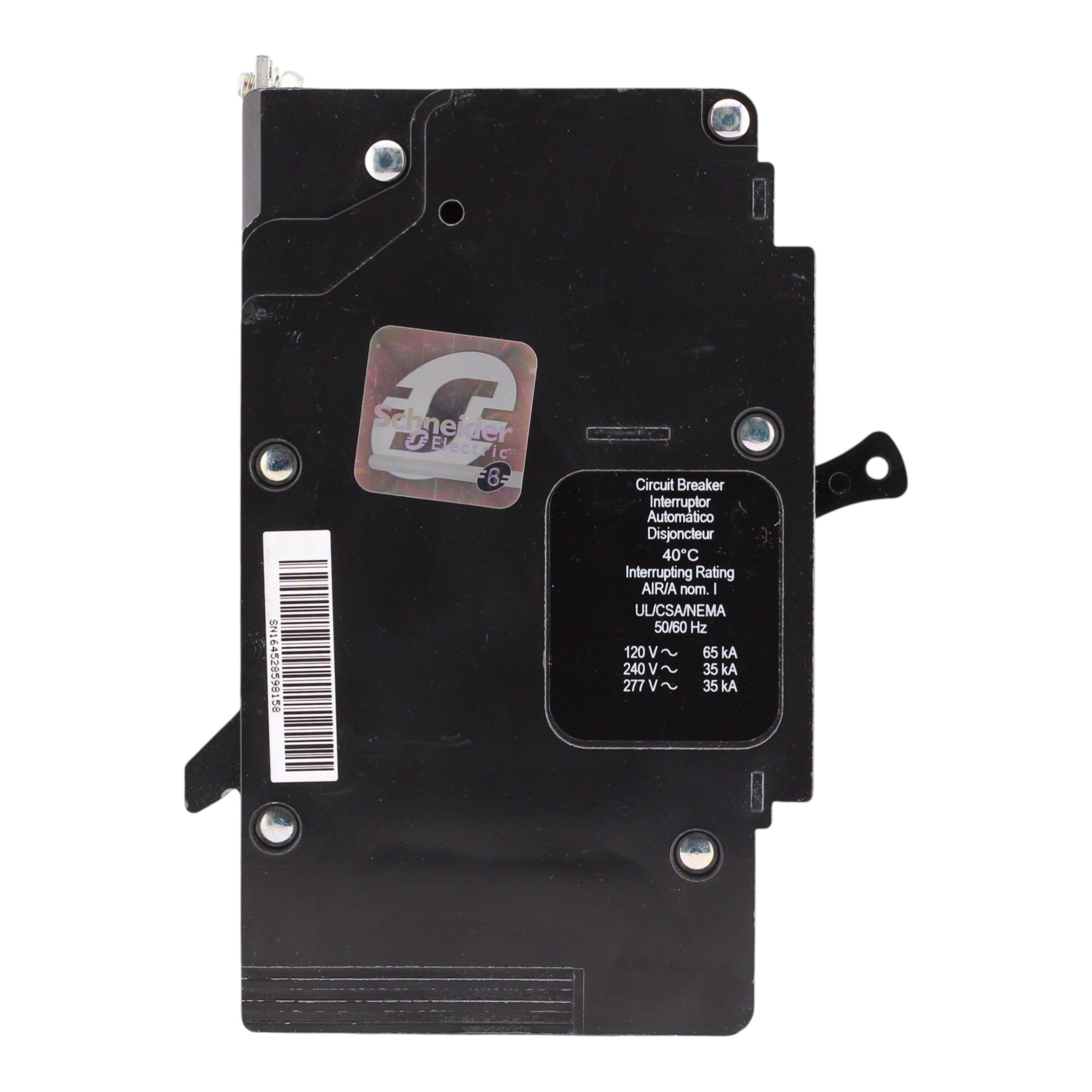

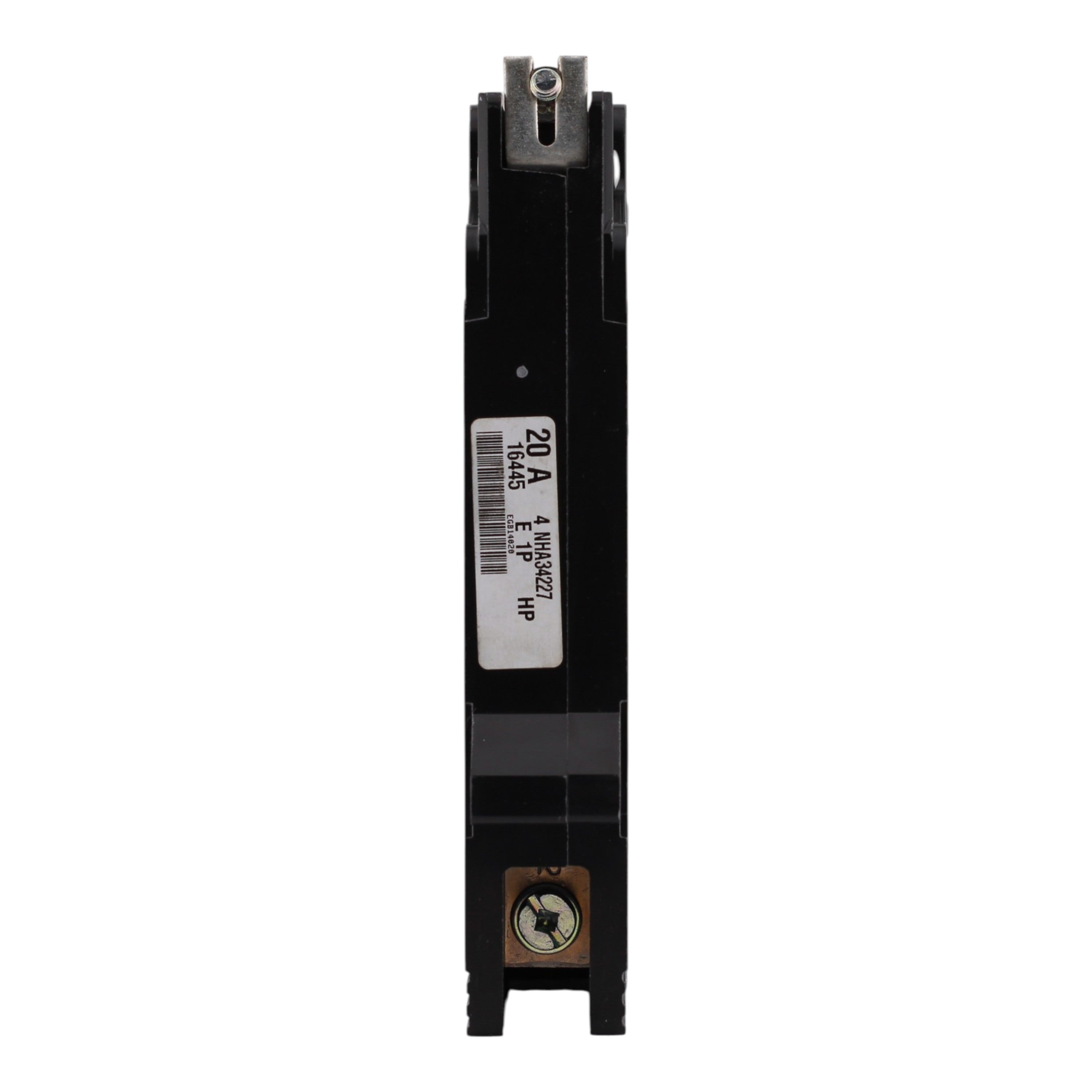

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 6

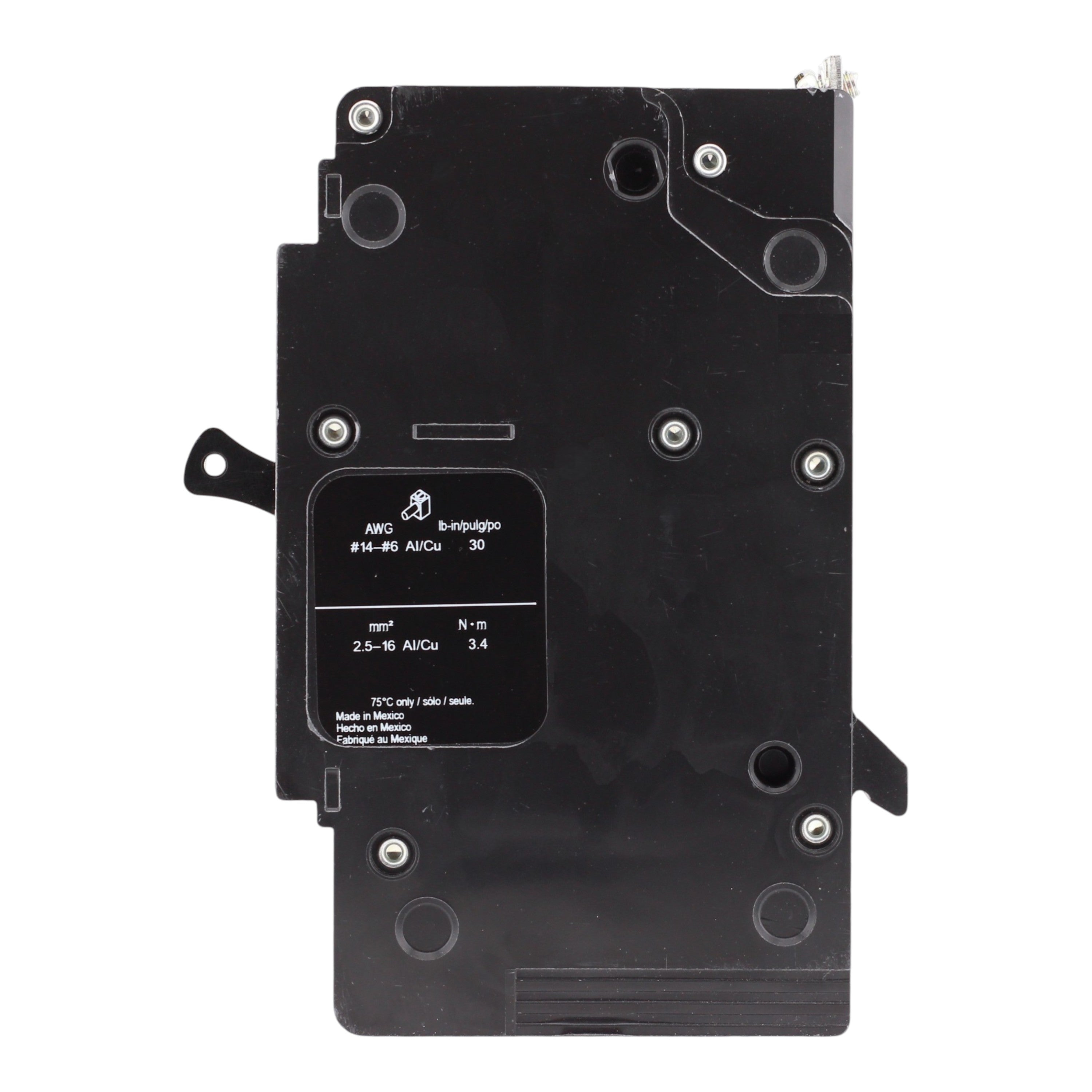

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 7

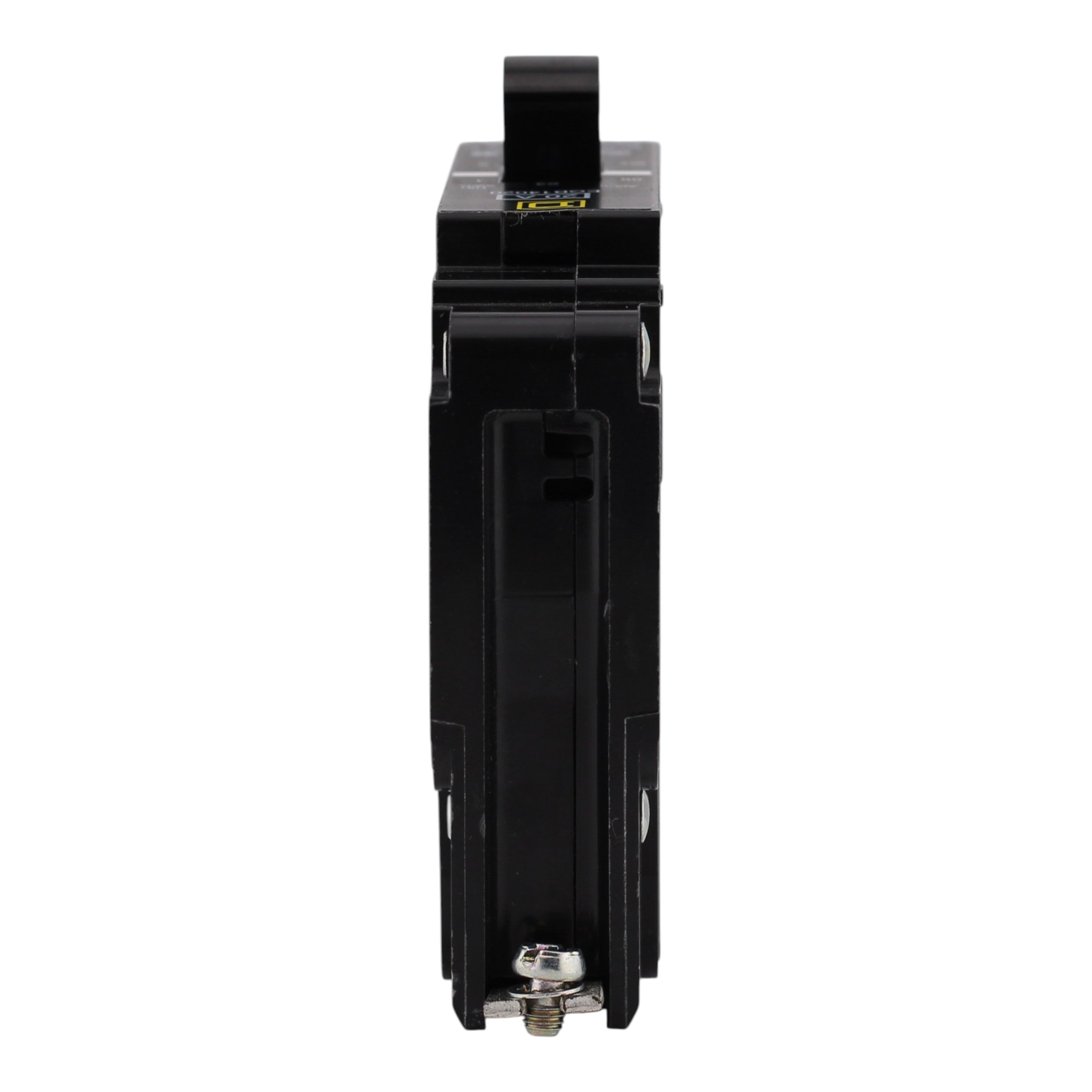

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 8

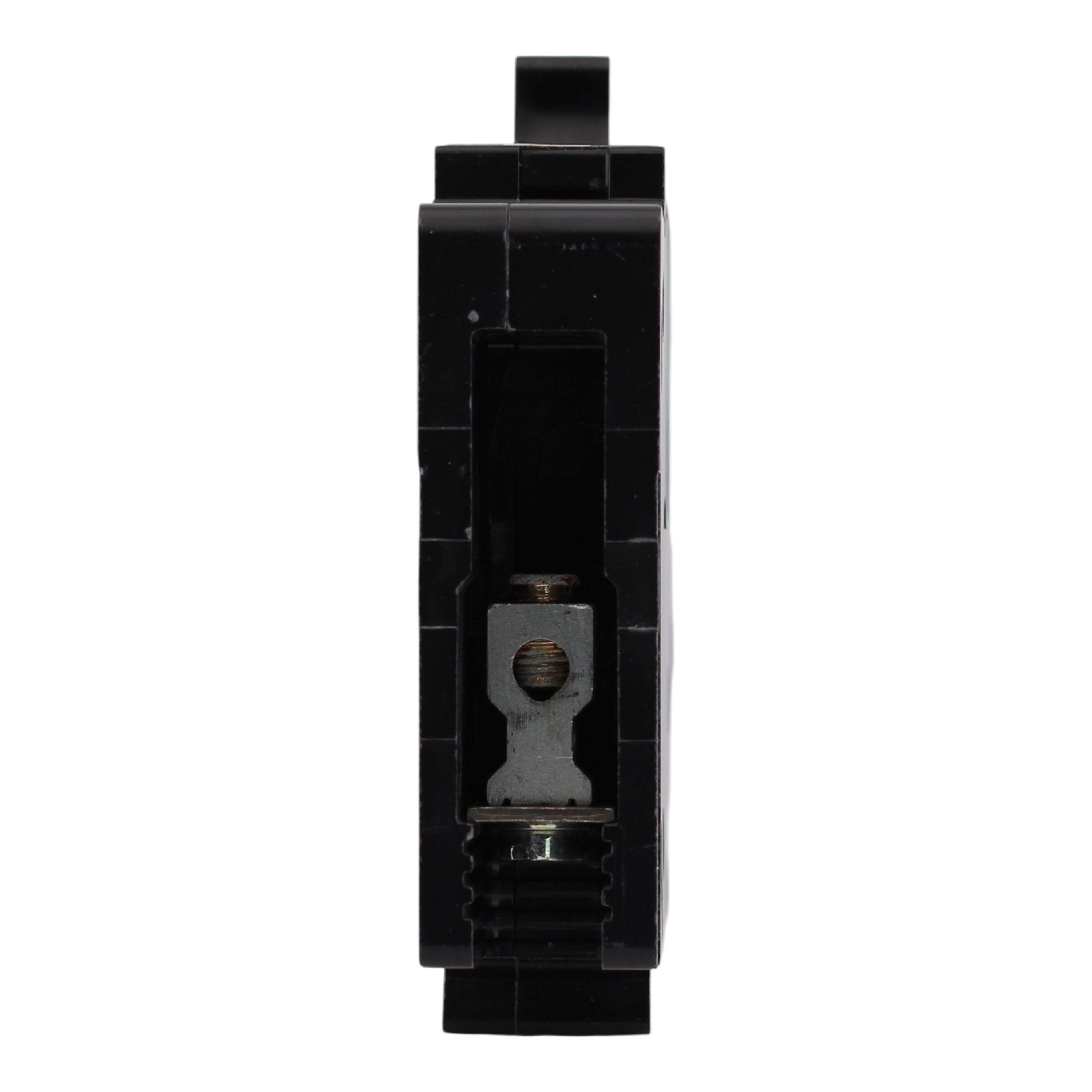

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 9
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker

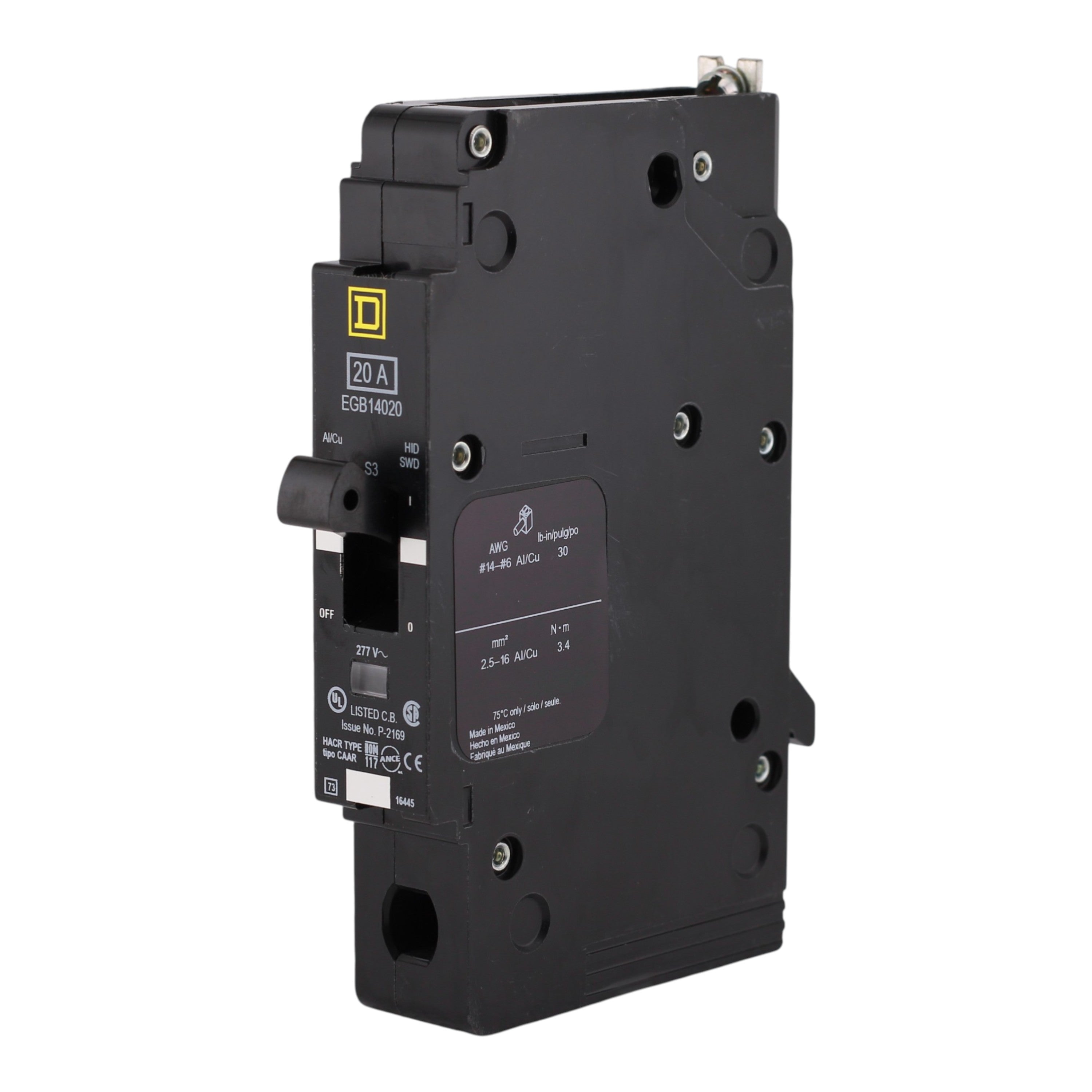

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 2

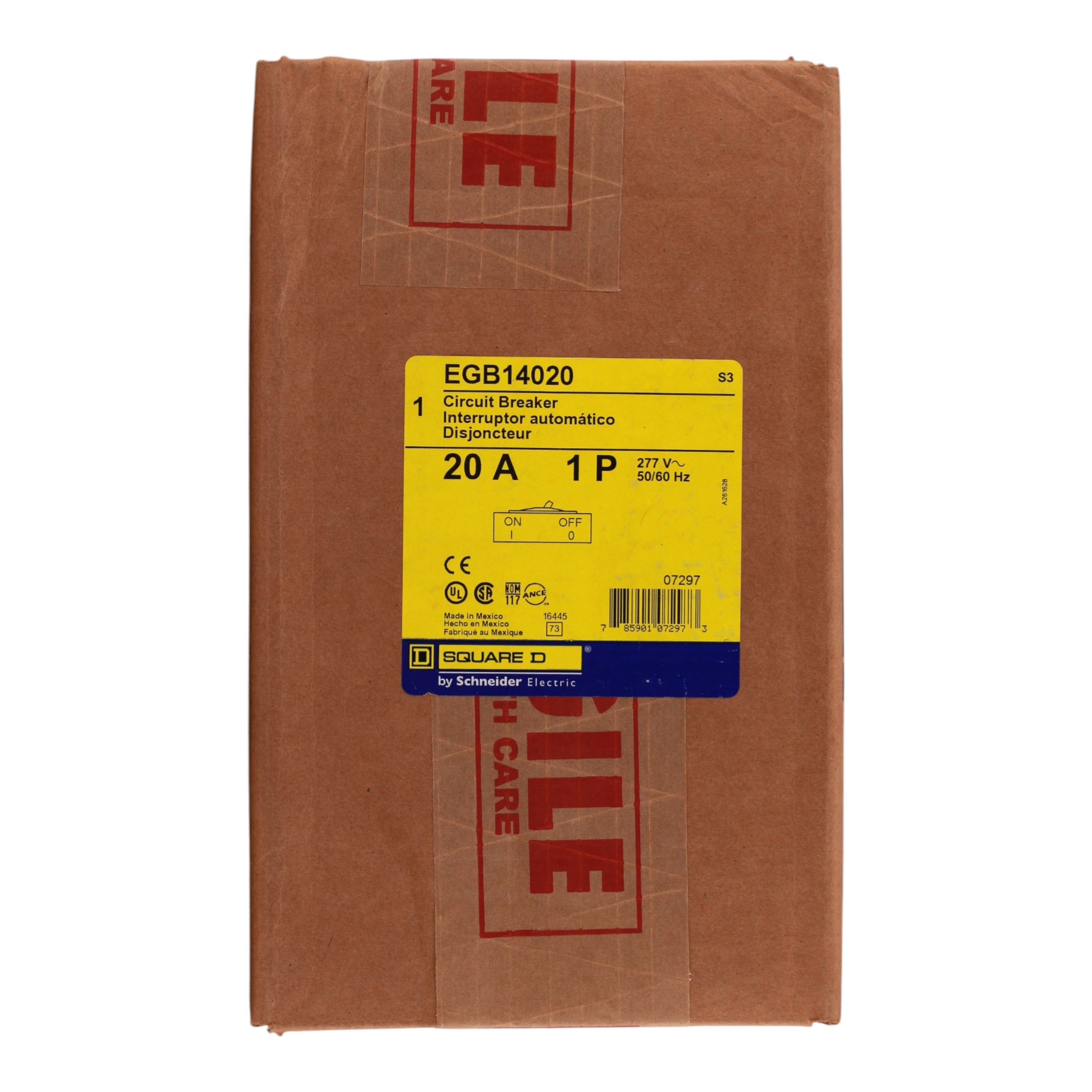

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 3
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 4
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 5
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 6
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 7
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 8
Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D, EGB14020, 20A, 1P, 277V, Bolt-On, Circuit Breaker

In stock
SKU: EGB14020 UPC: 785901072973
(0)
$29.95
-68% $93.00 $29.95
In stock
Usually ships within 24 hours
Condition

EGB14020 is the high-interrupting member of Square D’s 20A E-Frame pair. The one-pole, 277V AC breaker bolts into an approved NF panelboard and is identified with a 65 kA maximum interrupt rating, well above the corresponding EDB model’s maximum.

EGB14020 specifications

  • Reference: EGB14020
  • Frame / equipment: Square D E-Frame for NF panelboards
  • Rating: 20A, 1 pole, 277V AC
  • Interrupt rating: Up to 65 kA; use voltage-specific marking
  • Trip: Thermal-magnetic
  • Mounting: Bolt-on
  • Indication: Visi-Trip
  • Compliance: UL / CSA data and TAA status

EGB is not just another spelling of EDB

The G in EGB identifies a different interrupting-capacity tier. Do not replace EGB14020 with EDB14020 without an engineering review of available fault current and the panel listing. At 277V, use the exact rating shown by Schneider Electric rather than the family maximum alone.

Fault-current and panelboard check

Confirm the precise NF interior, 277V system, one-pole 20A circuit, conductor and terminal requirements, and calculated fault current. Review coordination and voltage-specific interrupt ratings in current Square D documentation. A qualified professional should install this bolt-on breaker and apply the specified torque.
