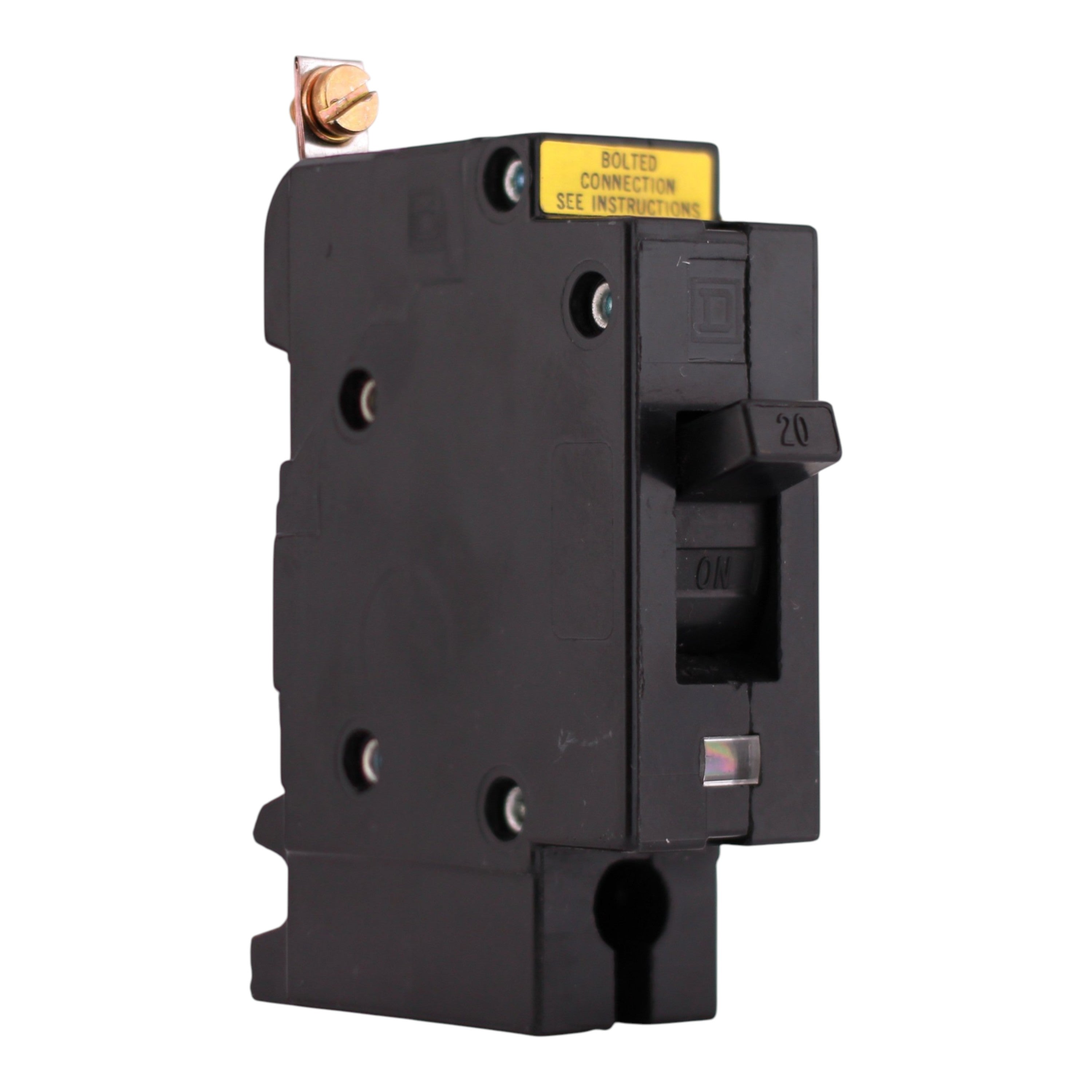

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker

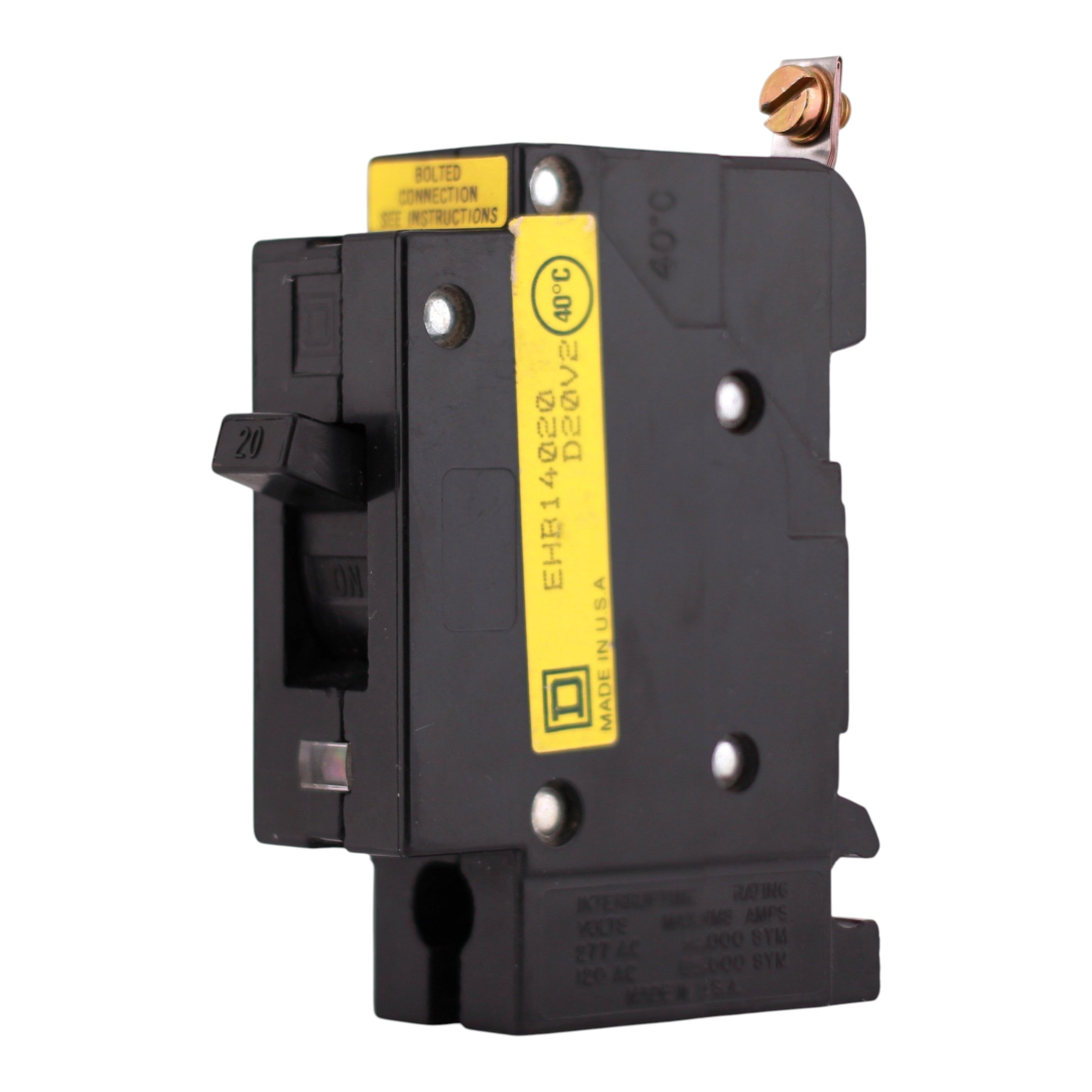

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 2

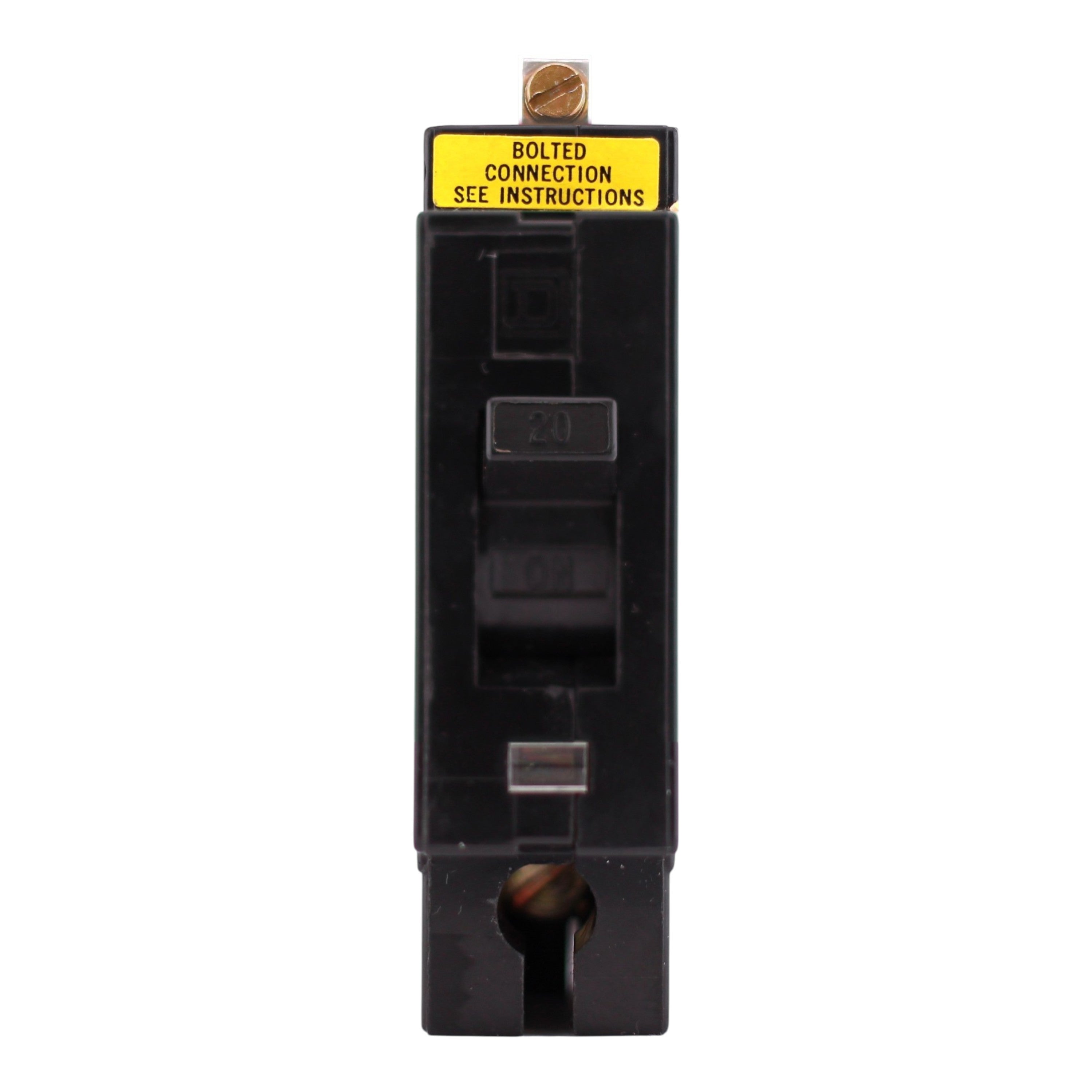

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 3

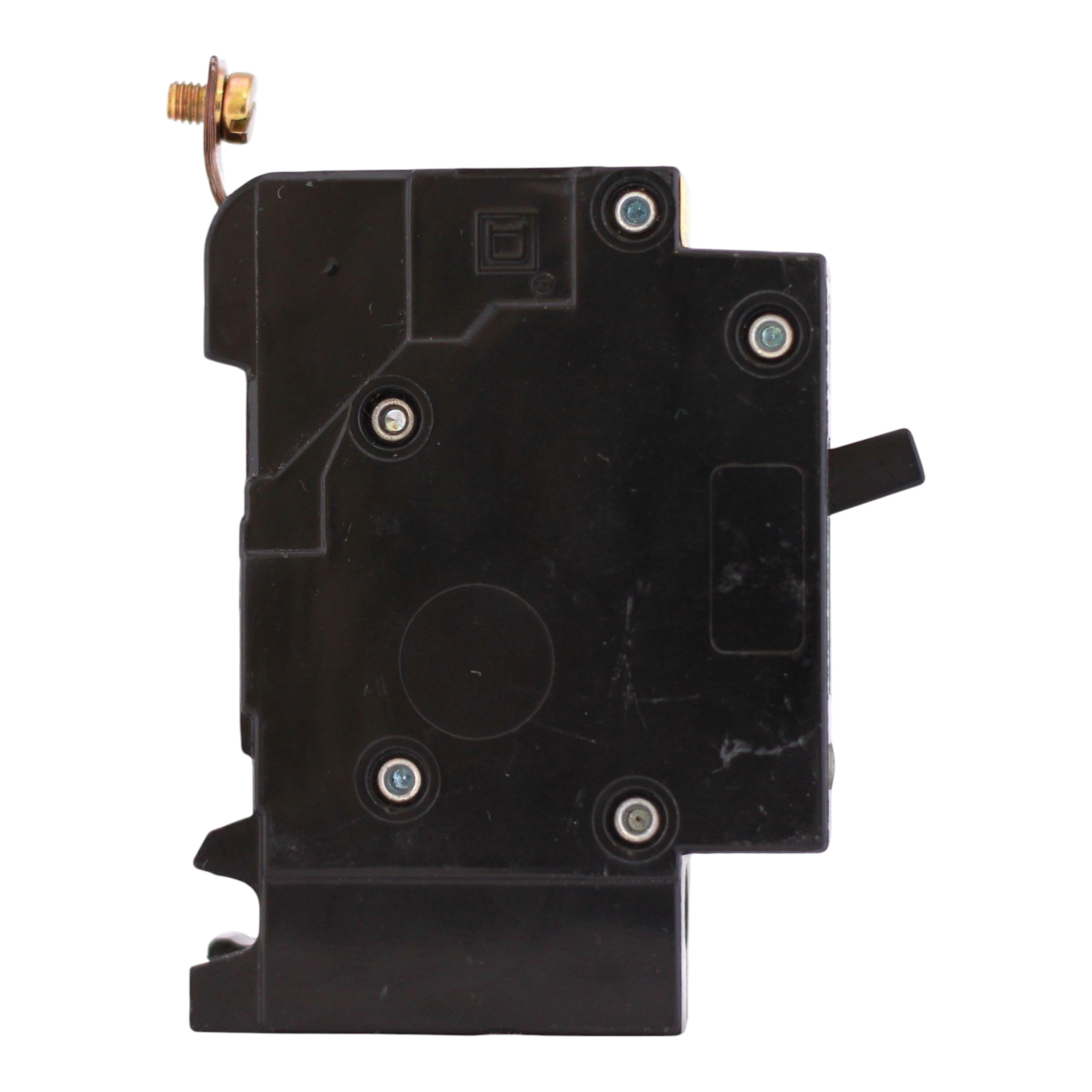

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 4

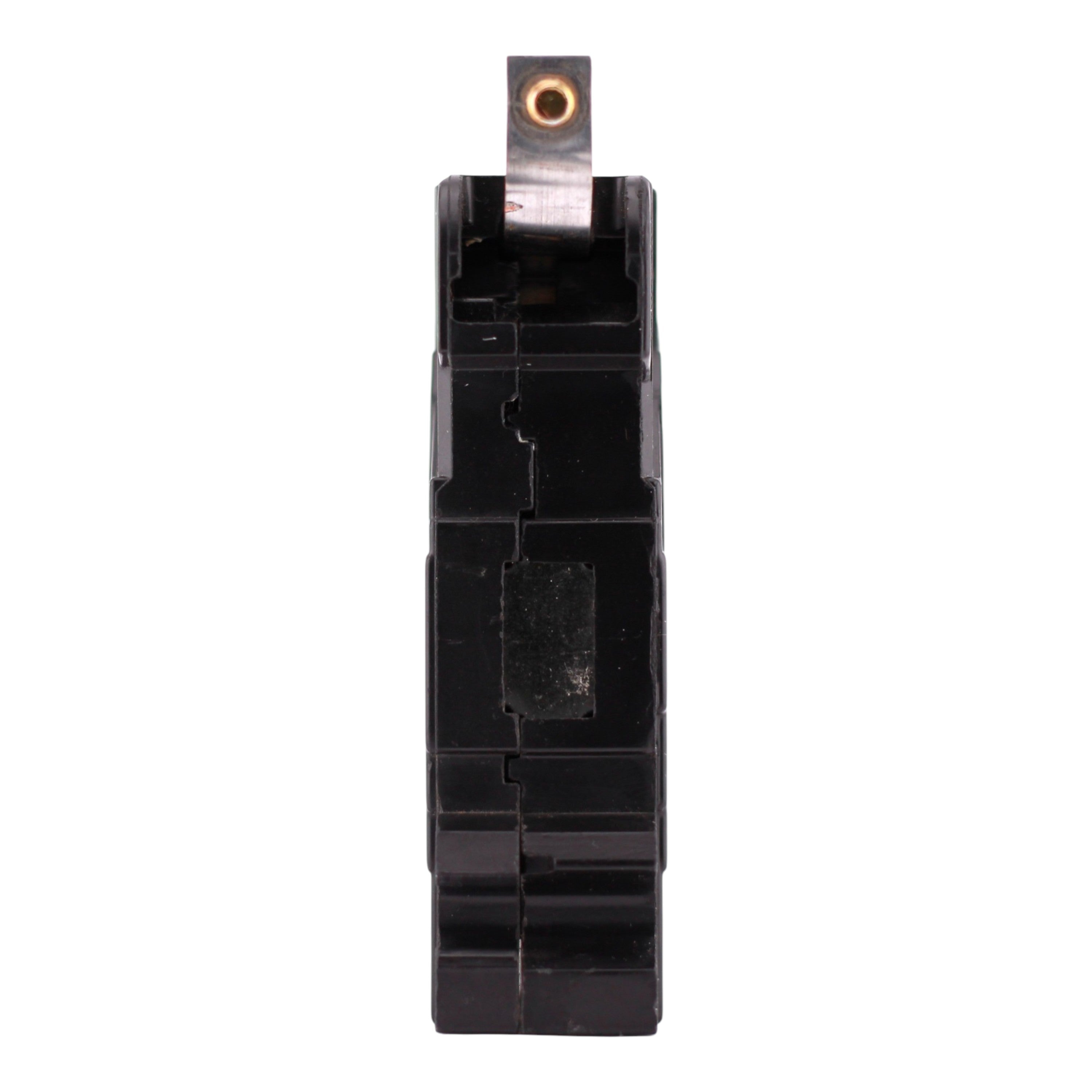

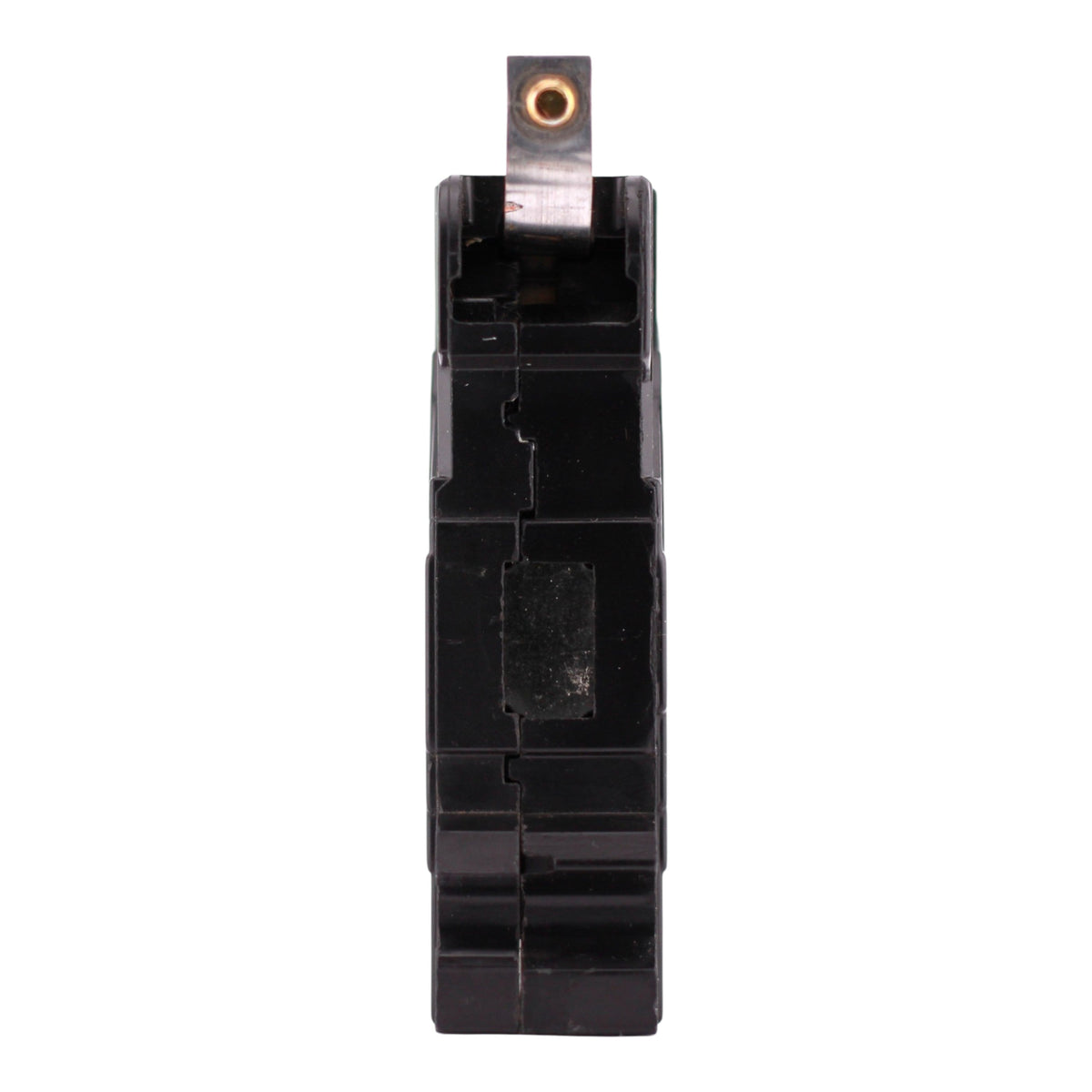

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 5

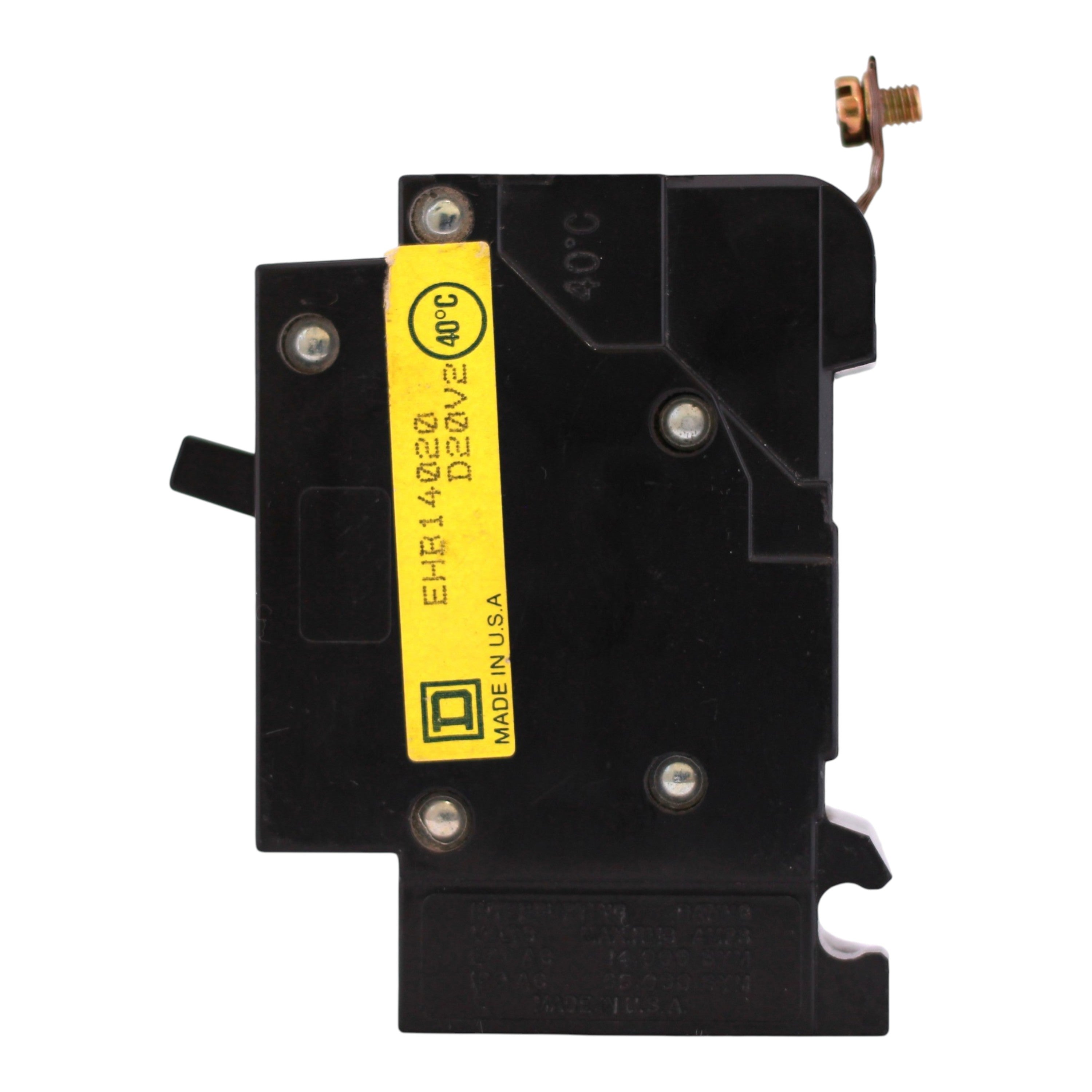

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 6

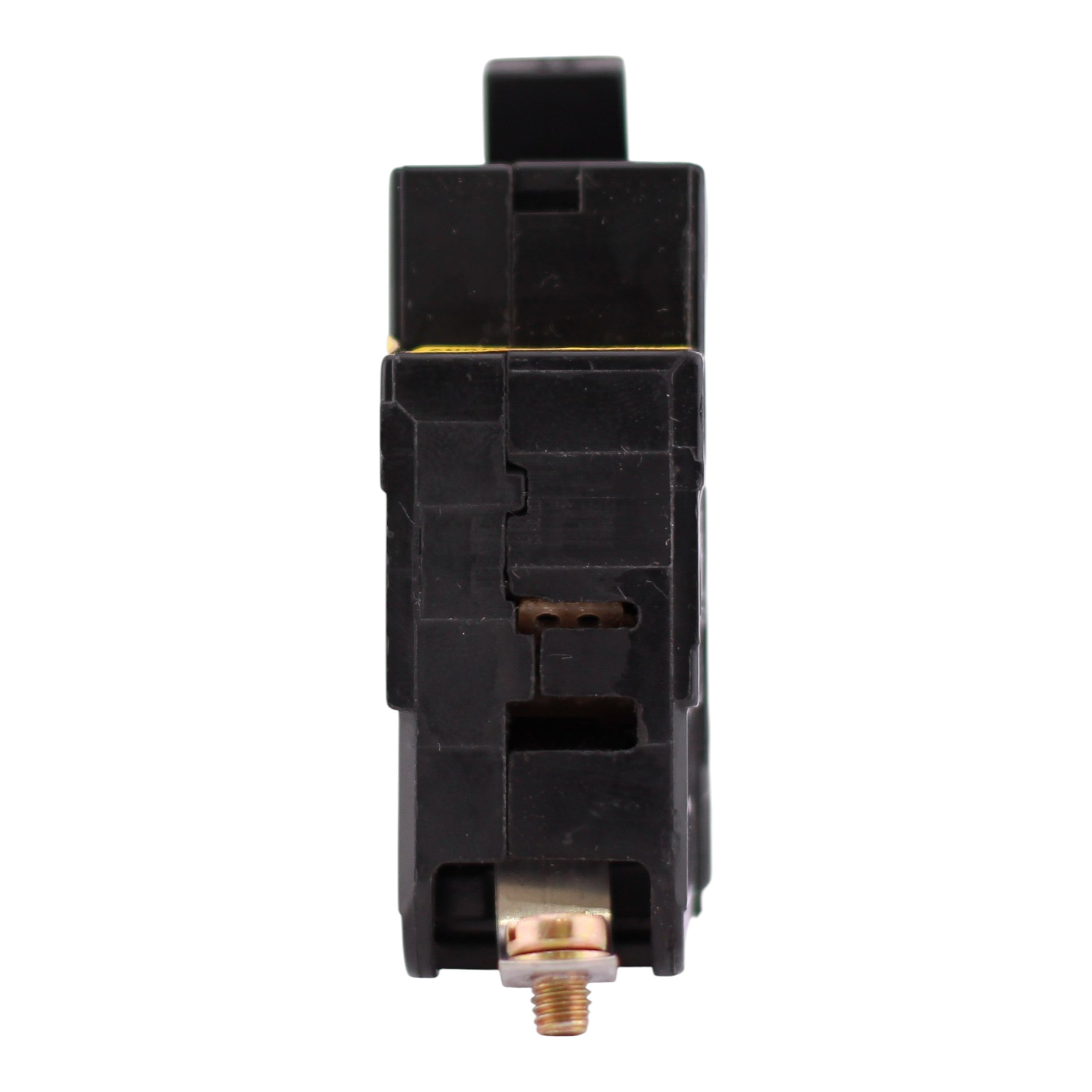

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 7

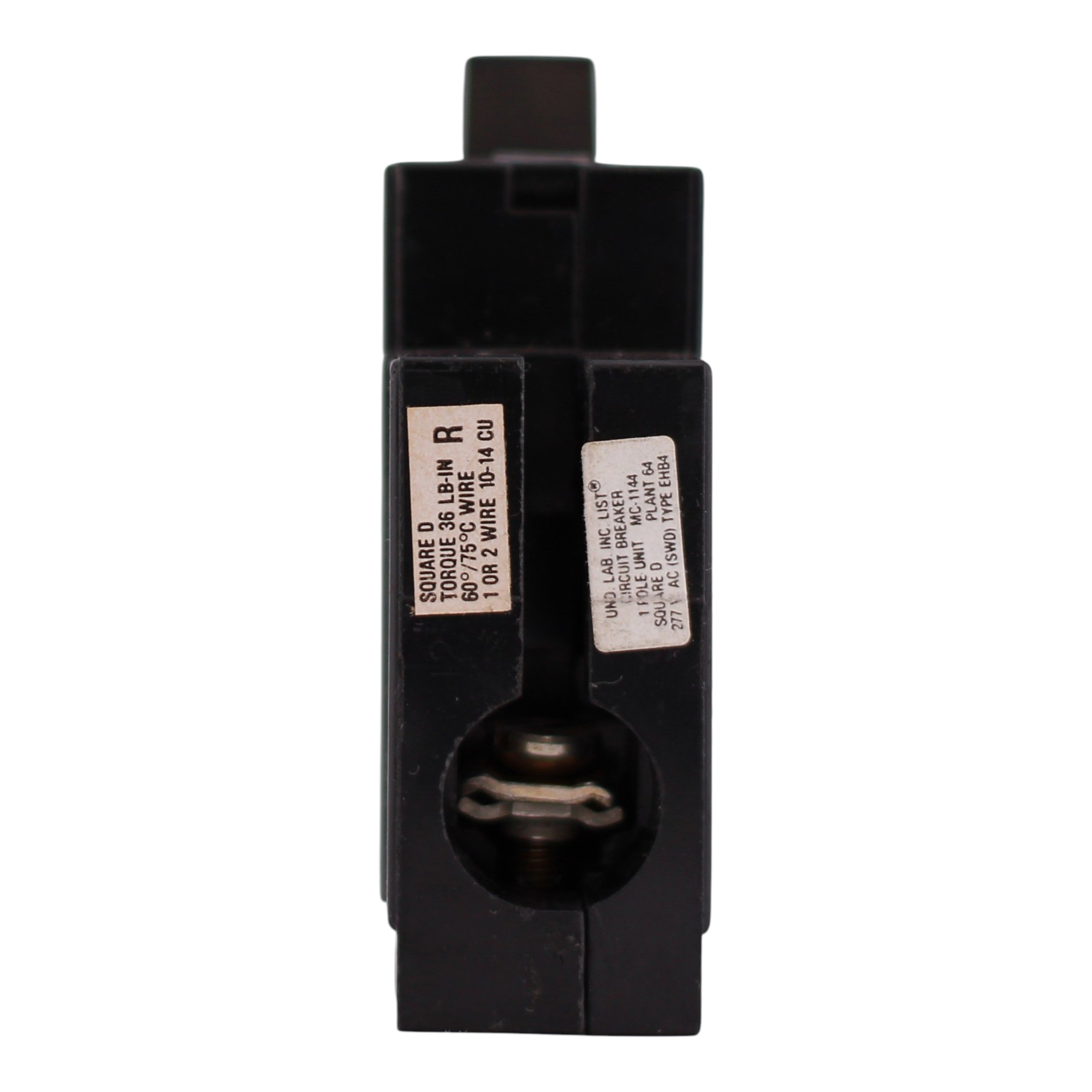

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 8
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 2
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 3
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 4
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 5
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 6
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 7
Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D EHB, EHB14020, 20A, 1P, 277V, Bolt-On, Molded Case Circuit Breaker

Out of stock
SKU: EHB14020 UPC: 785901128311
(0)
$7.50
-82% $42.50 $7.50
Out of stock
Condition

Square D EHB14020: 20 Amp, 1-Pole, Thermal Magnetic Molded Case Circuit Breaker, 120/277V, 65kA@120V/14kA@277V, Bolt-On, UL Listed, CSA.

  • Manufacturer: Schneider Electric (Square D)
  • Brand: Square D
  • Product Range: EHB Series (for Square D NEHB panelboards — commercial/industrial use)
  • UPC: 785901128311
  • Model Number: EHB14020
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 120/240/277 Volts AC
  • Interrupt Rating: 65 kAIC @ 120VAC; 14 kAIC @ 277VAC
  • Mounting Mode: Bolt-On
  • Wire Size: #14–10 AWG Cu, #12–10 AWG Al
  • Dimensions: Height: 3.5 in; Width: 1 in; Depth: 2.97 in
  • Weight: 0.45 lbs
  • Certifications: UL Listed, HACR Rated, SWD Rated, CSA

This Square D EHB14020 thermal magnetic circuit breaker delivers dependable 20 Amp, 1-Pole protection for 120/277V circuits in Square D NEHB panelboards. Designed for bolt-on installation with 65kA/14kA interrupt rating, it supports commercial and industrial applications.
