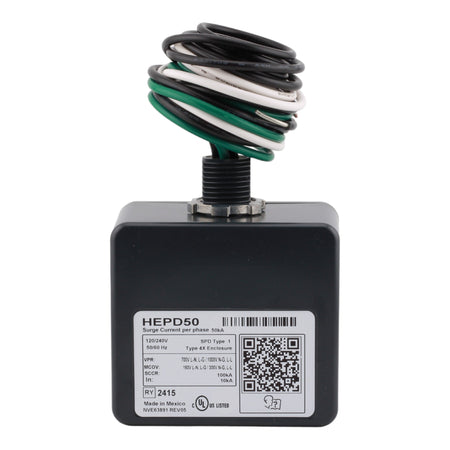

Square D HEPD50 Whole Home Surge Protective Device - 50kA Surge Current, 120/240V, Single Phase, 3-Wire - Image 4
Square D HEPD50 Whole Home Surge Protective Device - 50kA Surge Current, 120/240V, Single Phase, 3-Wire - Image 5
Square D HEPD50 Whole Home Surge Protective Device - 50kA Surge Current, 120/240V, Single Phase, 3-Wire - Image 6
Square D HEPD50 Whole Home Surge Protective Device - 50kA Surge Current, 120/240V, Single Phase, 3-Wire - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

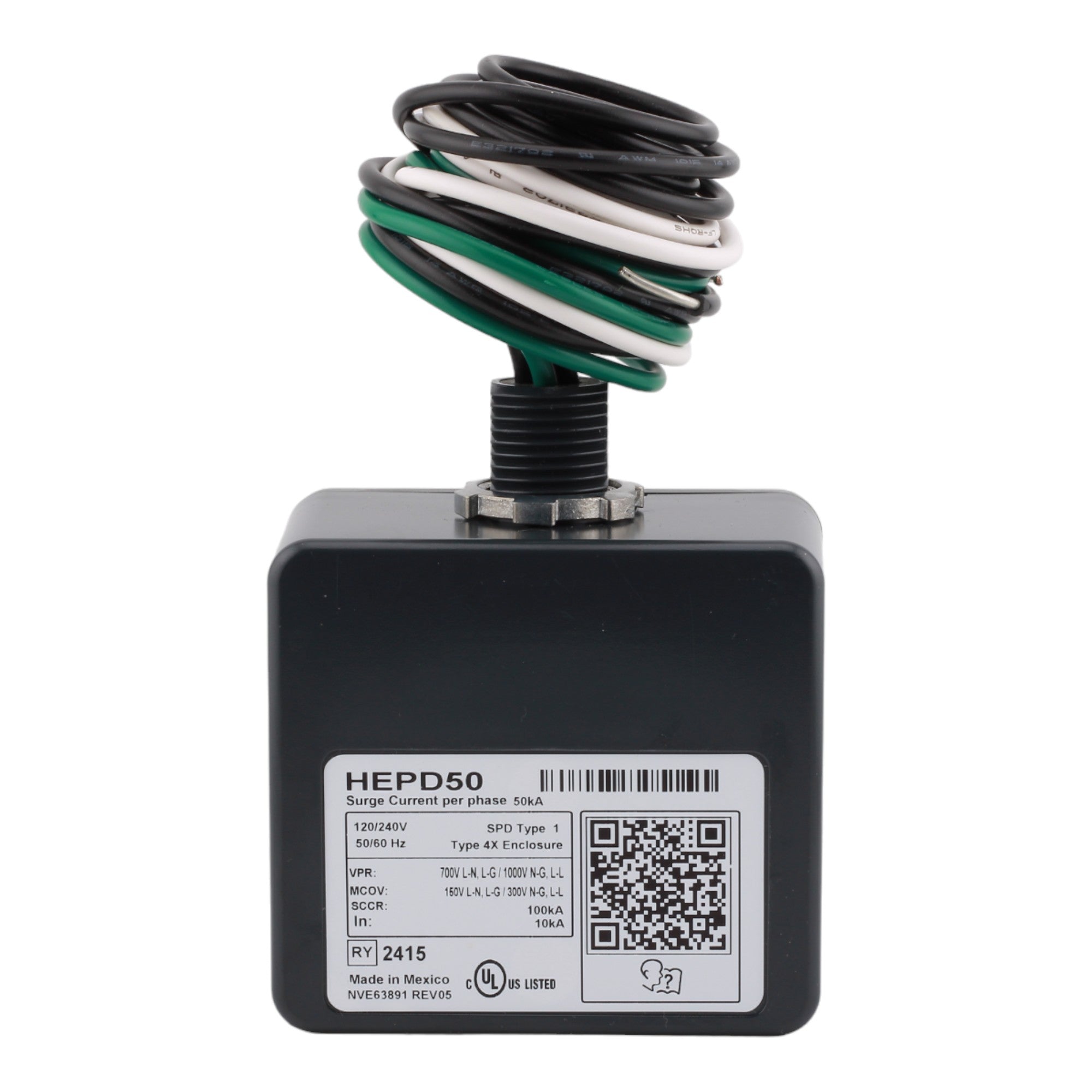

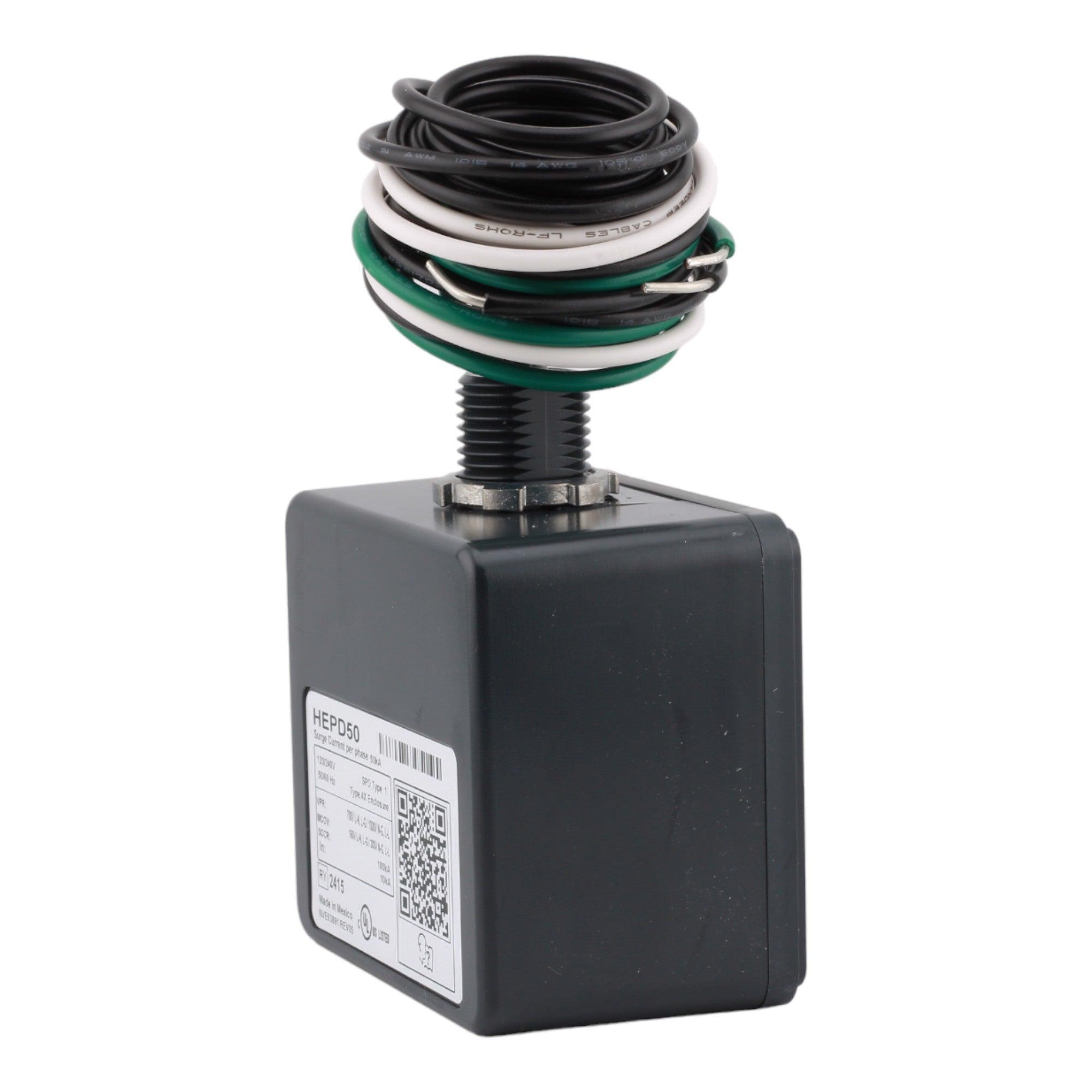

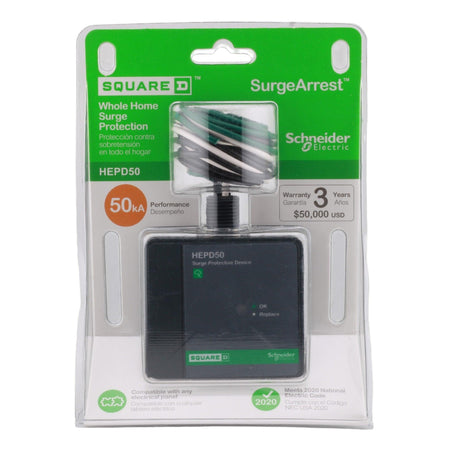

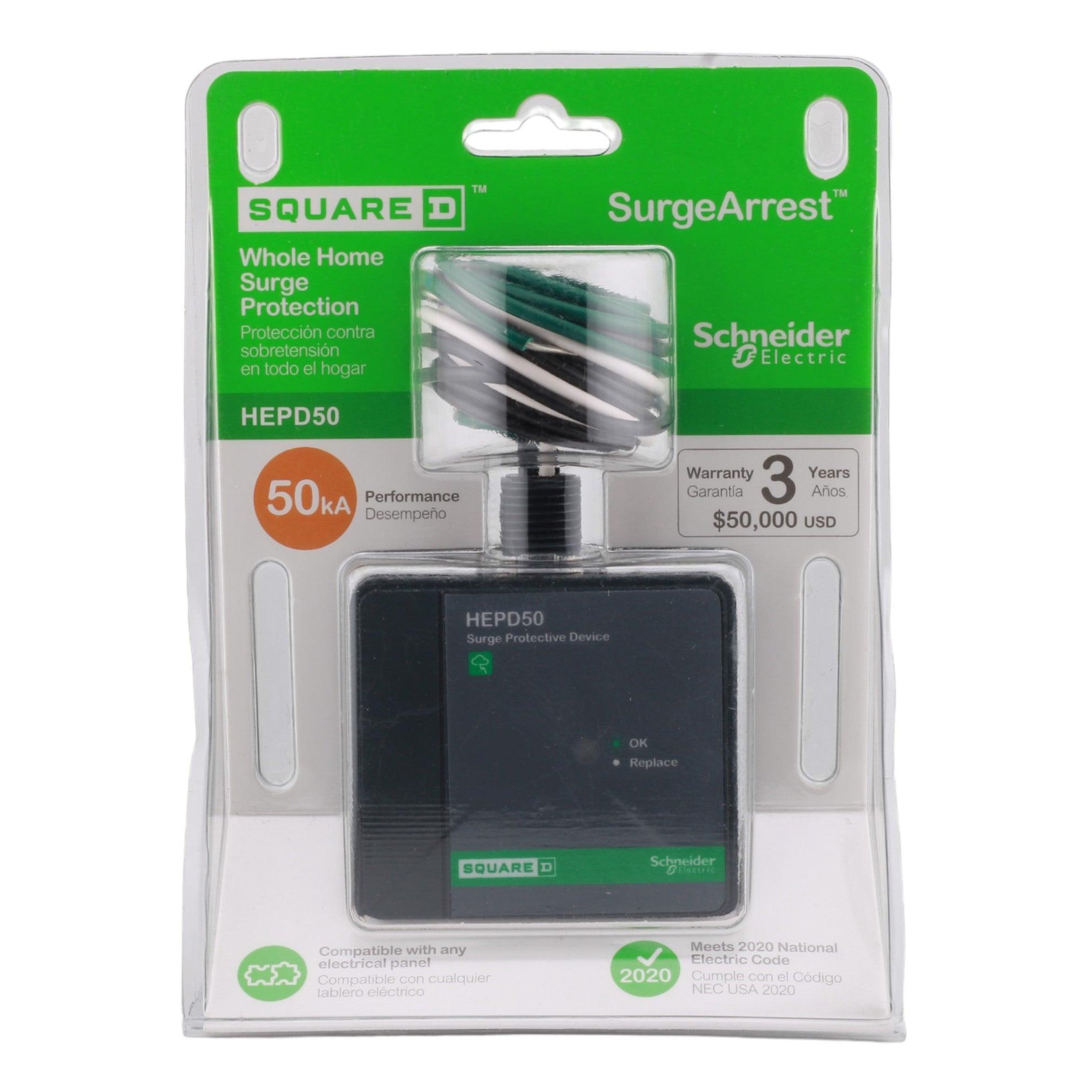

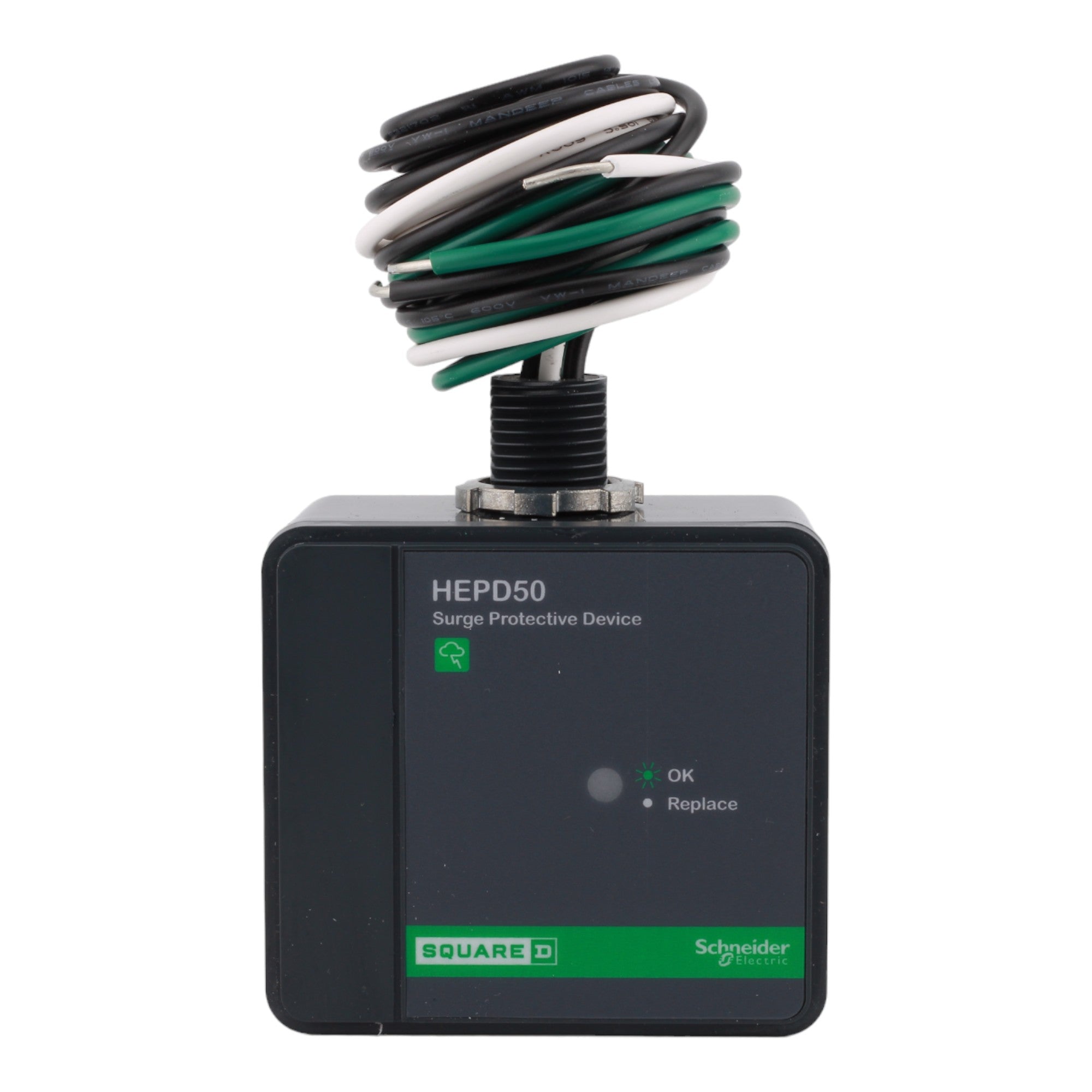

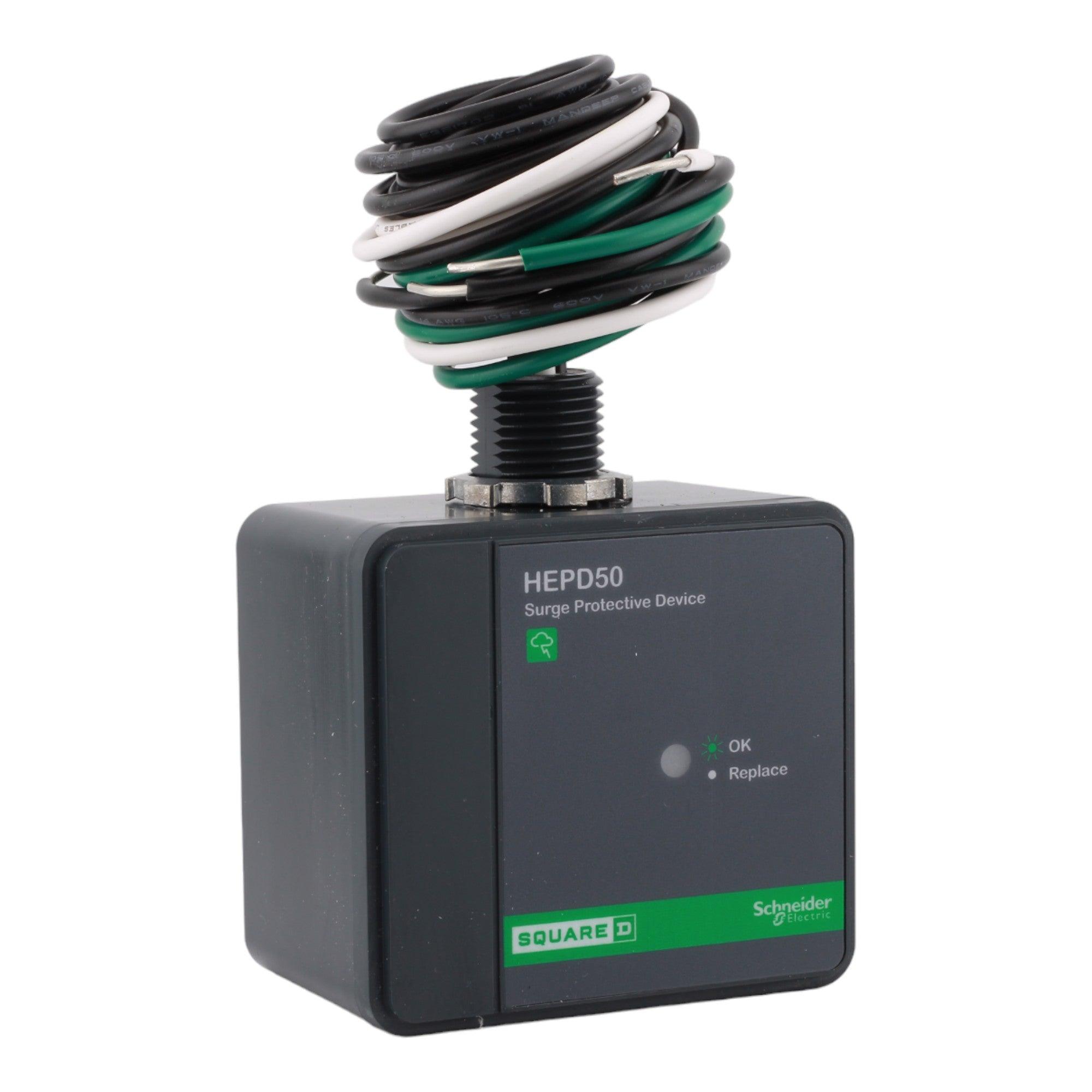

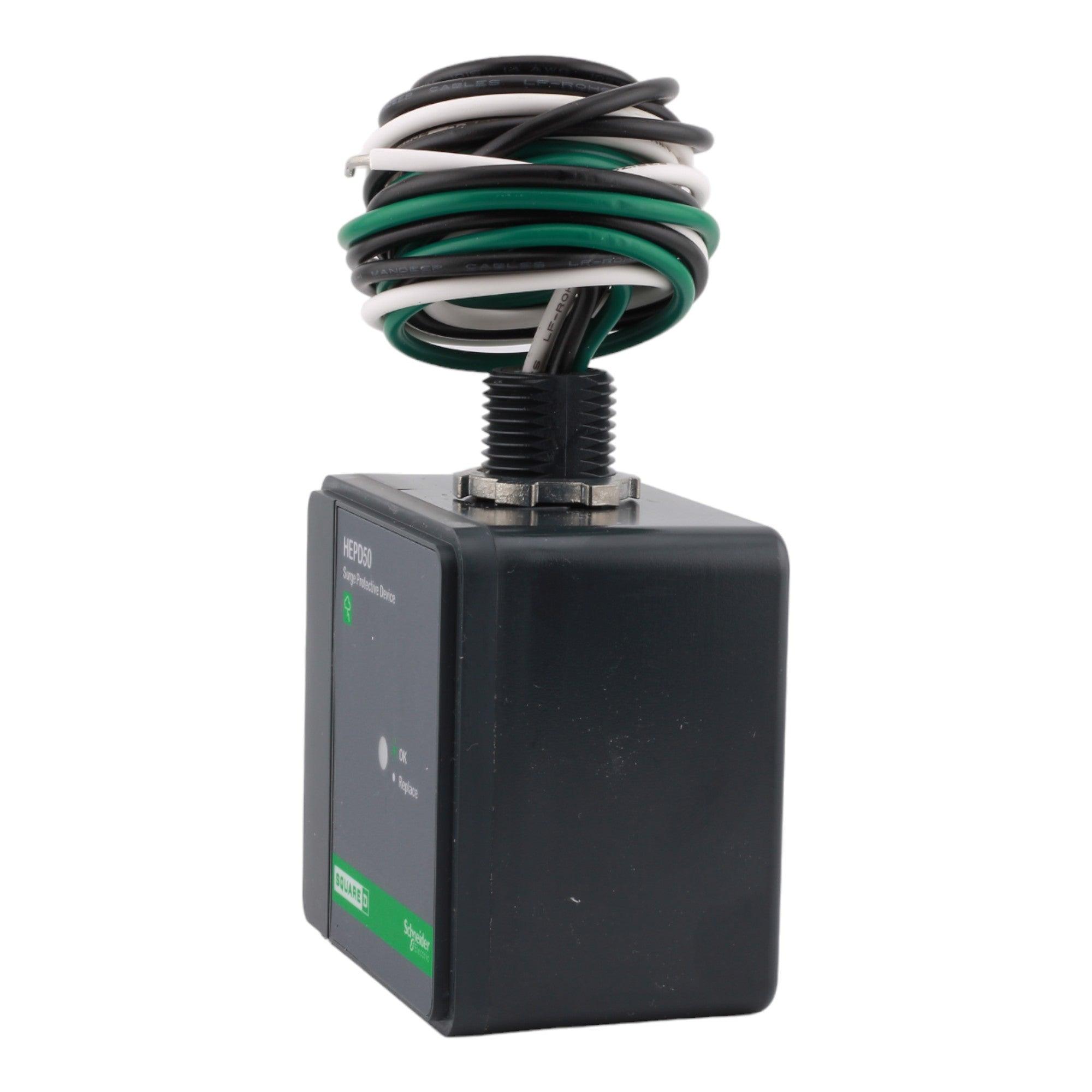

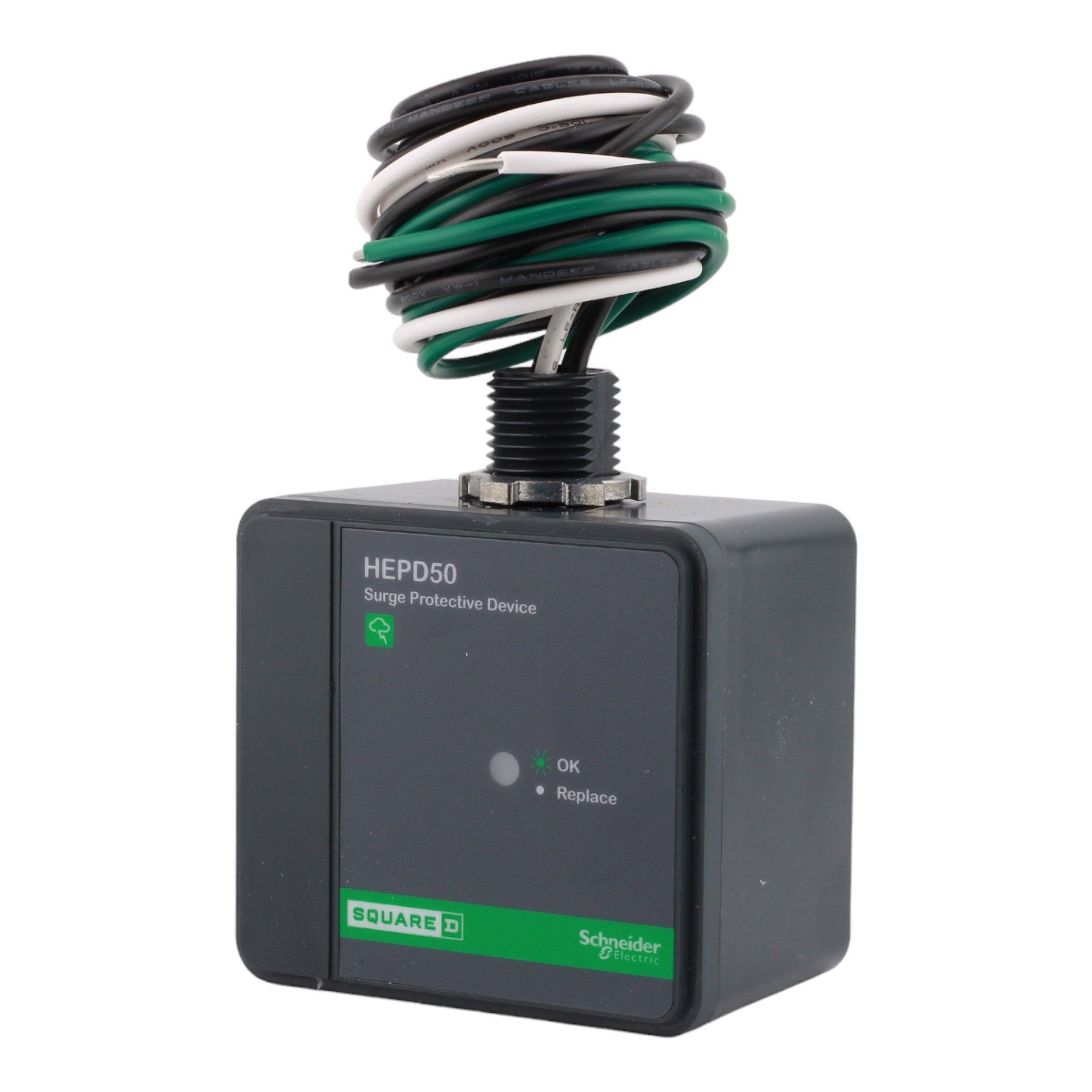

Square D HEPD50 Whole Home Surge Protective Device - 50kA Surge Current, 120/240V, Single Phase, 3-Wire

Out of stock
SKU: HEPD50 UPC: 785901006626
(0)
$58.95
-26% $80.00 $58.95
Out of stock
Condition

Square D HEPD50 Whole Home Surge Protective Device - 50kA Surge Current, 120/240V, Single Phase, 3-Wire, NEMA 4X Enclosure

Specifications:

  • Manufacturer: Square D by Schneider Electric
  • Model Number: HEPD50
  • Type: Whole Home Surge Protective Device (SPD Type 1)
  • UPC: 785901006626
  • Surge Current: 50 kA
  • Voltage Rating: 120/240 VAC
  • Phase: Single Phase
  • Wiring Configuration: 3-Wire
  • Short Circuit Current Rating: 25 kA
  • Nominal Discharge Current: 10 kA
  • Protection Modes: Line-to-Neutral (L-N), Line-to-Ground (L-G), Neutral-to-Ground (N-G)
  • Indicator: LED Status Light
  • Enclosure Type: NEMA 4X (suitable for indoor or outdoor applications)
  • Environmental Conditions: Operating temperature -31°F to 149°F (-35°C to 65°C)
  • Dimensions (H x W x D): 3.23" x 3.72" x 2.1"
  • Weight: 1.1 lbs
  • Certifications: cULus Listed to UL 1449 standard, CSA C22.2 No. 8-M1986, C233.1-87
