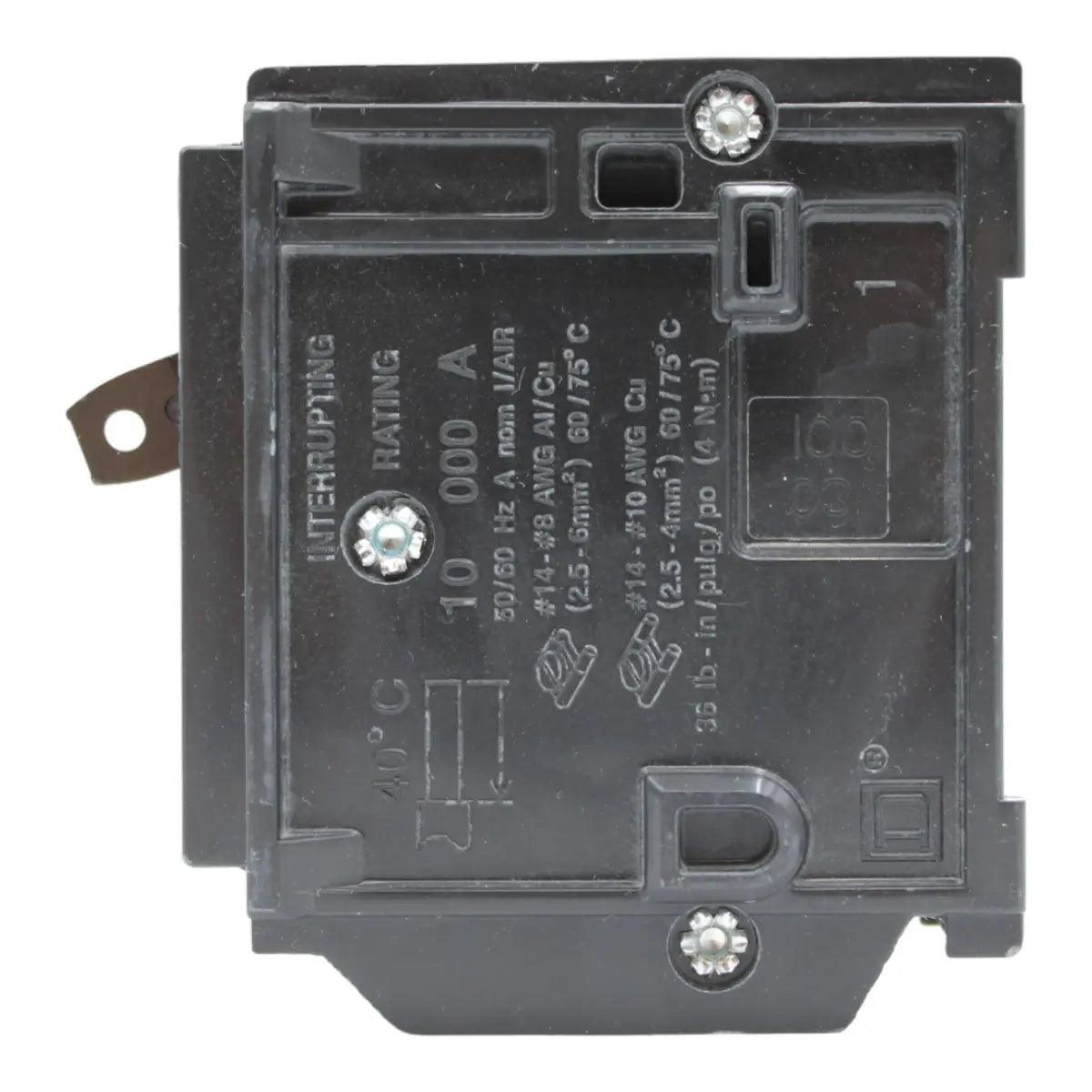

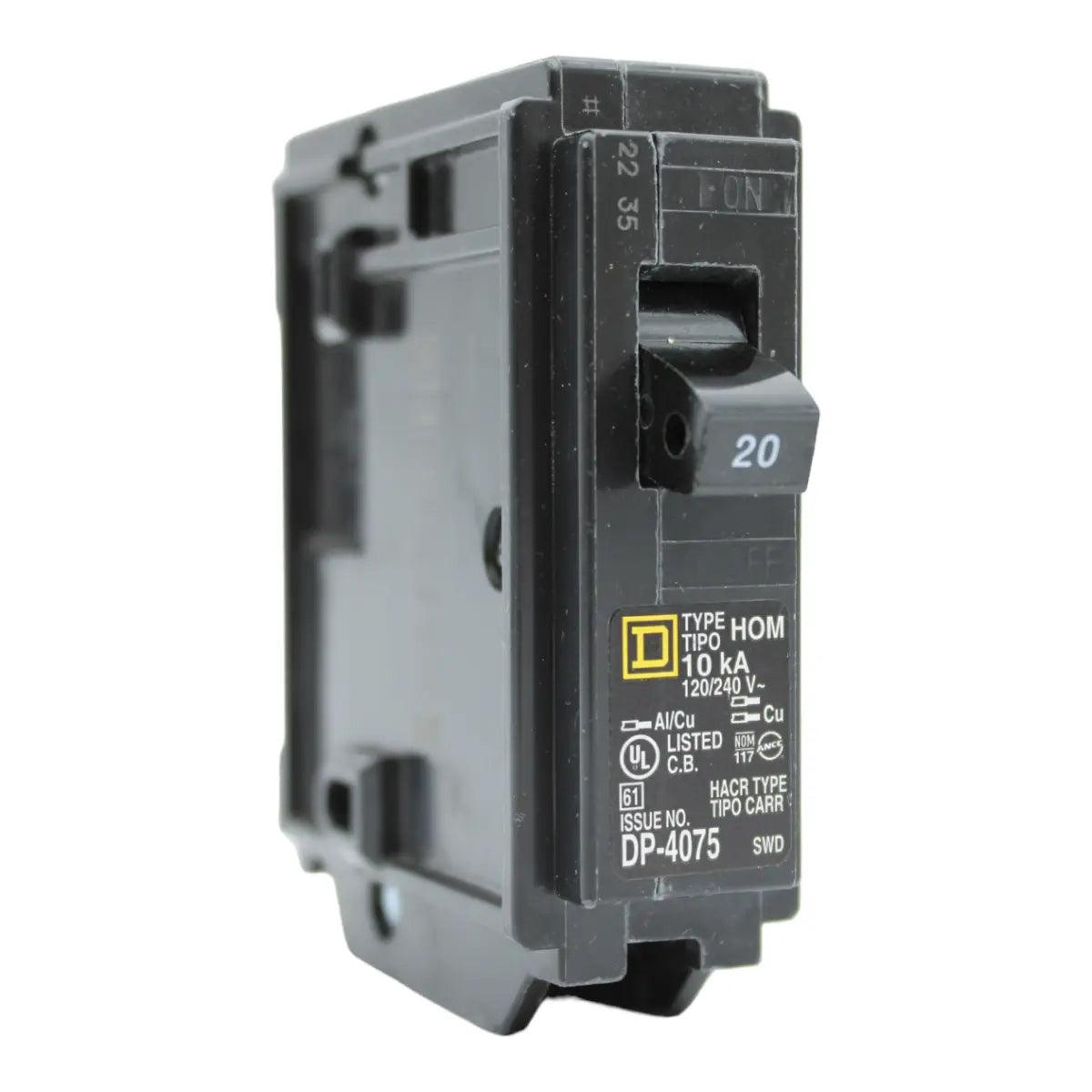

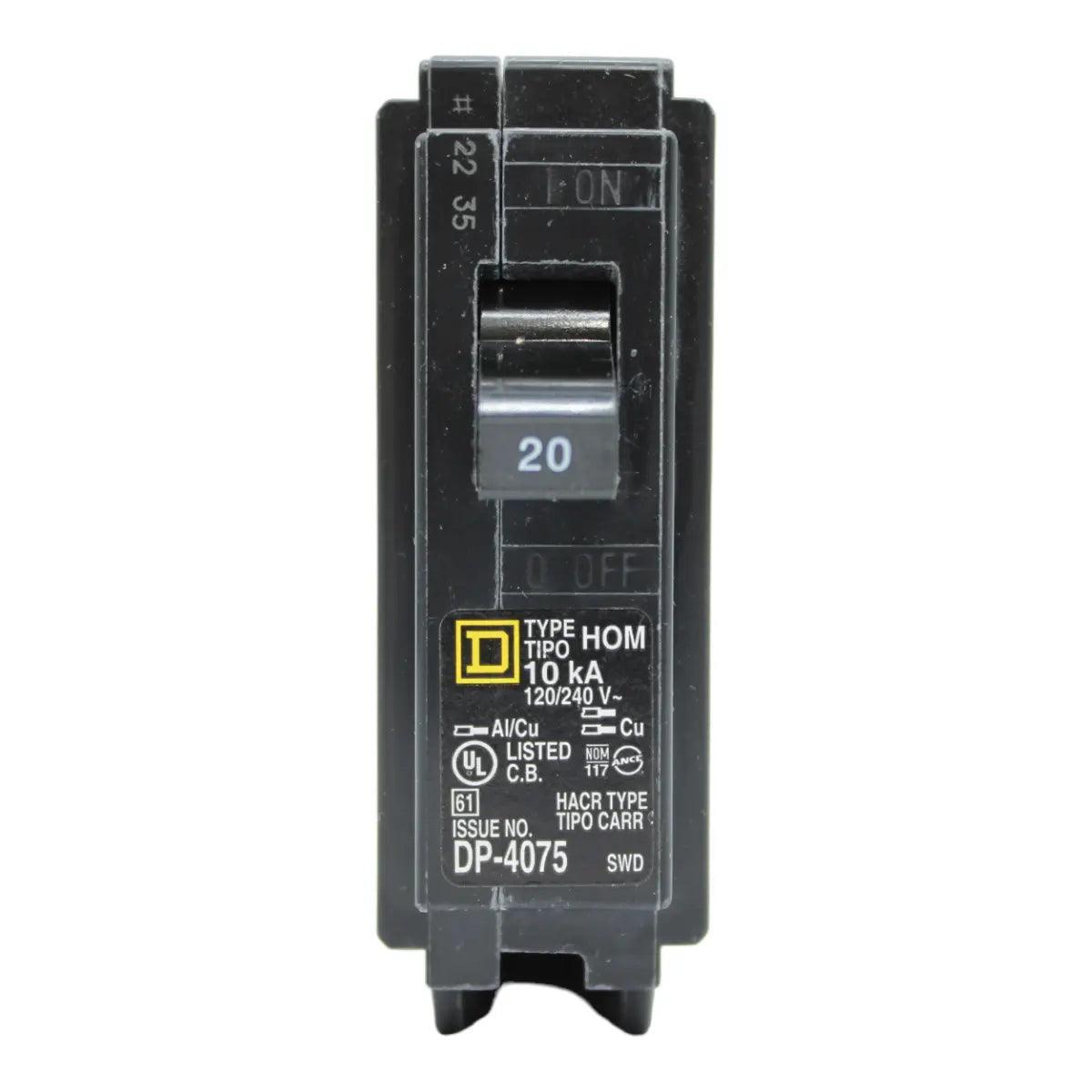

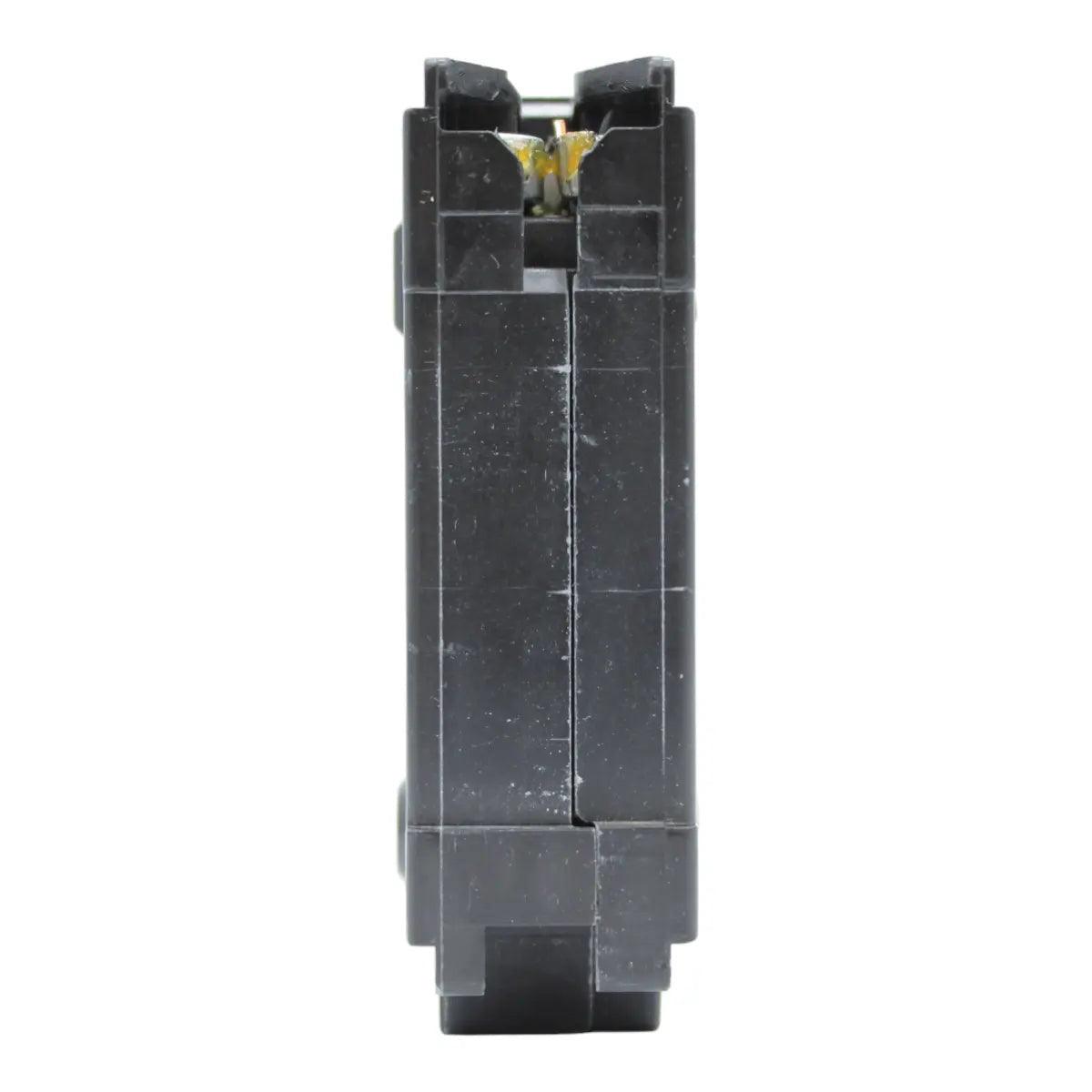

Square D HOM120, 20A, 120/240V, 1-Pole, 10kA, Standard Miniature Circuit Breaker, Plug-In, for Homeline Panels

HOM120 specifications

■ Brand: Square D
■ Manufacturer: Schneider Electric
■ Model Number: HOM120
■ UPC Number: 785901065210

■ Type: Miniature Circuit Breaker (MCB), Standard Circuit Protection
■ Current Rating: 20 Amps (20A)
■ Voltage Rating: 120/240 Volts AC (120/240V)
■ Mounting Type: Plug-In
■ Number of Poles: 1 Pole (1P)
■ Short Circuit Current Rating (SCCR): 10,000 Amps (10kA AIR)
■ Circuit Breaker Type: Standard
■ Ground Fault Protection: Not Applicable

■ Compatibility: Homeline Load Centers, Subpanels

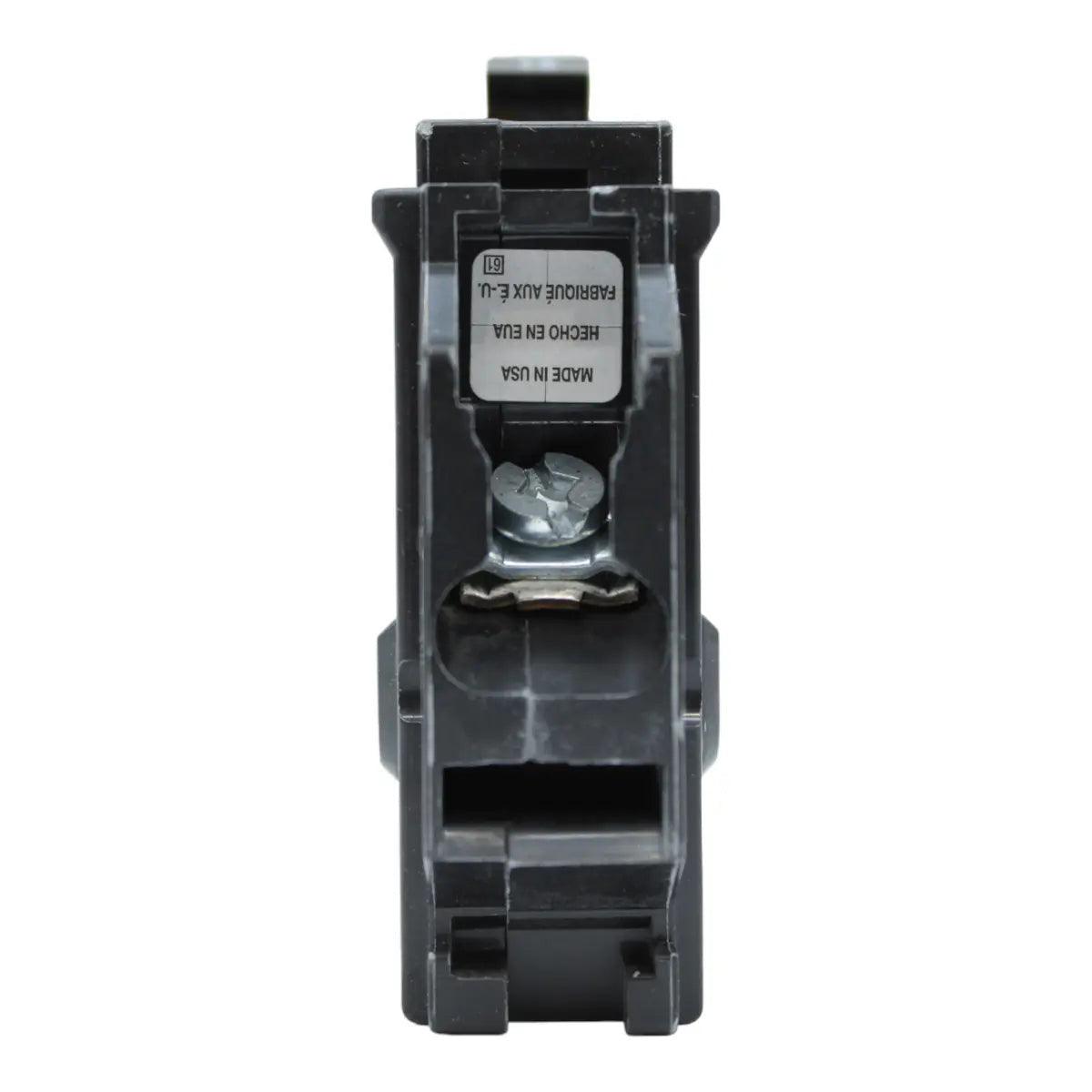

■ Electrical Connection: Clamp Terminal for 2 Wires
■ Wire Size Range:

• 1 × AWG 14 - AWG 8 (Copper/Aluminum)
• 2 × AWG 14 - AWG 10 (Copper)
  ■ Tightening Torque: 35.4 lbf.in (4.0 N.m)
  ■ Dimensions (H × W × D): 3.13 × 1.00 × 2.98 inches
  ■ Weight: 0.28 pounds (lbs)

■ Certifications: UL Listed, HACR & Switching Duty Rated
■ Safety Compliance: NEC Compliant

Key Features and Benefits

✔ Reliable Circuit Protection: Prevents overloads and short circuits, ensuring electrical safety in residential and commercial applications.

✔ HACR & Switching Duty Rated: Approved for use with HVAC systems, refrigeration units, and lighting circuits.

✔ Compact & Space-Saving Design: Standard 1-inch width allows efficient installation in Homeline Load Centers and Subpanels.

✔ Durable & High-Performance: 10,000 Amps (10kA AIR) interrupting rating for high-level fault protection.

✔ Plug-In Mounting: Quick and simple installation in Homeline panels, reducing installation time.

✔ Clamp Terminal for 2 Wires: Supports multiple conductor connections for increased wiring flexibility.

✔ UL Listed & NEC Compliant: Meets industry safety standards, ensuring high reliability and compliance.

Applications

✔ Residential Electrical Protection: Ideal for household circuits, providing standard circuit protection.

✔ Commercial Use: Suitable for offices, retail spaces, and small businesses requiring reliable overcurrent protection.

✔ HVAC & Refrigeration Systems: HACR rating makes it ideal for heating, air conditioning, and refrigeration applications.

✔ Compatible with Homeline Panels: Designed for seamless installation in Schneider Electric’s Homeline Load Centers.

Why Choose Schneider Electric?

Schneider Electric’s Square D brand is a global leader in electrical safety and power protection. The HOM120 Miniature Circuit Breaker delivers exceptional reliability, easy installation, and compliance with NEC safety standards, making it a top choice for both residential and commercial electrical systems.
