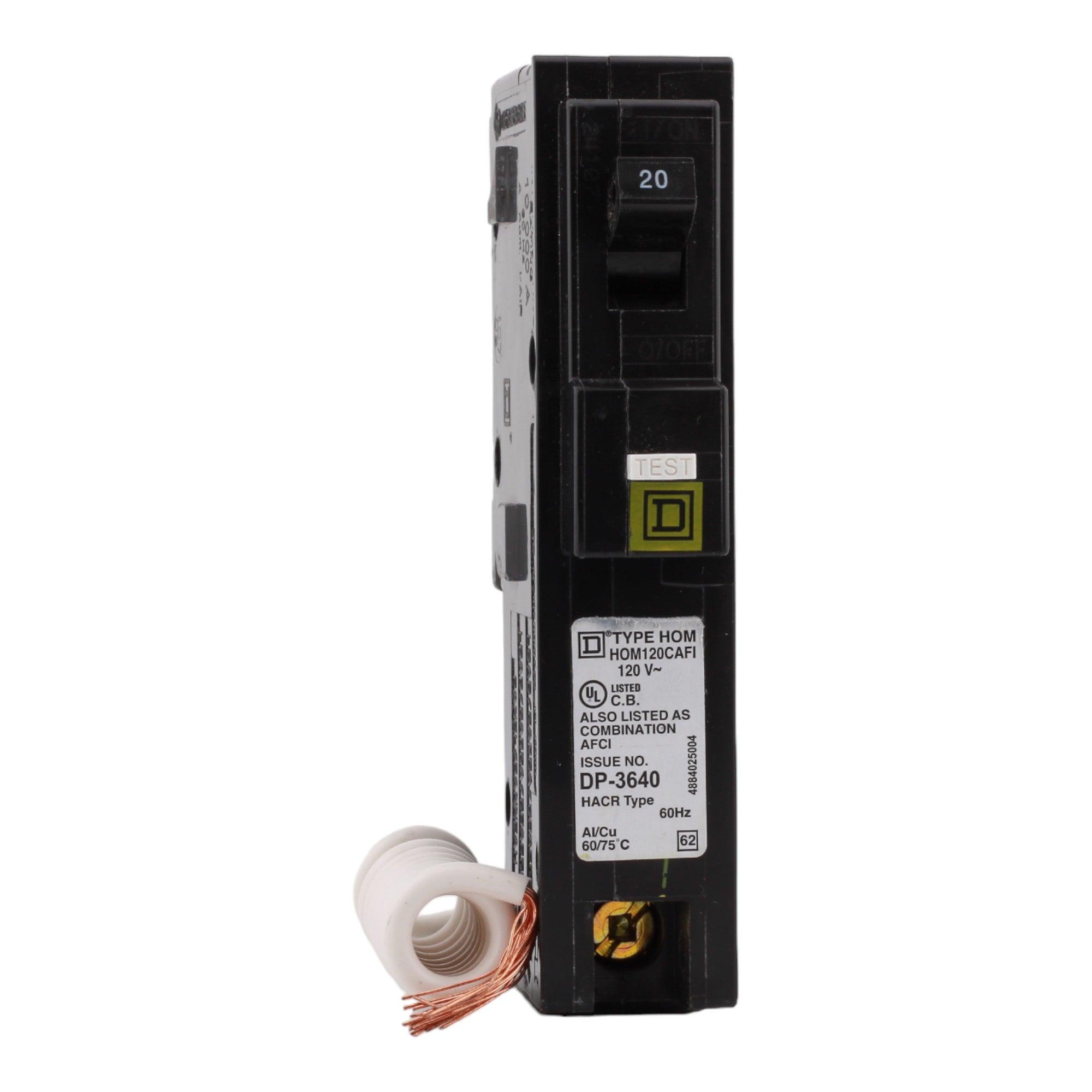

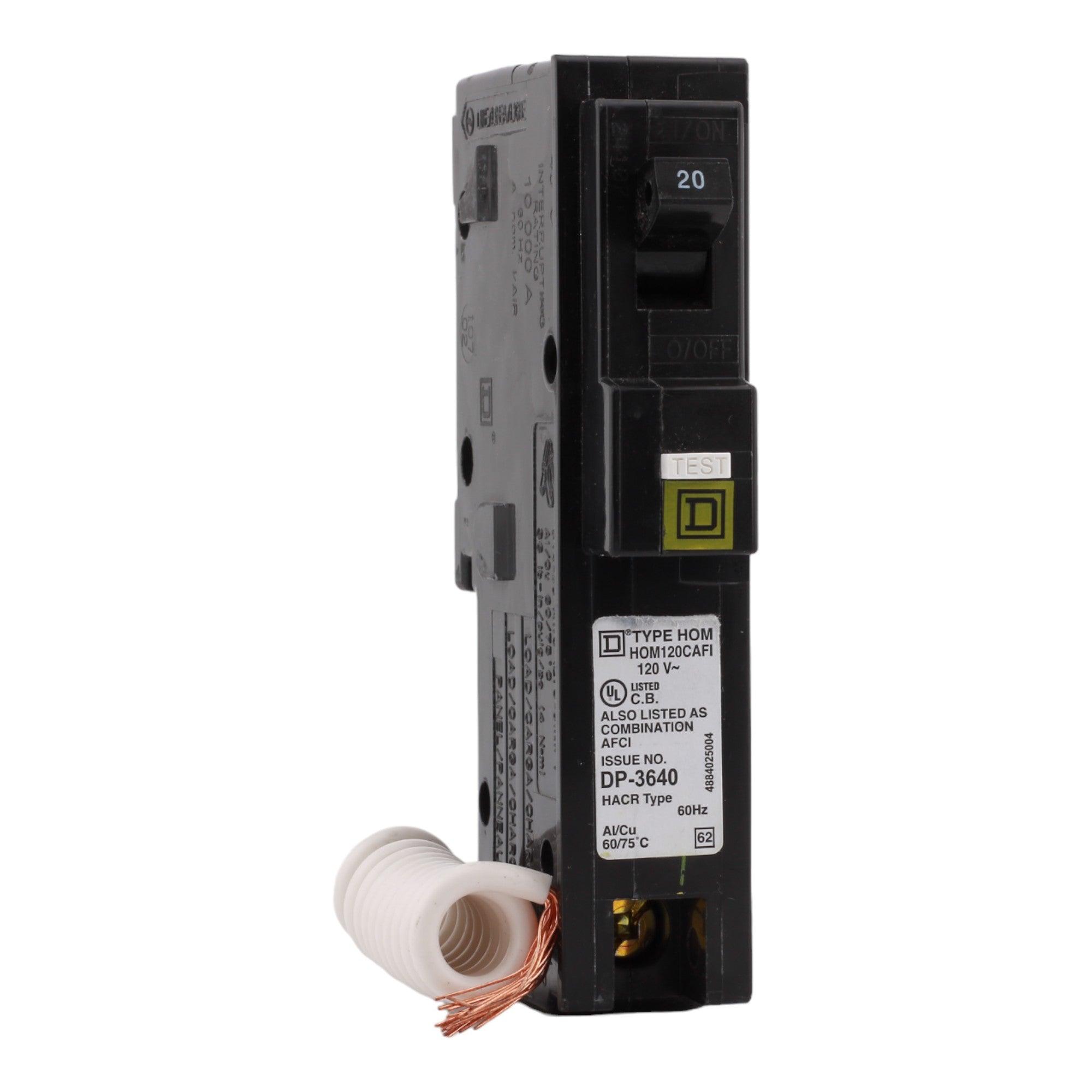

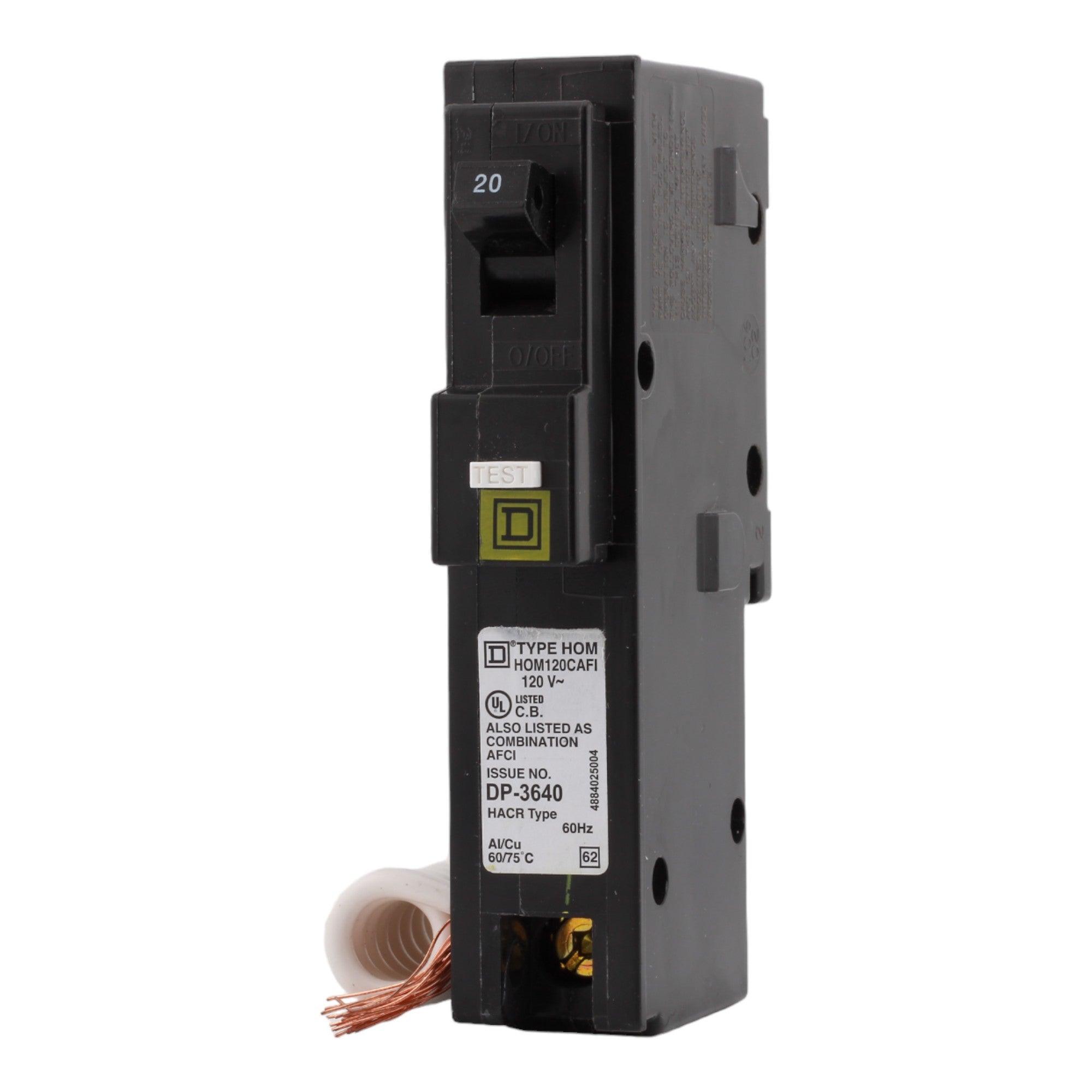

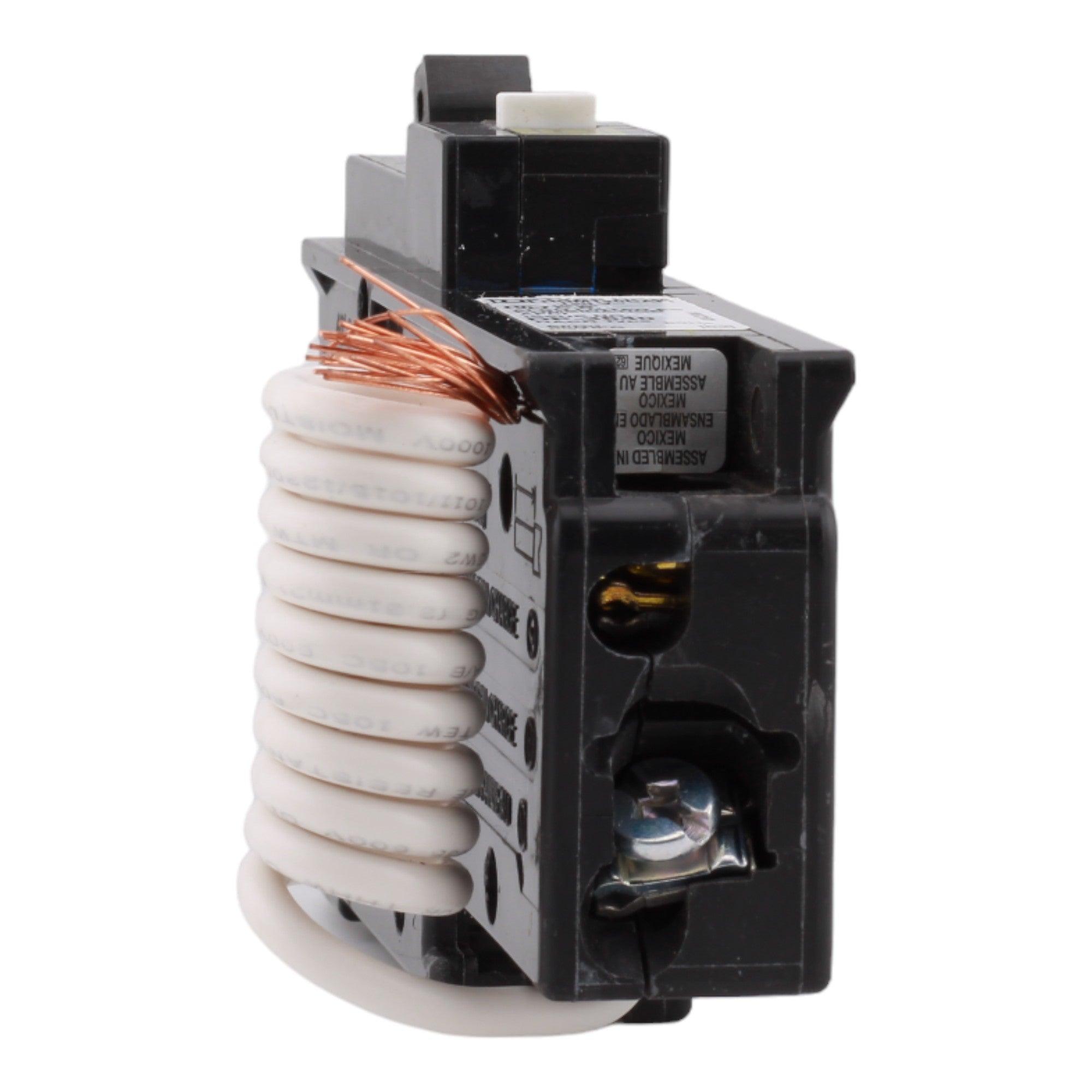

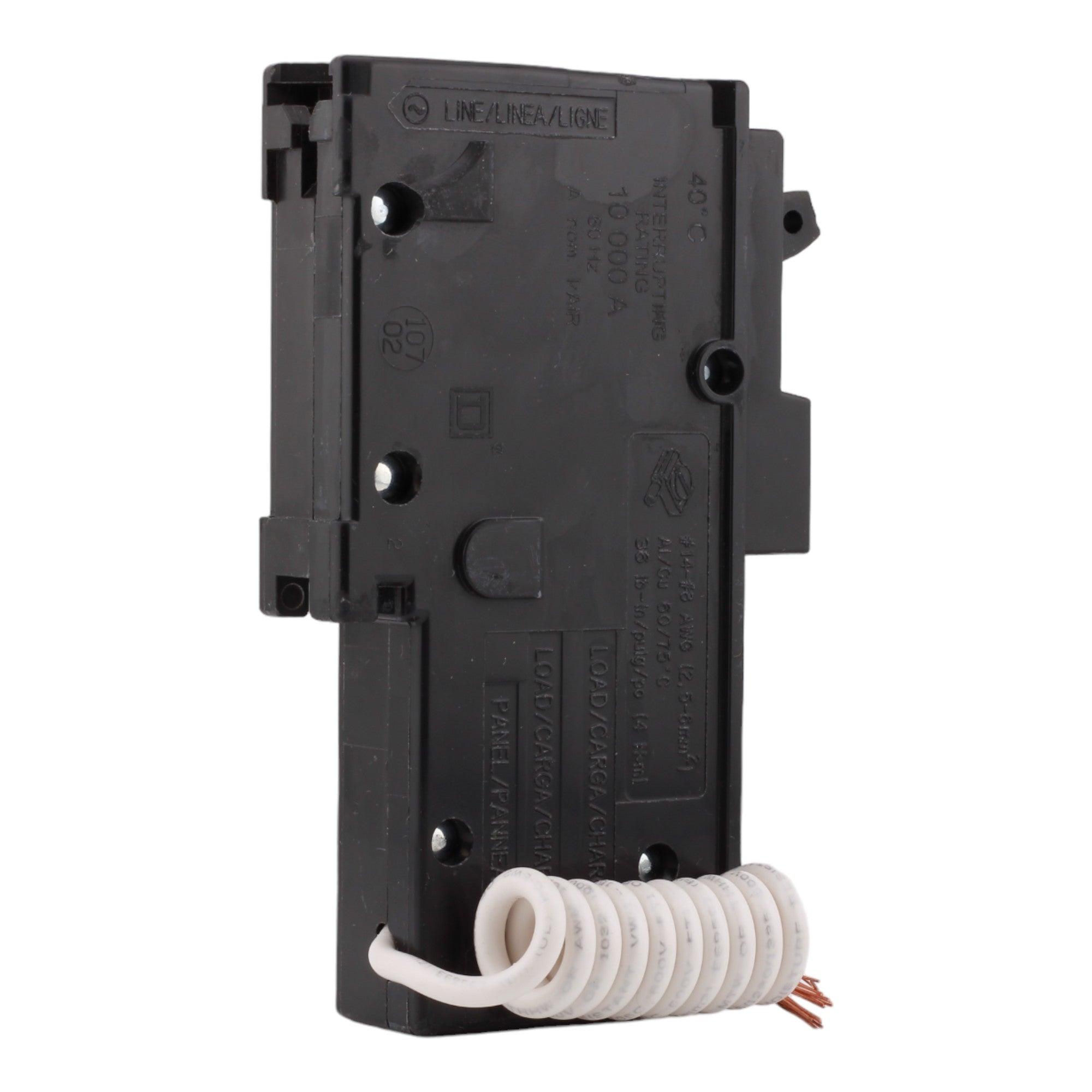

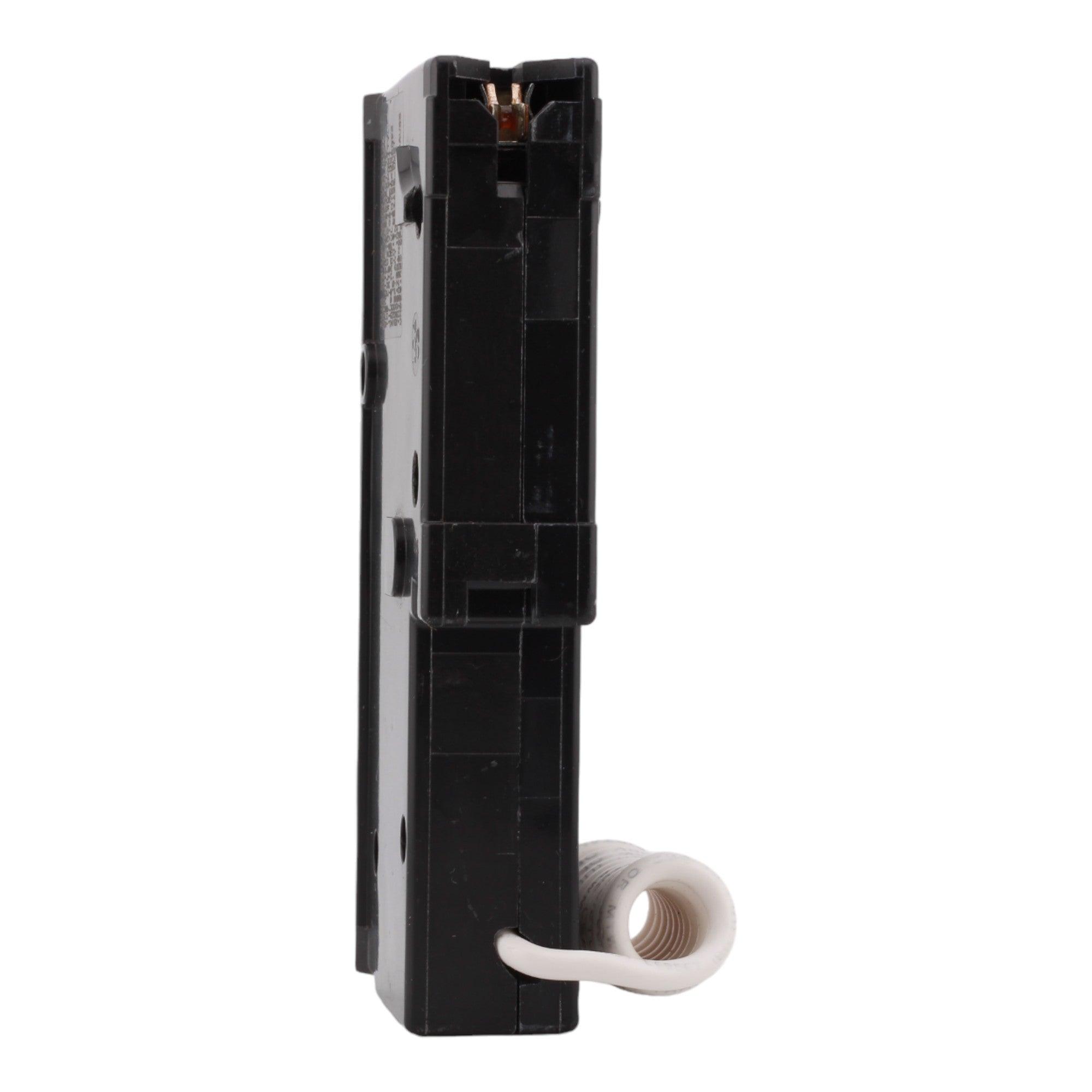

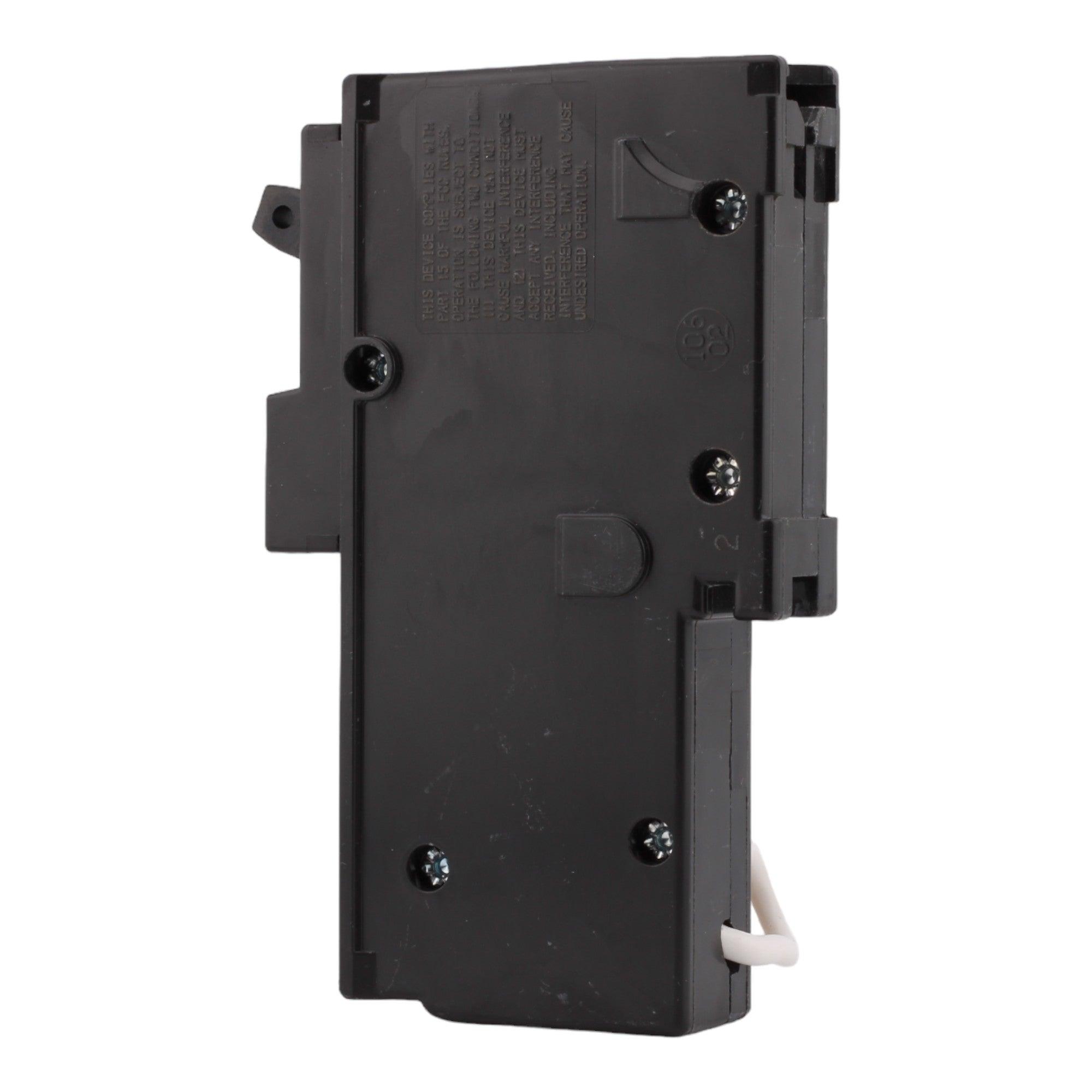

Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 2
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 3
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 4
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 5
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 6
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 7
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 2
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 3
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 4
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 5
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 6
Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D HOM120CAFI 20 Amp Single Pole 120V Pigtail-Neutral AFCI Arc Fault Circuit Breaker UL

In stock
SKU: HOM120CAFI UPC: 785901601517
(0)
$45.00
-24% $59.00 $45.00
In stock
Usually ships within 24 hours
Condition

HOM120CAFI is a 20A pigtail-neutral combination AFCI for Square D Homeline equipment. It protects a single 120V branch circuit against qualifying arc faults and has a 10 kA interrupting rating.

HOM120CAFI specifications

  • Square D reference: HOM120CAFI
  • Loadcenter line: Homeline
  • Function: Combination AFCI
  • Rating: 20A, 1 pole, 120V AC
  • Interrupt rating: 10 kA AIR
  • Connection: Plug-in with neutral pigtail
  • Manufacturer context: Listed successor to HOM120AFI
  • Listing: UL Listed

CAFI identifies arc-fault protection

HOM120CAFI does not include the Class A ground-fault function of a Homeline dual-function breaker. It is also not the plug-on-neutral HOM120PCAFI. Those similar names represent different electronics and neutral arrangements.

Review the Homeline directory

Confirm the panel accepts this pigtail-neutral Homeline AFCI and match 20A, one pole, 120V, 10 kA, and conductor requirements. If replacing HOM120AFI, verify the manufacturer substitution for the exact panel. A qualified installer should complete the work.
