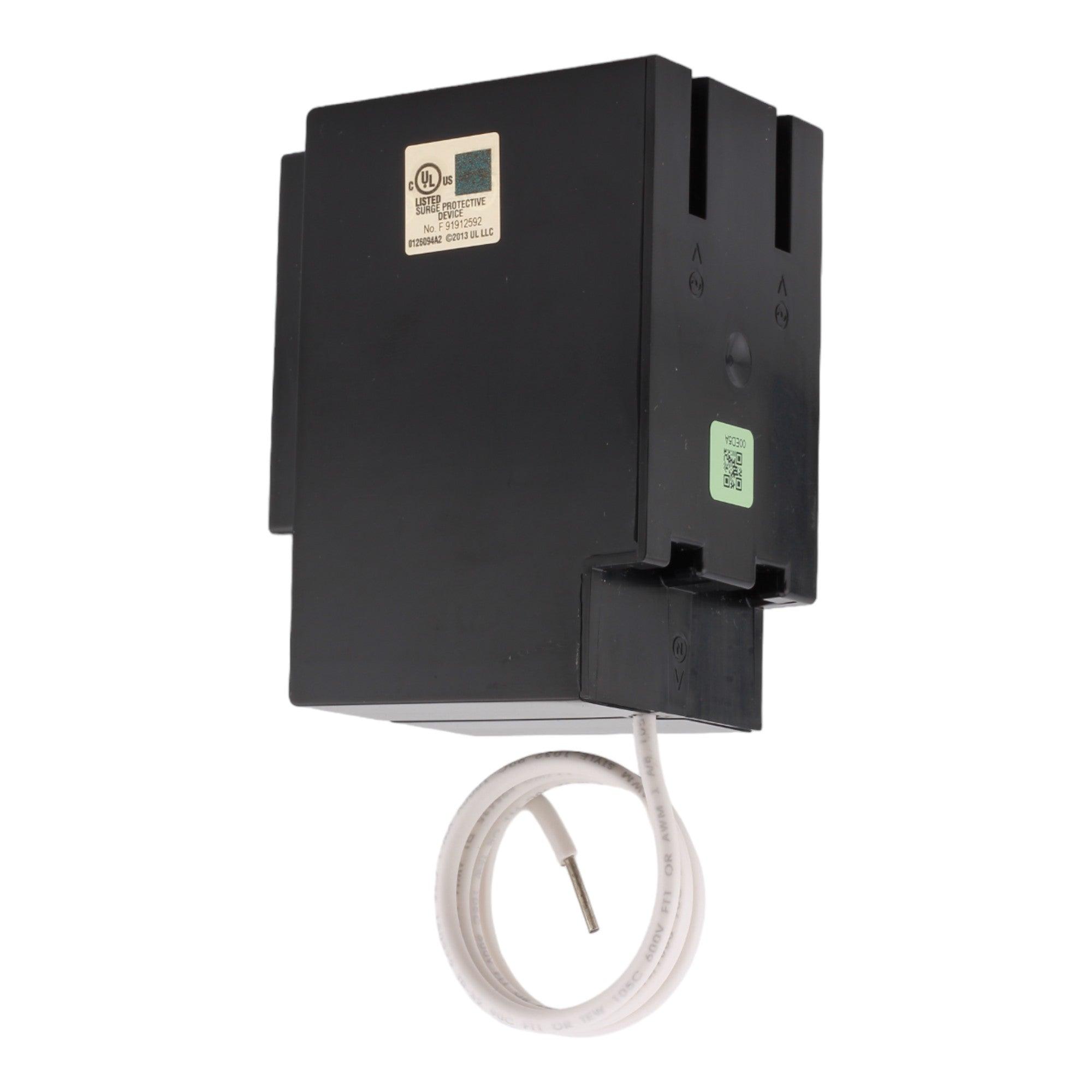

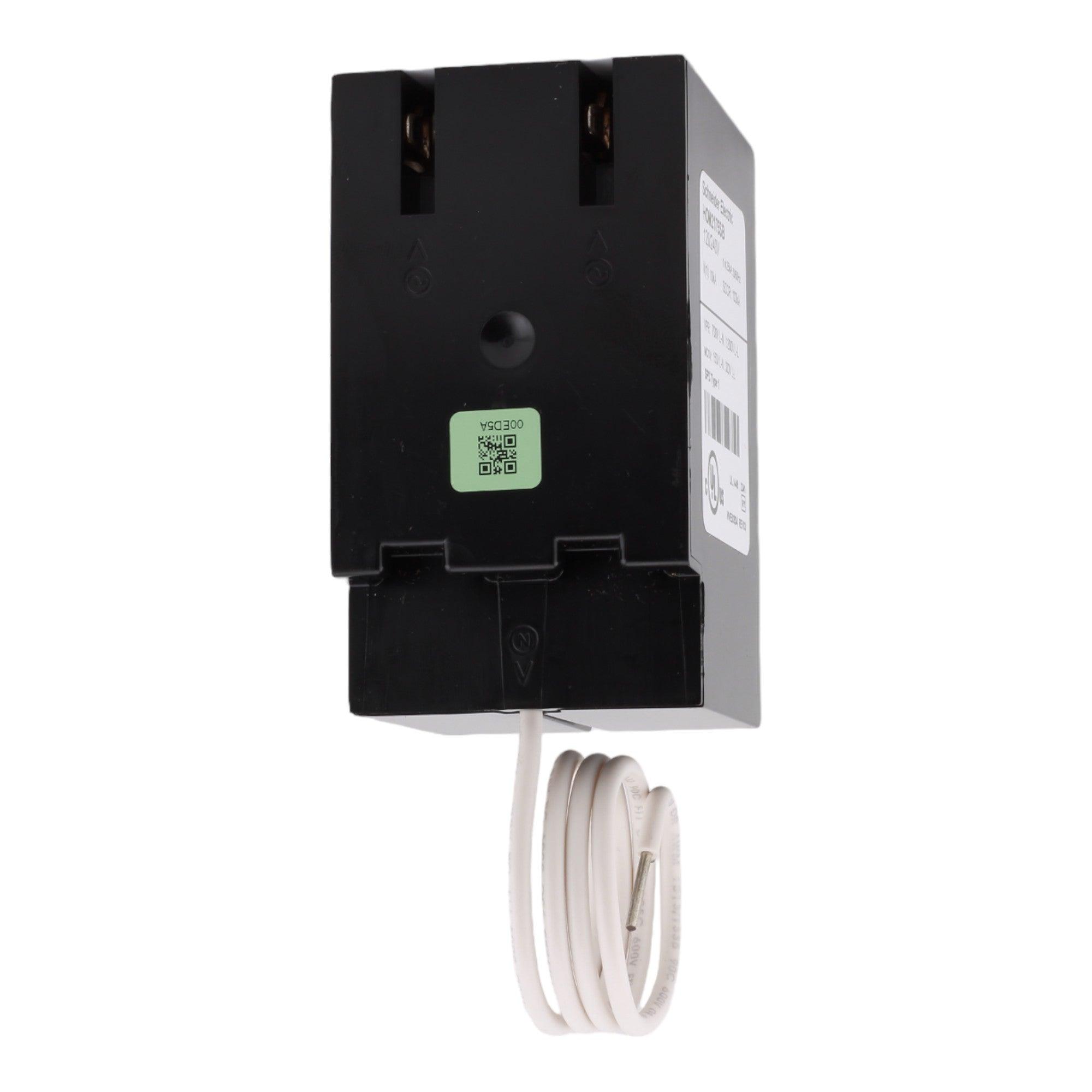

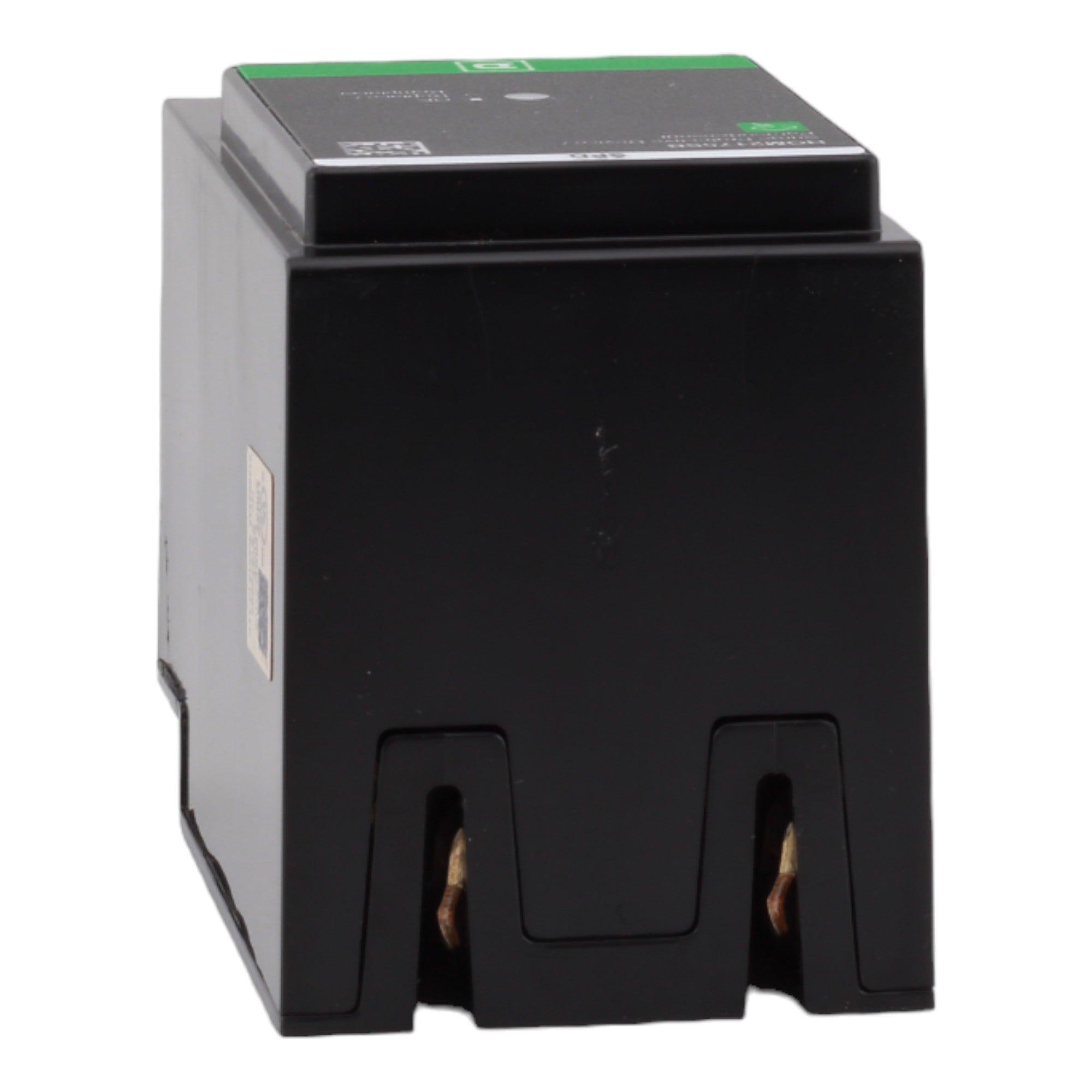

Square D HOM2175SB, 25kA, 120/240V, Type 1, Whole House Surge Protection Device, Plug-In, for Homeline Load Centers

Essential Product Info

■ Brand: Square D
■ Manufacturer: Schneider Electric
■ Model Number: HOM2175SB
■ UPC Number: 785901210900

■ Type: Surge Protection Device (SPD), Type 1, Whole House Surge Protector
■ Surge Current Rating: 25kA
■ Voltage Rating: 120/240 Volts AC (120/240V)

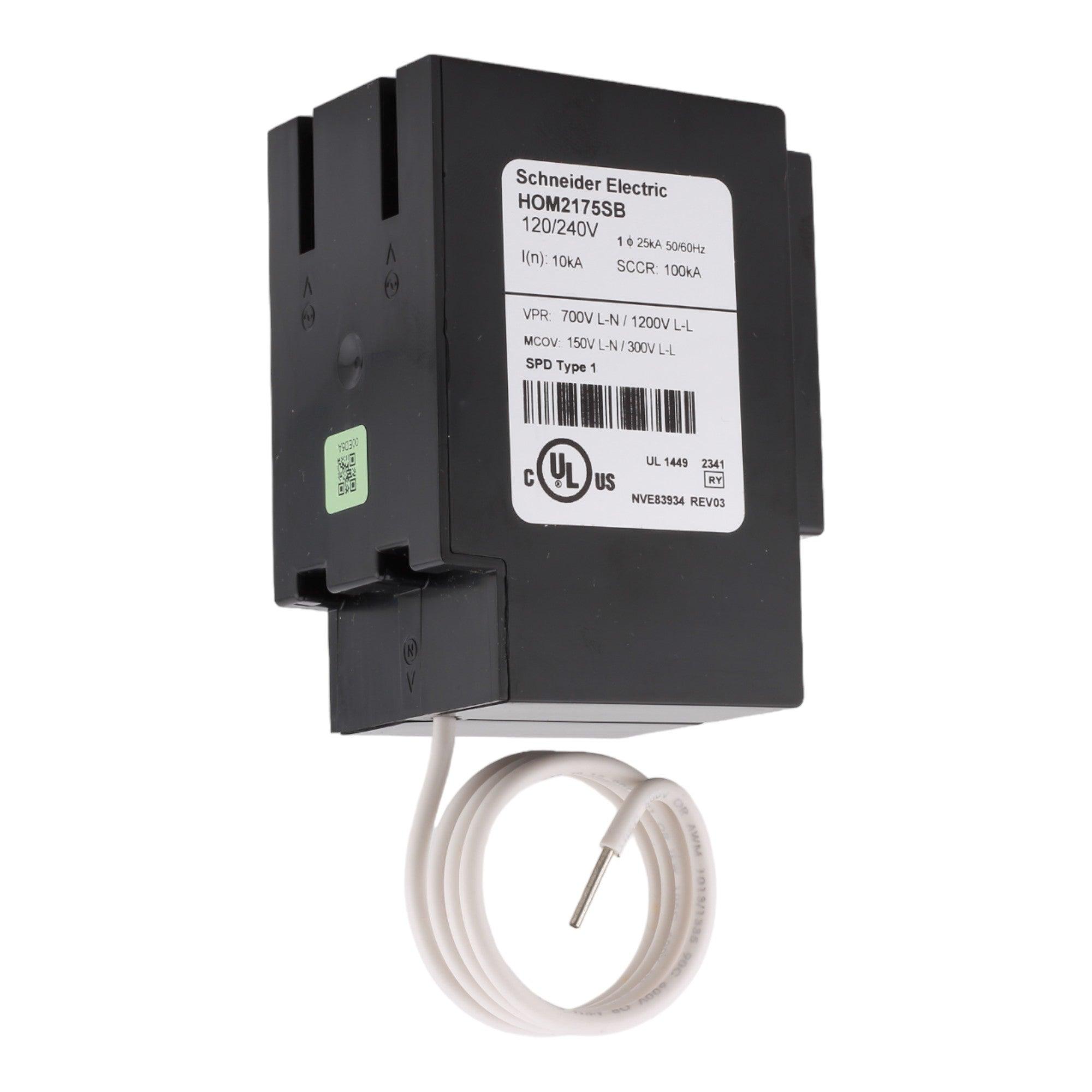

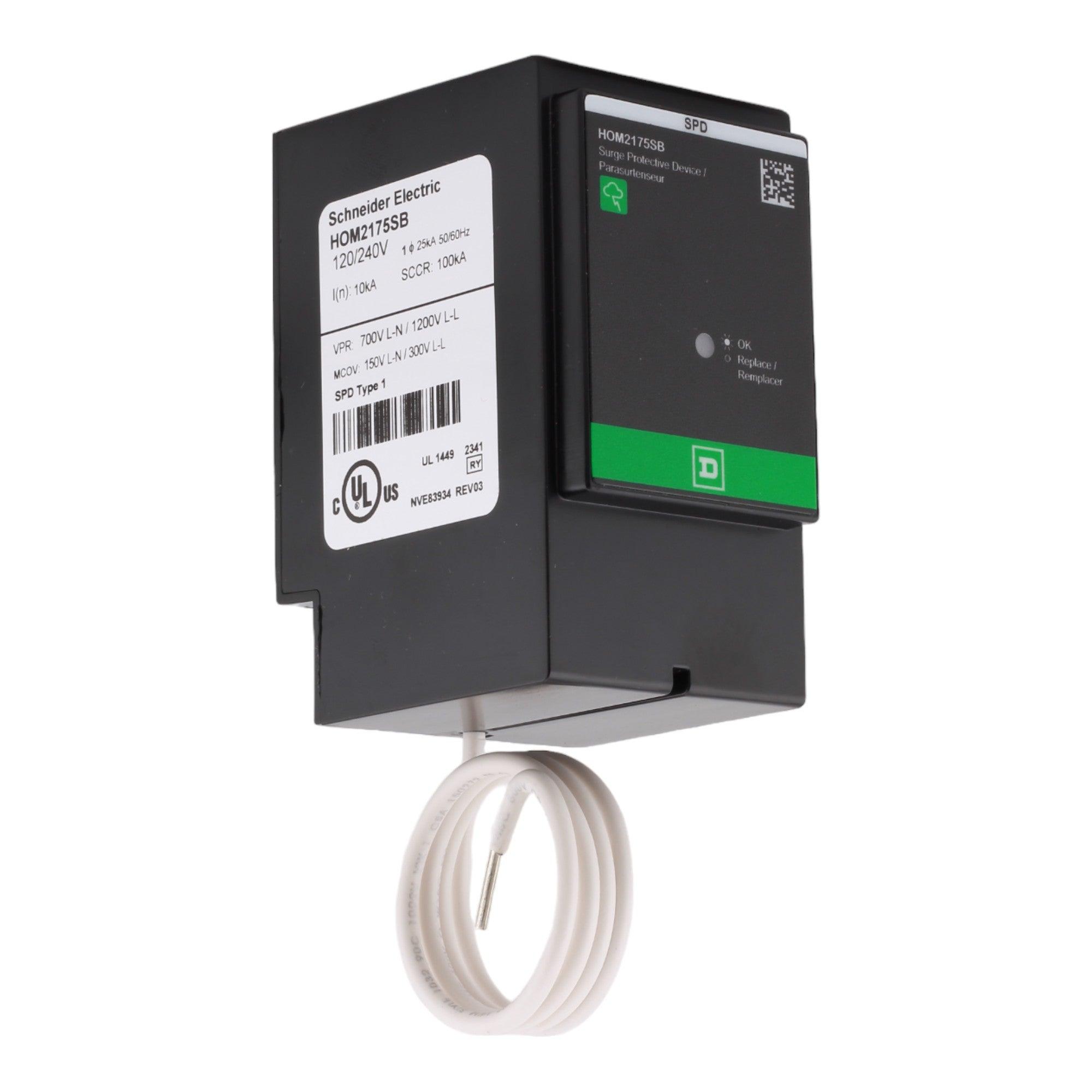

■ Maximum Continuous Operating Voltage (MCOV): 150V (L-N), 300V (L-L)
■ Mounting Type: Plug-In
■ Number of Phases: 1-Phase
■ Wiring Configuration: 3-Wire (L1, L2, Neutral)
■ Short Circuit Current Rating (SCCR): 25,000 Amps (25kA)
■ Rated Current: 10,000 Amps (10kA)

■ Compatibility: Homeline Load Centers, CSEDs
■ Electrical Connection: Direct Bus Bar Connection

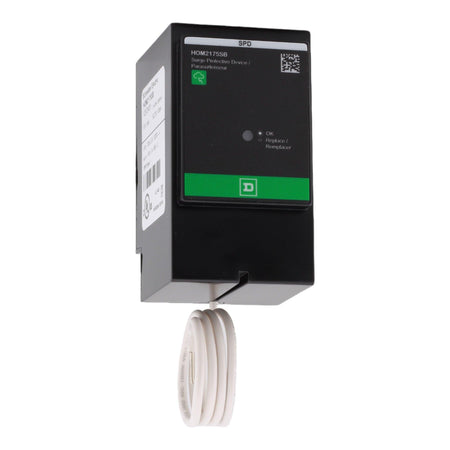

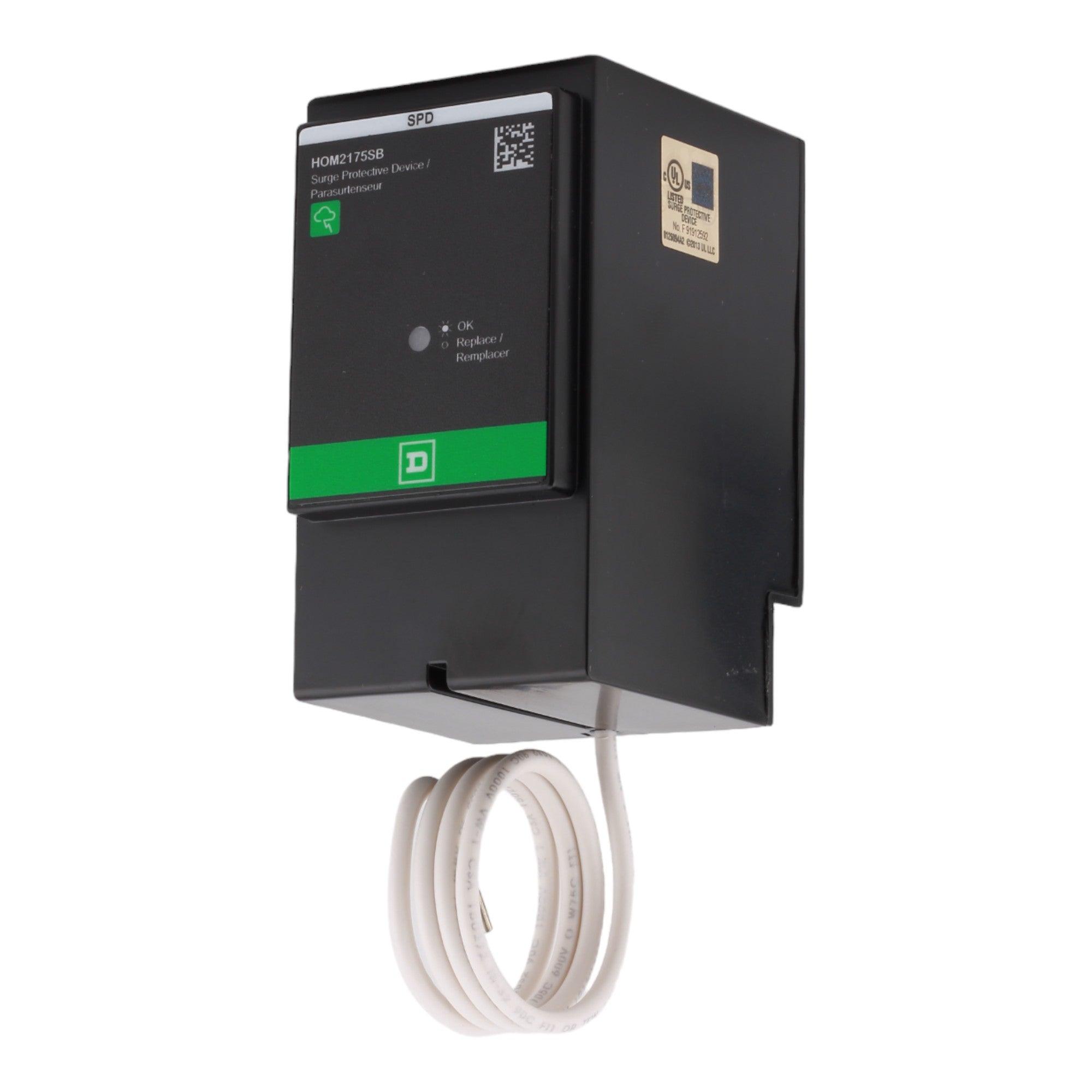

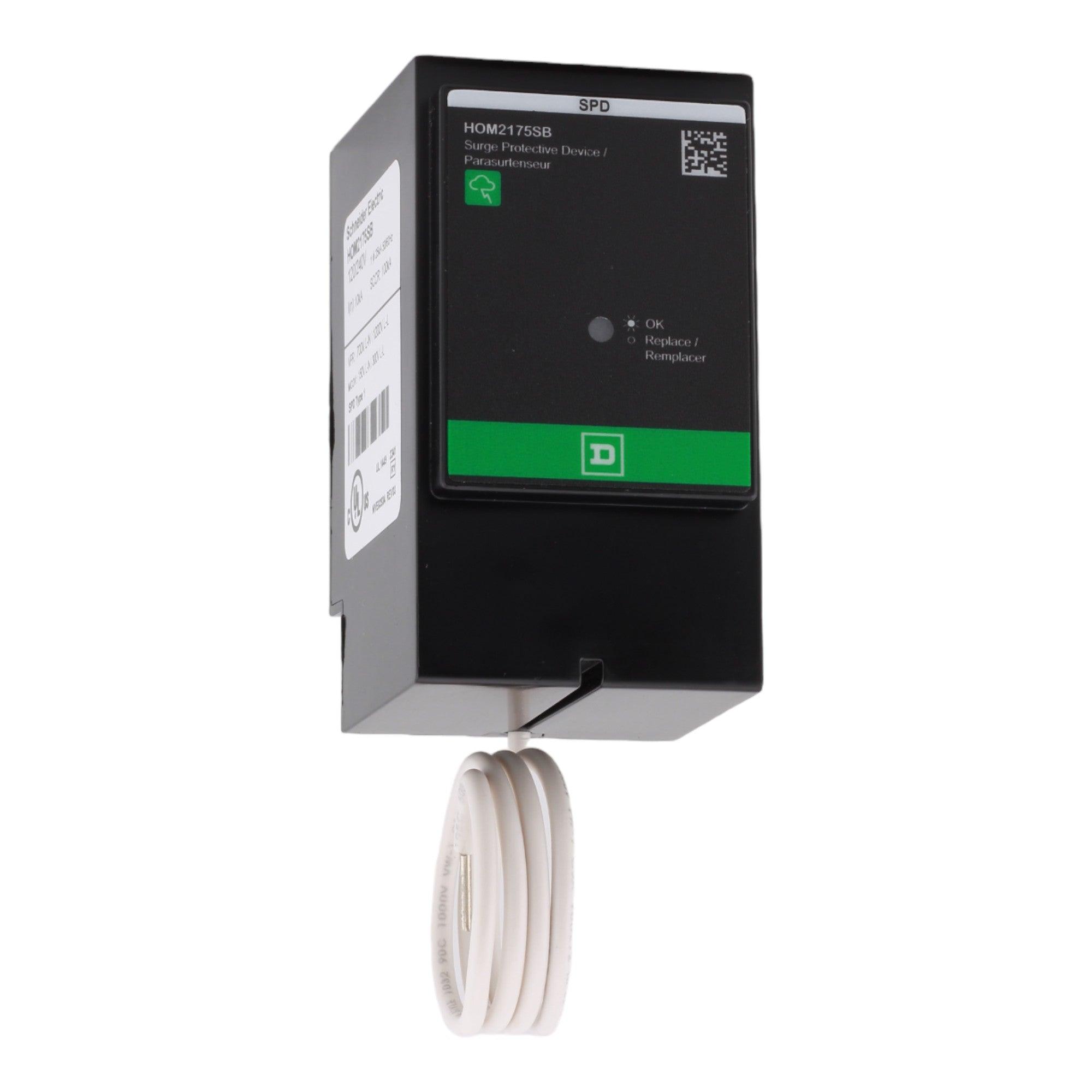

■ Local Signaling: Green LED Indicator for Normal Operation
■ Enclosure Rating: NEMA 1 (Indoor Use)
■ Dimensions (H × W × D): 3.7 × 2.00 × 2.60 inches
■ Weight: 0.38 pounds (lbs)

■ Certifications: UL Listed, Type 1 SPD
■ Safety Compliance: UL1449 4th Edition

Key Features and Benefits

✔ Whole House Surge Protection: Provides secondary surge suppression to protect major household appliances from damaging power surges.

✔ 25kA Surge Current Capacity: Offers robust surge defense for home electrical systems, reducing the risk of equipment failure and costly repairs.

✔ Plug-On Installation: Quick and easy mounting into Homeline Load Centers, eliminating the need for complex wiring.

✔ Direct Bus Bar Connection: Short lead length enhances surge suppression response time, ensuring maximum efficiency.

✔ Green LED Indicator: Built-in status light shows normal operation at a glance, providing clear and immediate monitoring.

✔ UL Listed Type 1 Protection: Meets UL1449 4th Edition safety standards, ensuring compliance for residential applications.

✔ Space-Saving Design: Compact and efficient, requiring only two pole spaces in a Homeline load center.

Applications

✔ Residential Whole-Home Surge Protection: Safeguards major appliances from voltage spikes caused by lightning strikes, power grid disturbances, and electrical surges.

✔ Compatible with Homeline Panels: Specifically designed for Schneider Electric’s Homeline Load Centers and CSEDs for seamless integration.

✔ Ideal for High-Risk Areas: Recommended for homes in regions prone to lightning storms and power fluctuations.

✔ Essential for Modern Homes: Protects HVAC systems, refrigerators, dishwashers, and electrical panels from damaging surges.

Why Choose Schneider Electric?

Schneider Electric’s Square D brand is a leader in power protection and energy management. The HOM2175SB offers advanced surge suppression, UL-certified safety, and easy installation, making it a top choice for homeowners looking to safeguard their electrical systems.

🔹 Upgrade your home's surge protection with the Square D HOM2175SB today! 🔹
