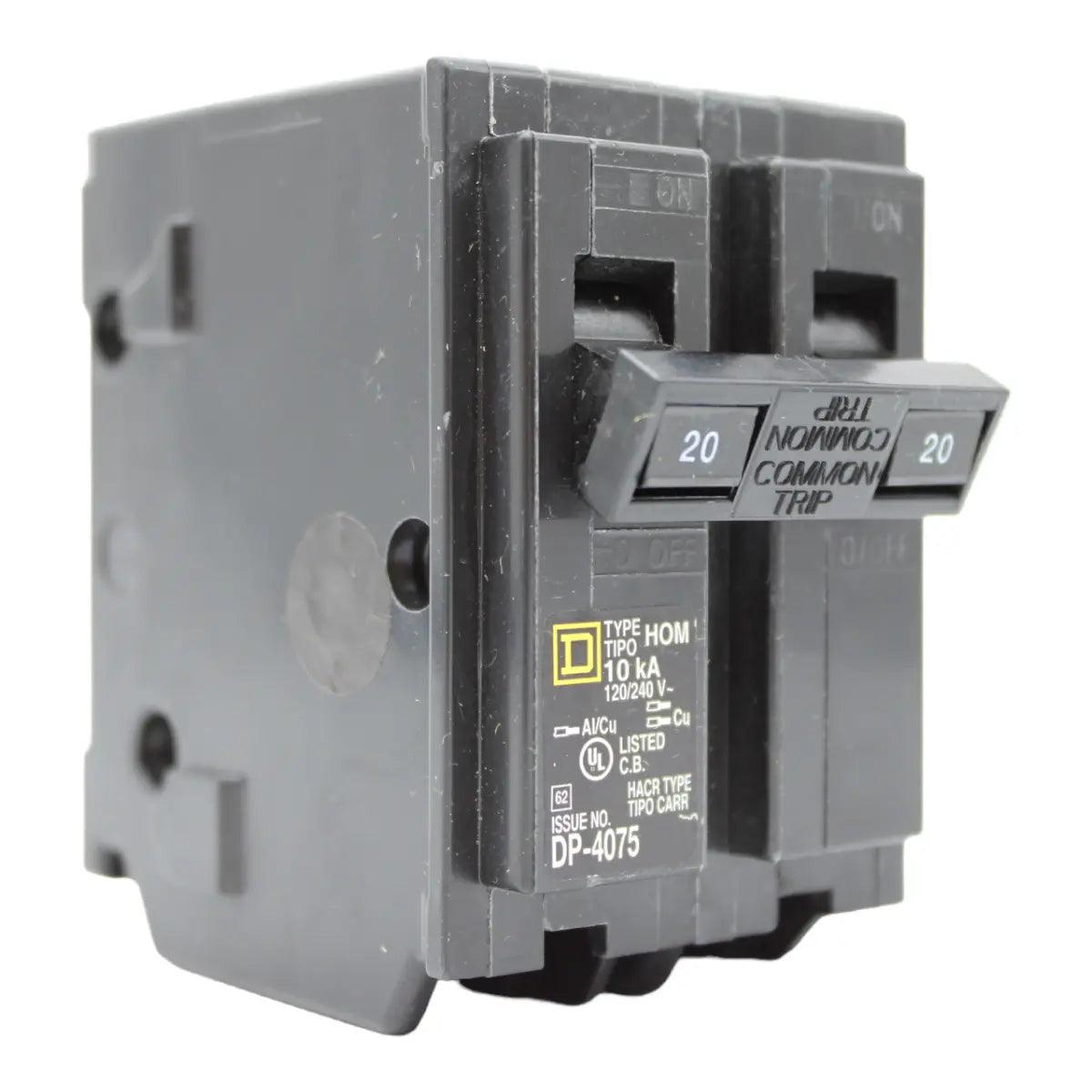

Square D HOM220, 20A, 120/240V, 2-Pole, 10kA, Standard Circuit Breaker, Plug-In, for Homeline Load Centers

HOM220 specifications

■ Brand: Square D
■ Manufacturer: Schneider Electric
■ Model Number: HOM220
■ UPC Number: 785901065289

■ Type: Miniature Circuit Breaker (MCB), Standard Circuit Breaker
■ Current Rating: 20 Amps (20A)
■ Voltage Rating: 120/240 Volts AC (120/240V)
■ Mounting Type: Plug-In
■ Number of Poles: 2 Poles (2P)
■ Short Circuit Current Rating (SCCR): 10,000 Amps (10kA AIR)
■ Circuit Breaker Type: Standard Breaker
■ Ground Fault Protection: Not Applicable

■ Compatibility: Homeline Load Centers, Subpanels

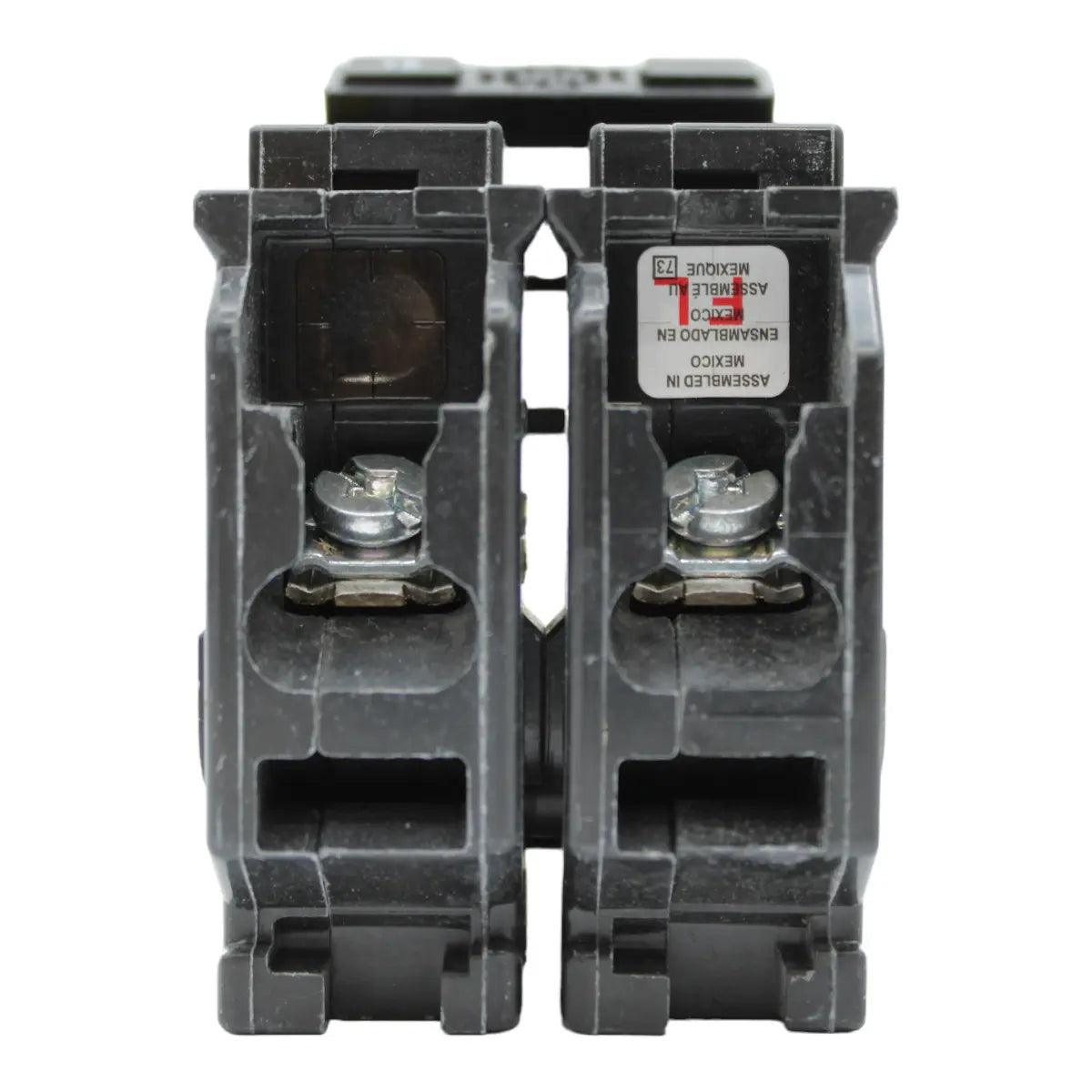

■ Electrical Connection: Clamp Terminal for 2 Wires
■ Wire Size Range:

• 1 × AWG 14 - AWG 8 (Copper/Aluminum)
• 2 × AWG 14 - AWG 10 (Copper)
  ■ Terminal Type: Standard
  ■ Tightening Torque: 35.4 lbf.in (4.0 N.m)
  ■ Dimensions (H × W × D): 3.13 × 2.00 × 2.98 inches
  ■ Weight: 0.65 pounds (lbs)

■ Certifications: UL Listed, HACR Rated
■ Safety Compliance: UL 489, NEC Compliant

Key Features and Benefits

✔ Reliable Circuit Protection: Provides overload and short-circuit protection, ensuring electrical safety in homes and businesses.

✔ Compact and Space-Saving Design: Standard 1-inch width per pole for efficient panel space usage.

✔ Plug-In Mounting for Quick Installation: Designed for fast and secure installation in Homeline Load Centers and Subpanels.

✔ 10,000 Amps (10kA AIR) Interrupting Rating: Ensures high-performance short-circuit protection.

✔ Clamp Terminal for 2 Wires: Allows multiple conductor connections, offering more wiring flexibility.

✔ UL Listed & NEC Compliant: Meets safety standards, ensuring code compliance and reliable operation.

Applications

✔ Residential Circuit Protection: Ideal for lighting, appliances, and other household electrical loads.

✔ Commercial Installations: Suitable for offices, retail spaces, and small businesses requiring reliable power distribution.

✔ Load Centers & Subpanels: Specifically designed for Homeline Load Centers and CSEDs, providing seamless circuit integration.

Why Choose Schneider Electric?

Schneider Electric’s Square D brand is a trusted leader in electrical protection and energy management. The HOM220 standard circuit breaker ensures fast installation, reliable circuit protection, and NEC compliance, making it a top choice for homeowners and professionals.

🔹 Upgrade your panel with the Square D HOM220 today! 🔹
