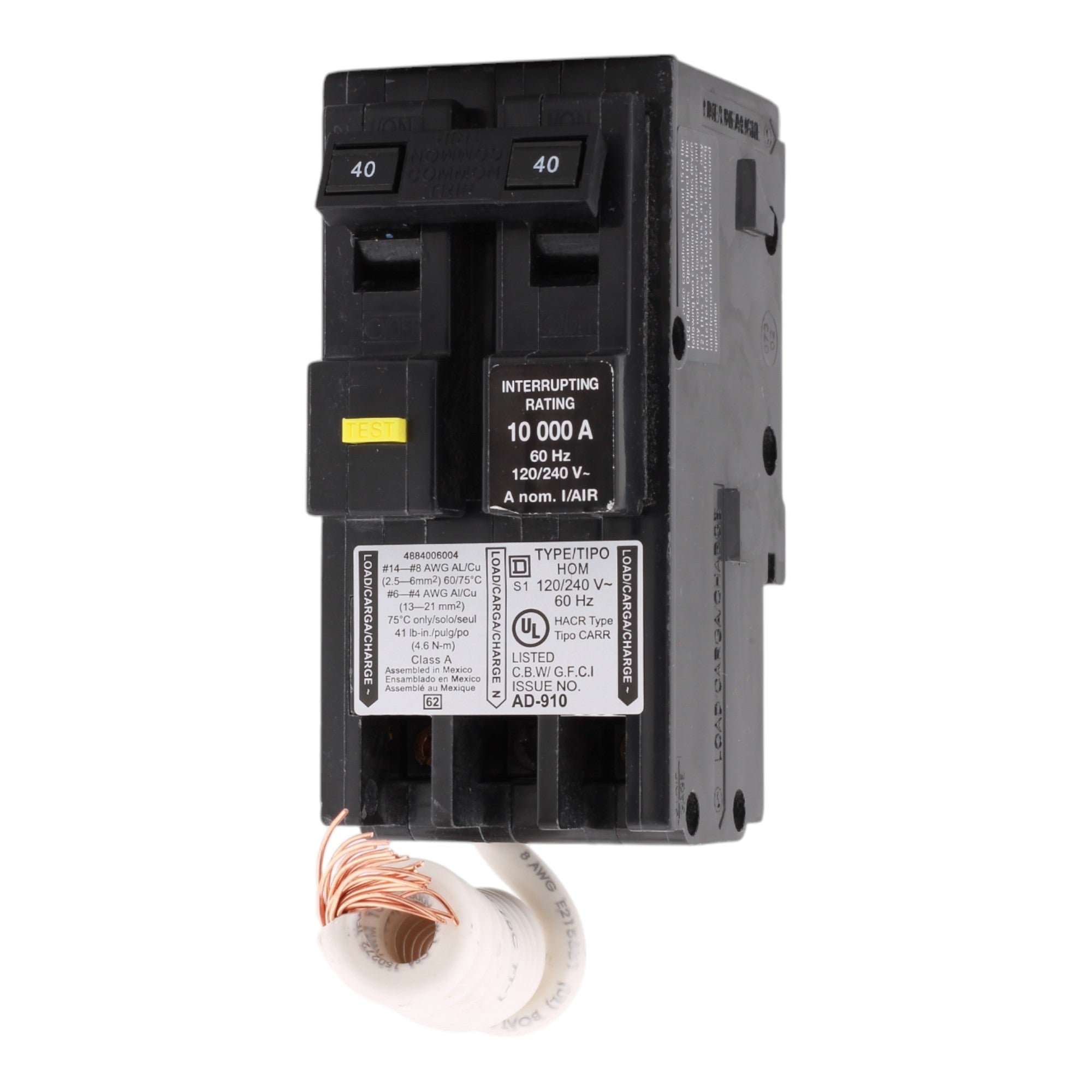

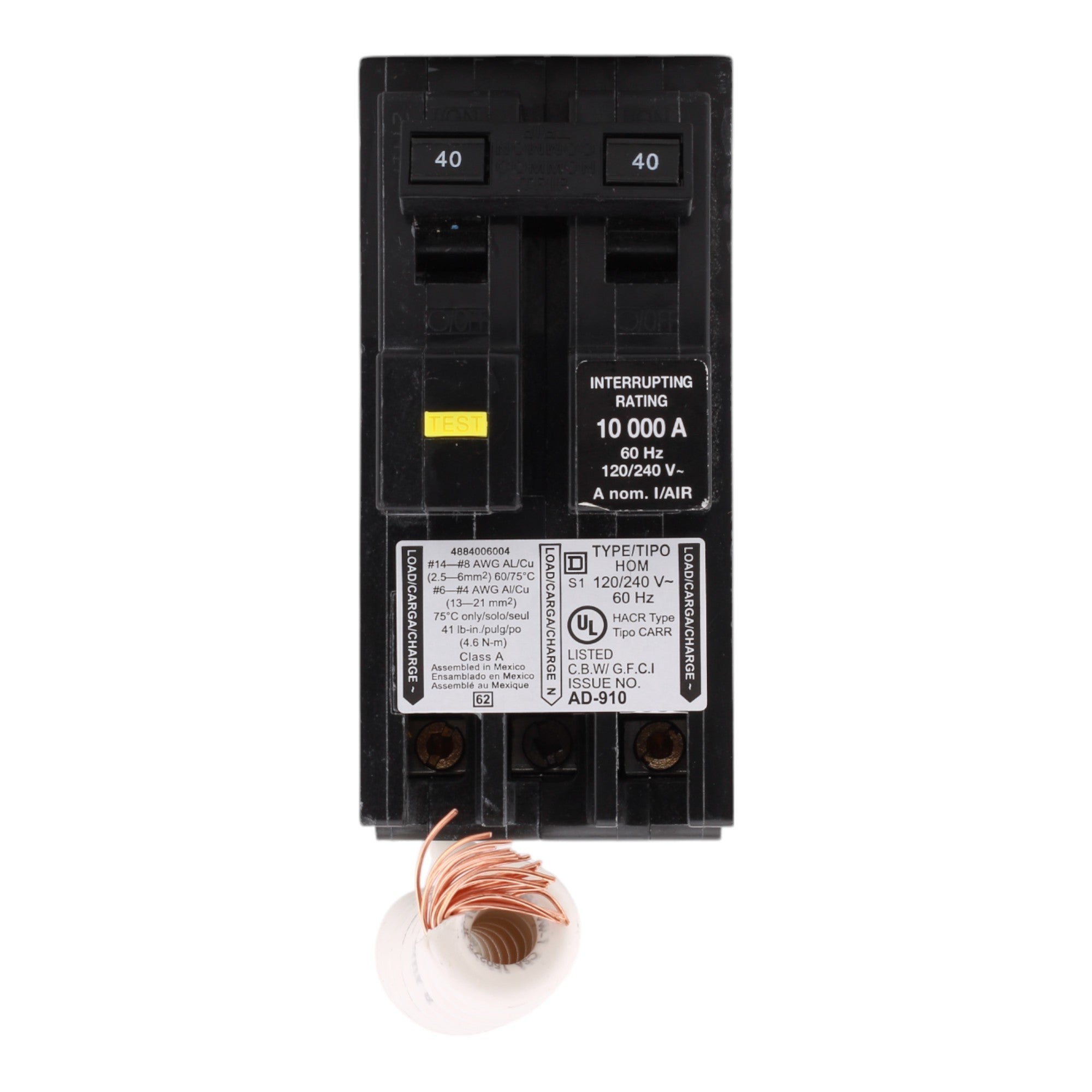

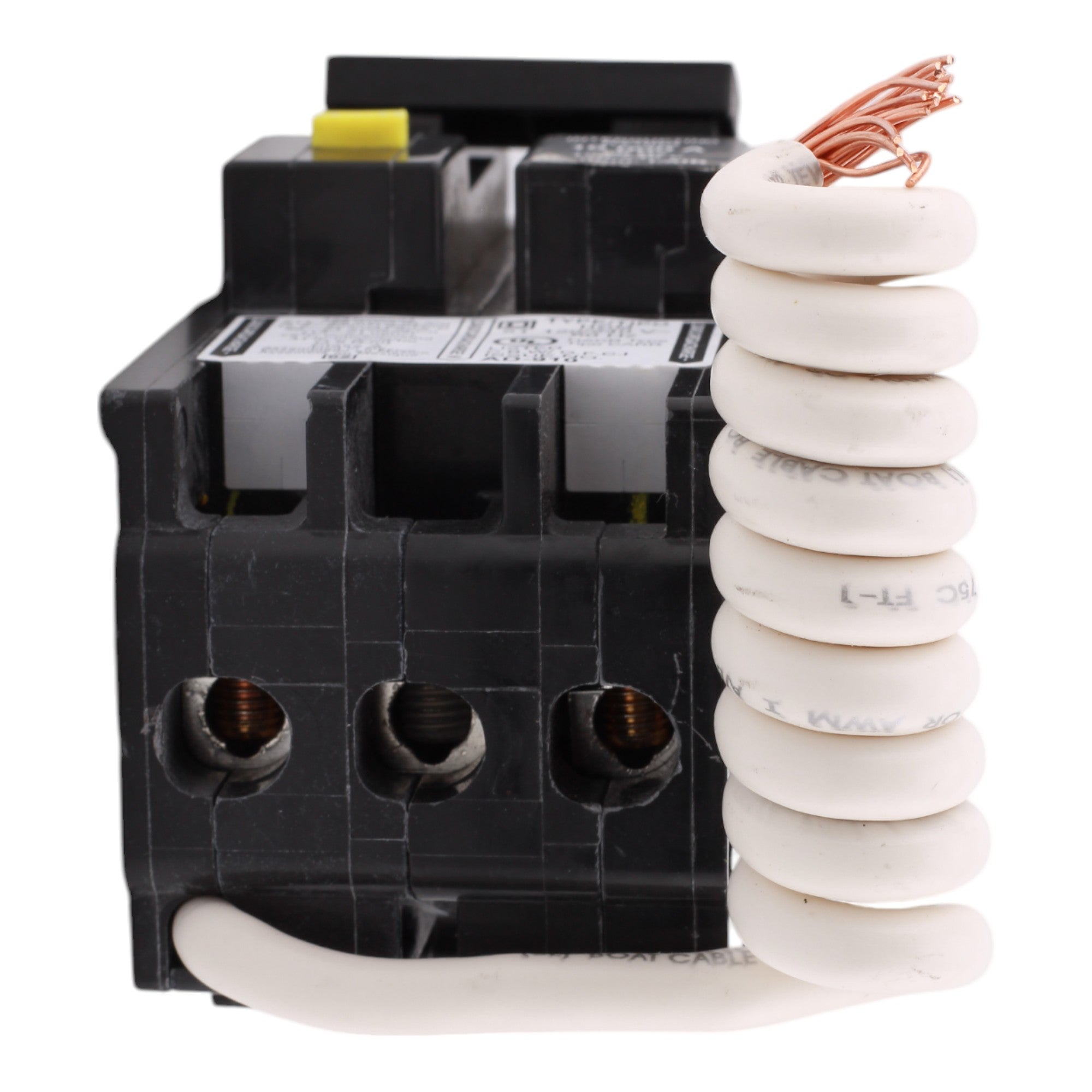

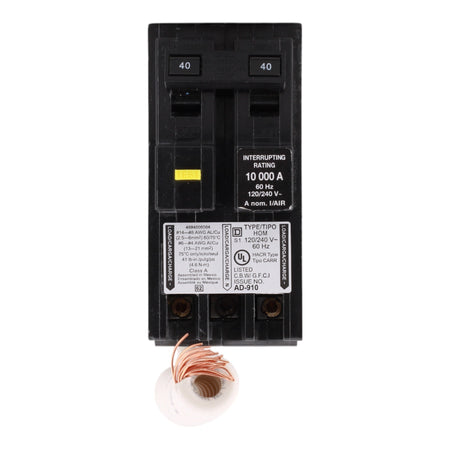

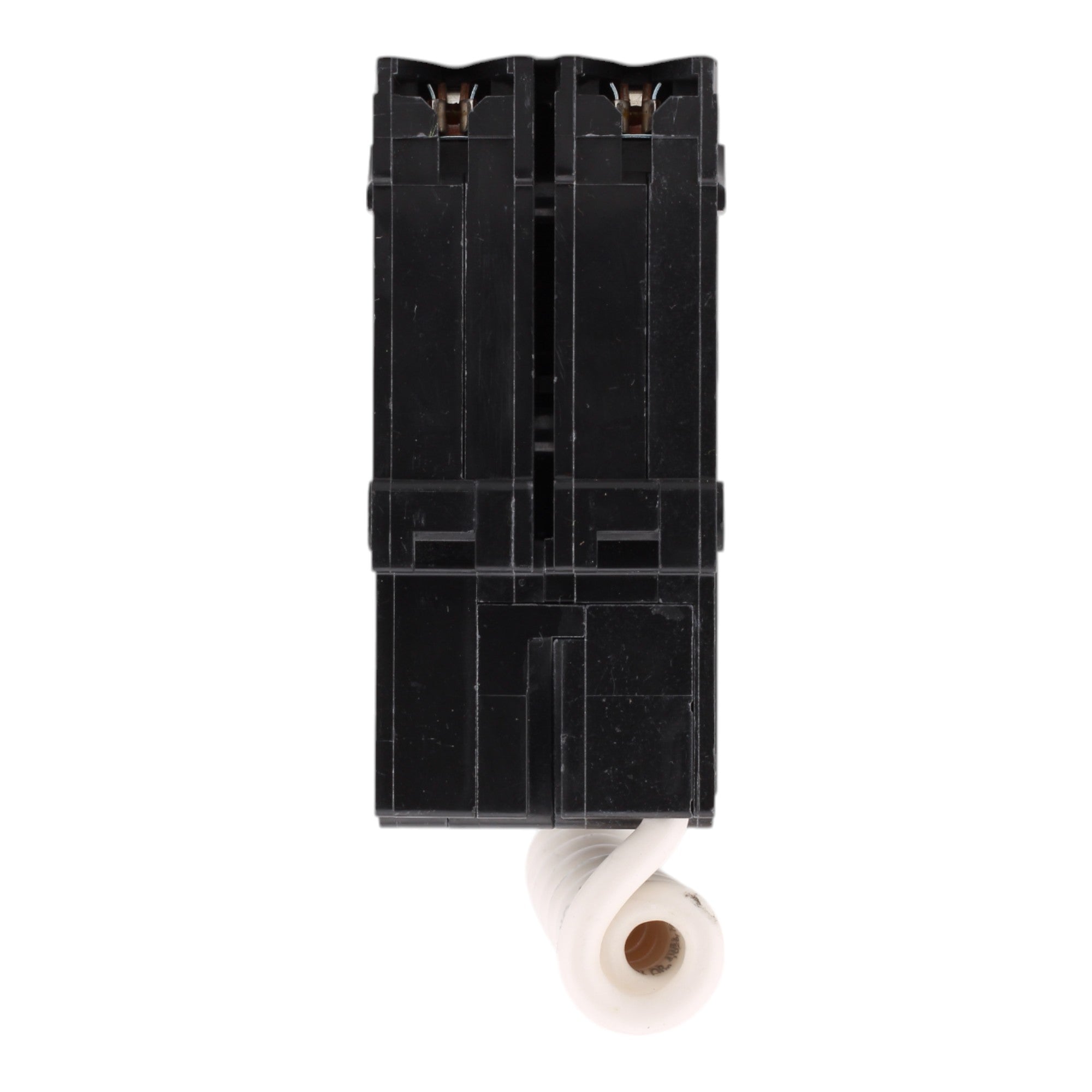

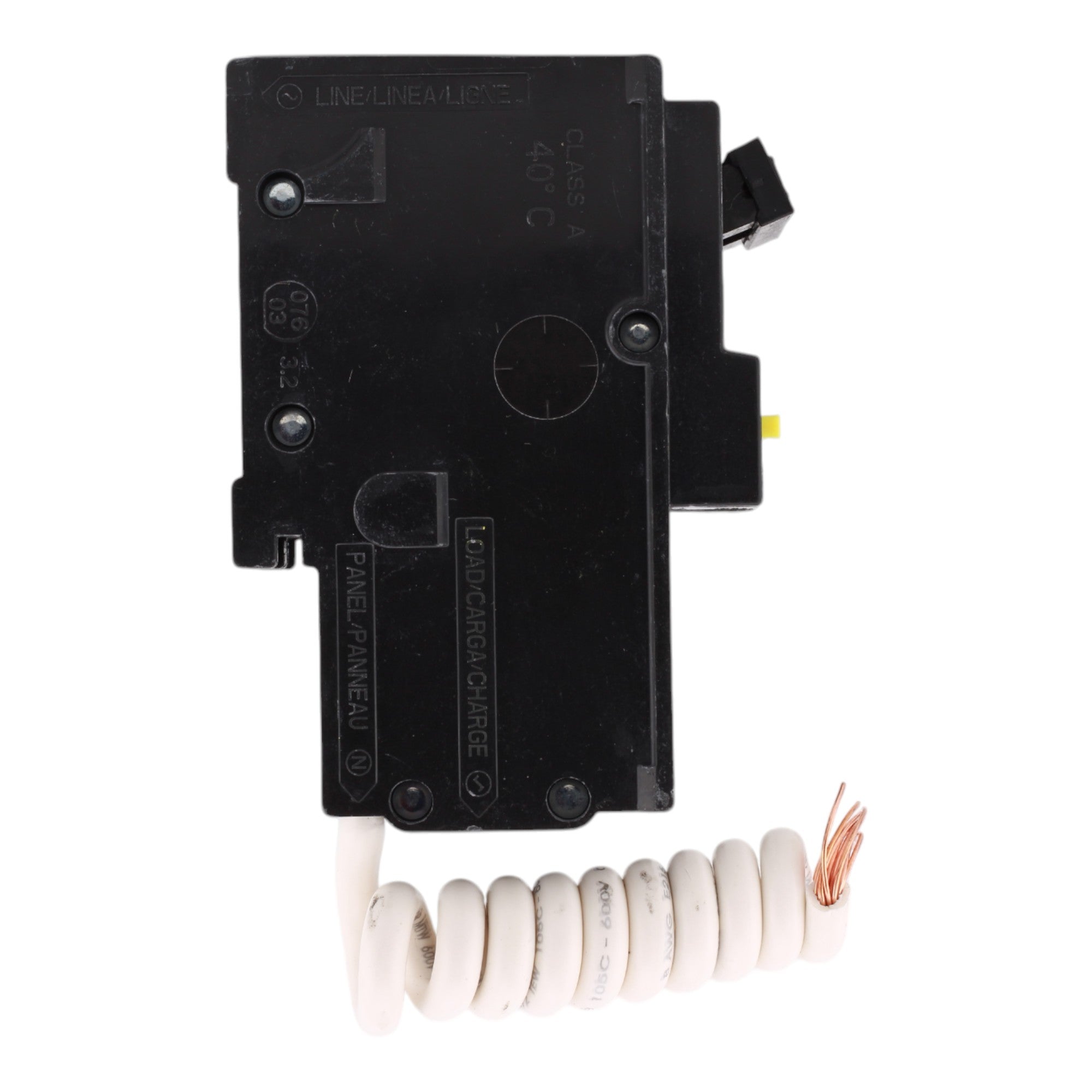

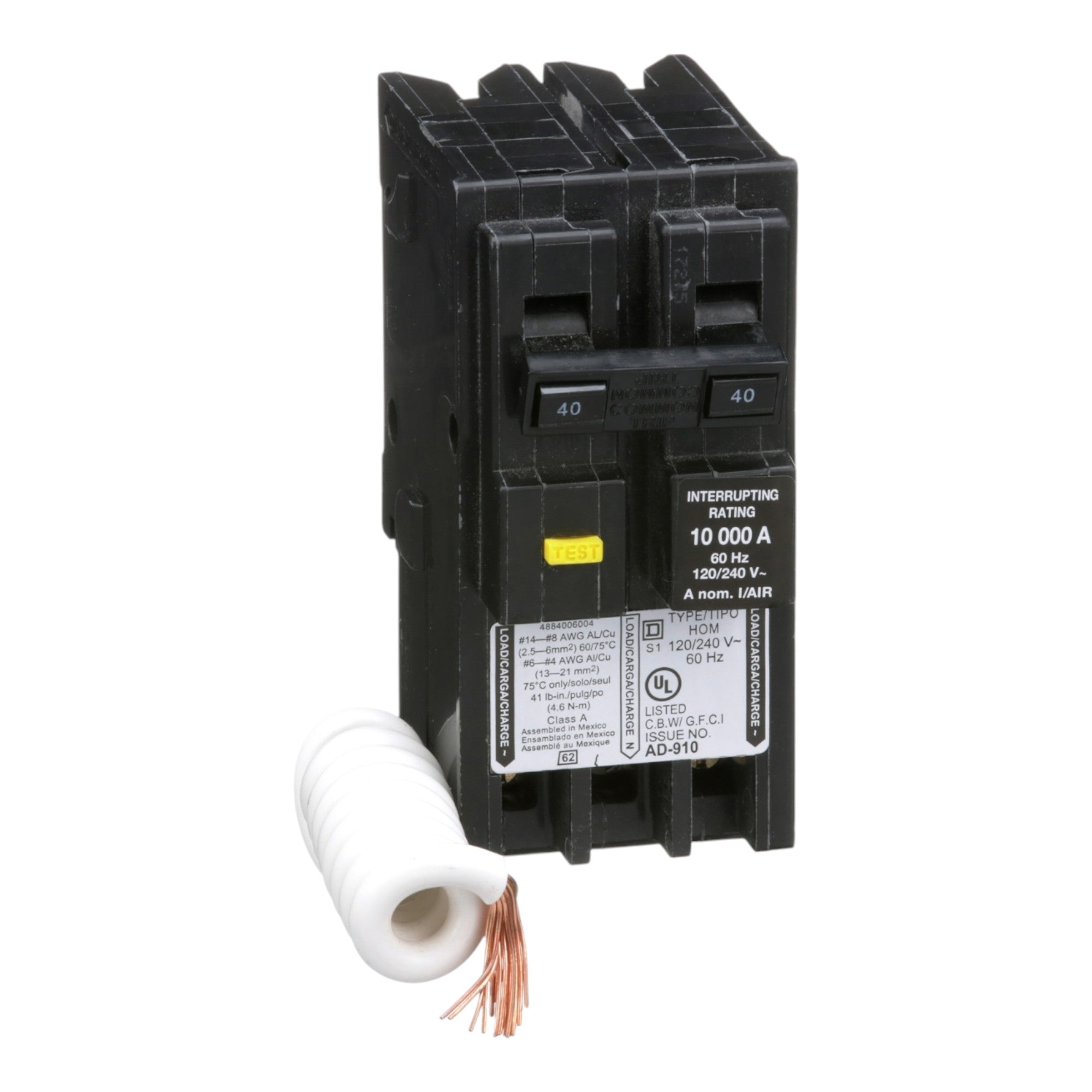

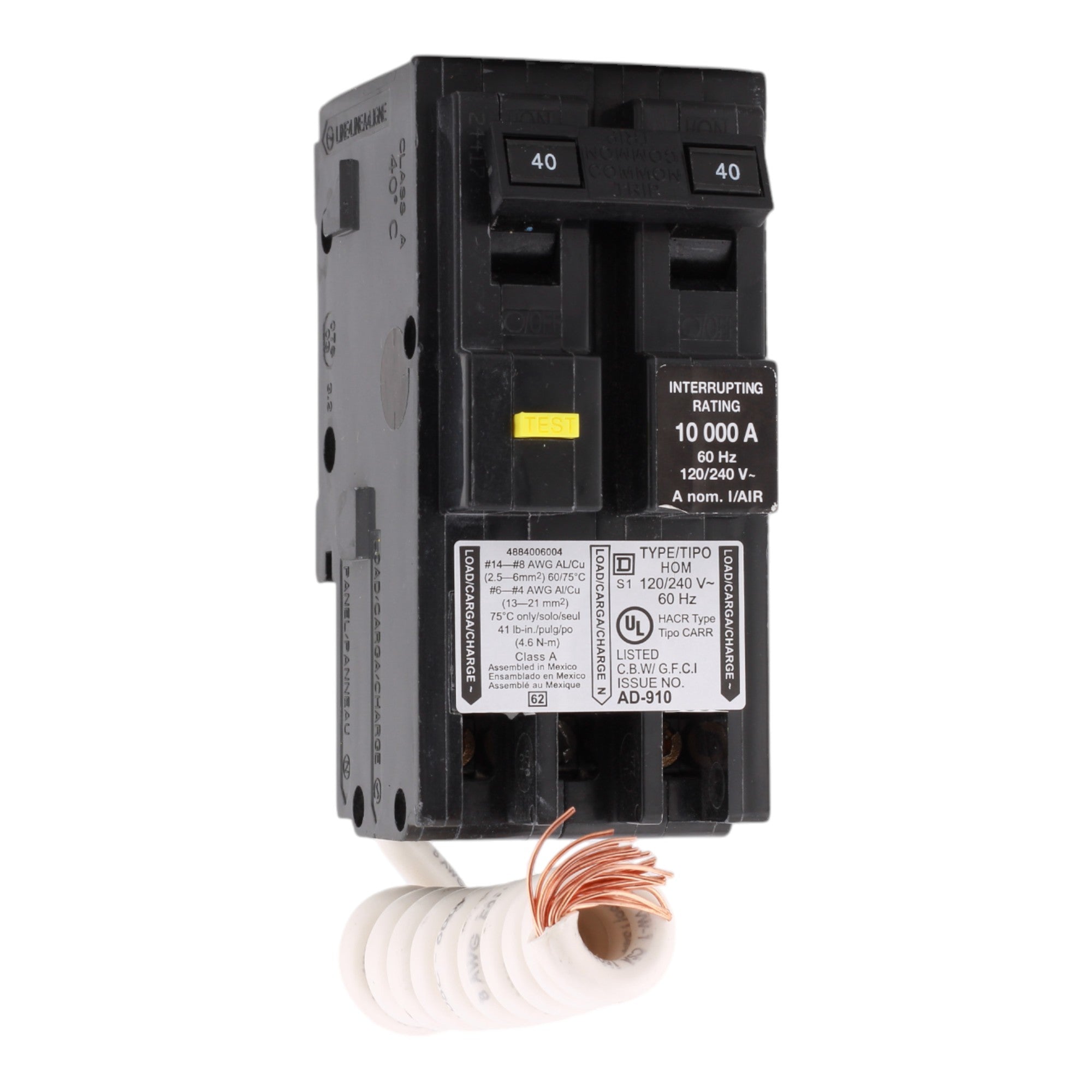

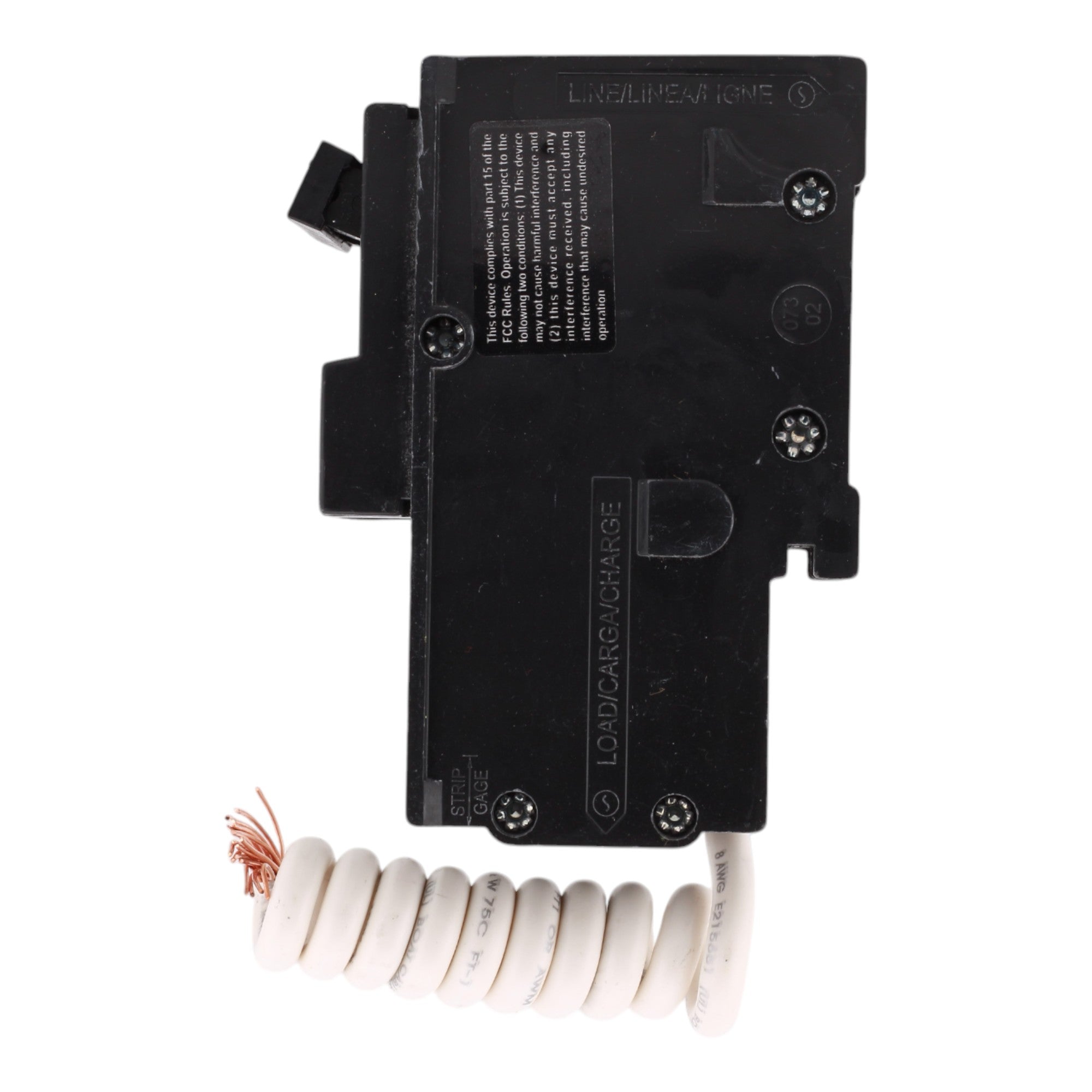

Square D Homeline HOM240GFI 40A 2P 120/240V GFCI Circuit Breaker

HOM240GFI specifications

Square D HOM240GFI: 40A 2P GFCI breaker, 120/240V, 10kA SCCR, Class A ground fault protection (6mA), plug-in mount for Homeline panels, UL listed, HACR rated.

• Manufacturer: Schneider Electric
• Brand: Square D
• UPC: 785901303466
• Model Number: HOM240GFI
• Product Type: Miniature Circuit Breaker
• Product Range: Homeline
• Current Rating: 40A
• Voltage Rating: 120/240V AC
• Number of Poles: 2-Pole
• Circuit Breaker Type: Ground Fault Class A (6mA)
• Short Circuit Current Rating: 10 kA
• Number of Spaces: 2
• Mounting Type: Plug-in
• Certifications: UL Listed
• Ratings: HACR Rated
• Electrical Connection: Screw Clamp Terminals
• Wire Size Compatibility: Aluminum: AWG 12 to AWG 4; Copper: AWG 14 to AWG 6
• Tightening Torque: 40.7 lbf.in (4.6 N.m) for AWG 16 to AWG 14 and AWG 12 to AWG 4
• Ambient Operating Temperature: 104°F (40°C)
• RoHS Compliance: Compliant with Exemptions
• Halogen Content: Halogen Free
• Dimensions: Height: 3.13 in; Width: 2 in; Depth: 2.98 in
• Weight: 1.22 lb
