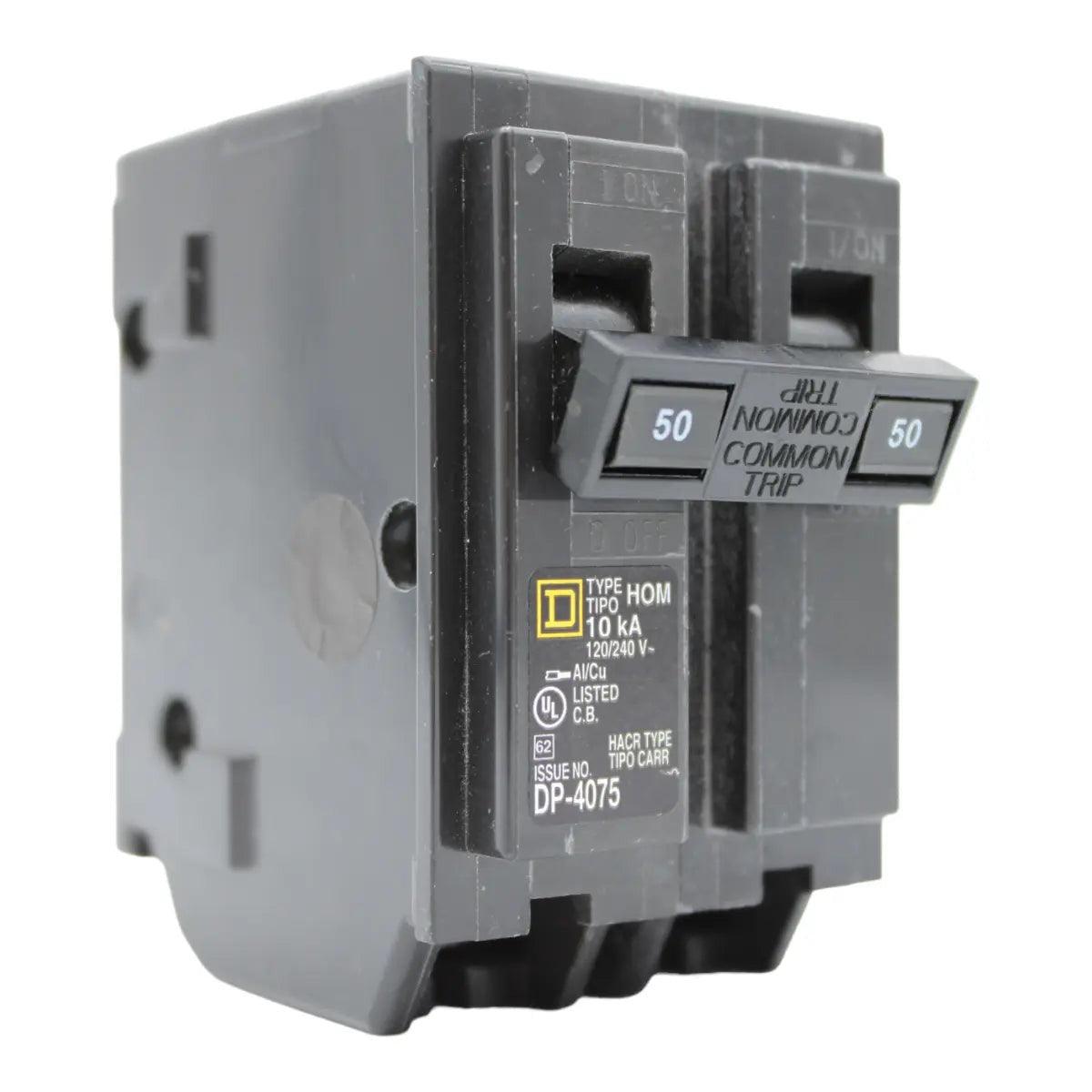

Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker

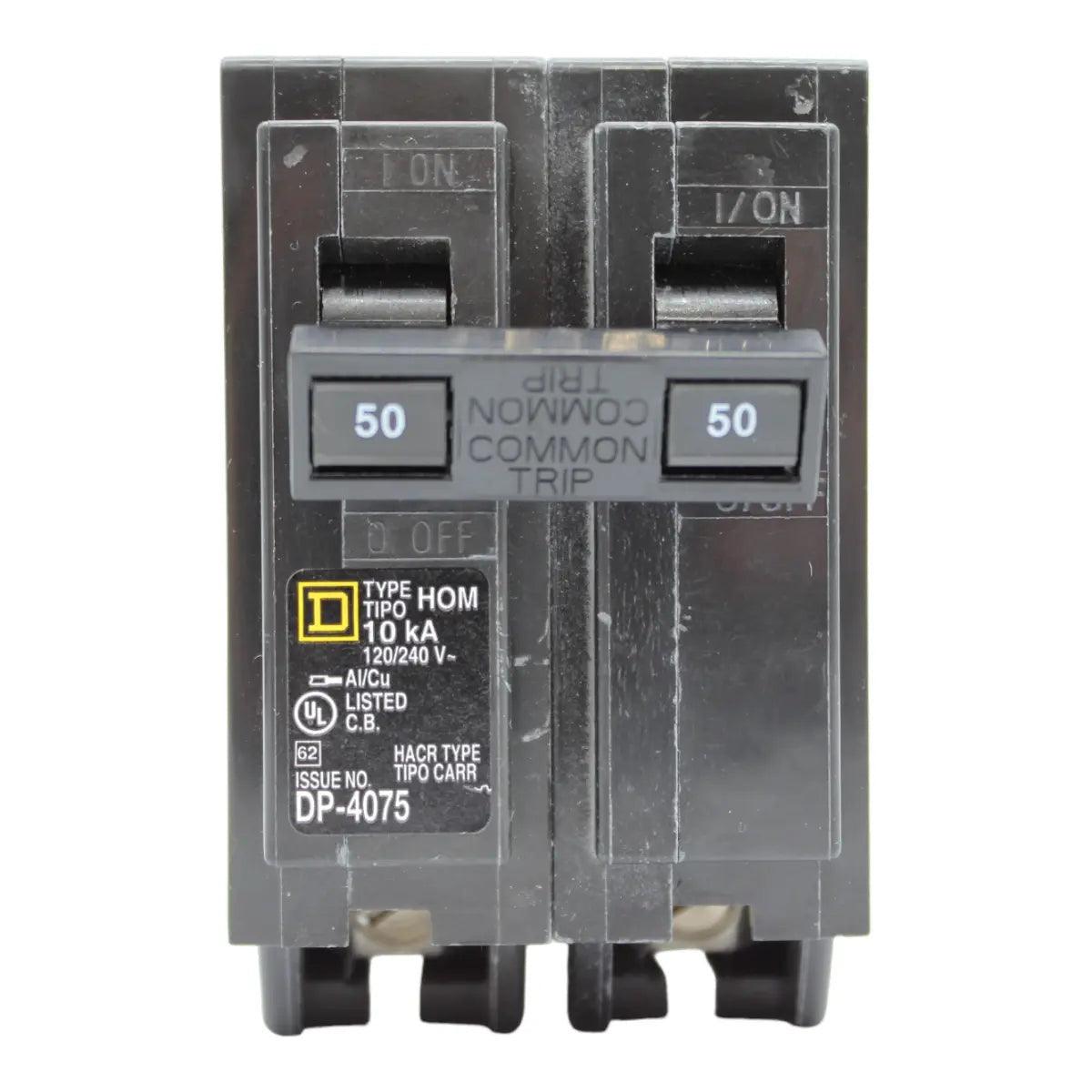

Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 2

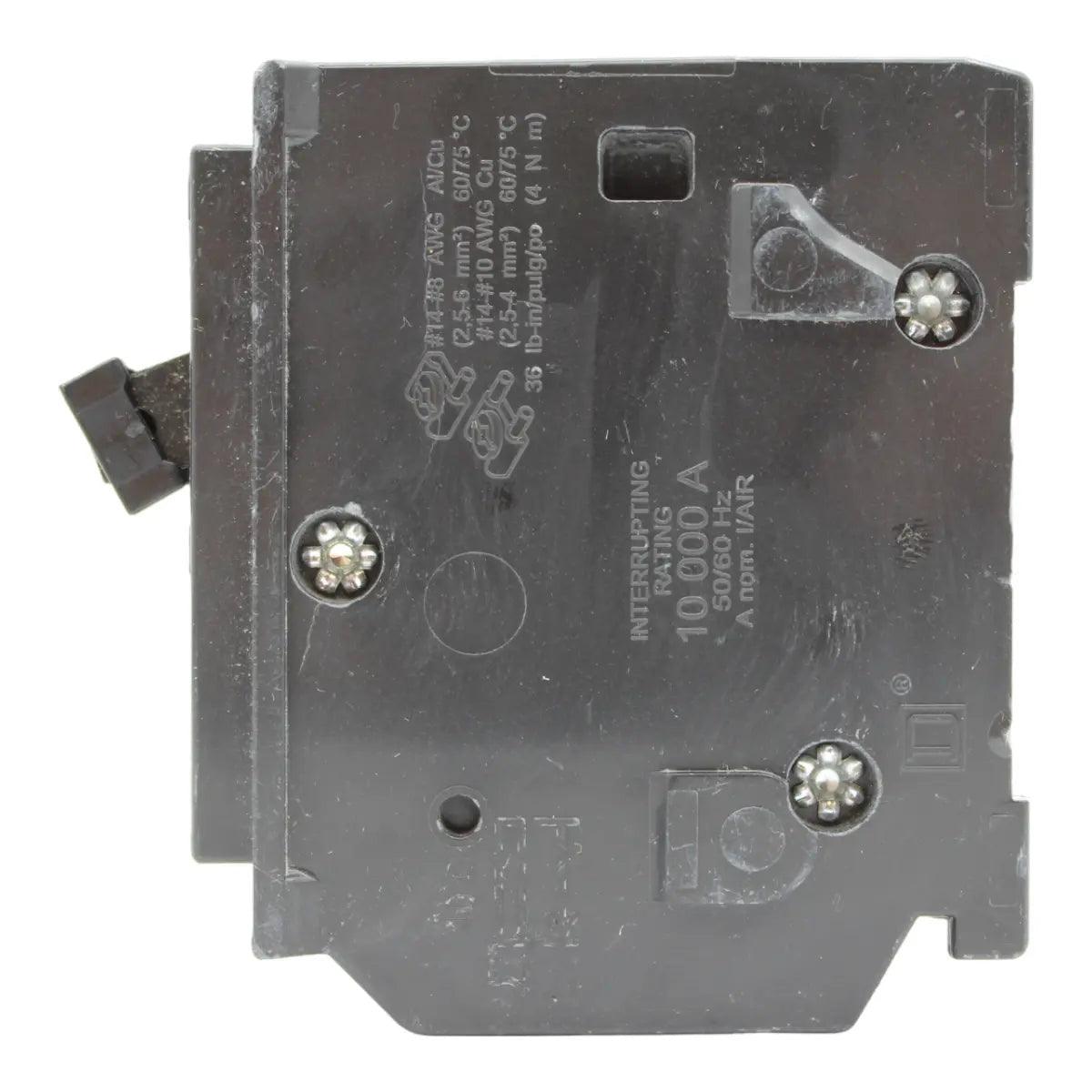

Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 3

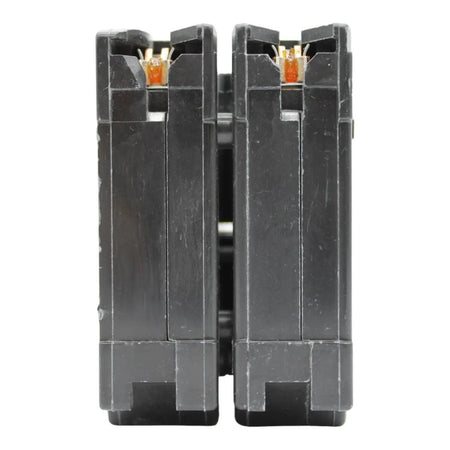

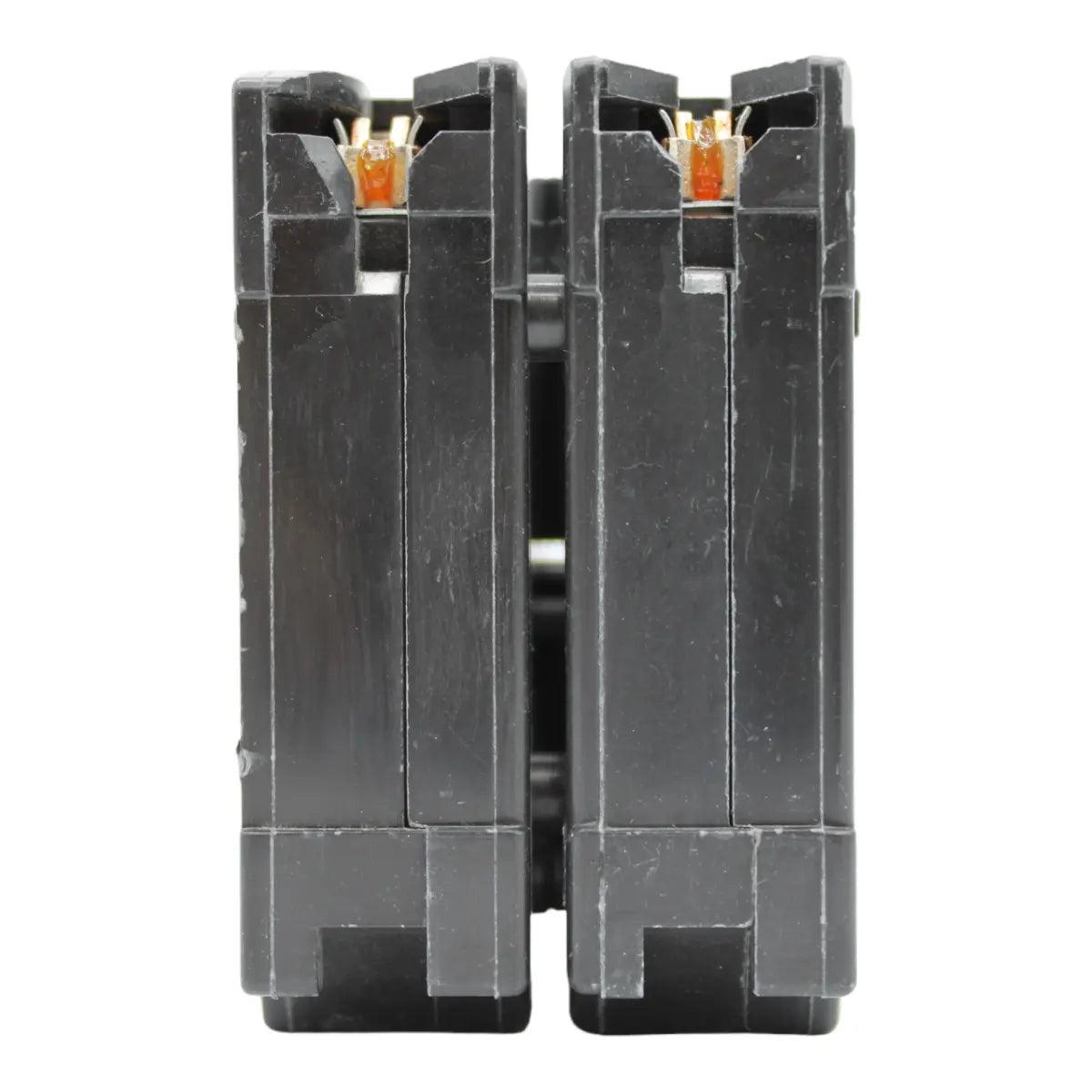

Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 4

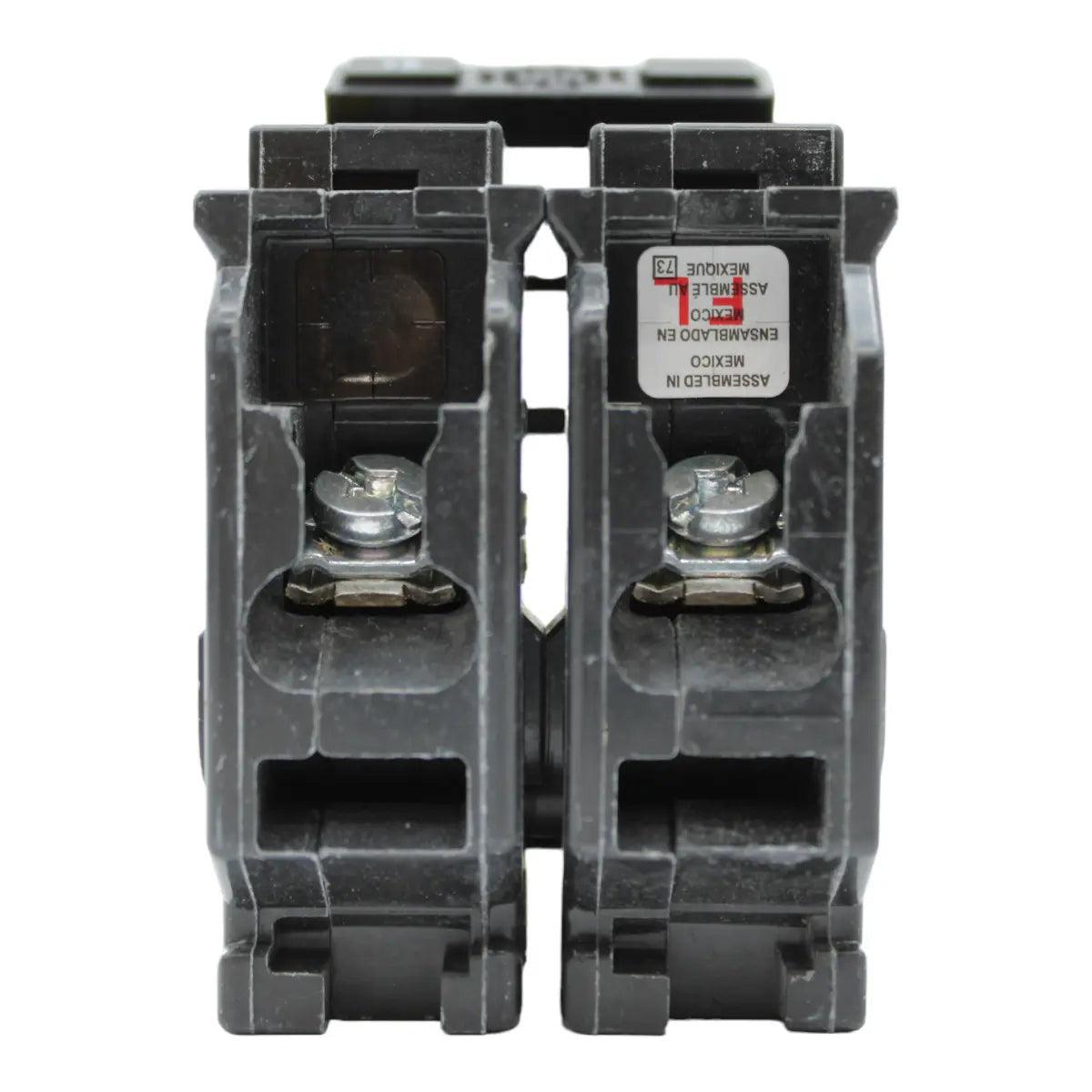

Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 5
Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker
Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 2
Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 3
Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 4
Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker - Image 5

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D Homeline HOM250 50A 2P 120/240V Standard Plug-In Circuit Breaker

In stock
SKU: HOM250 UPC: 785901065326
(0)
$16.95
-23% $22.00 $16.95
In stock
Usually ships within 24 hours
Condition

HOM250 application snapshot: Square D HOM250 is a common-trip, two-pole breaker for 50-amp loads in listed Homeline equipment. It is a straightforward thermal-magnetic model for 120/240-volt systems, without added arc-fault or ground-fault electronics.

HOM250 specifications

  • Series and model: Homeline HOM250
  • Current and poles: 50A, 2-pole
  • System voltage: 120/240VAC
  • Short-circuit rating: 10kA AIR
  • Mounting: Plug-in, with box-lug load terminals

Standard breaker versus specialty protection

The shared handle opens both poles together for a line-to-line load. HOM250 supplies overcurrent protection only; choose a specifically listed GFCI, AFCI, or dual-function model when the circuit requires one of those functions.

Compatibility checkpoint

Match the HOM250 catalog number and Homeline breaker type to the exact panel directory. A Square D QO breaker is a different family even though the brand is the same. Verify conductor size, terminal torque, load requirements, and system fault-current limits, then have a qualified installer make and inspect the connections.
