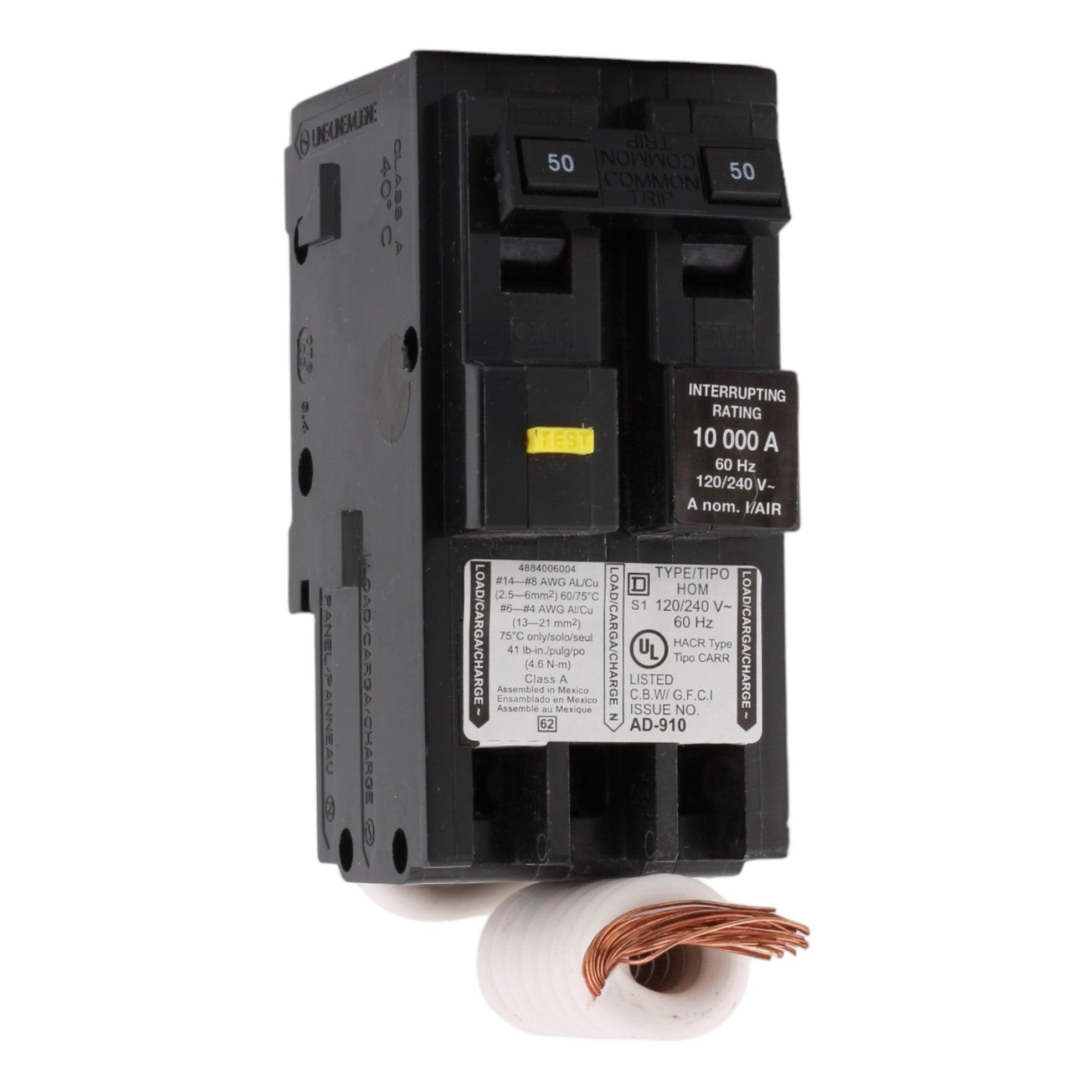

Square D Homeline HOM250GFI 50A 2P 120/240V GFCI Circuit Breaker

Square D HOM250GFI: 50A 2P GFCI breaker, 120/240V, 10kA SCCR, Class A ground fault protection (6mA), plug-in mount for Homeline panels, UL listed, HACR rated.

Product Specifications:

• Manufacturer: Schneider Electric
• Brand: Square D
• UPC: 785901783572
• Model Number: HOM250GFI
• Range: Homeline
• Current Rating: 50 Amperes
• Voltage Rating: 120/240 VAC
• Number of Poles: 2-Pole
• Circuit Breaker Type: Ground Fault Class A (6mA trip threshold)
• Short Circuit Current Rating: 10kA
• Mounting Type: Plug-in
• Number of Spaces: 2
• Ratings: HACR Rated
• Electrical Connection: Screw clamp terminals
• Wire Compatibility: 14-6 AWG (copper), 12-4 AWG (aluminum)
• Tightening Torque: 40.7 lbf.in (4.6 N.m) for wire sizes AWG 16-14 and AWG 12-4
• Dimensions: Height: 3.13 in; Width: 2 in; Depth: 2.98 in
• Weight: 19.52 oz (1.22 lb)
• Operating Temperature: 104°F (40°C) maximum
• Certifications: UL Listed
