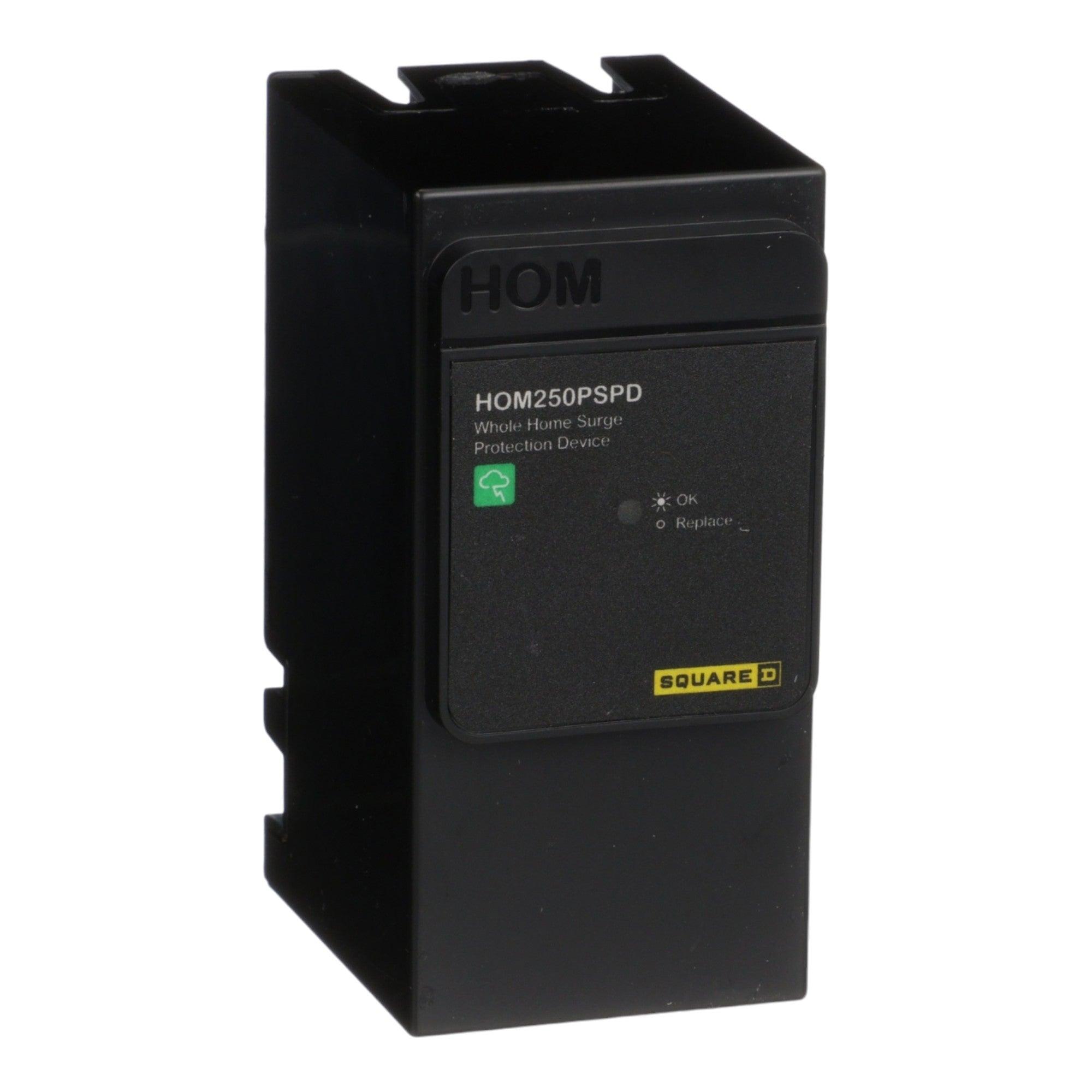

Square D HOM250PSPD, Surge Protection Device, Homeline, 50kA, 120/240V, 1 Phase, Plug-on Neutral
Square D HOM250PSPD, Surge Protection Device, Homeline, 50kA, 120/240V, 1 Phase, Plug-on Neutral

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D HOM250PSPD, Surge Protection Device, Homeline, 50kA, 120/240V, 1 Phase, Plug-on Neutral

Out of stock
SKU: HOM250PSPD UPC: 785901520290
(0)
$98.00
Out of stock
Condition

Square D HOM250PSPD, Surge Protection Device, Homeline, 50kA, 120/240V, 1 Phase, Plug-on Neutral

Specifications:

  • Manufacturer: Schneider Electric
  • Model Number: HOM250PSPD
  • Type: Surge Protection Device (SPD)
  • Range: Homeline
  • Surge Current Rating: 50 kA
  • Voltage Rating: 120/240 VAC
  • Number of Phases: 1 phase
  • Wiring Configuration: 3-wire
  • Connection: Plug-on Neutral
  • Maximum Continuous Operating Voltage (MCOV): 150 V
  • Nominal Discharge Current: 20 kA
  • Short Circuit Current Rating (SCCR): 22 kA
  • Dimensions (H x W x D): 3.98" x 1.97" x 2.60"
  • Net Weight: 1 lb
  • Certification: UL Listed, CSA Approved
  • UPC: 785901520290
