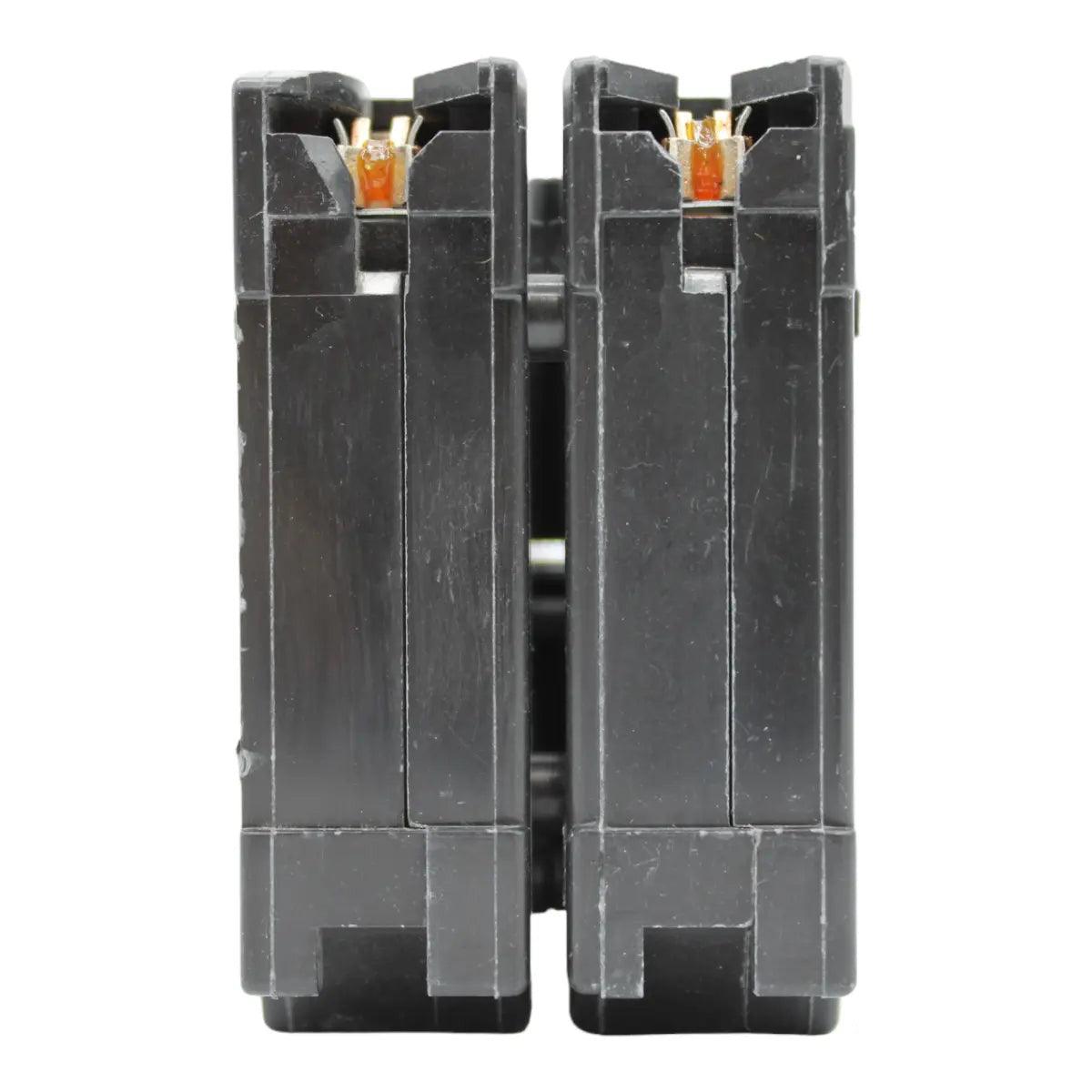

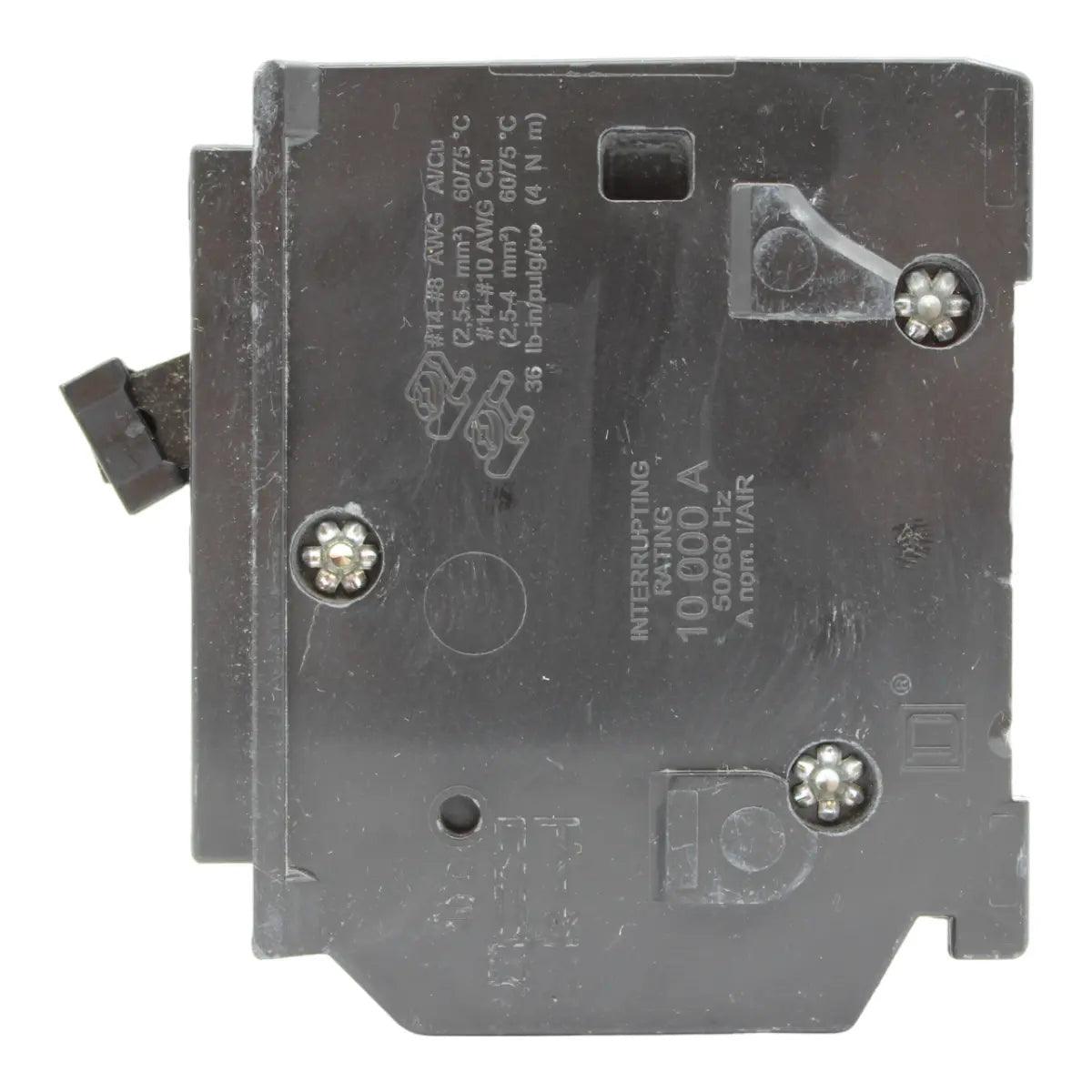

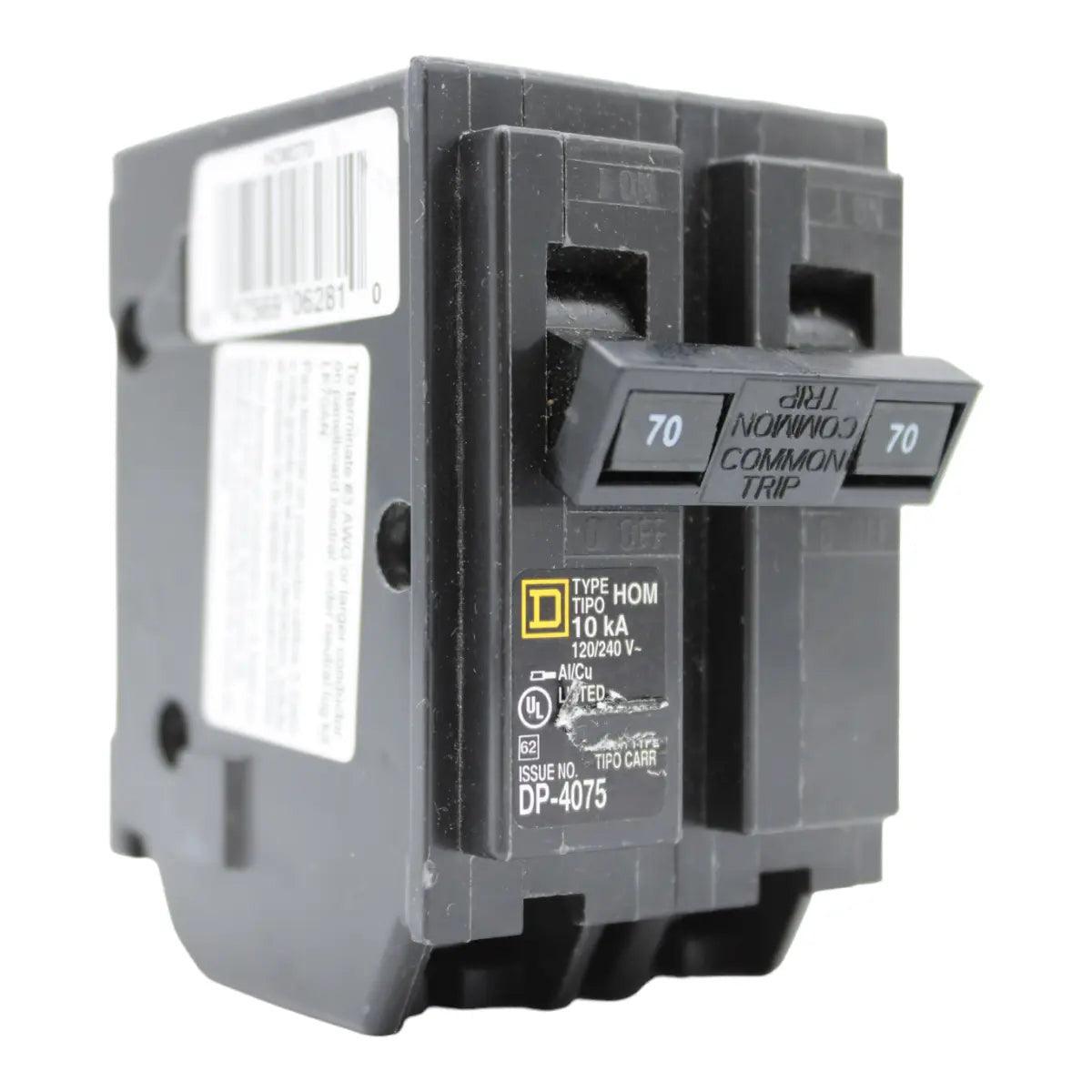

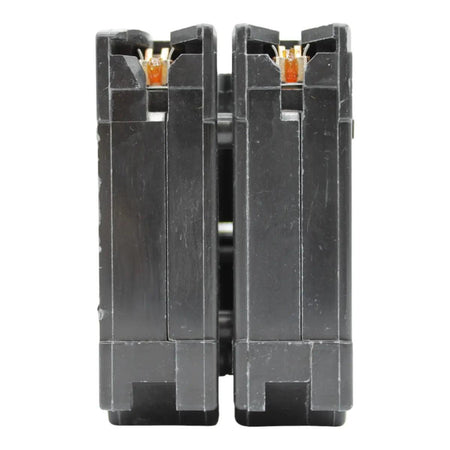

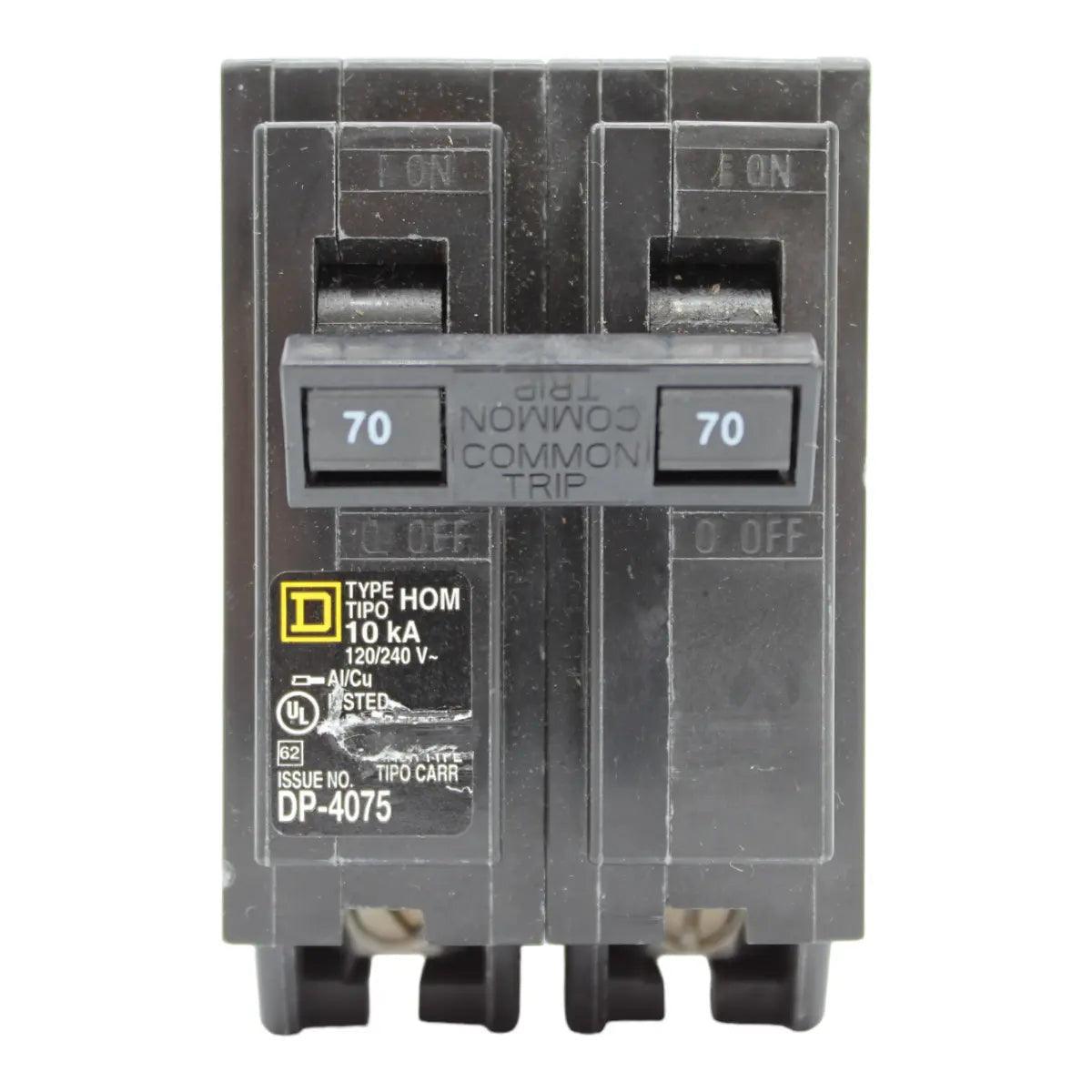

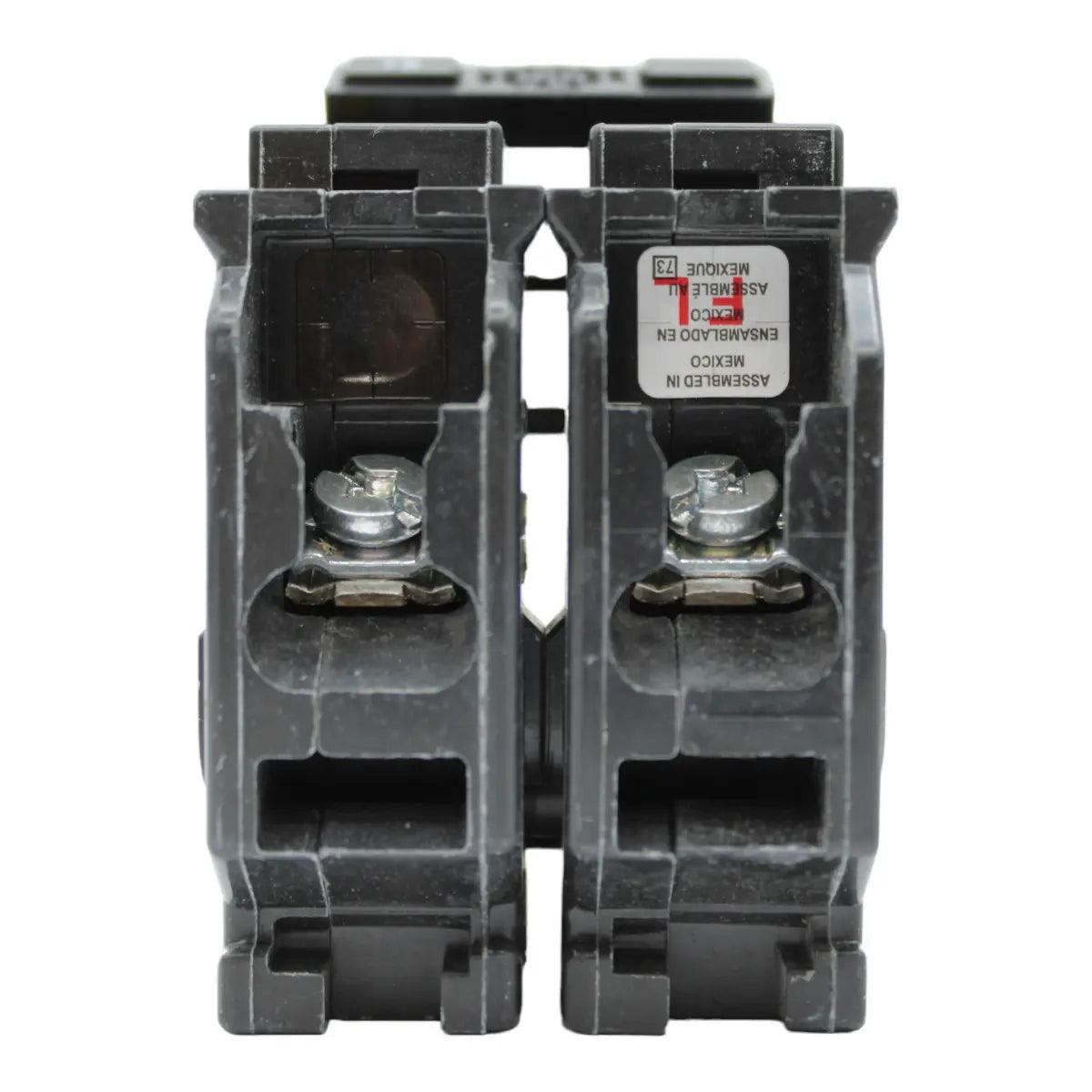

Square D Homeline HOM270 70A 2P 120/240V Standard Plug-In Circuit Breaker

Square D HOM270: 70 Amp 2-Pole Standard Circuit Breaker, 120/240V, 10kA, plug-in, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: Homeline (for Square D Homeline loadcenters and equipment)
• UPC: 785901065340
• Model Number: HOM270
• Breaker Type: Standard
• Amperage: 70 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Box lugs
• Wire Size: (1) #8-2 AWG Cu/Al
• Tightening Torque: 40.7 lb-in
• Dimensions: Height: 3.13 in; Width: 2.0 in; Depth: 2.98 in
• Weight: 0.730 lbs
• Certifications: UL Listed, HACR Rated

This Square D HOM270 plug-in circuit breaker provides reliable 70A, 2-pole standard protection for 120/240V circuits in Homeline loadcenters. Engineered for fast installation and superior circuit protection, it ensures safety and compatibility for residential and commercial applications.
