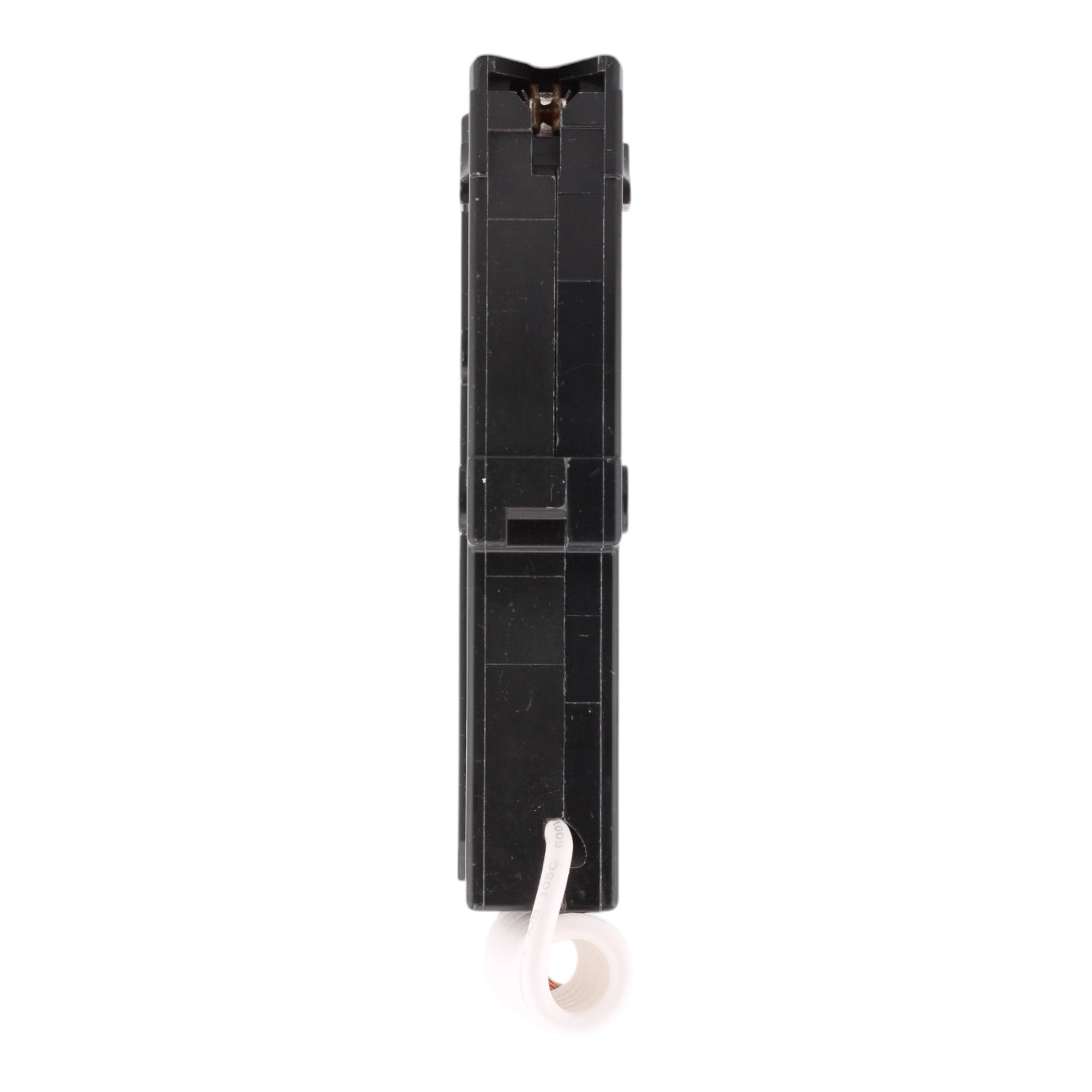

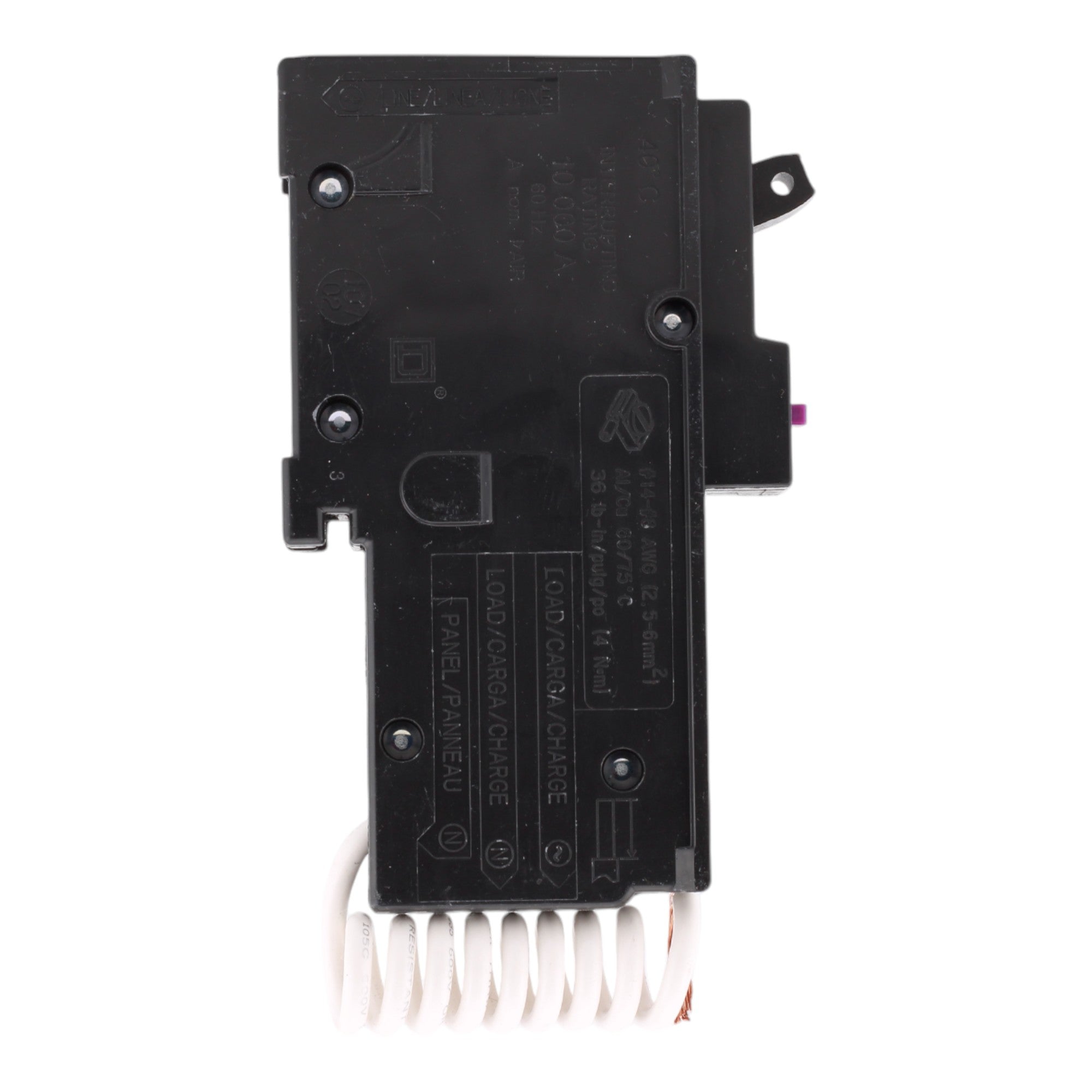

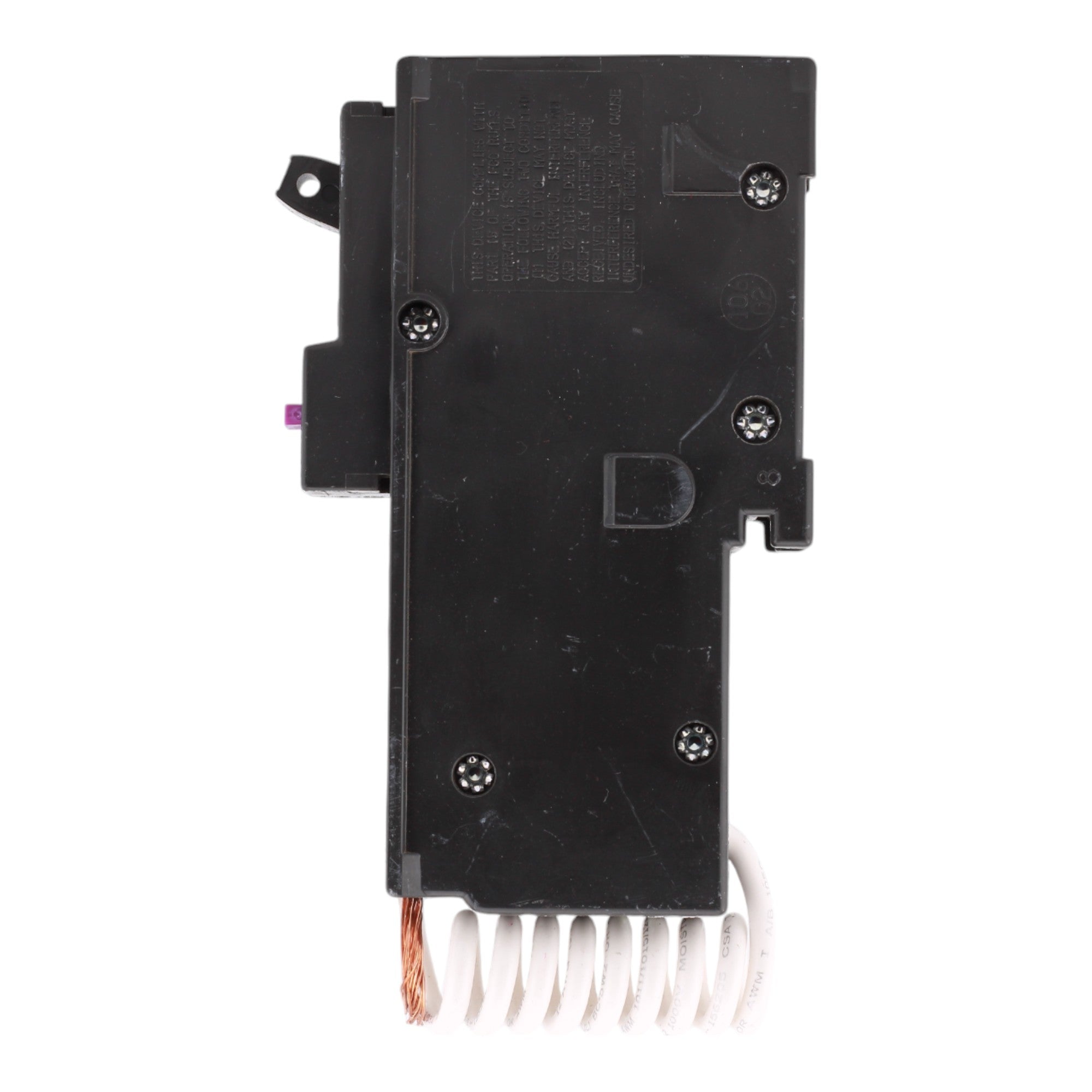

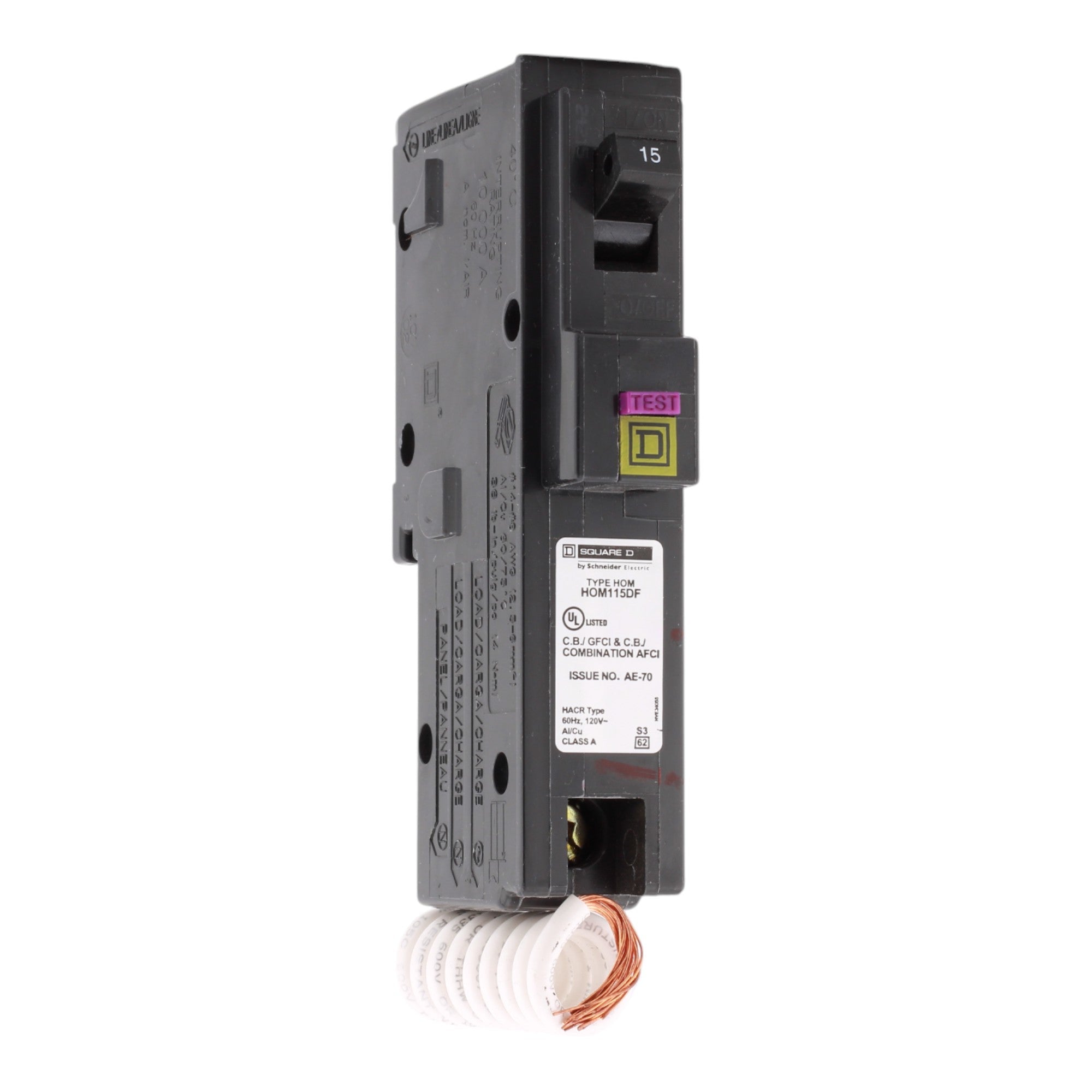

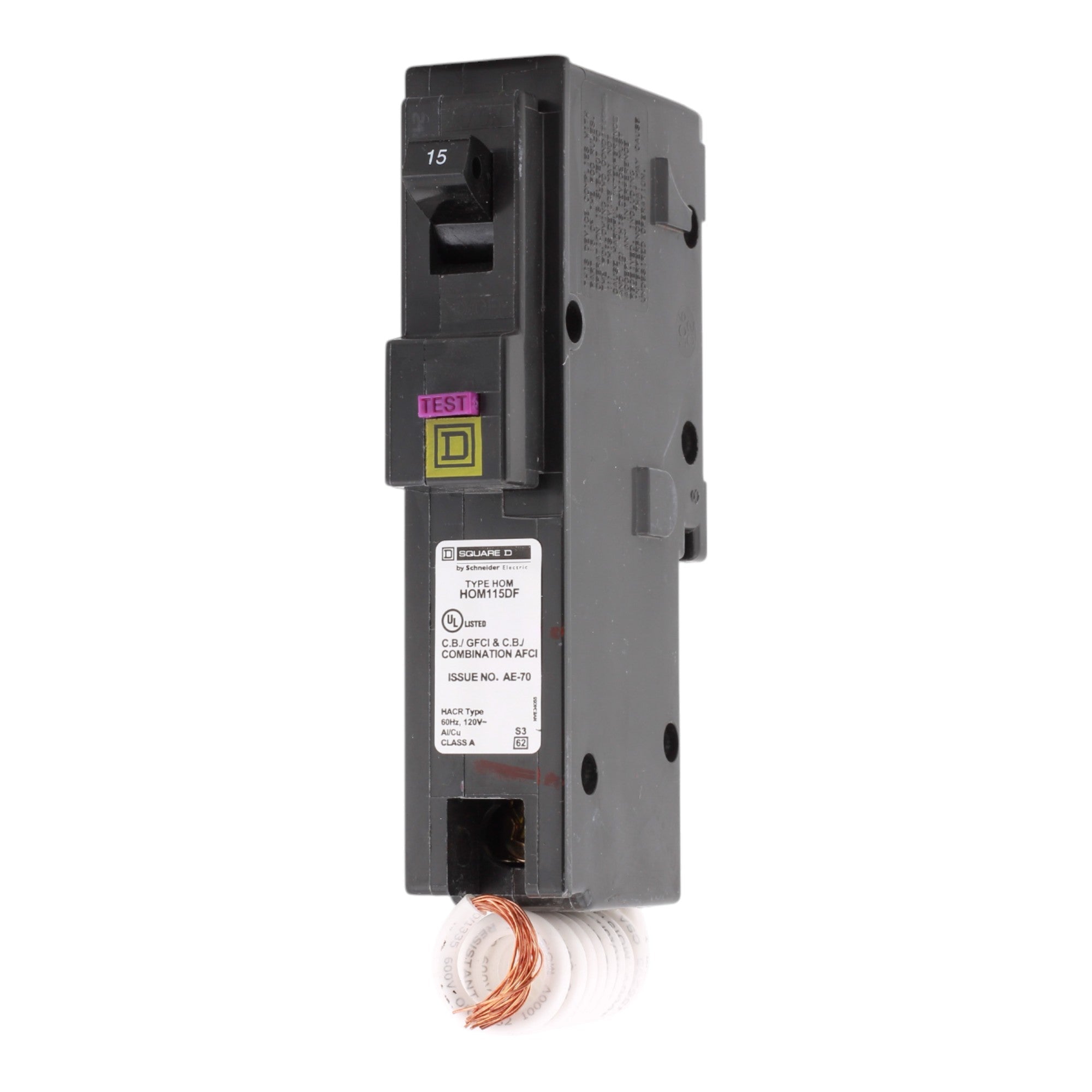

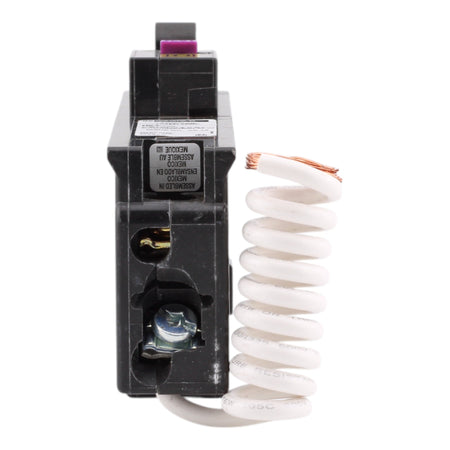

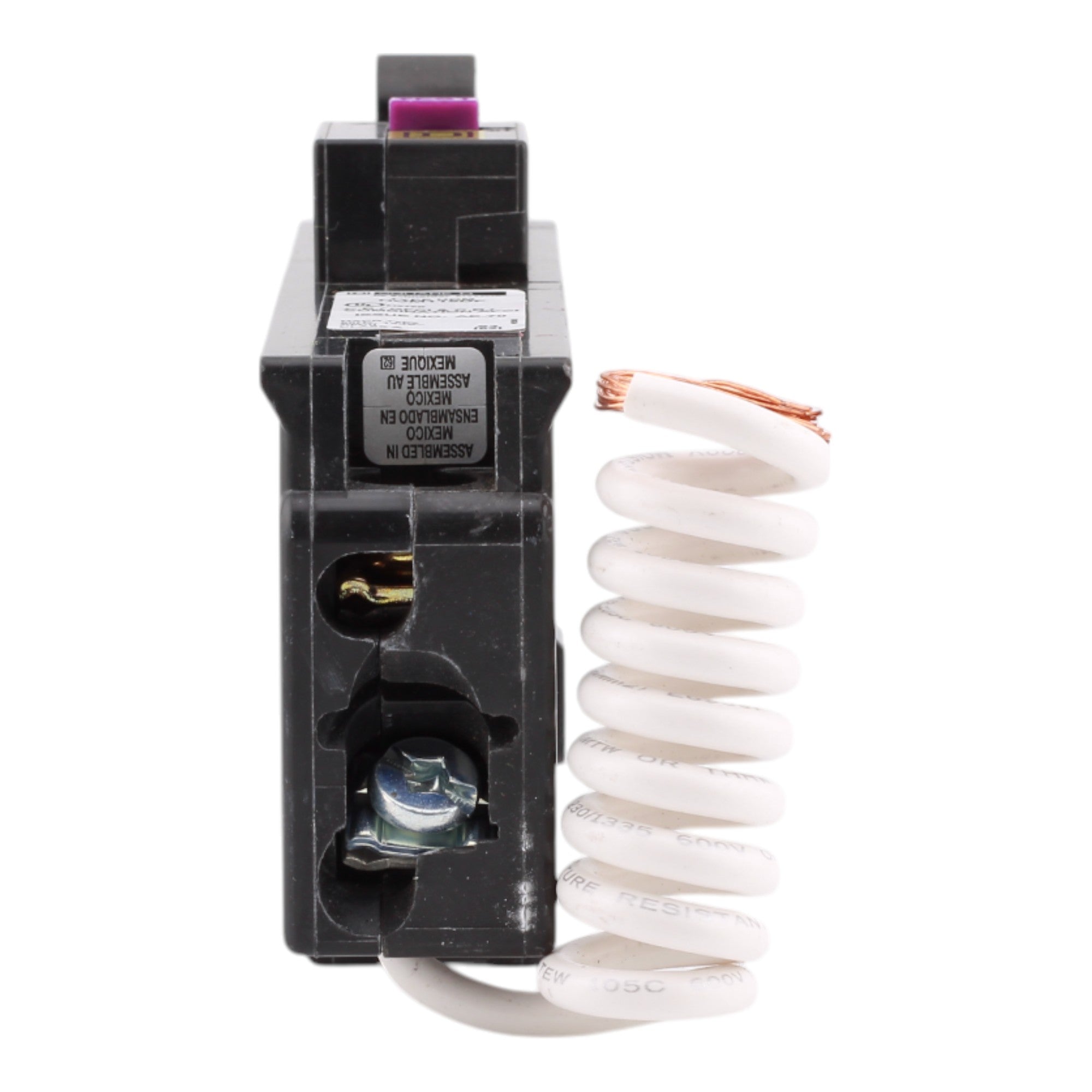

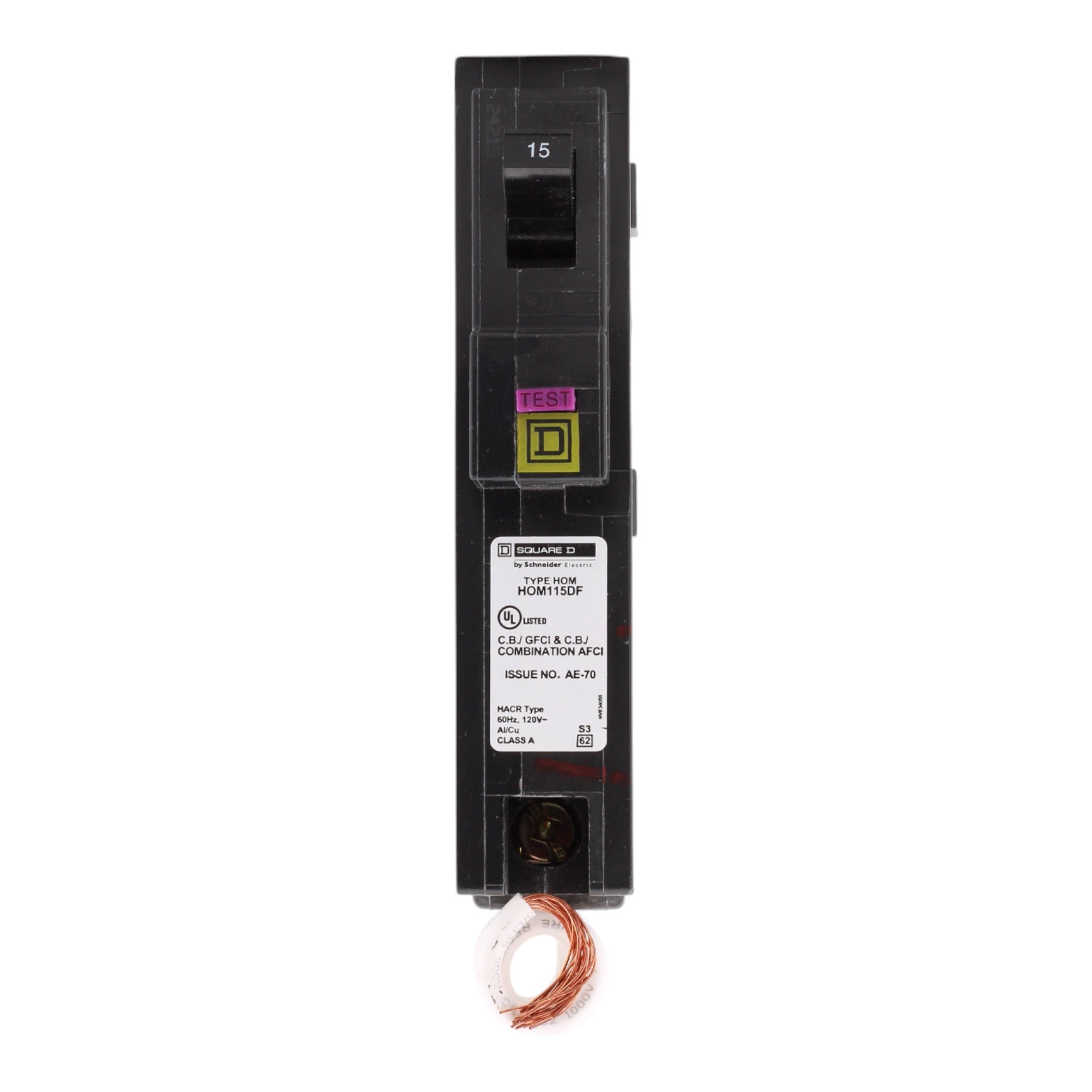

Square D Homeline HOM115DF 15A 1P 120V AFCI/GFCI Pigtail Neutral Circuit Breaker

Square D HOM115DF: 15 Amp 1-Pole AFCI/GFCI Arc-Fault/Ground-Fault Circuit Interrupter breaker, 120V, 10kA, pigtail neutral, 6mA trip sensitivity, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: Homeline (for Square D Homeline loadcenters and equipment)
• UPC: 785901687436
• Model Number: HOM115DF
• Breaker Type: Combination Arc-Fault/Ground-Fault Circuit Interrupter (AFCI/GFCI)
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail neutral
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Tightening Torque: 35.4 lb-in
• Dimensions: Height: 3.13 in; Width: 1.0 in; Depth: 2.98 in
• Weight: 0.699 lbs
• Certifications: UL Listed, HACR Rated
• Trip Sensitivity: 6 mA ground fault protection

This Square D HOM115DF pigtail neutral circuit breaker provides reliable 15A, 1-pole AFCI/GFCI protection for 120V circuits in Homeline loadcenters. With 6mA ground fault detection and arc-fault protection, it ensures enhanced safety for residential applications.
